Isuzu WW
▶
TRUCKS
▶
FVM
▶
10834 - FVM/FVZ-LHD
▶
3 - Brakes, Brake System
▶
3-40 - FRONT BRAKE POWER CHAMBER
▶

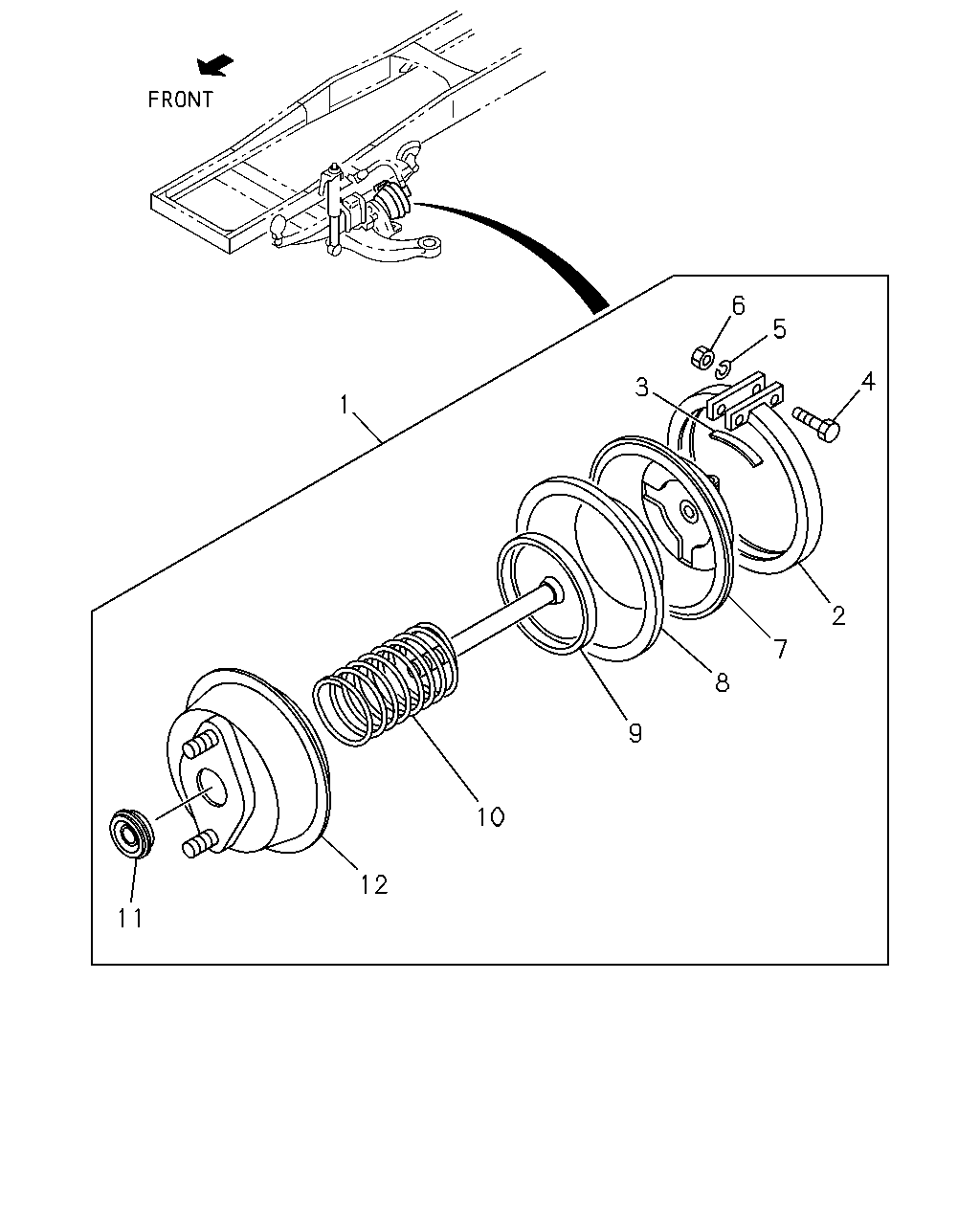

3-40 — FRONT BRAKE POWER CHAMBER
(#10306) — 39 parça
Tümü
A - FVM6MF
B - FVZ6MF
6
5
4
3
1
2
7
8
9
10
12
11
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
CHAMBER ASM; POWER,FRT BRK
1-48250-338-0
02
1
0006-0009
●
●
1
CHAMBER ASM; POWER,FRT BRK
1-48250-338-0
02
1
0010-0011
●
1
CHAMBER ASM; POWER,FRT BRK
1-48250-338-0
02
1
0012-0203
●
●
1
CHAMBER ASM; POWER,FRT BRK
1-48250-062-2
02
1
0204-
●
●
2
RING; CLAMP,SPR CHAMBER
1-48259-001-0
02
1
0006-0009
●
●
2
RING; CLAMP,SPR CHAMBER
1-48259-001-0
02
1
0010-0011
●
2
RING; CLAMP,SPR CHAMBER
1-48259-001-0
02
1
0012-
●
●
3
RETAINER; DIAPH
9-48259-016-0
04
1
0006-0009
●
●
3
RETAINER; DIAPH
9-48259-016-0
04
1
0010-0011
●
3
RETAINER; DIAPH
9-48259-016-0
04
1
0012-0203
●
●
3
RETAINER; DIAPH
9-48259-016-0
02
1
0204-
●
●
4
BOLT; CLAMP RING
1-48259-002-0
04
1
0006-0009
●
●
4
BOLT; CLAMP RING
1-48259-002-0
04
1
0010-0011
●
4
BOLT; CLAMP RING
1-48259-002-0
04
1
0012-
●
●
5
WASHER; LK,CLAMP RING
ID=10.2
9-09150-510-0
04
1
0006-0009
●
●
5
WASHER; LK,CLAMP RING
ID=10.2
9-09150-510-0
04
1
0010-0011
●
5
WASHER; LK,CLAMP RING
ID=10.2
9-09150-510-0
04
1
0012-
●
●
6
NUT; CLAMP RING
M10
9-09110-010-0
04
1
0006-0009
●
●
6
NUT; CLAMP RING
M10
9-09110-010-0
04
1
0010-0011
●
6
NUT; CLAMP RING
M10
9-09110-010-0
04
1
0012-
●
●
7
COVER ASM; UPR,SPR CHAMBER
1-48251-039-0
02
1
0006-0009
●
●
7
COVER ASM; UPR,SPR CHAMBER
1-48251-039-0
02
1
0010-0011
●
7
COVER ASM; UPR,SPR CHAMBER
1-48251-039-0
02
1
0012-
●
●
8
DIAPHRAGM; SPR CHAMBER
1-48252-006-0
02
1
0006-0009
●
●
8
DIAPHRAGM; SPR CHAMBER
1-48252-006-0
02
1
0010-0011
●
8
DIAPHRAGM; SPR CHAMBER
1-48252-006-0
02
1
0012-0203
●
●
8
DIAPHRAGM; SPR CHAMBER
1-48252-054-0
02
1
0204-
●
●
9
PISTON; SPR CHAMBER
1-48253-001-0
02
1
0006-0009
●
●
9
PISTON; SPR CHAMBER
1-48253-001-0
02
1
0010-0011
●
9
PISTON; SPR CHAMBER
1-48253-001-0
02
1
0012-
●
●
10
SPRING; PISTON,SPR CHAMBER
1-48255-001-0
02
1
0006-0009
●
●
10
SPRING; PISTON,SPR CHAMBER
1-48255-001-0
02
1
0010-0011
●
10
SPRING; PISTON,SPR CHAMBER
1-48255-001-0
02
1
0012-
●
●
11
SEAL; PISTON,SPR CHAMBER
1-48252-025-0
02
1
0006-0009
●
●
11
SEAL; PISTON,SPR CHAMBER
1-48252-025-0
02
1
0010-0011
●
11
SEAL; PISTON,SPR CHAMBER
1-48252-025-0
02
1
0012-
●
●
12
COVER ASM; LWR,SPR CHAMBER
1-48251-019-0
02
1
0006-0009
●
●
12
COVER ASM; LWR,SPR CHAMBER
1-48251-019-0
02
1
0010-0011
●
12
COVER ASM; LWR,SPR CHAMBER
1-48251-019-0
02
1
0012-
●
●
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
