Isuzu WW
▶
TRUCKS
▶
FVR
▶
10630 - FVR-RHD
▶
0 - Engine, Emission, Engine Electrical
▶
0-32 - WATER PIPING; ENGINE
▶
0-32 — WATER PIPING; ENGINE
(#1030) — 56 parça
Tümü
A - 6SA1 STD ENG
B - 6SA1TC ENG
C - 6HE1 STD ENG
◀

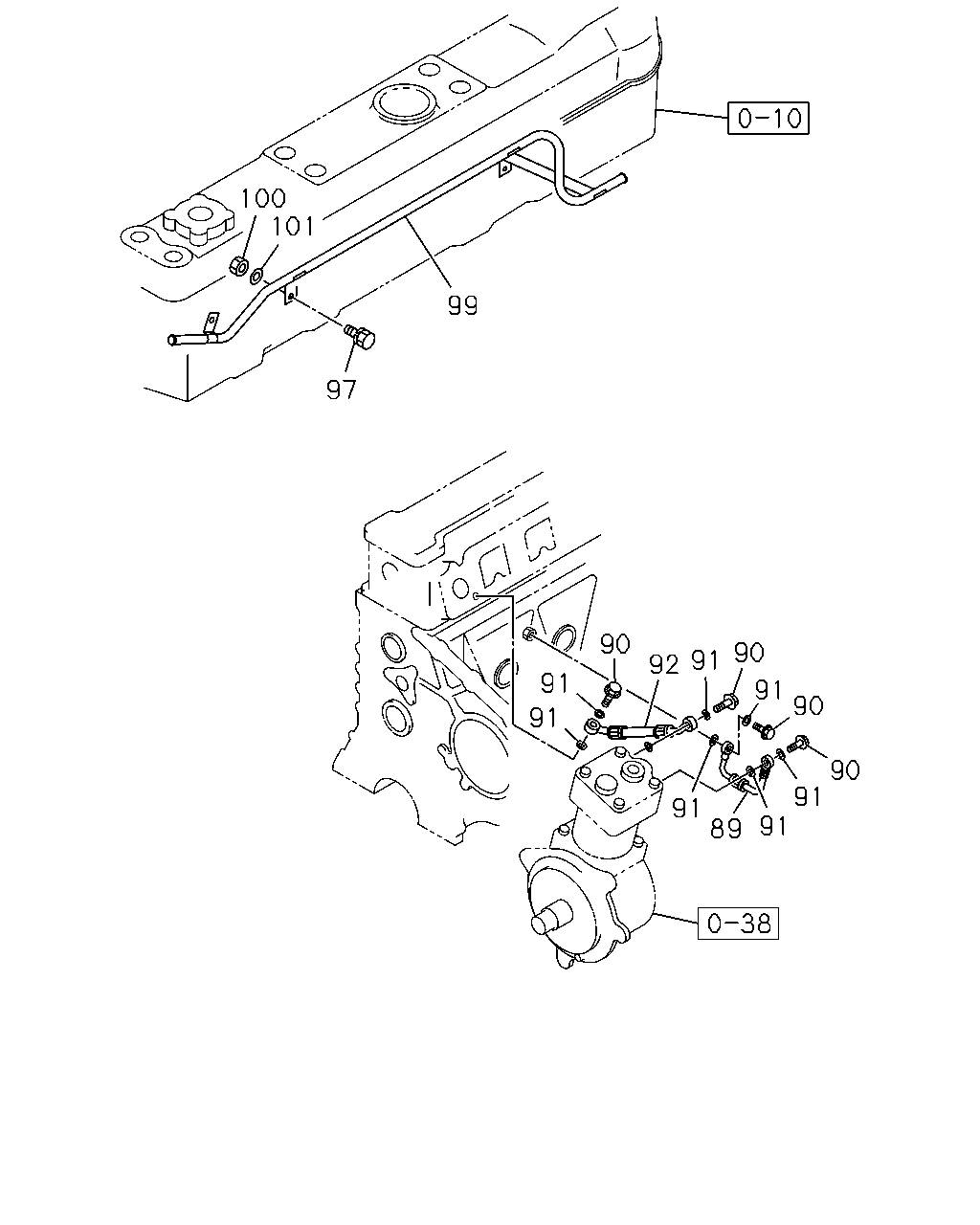

[032A] 6SA1 ENG (27 parça)

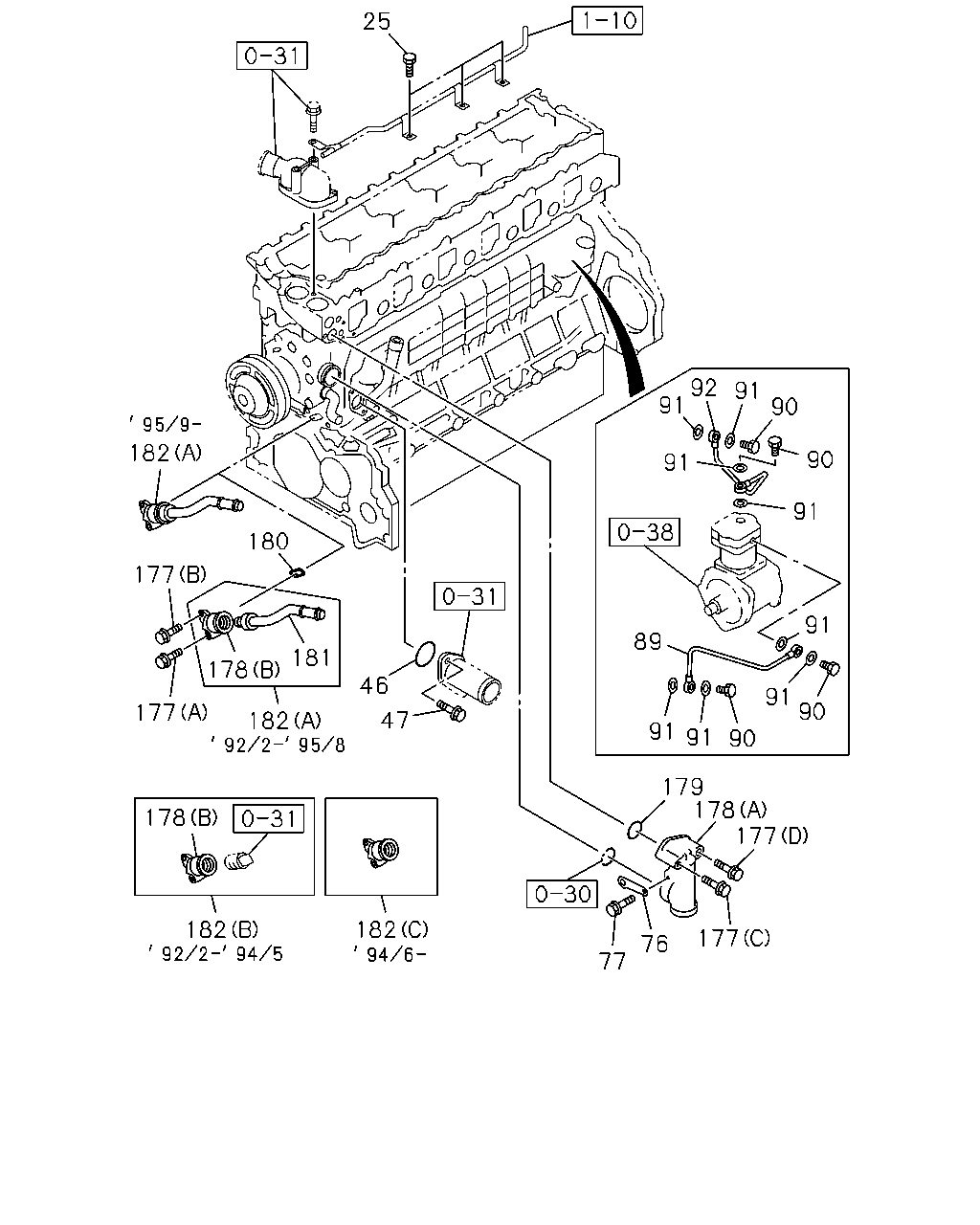

[032A] 6HE1 ENG (29 parça)
▶
100
101
99
97
90
90
91
92
91
91
90
91
90
91
91
91
89
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
89
PIPE; WATER,AIR CMPR,IN
1-13721-409-0
01
1
9202-
●
●
89
PIPE; WATER,AIR CMPR,IN
8-94397-035-1
01
1
9202-
●
90
BOLT; EYE,WATER PIPE,AIR CMPR
M14X27 EYE-BOLT
1-09675-193-0
04
1
9202-
●
●
●
91
GASKET; WATER PIPE,AIR CMPR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2
1-09630-085-0
08
1
9202-
●
●
●
92
PIPE; WATER,AIR CMPR,OUT
1-13721-304-0
01
1
9202-
●
●
92
PIPE; WATER,AIR CMPR,OUT
8-94397-036-2
01
1
9202-9410
●
92
PIPE; WATER,AIR CMPR,OUT
8-94395-742-1
01
1
9411-
●
97
BOLT; WATER PIPE
AUSTRALIA EQUIPMENT(RR3) M8X16 W/LK WASHER
0-50040-816-0
03
1
9202-9405
●
97
BOLT; WATER PIPE
M8X16 W/LK WASHER
0-50040-816-0
03
1
9202-9405
●
97
BOLT; WATER PIPE
M8X16 W/LK WASHER
0-50040-816-0
03
1
9406-9410
●
97
BOLT; WATER PIPE
HONG KONG EQUIPMENT(PQ1) M8X16 W/LK WASHER
0-50040-816-0
03
1
9411-
●
97
BOLT; WATER PIPE
M8X16 W/LK WASHER
0-50040-816-0
03
1
9411-
●
97
BOLT; WATER PIPE
EXC. AUSTRALIA EQUIPMENT(RR3) M8X16 W/LK WASHER
0-50040-816-0
01
1
9202-9405
●
97
BOLT; WATER PIPE
M8X16 W/LK WASHER
0-50040-816-0
01
1
9406-9410
●
97
BOLT; WATER PIPE
EXC. HONG KONG EQUIPMENT(PQ1) M8X16 W/LK WASHER
0-50040-816-0
01
1
9411-
●
99
PIPE; WATER,OVERFLOW
AUSTRALIA EQUIPMENT(RR3)
1-13711-568-0
01
1
9202-9405
●
99
PIPE; WATER,OVERFLOW
EXC. AUSTRALIA EQUIPMENT(RR3)
1-13711-423-2
01
1
9202-9405
●
99
PIPE; WATER,OVERFLOW
1-13711-423-2
01
1
9406-9410
●
99
PIPE; WATER,OVERFLOW
EXC. HONG KONG EQUIPMENT(PQ1)
1-13711-423-2
01
1
9411-
●
99
PIPE; WATER,OVERFLOW
HONG KONG EQUIPMENT(PQ1)
1-13711-568-0
01
1
9411-
●
99
PIPE; WATER,OVERFLOW
1-13711-394-0
01
1
9202-
●
100
NUT; WATER PIPE
EXC. AUSTRALIA EQUIPMENT(RR3) M10 FLANGE
0-91150-210-0
02
1
9202-9405
●
100
NUT; WATER PIPE
M10 FLANGE
0-91150-210-0
02
1
9406-9410
●
100
NUT; WATER PIPE
EXC. HONG KONG EQUIPMENT(PQ1) M10 FLANGE
0-91150-210-0
02
1
9411-
●
101
WASHER; PL,WATER PIPE
EXC. AUSTRALIA EQUIPMENT(RR3) ID=10.5
9-09164-510-0
02
1
9202-9405
●
101
WASHER; PL,WATER PIPE
ID=10.5
9-09164-510-0
02
1
9406-9410
●
101
WASHER; PL,WATER PIPE
EXC. HONG KONG EQUIPMENT(PQ1) ID=10.5
9-09164-510-0
02
1
9411-
●
25
92
91
91
90
182
90
91
91
180
177
91
89
181
178
46
91
90
177
47
182
91
91
90
179
178
177
178
182
182
177
76
77
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
25
BOLT; WATER PIPE
M8X12 FLANGE
0-28080-812-0
03
1
9202-
●
46
GASKET; WATER DUCT,TO OIL COOLER
ALSO INCLUDED IN GASKET SET(ENGINE). ID=48.5 OD=53.3
8-94396-680-2
01
1
9202-
●
47
BOLT; DUCT,TO OIL COOLER
M8X18 FLANGE
0-28080-818-0
01
1
9202-
●
47
BOLT; DUCT,TO OIL COOLER
M8X40 FLANGE
0-28080-840-0
01
1
9202-
●
76
BRACKET; WATER DUCT,PUMP
8-94396-611-0
01
1
9202-9208
●
76
BRACKET; WATER DUCT,PUMP
8-94394-784-0
01
1
9209-
●
77
BOLT; BRKT,WATER DUCT
M8X22 FLANGE
0-28080-822-0
01
1
9202-9503
●
77
BOLT; BRKT,WATER DUCT
M8X50 FLANGE
0-28080-850-0
01
1
9504-
●
89
PIPE; WATER,AIR CMPR,IN
1-13721-409-0
01
1
9202-
●
●
89
PIPE; WATER,AIR CMPR,IN
8-94397-035-1
01
1
9202-
●
90
BOLT; EYE,WATER PIPE,AIR CMPR
M14X27 EYE-BOLT
1-09675-193-0
04
1
9202-
●
●
●
91
GASKET; WATER PIPE,AIR CMPR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2
1-09630-085-0
08
1
9202-
●
●
●
92
PIPE; WATER,AIR CMPR,OUT
1-13721-304-0
01
1
9202-
●
●
92
PIPE; WATER,AIR CMPR,OUT
8-94397-036-2
01
1
9202-9410
●
92
PIPE; WATER,AIR CMPR,OUT
8-94395-742-1
01
1
9411-
●
177
BOLT; WATER DUCT
(B) M8X22 FLANGE
0-28080-822-0
01
1
9202-
●
177
BOLT; WATER DUCT
(A) M8X65
8-94158-393-1
01
1
9202-9306
●
177
BOLT; WATER DUCT
(A) M8X65 FLANGE
1-09044-072-1
01
1
9307-
●
177
BOLT; WATER DUCT
(C) M8X79 FLANGE
8-94311-617-1
01
1
9202-
●
177
BOLT; WATER DUCT
(D) M16X75 FLANGE
8-94397-360-0
01
1
9202-
●
178
DUCT; WATER,BYPASS
(A)
8-94396-627-2
01
1
9202-
●
178
DUCT; WATER,BYPASS
(B)
8-94396-721-1
01
1
9202-9508
●
179
GASKET; WATER DUCT
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=31.2
8-94396-679-0
01
1
9202-
●
180
GASKET; WATER DUCT
ALSO INCLUDED IN GASKET SET(ENGINE).
8-94396-720-1
01
1
9202-
●
181
CONNECTOR; BYPASS,DUCT
8-94397-341-2
01
1
9202-9508
●
182
DUCT; WATER,HTR
HEATER & DEFROSTER(C41),AIR CON MANUAL CONTROL(C60) (A)
8-94396-724-2
01
1
9202-9508
●
182
DUCT; WATER,HTR
HEATER & DEFROSTER(C41),AIR CON MANUAL CONTROL(C60) (A)
8-94396-724-3
01
1
9509-
●
182
DUCT; WATER,HTR
EXC. HEATER & DEFROSTER(C41),AIR CON MANUAL CONTROL(C60) (B)
8-94396-726-0
01
1
9202-9404
●
182
DUCT; WATER,HTR
EXC. HEATER & DEFROSTER(C41),AIR CON MANUAL CONTROL(C60) (C)
8-94390-283-0
01
1
9405-
●
