Isuzu WW
▶
TRUCKS
▶
FSR
▶
10624 - FSR-RHD
▶
7 - Interior Trim, Emblems / Labels, Seats, Mirrors
▶
7-45 - CONSOLE BOX
▶

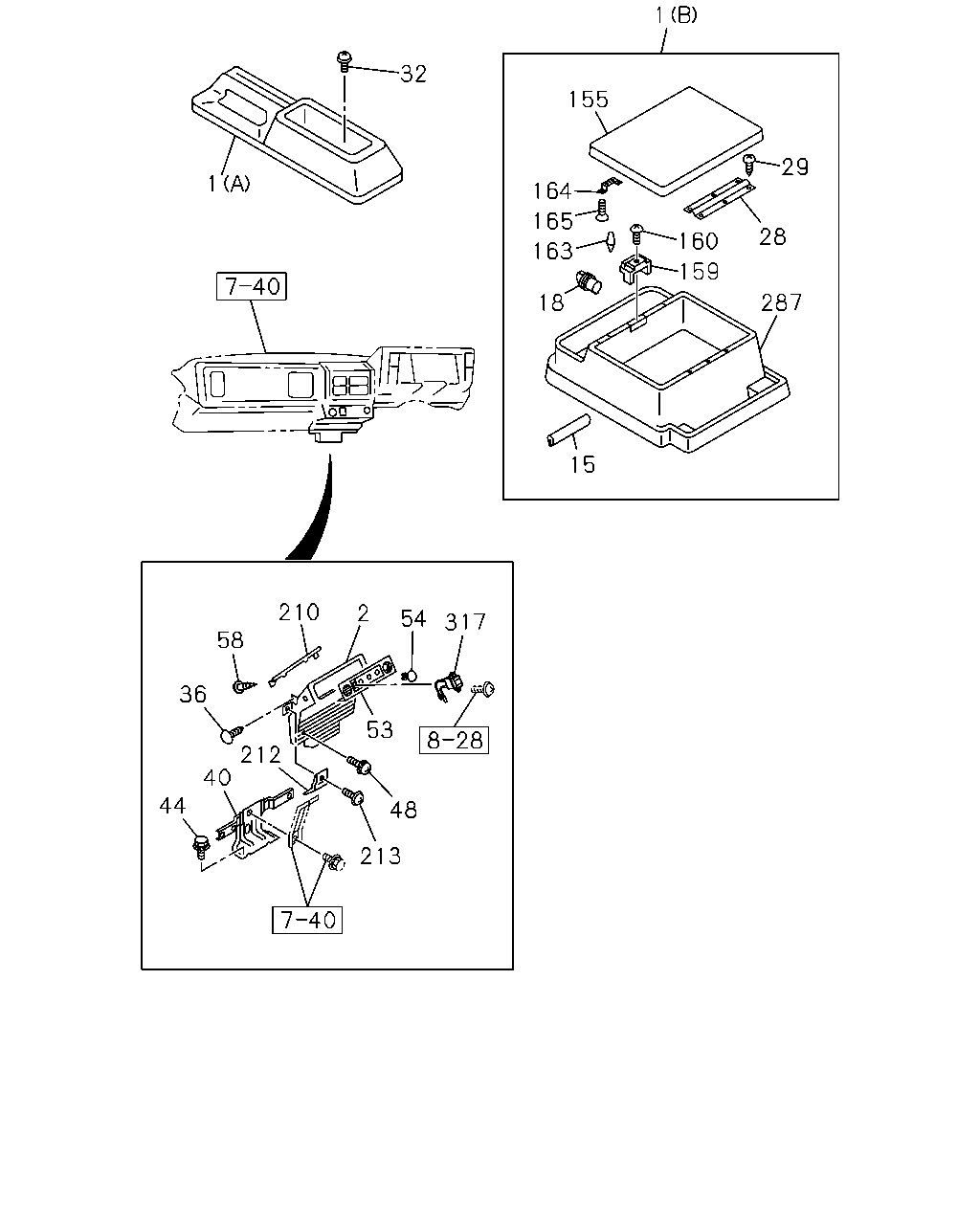

7-45 — CONSOLE BOX
(#103) — 27 parça
Tümü
A - FSR5MF
B - FSR5WF
1
32
155
29
1
164
165
28
160
163
159
287
18
15
210
2
54
317
58
36
53
212
40
44
48
213
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
BOX; PARCEL
SEPARATE PASSENGER CENTER SEAT<WP2> (B)
1-72538-084-1
01
1
9202-
●
●
1
BOX; PARCEL
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)
1-72538-111-0
01
1
9202-
●
●
2
CONSOLE; CENTER
1-72448-291-0
01
1
9202-
●
●
15
FINISHER; PARCEL BOX
SEPARATE PASSENGER CENTER SEAT<WP2> L=190
1-71998-300-0
04
1
9202-
●
●
18
LOCK ASM; PARCEL BOX LID
SEPARATE PASSENGER CENTER SEAT<WP2>
1-72548-090-0
01
1
9202-
●
●
28
HINGE; PARCEL BOX
SEPARATE PASSENGER CENTER SEAT<WP2>
1-72448-264-1
01
1
9202-
●
●
29
SCREW; HINGE
SEPARATE PASSENGER CENTER SEAT<WP2> M4X16
0-70080-416-0
06
1
9202-
●
●
32
SCREW; PARCEL BOX
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M6X20
1-09981-446-0
04
1
9202-
●
●
36
FASTENER; CENTER CONSOLE
BLACK
8-94104-935-0
01
1
9407-
●
●
40
BRACKET; SUPPORT,CENTER CONSOLE
1-65680-365-1
01
1
9202-
●
●
44
BOLT; SUPPORT,CTR CONSOLE
M6X16 W/LK&PL WASHER
1-09980-458-0
02
1
9202-9307
●
●
44
BOLT; SUPPORT,CTR CONSOLE
M6X16 W/LK&PL WASHER
1-09980-586-0
02
1
9308-
●
●
48
SCREW; BRKT,CENTER CONSOLE
M6X16 W/LK&PL WASHER
1-09981-367-0
02
1
9202-
●
●
53
PANEL; SW,CENTER CONSOLE
1-72448-239-2
01
1
9202-
●
●
54
BUTTON; CLIP,CTR CONSOLE
1-72447-390-0
03
1
9202-
●
●
58
SCREW; SW PNL
M5X14 W/PL WASHER
5-09981-050-0
04
1
9202-
●
●
155
LID; PARCEL BOX
SEPARATE PASSENGER CENTER SEAT<WP2>
1-72447-423-2
01
1
9202-
●
●
159
STRIKER; CONSOLE
SEPARATE PASSENGER CENTER SEAT<WP2>
1-72548-068-2
01
1
9202-
●
●
160
SCREW; STRIKER,PARCEL BOX LID
SEPARATE PASSENGER CENTER SEAT<WP2> M5X20 TAPPING OVAL-HEAD
9-07037-520-0
01
1
9202-
●
●
163
RUBBER; CUSHION,PARCEL BOX LID
SEPARATE PASSENGER CENTER SEAT<WP2>
5-09983-002-1
02
1
9202-
●
●
164
BRACKET; CUSHION,PARCEL BOX LID
SEPARATE PASSENGER CENTER SEAT<WP2>
1-72548-057-1
02
1
9202-
●
●
165
SCREW; BRKT,PARCEL BOX LID CUSHION
SEPARATE PASSENGER CENTER SEAT<WP2> M3X10 TAPPING CK-HEAD
0-70080-310-0
04
1
9202-
●
●
210
REINFORCEMENT; CTR CONSOLE
1-72448-241-2
01
1
9202-
●
●
212
SUPPORT; CONSOLE TO COMPT
1-65680-453-0
01
1
9202-
●
●
213
SCREW; CONSOLE TO COMPT
1-09981-388-1
01
1
9202-
●
●
287
BOX; PARCEL
SEPARATE PASSENGER CENTER SEAT<WP2>
1-72538-085-0
01
1
9202-
●
●
317
CONSENT
24V 10A
1-82523-012-2
01
1
9202-
●
●
