Sayfa 3-05 - Isuzu EPC

3-05 — REAR WHEEL BRAKE (#10299) — 918 parça

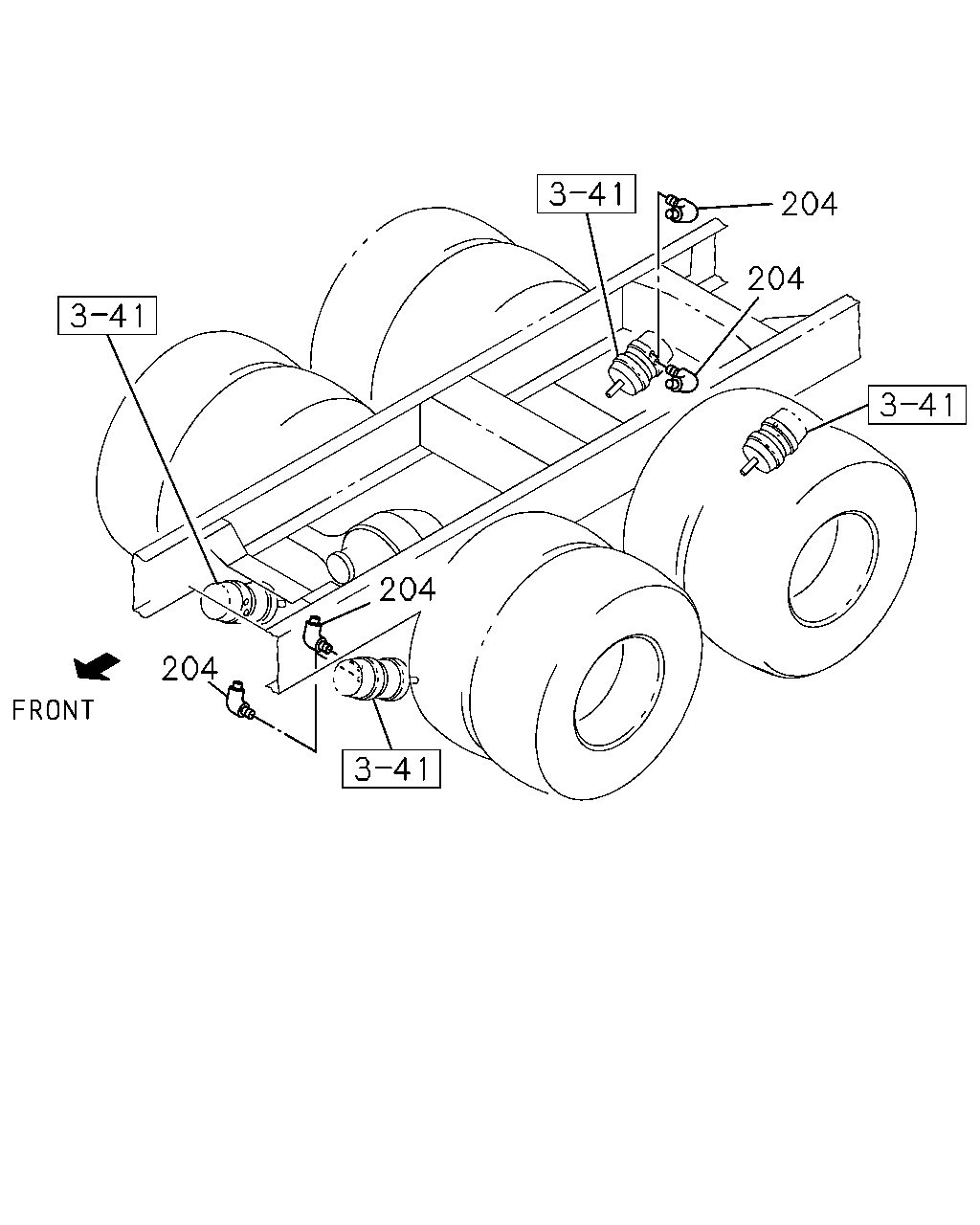

204 204 204 204

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
204	CONNECTOR; SPR CHAMBER DIN12 & R3/8 ELBOW	1-09660-653-1	04	1	0006-	●
204	CONNECTOR; SPR CHAMBER DIN12 & R3/8 ELBOW	1-09660-653-1	04	1	0006-	●
204	CONNECTOR; SPR CHAMBER DIN12 & R3/8 ELBOW	1-09660-653-1	06	1	0006-		●

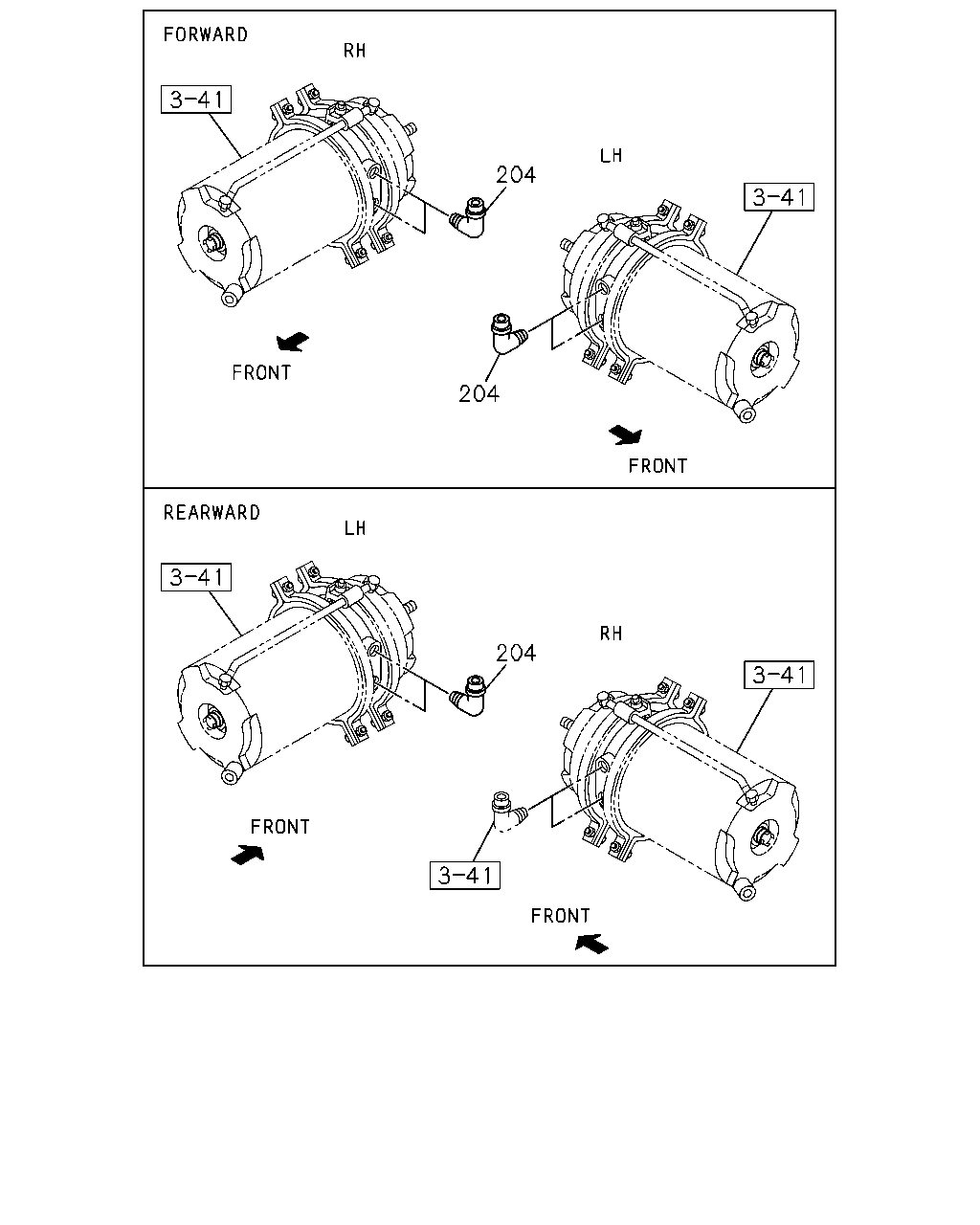

204 204 204

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
204	CONNECTOR; SPR CHAMBER DIN12 & R3/8 ELBOW	1-09660-653-1	04	1	0006-	●
204	CONNECTOR; SPR CHAMBER DIN12 & R3/8 ELBOW	1-09660-653-1	04	1	0006-	●
204	CONNECTOR; SPR CHAMBER DIN12 & R3/8 ELBOW	1-09660-653-1	06	1	0006-		●

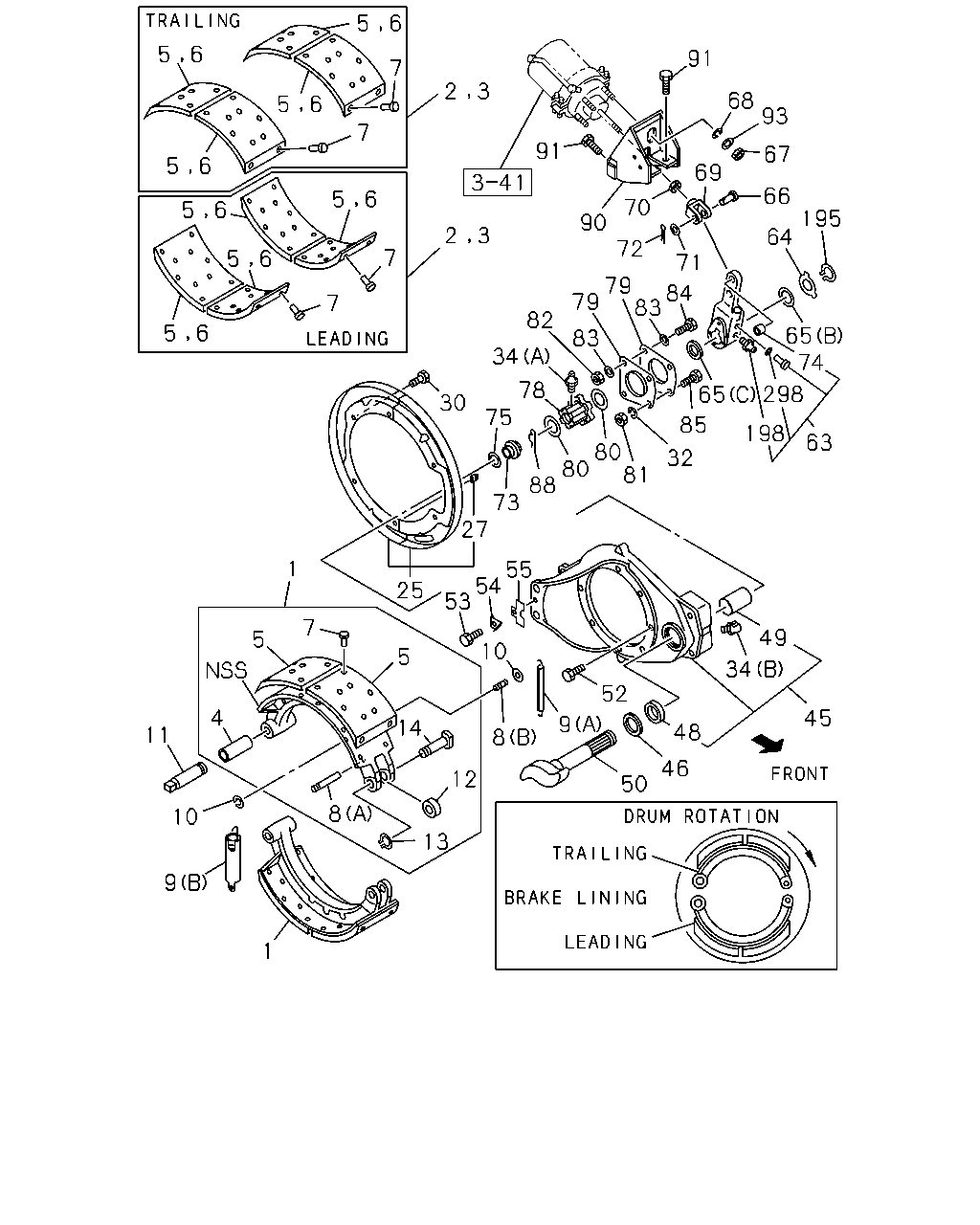

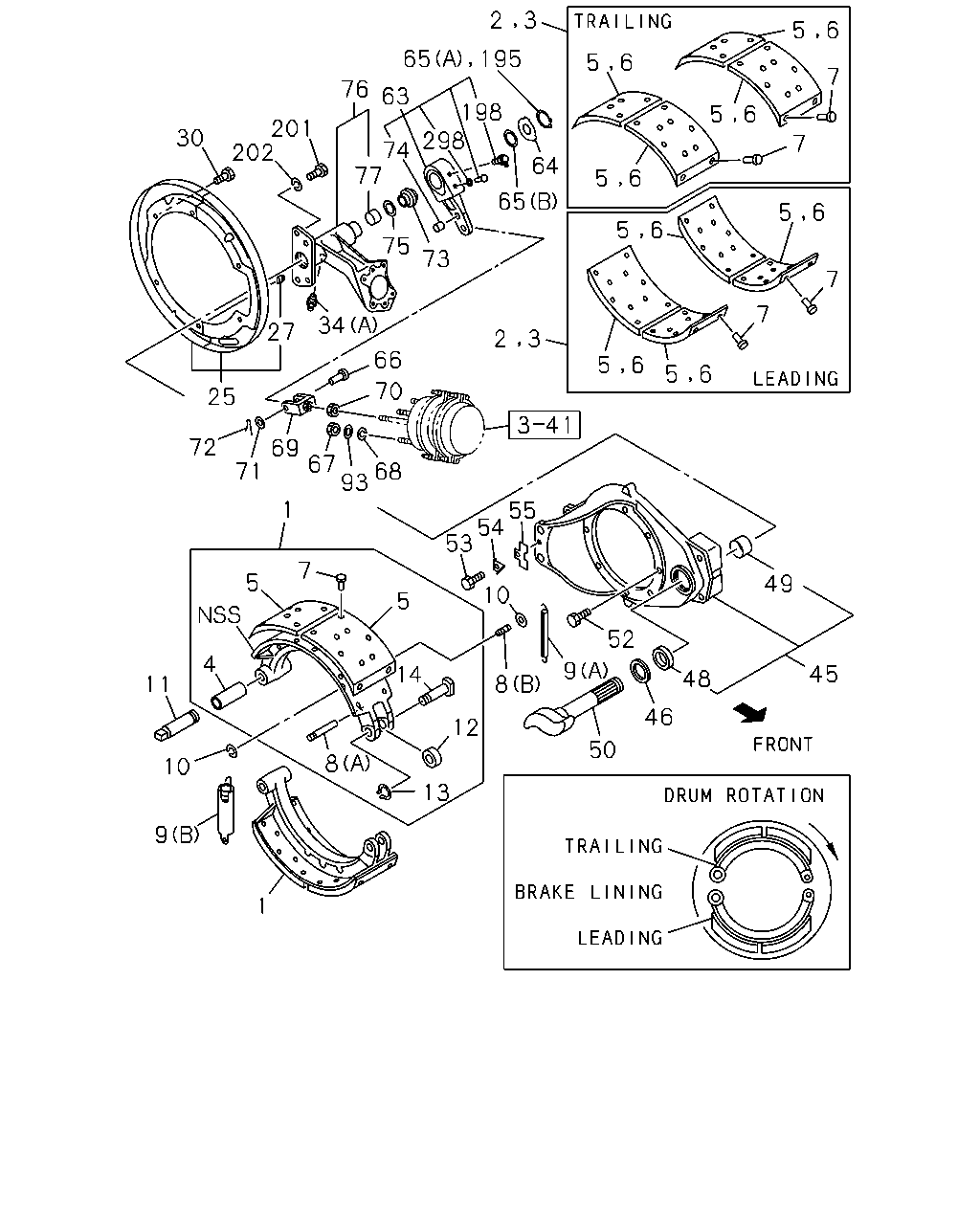

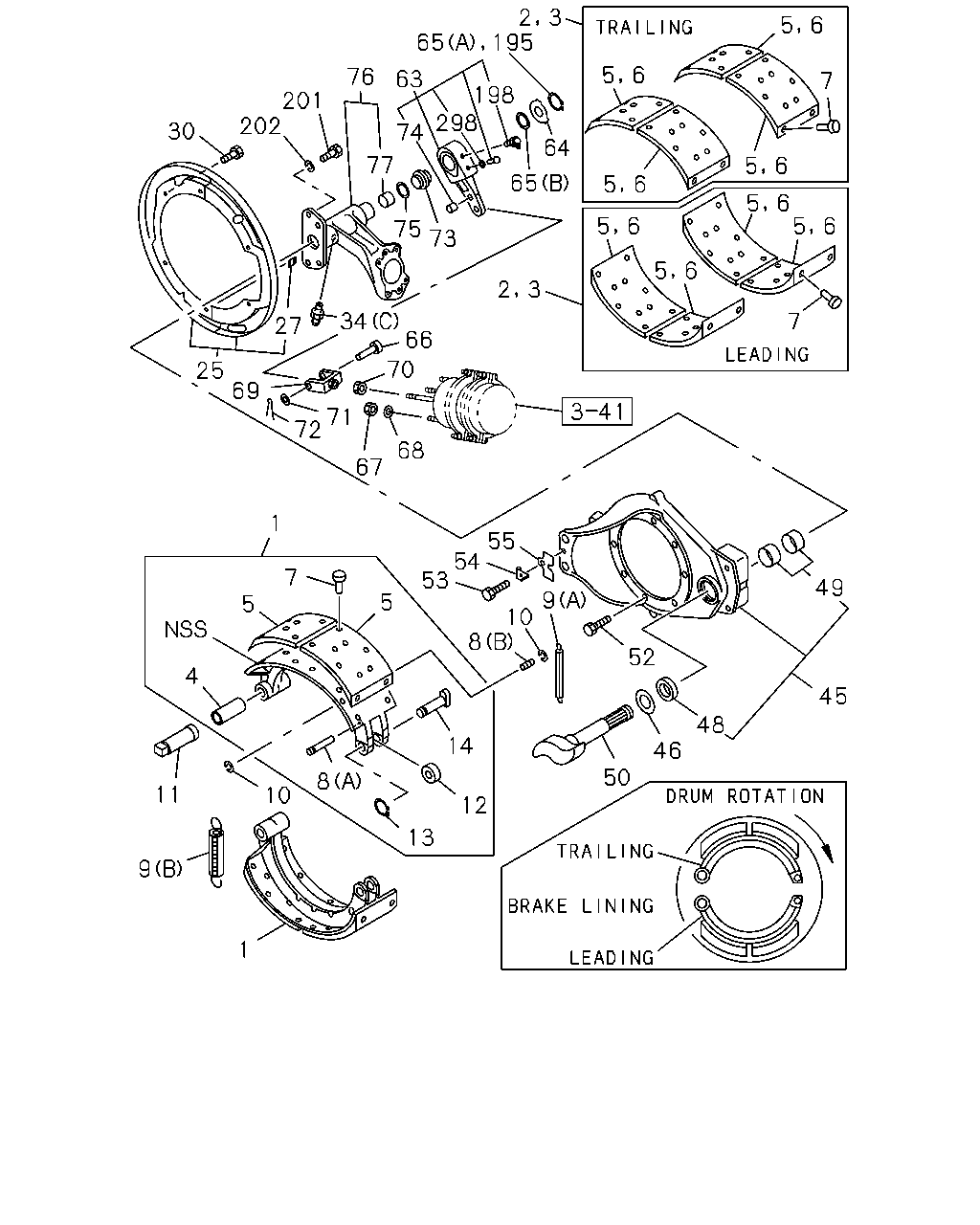

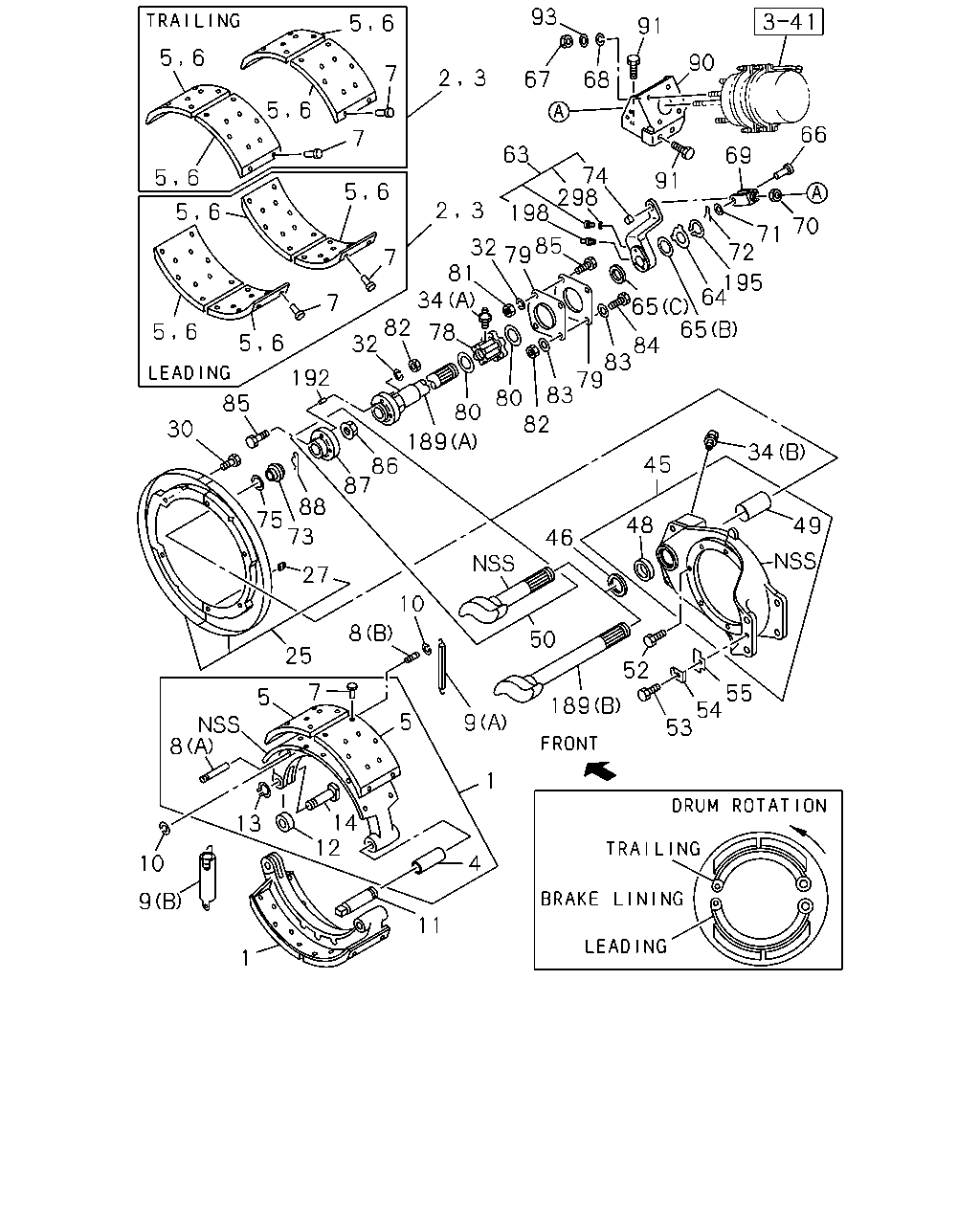

2 3 5 6 65 195 5 6 7 76 63 198 298 5 6 201 202 30 7 74 77 64 5 6 65 5 6 5 6 75 73 7 7 34 27 2 3 66 5 6 5 6 70 25 72 69 67 68 93 71 1 55 54 53 7 5 49 10 5 52 14 4 9 45 48 8 11 46 12 50 8 10 13 9 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	SHOE; BRK,RR LEADING	1-47120-715-0	01	1	0006-	●
1	SHOE; BRK,RR LEADING	1-47120-715-0	01	1	0006-	●
1	SHOE; BRK,RR TRAILING	1-47120-716-0	01	1	0006-	●
1	SHOE; BRK,RR TRAILING	1-47120-716-0	01	1	0006-	●
1	SHOE; BRK,RR LEADING	1-47120-713-0	01	1	0006-	●
1	SHOE; BRK,RR LEADING	1-47120-713-0	01	1	0006-	●
1	SHOE; BRK,RR TRAILING	1-47120-714-0	01	1	0006-	●
1	SHOE; BRK,RR TRAILING	1-47120-714-0	01	1	0006-	●
1	SHOE; BRK,RR LEADING	1-47120-715-0	02	1	0006-		●
1	SHOE; BRK,RR TRAILING	1-47120-716-0	02	1	0006-		●
1	SHOE; BRK,RR LEADING	1-47120-713-0	02	1	0006-		●
1	SHOE; BRK,RR TRAILING	1-47120-714-0	02	1	0006-		●
2	LINING SET; RR BRK,STANDARD LEADING	1-88310-521-0	01	1	0006-	●
2	LINING SET; RR BRK,STANDARD LEADING	1-88310-521-0	01	1	0006-	●
2	LINING SET; RR BRK,STANDARD TRAILING	1-88310-523-0	01	1	0006-	●
2	LINING SET; RR BRK,STANDARD TRAILING	1-88310-523-0	01	1	0006-	●
2	LINING SET; RR BRK,STANDARD LEADING	1-88310-521-0	02	1	0006-		●
2	LINING SET; RR BRK,STANDARD TRAILING	1-88310-523-0	02	1	0006-		●
2	LINING SET; RR BRK,STANDARD BEST VALUE PARTS	1-87610-129-0	01	1	0006-	●
2	LINING SET; RR BRK,STANDARD BEST VALUE PARTS	1-87610-129-0	01	1	0006-	●
2	LINING SET; RR BRK,STANDARD BEST VALUE PARTS	1-87610-129-0	02	1	0006-		●
3	LINING SET; RR BRK,OVER SIZE LEADING	1-88310-522-0	01	1	0006-	●
3	LINING SET; RR BRK,OVER SIZE LEADING	1-88310-522-0	01	1	0006-	●
3	LINING SET; RR BRK,OVER SIZE TRAILING	1-88310-524-0	01	1	0006-	●
3	LINING SET; RR BRK,OVER SIZE TRAILING	1-88310-524-0	01	1	0006-	●
3	LINING SET; RR BRK,OVER SIZE LEADING	1-88310-522-0	02	1	0006-		●
3	LINING SET; RR BRK,OVER SIZE TRAILING	1-88310-524-0	02	1	0006-		●
4	BUSHING; BRK SHOE,RR WHEEL	1-47112-012-0	04	1	0006-	●
4	BUSHING; BRK SHOE,RR WHEEL	1-47112-012-0	04	1	0006-	●
4	BUSHING; BRK SHOE,RR WHEEL	1-47112-012-0	08	1	0006-		●
5	LINING; RR BRK SHOE,STANDARD LEADING	1-47125-797-0	04	1	0006-	●
5	LINING; RR BRK SHOE,STANDARD LEADING	1-47125-797-0	04	1	0006-	●
5	LINING; RR BRK SHOE,STANDARD TRAILING	1-47125-799-0	04	1	0006-	●
5	LINING; RR BRK SHOE,STANDARD TRAILING	1-47125-799-0	04	1	0006-	●
5	LINING; RR BRK SHOE,STANDARD LEADING	1-47125-797-0	08	1	0006-		●
5	LINING; RR BRK SHOE,STANDARD TRAILING	1-47125-799-0	08	1	0006-		●
6	LINING; RR BRK SHOE,OVER SIZE LEADING	1-47125-798-0	04	1	0006-	●
6	LINING; RR BRK SHOE,OVER SIZE LEADING	1-47125-798-0	04	1	0006-	●
6	LINING; RR BRK SHOE,OVER SIZE TRAILING	1-47125-800-0	04	1	0006-	●
6	LINING; RR BRK SHOE,OVER SIZE TRAILING	1-47125-800-0	04	1	0006-	●
6	LINING; RR BRK SHOE,OVER SIZE LEADING	1-47125-798-0	08	1	0006-		●
6	LINING; RR BRK SHOE,OVER SIZE TRAILING	1-47125-800-0	08	1	0006-		●
7	RIVET; LINING,RR BRK L=18.5	1-09732-034-0	AR	1	0006-	●	●
7	RIVET; LINING,RR BRK L=18.5	1-09732-034-0	AR	1	0006-	●	●
8	PIN; RETURN SPRING,RR BRK SHOE (B)	1-47119-021-0	04	1	0006-1209	●
8	PIN; RETURN SPRING,RR BRK SHOE (B)	1-47119-021-0	04	1	0006-1209	●
8	PIN; RETURN SPRING,RR BRK SHOE (A)	1-47119-029-0	04	1	0006-	●
8	PIN; RETURN SPRING,RR BRK SHOE (A)	1-47119-029-0	04	1	0006-	●
8	PIN; RETURN SPRING,RR BRK SHOE (B)	1-47119-021-0	08	1	0006-1209		●
8	PIN; RETURN SPRING,RR BRK SHOE (A)	1-47119-029-0	08	1	0006-		●
9	SPRING; RETURN,BRK SHOE (B)	1-09583-175-0	02	1	0006-1209	●
9	SPRING; RETURN,BRK SHOE (B)	1-09583-175-0	02	1	0006-1209	●
9	SPRING; RETURN,BRK SHOE (B)	8-98219-175-0	02	1	1210-	●
9	SPRING; RETURN,BRK SHOE (B)	8-98219-175-0	02	1	1210-	●
9	SPRING; RETURN,BRK SHOE (A)	1-09583-196-0	02	1	0006-1209	●
9	SPRING; RETURN,BRK SHOE (A)	1-09583-196-0	02	1	0006-1209	●
9	SPRING; RETURN,BRK SHOE (B)	1-09583-175-0	04	1	0006-1209		●
9	SPRING; RETURN,BRK SHOE (B)	8-98219-175-0	04	1	1210-		●
9	SPRING; RETURN,BRK SHOE (A)	1-09583-196-0	04	1	0006-1209		●
10	RING; SNAP,SPR PIN ID=10	9-09185-410-0	08	1	0006-0604	●
10	RING; SNAP,SPR PIN ID=10	9-09185-410-0	08	1	0006-0604	●
10	RING; SNAP,SPR PIN ID=10	0-91805-510-0	08	1	0605-1209	●
10	RING; SNAP,SPR PIN ID=10	0-91805-510-0	08	1	0605-1209	●
10	RING; SNAP,SPR PIN ID=10	9-09185-410-0	16	1	0006-0604		●
10	RING; SNAP,SPR PIN ID=10	0-91805-510-0	16	1	0605-1209		●
11	PIN; ANCHOR,RR WHEEL BRK L=121.5	1-47131-039-0	04	1	0006-	●
11	PIN; ANCHOR,RR WHEEL BRK L=121.5	1-47131-039-0	04	1	0006-	●
11	PIN; ANCHOR,RR WHEEL BRK L=121.5	1-47131-039-0	08	1	0006-		●
12	ROLLER; CAM,BRK SHOE	1-47113-005-0	04	1	0006-	●
12	ROLLER; CAM,BRK SHOE	1-47113-005-0	04	1	0006-	●
12	ROLLER; CAM,BRK SHOE	1-47113-005-0	08	1	0006-		●
13	CLIP; ROLLER PIN,BRK SHOE	9-47119-022-0	04	1	0006-	●
13	CLIP; ROLLER PIN,BRK SHOE	9-47119-022-0	04	1	0006-	●
13	CLIP; ROLLER PIN,BRK SHOE	9-47119-022-0	08	1	0006-		●
14	PIN; CAM ROLLER,BRK SHOE	1-09744-061-0	04	1	0006-	●
14	PIN; CAM ROLLER,BRK SHOE	1-09744-061-0	04	1	0006-	●
14	PIN; CAM ROLLER,BRK SHOE	1-09744-061-0	08	1	0006-		●
25	COVER SET; RR BRK DRUM	1-47151-462-1	02	1	0006-	●
25	COVER SET; RR BRK DRUM	1-47151-462-1	02	1	0006-	●
25	COVER SET; RR BRK DRUM	1-47151-462-1	04	1	0006-		●
27	COVER; CHECK HOLE,DRUM COVER	1-09333-151-0	04	1	0006-	●	●
27	COVER; CHECK HOLE,DRUM COVER	1-09333-151-0	04	1	0006-	●	●
30	BOLT; DRUM COVER M10X12	1-47159-187-0	06	1	0303-1209		●
30	BOLT; DRUM COVER M10X12	1-47159-187-0	24	1	1210-		●
30	BOLT; DRUM COVER M10X16 W/LK WASHER	0-50041-016-0	12	1	0006-0906	●
30	BOLT; DRUM COVER M10X16 W/LK WASHER	0-50041-016-0	12	1	0006-0906	●
30	BOLT; DRUM COVER M10X16 W/LK WASHER	0-50541-016-0	12	1	0907-1209	●
30	BOLT; DRUM COVER M10X16 W/LK WASHER	0-50541-016-0	12	1	0907-1209	●
30	BOLT; DRUM COVER M10X12	1-47159-187-0	12	1	1210-	●
30	BOLT; DRUM COVER M10X12	1-47159-187-0	12	1	1210-	●
30	BOLT; DRUM COVER M10X16 W/LK WASHER	0-50041-016-0	24	1	0006-0302		●
30	BOLT; DRUM COVER M10X16 W/LK WASHER	0-50041-016-0	18	1	0303-0906		●
30	BOLT; DRUM COVER M10X16 W/LK WASHER	0-50541-016-0	18	1	0907-1209		●
34	NIPPLE; GREASE,CHAMBER BRKT (C) PT1/8 STRAIGHT	9-09031-010-0	02	1	0006-0512	●
34	NIPPLE; GREASE,CHAMBER BRKT (C) PT1/8 STRAIGHT	9-09031-010-0	02	1	0006-0512	●
34	NIPPLE; GREASE,CHAMBER BRKT (C) PT1/8 STRAIGHT	0-90301-410-0	02	1	0601-	●
34	NIPPLE; GREASE,CHAMBER BRKT (C) PT1/8 STRAIGHT	0-90301-410-0	02	1	0601-	●
34	NIPPLE; GREASE,CHAMBER BRKT (A) PT1/8 STRAIGHT	9-09031-010-0	04	1	0006-0512		●
34	NIPPLE; GREASE,CHAMBER BRKT (A) PT1/8 STRAIGHT	0-90301-410-0	04	1	0601-		●
34	NIPPLE; GREASE,CHAMBER BRKT (B) PT1/8 ELBOW 67.5 DEGREES	9-09031-110-0	02	1	0006-0512		●
34	NIPPLE; GREASE,CHAMBER BRKT (B) PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	02	1	0601-		●
45	BRACKET; ANCHOR PIN,W/BUSHING FVZ FWD	1-47137-120-2	02	1	0006-	●	●
45	BRACKET; ANCHOR PIN,W/BUSHING FVZ FWD	1-47137-120-2	02	1	0006-	●
45	BRACKET; ANCHOR PIN,W/BUSHING RWD	1-47137-128-1	02	1	0006-		●
46	RING; SPACER,CM/SHF,RR BRK	1-47143-005-0	02	1	0006-	●
46	RING; SPACER,CM/SHF,RR BRK	1-47143-005-0	02	1	0006-	●
46	RING; SPACER,CM/SHF,RR BRK	1-47143-005-0	04	1	0006-		●
48	SEAL; OIL,CM/SHF,RR BRK	1-09625-228-0	02	1	0006-	●
48	SEAL; OIL,CM/SHF,RR BRK	1-09625-228-0	02	1	0006-	●
48	SEAL; OIL,CM/SHF,RR BRK	1-09625-228-0	04	1	0006-		●
49	BUSHING; CM/SHF,RR BRK FVZ;FWD	1-47146-003-1	02	1	0006-	●	●
49	BUSHING; CM/SHF,RR BRK FVZ;FWD	1-47146-003-1	02	1	0006-	●
49	BUSHING; CM/SHF,RR BRK RWD	1-47146-009-0	02	1	0006-		●
50	CAMSHAFT; BRK,RR BRK FVM;FWD LH,RWD RH FVZ;FWD LH	1-47141-053-0	01	1	0006-	●	●
50	CAMSHAFT; BRK,RR BRK FVM;FWD LH,RWD RH FVZ;FWD LH	1-47141-053-0	01	1	0006-	●
50	CAMSHAFT; BRK,RR BRK FVM;FWD RH,RWD LH FVZ;FWD RH	1-47141-054-0	01	1	0006-	●	●
50	CAMSHAFT; BRK,RR BRK FVM;FWD RH,RWD LH FVZ;FWD RH	1-47141-054-0	01	1	0006-	●
50	CAMSHAFT; BRK,RR BRK RWD	1-47141-066-0	01	1	0006-0302		●
50	CAMSHAFT; BRK,RR BRK RWD	1-47141-063-0	01	1	0006-		●
52	BOLT; ANCHOR BRKT M14X50	1-09040-066-0	02	1	0006-1209	●
52	BOLT; ANCHOR BRKT M14X50	1-09040-066-0	02	1	0006-1209	●
52	BOLT; ANCHOR BRKT RWD RH M14X43	1-09040-045-0	01	1	0006-0304		●
52	BOLT; ANCHOR BRKT FWD,RWD LH M14X50	1-09040-066-0	03	1	0006-0304		●
52	BOLT; ANCHOR BRKT M14X50	1-09040-066-0	04	1	0305-1209		●
53	BOLT; LOCK PLATE M10X16	0-20801-016-0	02	1	0006-0512	●
53	BOLT; LOCK PLATE M10X16	0-20801-016-0	02	1	0006-0512	●
53	BOLT; LOCK PLATE M10X16	0-20851-016-0	02	1	0601-1209	●
53	BOLT; LOCK PLATE M10X16	0-20851-016-0	02	1	0601-1209	●
53	BOLT; LOCK PLATE M10X16	1-47139-173-0	02	1	1210-	●
53	BOLT; LOCK PLATE M10X16	1-47139-173-0	02	1	1210-	●
53	BOLT; LOCK PLATE M10X16	0-20801-016-0	04	1	0006-0512		●
53	BOLT; LOCK PLATE M10X16	0-20851-016-0	04	1	0601-1209		●
53	BOLT; LOCK PLATE M10X16	1-47139-173-0	04	1	1210-		●
54	WASHER; LK,ANCHOR PIN,RR BRK	1-47133-011-0	02	1	0006-	●
54	WASHER; LK,ANCHOR PIN,RR BRK	1-47133-011-0	02	1	0006-	●
54	WASHER; LK,ANCHOR PIN,RR BRK	1-47133-011-0	04	1	0006-		●
55	PLATE; LK,RR WHEEL CYL	1-47133-005-0	02	1	0006-	●
55	PLATE; LK,RR WHEEL CYL	1-47133-005-0	02	1	0006-	●
55	PLATE; LK,RR WHEEL CYL	1-47133-005-0	04	1	0006-		●
63	ADJUSTER ASM; SLACK,RR BRK FWD LH,RWD RH	1-48270-045-0	01	1	0006-0304	●
63	ADJUSTER ASM; SLACK,RR BRK FWD LH,RWD RH	1-48270-045-0	01	1	0006-0304	●
63	ADJUSTER ASM; SLACK,RR BRK FVM;FWD LH,RWD RH FVZ;FWD LH	1-48270-045-0	01	1	0305-	●	●
63	ADJUSTER ASM; SLACK,RR BRK FVM;FWD LH,RWD RH FVZ;FWD LH	1-48270-045-0	01	1	0305-	●
63	ADJUSTER ASM; SLACK,RR BRK FVM;FWD RH,RWD LH FVZ;FWD RH	1-48270-046-0	01	1	0006-	●	●
63	ADJUSTER ASM; SLACK,RR BRK FVM;FWD RH,RWD LH FVZ;FWD RH	1-48270-046-0	01	1	0006-	●
63	ADJUSTER ASM; SLACK,RR BRK FWD LH,RWD RH	1-48270-045-0	02	1	0006-0304		●
63	ADJUSTER ASM; SLACK,RR BRK RWD	1-48270-051-0	01	1	0305-		●
63	ADJUSTER ASM; SLACK,RR BRK RWD	1-48270-050-1	01	1	0006-		●
64	PLATE; STOPPER,CM/SHF FVZ;FWD	1-47149-022-0	02	1	0006-	●	●
64	PLATE; STOPPER,CM/SHF FVZ;FWD	1-47149-022-0	02	1	0006-	●
64	PLATE; STOPPER,CM/SHF RWD	1-47149-040-0	02	1	0006-		●
65	SPACER; SLACK ADJ,BRK (B)	1-47143-004-0	02	1	0006-	●
65	SPACER; SLACK ADJ,BRK (B)	1-47143-004-0	02	1	0006-	●
65	SPACER; SLACK ADJ,BRK (A) FVZ;LH	9-09180-038-0	01	1	0006-	●	●
65	SPACER; SLACK ADJ,BRK (A) FVZ;LH	9-09180-038-0	01	1	0006-	●
65	SPACER; SLACK ADJ,BRK (B)	1-47143-004-0	04	1	0006-		●
65	SPACER; SLACK ADJ,BRK (C)	1-47143-014-0	02	1	0006-		●
66	PIN; JAW JOINT	1-09744-088-0	02	1	0006-	●	●
66	PIN; JAW JOINT	1-09744-088-0	02	1	0006-	●	●
67	NUT; POWER CHAMBER FIX M16	9-99110-416-0	08	1	0006-0512	●	●
67	NUT; POWER CHAMBER FIX M16	9-99110-416-0	08	1	0006-0512	●	●
67	NUT; POWER CHAMBER FIX M16	0-91110-516-0	08	1	0601-	●	●
67	NUT; POWER CHAMBER FIX M16	0-91110-516-0	08	1	0601-	●	●
68	WASHER; LK,CHAMBER ID=16.2	0-91510-516-0	08	1	0604-0604	●
68	WASHER; LK,CHAMBER ID=16.2	0-91510-516-0	08	1	0604-0604	●
68	WASHER; LK,CHAMBER ID=16.2	0-91510-516-0	08	1	0605-0802	●	●
68	WASHER; LK,CHAMBER ID=16.2	0-91510-516-0	08	1	0605-0802	●	●
68	WASHER; LK,CHAMBER ID=16.2	0-91510-816-0	08	1	0803-	●	●
68	WASHER; LK,CHAMBER ID=16.2	0-91510-816-0	08	1	0803-	●	●
68	WASHER; LK,CHAMBER ID=16.2	9-09150-516-0	08	1	0006-0603	●	●
68	WASHER; LK,CHAMBER ID=16.2	9-09150-516-0	08	1	0006-0603	●	●
68	WASHER; LK,CHAMBER ID=16.2	9-09150-516-0	08	1	0604-0604		●
69	JOINT; JAW	1-09768-060-1	02	1	0006-	●	●
69	JOINT; JAW	1-09768-060-1	02	1	0006-	●	●
70	NUT; LK,JAW JOINT M16	9-99111-416-0	02	1	0006-0512	●	●
70	NUT; LK,JAW JOINT M16	9-99111-416-0	02	1	0006-0512	●	●
70	NUT; LK,JAW JOINT M16	0-91111-516-0	02	1	0601-	●	●
70	NUT; LK,JAW JOINT M16	0-91111-516-0	02	1	0601-	●	●
71	WASHER; PL,JAW JOINT ID=17 OD=32	9-09160-616-0	02	1	0006-	●	●
71	WASHER; PL,JAW JOINT ID=17 OD=32	9-09160-616-0	02	1	0006-	●	●
72	PIN; SPLIT OD=3.7 L=28	9-08114-028-0	02	1	0006-0606	●	●
72	PIN; SPLIT OD=3.7 L=28	9-08114-028-0	02	1	0006-0606	●	●
72	PIN; SPLIT OD=3.7 L=28	0-81124-028-0	02	1	0607-	●	●
72	PIN; SPLIT OD=3.7 L=28	0-81124-028-0	02	1	0607-	●	●
73	COLLAR; FELT RING,CM/SHF	1-47143-016-0	02	1	0006-	●
73	COLLAR; FELT RING,CM/SHF	1-47143-016-0	02	1	0006-	●
73	COLLAR; FELT RING,CM/SHF	1-47143-016-0	04	1	0006-		●
74	BUSHING; SLACK ADJ	1-09330-041-0	02	1	0006-	●
74	BUSHING; SLACK ADJ	1-09330-041-0	02	1	0006-	●
74	BUSHING; SLACK ADJ	1-09330-041-0	04	1	0006-		●
75	RING; FELT,CM/SHF	1-09620-009-0	02	1	0006-	●
75	RING; FELT,CM/SHF	1-09620-009-0	02	1	0006-	●
75	RING; FELT,CM/SHF	1-09620-009-0	04	1	0006-		●
76	BRACKET; POWER CHAMBER,RR,W/BUSHING FVM;FWD LH,RWD RH FVZ;LH	1-48258-083-0	01	1	0006-0906	●	●
76	BRACKET; POWER CHAMBER,RR,W/BUSHING FVM;FWD LH,RWD RH FVZ;LH	1-48258-083-0	01	1	0006-0906	●
76	BRACKET; POWER CHAMBER,RR,W/BUSHING	1-48258-248-0	01	1	0907-	●	●
76	BRACKET; POWER CHAMBER,RR,W/BUSHING	1-48258-248-0	01	1	0907-	●	●
76	BRACKET; POWER CHAMBER,RR,W/BUSHING FVM;FWD RH,RWD LH FVZ;RH	1-48258-084-0	01	1	0006-0906	●	●
76	BRACKET; POWER CHAMBER,RR,W/BUSHING FVM;FWD RH,RWD LH FVZ;RH	1-48258-084-0	01	1	0006-0906	●
76	BRACKET; POWER CHAMBER,RR,W/BUSHING	1-48258-249-0	01	1	0907-	●	●
76	BRACKET; POWER CHAMBER,RR,W/BUSHING	1-48258-249-0	01	1	0907-	●	●
77	BUSHING	1-47146-003-1	02	1	0006-	●	●
77	BUSHING	1-47146-003-1	02	1	0006-	●
93	WASHER; PL,CHAMBER ID=17 OD=32	9-09160-616-0	08	1	1109-		●
195	RING; SNAP,CM/SHF	9-09180-038-0	01	1	0006-	●
195	RING; SNAP,CM/SHF	9-09180-038-0	01	1	0006-	●
195	RING; SNAP,CM/SHF	9-09180-038-0	03	1	0006-		●
198	NIPPLE; GREASE,SLACK ADJ PT1/8 STRAIGHT	9-09031-010-0	01	1	0305-0512		●
198	NIPPLE; GREASE,SLACK ADJ PT1/8 STRAIGHT	0-90301-410-0	01	1	0601-		●
198	NIPPLE; GREASE,SLACK ADJ PT1/8 ELBOW 67.5 DEGREES	9-09031-110-0	02	1	0006-0512	●
198	NIPPLE; GREASE,SLACK ADJ PT1/8 ELBOW 67.5 DEGREES	9-09031-110-0	02	1	0006-0512	●
198	NIPPLE; GREASE,SLACK ADJ PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	02	1	0601-	●
198	NIPPLE; GREASE,SLACK ADJ PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	02	1	0601-	●
198	NIPPLE; GREASE,SLACK ADJ PT1/8 ELBOW 67.5 DEGREES	9-09031-110-0	04	1	0006-0304		●
198	NIPPLE; GREASE,SLACK ADJ PT1/8 ELBOW 67.5 DEGREES	9-09031-110-0	03	1	0305-0512		●
198	NIPPLE; GREASE,SLACK ADJ PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	03	1	0601-		●
201	BOLT; BRKT,POWER CHAMBER M14X35	0-28081-435-0	08	1	0202-1209	●	●
201	BOLT; BRKT,POWER CHAMBER M14X35	0-20851-435-0	08	1	1210-	●	●
202	WASHER; LK,BRKT ID=14.2	9-09150-514-0	08	1	0202-0603	●	●
202	WASHER; LK,BRKT ID=14.2	0-91510-514-0	08	1	0604-	●	●
298	GASKET ID=23.3	9-09561-223-0	02	1	0006-	●
298	GASKET ID=23.3	9-09561-223-0	02	1	0006-	●
298	GASKET ID=23.3	9-09561-223-0	04	1	0006-		●

5 6 5 6 91 7 2 3 68 93 5 6 69 7 91 67 5 6 66 5 6 70 5 6 195 90 2 3 64 72 7 5 6 71 79 84 79 83 7 82 5 6 65 74 83 34 78 75 30 85 198 63 80 80 81 88 32 73 27 1 55 54 53 25 7 49 5 10 5 34 52 14 45 4 9 48 11 8 46 12 50 8 10 13 9 1 65 298

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	SHOE; BRK,RR LEADING	1-47120-715-0	01	1	0006-	●
1	SHOE; BRK,RR LEADING	1-47120-715-0	01	1	0006-	●
1	SHOE; BRK,RR TRAILING	1-47120-716-0	01	1	0006-	●
1	SHOE; BRK,RR TRAILING	1-47120-716-0	01	1	0006-	●
1	SHOE; BRK,RR LEADING	1-47120-713-0	01	1	0006-	●
1	SHOE; BRK,RR LEADING	1-47120-713-0	01	1	0006-	●
1	SHOE; BRK,RR TRAILING	1-47120-714-0	01	1	0006-	●
1	SHOE; BRK,RR TRAILING	1-47120-714-0	01	1	0006-	●
1	SHOE; BRK,RR LEADING	1-47120-715-0	02	1	0006-		●
1	SHOE; BRK,RR TRAILING	1-47120-716-0	02	1	0006-		●
1	SHOE; BRK,RR LEADING	1-47120-713-0	02	1	0006-		●
1	SHOE; BRK,RR TRAILING	1-47120-714-0	02	1	0006-		●
2	LINING SET; RR BRK,STANDARD LEADING	1-88310-521-0	01	1	0006-	●
2	LINING SET; RR BRK,STANDARD LEADING	1-88310-521-0	01	1	0006-	●
2	LINING SET; RR BRK,STANDARD TRAILING	1-88310-523-0	01	1	0006-	●
2	LINING SET; RR BRK,STANDARD TRAILING	1-88310-523-0	01	1	0006-	●
2	LINING SET; RR BRK,STANDARD LEADING	1-88310-521-0	02	1	0006-		●
2	LINING SET; RR BRK,STANDARD TRAILING	1-88310-523-0	02	1	0006-		●
2	LINING SET; RR BRK,STANDARD BEST VALUE PARTS	1-87610-129-0	01	1	0006-	●
2	LINING SET; RR BRK,STANDARD BEST VALUE PARTS	1-87610-129-0	01	1	0006-	●
2	LINING SET; RR BRK,STANDARD BEST VALUE PARTS	1-87610-129-0	02	1	0006-		●
3	LINING SET; RR BRK,OVER SIZE LEADING	1-88310-522-0	01	1	0006-	●
3	LINING SET; RR BRK,OVER SIZE LEADING	1-88310-522-0	01	1	0006-	●
3	LINING SET; RR BRK,OVER SIZE TRAILING	1-88310-524-0	01	1	0006-	●
3	LINING SET; RR BRK,OVER SIZE TRAILING	1-88310-524-0	01	1	0006-	●
3	LINING SET; RR BRK,OVER SIZE LEADING	1-88310-522-0	02	1	0006-		●
3	LINING SET; RR BRK,OVER SIZE TRAILING	1-88310-524-0	02	1	0006-		●
4	BUSHING; BRK SHOE,RR WHEEL	1-47112-012-0	04	1	0006-	●
4	BUSHING; BRK SHOE,RR WHEEL	1-47112-012-0	04	1	0006-	●
4	BUSHING; BRK SHOE,RR WHEEL	1-47112-012-0	08	1	0006-		●
5	LINING; RR BRK SHOE,STANDARD LEADING	1-47125-797-0	04	1	0006-	●
5	LINING; RR BRK SHOE,STANDARD LEADING	1-47125-797-0	04	1	0006-	●
5	LINING; RR BRK SHOE,STANDARD TRAILING	1-47125-799-0	04	1	0006-	●
5	LINING; RR BRK SHOE,STANDARD TRAILING	1-47125-799-0	04	1	0006-	●
5	LINING; RR BRK SHOE,STANDARD LEADING	1-47125-797-0	08	1	0006-		●
5	LINING; RR BRK SHOE,STANDARD TRAILING	1-47125-799-0	08	1	0006-		●
6	LINING; RR BRK SHOE,OVER SIZE LEADING	1-47125-798-0	04	1	0006-	●
6	LINING; RR BRK SHOE,OVER SIZE LEADING	1-47125-798-0	04	1	0006-	●
6	LINING; RR BRK SHOE,OVER SIZE TRAILING	1-47125-800-0	04	1	0006-	●
6	LINING; RR BRK SHOE,OVER SIZE TRAILING	1-47125-800-0	04	1	0006-	●
6	LINING; RR BRK SHOE,OVER SIZE LEADING	1-47125-798-0	08	1	0006-		●
6	LINING; RR BRK SHOE,OVER SIZE TRAILING	1-47125-800-0	08	1	0006-		●
7	RIVET; LINING,RR BRK L=18.5	1-09732-034-0	AR	1	0006-	●	●
7	RIVET; LINING,RR BRK L=18.5	1-09732-034-0	AR	1	0006-	●	●
8	PIN; RETURN SPRING,RR BRK SHOE (B)	1-47119-021-0	04	1	0006-1209	●
8	PIN; RETURN SPRING,RR BRK SHOE (B)	1-47119-021-0	04	1	0006-1209	●
8	PIN; RETURN SPRING,RR BRK SHOE (A)	1-47119-029-0	04	1	0006-	●
8	PIN; RETURN SPRING,RR BRK SHOE (A)	1-47119-029-0	04	1	0006-	●
8	PIN; RETURN SPRING,RR BRK SHOE (B)	1-47119-021-0	08	1	0006-1209		●
8	PIN; RETURN SPRING,RR BRK SHOE (A)	1-47119-029-0	08	1	0006-		●
9	SPRING; RETURN,BRK SHOE (B)	1-09583-175-0	02	1	0006-1209	●
9	SPRING; RETURN,BRK SHOE (B)	1-09583-175-0	02	1	0006-1209	●
9	SPRING; RETURN,BRK SHOE (B)	8-98219-175-0	02	1	1210-	●
9	SPRING; RETURN,BRK SHOE (B)	8-98219-175-0	02	1	1210-	●
9	SPRING; RETURN,BRK SHOE (A)	1-09583-196-0	02	1	0006-1209	●
9	SPRING; RETURN,BRK SHOE (A)	1-09583-196-0	02	1	0006-1209	●
9	SPRING; RETURN,BRK SHOE (B)	1-09583-175-0	04	1	0006-1209		●
9	SPRING; RETURN,BRK SHOE (B)	8-98219-175-0	04	1	1210-		●
9	SPRING; RETURN,BRK SHOE (A)	1-09583-196-0	04	1	0006-1209		●
10	RING; SNAP,SPR PIN ID=10	9-09185-410-0	08	1	0006-0604	●
10	RING; SNAP,SPR PIN ID=10	9-09185-410-0	08	1	0006-0604	●
10	RING; SNAP,SPR PIN ID=10	0-91805-510-0	08	1	0605-1209	●
10	RING; SNAP,SPR PIN ID=10	0-91805-510-0	08	1	0605-1209	●
10	RING; SNAP,SPR PIN ID=10	9-09185-410-0	16	1	0006-0604		●
10	RING; SNAP,SPR PIN ID=10	0-91805-510-0	16	1	0605-1209		●
11	PIN; ANCHOR,RR WHEEL BRK L=121.5	1-47131-039-0	04	1	0006-	●
11	PIN; ANCHOR,RR WHEEL BRK L=121.5	1-47131-039-0	04	1	0006-	●
11	PIN; ANCHOR,RR WHEEL BRK L=121.5	1-47131-039-0	08	1	0006-		●
12	ROLLER; CAM,BRK SHOE	1-47113-005-0	04	1	0006-	●
12	ROLLER; CAM,BRK SHOE	1-47113-005-0	04	1	0006-	●
12	ROLLER; CAM,BRK SHOE	1-47113-005-0	08	1	0006-		●
13	CLIP; ROLLER PIN,BRK SHOE	9-47119-022-0	04	1	0006-	●
13	CLIP; ROLLER PIN,BRK SHOE	9-47119-022-0	04	1	0006-	●
13	CLIP; ROLLER PIN,BRK SHOE	9-47119-022-0	08	1	0006-		●
14	PIN; CAM ROLLER,BRK SHOE	1-09744-061-0	04	1	0006-	●
14	PIN; CAM ROLLER,BRK SHOE	1-09744-061-0	04	1	0006-	●
14	PIN; CAM ROLLER,BRK SHOE	1-09744-061-0	08	1	0006-		●
25	COVER SET; RR BRK DRUM	1-47151-462-1	02	1	0006-	●
25	COVER SET; RR BRK DRUM	1-47151-462-1	02	1	0006-	●
25	COVER SET; RR BRK DRUM	1-47151-462-1	04	1	0006-		●
27	COVER; CHECK HOLE,DRUM COVER	1-09333-151-0	04	1	0006-	●	●
27	COVER; CHECK HOLE,DRUM COVER	1-09333-151-0	04	1	0006-	●	●
30	BOLT; DRUM COVER M10X12	1-47159-187-0	06	1	0303-1209		●
30	BOLT; DRUM COVER M10X12	1-47159-187-0	24	1	1210-		●
30	BOLT; DRUM COVER M10X16 W/LK WASHER	0-50041-016-0	12	1	0006-0906	●
30	BOLT; DRUM COVER M10X16 W/LK WASHER	0-50041-016-0	12	1	0006-0906	●
30	BOLT; DRUM COVER M10X16 W/LK WASHER	0-50541-016-0	12	1	0907-1209	●
30	BOLT; DRUM COVER M10X16 W/LK WASHER	0-50541-016-0	12	1	0907-1209	●
30	BOLT; DRUM COVER M10X12	1-47159-187-0	12	1	1210-	●
30	BOLT; DRUM COVER M10X12	1-47159-187-0	12	1	1210-	●
30	BOLT; DRUM COVER M10X16 W/LK WASHER	0-50041-016-0	24	1	0006-0302		●
30	BOLT; DRUM COVER M10X16 W/LK WASHER	0-50041-016-0	18	1	0303-0906		●
30	BOLT; DRUM COVER M10X16 W/LK WASHER	0-50541-016-0	18	1	0907-1209		●
32	WASHER; LK ID=10.2	9-09150-510-0	04	1	0006-0603		●
32	WASHER; LK ID=10.2	0-91510-510-0	04	1	0604-		●
32	WASHER; LK ID=12.2	9-09150-612-0	04	1	0007-0302		●
34	NIPPLE; GREASE,CHAMBER BRKT (C) PT1/8 STRAIGHT	9-09031-010-0	02	1	0006-0512	●
34	NIPPLE; GREASE,CHAMBER BRKT (C) PT1/8 STRAIGHT	9-09031-010-0	02	1	0006-0512	●
34	NIPPLE; GREASE,CHAMBER BRKT (C) PT1/8 STRAIGHT	0-90301-410-0	02	1	0601-	●
34	NIPPLE; GREASE,CHAMBER BRKT (C) PT1/8 STRAIGHT	0-90301-410-0	02	1	0601-	●
34	NIPPLE; GREASE,CHAMBER BRKT (A) PT1/8 STRAIGHT	9-09031-010-0	04	1	0006-0512		●
34	NIPPLE; GREASE,CHAMBER BRKT (A) PT1/8 STRAIGHT	0-90301-410-0	04	1	0601-		●
34	NIPPLE; GREASE,CHAMBER BRKT (B) PT1/8 ELBOW 67.5 DEGREES	9-09031-110-0	02	1	0006-0512		●
34	NIPPLE; GREASE,CHAMBER BRKT (B) PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	02	1	0601-		●
45	BRACKET; ANCHOR PIN,W/BUSHING FVZ FWD	1-47137-120-2	02	1	0006-	●	●
45	BRACKET; ANCHOR PIN,W/BUSHING FVZ FWD	1-47137-120-2	02	1	0006-	●
45	BRACKET; ANCHOR PIN,W/BUSHING RWD	1-47137-128-1	02	1	0006-		●
46	RING; SPACER,CM/SHF,RR BRK	1-47143-005-0	02	1	0006-	●
46	RING; SPACER,CM/SHF,RR BRK	1-47143-005-0	02	1	0006-	●
46	RING; SPACER,CM/SHF,RR BRK	1-47143-005-0	04	1	0006-		●
48	SEAL; OIL,CM/SHF,RR BRK	1-09625-228-0	02	1	0006-	●
48	SEAL; OIL,CM/SHF,RR BRK	1-09625-228-0	02	1	0006-	●
48	SEAL; OIL,CM/SHF,RR BRK	1-09625-228-0	04	1	0006-		●
49	BUSHING; CM/SHF,RR BRK FVZ;FWD	1-47146-003-1	02	1	0006-	●	●
49	BUSHING; CM/SHF,RR BRK FVZ;FWD	1-47146-003-1	02	1	0006-	●
49	BUSHING; CM/SHF,RR BRK RWD	1-47146-009-0	02	1	0006-		●
50	CAMSHAFT; BRK,RR BRK FVM;FWD LH,RWD RH FVZ;FWD LH	1-47141-053-0	01	1	0006-	●	●
50	CAMSHAFT; BRK,RR BRK FVM;FWD LH,RWD RH FVZ;FWD LH	1-47141-053-0	01	1	0006-	●
50	CAMSHAFT; BRK,RR BRK FVM;FWD RH,RWD LH FVZ;FWD RH	1-47141-054-0	01	1	0006-	●	●
50	CAMSHAFT; BRK,RR BRK FVM;FWD RH,RWD LH FVZ;FWD RH	1-47141-054-0	01	1	0006-	●
50	CAMSHAFT; BRK,RR BRK RWD	1-47141-066-0	01	1	0006-0302		●
50	CAMSHAFT; BRK,RR BRK RWD	1-47141-063-0	01	1	0006-		●
52	BOLT; ANCHOR BRKT M14X50	1-09040-066-0	02	1	0006-1209	●
52	BOLT; ANCHOR BRKT M14X50	1-09040-066-0	02	1	0006-1209	●
52	BOLT; ANCHOR BRKT RWD RH M14X43	1-09040-045-0	01	1	0006-0304		●
52	BOLT; ANCHOR BRKT FWD,RWD LH M14X50	1-09040-066-0	03	1	0006-0304		●
52	BOLT; ANCHOR BRKT M14X50	1-09040-066-0	04	1	0305-1209		●
53	BOLT; LOCK PLATE M10X16	0-20801-016-0	02	1	0006-0512	●
53	BOLT; LOCK PLATE M10X16	0-20801-016-0	02	1	0006-0512	●
53	BOLT; LOCK PLATE M10X16	0-20851-016-0	02	1	0601-1209	●
53	BOLT; LOCK PLATE M10X16	0-20851-016-0	02	1	0601-1209	●
53	BOLT; LOCK PLATE M10X16	1-47139-173-0	02	1	1210-	●
53	BOLT; LOCK PLATE M10X16	1-47139-173-0	02	1	1210-	●
53	BOLT; LOCK PLATE M10X16	0-20801-016-0	04	1	0006-0512		●
53	BOLT; LOCK PLATE M10X16	0-20851-016-0	04	1	0601-1209		●
53	BOLT; LOCK PLATE M10X16	1-47139-173-0	04	1	1210-		●
54	WASHER; LK,ANCHOR PIN,RR BRK	1-47133-011-0	02	1	0006-	●
54	WASHER; LK,ANCHOR PIN,RR BRK	1-47133-011-0	02	1	0006-	●
54	WASHER; LK,ANCHOR PIN,RR BRK	1-47133-011-0	04	1	0006-		●
55	PLATE; LK,RR WHEEL CYL	1-47133-005-0	02	1	0006-	●
55	PLATE; LK,RR WHEEL CYL	1-47133-005-0	02	1	0006-	●
55	PLATE; LK,RR WHEEL CYL	1-47133-005-0	04	1	0006-		●
63	ADJUSTER ASM; SLACK,RR BRK FWD LH,RWD RH	1-48270-045-0	01	1	0006-0304	●
63	ADJUSTER ASM; SLACK,RR BRK FWD LH,RWD RH	1-48270-045-0	01	1	0006-0304	●
63	ADJUSTER ASM; SLACK,RR BRK FVM;FWD LH,RWD RH FVZ;FWD LH	1-48270-045-0	01	1	0305-	●	●
63	ADJUSTER ASM; SLACK,RR BRK FVM;FWD LH,RWD RH FVZ;FWD LH	1-48270-045-0	01	1	0305-	●
63	ADJUSTER ASM; SLACK,RR BRK FVM;FWD RH,RWD LH FVZ;FWD RH	1-48270-046-0	01	1	0006-	●	●
63	ADJUSTER ASM; SLACK,RR BRK FVM;FWD RH,RWD LH FVZ;FWD RH	1-48270-046-0	01	1	0006-	●
63	ADJUSTER ASM; SLACK,RR BRK FWD LH,RWD RH	1-48270-045-0	02	1	0006-0304		●
63	ADJUSTER ASM; SLACK,RR BRK RWD	1-48270-051-0	01	1	0305-		●
63	ADJUSTER ASM; SLACK,RR BRK RWD	1-48270-050-1	01	1	0006-		●
64	PLATE; STOPPER,CM/SHF FVZ;FWD	1-47149-022-0	02	1	0006-	●	●
64	PLATE; STOPPER,CM/SHF FVZ;FWD	1-47149-022-0	02	1	0006-	●
64	PLATE; STOPPER,CM/SHF RWD	1-47149-040-0	02	1	0006-		●
65	SPACER; SLACK ADJ,BRK (B)	1-47143-004-0	02	1	0006-	●
65	SPACER; SLACK ADJ,BRK (B)	1-47143-004-0	02	1	0006-	●
65	SPACER; SLACK ADJ,BRK (A) FVZ;LH	9-09180-038-0	01	1	0006-	●	●
65	SPACER; SLACK ADJ,BRK (A) FVZ;LH	9-09180-038-0	01	1	0006-	●
65	SPACER; SLACK ADJ,BRK (B)	1-47143-004-0	04	1	0006-		●
65	SPACER; SLACK ADJ,BRK (C)	1-47143-014-0	02	1	0006-		●
66	PIN; JAW JOINT	1-09744-088-0	02	1	0006-	●	●
66	PIN; JAW JOINT	1-09744-088-0	02	1	0006-	●	●
67	NUT; POWER CHAMBER FIX M16	9-99110-416-0	08	1	0006-0512	●	●
67	NUT; POWER CHAMBER FIX M16	9-99110-416-0	08	1	0006-0512	●	●
67	NUT; POWER CHAMBER FIX M16	0-91110-516-0	08	1	0601-	●	●
67	NUT; POWER CHAMBER FIX M16	0-91110-516-0	08	1	0601-	●	●
68	WASHER; LK,CHAMBER ID=16.2	0-91510-516-0	08	1	0604-0604	●
68	WASHER; LK,CHAMBER ID=16.2	0-91510-516-0	08	1	0604-0604	●
68	WASHER; LK,CHAMBER ID=16.2	0-91510-516-0	08	1	0605-0802	●	●
68	WASHER; LK,CHAMBER ID=16.2	0-91510-516-0	08	1	0605-0802	●	●
68	WASHER; LK,CHAMBER ID=16.2	0-91510-816-0	08	1	0803-	●	●
68	WASHER; LK,CHAMBER ID=16.2	0-91510-816-0	08	1	0803-	●	●
68	WASHER; LK,CHAMBER ID=16.2	9-09150-516-0	08	1	0006-0603	●	●
68	WASHER; LK,CHAMBER ID=16.2	9-09150-516-0	08	1	0006-0603	●	●
68	WASHER; LK,CHAMBER ID=16.2	9-09150-516-0	08	1	0604-0604		●
69	JOINT; JAW	1-09768-060-1	02	1	0006-	●	●
69	JOINT; JAW	1-09768-060-1	02	1	0006-	●	●
70	NUT; LK,JAW JOINT M16	9-99111-416-0	02	1	0006-0512	●	●
70	NUT; LK,JAW JOINT M16	9-99111-416-0	02	1	0006-0512	●	●
70	NUT; LK,JAW JOINT M16	0-91111-516-0	02	1	0601-	●	●
70	NUT; LK,JAW JOINT M16	0-91111-516-0	02	1	0601-	●	●
71	WASHER; PL,JAW JOINT ID=17 OD=32	9-09160-616-0	02	1	0006-	●	●
71	WASHER; PL,JAW JOINT ID=17 OD=32	9-09160-616-0	02	1	0006-	●	●
72	PIN; SPLIT OD=3.7 L=28	9-08114-028-0	02	1	0006-0606	●	●
72	PIN; SPLIT OD=3.7 L=28	9-08114-028-0	02	1	0006-0606	●	●
72	PIN; SPLIT OD=3.7 L=28	0-81124-028-0	02	1	0607-	●	●
72	PIN; SPLIT OD=3.7 L=28	0-81124-028-0	02	1	0607-	●	●
73	COLLAR; FELT RING,CM/SHF	1-47143-016-0	02	1	0006-	●
73	COLLAR; FELT RING,CM/SHF	1-47143-016-0	02	1	0006-	●
73	COLLAR; FELT RING,CM/SHF	1-47143-016-0	04	1	0006-		●
74	BUSHING; SLACK ADJ	1-09330-041-0	02	1	0006-	●
74	BUSHING; SLACK ADJ	1-09330-041-0	02	1	0006-	●
74	BUSHING; SLACK ADJ	1-09330-041-0	04	1	0006-		●
75	RING; FELT,CM/SHF	1-09620-009-0	02	1	0006-	●
75	RING; FELT,CM/SHF	1-09620-009-0	02	1	0006-	●
75	RING; FELT,CM/SHF	1-09620-009-0	04	1	0006-		●
78	BUSHING; BRKT	1-47146-008-0	02	1	0006-		●
79	BRACKET; CM/SHF	9-47145-013-0	04	1	0006-		●
80	GASKET; BUSHING ID=39.7	9-09561-340-0	04	1	0006-		●
81	NUT M10	9-09110-410-0	04	1	0006-0512		●
81	NUT M10	0-91110-510-0	04	1	0601-		●
82	NUT M16	9-99110-516-0	04	1	0006-0512		●
82	NUT M16	0-91110-516-0	04	1	0601-		●
82	NUT M12	9-99110-512-0	04	1	0007-0302		●
83	WASHER; PL ID=16.2	9-09851-672-2	08	1	0006-		●
84	BOLT; BRKT TO CASE M16X40	9-92061-640-0	04	1	0006-0512		●
84	BOLT; BRKT TO CASE M16X40	0-20951-640-0	04	1	0601-		●
85	BOLT; CM/SHF BRKT M10X20	0-20801-020-0	04	1	0006-0512		●
85	BOLT; CM/SHF BRKT M10X20	0-20851-020-0	04	1	0601-		●
85	BOLT; CM/SHF BRKT M12X50	5-09000-143-0	04	1	0007-0302		●
88	CLIP; BRKT	1-09589-018-0	02	1	0006-		●
90	BRACKET; CHAMBER	1-42129-241-0	01	1	0006-		●
90	BRACKET; CHAMBER	1-42129-240-0	01	1	0006-		●
91	BOLT; CHAMBER M16X30 FLANGE	0-28981-630-0	08	1	0006-0512		●
91	BOLT; CHAMBER M16X30 FLANGE	0-28951-630-0	08	1	0601-		●
93	WASHER; PL,CHAMBER ID=17 OD=32	9-09160-616-0	08	1	1109-		●
195	RING; SNAP,CM/SHF	9-09180-038-0	01	1	0006-	●
195	RING; SNAP,CM/SHF	9-09180-038-0	01	1	0006-	●
195	RING; SNAP,CM/SHF	9-09180-038-0	03	1	0006-		●
198	NIPPLE; GREASE,SLACK ADJ PT1/8 STRAIGHT	9-09031-010-0	01	1	0305-0512		●
198	NIPPLE; GREASE,SLACK ADJ PT1/8 STRAIGHT	0-90301-410-0	01	1	0601-		●
198	NIPPLE; GREASE,SLACK ADJ PT1/8 ELBOW 67.5 DEGREES	9-09031-110-0	02	1	0006-0512	●
198	NIPPLE; GREASE,SLACK ADJ PT1/8 ELBOW 67.5 DEGREES	9-09031-110-0	02	1	0006-0512	●
198	NIPPLE; GREASE,SLACK ADJ PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	02	1	0601-	●
198	NIPPLE; GREASE,SLACK ADJ PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	02	1	0601-	●
198	NIPPLE; GREASE,SLACK ADJ PT1/8 ELBOW 67.5 DEGREES	9-09031-110-0	04	1	0006-0304		●
198	NIPPLE; GREASE,SLACK ADJ PT1/8 ELBOW 67.5 DEGREES	9-09031-110-0	03	1	0305-0512		●
198	NIPPLE; GREASE,SLACK ADJ PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	03	1	0601-		●
298	GASKET ID=23.3	9-09561-223-0	02	1	0006-	●
298	GASKET ID=23.3	9-09561-223-0	02	1	0006-	●
298	GASKET ID=23.3	9-09561-223-0	04	1	0006-		●

93 5 6 91 5 6 90 7 2 3 67 68 5 6 66 7 63 69 74 298 198 5 6 91 6 5 2 3 5 6 70 71 72 32 85 79 81 34 82 32 7 195 64 7 65 65 5 6 78 5 6 84 83 79 83 192 80 82 85 80 30 189 34 45 86 87 88 75 73 48 49 46 27 10 8 50 25 52 7 55 54 53 5 189 5 9 8 1 13 14 12 10 4 9 11 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	SHOE; BRK,RR LEADING	1-47120-715-0	01	1	0006-	●
1	SHOE; BRK,RR LEADING	1-47120-715-0	01	1	0006-	●
1	SHOE; BRK,RR TRAILING	1-47120-716-0	01	1	0006-	●
1	SHOE; BRK,RR TRAILING	1-47120-716-0	01	1	0006-	●
1	SHOE; BRK,RR LEADING	1-47120-713-0	01	1	0006-	●
1	SHOE; BRK,RR LEADING	1-47120-713-0	01	1	0006-	●
1	SHOE; BRK,RR TRAILING	1-47120-714-0	01	1	0006-	●
1	SHOE; BRK,RR TRAILING	1-47120-714-0	01	1	0006-	●
1	SHOE; BRK,RR LEADING	1-47120-715-0	02	1	0006-		●
1	SHOE; BRK,RR TRAILING	1-47120-716-0	02	1	0006-		●
1	SHOE; BRK,RR LEADING	1-47120-713-0	02	1	0006-		●
1	SHOE; BRK,RR TRAILING	1-47120-714-0	02	1	0006-		●
2	LINING SET; RR BRK,STANDARD LEADING	1-88310-521-0	01	1	0006-	●
2	LINING SET; RR BRK,STANDARD LEADING	1-88310-521-0	01	1	0006-	●
2	LINING SET; RR BRK,STANDARD TRAILING	1-88310-523-0	01	1	0006-	●
2	LINING SET; RR BRK,STANDARD TRAILING	1-88310-523-0	01	1	0006-	●
2	LINING SET; RR BRK,STANDARD LEADING	1-88310-521-0	02	1	0006-		●
2	LINING SET; RR BRK,STANDARD TRAILING	1-88310-523-0	02	1	0006-		●
2	LINING SET; RR BRK,STANDARD BEST VALUE PARTS	1-87610-129-0	01	1	0006-	●
2	LINING SET; RR BRK,STANDARD BEST VALUE PARTS	1-87610-129-0	01	1	0006-	●
2	LINING SET; RR BRK,STANDARD BEST VALUE PARTS	1-87610-129-0	02	1	0006-		●
3	LINING SET; RR BRK,OVER SIZE LEADING	1-88310-522-0	01	1	0006-	●
3	LINING SET; RR BRK,OVER SIZE LEADING	1-88310-522-0	01	1	0006-	●
3	LINING SET; RR BRK,OVER SIZE TRAILING	1-88310-524-0	01	1	0006-	●
3	LINING SET; RR BRK,OVER SIZE TRAILING	1-88310-524-0	01	1	0006-	●
3	LINING SET; RR BRK,OVER SIZE LEADING	1-88310-522-0	02	1	0006-		●
3	LINING SET; RR BRK,OVER SIZE TRAILING	1-88310-524-0	02	1	0006-		●
4	BUSHING; BRK SHOE,RR WHEEL	1-47112-012-0	04	1	0006-	●
4	BUSHING; BRK SHOE,RR WHEEL	1-47112-012-0	04	1	0006-	●
4	BUSHING; BRK SHOE,RR WHEEL	1-47112-012-0	08	1	0006-		●
5	LINING; RR BRK SHOE,STANDARD LEADING	1-47125-797-0	04	1	0006-	●
5	LINING; RR BRK SHOE,STANDARD LEADING	1-47125-797-0	04	1	0006-	●
5	LINING; RR BRK SHOE,STANDARD TRAILING	1-47125-799-0	04	1	0006-	●
5	LINING; RR BRK SHOE,STANDARD TRAILING	1-47125-799-0	04	1	0006-	●
5	LINING; RR BRK SHOE,STANDARD LEADING	1-47125-797-0	08	1	0006-		●
5	LINING; RR BRK SHOE,STANDARD TRAILING	1-47125-799-0	08	1	0006-		●
6	LINING; RR BRK SHOE,OVER SIZE LEADING	1-47125-798-0	04	1	0006-	●
6	LINING; RR BRK SHOE,OVER SIZE LEADING	1-47125-798-0	04	1	0006-	●
6	LINING; RR BRK SHOE,OVER SIZE TRAILING	1-47125-800-0	04	1	0006-	●
6	LINING; RR BRK SHOE,OVER SIZE TRAILING	1-47125-800-0	04	1	0006-	●
6	LINING; RR BRK SHOE,OVER SIZE LEADING	1-47125-798-0	08	1	0006-		●
6	LINING; RR BRK SHOE,OVER SIZE TRAILING	1-47125-800-0	08	1	0006-		●
7	RIVET; LINING,RR BRK L=18.5	1-09732-034-0	AR	1	0006-	●	●
7	RIVET; LINING,RR BRK L=18.5	1-09732-034-0	AR	1	0006-	●	●
8	PIN; RETURN SPRING,RR BRK SHOE (B)	1-47119-021-0	04	1	0006-1209	●
8	PIN; RETURN SPRING,RR BRK SHOE (B)	1-47119-021-0	04	1	0006-1209	●
8	PIN; RETURN SPRING,RR BRK SHOE (A)	1-47119-029-0	04	1	0006-	●
8	PIN; RETURN SPRING,RR BRK SHOE (A)	1-47119-029-0	04	1	0006-	●
8	PIN; RETURN SPRING,RR BRK SHOE (B)	1-47119-021-0	08	1	0006-1209		●
8	PIN; RETURN SPRING,RR BRK SHOE (A)	1-47119-029-0	08	1	0006-		●
9	SPRING; RETURN,BRK SHOE (B)	1-09583-175-0	02	1	0006-1209	●
9	SPRING; RETURN,BRK SHOE (B)	1-09583-175-0	02	1	0006-1209	●
9	SPRING; RETURN,BRK SHOE (B)	8-98219-175-0	02	1	1210-	●
9	SPRING; RETURN,BRK SHOE (B)	8-98219-175-0	02	1	1210-	●
9	SPRING; RETURN,BRK SHOE (A)	1-09583-196-0	02	1	0006-1209	●
9	SPRING; RETURN,BRK SHOE (A)	1-09583-196-0	02	1	0006-1209	●
9	SPRING; RETURN,BRK SHOE (B)	1-09583-175-0	04	1	0006-1209		●
9	SPRING; RETURN,BRK SHOE (B)	8-98219-175-0	04	1	1210-		●
9	SPRING; RETURN,BRK SHOE (A)	1-09583-196-0	04	1	0006-1209		●
10	RING; SNAP,SPR PIN ID=10	9-09185-410-0	08	1	0006-0604	●
10	RING; SNAP,SPR PIN ID=10	9-09185-410-0	08	1	0006-0604	●
10	RING; SNAP,SPR PIN ID=10	0-91805-510-0	08	1	0605-1209	●
10	RING; SNAP,SPR PIN ID=10	0-91805-510-0	08	1	0605-1209	●
10	RING; SNAP,SPR PIN ID=10	9-09185-410-0	16	1	0006-0604		●
10	RING; SNAP,SPR PIN ID=10	0-91805-510-0	16	1	0605-1209		●
11	PIN; ANCHOR,RR WHEEL BRK L=121.5	1-47131-039-0	04	1	0006-	●
11	PIN; ANCHOR,RR WHEEL BRK L=121.5	1-47131-039-0	04	1	0006-	●
11	PIN; ANCHOR,RR WHEEL BRK L=121.5	1-47131-039-0	08	1	0006-		●
12	ROLLER; CAM,BRK SHOE	1-47113-005-0	04	1	0006-	●
12	ROLLER; CAM,BRK SHOE	1-47113-005-0	04	1	0006-	●
12	ROLLER; CAM,BRK SHOE	1-47113-005-0	08	1	0006-		●
13	CLIP; ROLLER PIN,BRK SHOE	9-47119-022-0	04	1	0006-	●
13	CLIP; ROLLER PIN,BRK SHOE	9-47119-022-0	04	1	0006-	●
13	CLIP; ROLLER PIN,BRK SHOE	9-47119-022-0	08	1	0006-		●
14	PIN; CAM ROLLER,BRK SHOE	1-09744-061-0	04	1	0006-	●
14	PIN; CAM ROLLER,BRK SHOE	1-09744-061-0	04	1	0006-	●
14	PIN; CAM ROLLER,BRK SHOE	1-09744-061-0	08	1	0006-		●
25	COVER SET; RR BRK DRUM	1-47151-462-1	02	1	0006-	●
25	COVER SET; RR BRK DRUM	1-47151-462-1	02	1	0006-	●
25	COVER SET; RR BRK DRUM	1-47151-462-1	04	1	0006-		●
27	COVER; CHECK HOLE,DRUM COVER	1-09333-151-0	04	1	0006-	●	●
27	COVER; CHECK HOLE,DRUM COVER	1-09333-151-0	04	1	0006-	●	●
30	BOLT; DRUM COVER M10X12	1-47159-187-0	06	1	0303-1209		●
30	BOLT; DRUM COVER M10X12	1-47159-187-0	24	1	1210-		●
30	BOLT; DRUM COVER M10X16 W/LK WASHER	0-50041-016-0	12	1	0006-0906	●
30	BOLT; DRUM COVER M10X16 W/LK WASHER	0-50041-016-0	12	1	0006-0906	●
30	BOLT; DRUM COVER M10X16 W/LK WASHER	0-50541-016-0	12	1	0907-1209	●
30	BOLT; DRUM COVER M10X16 W/LK WASHER	0-50541-016-0	12	1	0907-1209	●
30	BOLT; DRUM COVER M10X12	1-47159-187-0	12	1	1210-	●
30	BOLT; DRUM COVER M10X12	1-47159-187-0	12	1	1210-	●
30	BOLT; DRUM COVER M10X16 W/LK WASHER	0-50041-016-0	24	1	0006-0302		●
30	BOLT; DRUM COVER M10X16 W/LK WASHER	0-50041-016-0	18	1	0303-0906		●
30	BOLT; DRUM COVER M10X16 W/LK WASHER	0-50541-016-0	18	1	0907-1209		●
32	WASHER; LK ID=10.2	9-09150-510-0	04	1	0006-0603		●
32	WASHER; LK ID=10.2	0-91510-510-0	04	1	0604-		●
32	WASHER; LK ID=12.2	9-09150-612-0	04	1	0007-0302		●
34	NIPPLE; GREASE,CHAMBER BRKT (C) PT1/8 STRAIGHT	9-09031-010-0	02	1	0006-0512	●
34	NIPPLE; GREASE,CHAMBER BRKT (C) PT1/8 STRAIGHT	9-09031-010-0	02	1	0006-0512	●
34	NIPPLE; GREASE,CHAMBER BRKT (C) PT1/8 STRAIGHT	0-90301-410-0	02	1	0601-	●
34	NIPPLE; GREASE,CHAMBER BRKT (C) PT1/8 STRAIGHT	0-90301-410-0	02	1	0601-	●
34	NIPPLE; GREASE,CHAMBER BRKT (A) PT1/8 STRAIGHT	9-09031-010-0	04	1	0006-0512		●
34	NIPPLE; GREASE,CHAMBER BRKT (A) PT1/8 STRAIGHT	0-90301-410-0	04	1	0601-		●
34	NIPPLE; GREASE,CHAMBER BRKT (B) PT1/8 ELBOW 67.5 DEGREES	9-09031-110-0	02	1	0006-0512		●
34	NIPPLE; GREASE,CHAMBER BRKT (B) PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	02	1	0601-		●
45	BRACKET; ANCHOR PIN,W/BUSHING FVZ FWD	1-47137-120-2	02	1	0006-	●	●
45	BRACKET; ANCHOR PIN,W/BUSHING FVZ FWD	1-47137-120-2	02	1	0006-	●
45	BRACKET; ANCHOR PIN,W/BUSHING RWD	1-47137-128-1	02	1	0006-		●
46	RING; SPACER,CM/SHF,RR BRK	1-47143-005-0	02	1	0006-	●
46	RING; SPACER,CM/SHF,RR BRK	1-47143-005-0	02	1	0006-	●
46	RING; SPACER,CM/SHF,RR BRK	1-47143-005-0	04	1	0006-		●
48	SEAL; OIL,CM/SHF,RR BRK	1-09625-228-0	02	1	0006-	●
48	SEAL; OIL,CM/SHF,RR BRK	1-09625-228-0	02	1	0006-	●
48	SEAL; OIL,CM/SHF,RR BRK	1-09625-228-0	04	1	0006-		●
49	BUSHING; CM/SHF,RR BRK FVZ;FWD	1-47146-003-1	02	1	0006-	●	●
49	BUSHING; CM/SHF,RR BRK FVZ;FWD	1-47146-003-1	02	1	0006-	●
49	BUSHING; CM/SHF,RR BRK RWD	1-47146-009-0	02	1	0006-		●
50	CAMSHAFT; BRK,RR BRK FVM;FWD LH,RWD RH FVZ;FWD LH	1-47141-053-0	01	1	0006-	●	●
50	CAMSHAFT; BRK,RR BRK FVM;FWD LH,RWD RH FVZ;FWD LH	1-47141-053-0	01	1	0006-	●
50	CAMSHAFT; BRK,RR BRK FVM;FWD RH,RWD LH FVZ;FWD RH	1-47141-054-0	01	1	0006-	●	●
50	CAMSHAFT; BRK,RR BRK FVM;FWD RH,RWD LH FVZ;FWD RH	1-47141-054-0	01	1	0006-	●
50	CAMSHAFT; BRK,RR BRK RWD	1-47141-066-0	01	1	0006-0302		●
50	CAMSHAFT; BRK,RR BRK RWD	1-47141-063-0	01	1	0006-		●
52	BOLT; ANCHOR BRKT M14X50	1-09040-066-0	02	1	0006-1209	●
52	BOLT; ANCHOR BRKT M14X50	1-09040-066-0	02	1	0006-1209	●
52	BOLT; ANCHOR BRKT RWD RH M14X43	1-09040-045-0	01	1	0006-0304		●
52	BOLT; ANCHOR BRKT FWD,RWD LH M14X50	1-09040-066-0	03	1	0006-0304		●
52	BOLT; ANCHOR BRKT M14X50	1-09040-066-0	04	1	0305-1209		●
53	BOLT; LOCK PLATE M10X16	0-20801-016-0	02	1	0006-0512	●
53	BOLT; LOCK PLATE M10X16	0-20801-016-0	02	1	0006-0512	●
53	BOLT; LOCK PLATE M10X16	0-20851-016-0	02	1	0601-1209	●
53	BOLT; LOCK PLATE M10X16	0-20851-016-0	02	1	0601-1209	●
53	BOLT; LOCK PLATE M10X16	1-47139-173-0	02	1	1210-	●
53	BOLT; LOCK PLATE M10X16	1-47139-173-0	02	1	1210-	●
53	BOLT; LOCK PLATE M10X16	0-20801-016-0	04	1	0006-0512		●
53	BOLT; LOCK PLATE M10X16	0-20851-016-0	04	1	0601-1209		●
53	BOLT; LOCK PLATE M10X16	1-47139-173-0	04	1	1210-		●
54	WASHER; LK,ANCHOR PIN,RR BRK	1-47133-011-0	02	1	0006-	●
54	WASHER; LK,ANCHOR PIN,RR BRK	1-47133-011-0	02	1	0006-	●
54	WASHER; LK,ANCHOR PIN,RR BRK	1-47133-011-0	04	1	0006-		●
55	PLATE; LK,RR WHEEL CYL	1-47133-005-0	02	1	0006-	●
55	PLATE; LK,RR WHEEL CYL	1-47133-005-0	02	1	0006-	●
55	PLATE; LK,RR WHEEL CYL	1-47133-005-0	04	1	0006-		●
63	ADJUSTER ASM; SLACK,RR BRK FWD LH,RWD RH	1-48270-045-0	01	1	0006-0304	●
63	ADJUSTER ASM; SLACK,RR BRK FWD LH,RWD RH	1-48270-045-0	01	1	0006-0304	●
63	ADJUSTER ASM; SLACK,RR BRK FVM;FWD LH,RWD RH FVZ;FWD LH	1-48270-045-0	01	1	0305-	●	●
63	ADJUSTER ASM; SLACK,RR BRK FVM;FWD LH,RWD RH FVZ;FWD LH	1-48270-045-0	01	1	0305-	●
63	ADJUSTER ASM; SLACK,RR BRK FVM;FWD RH,RWD LH FVZ;FWD RH	1-48270-046-0	01	1	0006-	●	●
63	ADJUSTER ASM; SLACK,RR BRK FVM;FWD RH,RWD LH FVZ;FWD RH	1-48270-046-0	01	1	0006-	●
63	ADJUSTER ASM; SLACK,RR BRK FWD LH,RWD RH	1-48270-045-0	02	1	0006-0304		●
63	ADJUSTER ASM; SLACK,RR BRK RWD	1-48270-051-0	01	1	0305-		●
63	ADJUSTER ASM; SLACK,RR BRK RWD	1-48270-050-1	01	1	0006-		●
64	PLATE; STOPPER,CM/SHF FVZ;FWD	1-47149-022-0	02	1	0006-	●	●
64	PLATE; STOPPER,CM/SHF FVZ;FWD	1-47149-022-0	02	1	0006-	●
64	PLATE; STOPPER,CM/SHF RWD	1-47149-040-0	02	1	0006-		●
65	SPACER; SLACK ADJ,BRK (B)	1-47143-004-0	02	1	0006-	●
65	SPACER; SLACK ADJ,BRK (B)	1-47143-004-0	02	1	0006-	●
65	SPACER; SLACK ADJ,BRK (A) FVZ;LH	9-09180-038-0	01	1	0006-	●	●
65	SPACER; SLACK ADJ,BRK (A) FVZ;LH	9-09180-038-0	01	1	0006-	●
65	SPACER; SLACK ADJ,BRK (B)	1-47143-004-0	04	1	0006-		●
65	SPACER; SLACK ADJ,BRK (C)	1-47143-014-0	02	1	0006-		●
66	PIN; JAW JOINT	1-09744-088-0	02	1	0006-	●	●
66	PIN; JAW JOINT	1-09744-088-0	02	1	0006-	●	●
67	NUT; POWER CHAMBER FIX M16	9-99110-416-0	08	1	0006-0512	●	●
67	NUT; POWER CHAMBER FIX M16	9-99110-416-0	08	1	0006-0512	●	●
67	NUT; POWER CHAMBER FIX M16	0-91110-516-0	08	1	0601-	●	●
67	NUT; POWER CHAMBER FIX M16	0-91110-516-0	08	1	0601-	●	●
68	WASHER; LK,CHAMBER ID=16.2	0-91510-516-0	08	1	0604-0604	●
68	WASHER; LK,CHAMBER ID=16.2	0-91510-516-0	08	1	0604-0604	●
68	WASHER; LK,CHAMBER ID=16.2	0-91510-516-0	08	1	0605-0802	●	●
68	WASHER; LK,CHAMBER ID=16.2	0-91510-516-0	08	1	0605-0802	●	●
68	WASHER; LK,CHAMBER ID=16.2	0-91510-816-0	08	1	0803-	●	●
68	WASHER; LK,CHAMBER ID=16.2	0-91510-816-0	08	1	0803-	●	●
68	WASHER; LK,CHAMBER ID=16.2	9-09150-516-0	08	1	0006-0603	●	●
68	WASHER; LK,CHAMBER ID=16.2	9-09150-516-0	08	1	0006-0603	●	●
68	WASHER; LK,CHAMBER ID=16.2	9-09150-516-0	08	1	0604-0604		●
69	JOINT; JAW	1-09768-060-1	02	1	0006-	●	●
69	JOINT; JAW	1-09768-060-1	02	1	0006-	●	●
70	NUT; LK,JAW JOINT M16	9-99111-416-0	02	1	0006-0512	●	●
70	NUT; LK,JAW JOINT M16	9-99111-416-0	02	1	0006-0512	●	●
70	NUT; LK,JAW JOINT M16	0-91111-516-0	02	1	0601-	●	●
70	NUT; LK,JAW JOINT M16	0-91111-516-0	02	1	0601-	●	●
71	WASHER; PL,JAW JOINT ID=17 OD=32	9-09160-616-0	02	1	0006-	●	●
71	WASHER; PL,JAW JOINT ID=17 OD=32	9-09160-616-0	02	1	0006-	●	●
72	PIN; SPLIT OD=3.7 L=28	9-08114-028-0	02	1	0006-0606	●	●
72	PIN; SPLIT OD=3.7 L=28	9-08114-028-0	02	1	0006-0606	●	●
72	PIN; SPLIT OD=3.7 L=28	0-81124-028-0	02	1	0607-	●	●
72	PIN; SPLIT OD=3.7 L=28	0-81124-028-0	02	1	0607-	●	●
73	COLLAR; FELT RING,CM/SHF	1-47143-016-0	02	1	0006-	●
73	COLLAR; FELT RING,CM/SHF	1-47143-016-0	02	1	0006-	●
73	COLLAR; FELT RING,CM/SHF	1-47143-016-0	04	1	0006-		●
74	BUSHING; SLACK ADJ	1-09330-041-0	02	1	0006-	●
74	BUSHING; SLACK ADJ	1-09330-041-0	02	1	0006-	●
74	BUSHING; SLACK ADJ	1-09330-041-0	04	1	0006-		●
75	RING; FELT,CM/SHF	1-09620-009-0	02	1	0006-	●
75	RING; FELT,CM/SHF	1-09620-009-0	02	1	0006-	●
75	RING; FELT,CM/SHF	1-09620-009-0	04	1	0006-		●
78	BUSHING; BRKT	1-47146-008-0	02	1	0006-		●
79	BRACKET; CM/SHF	9-47145-013-0	04	1	0006-		●
80	GASKET; BUSHING ID=39.7	9-09561-340-0	04	1	0006-		●
81	NUT M10	9-09110-410-0	04	1	0006-0512		●
81	NUT M10	0-91110-510-0	04	1	0601-		●
82	NUT M16	9-99110-516-0	04	1	0006-0512		●
82	NUT M16	0-91110-516-0	04	1	0601-		●
82	NUT M12	9-99110-512-0	04	1	0007-0302		●
83	WASHER; PL ID=16.2	9-09851-672-2	08	1	0006-		●
84	BOLT; BRKT TO CASE M16X40	9-92061-640-0	04	1	0006-0512		●
84	BOLT; BRKT TO CASE M16X40	0-20951-640-0	04	1	0601-		●
85	BOLT; CM/SHF BRKT M10X20	0-20801-020-0	04	1	0006-0512		●
85	BOLT; CM/SHF BRKT M10X20	0-20851-020-0	04	1	0601-		●
85	BOLT; CM/SHF BRKT M12X50	5-09000-143-0	04	1	0007-0302		●
86	NUT; FLANGE	1-09440-020-0	01	1	0006-0302		●
87	FLANGE; SHAFT	1-47149-041-0	01	1	0006-0302		●
88	CLIP; BRKT	1-09589-018-0	02	1	0006-		●
90	BRACKET; CHAMBER	1-42129-241-0	01	1	0006-		●
90	BRACKET; CHAMBER	1-42129-240-0	01	1	0006-		●
91	BOLT; CHAMBER M16X30 FLANGE	0-28981-630-0	08	1	0006-0512		●
91	BOLT; CHAMBER M16X30 FLANGE	0-28951-630-0	08	1	0601-		●
93	WASHER; PL,CHAMBER ID=17 OD=32	9-09160-616-0	08	1	1109-		●
189	SHAFT; RR,BRK (A)	1-47141-065-1	01	1	0006-0302		●
189	SHAFT; RR,BRK (B)	1-47141-137-0	01	1	0303-		●
192	PIN; KNOCK,FLANGE OD=12 L=20	9-08161-220-0	01	1	0007-0302		●
195	RING; SNAP,CM/SHF	9-09180-038-0	01	1	0006-	●
195	RING; SNAP,CM/SHF	9-09180-038-0	01	1	0006-	●
195	RING; SNAP,CM/SHF	9-09180-038-0	03	1	0006-		●
198	NIPPLE; GREASE,SLACK ADJ PT1/8 STRAIGHT	9-09031-010-0	01	1	0305-0512		●
198	NIPPLE; GREASE,SLACK ADJ PT1/8 STRAIGHT	0-90301-410-0	01	1	0601-		●
198	NIPPLE; GREASE,SLACK ADJ PT1/8 ELBOW 67.5 DEGREES	9-09031-110-0	02	1	0006-0512	●
198	NIPPLE; GREASE,SLACK ADJ PT1/8 ELBOW 67.5 DEGREES	9-09031-110-0	02	1	0006-0512	●
198	NIPPLE; GREASE,SLACK ADJ PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	02	1	0601-	●
198	NIPPLE; GREASE,SLACK ADJ PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	02	1	0601-	●
198	NIPPLE; GREASE,SLACK ADJ PT1/8 ELBOW 67.5 DEGREES	9-09031-110-0	04	1	0006-0304		●
198	NIPPLE; GREASE,SLACK ADJ PT1/8 ELBOW 67.5 DEGREES	9-09031-110-0	03	1	0305-0512		●
198	NIPPLE; GREASE,SLACK ADJ PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	03	1	0601-		●
298	GASKET ID=23.3	9-09561-223-0	02	1	0006-	●
298	GASKET ID=23.3	9-09561-223-0	02	1	0006-	●
298	GASKET ID=23.3	9-09561-223-0	04	1	0006-		●

195 5 6 65 5 6 76 63 7 198 298 201 202 30 74 64 77 5 6 65 5 6 5 6 5 5 6 6 75 73 6 5 34 66 7 27 70 25 69 71 72 68 67 1 55 54 53 7 49 9 5 5 10 8 52 4 45 48 14 46 50 8 11 10 12 13 9 1 2 3 2 3

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	SHOE; BRK,RR LEADING	1-47120-715-0	01	1	0006-	●
1	SHOE; BRK,RR LEADING	1-47120-715-0	01	1	0006-	●
1	SHOE; BRK,RR TRAILING	1-47120-716-0	01	1	0006-	●
1	SHOE; BRK,RR TRAILING	1-47120-716-0	01	1	0006-	●
1	SHOE; BRK,RR LEADING	1-47120-713-0	01	1	0006-	●
1	SHOE; BRK,RR LEADING	1-47120-713-0	01	1	0006-	●
1	SHOE; BRK,RR TRAILING	1-47120-714-0	01	1	0006-	●
1	SHOE; BRK,RR TRAILING	1-47120-714-0	01	1	0006-	●
1	SHOE; BRK,RR LEADING	1-47120-715-0	02	1	0006-		●
1	SHOE; BRK,RR TRAILING	1-47120-716-0	02	1	0006-		●
1	SHOE; BRK,RR LEADING	1-47120-713-0	02	1	0006-		●
1	SHOE; BRK,RR TRAILING	1-47120-714-0	02	1	0006-		●
2	LINING SET; RR BRK,STANDARD LEADING	1-88310-521-0	01	1	0006-	●
2	LINING SET; RR BRK,STANDARD LEADING	1-88310-521-0	01	1	0006-	●
2	LINING SET; RR BRK,STANDARD TRAILING	1-88310-523-0	01	1	0006-	●
2	LINING SET; RR BRK,STANDARD TRAILING	1-88310-523-0	01	1	0006-	●
2	LINING SET; RR BRK,STANDARD LEADING	1-88310-521-0	02	1	0006-		●
2	LINING SET; RR BRK,STANDARD TRAILING	1-88310-523-0	02	1	0006-		●
2	LINING SET; RR BRK,STANDARD BEST VALUE PARTS	1-87610-129-0	01	1	0006-	●
2	LINING SET; RR BRK,STANDARD BEST VALUE PARTS	1-87610-129-0	01	1	0006-	●
2	LINING SET; RR BRK,STANDARD BEST VALUE PARTS	1-87610-129-0	02	1	0006-		●
3	LINING SET; RR BRK,OVER SIZE LEADING	1-88310-522-0	01	1	0006-	●
3	LINING SET; RR BRK,OVER SIZE LEADING	1-88310-522-0	01	1	0006-	●
3	LINING SET; RR BRK,OVER SIZE TRAILING	1-88310-524-0	01	1	0006-	●
3	LINING SET; RR BRK,OVER SIZE TRAILING	1-88310-524-0	01	1	0006-	●
3	LINING SET; RR BRK,OVER SIZE LEADING	1-88310-522-0	02	1	0006-		●
3	LINING SET; RR BRK,OVER SIZE TRAILING	1-88310-524-0	02	1	0006-		●
4	BUSHING; BRK SHOE,RR WHEEL	1-47112-012-0	04	1	0006-	●
4	BUSHING; BRK SHOE,RR WHEEL	1-47112-012-0	04	1	0006-	●
4	BUSHING; BRK SHOE,RR WHEEL	1-47112-012-0	08	1	0006-		●
5	LINING; RR BRK SHOE,STANDARD LEADING	1-47125-797-0	04	1	0006-	●
5	LINING; RR BRK SHOE,STANDARD LEADING	1-47125-797-0	04	1	0006-	●
5	LINING; RR BRK SHOE,STANDARD TRAILING	1-47125-799-0	04	1	0006-	●
5	LINING; RR BRK SHOE,STANDARD TRAILING	1-47125-799-0	04	1	0006-	●
5	LINING; RR BRK SHOE,STANDARD LEADING	1-47125-797-0	08	1	0006-		●
5	LINING; RR BRK SHOE,STANDARD TRAILING	1-47125-799-0	08	1	0006-		●
6	LINING; RR BRK SHOE,OVER SIZE LEADING	1-47125-798-0	04	1	0006-	●
6	LINING; RR BRK SHOE,OVER SIZE LEADING	1-47125-798-0	04	1	0006-	●
6	LINING; RR BRK SHOE,OVER SIZE TRAILING	1-47125-800-0	04	1	0006-	●
6	LINING; RR BRK SHOE,OVER SIZE TRAILING	1-47125-800-0	04	1	0006-	●
6	LINING; RR BRK SHOE,OVER SIZE LEADING	1-47125-798-0	08	1	0006-		●
6	LINING; RR BRK SHOE,OVER SIZE TRAILING	1-47125-800-0	08	1	0006-		●
7	RIVET; LINING,RR BRK L=18.5	1-09732-034-0	AR	1	0006-	●	●
7	RIVET; LINING,RR BRK L=18.5	1-09732-034-0	AR	1	0006-	●	●
8	PIN; RETURN SPRING,RR BRK SHOE (B)	1-47119-021-0	04	1	0006-1209	●
8	PIN; RETURN SPRING,RR BRK SHOE (B)	1-47119-021-0	04	1	0006-1209	●
8	PIN; RETURN SPRING,RR BRK SHOE (A)	1-47119-029-0	04	1	0006-	●
8	PIN; RETURN SPRING,RR BRK SHOE (A)	1-47119-029-0	04	1	0006-	●
8	PIN; RETURN SPRING,RR BRK SHOE (B)	1-47119-021-0	08	1	0006-1209		●
8	PIN; RETURN SPRING,RR BRK SHOE (A)	1-47119-029-0	08	1	0006-		●
9	SPRING; RETURN,BRK SHOE (B)	1-09583-175-0	02	1	0006-1209	●
9	SPRING; RETURN,BRK SHOE (B)	1-09583-175-0	02	1	0006-1209	●
9	SPRING; RETURN,BRK SHOE (B)	8-98219-175-0	02	1	1210-	●
9	SPRING; RETURN,BRK SHOE (B)	8-98219-175-0	02	1	1210-	●
9	SPRING; RETURN,BRK SHOE (A)	1-09583-196-0	02	1	0006-1209	●
9	SPRING; RETURN,BRK SHOE (A)	1-09583-196-0	02	1	0006-1209	●
9	SPRING; RETURN,BRK SHOE (B)	1-09583-175-0	04	1	0006-1209		●
9	SPRING; RETURN,BRK SHOE (B)	8-98219-175-0	04	1	1210-		●
9	SPRING; RETURN,BRK SHOE (A)	1-09583-196-0	04	1	0006-1209		●
10	RING; SNAP,SPR PIN ID=10	9-09185-410-0	08	1	0006-0604	●
10	RING; SNAP,SPR PIN ID=10	9-09185-410-0	08	1	0006-0604	●
10	RING; SNAP,SPR PIN ID=10	0-91805-510-0	08	1	0605-1209	●
10	RING; SNAP,SPR PIN ID=10	0-91805-510-0	08	1	0605-1209	●
10	RING; SNAP,SPR PIN ID=10	9-09185-410-0	16	1	0006-0604		●
10	RING; SNAP,SPR PIN ID=10	0-91805-510-0	16	1	0605-1209		●
11	PIN; ANCHOR,RR WHEEL BRK L=121.5	1-47131-039-0	04	1	0006-	●
11	PIN; ANCHOR,RR WHEEL BRK L=121.5	1-47131-039-0	04	1	0006-	●
11	PIN; ANCHOR,RR WHEEL BRK L=121.5	1-47131-039-0	08	1	0006-		●
12	ROLLER; CAM,BRK SHOE	1-47113-005-0	04	1	0006-	●
12	ROLLER; CAM,BRK SHOE	1-47113-005-0	04	1	0006-	●
12	ROLLER; CAM,BRK SHOE	1-47113-005-0	08	1	0006-		●
13	CLIP; ROLLER PIN,BRK SHOE	9-47119-022-0	04	1	0006-	●
13	CLIP; ROLLER PIN,BRK SHOE	9-47119-022-0	04	1	0006-	●
13	CLIP; ROLLER PIN,BRK SHOE	9-47119-022-0	08	1	0006-		●
14	PIN; CAM ROLLER,BRK SHOE	1-09744-061-0	04	1	0006-	●
14	PIN; CAM ROLLER,BRK SHOE	1-09744-061-0	04	1	0006-	●
14	PIN; CAM ROLLER,BRK SHOE	1-09744-061-0	08	1	0006-		●
25	COVER SET; RR BRK DRUM	1-47151-462-1	02	1	0006-	●
25	COVER SET; RR BRK DRUM	1-47151-462-1	02	1	0006-	●
25	COVER SET; RR BRK DRUM	1-47151-462-1	04	1	0006-		●
27	COVER; CHECK HOLE,DRUM COVER	1-09333-151-0	04	1	0006-	●	●
27	COVER; CHECK HOLE,DRUM COVER	1-09333-151-0	04	1	0006-	●	●
30	BOLT; DRUM COVER M10X12	1-47159-187-0	06	1	0303-1209		●
30	BOLT; DRUM COVER M10X12	1-47159-187-0	24	1	1210-		●
30	BOLT; DRUM COVER M10X16 W/LK WASHER	0-50041-016-0	12	1	0006-0906	●
30	BOLT; DRUM COVER M10X16 W/LK WASHER	0-50041-016-0	12	1	0006-0906	●
30	BOLT; DRUM COVER M10X16 W/LK WASHER	0-50541-016-0	12	1	0907-1209	●
30	BOLT; DRUM COVER M10X16 W/LK WASHER	0-50541-016-0	12	1	0907-1209	●
30	BOLT; DRUM COVER M10X12	1-47159-187-0	12	1	1210-	●
30	BOLT; DRUM COVER M10X12	1-47159-187-0	12	1	1210-	●
30	BOLT; DRUM COVER M10X16 W/LK WASHER	0-50041-016-0	24	1	0006-0302		●
30	BOLT; DRUM COVER M10X16 W/LK WASHER	0-50041-016-0	18	1	0303-0906		●
30	BOLT; DRUM COVER M10X16 W/LK WASHER	0-50541-016-0	18	1	0907-1209		●
34	NIPPLE; GREASE,CHAMBER BRKT (C) PT1/8 STRAIGHT	9-09031-010-0	02	1	0006-0512	●
34	NIPPLE; GREASE,CHAMBER BRKT (C) PT1/8 STRAIGHT	9-09031-010-0	02	1	0006-0512	●
34	NIPPLE; GREASE,CHAMBER BRKT (C) PT1/8 STRAIGHT	0-90301-410-0	02	1	0601-	●
34	NIPPLE; GREASE,CHAMBER BRKT (C) PT1/8 STRAIGHT	0-90301-410-0	02	1	0601-	●
34	NIPPLE; GREASE,CHAMBER BRKT (A) PT1/8 STRAIGHT	9-09031-010-0	04	1	0006-0512		●
34	NIPPLE; GREASE,CHAMBER BRKT (A) PT1/8 STRAIGHT	0-90301-410-0	04	1	0601-		●
34	NIPPLE; GREASE,CHAMBER BRKT (B) PT1/8 ELBOW 67.5 DEGREES	9-09031-110-0	02	1	0006-0512		●
34	NIPPLE; GREASE,CHAMBER BRKT (B) PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	02	1	0601-		●
45	BRACKET; ANCHOR PIN,W/BUSHING FVZ FWD	1-47137-120-2	02	1	0006-	●	●
45	BRACKET; ANCHOR PIN,W/BUSHING FVZ FWD	1-47137-120-2	02	1	0006-	●
45	BRACKET; ANCHOR PIN,W/BUSHING RWD	1-47137-128-1	02	1	0006-		●
46	RING; SPACER,CM/SHF,RR BRK	1-47143-005-0	02	1	0006-	●
46	RING; SPACER,CM/SHF,RR BRK	1-47143-005-0	02	1	0006-	●
46	RING; SPACER,CM/SHF,RR BRK	1-47143-005-0	04	1	0006-		●
48	SEAL; OIL,CM/SHF,RR BRK	1-09625-228-0	02	1	0006-	●
48	SEAL; OIL,CM/SHF,RR BRK	1-09625-228-0	02	1	0006-	●
48	SEAL; OIL,CM/SHF,RR BRK	1-09625-228-0	04	1	0006-		●
49	BUSHING; CM/SHF,RR BRK FVZ;FWD	1-47146-003-1	02	1	0006-	●	●
49	BUSHING; CM/SHF,RR BRK FVZ;FWD	1-47146-003-1	02	1	0006-	●
49	BUSHING; CM/SHF,RR BRK RWD	1-47146-009-0	02	1	0006-		●
50	CAMSHAFT; BRK,RR BRK FVM;FWD LH,RWD RH FVZ;FWD LH	1-47141-053-0	01	1	0006-	●	●
50	CAMSHAFT; BRK,RR BRK FVM;FWD LH,RWD RH FVZ;FWD LH	1-47141-053-0	01	1	0006-	●
50	CAMSHAFT; BRK,RR BRK FVM;FWD RH,RWD LH FVZ;FWD RH	1-47141-054-0	01	1	0006-	●	●
50	CAMSHAFT; BRK,RR BRK FVM;FWD RH,RWD LH FVZ;FWD RH	1-47141-054-0	01	1	0006-	●
50	CAMSHAFT; BRK,RR BRK RWD	1-47141-066-0	01	1	0006-0302		●
50	CAMSHAFT; BRK,RR BRK RWD	1-47141-063-0	01	1	0006-		●
52	BOLT; ANCHOR BRKT M14X50	1-09040-066-0	02	1	0006-1209	●
52	BOLT; ANCHOR BRKT M14X50	1-09040-066-0	02	1	0006-1209	●
52	BOLT; ANCHOR BRKT RWD RH M14X43	1-09040-045-0	01	1	0006-0304		●
52	BOLT; ANCHOR BRKT FWD,RWD LH M14X50	1-09040-066-0	03	1	0006-0304		●
52	BOLT; ANCHOR BRKT M14X50	1-09040-066-0	04	1	0305-1209		●
53	BOLT; LOCK PLATE M10X16	0-20801-016-0	02	1	0006-0512	●
53	BOLT; LOCK PLATE M10X16	0-20801-016-0	02	1	0006-0512	●
53	BOLT; LOCK PLATE M10X16	0-20851-016-0	02	1	0601-1209	●
53	BOLT; LOCK PLATE M10X16	0-20851-016-0	02	1	0601-1209	●
53	BOLT; LOCK PLATE M10X16	1-47139-173-0	02	1	1210-	●
53	BOLT; LOCK PLATE M10X16	1-47139-173-0	02	1	1210-	●
53	BOLT; LOCK PLATE M10X16	0-20801-016-0	04	1	0006-0512		●
53	BOLT; LOCK PLATE M10X16	0-20851-016-0	04	1	0601-1209		●
53	BOLT; LOCK PLATE M10X16	1-47139-173-0	04	1	1210-		●
54	WASHER; LK,ANCHOR PIN,RR BRK	1-47133-011-0	02	1	0006-	●
54	WASHER; LK,ANCHOR PIN,RR BRK	1-47133-011-0	02	1	0006-	●
54	WASHER; LK,ANCHOR PIN,RR BRK	1-47133-011-0	04	1	0006-		●
55	PLATE; LK,RR WHEEL CYL	1-47133-005-0	02	1	0006-	●
55	PLATE; LK,RR WHEEL CYL	1-47133-005-0	02	1	0006-	●
55	PLATE; LK,RR WHEEL CYL	1-47133-005-0	04	1	0006-		●
63	ADJUSTER ASM; SLACK,RR BRK FWD LH,RWD RH	1-48270-045-0	01	1	0006-0304	●
63	ADJUSTER ASM; SLACK,RR BRK FWD LH,RWD RH	1-48270-045-0	01	1	0006-0304	●
63	ADJUSTER ASM; SLACK,RR BRK FVM;FWD LH,RWD RH FVZ;FWD LH	1-48270-045-0	01	1	0305-	●	●
63	ADJUSTER ASM; SLACK,RR BRK FVM;FWD LH,RWD RH FVZ;FWD LH	1-48270-045-0	01	1	0305-	●
63	ADJUSTER ASM; SLACK,RR BRK FVM;FWD RH,RWD LH FVZ;FWD RH	1-48270-046-0	01	1	0006-	●	●
63	ADJUSTER ASM; SLACK,RR BRK FVM;FWD RH,RWD LH FVZ;FWD RH	1-48270-046-0	01	1	0006-	●
63	ADJUSTER ASM; SLACK,RR BRK FWD LH,RWD RH	1-48270-045-0	02	1	0006-0304		●
63	ADJUSTER ASM; SLACK,RR BRK RWD	1-48270-051-0	01	1	0305-		●
63	ADJUSTER ASM; SLACK,RR BRK RWD	1-48270-050-1	01	1	0006-		●
64	PLATE; STOPPER,CM/SHF FVZ;FWD	1-47149-022-0	02	1	0006-	●	●
64	PLATE; STOPPER,CM/SHF FVZ;FWD	1-47149-022-0	02	1	0006-	●
64	PLATE; STOPPER,CM/SHF RWD	1-47149-040-0	02	1	0006-		●
65	SPACER; SLACK ADJ,BRK (B)	1-47143-004-0	02	1	0006-	●
65	SPACER; SLACK ADJ,BRK (B)	1-47143-004-0	02	1	0006-	●
65	SPACER; SLACK ADJ,BRK (A) FVZ;LH	9-09180-038-0	01	1	0006-	●	●
65	SPACER; SLACK ADJ,BRK (A) FVZ;LH	9-09180-038-0	01	1	0006-	●
65	SPACER; SLACK ADJ,BRK (B)	1-47143-004-0	04	1	0006-		●
65	SPACER; SLACK ADJ,BRK (C)	1-47143-014-0	02	1	0006-		●
66	PIN; JAW JOINT	1-09744-088-0	02	1	0006-	●	●
66	PIN; JAW JOINT	1-09744-088-0	02	1	0006-	●	●
67	NUT; POWER CHAMBER FIX M16	9-99110-416-0	08	1	0006-0512	●	●
67	NUT; POWER CHAMBER FIX M16	9-99110-416-0	08	1	0006-0512	●	●
67	NUT; POWER CHAMBER FIX M16	0-91110-516-0	08	1	0601-	●	●
67	NUT; POWER CHAMBER FIX M16	0-91110-516-0	08	1	0601-	●	●
68	WASHER; LK,CHAMBER ID=16.2	0-91510-516-0	08	1	0604-0604	●
68	WASHER; LK,CHAMBER ID=16.2	0-91510-516-0	08	1	0604-0604	●
68	WASHER; LK,CHAMBER ID=16.2	0-91510-516-0	08	1	0605-0802	●	●
68	WASHER; LK,CHAMBER ID=16.2	0-91510-516-0	08	1	0605-0802	●	●
68	WASHER; LK,CHAMBER ID=16.2	0-91510-816-0	08	1	0803-	●	●
68	WASHER; LK,CHAMBER ID=16.2	0-91510-816-0	08	1	0803-	●	●
68	WASHER; LK,CHAMBER ID=16.2	9-09150-516-0	08	1	0006-0603	●	●
68	WASHER; LK,CHAMBER ID=16.2	9-09150-516-0	08	1	0006-0603	●	●
68	WASHER; LK,CHAMBER ID=16.2	9-09150-516-0	08	1	0604-0604		●
69	JOINT; JAW	1-09768-060-1	02	1	0006-	●	●
69	JOINT; JAW	1-09768-060-1	02	1	0006-	●	●
70	NUT; LK,JAW JOINT M16	9-99111-416-0	02	1	0006-0512	●	●
70	NUT; LK,JAW JOINT M16	9-99111-416-0	02	1	0006-0512	●	●
70	NUT; LK,JAW JOINT M16	0-91111-516-0	02	1	0601-	●	●
70	NUT; LK,JAW JOINT M16	0-91111-516-0	02	1	0601-	●	●
71	WASHER; PL,JAW JOINT ID=17 OD=32	9-09160-616-0	02	1	0006-	●	●
71	WASHER; PL,JAW JOINT ID=17 OD=32	9-09160-616-0	02	1	0006-	●	●
72	PIN; SPLIT OD=3.7 L=28	9-08114-028-0	02	1	0006-0606	●	●
72	PIN; SPLIT OD=3.7 L=28	9-08114-028-0	02	1	0006-0606	●	●
72	PIN; SPLIT OD=3.7 L=28	0-81124-028-0	02	1	0607-	●	●
72	PIN; SPLIT OD=3.7 L=28	0-81124-028-0	02	1	0607-	●	●
73	COLLAR; FELT RING,CM/SHF	1-47143-016-0	02	1	0006-	●
73	COLLAR; FELT RING,CM/SHF	1-47143-016-0	02	1	0006-	●
73	COLLAR; FELT RING,CM/SHF	1-47143-016-0	04	1	0006-		●
74	BUSHING; SLACK ADJ	1-09330-041-0	02	1	0006-	●
74	BUSHING; SLACK ADJ	1-09330-041-0	02	1	0006-	●
74	BUSHING; SLACK ADJ	1-09330-041-0	04	1	0006-		●
75	RING; FELT,CM/SHF	1-09620-009-0	02	1	0006-	●
75	RING; FELT,CM/SHF	1-09620-009-0	02	1	0006-	●
75	RING; FELT,CM/SHF	1-09620-009-0	04	1	0006-		●
76	BRACKET; POWER CHAMBER,RR,W/BUSHING FVM;FWD LH,RWD RH FVZ;LH	1-48258-083-0	01	1	0006-0906	●	●
76	BRACKET; POWER CHAMBER,RR,W/BUSHING FVM;FWD LH,RWD RH FVZ;LH	1-48258-083-0	01	1	0006-0906	●
76	BRACKET; POWER CHAMBER,RR,W/BUSHING	1-48258-248-0	01	1	0907-	●	●
76	BRACKET; POWER CHAMBER,RR,W/BUSHING	1-48258-248-0	01	1	0907-	●	●
76	BRACKET; POWER CHAMBER,RR,W/BUSHING FVM;FWD RH,RWD LH FVZ;RH	1-48258-084-0	01	1	0006-0906	●	●
76	BRACKET; POWER CHAMBER,RR,W/BUSHING FVM;FWD RH,RWD LH FVZ;RH	1-48258-084-0	01	1	0006-0906	●
76	BRACKET; POWER CHAMBER,RR,W/BUSHING	1-48258-249-0	01	1	0907-	●	●
76	BRACKET; POWER CHAMBER,RR,W/BUSHING	1-48258-249-0	01	1	0907-	●	●
77	BUSHING	1-47146-003-1	02	1	0006-	●	●
77	BUSHING	1-47146-003-1	02	1	0006-	●
195	RING; SNAP,CM/SHF	9-09180-038-0	01	1	0006-	●
195	RING; SNAP,CM/SHF	9-09180-038-0	01	1	0006-	●
195	RING; SNAP,CM/SHF	9-09180-038-0	03	1	0006-		●
198	NIPPLE; GREASE,SLACK ADJ PT1/8 STRAIGHT	9-09031-010-0	01	1	0305-0512		●
198	NIPPLE; GREASE,SLACK ADJ PT1/8 STRAIGHT	0-90301-410-0	01	1	0601-		●
198	NIPPLE; GREASE,SLACK ADJ PT1/8 ELBOW 67.5 DEGREES	9-09031-110-0	02	1	0006-0512	●
198	NIPPLE; GREASE,SLACK ADJ PT1/8 ELBOW 67.5 DEGREES	9-09031-110-0	02	1	0006-0512	●
198	NIPPLE; GREASE,SLACK ADJ PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	02	1	0601-	●
198	NIPPLE; GREASE,SLACK ADJ PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	02	1	0601-	●
198	NIPPLE; GREASE,SLACK ADJ PT1/8 ELBOW 67.5 DEGREES	9-09031-110-0	04	1	0006-0304		●
198	NIPPLE; GREASE,SLACK ADJ PT1/8 ELBOW 67.5 DEGREES	9-09031-110-0	03	1	0305-0512		●
198	NIPPLE; GREASE,SLACK ADJ PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	03	1	0601-		●
201	BOLT; BRKT,POWER CHAMBER M14X35	0-28081-435-0	08	1	0202-1209	●	●
201	BOLT; BRKT,POWER CHAMBER M14X35	0-20851-435-0	08	1	1210-	●	●
202	WASHER; LK,BRKT ID=14.2	9-09150-514-0	08	1	0202-0603	●	●
202	WASHER; LK,BRKT ID=14.2	0-91510-514-0	08	1	0604-	●	●
298	GASKET ID=23.3	9-09561-223-0	02	1	0006-	●
298	GASKET ID=23.3	9-09561-223-0	02	1	0006-	●
298	GASKET ID=23.3	9-09561-223-0	04	1	0006-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
