2-82 — POWER TAKE OFF; TRANSMISSION REAR (#10295) — 139 parça

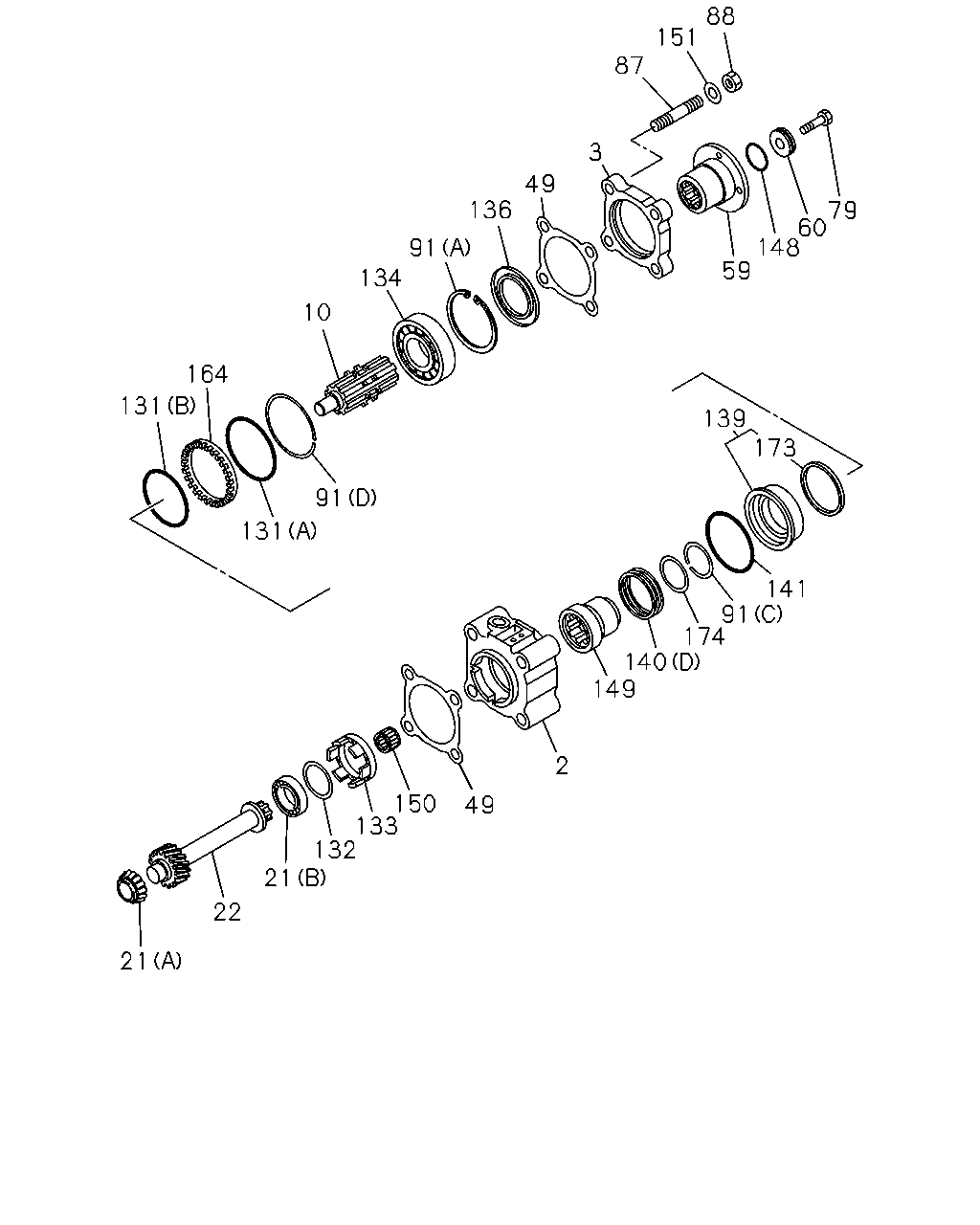

88 151 87 3 49 136 79 60 148 59 91 134 10 164 131 139 173 91 131 141 91 174 140 149 2 150 133 132 21 49 22 21

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	CASE; GEAR,TRANS RR PTO PTO ZF TRANS RR<BDM>	1-38111-076-0	01	1	0208-0406
2	CASE; GEAR,TRANS RR PTO PTO ZF TRANS RR<BDM>	1-38111-116-0	01	1	0407-
3	COVER; GEAR CASE,TRANS RR PTO PTO ZF TRANS RR<BDM>	1-38159-002-0	01	1	0208-0406
3	COVER; GEAR CASE,TRANS RR PTO PTO ZF TRANS RR<BDM>	1-38159-008-0	01	1	0407-
10	SHAFT; PTO OUTPUT GEAR,TRANS RR PTO PTO ZF TRANS RR<BDM>	1-38221-047-0	01	1	0208-0406
10	SHAFT; PTO OUTPUT GEAR,TRANS RR PTO PTO ZF TRANS RR<BDM>	1-38221-064-0	01	1	0407-
21	BEARING; MAIN DRIVE SHAFT,TRANS RR PTO PTO ZF TRANS RR<BDM> (A)	1-33389-054-0	01	1	0208-
21	BEARING; MAIN DRIVE SHAFT,TRANS RR PTO PTO ZF TRANS RR<BDM> (B)	1-33389-068-0	01	1	0208-
22	SHAFT; MAIN DRIVE,TRANS RR PTO PTO ZF TRANS RR<BDM>	1-33381-012-0	01	1	0208-0406
22	SHAFT; MAIN DRIVE,TRANS RR PTO PTO ZF TRANS RR<BDM>	1-33381-014-0	01	1	0407-
49	GASKET; PTO GEAR CASE TO TRANS PTO ZF TRANS RR<BDM>	1-33132-054-0	01	1	0208-0406
49	GASKET; PTO GEAR CASE TO TRANS PTO ZF TRANS RR<BDM>	1-33132-084-0	02	1	0407-
59	YOKE; SPINDLE,PTO OUTPUT SHAFT,RR PTO PTO ZF TRANS RR<BDM>	1-38519-012-0	01	1	0208-0406
59	YOKE; SPINDLE,PTO OUTPUT SHAFT,RR PTO PTO ZF TRANS RR<BDM>	1-38159-012-0	01	1	0407-
60	WASHER; YOKE,OUTPUT SHAFT,RR PTO PTO ZF TRANS RR<BDM>	1-38519-013-0	01	1	0208-
79	BOLT PTO ZF TRANS RR<BDM>	1-37249-074-0	01	1	0208-0406
79	BOLT PTO ZF TRANS RR<BDM>	1-38519-027-0	01	1	0407-
87	STUD; GEAR CASE PTO ZF TRANS RR<BDM>	1-38119-034-0	04	1	0208-0406
87	STUD; GEAR CASE PTO ZF TRANS RR<BDM>	1-38119-093-0	04	1	0407-
88	NUT; COVER PTO ZF TRANS RR<BDM>	1-38119-027-0	04	1	0208-
91	RING; SNAP PTO ZF TRANS RR<BDM> (D)	1-38219-038-0	01	1	0407-
91	RING; SNAP PTO ZF TRANS RR<BDM> (B)	1-38219-016-0	01	1	0208-0406
91	RING; SNAP PTO ZF TRANS RR<BDM> (C)	1-38219-037-0	01	1	0407-
91	RING; SNAP PTO ZF TRANS RR<BDM> (A)	1-38219-017-0	01	1	0208-
131	GASKET; OUTPUT SHAFT PTO ZF TRANS RR<BDM> (A)	1-38129-035-0	01	1	0407-
131	GASKET; OUTPUT SHAFT PTO ZF TRANS RR<BDM> (B)	1-38129-036-0	01	1	0407-
132	SHIM; BRG PTO ZF TRANS RR<BDM> T=1.60	1-33389-047-0	01	1	0208-
132	SHIM; BRG PTO ZF TRANS RR<BDM> T=1.55	1-33389-048-0	01	1	0208-
132	SHIM; BRG PTO ZF TRANS RR<BDM> T=1.50	1-33389-049-0	01	1	0208-
132	SHIM; BRG PTO ZF TRANS RR<BDM> T=1.45	1-33389-050-0	01	1	0208-
132	SHIM; BRG PTO ZF TRANS RR<BDM> T=1.40	1-33389-051-0	01	1	0208-
132	SHIM; BRG PTO ZF TRANS RR<BDM> T=1.35	1-33389-052-0	01	1	0208-
132	SHIM; BRG PTO ZF TRANS RR<BDM> T=1.30	1-33389-053-0	01	1	0208-
132	SHIM; BRG PTO ZF TRANS RR<BDM> T=1.25	1-33389-055-0	01	1	0208-
132	SHIM; BRG PTO ZF TRANS RR<BDM> T=1.20	1-33389-056-0	01	1	0208-
132	SHIM; BRG PTO ZF TRANS RR<BDM> T=1.15	1-33389-057-0	01	1	0208-
132	SHIM; BRG PTO ZF TRANS RR<BDM> T=1.10	1-33389-058-0	01	1	0208-
132	SHIM; BRG PTO ZF TRANS RR<BDM> T=1.05	1-33389-059-0	01	1	0208-
132	SHIM; BRG PTO ZF TRANS RR<BDM> T=1.00	1-33389-060-0	01	1	0208-
132	SHIM; BRG PTO ZF TRANS RR<BDM> T=0.95	1-33389-061-0	01	1	0208-
132	SHIM; BRG PTO ZF TRANS RR<BDM> T=0.90	1-33389-062-0	01	1	0208-
132	SHIM; BRG PTO ZF TRANS RR<BDM> T=0.85	1-33389-063-0	01	1	0208-
132	SHIM; BRG PTO ZF TRANS RR<BDM> T=0.80	1-33389-064-0	01	1	0208-
132	SHIM; BRG PTO ZF TRANS RR<BDM> T=0.75	1-33389-065-0	01	1	0208-
132	SHIM; BRG PTO ZF TRANS RR<BDM> T=0.70	1-33389-066-0	01	1	0208-
132	SHIM; BRG PTO ZF TRANS RR<BDM> T=0.65	1-33389-067-0	01	1	0208-
133	BUSHING; SHAFT PTO ZF TRANS RR<BDM>	1-33389-046-0	01	1	0208-
134	BEARING; OUTPUT SHAFT PTO ZF TRANS RR<BDM>	1-38219-015-0	01	1	0208-
136	SEAL; SHAFT PTO ZF TRANS RR<BDM>	1-38519-010-0	01	1	0208-0406
136	SEAL; SHAFT PTO ZF TRANS RR<BDM>	1-38519-026-0	01	1	0407-
139	PISTON; RR PTO PTO ZF TRANS RR<BDM>	1-38129-016-0	01	1	0208-0406
139	PISTON; RR PTO PTO ZF TRANS RR<BDM>	1-38129-033-0	01	1	0407-
140	SPRING; PISTON,RR PTO PTO ZF TRANS RR<BDM> (A)	1-38129-013-0	01	1	0208-0406
140	SPRING; PISTON,RR PTO PTO ZF TRANS RR<BDM> (D)	1-38129-032-0	01	1	0407-
140	SPRING; PISTON,RR PTO PTO ZF TRANS RR<BDM> (B)	1-38129-014-0	01	1	0208-0406
140	SPRING; PISTON,RR PTO PTO ZF TRANS RR<BDM> (C)	1-38129-015-0	01	1	0208-0406
141	GASKET; PISTON,RR PTO PTO ZF TRANS RR<BDM>	1-38129-023-0	01	1	0208-0406
141	GASKET; PISTON,RR PTO PTO ZF TRANS RR<BDM>	1-38129-035-0	01	1	0407-
148	GASKET; YOKE PTO ZF TRANS RR<BDM>	1-38519-014-0	01	1	0208-
149	SLEEVE; SLIDING PTO ZF TRANS RR<BDM>	1-38229-008-0	01	1	0208-0406
149	SLEEVE; SLIDING PTO ZF TRANS RR<BDM>	1-38229-059-0	01	1	0407-
150	BEARING; OUTPUT SHAFT PTO ZF TRANS RR<BDM>	1-38249-018-0	01	1	0208-
151	WASHER; PL,COVER PTO ZF TRANS RR<BDM>	1-38119-028-0	04	1	0208-
164	RING; CENTERING,PTO PTO ZF TRANS RR<BDM>	1-38129-038-0	01	1	0407-
173	RING; MAGNET PTO ZF TRANS RR<BDM>	1-38129-034-0	01	1	0407-
174	DISK; PRESSURE PTO ZF TRANS RR<BDM>	1-38129-037-0	01	1	0407-

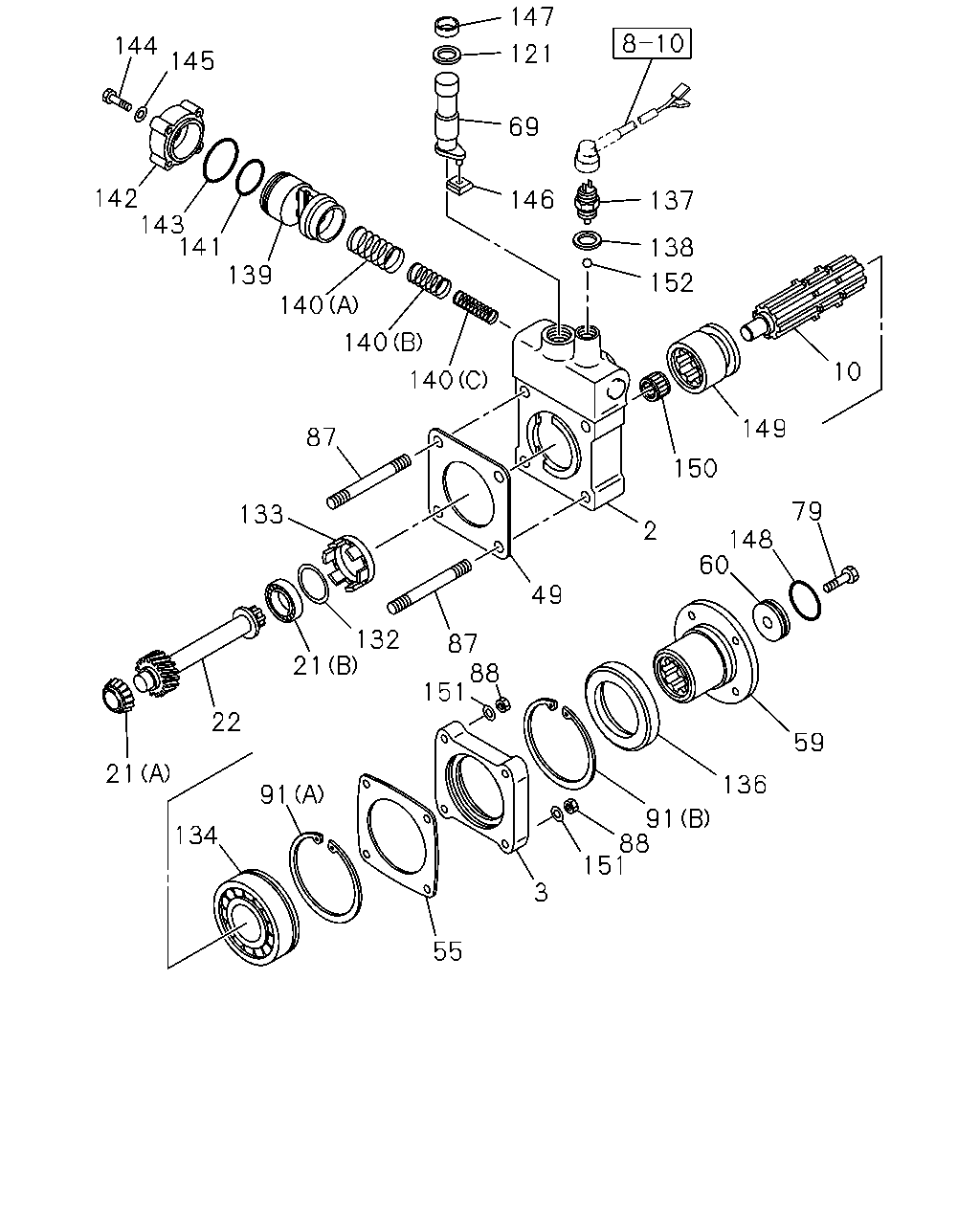

147 144 121 145 69 142 143 141 146 137 138 139 140 152 140 10 140 149 87 150 79 133 2 148 60 49 132 21 87 88 151 22 59 21 136 91 91 88 151 134 3 55

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	CASE; GEAR,TRANS RR PTO PTO ZF TRANS RR<BDM>	1-38111-076-0	01	1	0208-0406
2	CASE; GEAR,TRANS RR PTO PTO ZF TRANS RR<BDM>	1-38111-116-0	01	1	0407-
3	COVER; GEAR CASE,TRANS RR PTO PTO ZF TRANS RR<BDM>	1-38159-002-0	01	1	0208-0406
3	COVER; GEAR CASE,TRANS RR PTO PTO ZF TRANS RR<BDM>	1-38159-008-0	01	1	0407-
10	SHAFT; PTO OUTPUT GEAR,TRANS RR PTO PTO ZF TRANS RR<BDM>	1-38221-047-0	01	1	0208-0406
10	SHAFT; PTO OUTPUT GEAR,TRANS RR PTO PTO ZF TRANS RR<BDM>	1-38221-064-0	01	1	0407-
21	BEARING; MAIN DRIVE SHAFT,TRANS RR PTO PTO ZF TRANS RR<BDM> (A)	1-33389-054-0	01	1	0208-
21	BEARING; MAIN DRIVE SHAFT,TRANS RR PTO PTO ZF TRANS RR<BDM> (B)	1-33389-068-0	01	1	0208-
22	SHAFT; MAIN DRIVE,TRANS RR PTO PTO ZF TRANS RR<BDM>	1-33381-012-0	01	1	0208-0406
22	SHAFT; MAIN DRIVE,TRANS RR PTO PTO ZF TRANS RR<BDM>	1-33381-014-0	01	1	0407-
49	GASKET; PTO GEAR CASE TO TRANS PTO ZF TRANS RR<BDM>	1-33132-054-0	01	1	0208-0406
49	GASKET; PTO GEAR CASE TO TRANS PTO ZF TRANS RR<BDM>	1-33132-084-0	02	1	0407-
55	GASKET; BRG COVER,TRANS RR PTO PTO ZF TRANS RR<BDM>	1-33132-054-0	01	1	0208-0406
59	YOKE; SPINDLE,PTO OUTPUT SHAFT,RR PTO PTO ZF TRANS RR<BDM>	1-38519-012-0	01	1	0208-0406
59	YOKE; SPINDLE,PTO OUTPUT SHAFT,RR PTO PTO ZF TRANS RR<BDM>	1-38159-012-0	01	1	0407-
60	WASHER; YOKE,OUTPUT SHAFT,RR PTO PTO ZF TRANS RR<BDM>	1-38519-013-0	01	1	0208-
69	LEVER; PTO CONT,TRANS RR PTO PTO ZF TRANS RR<BDM>	1-38361-032-0	01	1	0208-0406
79	BOLT PTO ZF TRANS RR<BDM>	1-37249-074-0	01	1	0208-0406
79	BOLT PTO ZF TRANS RR<BDM>	1-38519-027-0	01	1	0407-
87	STUD; GEAR CASE PTO ZF TRANS RR<BDM>	1-38119-034-0	04	1	0208-0406
87	STUD; GEAR CASE PTO ZF TRANS RR<BDM>	1-38119-093-0	04	1	0407-
88	NUT; COVER PTO ZF TRANS RR<BDM>	1-38119-027-0	04	1	0208-
91	RING; SNAP PTO ZF TRANS RR<BDM> (D)	1-38219-038-0	01	1	0407-
91	RING; SNAP PTO ZF TRANS RR<BDM> (B)	1-38219-016-0	01	1	0208-0406
91	RING; SNAP PTO ZF TRANS RR<BDM> (C)	1-38219-037-0	01	1	0407-
91	RING; SNAP PTO ZF TRANS RR<BDM> (A)	1-38219-017-0	01	1	0208-
121	RING; SNAP,SHIFT LEVER PTO ZF TRANS RR<BDM>	1-38369-004-0	01	1	0208-0406
132	SHIM; BRG PTO ZF TRANS RR<BDM> T=1.60	1-33389-047-0	01	1	0208-
132	SHIM; BRG PTO ZF TRANS RR<BDM> T=1.55	1-33389-048-0	01	1	0208-
132	SHIM; BRG PTO ZF TRANS RR<BDM> T=1.50	1-33389-049-0	01	1	0208-
132	SHIM; BRG PTO ZF TRANS RR<BDM> T=1.45	1-33389-050-0	01	1	0208-
132	SHIM; BRG PTO ZF TRANS RR<BDM> T=1.40	1-33389-051-0	01	1	0208-
132	SHIM; BRG PTO ZF TRANS RR<BDM> T=1.35	1-33389-052-0	01	1	0208-
132	SHIM; BRG PTO ZF TRANS RR<BDM> T=1.30	1-33389-053-0	01	1	0208-
132	SHIM; BRG PTO ZF TRANS RR<BDM> T=1.25	1-33389-055-0	01	1	0208-
132	SHIM; BRG PTO ZF TRANS RR<BDM> T=1.20	1-33389-056-0	01	1	0208-
132	SHIM; BRG PTO ZF TRANS RR<BDM> T=1.15	1-33389-057-0	01	1	0208-
132	SHIM; BRG PTO ZF TRANS RR<BDM> T=1.10	1-33389-058-0	01	1	0208-
132	SHIM; BRG PTO ZF TRANS RR<BDM> T=1.05	1-33389-059-0	01	1	0208-
132	SHIM; BRG PTO ZF TRANS RR<BDM> T=1.00	1-33389-060-0	01	1	0208-
132	SHIM; BRG PTO ZF TRANS RR<BDM> T=0.95	1-33389-061-0	01	1	0208-
132	SHIM; BRG PTO ZF TRANS RR<BDM> T=0.90	1-33389-062-0	01	1	0208-
132	SHIM; BRG PTO ZF TRANS RR<BDM> T=0.85	1-33389-063-0	01	1	0208-
132	SHIM; BRG PTO ZF TRANS RR<BDM> T=0.80	1-33389-064-0	01	1	0208-
132	SHIM; BRG PTO ZF TRANS RR<BDM> T=0.75	1-33389-065-0	01	1	0208-
132	SHIM; BRG PTO ZF TRANS RR<BDM> T=0.70	1-33389-066-0	01	1	0208-
132	SHIM; BRG PTO ZF TRANS RR<BDM> T=0.65	1-33389-067-0	01	1	0208-
133	BUSHING; SHAFT PTO ZF TRANS RR<BDM>	1-33389-046-0	01	1	0208-
134	BEARING; OUTPUT SHAFT PTO ZF TRANS RR<BDM>	1-38219-015-0	01	1	0208-
136	SEAL; SHAFT PTO ZF TRANS RR<BDM>	1-38519-010-0	01	1	0208-0406
136	SEAL; SHAFT PTO ZF TRANS RR<BDM>	1-38519-026-0	01	1	0407-
137	SWITCH; RR PTO PTO ZF TRANS RR<BDM>	1-82440-080-1	01	1	0208-0406
138	GASKET; SW PTO ZF TRANS RR<BDM>	1-33119-249-0	01	1	0208-0406
139	PISTON; RR PTO PTO ZF TRANS RR<BDM>	1-38129-016-0	01	1	0208-0406
139	PISTON; RR PTO PTO ZF TRANS RR<BDM>	1-38129-033-0	01	1	0407-
140	SPRING; PISTON,RR PTO PTO ZF TRANS RR<BDM> (A)	1-38129-013-0	01	1	0208-0406
140	SPRING; PISTON,RR PTO PTO ZF TRANS RR<BDM> (D)	1-38129-032-0	01	1	0407-
140	SPRING; PISTON,RR PTO PTO ZF TRANS RR<BDM> (B)	1-38129-014-0	01	1	0208-0406
140	SPRING; PISTON,RR PTO PTO ZF TRANS RR<BDM> (C)	1-38129-015-0	01	1	0208-0406
141	GASKET; PISTON,RR PTO PTO ZF TRANS RR<BDM>	1-38129-023-0	01	1	0208-0406
141	GASKET; PISTON,RR PTO PTO ZF TRANS RR<BDM>	1-38129-035-0	01	1	0407-
142	CYLINDER; RR PTO PTO ZF TRANS RR<BDM>	1-38159-003-0	01	1	0208-0406
143	GASKET; CYL PTO ZF TRANS RR<BDM>	1-38129-018-0	01	1	0208-0406
144	BOLT; CYL PTO ZF TRANS RR<BDM>	1-38129-024-0	04	1	0208-0406
145	WASHER; LK,CYL PTO ZF TRANS RR<BDM>	1-38129-025-0	04	1	0208-0406
146	PAD; CONT LEVER PTO ZF TRANS RR<BDM>	1-38369-009-0	01	1	0208-0406
147	CUP; SEALING PTO ZF TRANS RR<BDM>	1-38369-006-0	01	1	0208-0406
148	GASKET; YOKE PTO ZF TRANS RR<BDM>	1-38519-014-0	01	1	0208-
149	SLEEVE; SLIDING PTO ZF TRANS RR<BDM>	1-38229-008-0	01	1	0208-0406
149	SLEEVE; SLIDING PTO ZF TRANS RR<BDM>	1-38229-059-0	01	1	0407-
150	BEARING; OUTPUT SHAFT PTO ZF TRANS RR<BDM>	1-38249-018-0	01	1	0208-
151	WASHER; PL,COVER PTO ZF TRANS RR<BDM>	1-38119-028-0	04	1	0208-
152	BALL; SW PTO ZF TRANS RR<BDM>	1-38119-032-0	01	1	0208-0406
