◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVR ▶ 10630 - FVR-RHD ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-31 - THERMOSTAT AND HOUSING ▶
0-31 — THERMOSTAT AND HOUSING (#1029) — 68 parça

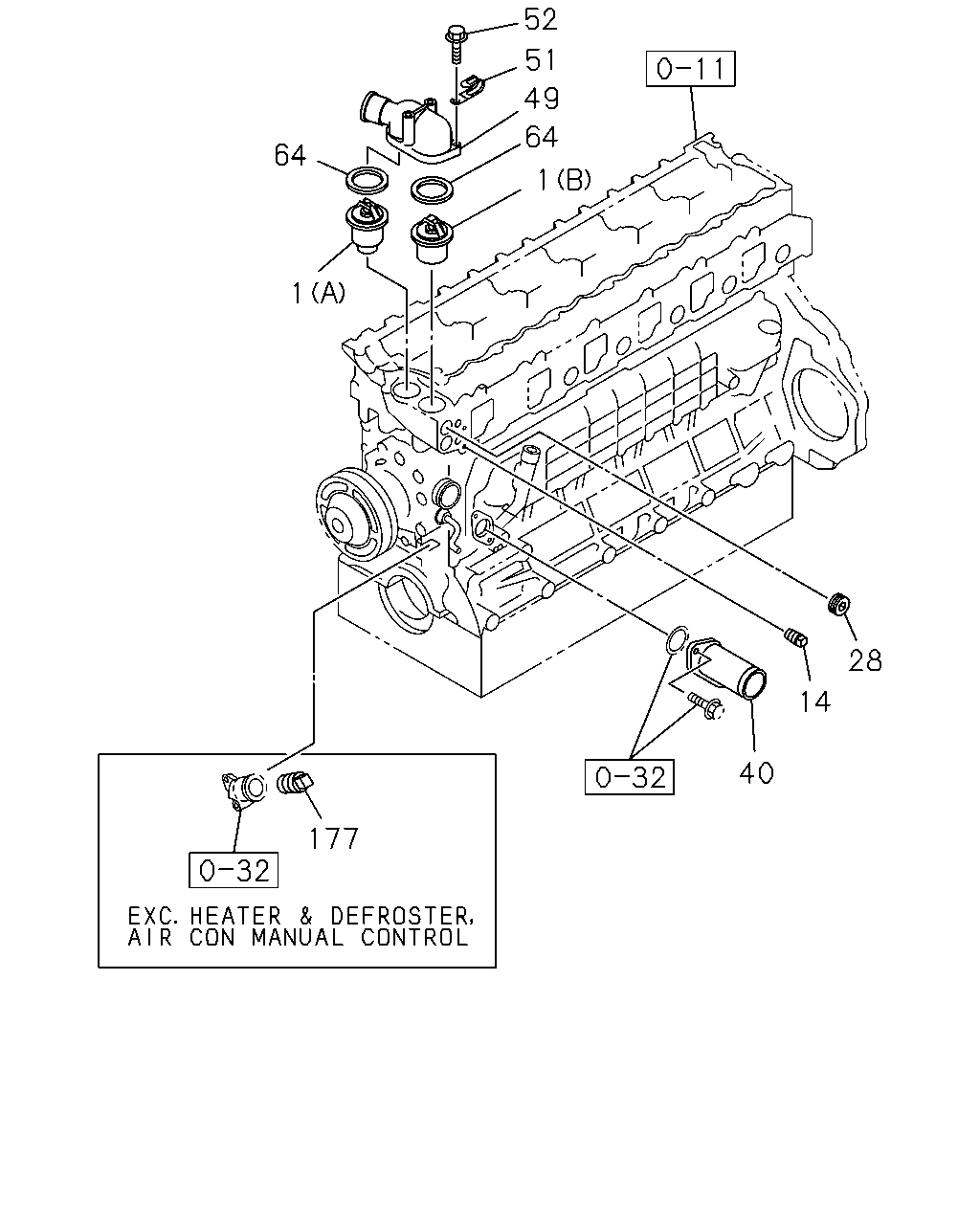

çizim 27915
52 51 49 64 64 1 1 28 14 40 177
BalonParca AdiParca NoAdetTipApplied Date A B C
1 THERMOSTAT
76.5?C 		1-13770-037-1 01 1 9202-9305 ● ●
1 THERMOSTAT
EXC. THERMOSTAT VAR 1<Q1U> 76.5?C 		1-13770-037-1 01 1 9306-9507 ● ●
1 THERMOSTAT
EXC. THERMOSTAT VAR 1<Q1U> 76.5?C 		1-13770-085-0 01 1 9508- ● ●
1 THERMOSTAT
THERMOSTAT VAR 1<Q1U> 65?C 		8-97032-130-0 01 1 9306-9507 ● ●
1 THERMOSTAT
THERMOSTAT VAR 1<Q1U> 65?C 		1-13770-087-0 01 1 9508- ● ●
1 THERMOSTAT
(A) 82?C 		8-94397-310-0 01 1 9202- ●
1 THERMOSTAT
(B) 82?C 		8-94397-311-0 01 1 9202- ●
14 PLUG; SW
PT1/4 		1-09605-019-0 01 1 9202- ● ●
14 PLUG; SW
PT3/8 T=8.0 		1-09605-066-0 01 1 9202- ● ●
14 PLUG; SW
PT3/8 		8-94397-338-0 01 1 9202- ●
28 PLUG; HTR
PT3/4 		1-09605-020-0 01 1 9202- ●
40 DUCT; WATER,SUCTION
PARTIAL OIL FILTER CARTRIDGE<KC2> 		1-13711-424-2 01 1 9202- ●
40 DUCT; WATER,SUCTION 1-13711-424-2 01 1 9202- ●
40 DUCT; WATER,SUCTION 8-94397-005-2 01 1 9202- ●
49 PIPE; WATER OUTLET
EXC. PARTIAL OIL FILTER CARTRIDGE<KC2> 		1-13713-031-0 01 1 9202- ●
49 PIPE; WATER OUTLET 8-94399-499-1 01 1 9202- ●
51 CLIP; JOINT,THERMOSTAT
ID=18 L=44 		8-94225-185-0 01 1 9202-9408 ●
51 CLIP; JOINT,THERMOSTAT
ID=18 L=44 		8-94225-185-0 02 1 9409- ●
52 BOLT; JOINT,THERMOSTAT
M8X22 FLANGE 		0-28080-822-0 02 1 9202- ●
52 BOLT; JOINT,THERMOSTAT
M8X79 FLANGE 		8-94311-617-1 02 1 9202- ●
64 GASKET; OUTLET PIPE TO HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. PARTIAL OIL FILTER CARTRIDGE<KC2> 		1-13742-014-0 01 1 9202- ●
64 GASKET; OUTLET PIPE TO HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-94370-480-0 02 1 9202- ●
177 PLUG; PIPE,WATER DUCT
EXC. HEATER & DEFROSTER(C41),AIR CON MANUAL CONTROL(C60) PT1/2 		9-09204-521-0 01 1 9202-9510 ●

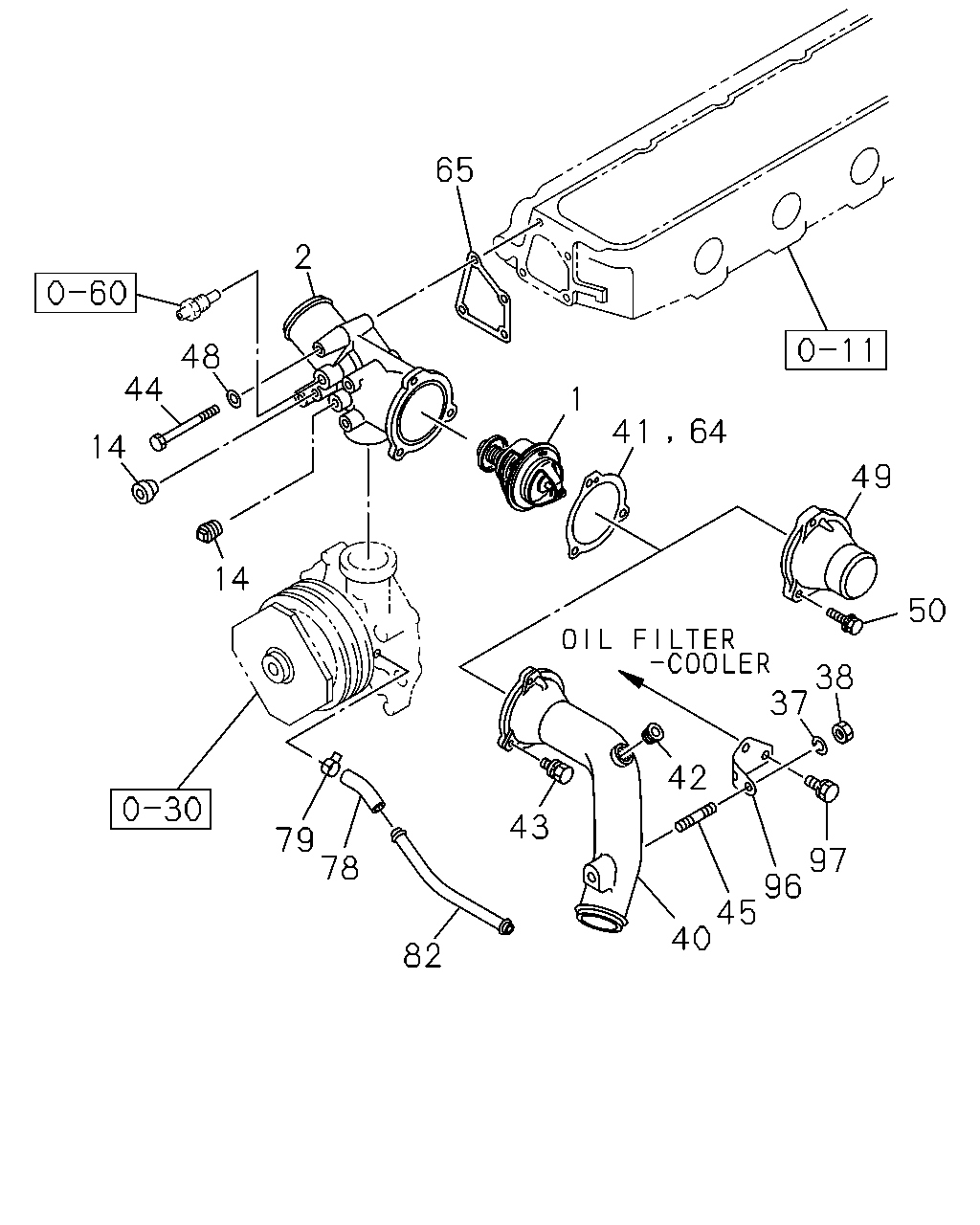

çizim 92181
65 2 48 44 1 64 41 14 49 14 50 38 37 42 43 79 78 97 96 45 40 82
BalonParca AdiParca NoAdetTipApplied Date A B C
1 THERMOSTAT
76.5?C 		1-13770-037-1 01 1 9202-9305 ● ●
1 THERMOSTAT
EXC. THERMOSTAT VAR 1<Q1U> 76.5?C 		1-13770-037-1 01 1 9306-9507 ● ●
1 THERMOSTAT
EXC. THERMOSTAT VAR 1<Q1U> 76.5?C 		1-13770-085-0 01 1 9508- ● ●
1 THERMOSTAT
THERMOSTAT VAR 1<Q1U> 65?C 		8-97032-130-0 01 1 9306-9507 ● ●
1 THERMOSTAT
THERMOSTAT VAR 1<Q1U> 65?C 		1-13770-087-0 01 1 9508- ● ●
1 THERMOSTAT
(A) 82?C 		8-94397-310-0 01 1 9202- ●
1 THERMOSTAT
(B) 82?C 		8-94397-311-0 01 1 9202- ●
2 HOUSING; THERMOSTAT 1-13716-129-1 01 1 9202- ● ●
14 PLUG; SW
PT1/4 		1-09605-019-0 01 1 9202- ● ●
14 PLUG; SW
PT3/8 T=8.0 		1-09605-066-0 01 1 9202- ● ●
14 PLUG; SW
PT3/8 		8-94397-338-0 01 1 9202- ●
37 WASHER; LK,DUCT,SUCTION
PARTIAL OIL FILTER CARTRIDGE<KC2> ID=10.2 		9-09150-510-0 01 1 9202- ●
37 WASHER; LK,DUCT,SUCTION
ID=10.2 		9-09150-510-0 01 1 9202- ●
38 NUT; DUCT,SUCTION
PARTIAL OIL FILTER CARTRIDGE<KC2> M10 		9-09110-410-0 01 1 9202- ●
38 NUT; DUCT,SUCTION
M10 		9-09110-410-0 01 1 9202- ●
40 DUCT; WATER,SUCTION
PARTIAL OIL FILTER CARTRIDGE<KC2> 		1-13711-424-2 01 1 9202- ●
40 DUCT; WATER,SUCTION 1-13711-424-2 01 1 9202- ●
40 DUCT; WATER,SUCTION 8-94397-005-2 01 1 9202- ●
41 GASKET; DUCT TO HSG
ALSO INCLUDED IN GASKET SET(ENGINE). PARTIAL OIL FILTER CARTRIDGE<KC2>. 		1-13742-014-0 01 1 9202- ●
41 GASKET; DUCT TO HSG
ALSO INCLUDED IN GASKET SET(ENGINE). 		1-13742-014-0 01 1 9202- ●
42 PLUG; WATER DUCT
PARTIAL OIL FILTER CARTRIDGE<KC2> PT3/4 		9-09664-005-0 01 1 9202- ●
42 PLUG; WATER DUCT
PT3/4 		9-09664-005-0 01 1 9202- ●
43 BOLT; WATER DUCT
PARTIAL OIL FILTER CARTRIDGE<KC2> M8X28 W/LK&PL WASHER 		0-50140-828-0 03 1 9202- ●
43 BOLT; WATER DUCT
M8X28 W/LK&PL WASHER 		0-50140-828-0 03 1 9202- ●
44 BOLT; HSG TO HD
M8X100 		0-10805-800-0 04 1 9202- ● ●
45 STUD; DUCT
PARTIAL OIL FILTER CARTRIDGE<KC2> M10X20 L=35 		9-04411-020-0 01 1 9202- ●
45 STUD; DUCT
M10X20 L=35 		9-04411-020-0 01 1 9202- ●
48 WASHER; PL,THERMOSTAT HSG
ID=8.4 		9-09160-508-0 04 1 9202- ● ●
49 PIPE; WATER OUTLET
EXC. PARTIAL OIL FILTER CARTRIDGE<KC2> 		1-13713-031-0 01 1 9202- ●
49 PIPE; WATER OUTLET 8-94399-499-1 01 1 9202- ●
50 BOLT; OUTLET PIPE
M8X28 W/LK&PL WASHER 		0-50140-828-0 03 1 9202-9404 ●
50 BOLT; OUTLET PIPE
EXC. PARTIAL OIL FILTER CARTRIDGE<KC2> M8X28 W/LK&PL WASHER 		0-50140-828-0 03 1 9405- ●
64 GASKET; OUTLET PIPE TO HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. PARTIAL OIL FILTER CARTRIDGE<KC2> 		1-13742-014-0 01 1 9202- ●
64 GASKET; OUTLET PIPE TO HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-94370-480-0 02 1 9202- ●
65 GASKET; HSG TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		1-13743-021-1 01 1 9202- ● ●
78 HOSE; RUBBER,WATER PIPE
PARTIAL OIL FILTER CARTRIDGE<KC2> 		1-09360-626-0 01 1 9202- ●
78 HOSE; RUBBER,WATER PIPE 1-09360-626-0 01 1 9202- ●
79 CLIP; RUBBER HOSE
PARTIAL OIL FILTER CARTRIDGE<KC2> ID=20 		1-09707-084-1 02 1 9202- ●
79 CLIP; RUBBER HOSE
ID=20 		1-09707-084-1 02 1 9202- ●
82 PIPE; WATER,HTR
PARTIAL OIL FILTER CARTRIDGE<KC2> 		1-13711-607-0 01 1 9202- ●
82 PIPE; WATER,HTR 1-13711-607-0 01 1 9202- ●
96 STAY; WATER PIPE
PARTIAL OIL FILTER CARTRIDGE<KC2> 		1-13719-058-1 01 1 9202- ●
96 STAY; WATER PIPE 1-13719-058-1 01 1 9202- ●
97 BOLT; PIPE STAY
PARTIAL OIL FILTER CARTRIDGE<KC2> M10X20 W/LK&PL WASHER 		0-50151-020-0 02 1 9202- ●
97 BOLT; PIPE STAY
M10X20 W/LK&PL WASHER 		0-50151-020-0 02 1 9202- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
