2-26B — MANUAL TRANSMISSION GEAR (#10285) — 206 parça

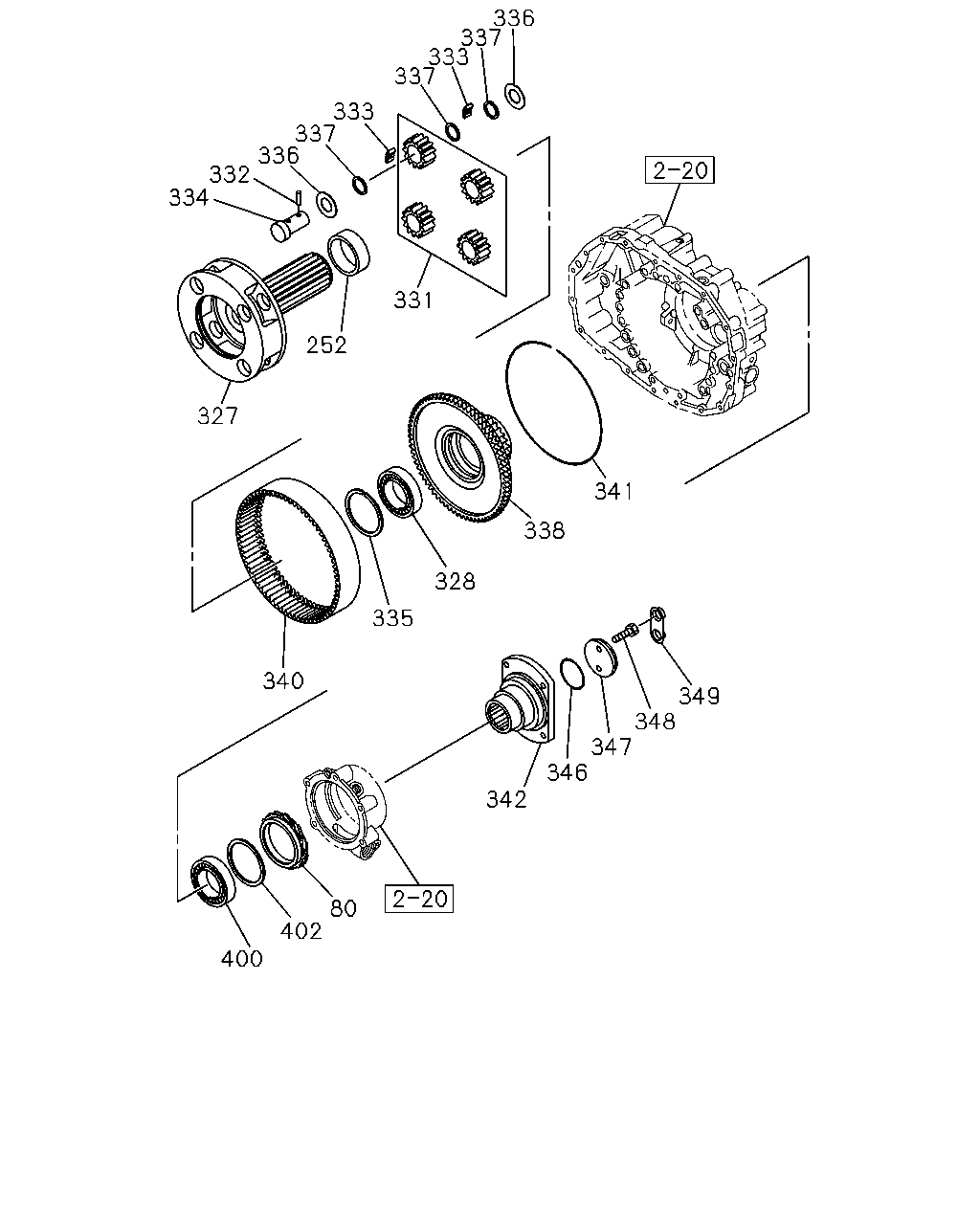

çizim 78874
336 337 333 337 333 337 336 332 334 331 252 327 341 338 328 335 340 349 348 347 346 342 80 402 400
BalonParca AdiParca NoAdetTipApplied Date
80 GEAR; SPD DRIVE 1-33371-064-0 01 1 0006-
252 SPACER 1-33239-235-0 01 1 0006-
327 CARRIER; PLANETARY GEAR 1-33231-285-0 01 1 0006-
328 BEARING; CARRIER 1-33339-025-0 01 1 0006-
331 GEAR SET; PLANETARY 1-33239-230-0 01 1 0006-
332 PIN; LOCK,SHAFT 1-33239-234-0 04 1 0006-
333 ROLLER; PLANETARY GEAR 1-33239-232-0 AR 1 0006-
334 SHAFT; PLANETARY GEAR 1-33239-233-0 04 1 0006-
335 RING; SNAP,BEARING
T=2.50 		1-33339-005-0 01 1 0006-
335 RING; SNAP,BEARING
T=2.40 		1-33339-006-0 01 1 0006-
335 RING; SNAP,BEARING
T=2.30 		1-33339-007-0 01 1 0006-
335 RING; SNAP,BEARING
T=2.20 		1-33339-008-0 01 1 0006-
335 RING; SNAP,BEARING
T=2.10 		1-33339-009-0 01 1 0006-
335 RING; SNAP,BEARING
T=2.00 		1-33339-010-0 01 1 0006-
336 WASHER; THRUST,PLANETARY GEAR 1-33239-231-0 08 1 0006-
337 WASHER; PLANETARY GEAR,INNER 1-33239-176-0 12 1 0006-
338 CARRIER; RING GEAR 1-33331-241-0 01 1 0006-
340 GEAR; RING 1-33339-047-0 01 1 0006-
341 WIRE; LOCK,CARRIER 1-33339-048-0 01 1 0006-
342 FLANGE; OUTPUT 1-37243-301-0 01 1 0006-
346 GASKET; FLANGE 1-37249-156-0 01 1 0006-
347 WASHER; FLANGE 1-37249-157-0 01 1 0006-
348 BOLT; SHAFT 1-37249-155-0 02 1 0006-
349 WASHER; LK,SHAFT 1-37249-153-0 01 1 0006-
400 BEARING; OUTPUT SHAFT RR 1-33139-063-0 01 1 0006-
402 SHIM
T=2.20 		1-33139-064-0 01 1 0006-
402 SHIM
T=2.10 		1-33139-065-0 01 1 0006-
402 SHIM
T=2.00 		1-33139-066-0 01 1 0006-
402 SHIM
T=1.90 		1-33139-067-0 01 1 0006-
402 SHIM
T=1.80 		1-33139-068-0 01 1 0006-
402 SHIM
T=1.70 		1-33139-069-0 01 1 0006-
402 SHIM
T=1.60 		1-33139-070-0 01 1 0006-
402 SHIM
T=1.50 		1-33139-071-0 01 1 0006-

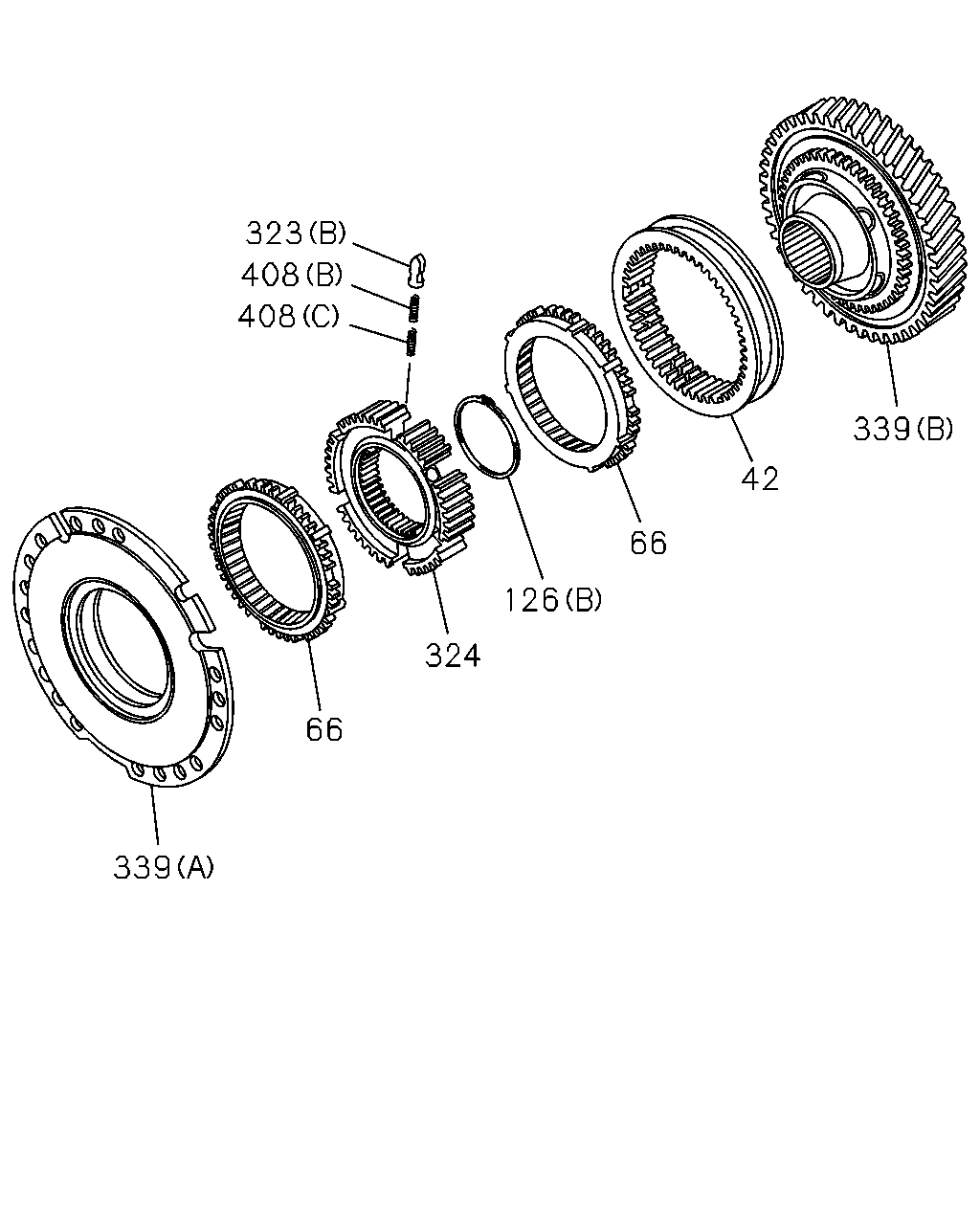

çizim 78875
323 408 408 339 42 66 126 324 66 339
BalonParca AdiParca NoAdetTipApplied Date
42 SLEEVE 1-33262-195-0 01 1 0006-
66 RING; BLOCK,SYN 1-33339-069-0 02 1 0006-
126 RING; SNAP,CLU HUB
(A) T=2.8 		1-33259-050-0 01 1 0006-
126 RING; SNAP,CLU HUB
(A) T=2.7 		1-33259-051-0 01 1 0006-
126 RING; SNAP,CLU HUB
(A) T=2.6 		1-33259-052-0 01 1 0006-
126 RING; SNAP,CLU HUB
(A) T=2.5 		1-33259-053-0 01 1 0006-
126 RING; SNAP,CLU HUB
(A) T=2.4 		1-33259-054-0 01 1 0006-
126 RING; SNAP,CLU HUB
(B) T=4.0 		1-33269-047-0 01 1 0006-
126 RING; SNAP,CLU HUB
(B) T=3.9 		1-33269-048-0 01 1 0006-
126 RING; SNAP,CLU HUB
(B) T=3.8 		1-33269-049-0 01 1 0006-
126 RING; SNAP,CLU HUB
(B) T=3.7 		1-33269-050-0 01 1 0006-
323 INSERT
(B) 		1-33263-027-0 09 1 0006-
323 INSERT
(A) 		1-33263-030-0 03 1 0006-
323 INSERT
(C) 		1-33263-031-0 03 1 0006-
324 HUB; CLU 1-33261-230-0 01 1 0006-
339 CLUTCH; PLANETARY GEAR
(A) 		1-33265-453-0 01 1 0006-
339 CLUTCH; PLANETARY GEAR
(B) 		1-33265-454-0 01 1 0006-
408 SPRING
(B) 		1-33269-038-0 09 1 0006-
408 SPRING
(C) 		1-33269-039-0 09 1 0006-
408 SPRING
(A) 		1-33269-042-0 06 1 0006-

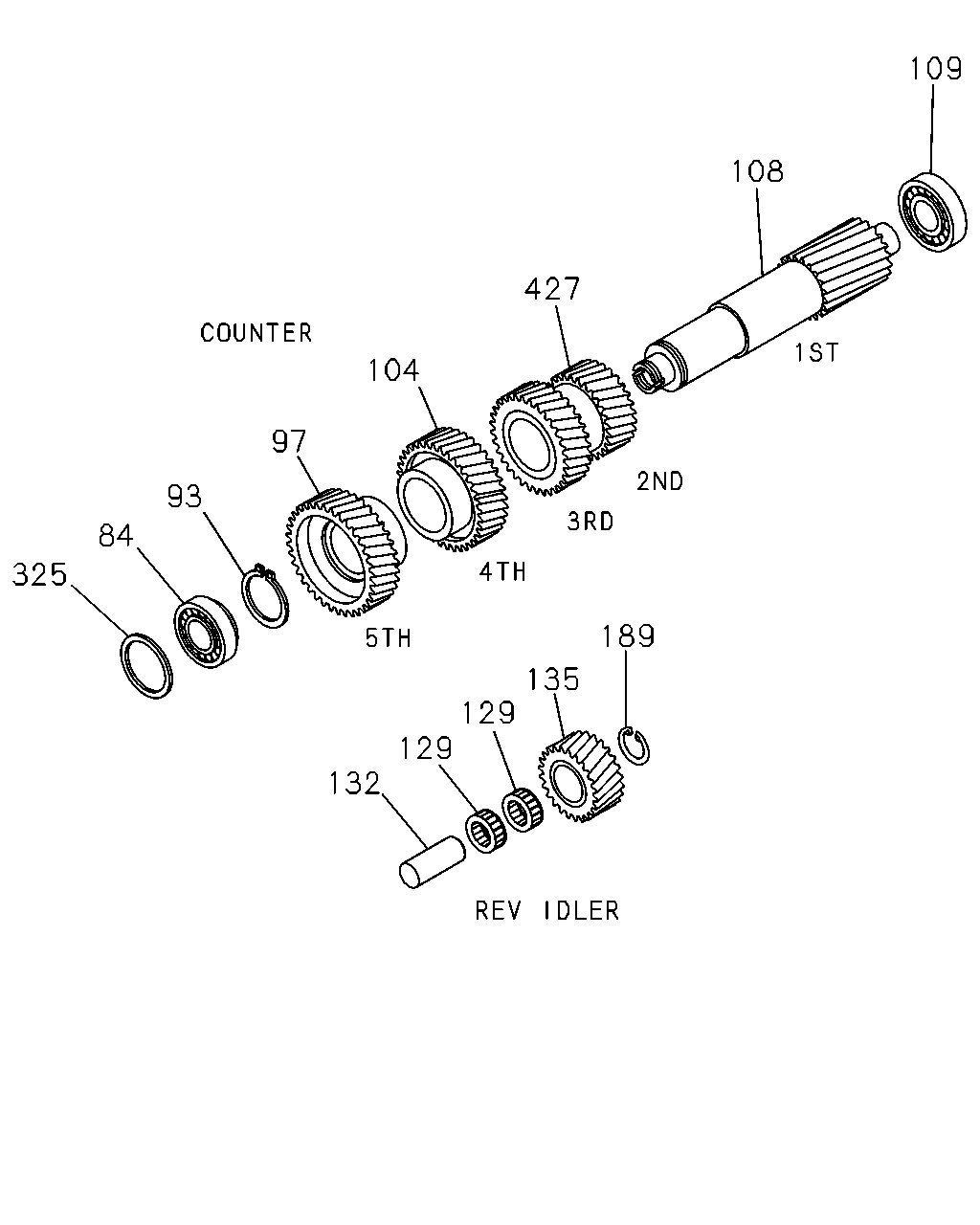

çizim 79204
109 108 427 104 97 93 84 325 189 135 129 129 132
BalonParca AdiParca NoAdetTipApplied Date
84 BEARING; COUNTER SHAFT,FRT 1-33312-009-0 01 1 0006-
93 RING; SNAP,COUNTER FRT BRG
T=2.50 		1-33319-135-0 01 1 0006-
93 RING; SNAP,COUNTER FRT BRG
T=2.45 		1-33319-136-0 01 1 0006-
93 RING; SNAP,COUNTER FRT BRG
T=2.40 		1-33319-137-0 01 1 0006-
93 RING; SNAP,COUNTER FRT BRG
T=2.30 		1-33319-138-0 01 1 0006-
93 RING; SNAP,COUNTER FRT BRG
T=2.20 		1-33319-139-0 01 1 0006-
93 RING; SNAP,COUNTER FRT BRG
T=2.1 		1-33319-140-0 01 1 0006-
93 RING; SNAP,COUNTER FRT BRG
T=2.0 		1-33319-141-0 01 1 0006-
93 RING; SNAP,COUNTER FRT BRG
T=1.9 		1-33319-142-0 01 1 0006-
93 RING; SNAP,COUNTER FRT BRG
T=1.8 		1-33319-143-0 01 1 0006-
93 RING; SNAP,COUNTER FRT BRG
T=1.65 		1-33319-144-0 01 1 0006-
93 RING; SNAP,COUNTER FRT BRG
T=1.75 		1-47139-104-0 01 1 0006-
97 GEAR; 5TH,COUNTER 1-33338-337-0 01 1 0006-
104 GEAR; 4TH,COUNTER 1-33338-336-0 01 1 0006-
108 SHAFT; COUNTER 1-33311-294-0 01 1 0006-
109 BEARING; COUNTER SHAFT,RR 1-33312-006-0 01 1 0006-
129 BEARING; NEEDLE,IDLER 1-33369-013-0 02 1 0006-
132 SHAFT; REV 1-33351-024-0 01 1 0006-
135 GEAR; REV IDLER 1-33361-077-0 01 1 0006-
189 RING; SNAP,REV,GEAR 1-44519-224-0 01 1 0006-
325 SHIM; COUNTER SHAFT BRG
T=3.10 		1-33315-042-0 01 1 0006-
325 SHIM; COUNTER SHAFT BRG
T=3.05 		1-33315-043-0 01 1 0006-
325 SHIM; COUNTER SHAFT BRG
T=3.00 		1-33315-044-0 01 1 0006-
325 SHIM; COUNTER SHAFT BRG
T=2.95 		1-33315-045-0 01 1 0006-
325 SHIM; COUNTER SHAFT BRG
T=2.90 		1-33315-046-0 01 1 0006-
325 SHIM; COUNTER SHAFT BRG
T=2.85 		1-33315-047-0 01 1 0006-
325 SHIM; COUNTER SHAFT BRG
T=2.80 		1-33315-048-0 01 1 0006-
325 SHIM; COUNTER SHAFT BRG
T=2.75 		1-33315-049-0 01 1 0006-
325 SHIM; COUNTER SHAFT BRG
T=2.70 		1-33315-050-0 01 1 0006-
325 SHIM; COUNTER SHAFT BRG
T=2.65 		1-33315-051-0 01 1 0006-
325 SHIM; COUNTER SHAFT BRG
T=2.60 		1-33315-052-0 01 1 0006-
325 SHIM; COUNTER SHAFT BRG
T=2.55 		1-33315-053-0 01 1 0006-
325 SHIM; COUNTER SHAFT BRG
T=2.50 		1-33315-054-0 01 1 0006-
325 SHIM; COUNTER SHAFT BRG
T=2.45 		1-33315-055-0 01 1 0006-
325 SHIM; COUNTER SHAFT BRG
T=2.40 		1-33315-056-0 01 1 0006-
325 SHIM; COUNTER SHAFT BRG
T=2.35 		1-33315-057-0 01 1 0006-
325 SHIM; COUNTER SHAFT BRG
T=2.30 		1-33315-058-0 01 1 0006-
325 SHIM; COUNTER SHAFT BRG
T=2.25 		1-33315-059-0 01 1 0006-
325 SHIM; COUNTER SHAFT BRG
T=2.20 		1-33315-060-0 01 1 0006-
325 SHIM; COUNTER SHAFT BRG
T=2.15 		1-33315-061-0 01 1 0006-
325 SHIM; COUNTER SHAFT BRG
T=2.10 		1-33315-062-0 01 1 0006-
325 SHIM; COUNTER SHAFT BRG
T=2.05 		1-33315-063-0 01 1 0006-
325 SHIM; COUNTER SHAFT BRG
T=2.00 		1-33315-064-0 01 1 0006-
325 SHIM; COUNTER SHAFT BRG
T=1.95 		1-33315-065-0 01 1 0006-
325 SHIM; COUNTER SHAFT BRG
T=1.90 		1-33315-066-0 01 1 0006-
427 GEAR; 2ND & 3RD,COUNTER 1-33332-119-0 01 1 0006-

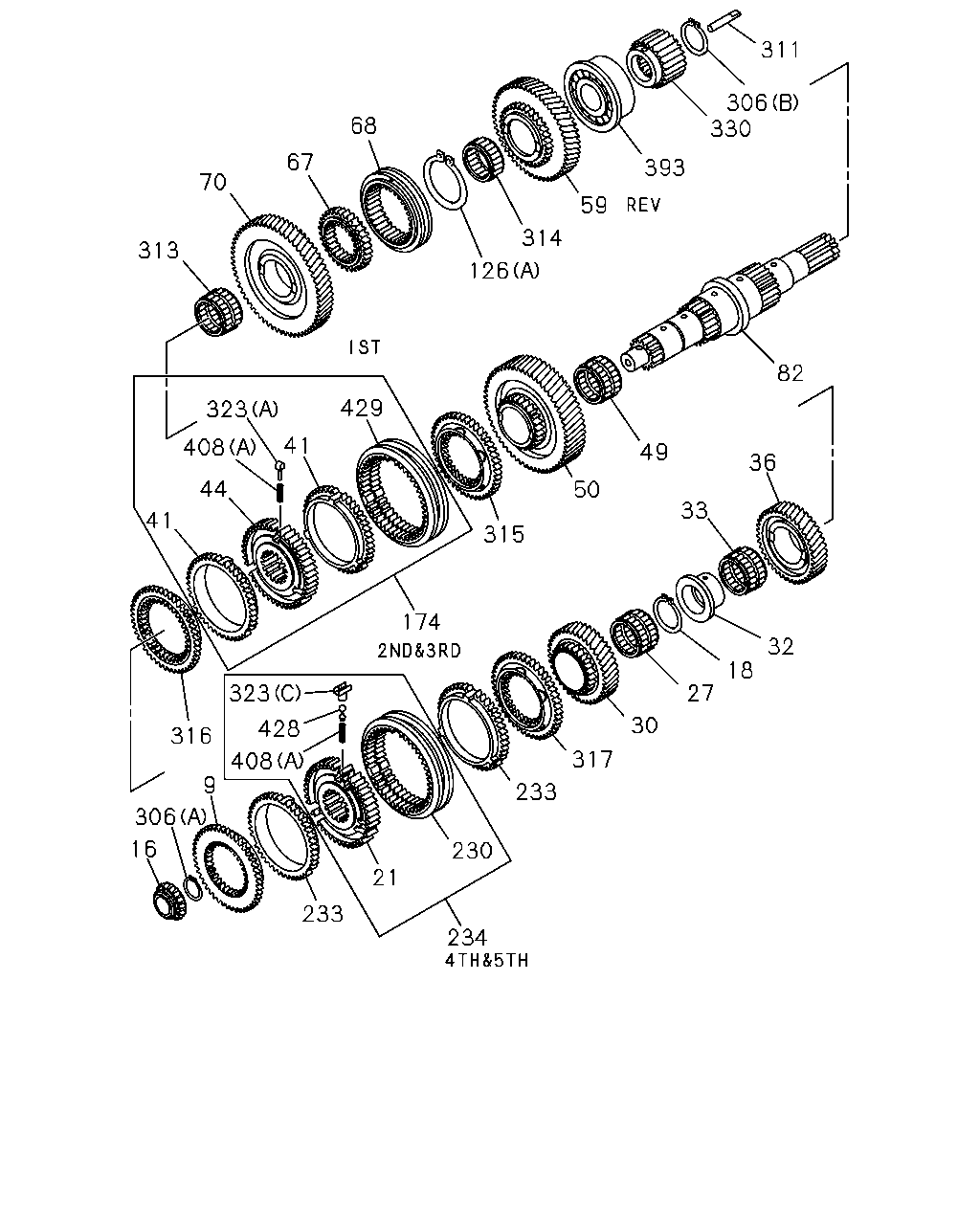

çizim 102936
311 306 330 68 67 393 70 59 314 313 126 82 429 323 41 408 49 36 44 50 33 41 315 174 32 18 323 27 30 428 316 317 408 9 233 306 16 230 21 233 234
BalonParca AdiParca NoAdetTipApplied Date
9 CLUTCH; DOG,TOP GEAR 1-33265-451-0 01 1 0006-
16 BEARING; PILOT,MAINSHAFT 1-33239-229-0 01 1 0006-
18 RING; SNAP,CLU HUB
T=2.4 		1-33259-054-0 01 1 0006-
18 RING; SNAP,CLU HUB
T=2.3 		1-33259-060-0 01 1 0006-
18 RING; SNAP,CLU HUB
T=2.2 		1-33259-061-0 01 1 0006-
18 RING; SNAP,CLU HUB
T=2.1 		1-33259-062-0 01 1 0006-
18 RING; SNAP,CLU HUB
T=2.0 		1-33259-063-0 01 1 0006-
18 RING; SNAP,CLU HUB
T=1.9 		1-33259-064-0 01 1 0006-
21 HUB; CLU,4TH & 5TH 1-33261-232-0 01 1 0006-
27 BEARING; 4TH GEAR 1-33259-066-0 02 1 0006-
30 GEAR; 4TH,MAINSHAFT 1-33252-453-0 01 1 0006-
32 COLLAR; 3RD GEAR 1-33259-059-0 01 1 0006-
33 BEARING; NEEDLE,3RD GEAR 1-33259-065-0 01 1 0006-
36 GEAR; 3RD,MAINSHAFT 1-33252-452-0 01 1 0006-
41 RING; BLOCK,2ND & 3RD 1-33265-501-0 02 1 0006-
44 HUB; CLU,2ND & 3RD,MAIN 1-33261-231-0 01 1 0006-
49 BEARING; NEEDLE,2ND GEAR 1-33259-058-0 02 1 0006-
50 GEAR; 2ND,MAINSHAFT 1-33251-374-0 01 1 0006-
59 GEAR; REV MAINSHAFT 1-33257-077-0 01 1 0006-
67 HUB; CLU,1ST TO REV 1-33259-048-0 01 1 0006-
68 SLEEVE; 1ST TO REV 1-33259-049-0 01 1 0006-
70 GEAR; 1ST,MAINSHAFT 1-33251-373-0 01 1 0006-
82 SHAFT; MAIN,TRANS 1-33231-283-0 01 1 0006-
126 RING; SNAP,CLU HUB
(A) T=2.8 		1-33259-050-0 01 1 0006-
126 RING; SNAP,CLU HUB
(A) T=2.7 		1-33259-051-0 01 1 0006-
126 RING; SNAP,CLU HUB
(A) T=2.6 		1-33259-052-0 01 1 0006-
126 RING; SNAP,CLU HUB
(A) T=2.5 		1-33259-053-0 01 1 0006-
126 RING; SNAP,CLU HUB
(A) T=2.4 		1-33259-054-0 01 1 0006-
126 RING; SNAP,CLU HUB
(B) T=4.0 		1-33269-047-0 01 1 0006-
126 RING; SNAP,CLU HUB
(B) T=3.9 		1-33269-048-0 01 1 0006-
126 RING; SNAP,CLU HUB
(B) T=3.8 		1-33269-049-0 01 1 0006-
126 RING; SNAP,CLU HUB
(B) T=3.7 		1-33269-050-0 01 1 0006-
174 SYNCHRONIZER ASM; 2ND-3RD 1-33260-145-0 01 1 0006-
230 SLEEVE; 4TH TO 5TH 1-33262-193-0 01 1 0006-
233 RING; BLOCK 4TH TO 5TH 1-33265-452-0 02 1 0006-
234 SYNCHRONIZER ASM; 4TH TO 5TH 1-33260-146-0 01 1 0006-
306 RING; SNAP,MAINSHAFT
(A) T=2.0 		1-33239-227-0 01 1 0006-
306 RING; SNAP,MAINSHAFT
(A) T=1.9 		1-33239-228-0 01 1 0006-
306 RING; SNAP,MAINSHAFT
(B) T=3.20 		1-33319-061-0 01 1 0006-
306 RING; SNAP,MAINSHAFT
(B) T=3.15 		1-33319-062-0 01 1 0006-
306 RING; SNAP,MAINSHAFT
(B) T=3.10 		1-33319-063-0 01 1 0006-
306 RING; SNAP,MAINSHAFT
(B) T=3.05 		1-33319-064-0 01 1 0006-
306 RING; SNAP,MAINSHAFT
(B) T=3.00 		1-33319-065-0 01 1 0006-
306 RING; SNAP,MAINSHAFT
(B) T=2.95 		1-33319-066-0 01 1 0006-
306 RING; SNAP,MAINSHAFT
(B) T=2.90 		1-33319-067-0 01 1 0006-
306 RING; SNAP,MAINSHAFT
(B) T=2.85 		1-33319-068-0 01 1 0006-
306 RING; SNAP,MAINSHAFT
(B) T=2.80 		1-33319-069-0 01 1 0006-
306 RING; SNAP,MAINSHAFT
(B) T=2.75 		1-33319-070-0 01 1 0006-
306 RING; SNAP,MAINSHAFT
(B) T=2.70 		1-33319-071-0 01 1 0006-
306 RING; SNAP,MAINSHAFT
(B) T=2.65 		1-33319-072-0 01 1 0006-
306 RING; SNAP,MAINSHAFT
(B) T=2.60 		1-33319-073-0 01 1 0006-
306 RING; SNAP,MAINSHAFT
(B) T=2.55 		1-33319-074-0 01 1 0006-
306 RING; SNAP,MAINSHAFT
(B) T=2.50 		1-33319-075-0 01 1 0006-
306 RING; SNAP,MAINSHAFT
(B) T=2.45 		1-33319-076-0 01 1 0006-
306 RING; SNAP,MAINSHAFT
(B) T=2.40 		1-33319-077-0 01 1 0006-
306 RING; SNAP,MAINSHAFT
(B) T=2.35 		1-33319-078-0 01 1 0006-
306 RING; SNAP,MAINSHAFT
(B) T=2.30 		1-33319-079-0 01 1 0006-
306 RING; SNAP,MAINSHAFT
(B) T=2.25 		1-33319-080-0 01 1 0006-
306 RING; SNAP,MAINSHAFT
(B) T=2.20 		1-33319-081-0 02 1 0006-
306 RING; SNAP,MAINSHAFT
(B) T=2.15 		1-33319-082-0 01 1 0006-
306 RING; SNAP,MAINSHAFT
(B) T=2.10 		1-33319-083-0 02 1 0006-
311 PIPE; MAINSHAFT 1-33239-209-0 01 1 0006-
313 BEARING; NEEDLE,LOW GEAR 1-33259-047-0 01 1 0006-
314 BEARING; NEEDLE,REV GEAR 1-33259-055-0 01 1 0006-
315 CLUTCH; DOG,2ND GEAR 1-33265-447-0 01 1 0006-
316 CLUTCH; DOG,3RD GEAR 1-33265-447-0 01 1 0006-
317 CLUTCH; DOG,4TH GEAR 1-33265-451-0 01 1 0006-
323 INSERT
(B) 		1-33263-027-0 09 1 0006-
323 INSERT
(A) 		1-33263-030-0 03 1 0006-
323 INSERT
(C) 		1-33263-031-0 03 1 0006-
330 GEAR; SUN 1-33259-057-0 01 1 0006-
393 BEARING; MAINSHAFT END 1-33259-056-0 01 1 0006-
408 SPRING
(B) 		1-33269-038-0 09 1 0006-
408 SPRING
(C) 		1-33269-039-0 09 1 0006-
408 SPRING
(A) 		1-33269-042-0 06 1 0006-
428 BALL; LK,SLEEVE 1-33269-051-0 03 1 0006-
429 SLEEVE; 2ND & 3RD 1-33262-192-0 01 1 0006-

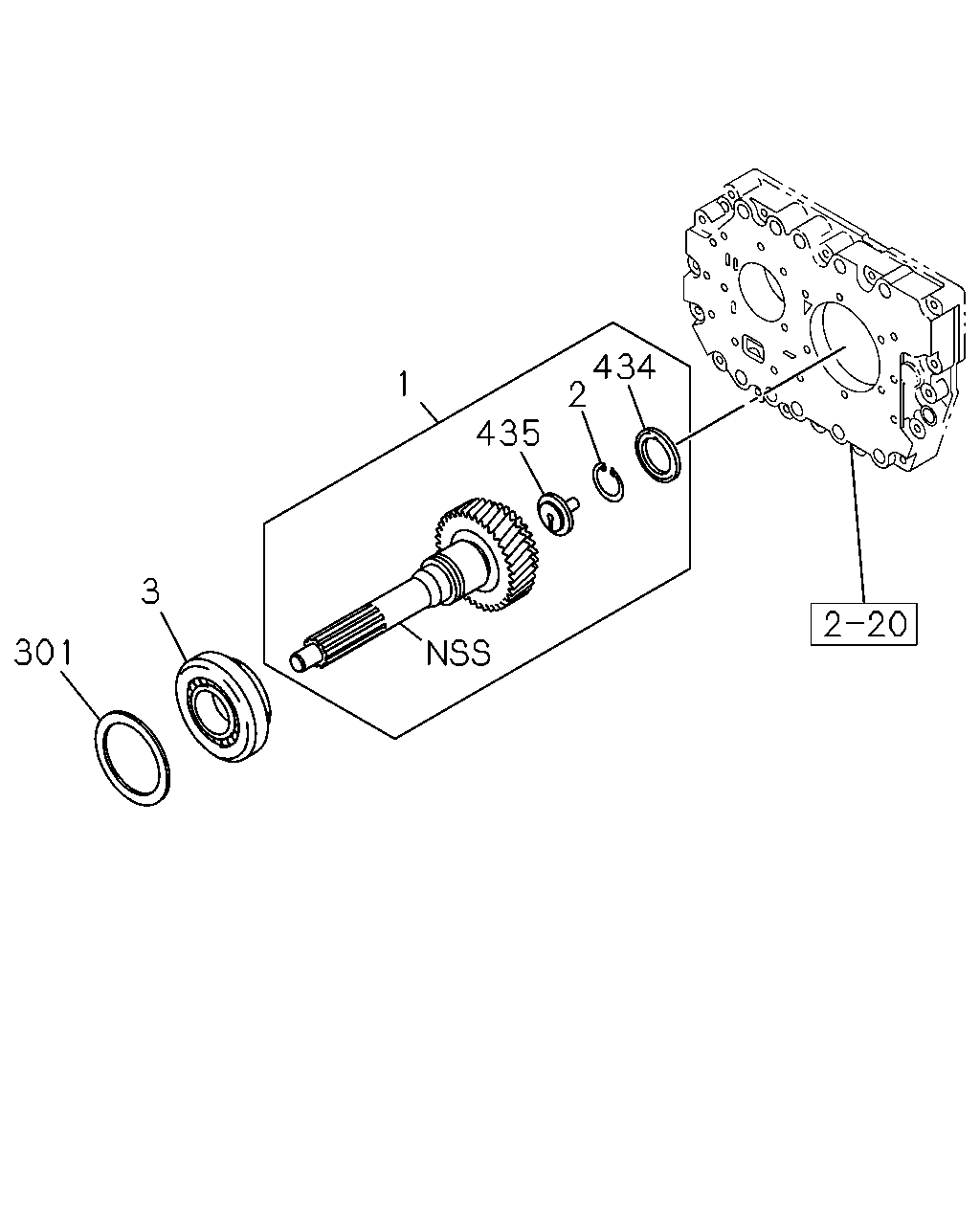

çizim 102940
434 2 1 435 3 301
BalonParca AdiParca NoAdetTipApplied Date
1 SHAFT; TOP GEAR,TRANS 1-33211-913-0 01 1 0006-
2 RING; SNAP,TOP GEAR SHAFT 1-33219-159-0 01 1 0006-
3 BEARING; TOP GEAR SHAFT 1-33219-160-0 01 1 0006-
301 SHIM; TOP GEAR SHAFT
T=3.20 		1-33219-161-0 01 1 0006-
301 SHIM; TOP GEAR SHAFT
T=3.15 		1-33219-162-0 01 1 0006-
301 SHIM; TOP GEAR SHAFT
T=3.10 		1-33219-163-0 01 1 0006-
301 SHIM; TOP GEAR SHAFT
T=3.05 		1-33219-164-0 01 1 0006-
301 SHIM; TOP GEAR SHAFT
T=3.00 		1-33219-165-0 01 1 0006-
301 SHIM; TOP GEAR SHAFT
T=2.95 		1-33219-166-0 01 1 0006-
301 SHIM; TOP GEAR SHAFT
T=2.90 		1-33219-167-0 01 1 0006-
301 SHIM; TOP GEAR SHAFT
T=2.85 		1-33219-168-0 01 1 0006-
301 SHIM; TOP GEAR SHAFT
T=2.80 		1-33219-169-0 01 1 0006-
301 SHIM; TOP GEAR SHAFT
T=2.75 		1-33219-170-0 01 1 0006-
301 SHIM; TOP GEAR SHAFT
T=2.70 		1-33219-171-0 01 1 0006-
301 SHIM; TOP GEAR SHAFT
T=2.65 		1-33219-172-0 01 1 0006-
301 SHIM; TOP GEAR SHAFT
T=2.60 		1-33219-173-0 01 1 0006-
301 SHIM; TOP GEAR SHAFT
T=2.55 		1-33219-174-0 01 1 0006-
301 SHIM; TOP GEAR SHAFT
T=2.50 		1-33219-175-0 01 1 0006-
301 SHIM; TOP GEAR SHAFT
T=2.45 		1-33219-176-0 01 1 0006-
301 SHIM; TOP GEAR SHAFT
T=2.40 		1-33219-177-0 01 1 0006-
301 SHIM; TOP GEAR SHAFT
T=2.35 		1-33219-178-0 01 1 0006-
301 SHIM; TOP GEAR SHAFT
T=2.30 		1-33219-179-0 01 1 0006-
301 SHIM; TOP GEAR SHAFT
T=2.25 		1-33219-180-0 01 1 0006-
301 SHIM; TOP GEAR SHAFT
T=2.20 		1-33219-181-0 01 1 0006-
301 SHIM; TOP GEAR SHAFT
T=2.15 		1-33219-182-0 01 1 0006-
301 SHIM; TOP GEAR SHAFT
T=2.10 		1-33219-183-0 01 1 0006-
301 SHIM; TOP GEAR SHAFT
T=2.05 		1-33219-184-0 01 1 0006-
301 SHIM; TOP GEAR SHAFT
T=2.00 		1-33219-185-0 01 1 0006-
434 GASKET; INPUTSHAFT 1-33239-172-0 01 1 0006-
435 PIPE; INPUTSHAFT 1-33219-158-0 01 1 0006-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
