Sayfa 2-25B - Isuzu EPC

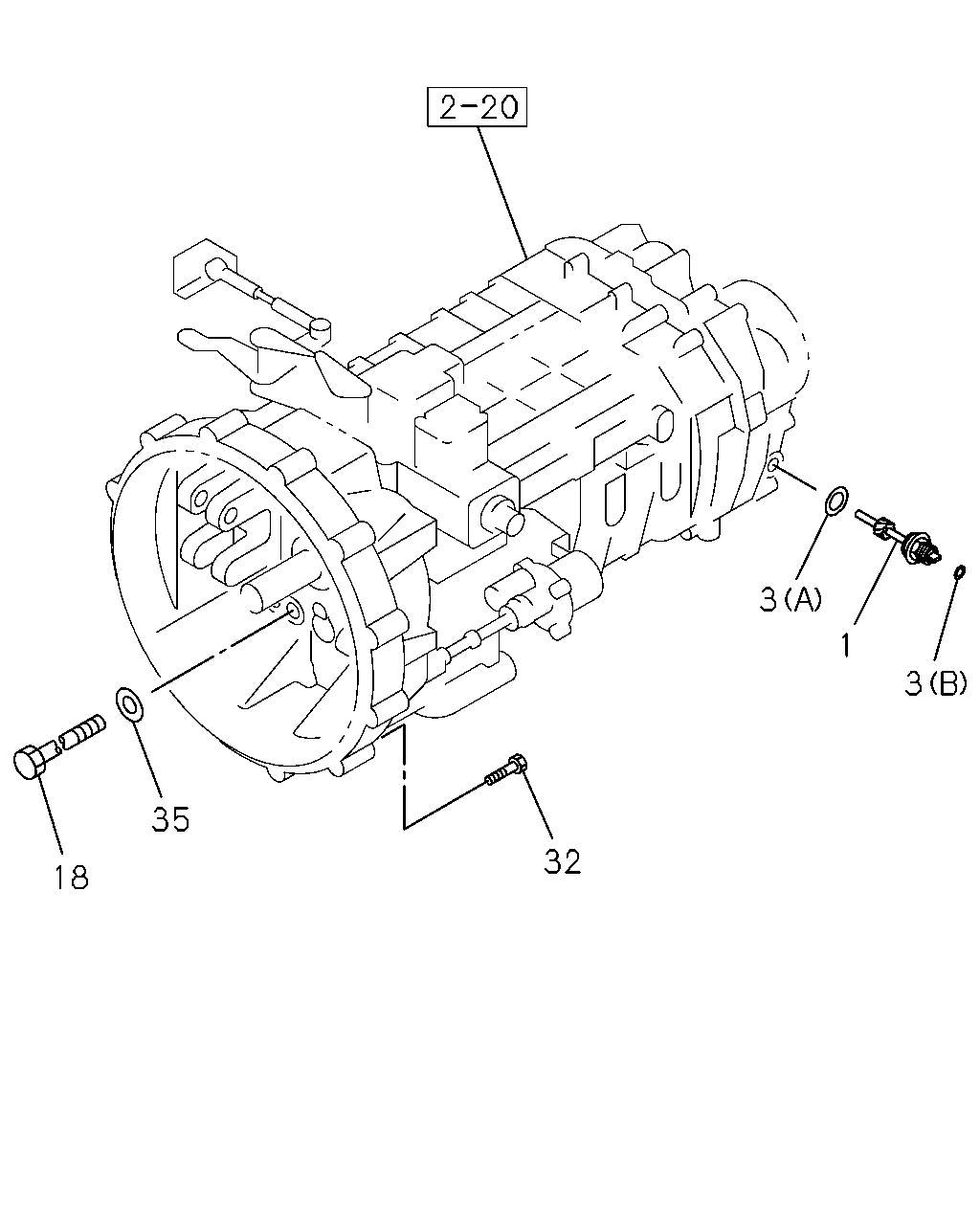

2-25B — SPEEDOMETER DRIVEN GEAR (#10283) — 8 parça

3 1 3 35 32 18

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	GEAR; DRIVEN,SPD	1-33372-182-0	01	1	0006-
3	GASKET; BUSHING ALSO INCLUDED IN GASKET SET(M/T). (A)	1-33379-003-1	01	1	0006-
3	GASKET; BUSHING ALSO INCLUDED IN GASKET SET(M/T). (B)	1-33379-008-0	01	1	0006-
18	BOLT; CLU HSG TO TRANS	1-31119-023-0	10	1	0006-
32	BOLT; CLU HSG TO FLYWHEEL HSG M10X90 FLANGE	0-28181-090-0	02	1	0006-0512
32	BOLT; CLU HSG TO FLYWHEEL HSG M10X90 FLANGE	0-28151-090-0	02	1	0601-
32	BOLT; CLU HSG TO FLYWHEEL HSG M10X75 FLANGE	8-94399-669-1	09	1	0006-
35	WASHER; LK,CLU HSG TO TRANS	1-31119-012-0	10	1	0006-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
