◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVM ▶ 10834 - FVM/FVZ-LHD ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-07B - CLUTCH BOOSTER; MINIPACK ▶
2-07B — CLUTCH BOOSTER; MINIPACK (#10276) — 72 parça

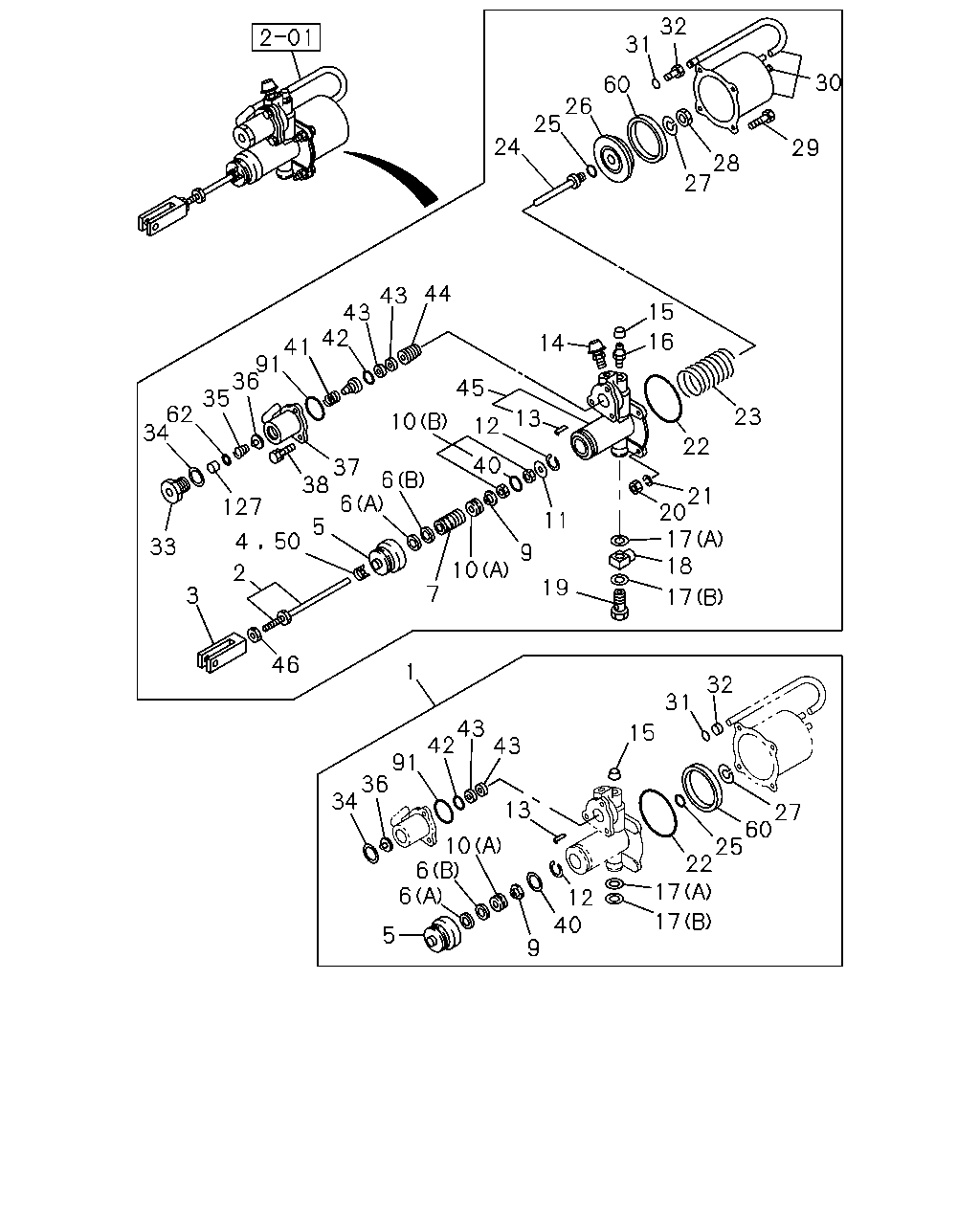

çizim 102897
32 2 31 30 60 26 25 24 29 28 27 44 43 43 42 15 16 14 41 91 36 35 62 34 45 23 13 10 12 22 40 37 38 6 21 20 17 18 6 127 11 5 50 4 33 9 10 2 19 7 3 17 46 1 32 31 43 15 91 36 34 13 27 60 25 22 17 10 6 6 12 40 17 5 9
BalonParca AdiParca NoAdetTipApplied Date
1 REPAIR KIT; CLU BOOSTER 1-31829-326-0 01 1 0006-0106
1 REPAIR KIT; CLU BOOSTER 1-31829-543-0 01 1 0107-
2 ROD; PUSH,CLU BOOSTER 1-31824-156-0 01 1 0006-0106
2 ROD; PUSH,CLU BOOSTER 1-31824-208-0 01 1 0107-0501
2 ROD; PUSH,CLU BOOSTER 1-31824-233-0 01 1 0502-
3 CLEVIS; PUSH ROD,CLU BOOSTER 1-31829-186-0 01 1 0006-0106
3 CLEVIS; PUSH ROD,CLU BOOSTER 1-31829-538-0 01 1 0107-0307
3 CLEVIS; PUSH ROD,CLU BOOSTER 1-31829-186-1 01 1 0308-
4 CLAMP; BOOSTER 1-31829-168-0 01 1 0006-0106
5 GUARD; PISTON,CLU BOOSTER 1-31829-174-0 01 1 0006-0106
5 GUARD; PISTON,CLU BOOSTER 1-31829-503-0 01 1 0107-
6 GASKET; PISTON CUP,CLU BOOSTER
(A) 		1-31829-055-0 01 1 0006-
6 GASKET; PISTON CUP,CLU BOOSTER
(B) 		1-31829-056-0 01 1 0006-
7 PISTON; CLU BOOSTER 1-31821-013-0 01 1 0006-0106
7 PISTON; CLU BOOSTER 1-31821-048-0 01 1 0107-
9 GASKET; PISTON CUP,CLU BOOSTER 1-31829-003-0 01 1 0006-
10 RETAINER; PISTON,CLU BOOSTER
(B) 		1-31829-107-0 01 1 0006-
10 RETAINER; PISTON,CLU BOOSTER
(A) 		1-31829-108-0 01 1 0006-
11 WASHER; PISTON,CLU BOOSTER 1-31829-105-0 01 1 0006-
12 RING; RET,CLU BOOSTER 1-31829-142-0 01 1 0006-
13 PIN; SPR 1-31829-109-0 01 1 0006-
14 COVER; EXH,CLU BOOSTER 1-31829-102-0 01 1 0006-0106
14 COVER; EXH,CLU BOOSTER 1-31829-365-0 01 1 0107-0307
14 COVER; EXH,CLU BOOSTER 1-31829-564-0 01 1 0308-
15 PROTECTOR; END PLATE,CLU BOOSTER 9-83335-044-0 01 1 0006-
16 PLUG; END PLATE,CLU BOOSTER 9-83331-704-0 01 1 0006-
17 GASKET; CONN,CLU BOOSTER
(A) 		9-09920-267-0 01 1 0006-
17 GASKET; CONN,CLU BOOSTER
(B) 		9-09920-268-0 01 1 0006-
18 CONNECTOR; END PLATE,CLU BOOSTER 1-31829-248-0 01 1 0006-
19 BOLT; EYE,END PLATE,CLU BOOSTER 9-83315-047-0 01 1 0006-
20 NUT; END PLATE TO SHELL,CLU BOOSTER
M10 		9-09111-410-0 04 1 0006-
21 WASHER; END PLATE TO SHELL,CLU BOOSTER
ID=10.2 		9-09150-510-0 04 1 0006-
22 GASKET; END PLATE TO SHELL,CLU BOOSTER 1-09623-322-0 01 1 0006-
23 SPRING; SHELL,CLU BOOSTER 1-31829-110-0 01 1 0006-0106
23 SPRING; SHELL,CLU BOOSTER 1-31829-358-0 01 1 0107-
24 ROD; PUSH,CLU BOOSTER 1-31829-112-0 01 1 0006-
25 GASKET; PUSH ROD,CLU BOOSTER 1-09623-321-0 01 1 0006-
26 PISTON; SHELL,CLU BOOSTER 1-31821-017-0 01 1 0006-0106
26 PISTON; SHELL,CLU BOOSTER 1-31821-084-0 01 1 0107-
27 SPRING; CLU BOOSTER 1-31829-111-0 01 1 0006-
28 NUT; PUSH ROD,CLU BOOSTER 9-88510-365-0 01 1 0006-
29 BOLT; END PLATE TO SHELL,CLU BOOSTER 9-83315-099-0 04 1 0006-
30 SHELL; CYL,CLU BOOSTER 1-31811-061-0 01 1 0006-0106
30 SHELL; CYL,CLU BOOSTER 1-31811-124-0 01 1 0107-
31 GASKET; SHELL,CLU BOOSTER 1-31829-279-0 01 1 0006-
32 BUSHING; SHELL,CLU BOOSTER 1-31829-280-0 01 1 0006-
33 CONNECTOR; UPR,VLV,CLU BOOSTER 1-31829-214-0 01 1 0006-
34 GASKET; CONN,CLU BOOSTER 1-31829-053-0 01 1 0006-
35 SPRING; POPPET VLV,CLU BOOSTER 1-31829-077-0 01 1 0006-0106
35 SPRING; POPPET VLV,CLU BOOSTER 1-31829-537-0 01 1 0107-
36 VALVE; POPPET,CLU BOOSTER 1-31829-016-0 01 1 0006-0106
36 VALVE; POPPET,CLU BOOSTER 1-31829-536-0 01 1 0107-
37 BODY; UPR,VLV,CLU BOOSTER 1-31811-053-0 01 1 0006-0106
37 BODY; UPR,VLV,CLU BOOSTER 1-31811-085-0 01 1 0107-
38 SCREW; UPR VLV TO END PLATE,CLU BOOSTE 9-83315-113-0 03 1 0006-
40 GASKET; PISTON,CLU BOOSTER 1-31829-037-0 01 1 0006-1412
41 SPRING; DIAPH,CLU BOOSTER 1-31829-422-0 01 1 0006-0106
41 SPRING; DIAPH,CLU BOOSTER 1-31829-545-0 01 1 0107-
42 GASKET; FITTING,CLU BOOSTER 1-31829-143-0 01 1 0006-
43 GASKET; UPR VLV,CLU BOOSTER 1-31829-060-0 02 1 0006-
44 PISTON; UPR VLV,CLU BOOSTER 1-31821-049-0 01 1 0006-0307
44 PISTON; UPR VLV,CLU BOOSTER 1-31821-087-0 01 1 0308-
45 PLATE; END,CLU BOOSTER 1-31811-060-0 01 1 0006-
46 NUT; PUSH ROD,CLU BOOSTER
M10 		9-09111-410-0 01 1 0006-0106
46 NUT; PUSH ROD,CLU BOOSTER 1-31824-126-0 02 1 0107-0501
46 NUT; PUSH ROD,CLU BOOSTER
M10 		9-09111-410-0 02 1 0502-
50 CLAMP; PISTON GUARD,CLU BOOSTER 1-31829-504-0 01 1 0107-
60 GASKET; SHELL,CLU BOOSTER 1-31829-058-0 01 1 0006-0106
60 GASKET; SHELL,CLU BOOSTER 1-31829-544-0 01 1 0107-
62 RETAINER; POPPET 1-31829-489-0 01 1 0107-
91 GASKET; CLU BOOSTER 1-31829-103-0 01 1 0006-
127 FILTER; POPPET 1-31829-495-0 01 1 0107-
