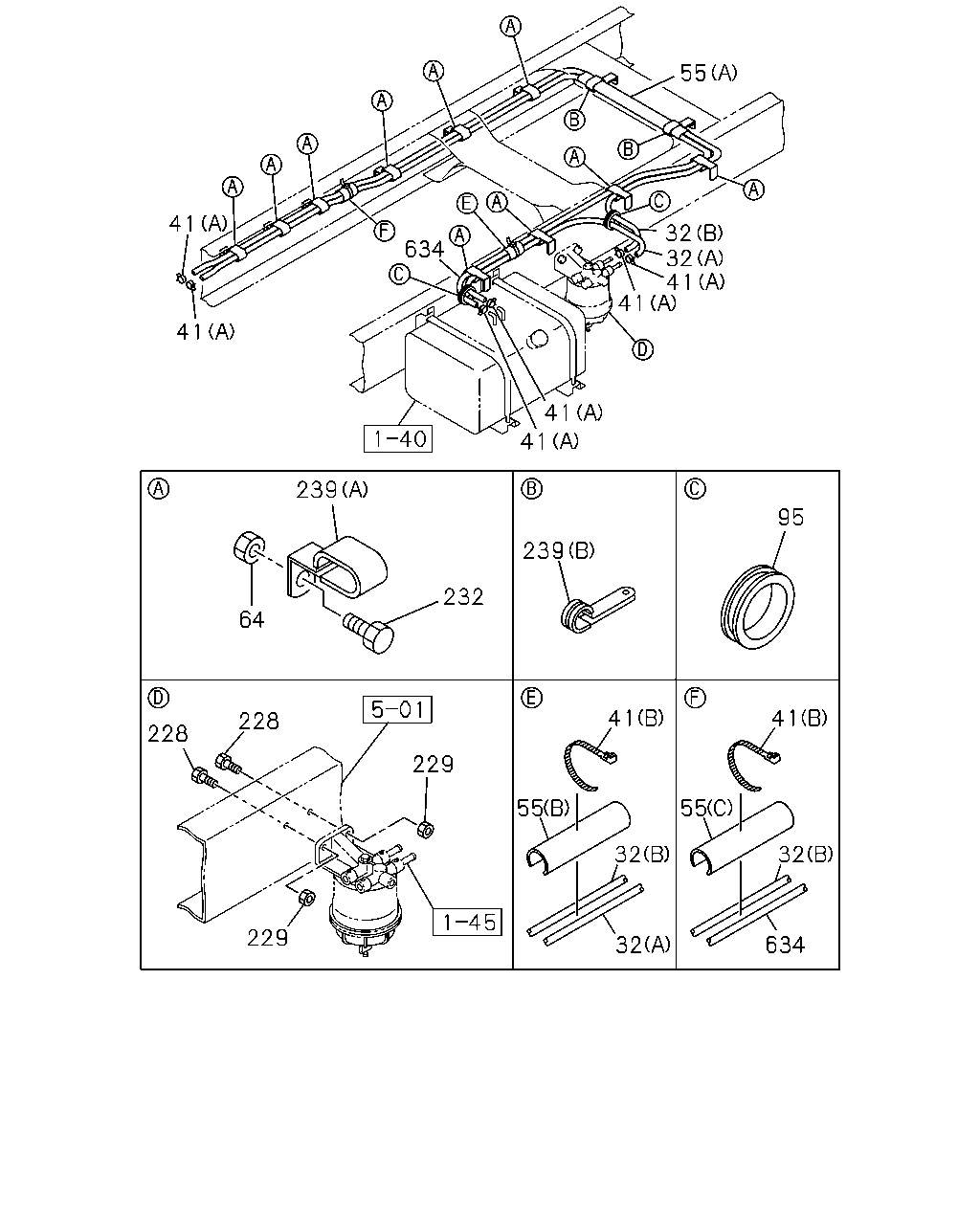

32 |
PIPE; DELIVERY,FUEL TANK
(A)
L=460
SERVICED BY L=3000
|
0-01260-300-0 |
01 |
1 |
0006-0012 |
| |
32 |
PIPE; DELIVERY,FUEL TANK
FUEL TANK 200L FRAME SIDE(N20)
(A)
L=460
SERVICED BY L=3000
|
0-01260-300-0 |
01 |
1 |
0101-0207 |
| |
32 |
PIPE; DELIVERY,FUEL TANK
FUEL TANK 200L+200L(NF7),FUEL TANK 200L FRAME
SIDE(N20)
(A)
L=460
SERVICED BY L=3000
|
0-01260-300-0 |
01 |
1 |
0208- |
| |
32 |
PIPE; DELIVERY,FUEL TANK
(B)
L=3800
SERVICED BY L=8000
|
0-01260-800-0 |
01 |
1 |
0006-0012 |
| |
32 |
PIPE; DELIVERY,FUEL TANK
FUEL TANK 200L FRAME SIDE(N20)
(B)
L=3800
SERVICED BY L=8000
|
0-01260-800-0 |
01 |
1 |
0101-0207 |
| |
32 |
PIPE; DELIVERY,FUEL TANK
FUEL TANK 200L+200L(NF7),FUEL TANK 200L FRAME
SIDE(N20)
(B)
L=3800
SERVICED BY L=8000
|
0-01260-800-0 |
01 |
1 |
0208- |
| |
41 |
CLIP; FUEL PIPE,FUEL TANK
(A)
ID=14
|
1-09704-102-0 |
06 |
1 |
0006- |
| |
41 |
CLIP; FUEL PIPE,FUEL TANK
(B)
L=250
|
5-09707-030-1 |
01 |
1 |
0006-0011 |
| |
41 |
CLIP; FUEL PIPE,FUEL TANK
FUEL TANK 200L FRAME SIDE(N20)
(B)
L=250
|
5-09707-030-1 |
04 |
1 |
0012-0201 |
| |
41 |
CLIP; FUEL PIPE,FUEL TANK
FUEL TANK 200L FRAME SIDE(N20)
(B)
L=250
|
5-09707-030-1 |
05 |
1 |
0202-0207 |
| |
41 |
CLIP; FUEL PIPE,FUEL TANK
FUEL TANK 200L+200L(NF7),FUEL TANK 200L FRAME
SIDE(N20)
(B)
L=250
|
5-09707-030-1 |
05 |
1 |
0208- |
| |
55 |
COVER; PIPE,FUEL TANK
(C)
L=350
|
1-09360-460-1 |
01 |
1 |
0006- |
| |
55 |
COVER; PIPE,FUEL TANK
(B)
L=150
SERVICED BY L=1300
|
1-09360-677-1 |
01 |
1 |
0006-0011 |
| |
55 |
COVER; PIPE,FUEL TANK
FUEL TANK 200L FRAME SIDE(N20)
(B)
L=150
SERVICED BY L=1300
|
1-09360-677-1 |
01 |
1 |
0012-0207 |
| |
55 |
COVER; PIPE,FUEL TANK
FUEL TANK 200L+200L(NF7),FUEL TANK 200L FRAME
SIDE(N20)
(B)
L=150
SERVICED BY L=1300
|
1-09360-677-1 |
01 |
1 |
0208- |
| |
55 |
COVER; PIPE,FUEL TANK
(A)
L=800
|
1-09361-018-0 |
01 |
1 |
0006- |
| |
64 |
NUT; CLIP
M8 FLANGE
|
0-91150-108-0 |
11 |
1 |
0006-0012 |
| |
64 |
NUT; CLIP
FUEL TANK 200L FRAME SIDE(N20)
M8 FLANGE
|
0-91150-108-0 |
11 |
1 |
0101-0207 |
| |
64 |
NUT; CLIP
FUEL TANK 200L+200L(NF7),FUEL TANK 200L FRAME
SIDE(N20)
M8 FLANGE
|
0-91150-108-0 |
11 |
1 |
0208-0602 |
| |
64 |
NUT; CLIP
FUEL TANK 200L+200L(NF7),FUEL TANK 200L FRAME
SIDE(N20)
M8 FLANGE
|
0-91180-108-0 |
11 |
1 |
0603- |
| |
95 |
BUSHING; PIPE,FUEL TANK
ID=28 OD=35 T=25
|
1-09332-011-1 |
01 |
1 |
0006- |
| |
228 |
BOLT; BRKT,SEDIMENTER
M10X45 FLANGE
|
0-28081-045-0 |
02 |
1 |
0006-0209 |
| |
228 |
BOLT; BRKT,SEDIMENTER
M10X40 FLANGE
|
0-28681-040-0 |
02 |
1 |
0210-0512 |
| |
228 |
BOLT; BRKT,SEDIMENTER
M10X40 FLANGE
|
0-28651-040-0 |
02 |
1 |
0601- |
| |
229 |
NUT; BRKT,FUEL FILTER
M10 FLANGE
|
0-91150-210-0 |
02 |
1 |
0006-0602 |
| |
229 |
NUT; BRKT,FUEL FILTER
M10 FLANGE
|
0-91180-210-0 |
02 |
1 |
0603- |
| |
232 |
BOLT; CLIP,PIPE
M8X30 FLANGE
|
0-28680-830-0 |
11 |
1 |
0006-0012 |
| |
232 |
BOLT; CLIP,PIPE
FUEL TANK 200L FRAME SIDE(N20)
M8X30 FLANGE
|
0-28680-830-0 |
11 |
1 |
0101-0207 |
| |
232 |
BOLT; CLIP,PIPE
FUEL TANK 200L+200L(NF7),FUEL TANK 200L FRAME
SIDE(N20)
M8X30 FLANGE
|
0-28680-830-0 |
11 |
1 |
0208-0512 |
| |
232 |
BOLT; CLIP,PIPE
FUEL TANK 200L+200L(NF7),FUEL TANK 200L FRAME
SIDE(N20)
M8X30 FLANGE
|
0-28650-830-0 |
11 |
1 |
0601- |
| |
239 |
CLIP; FUEL PIPE
(A)
ID=16X2 H=76 L=50
|
1-09700-902-0 |
03 |
1 |
0006-0012 |
| |
239 |
CLIP; FUEL PIPE
FUEL TANK 200L FRAME SIDE(N20)
(A)
ID=16X2 H=76 L=50
|
1-09700-902-0 |
03 |
1 |
0101-0207 |
| |
239 |
CLIP; FUEL PIPE
FUEL TANK 200L+200L(NF7),FUEL TANK 200L FRAME
SIDE(N20)
(A)
ID=16X2 H=76 L=50
|
1-09700-902-0 |
03 |
1 |
0208- |
| |
239 |
CLIP; FUEL PIPE
(B)
ID=32 L=50
|
1-09701-055-1 |
02 |
1 |
0006- |
| |
239 |
CLIP; FUEL PIPE
(A)
ID=14X29 H=30 L=25
|
1-09701-101-0 |
06 |
1 |
0006-0012 |
| |
239 |
CLIP; FUEL PIPE
FUEL TANK 200L FRAME SIDE(N20)
(A)
ID=14X29 H=30 L=25
|
1-09701-101-0 |
06 |
1 |
0101-0207 |
| |
239 |
CLIP; FUEL PIPE
FUEL TANK 200L+200L(NF7),FUEL TANK 200L FRAME
SIDE(N20)
(A)
ID=14X29 H=30 L=25
|
1-09701-101-0 |
06 |
1 |
0208- |
| |
634 |
HOSE; RUBBER RETURN
L=3350
SERVICED BY L=8000
|
0-01260-800-0 |
01 |
1 |
0006-0012 |
| |
634 |
HOSE; RUBBER RETURN
FUEL TANK 200L FRAME SIDE(N20)
L=3350
SERVICED BY L=8000
|
0-01260-800-0 |
01 |
1 |
0101-0207 |
| |
634 |
HOSE; RUBBER RETURN
FUEL TANK 200L+200L(NF7),FUEL TANK 200L FRAME
SIDE(N20)
L=3350
SERVICED BY L=8000
|
0-01260-800-0 |
01 |
1 |
0208-0604 |
| |
634 |
HOSE; RUBBER RETURN
FUEL TANK 200L+200L(NF7),FUEL TANK 200L FRAME
SIDE(N20)
L=3650
SERVICED BY L=8000
|
0-01260-800-0 |
01 |
1 |
0605- |
