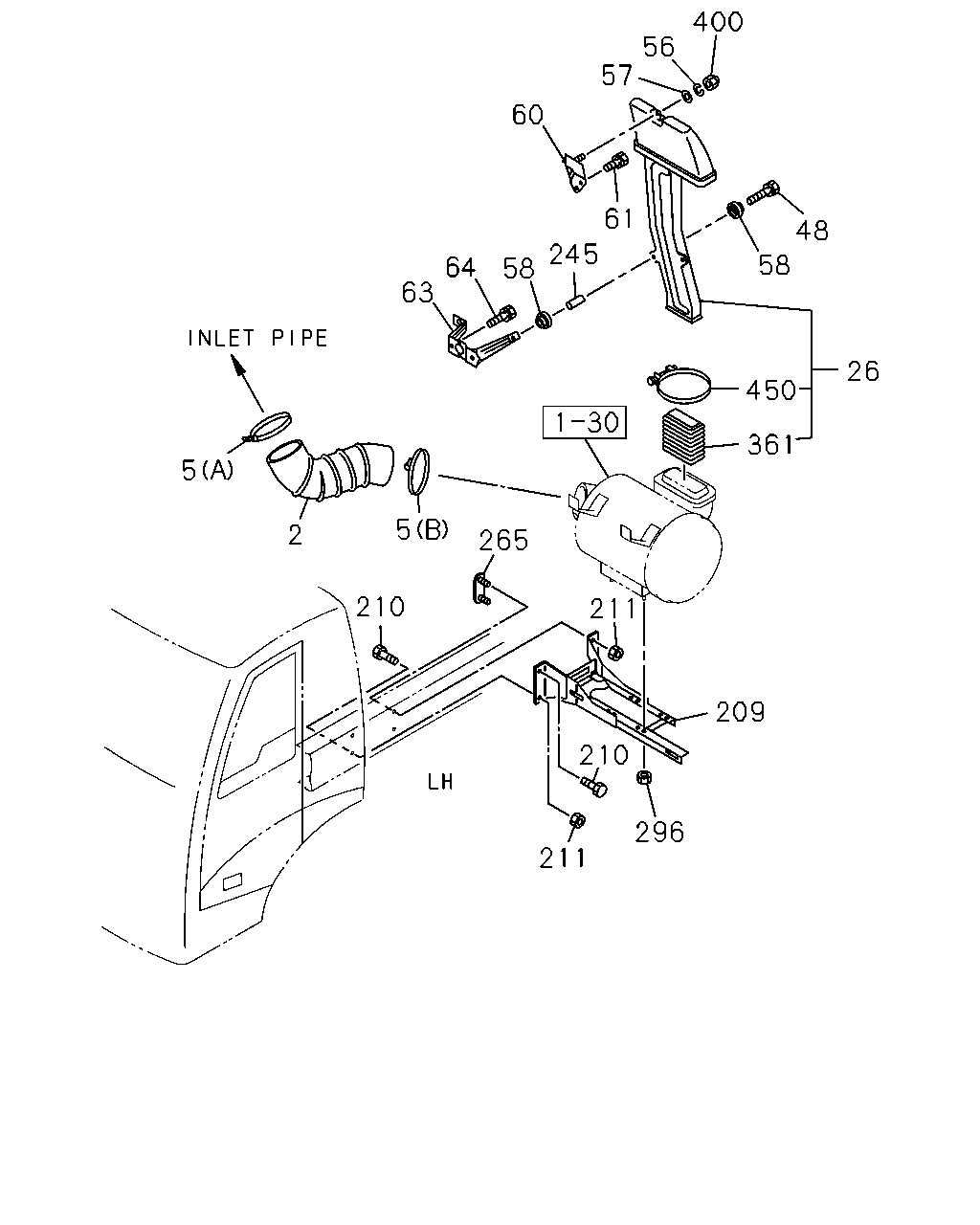

1-31 — AIR DUCT
(#10263) — 34 parça
400
56
57
60
61
48
245
58
64
58
63
26
450
361
5
5
2
265
211
210
209
210
296
211
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
HOSE; ACL
1-14231-936-1
01
1
0006-
5
CLIP; AIR DUCT
EXC. KD PREPARATORY PACK<6HF> (A) ID=87-116
1-09707-138-0
01
1
1002-
5
CLIP; AIR DUCT
EXC. KD PREPARATORY PACK<6HF> (B) ID=104-142
1-09707-139-0
01
1
1002-
5
CLIP; AIR DUCT
(A) ID=87-116
1-09707-144-0
01
1
0006-0212
5
CLIP; AIR DUCT
(A) ID=87-113
1-09707-199-0
01
1
0301-0811
5
CLIP; AIR DUCT
(A) ID=90-110
8-98133-365-0
01
1
0812-1001
5
CLIP; AIR DUCT
KD PREPARATORY PACK<6HF> (A) ID=90-110
8-98133-365-0
01
1
1002-
5
CLIP; AIR DUCT
(B) ID=104-142
1-09707-155-0
01
1
0006-0212
5
CLIP; AIR DUCT
(B) ID=104-139
1-09707-200-0
01
1
0301-0812
5
CLIP; AIR DUCT
(B) ID=110-130
8-98133-359-0
01
1
0901-1001
5
CLIP; AIR DUCT
KD PREPARATORY PACK<6HF> (B) ID=110-130
8-98133-359-0
01
1
1002-
26
DUCT; AIR INT
1-14230-177-2
01
1
0006-0611
26
DUCT; AIR INT
8-98064-761-0
01
1
0612-
48
BOLT; AIR DUCT
M10X60
1-09030-044-1
02
1
0006-
56
WASHER; LK,AIR INT DUCT
M10
1-09500-046-0
01
1
0006-
57
WASHER; PL,AIR INT DUCT
ID=10.5 OD=26 T=2.6
1-09985-184-0
01
1
0006-
58
SUPPORT; AIR INL DUCT
1-14119-397-0
04
1
0006-0211
58
SUPPORT; AIR INL DUCT
OD=40 T=18.5
1-14119-267-0
04
1
0212-
60
BRACKET; AIR DUCT,UPR
1-79998-748-2
01
1
0006-
61
BOLT; BRKT,AIR DUCT
M8X25 W/LK&PL WASHER
1-09980-526-0
02
1
0006-
63
BRACKET; AIR DUCT,LWR
1-79998-749-3
01
1
0006-
64
BOLT; BRKT,AIR DUCT
M8X25 W/LK&PL WASHER
1-09980-526-0
02
1
0006-
209
BRACKET; ACL
1-53497-480-2
01
1
0006-
210
BOLT; ACL BRKT
M12X40 FLANGE
0-28681-240-0
02
1
0006-0512
210
BOLT; ACL BRKT
M12X40 FLANGE
0-28651-240-0
02
1
0601-
211
NUT; BRKT
M12 FLANGE
0-91150-212-0
03
1
0006-0602
211
NUT; BRKT
M12 FLANGE
0-91180-212-0
03
1
0603-
245
PIECE; DIST,AIR DUCT
1-79998-228-0
02
1
0006-
265
BRACKET; STUD,ACL
1-53497-454-1
01
1
0006-
296
NUT; ACL
M8 FLANGE
0-91150-108-0
04
1
0006-0602
296
NUT; ACL
M8 FLANGE
0-91180-108-0
04
1
0603-
361
RUBBER; CUSHION,AIR DUCT
1-14231-973-1
01
1
0006-
400
NUT; CAP,AIR DUCT
M10
1-09984-145-0
01
1
0006-
450
CLAMP; HOSE
9-09915-504-1
01
1
0006-
