◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVM ▶ 10834 - FVM/FVZ-LHD ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-30 - AIR CLEANER ▶
1-30 — AIR CLEANER (#10262) — 20 parça

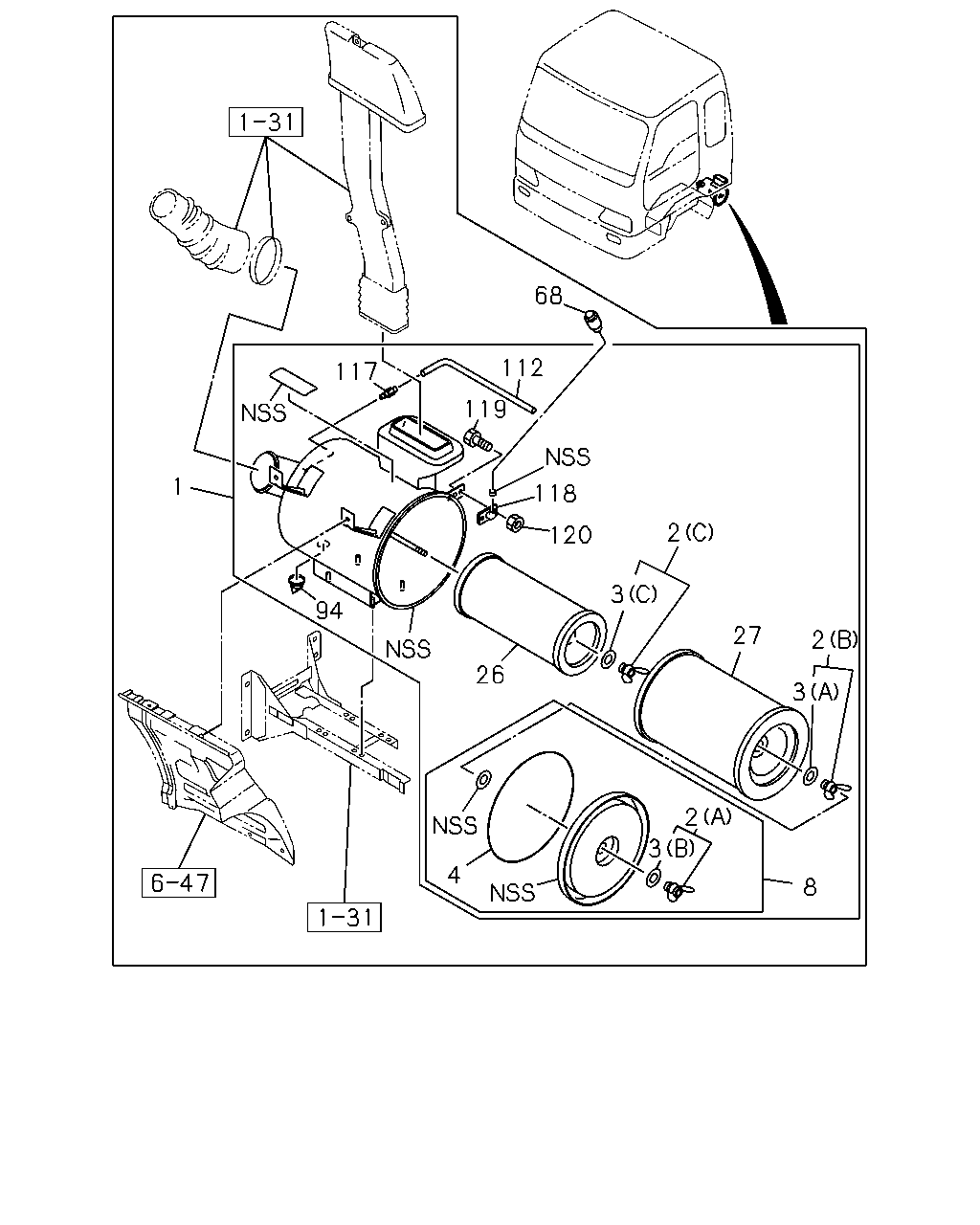

çizim 79168
68 112 117 119 1 118 2 120 3 94 27 2 26 3 2 3 4 8
BalonParca AdiParca NoAdetTipApplied Date
1 CLEANER ASM; AIR 1-14210-778-4 01 1 0006-
2 NUT; WING,ELEMENT
(C) 		1-14217-036-0 01 1 0006-
2 NUT; WING,ELEMENT
(A) 		1-14217-049-0 01 1 0006-
2 NUT; WING,ELEMENT
(B) 		1-14217-050-0 01 1 0006-
3 WASHER; SEAL,WING NUT
(A) 		1-14219-118-0 01 1 0006-
3 WASHER; SEAL,WING NUT
(B) 		1-14219-156-0 01 1 0006-
3 WASHER; SEAL,WING NUT
(C) 		9-14219-177-0 01 1 0006-
4 GASKET; COVER TO BODY 1-14219-141-0 01 1 0006-
8 COVER ASM; ACL 1-14212-084-0 01 1 0006-
26 FILTER; ACL,INNER 1-14215-111-0 01 1 0006-
26 FILTER; ACL,INNER
BEST VALUE PARTS 		1-87610-118-0 01 1 0006-
27 FILTER; ACL,OUTER 1-14215-172-0 01 1 0006-
27 FILTER; ACL,OUTER
BEST VALUE PARTS 		1-87610-117-0 01 1 0006-
68 INDICATOR; SERVICE 1-14219-212-0 01 1 0006-
94 VALVE; VACUATOR 1-14219-192-0 01 1 0006-
112 HOSE; INDICATOR 1-14219-260-0 01 1 0006-
117 JOINT; INDICATOR HOSE 1-14210-040-0 01 1 0006-
118 BRACKET; INDICATOR 1-14219-187-0 01 1 0006-
119 BOLT; INDICATOR BRKT
M6X16 		9-02040-616-0 02 1 0006-
120 NUT; INDICATOR BRKT
M6 		9-09111-406-0 02 1 0006-
