1-10 — RADIATOR (#10260) — 124 parça

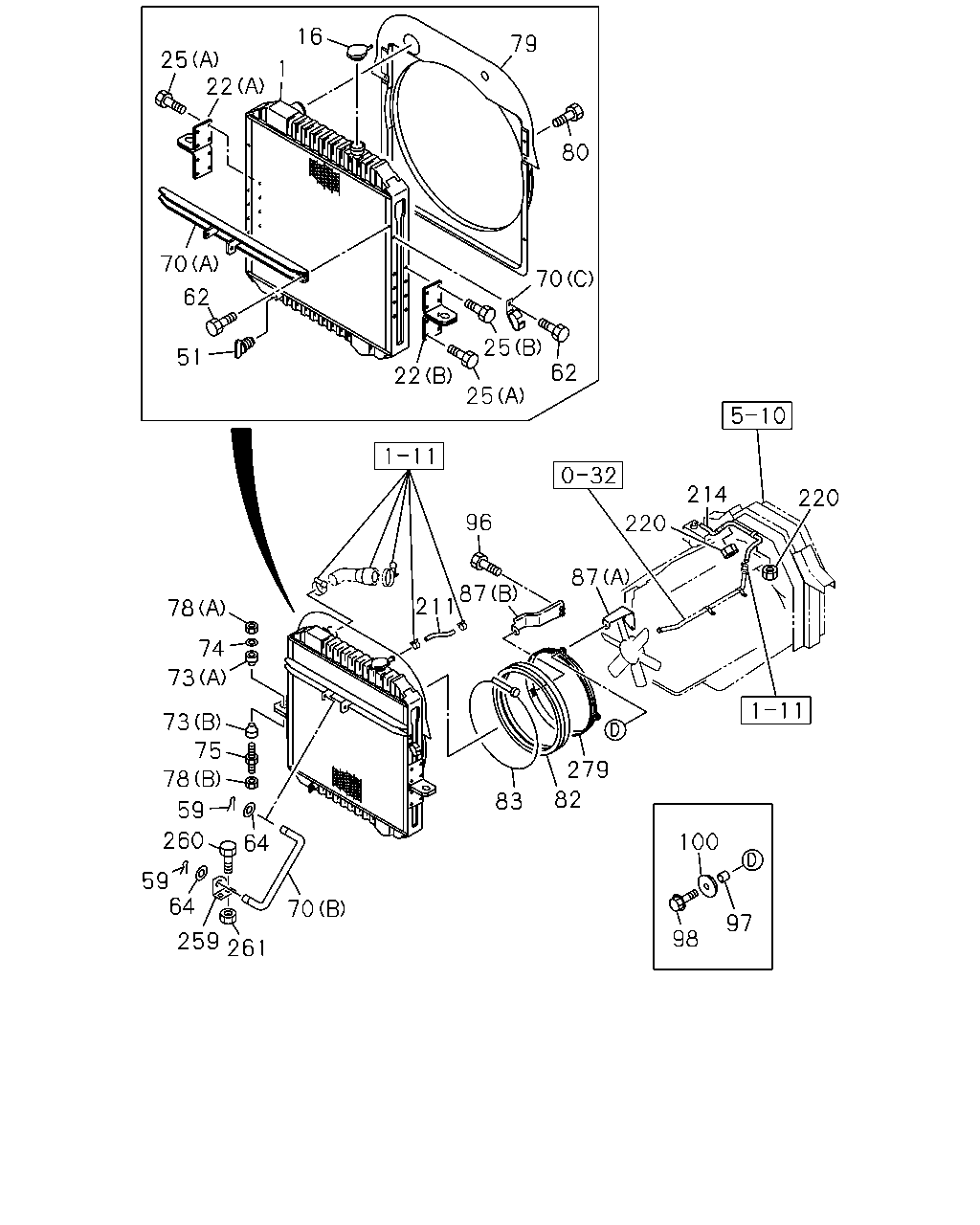

çizim 102859
16 79 25 22 1 80 70 70 62 25 62 51 22 25 214 220 96 220 87 87 211 78 74 73 73 75 78 279 82 83 59 260 100 64 59 64 70 97 98 259 261
BalonParca AdiParca NoAdetTipApplied Date
1 RADIATOR ASM
SAUDI ARABIA EQUIPMENT(WH1) 		1-21410-708-0 01 1 0006-0010
1 RADIATOR ASM
EXC. SAUDI ARABIA EQUIPMENT(WH1) 		1-21410-675-1 01 1 0006-0010
1 RADIATOR ASM 1-21410-675-1 01 1 0011-
16 CAP; RAD 1-21450-053-1 01 1 0006-
22 BRACKET; RAD MTG
SAUDI ARABIA EQUIPMENT(WH1) (A) 		1-21464-458-0 01 1 0006-0010
22 BRACKET; RAD MTG
SAUDI ARABIA EQUIPMENT(WH1) (B) 		1-21464-520-0 01 1 0006-0010
22 BRACKET; RAD MTG
EXC. SAUDI ARABIA EQUIPMENT(WH1) (B) 		1-21464-459-0 01 1 0006-0010
22 BRACKET; RAD MTG
(B) 		1-21464-459-0 01 1 0011-
22 BRACKET; RAD MTG
EXC. SAUDI ARABIA EQUIPMENT(WH1) (A) 		1-21464-492-0 01 1 0006-0010
22 BRACKET; RAD MTG
(A) 		1-21464-492-0 01 1 0011-
25 BOLT; BRKT
SAUDI ARABIA EQUIPMENT(WH1) (A) M8X12 FLANGE 		0-28080-812-0 17 1 0006-0010
25 BOLT; BRKT
EXC. SAUDI ARABIA EQUIPMENT(WH1) (A) M8X12 FLANGE 		0-28080-812-0 15 1 0006-
25 BOLT; BRKT
EXC. SAUDI ARABIA EQUIPMENT(WH1) (B) M8X16 FLANGE 		0-28080-816-0 01 1 0006-
51 PLUG; DRAIN
W/GASKET 		1-09609-009-0 01 1 0006-
59 PIN; SNAP,STAY
EXC. SAUDI ARABIA EQUIPMENT(WH1) 		1-09987-158-1 02 1 0006-0205
59 PIN; SNAP,STAY 1-09987-158-1 02 1 0206-
62 BOLT; STAY
EXC. SAUDI ARABIA EQUIPMENT(WH1) M8X12 FLANGE 		0-28080-812-0 03 1 0006-0010
62 BOLT; STAY
M8X12 FLANGE 		0-28080-812-0 03 1 0011-
64 WASHER; STAY TO RAD
EXC. SAUDI ARABIA EQUIPMENT(WH1) ID=12.5 		9-09160-512-0 02 1 0006-0205
64 WASHER; STAY TO RAD
ID=12.5 		9-09160-512-0 02 1 0206-0605
64 WASHER; STAY TO RAD
ID=12.5 OD=22 		0-91610-512-0 02 1 0606-
70 STAY; RAD
(C) 		1-83571-875-0 01 1 0006-
70 STAY; RAD
EXC. SAUDI ARABIA EQUIPMENT(WH1) (A) 		1-21522-064-0 01 1 0006-0010
70 STAY; RAD
(A) 		1-21522-064-0 01 1 0011-
70 STAY; RAD
EXC. SAUDI ARABIA EQUIPMENT(WH1) (B) 		1-21522-070-0 01 1 0006-0205
70 STAY; RAD
(B) 		1-21522-070-0 01 1 0206-
73 RUBBER; CUSHION,RAD MTG
(A) T=14 		1-21467-004-0 02 1 0006-
73 RUBBER; CUSHION,RAD MTG
(B) T=24 		1-21467-011-1 02 1 0006-
74 WASHER; PL,CUSHION RUBBER
OD=55 		9-09852-169-0 02 1 0006-
75 BOLT; CUSHION RUBBER,RAD MTG
M12X26.5,M10X19 L=86.5 		1-21466-007-3 02 1 0006-
78 NUT; CUSHION RUBBER
(B) M12 FLANGE 		0-91150-212-0 02 1 0006-0602
78 NUT; CUSHION RUBBER
(B) M12 FLANGE 		0-91180-212-0 02 1 0603-
78 NUT; CUSHION RUBBER
(A) M10 FLANGE 		5-09440-006-0 02 1 0006-
79 GUIDE; FAN,RAD
SAUDI ARABIA EQUIPMENT(WH1) 		1-21551-397-1 01 1 0006-0010
79 GUIDE; FAN,RAD
EXC. SAUDI ARABIA EQUIPMENT(WH1) 		1-21551-409-0 01 1 0006-0010
79 GUIDE; FAN,RAD 1-21551-409-0 01 1 0011-
80 BOLT; FAN GUIDE
SAUDI ARABIA EQUIPMENT(WH1) M6X12 FLANGE 		0-28080-612-0 04 1 0006-0010
80 BOLT; FAN GUIDE
EXC. SAUDI ARABIA EQUIPMENT(WH1) M6X10 FLANGE 		0-28080-610-0 04 1 0006-0010
80 BOLT; FAN GUIDE
M6X10 FLANGE 		0-28080-610-0 04 1 0011-
82 COVER; FAN,RAD 1-21559-211-0 01 1 0006-
83 CLIP; FAN COVER 1-09707-177-2 01 1 0006-
87 STAY; FAN GUIDE
(A) 		1-21559-394-0 01 1 0006-
87 STAY; FAN GUIDE
(B) 		1-21559-395-0 01 1 0006-
96 BOLT; STAY FIX
M8X16 FLANGE 		0-28080-816-0 02 1 0006-0512
96 BOLT; STAY FIX
M8X16 FLANGE 		0-28050-816-0 02 1 0601-
96 BOLT; STAY FIX
M8X25 FLANGE 		0-28080-825-0 02 1 0006-0512
96 BOLT; STAY FIX
M8X25 FLANGE 		0-28050-825-0 02 1 0601-
97 TUBE; DIST,FAN GUIDE 9-09651-072-0 03 1 0006-
98 BOLT; RAD FAN GUIDE
M8X45 FLANGE 		0-28080-845-0 03 1 0006-0512
98 BOLT; RAD FAN GUIDE
M8X45 FLANGE 		0-28050-845-0 03 1 0601-
100 RUBBER; MTG
OD=32 		8-94395-766-0 06 1 0006-
211 HOSE; RAD TO PIPE
L=350 SERVICED BY L=3000 		0-03257-300-0 01 1 0006-0109
211 HOSE; RAD TO PIPE
L=350 SERVICED BY L=3000 		0-03557-300-0 01 1 0110-
214 HOSE; PIPE TO RESERVE TANK
L=1200 SERVICED BY L=3000 		0-03257-300-0 01 1 0006-0109
214 HOSE; PIPE TO RESERVE TANK
L=1200 SERVICED BY L=3000 		0-03557-300-0 01 1 0110-
220 NUT; CLIP
M8 FLANGE 		0-91150-108-0 04 1 0006-0602
220 NUT; CLIP
M8 FLANGE 		0-91180-108-0 04 1 0603-
259 BRACKET; RAD STAY
EXC. SAUDI ARABIA EQUIPMENT(WH1) 		1-21523-025-0 01 1 0006-0205
259 BRACKET; RAD STAY 1-21523-025-0 01 1 0206-
260 BOLT; BRKT
EXC. SAUDI ARABIA EQUIPMENT(WH1) M8X20 FLANGE 		0-28680-820-0 02 1 0006-0205
260 BOLT; BRKT
M8X20 FLANGE 		0-28680-820-0 02 1 0206-0512
260 BOLT; BRKT
M8X20 FLANGE 		0-28650-820-0 02 1 0601-
261 NUT; BRKT
EXC. SAUDI ARABIA EQUIPMENT(WH1) M8 FLANGE 		0-91150-108-0 02 1 0006-0205
261 NUT; BRKT
M8 FLANGE 		0-91150-108-0 02 1 0206-0602
261 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 0603-
279 BELL MOUTH 8-94394-174-1 01 1 0006-

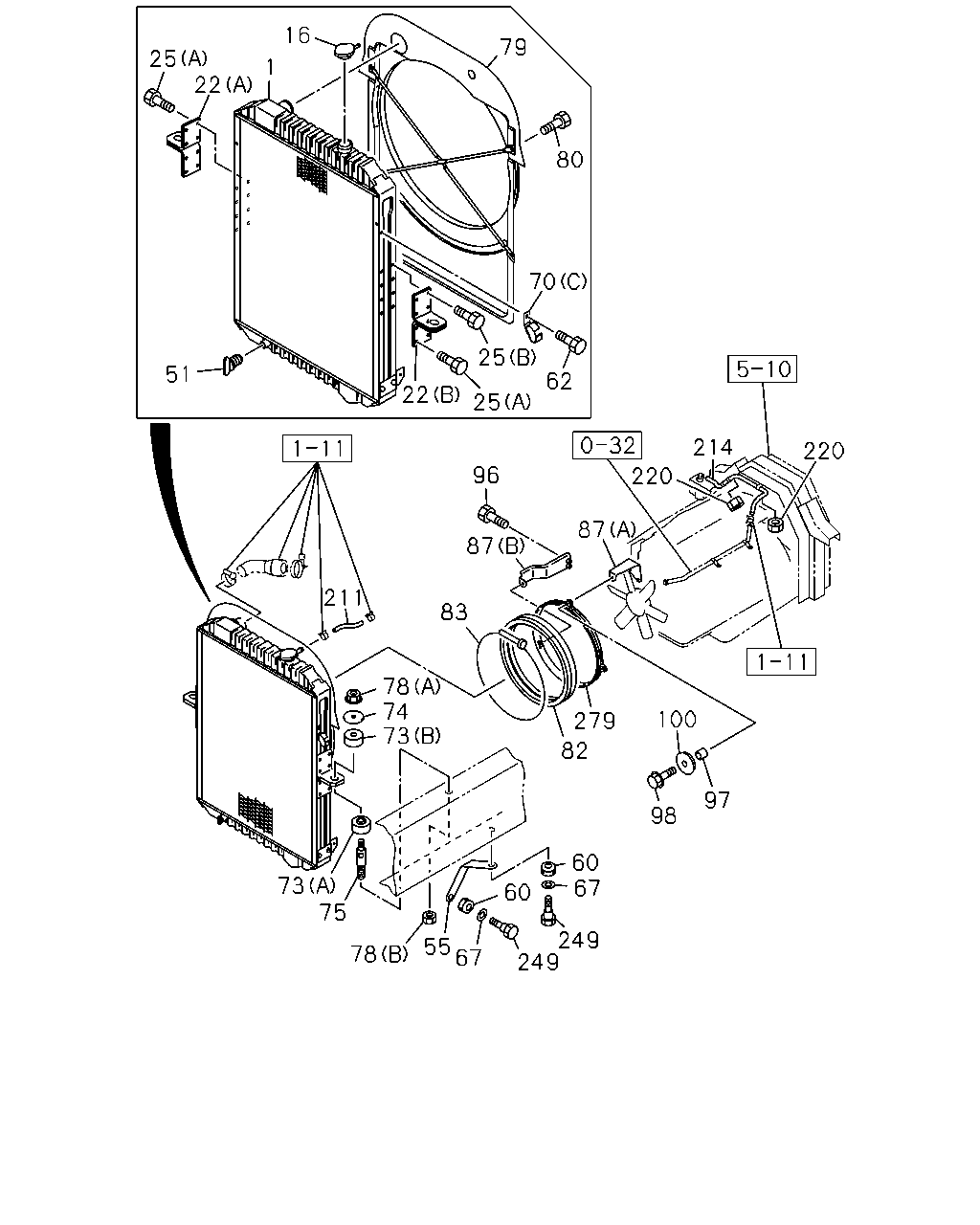

çizim 102860
16 79 25 22 1 80 70 25 51 62 22 25 214 220 96 220 87 87 211 83 78 74 73 100 279 82 97 98 60 67 73 75 60 249 249 55 67 78
BalonParca AdiParca NoAdetTipApplied Date
1 RADIATOR ASM
SAUDI ARABIA EQUIPMENT(WH1) 		1-21410-708-0 01 1 0006-0010
1 RADIATOR ASM
EXC. SAUDI ARABIA EQUIPMENT(WH1) 		1-21410-675-1 01 1 0006-0010
1 RADIATOR ASM 1-21410-675-1 01 1 0011-
16 CAP; RAD 1-21450-053-1 01 1 0006-
22 BRACKET; RAD MTG
SAUDI ARABIA EQUIPMENT(WH1) (A) 		1-21464-458-0 01 1 0006-0010
22 BRACKET; RAD MTG
SAUDI ARABIA EQUIPMENT(WH1) (B) 		1-21464-520-0 01 1 0006-0010
22 BRACKET; RAD MTG
EXC. SAUDI ARABIA EQUIPMENT(WH1) (B) 		1-21464-459-0 01 1 0006-0010
22 BRACKET; RAD MTG
(B) 		1-21464-459-0 01 1 0011-
22 BRACKET; RAD MTG
EXC. SAUDI ARABIA EQUIPMENT(WH1) (A) 		1-21464-492-0 01 1 0006-0010
22 BRACKET; RAD MTG
(A) 		1-21464-492-0 01 1 0011-
25 BOLT; BRKT
SAUDI ARABIA EQUIPMENT(WH1) (A) M8X12 FLANGE 		0-28080-812-0 17 1 0006-0010
25 BOLT; BRKT
EXC. SAUDI ARABIA EQUIPMENT(WH1) (A) M8X12 FLANGE 		0-28080-812-0 15 1 0006-
25 BOLT; BRKT
EXC. SAUDI ARABIA EQUIPMENT(WH1) (B) M8X16 FLANGE 		0-28080-816-0 01 1 0006-
51 PLUG; DRAIN
W/GASKET 		1-09609-009-0 01 1 0006-
55 STAY; RAD TO UPR MBR
SAUDI ARABIA EQUIPMENT(WH1) 		1-21464-453-0 01 1 0006-0205
55 STAY; RAD TO UPR MBR
SAUDI ARABIA EQUIPMENT(WH1) 		1-21464-452-0 01 1 0006-0205
60 GROMMET
SAUDI ARABIA EQUIPMENT(WH1) 		1-09332-117-0 04 1 0006-0205
62 BOLT; STAY
EXC. SAUDI ARABIA EQUIPMENT(WH1) M8X12 FLANGE 		0-28080-812-0 03 1 0006-0010
62 BOLT; STAY
M8X12 FLANGE 		0-28080-812-0 03 1 0011-
67 WASHER; PL,STAY,RAD MBR
SAUDI ARABIA EQUIPMENT(WH1) ID=12.5 OD=26 		9-09160-612-0 04 1 0006-0205
70 STAY; RAD
(C) 		1-83571-875-0 01 1 0006-
70 STAY; RAD
EXC. SAUDI ARABIA EQUIPMENT(WH1) (A) 		1-21522-064-0 01 1 0006-0010
70 STAY; RAD
(A) 		1-21522-064-0 01 1 0011-
70 STAY; RAD
EXC. SAUDI ARABIA EQUIPMENT(WH1) (B) 		1-21522-070-0 01 1 0006-0205
70 STAY; RAD
(B) 		1-21522-070-0 01 1 0206-
73 RUBBER; CUSHION,RAD MTG
(A) T=14 		1-21467-004-0 02 1 0006-
73 RUBBER; CUSHION,RAD MTG
(B) T=24 		1-21467-011-1 02 1 0006-
74 WASHER; PL,CUSHION RUBBER
OD=55 		9-09852-169-0 02 1 0006-
75 BOLT; CUSHION RUBBER,RAD MTG
M12X26.5,M10X19 L=86.5 		1-21466-007-3 02 1 0006-
78 NUT; CUSHION RUBBER
(B) M12 FLANGE 		0-91150-212-0 02 1 0006-0602
78 NUT; CUSHION RUBBER
(B) M12 FLANGE 		0-91180-212-0 02 1 0603-
78 NUT; CUSHION RUBBER
(A) M10 FLANGE 		5-09440-006-0 02 1 0006-
79 GUIDE; FAN,RAD
SAUDI ARABIA EQUIPMENT(WH1) 		1-21551-397-1 01 1 0006-0010
79 GUIDE; FAN,RAD
EXC. SAUDI ARABIA EQUIPMENT(WH1) 		1-21551-409-0 01 1 0006-0010
79 GUIDE; FAN,RAD 1-21551-409-0 01 1 0011-
80 BOLT; FAN GUIDE
SAUDI ARABIA EQUIPMENT(WH1) M6X12 FLANGE 		0-28080-612-0 04 1 0006-0010
80 BOLT; FAN GUIDE
EXC. SAUDI ARABIA EQUIPMENT(WH1) M6X10 FLANGE 		0-28080-610-0 04 1 0006-0010
80 BOLT; FAN GUIDE
M6X10 FLANGE 		0-28080-610-0 04 1 0011-
82 COVER; FAN,RAD 1-21559-211-0 01 1 0006-
83 CLIP; FAN COVER 1-09707-177-2 01 1 0006-
87 STAY; FAN GUIDE
(A) 		1-21559-394-0 01 1 0006-
87 STAY; FAN GUIDE
(B) 		1-21559-395-0 01 1 0006-
96 BOLT; STAY FIX
M8X16 FLANGE 		0-28080-816-0 02 1 0006-0512
96 BOLT; STAY FIX
M8X16 FLANGE 		0-28050-816-0 02 1 0601-
96 BOLT; STAY FIX
M8X25 FLANGE 		0-28080-825-0 02 1 0006-0512
96 BOLT; STAY FIX
M8X25 FLANGE 		0-28050-825-0 02 1 0601-
97 TUBE; DIST,FAN GUIDE 9-09651-072-0 03 1 0006-
98 BOLT; RAD FAN GUIDE
M8X45 FLANGE 		0-28080-845-0 03 1 0006-0512
98 BOLT; RAD FAN GUIDE
M8X45 FLANGE 		0-28050-845-0 03 1 0601-
100 RUBBER; MTG
OD=32 		8-94395-766-0 06 1 0006-
211 HOSE; RAD TO PIPE
L=350 SERVICED BY L=3000 		0-03257-300-0 01 1 0006-0109
211 HOSE; RAD TO PIPE
L=350 SERVICED BY L=3000 		0-03557-300-0 01 1 0110-
214 HOSE; PIPE TO RESERVE TANK
L=1200 SERVICED BY L=3000 		0-03257-300-0 01 1 0006-0109
214 HOSE; PIPE TO RESERVE TANK
L=1200 SERVICED BY L=3000 		0-03557-300-0 01 1 0110-
220 NUT; CLIP
M8 FLANGE 		0-91150-108-0 04 1 0006-0602
220 NUT; CLIP
M8 FLANGE 		0-91180-108-0 04 1 0603-
249 BOLT; STAY,RAD MBR
SAUDI ARABIA EQUIPMENT(WH1) M8X30 		1-09009-020-1 04 1 0006-0205
279 BELL MOUTH 8-94394-174-1 01 1 0006-
