0-27 — EXHAUST MANIFOLD (#1026) — 149 parça

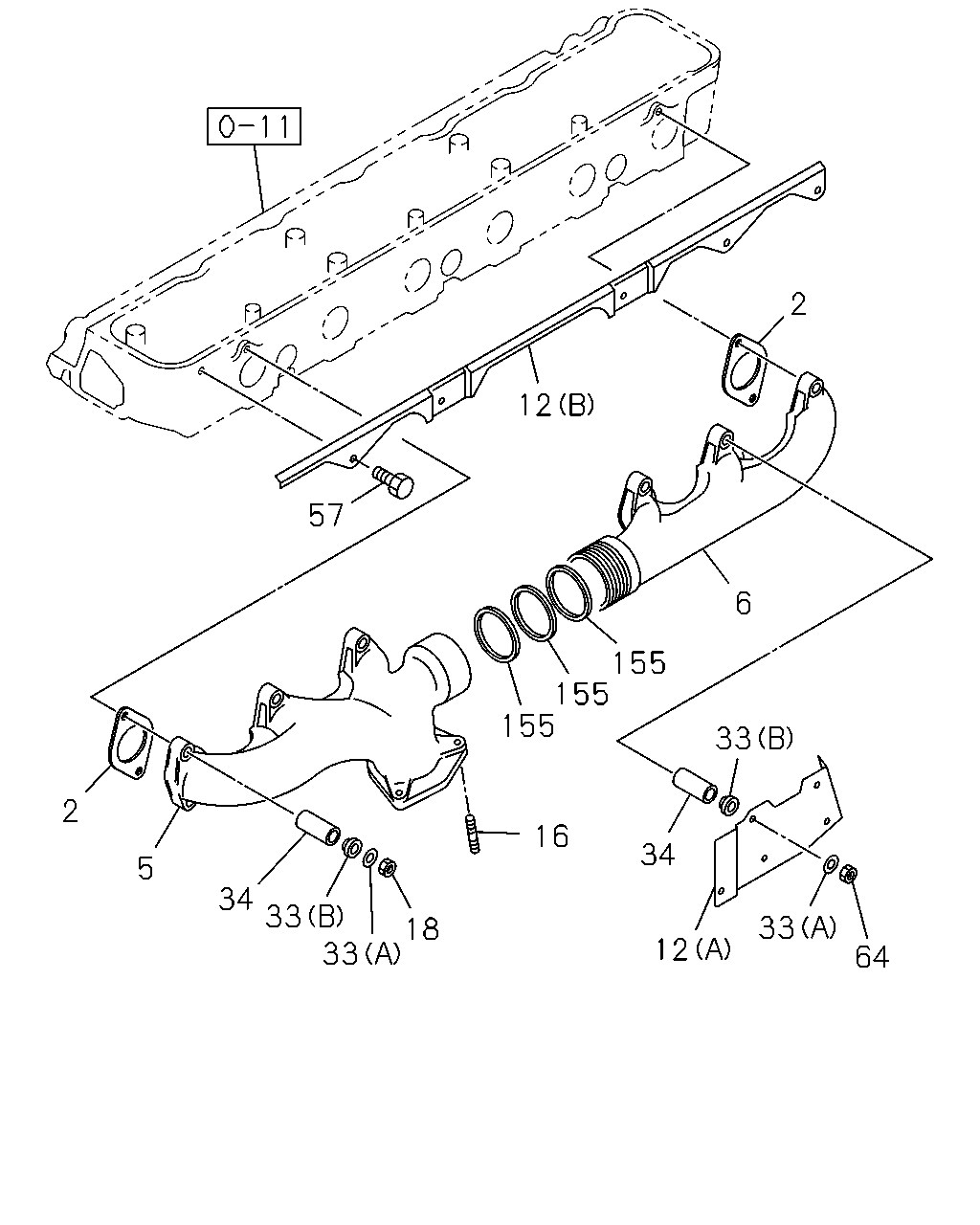

2 12 57 6 155 155 155 33 2 16 34 5 34 33 33 33 18 12 64

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
2	GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-14145-144-0	06	1	9202-	●	●
2	GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94396-351-1	06	1	9202-			●
5	MANIFOLD; EXH,FRT D=64	1-14141-738-2	01	1	9202-9410	●
5	MANIFOLD; EXH,FRT	1-14141-784-0	01	1	9411-	●
6	MANIFOLD; EXH,RR	1-14141-700-1	01	1	9202-9410	●
6	MANIFOLD; EXH,RR	1-14141-785-0	01	1	9411-	●
12	PROTECTOR; HEAT,TURBOCHARGER,EXH MANIF EXC. AUSTRALIA EQUIPMENT(RR3) (B)	1-14181-236-0	01	1	9202-9405	●
12	PROTECTOR; HEAT,TURBOCHARGER,EXH MANIF (B)	1-14181-236-0	01	1	9406-9410	●
12	PROTECTOR; HEAT,TURBOCHARGER,EXH MANIF EXC. HONG KONG EQUIPMENT(PQ1) (B)	1-14181-236-0	01	1	9411-	●
12	PROTECTOR; HEAT,TURBOCHARGER,EXH MANIF ENGINE OIL LEVEL GAUGE WIDE NECK<WY9> (A)	1-14181-267-2	01	1	9202-9406	●	●
12	PROTECTOR; HEAT,TURBOCHARGER,EXH MANIF ENGINE OIL LEVEL GAUGE WIDE NECK<WY9> EXC. AUSTRALIA EQUIPMENT(RR3) (A)	1-14181-267-2	01	1	9407-	●
12	PROTECTOR; HEAT,TURBOCHARGER,EXH MANIF ENGINE OIL LEVEL GAUGE WIDE NECK<WY9> (A)	1-14181-267-2	01	1	9407-		●
12	PROTECTOR; HEAT,TURBOCHARGER,EXH MANIF (B)	1-14181-170-0	01	1	9202-		●
12	PROTECTOR; HEAT,TURBOCHARGER,EXH MANIF (A)	8-94393-266-0	01	1	9202-9405			●
12	PROTECTOR; HEAT,TURBOCHARGER,EXH MANIF (A)	8-94395-204-0	01	1	9406-			●
12	PROTECTOR; HEAT,TURBOCHARGER,EXH MANIF (B)	8-94396-538-1	01	1	9202-9412			●
12	PROTECTOR; HEAT,TURBOCHARGER,EXH MANIF (C)	8-94395-413-1	01	1	9501-			●
16	STUD; EXH PIPE TO MANIF M12X90 L=110	1-09302-035-0	03	1	9206-9410	●
16	STUD; EXH PIPE TO MANIF M12X100 L=120	8-94397-322-0	03	1	9411-	●
16	STUD; EXH PIPE TO MANIF M12X105 L=125	8-94396-505-0	03	1	9202-9204			●
16	STUD; EXH PIPE TO MANIF M12X103 L=123	8-94394-656-0	03	1	9205-			●
18	NUT; EXH MANIF M10	9-09110-510-0	12	1	9202-	●	●
18	NUT; EXH MANIF M10 FLANGE	0-91150-210-0	12	1	9202-			●
33	WASHER; EXH MANIF (A) T=2.2	1-09556-015-0	12	1	9202-	●	●	●
33	WASHER; EXH MANIF (B) T=5.5	1-14149-042-0	12	1	9202-9412	●	●	●
33	WASHER; EXH MANIF (B) T=5.5	1-14149-042-0	12	1	9501-	●	●
33	WASHER; EXH MANIF (B) T=5.5	1-14149-042-0	10	1	9501-			●
34	COLLAR; DIST,EXH MANIF ENGINE OIL LEVEL GAUGE WIDE NECK<WY9> L=43	1-14149-048-1	07	1	9202-	●	●
34	COLLAR; DIST,EXH MANIF ENGINE OIL LEVEL GAUGE WIDE NECK<WY9> L=75	1-14149-197-0	05	1	9202-	●	●
34	COLLAR; DIST,EXH MANIF EXC. ENGINE OIL LEVEL GAUGE WIDE NECK<WY9> L=43	1-14149-048-1	12	1	9202-	●	●
34	COLLAR; DIST,EXH MANIF (B) L=43	8-94396-406-0	10	1	9202-			●
34	COLLAR; DIST,EXH MANIF (A) L=24.0	8-94396-410-0	02	1	9202-9412			●
34	COLLAR; DIST,EXH MANIF (A) L=28	8-94395-679-0	02	1	9501-			●
57	BOLT; HEAT PROTECTOR,EXH MANIF EXC. AUSTRALIA EQUIPMENT(RR3) M8X14 W/LK WASHER	0-50040-814-0	02	1	9202-9405	●
57	BOLT; HEAT PROTECTOR,EXH MANIF M8X14 W/LK WASHER	0-50040-814-0	02	1	9406-9410	●
57	BOLT; HEAT PROTECTOR,EXH MANIF EXC. HONG KONG EQUIPMENT(PQ1) M8X14 W/LK WASHER	0-50040-814-0	02	1	9411-	●
57	BOLT; HEAT PROTECTOR,EXH MANIF EXC. AUSTRALIA EQUIPMENT(RR3) M8X20 W/LK WASHER	0-50040-820-0	02	1	9202-9405	●
57	BOLT; HEAT PROTECTOR,EXH MANIF M8X20 W/LK WASHER	0-50040-820-0	02	1	9406-9410	●
57	BOLT; HEAT PROTECTOR,EXH MANIF EXC. HONG KONG EQUIPMENT(PQ1) M8X20 W/LK WASHER	0-50040-820-0	02	1	9411-	●
57	BOLT; HEAT PROTECTOR,EXH MANIF EXC. AUSTRALIA EQUIPMENT(RR3) M10X16 W/LK WASHER	1-09033-012-0	01	1	9202-9405	●
57	BOLT; HEAT PROTECTOR,EXH MANIF M10X16 W/LK WASHER	1-09033-012-0	01	1	9406-9410	●
57	BOLT; HEAT PROTECTOR,EXH MANIF EXC. HONG KONG EQUIPMENT(PQ1) M10X16 W/LK WASHER	1-09033-012-0	01	1	9411-	●
57	BOLT; HEAT PROTECTOR,EXH MANIF M8X16 W/LK WASHER	0-50040-816-0	01	1	9202-		●
57	BOLT; HEAT PROTECTOR,EXH MANIF M8X14 FLANGE	8-94312-699-0	06	1	9202-9309			●
57	BOLT; HEAT PROTECTOR,EXH MANIF M8X14 FLANGE	8-94312-699-1	04	1	9310-			●
57	BOLT; HEAT PROTECTOR,EXH MANIF M8X12 FLANGE	0-28080-812-0	02	1	9310-			●
64	NUT; HEAT PROTECTOR ENGINE OIL LEVEL GAUGE WIDE NECK<WY9> M10 FLANGE	0-91150-110-0	04	1	9406-9406	●	●
64	NUT; HEAT PROTECTOR ENGINE OIL LEVEL GAUGE WIDE NECK<WY9> EXC. AUSTRALIA EQUIPMENT(RR3) M10 FLANGE	0-91150-110-0	04	1	9407-	●
64	NUT; HEAT PROTECTOR ENGINE OIL LEVEL GAUGE WIDE NECK<WY9> M10 FLANGE	0-91150-110-0	04	1	9407-		●
155	RING; SEAL,EXH MANIF	1-14149-151-0	03	1	9202-	●

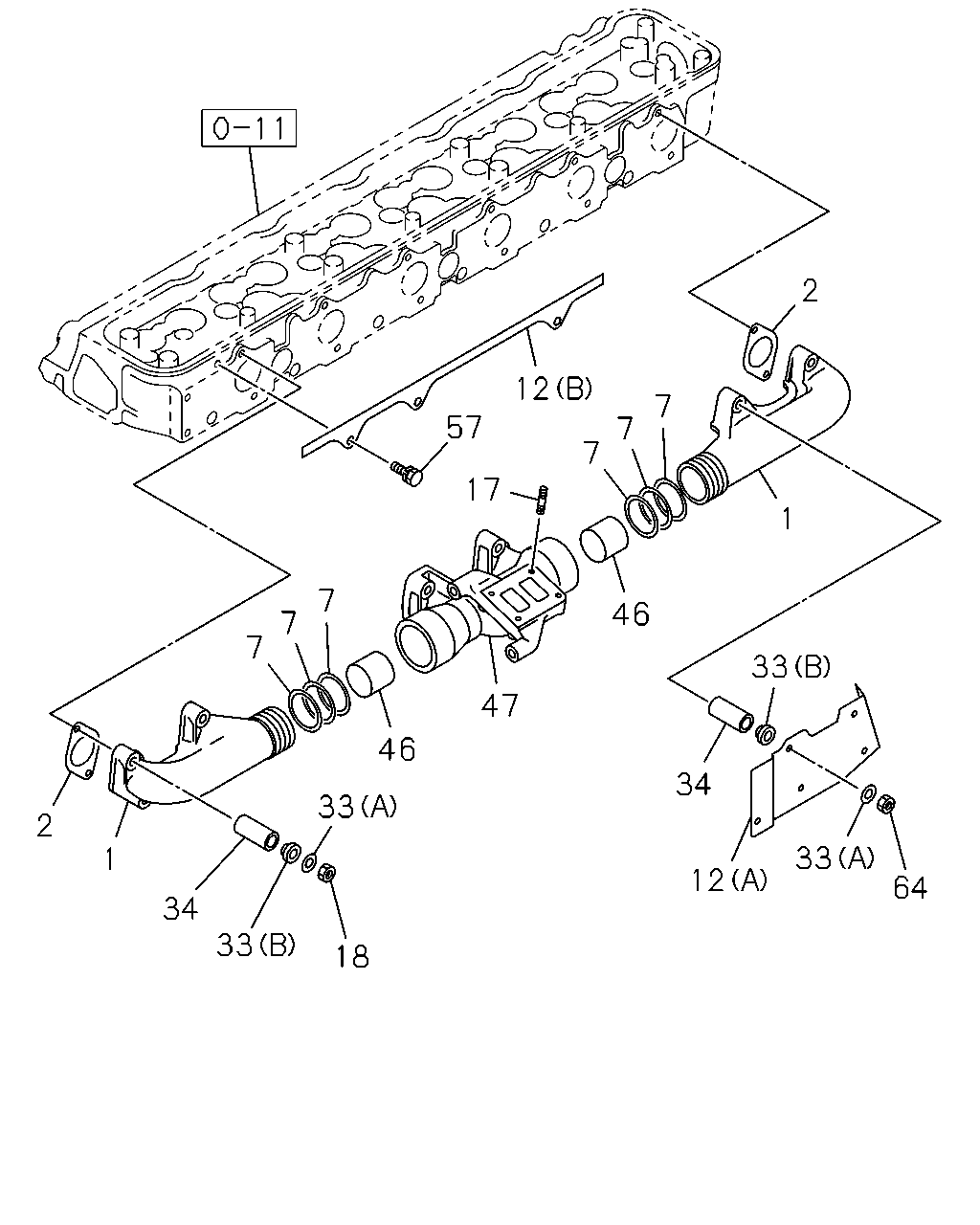

2 12 7 57 7 7 17 1 7 46 7 7 33 47 46 34 33 2 33 1 12 64 34 33 18

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	MANIFOLD; EXHAUST	1-14141-685-3	02	1	9202-		●
1	MANIFOLD; EXHAUST	8-94396-423-6	01	1	9202-9410			●
1	MANIFOLD; EXHAUST	8-94395-987-0	01	1	9411-			●
2	GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-14145-144-0	06	1	9202-	●	●
2	GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94396-351-1	06	1	9202-			●
7	RING; SEAL,EXH MANIF	1-14149-151-0	06	1	9202-		●
12	PROTECTOR; HEAT,TURBOCHARGER,EXH MANIF EXC. AUSTRALIA EQUIPMENT(RR3) (B)	1-14181-236-0	01	1	9202-9405	●
12	PROTECTOR; HEAT,TURBOCHARGER,EXH MANIF (B)	1-14181-236-0	01	1	9406-9410	●
12	PROTECTOR; HEAT,TURBOCHARGER,EXH MANIF EXC. HONG KONG EQUIPMENT(PQ1) (B)	1-14181-236-0	01	1	9411-	●
12	PROTECTOR; HEAT,TURBOCHARGER,EXH MANIF ENGINE OIL LEVEL GAUGE WIDE NECK<WY9> (A)	1-14181-267-2	01	1	9202-9406	●	●
12	PROTECTOR; HEAT,TURBOCHARGER,EXH MANIF ENGINE OIL LEVEL GAUGE WIDE NECK<WY9> EXC. AUSTRALIA EQUIPMENT(RR3) (A)	1-14181-267-2	01	1	9407-	●
12	PROTECTOR; HEAT,TURBOCHARGER,EXH MANIF ENGINE OIL LEVEL GAUGE WIDE NECK<WY9> (A)	1-14181-267-2	01	1	9407-		●
12	PROTECTOR; HEAT,TURBOCHARGER,EXH MANIF (B)	1-14181-170-0	01	1	9202-		●
12	PROTECTOR; HEAT,TURBOCHARGER,EXH MANIF (A)	8-94393-266-0	01	1	9202-9405			●
12	PROTECTOR; HEAT,TURBOCHARGER,EXH MANIF (A)	8-94395-204-0	01	1	9406-			●
12	PROTECTOR; HEAT,TURBOCHARGER,EXH MANIF (B)	8-94396-538-1	01	1	9202-9412			●
12	PROTECTOR; HEAT,TURBOCHARGER,EXH MANIF (C)	8-94395-413-1	01	1	9501-			●
17	STUD; MANIF TO TURBOCHARGER M10X25 L=40	9-04731-025-0	04	1	9202-		●
18	NUT; EXH MANIF M10	9-09110-510-0	12	1	9202-	●	●
18	NUT; EXH MANIF M10 FLANGE	0-91150-210-0	12	1	9202-			●
33	WASHER; EXH MANIF (A) T=2.2	1-09556-015-0	12	1	9202-	●	●	●
33	WASHER; EXH MANIF (B) T=5.5	1-14149-042-0	12	1	9202-9412	●	●	●
33	WASHER; EXH MANIF (B) T=5.5	1-14149-042-0	12	1	9501-	●	●
33	WASHER; EXH MANIF (B) T=5.5	1-14149-042-0	10	1	9501-			●
34	COLLAR; DIST,EXH MANIF ENGINE OIL LEVEL GAUGE WIDE NECK<WY9> L=43	1-14149-048-1	07	1	9202-	●	●
34	COLLAR; DIST,EXH MANIF ENGINE OIL LEVEL GAUGE WIDE NECK<WY9> L=75	1-14149-197-0	05	1	9202-	●	●
34	COLLAR; DIST,EXH MANIF EXC. ENGINE OIL LEVEL GAUGE WIDE NECK<WY9> L=43	1-14149-048-1	12	1	9202-	●	●
34	COLLAR; DIST,EXH MANIF (B) L=43	8-94396-406-0	10	1	9202-			●
34	COLLAR; DIST,EXH MANIF (A) L=24.0	8-94396-410-0	02	1	9202-9412			●
34	COLLAR; DIST,EXH MANIF (A) L=28	8-94395-679-0	02	1	9501-			●
46	PIPE; SEAL,EXH MANIF OD=49.5 L=43	1-14149-131-1	02	1	9202-		●
47	MANIFOLD; EXH,CENTER	1-14141-694-1	01	1	9202-		●
57	BOLT; HEAT PROTECTOR,EXH MANIF EXC. AUSTRALIA EQUIPMENT(RR3) M8X14 W/LK WASHER	0-50040-814-0	02	1	9202-9405	●
57	BOLT; HEAT PROTECTOR,EXH MANIF M8X14 W/LK WASHER	0-50040-814-0	02	1	9406-9410	●
57	BOLT; HEAT PROTECTOR,EXH MANIF EXC. HONG KONG EQUIPMENT(PQ1) M8X14 W/LK WASHER	0-50040-814-0	02	1	9411-	●
57	BOLT; HEAT PROTECTOR,EXH MANIF EXC. AUSTRALIA EQUIPMENT(RR3) M8X20 W/LK WASHER	0-50040-820-0	02	1	9202-9405	●
57	BOLT; HEAT PROTECTOR,EXH MANIF M8X20 W/LK WASHER	0-50040-820-0	02	1	9406-9410	●
57	BOLT; HEAT PROTECTOR,EXH MANIF EXC. HONG KONG EQUIPMENT(PQ1) M8X20 W/LK WASHER	0-50040-820-0	02	1	9411-	●
57	BOLT; HEAT PROTECTOR,EXH MANIF EXC. AUSTRALIA EQUIPMENT(RR3) M10X16 W/LK WASHER	1-09033-012-0	01	1	9202-9405	●
57	BOLT; HEAT PROTECTOR,EXH MANIF M10X16 W/LK WASHER	1-09033-012-0	01	1	9406-9410	●
57	BOLT; HEAT PROTECTOR,EXH MANIF EXC. HONG KONG EQUIPMENT(PQ1) M10X16 W/LK WASHER	1-09033-012-0	01	1	9411-	●
57	BOLT; HEAT PROTECTOR,EXH MANIF M8X16 W/LK WASHER	0-50040-816-0	01	1	9202-		●
57	BOLT; HEAT PROTECTOR,EXH MANIF M8X14 FLANGE	8-94312-699-0	06	1	9202-9309			●
57	BOLT; HEAT PROTECTOR,EXH MANIF M8X14 FLANGE	8-94312-699-1	04	1	9310-			●
57	BOLT; HEAT PROTECTOR,EXH MANIF M8X12 FLANGE	0-28080-812-0	02	1	9310-			●
64	NUT; HEAT PROTECTOR ENGINE OIL LEVEL GAUGE WIDE NECK<WY9> M10 FLANGE	0-91150-110-0	04	1	9406-9406	●	●
64	NUT; HEAT PROTECTOR ENGINE OIL LEVEL GAUGE WIDE NECK<WY9> EXC. AUSTRALIA EQUIPMENT(RR3) M10 FLANGE	0-91150-110-0	04	1	9407-	●
64	NUT; HEAT PROTECTOR ENGINE OIL LEVEL GAUGE WIDE NECK<WY9> M10 FLANGE	0-91150-110-0	04	1	9407-		●

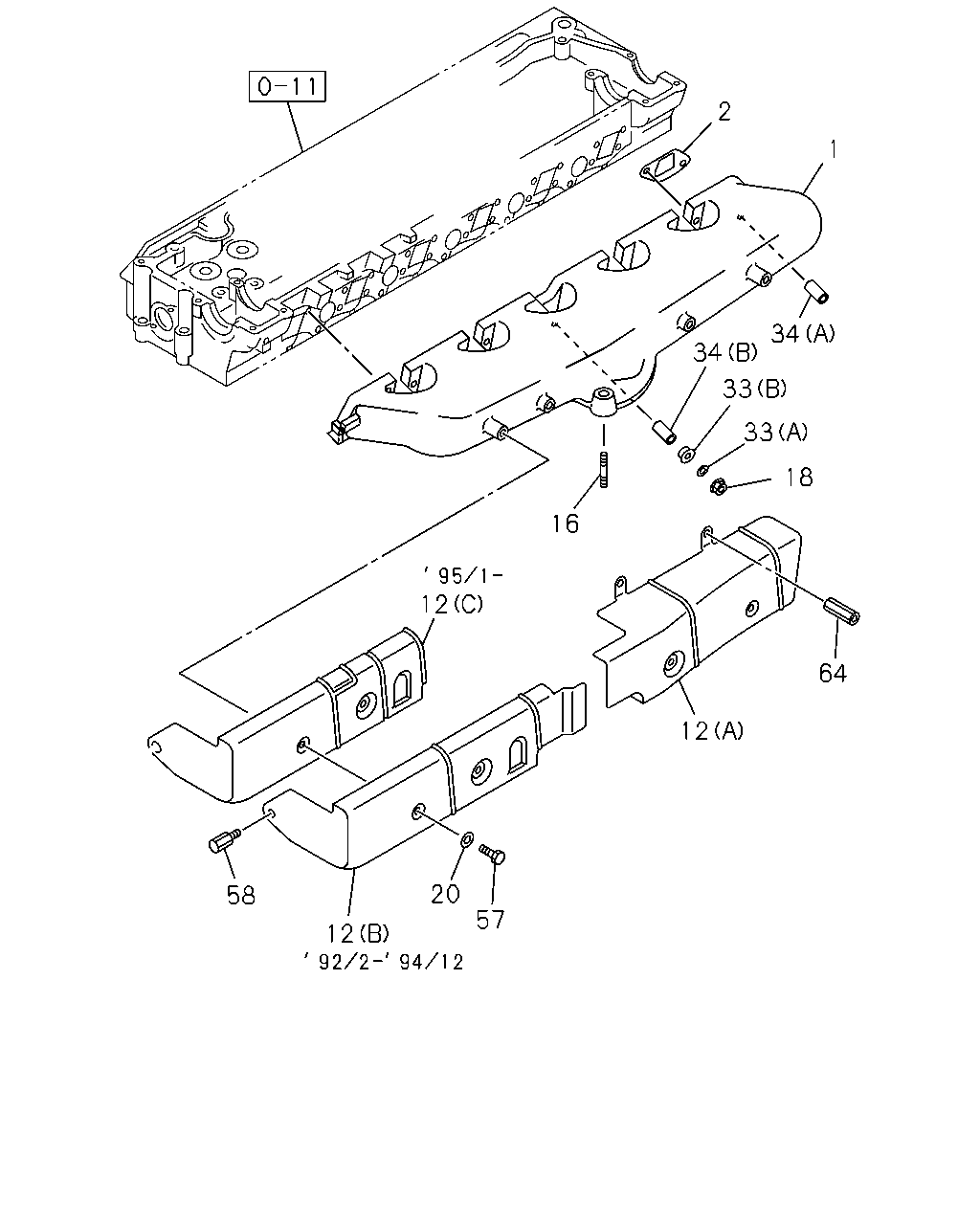

2 1 34 34 33 33 18 16 12 64 12 20 58 57 12

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	MANIFOLD; EXHAUST	1-14141-685-3	02	1	9202-		●
1	MANIFOLD; EXHAUST	8-94396-423-6	01	1	9202-9410			●
1	MANIFOLD; EXHAUST	8-94395-987-0	01	1	9411-			●
2	GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-14145-144-0	06	1	9202-	●	●
2	GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94396-351-1	06	1	9202-			●
12	PROTECTOR; HEAT,TURBOCHARGER,EXH MANIF EXC. AUSTRALIA EQUIPMENT(RR3) (B)	1-14181-236-0	01	1	9202-9405	●
12	PROTECTOR; HEAT,TURBOCHARGER,EXH MANIF (B)	1-14181-236-0	01	1	9406-9410	●
12	PROTECTOR; HEAT,TURBOCHARGER,EXH MANIF EXC. HONG KONG EQUIPMENT(PQ1) (B)	1-14181-236-0	01	1	9411-	●
12	PROTECTOR; HEAT,TURBOCHARGER,EXH MANIF ENGINE OIL LEVEL GAUGE WIDE NECK<WY9> (A)	1-14181-267-2	01	1	9202-9406	●	●
12	PROTECTOR; HEAT,TURBOCHARGER,EXH MANIF ENGINE OIL LEVEL GAUGE WIDE NECK<WY9> EXC. AUSTRALIA EQUIPMENT(RR3) (A)	1-14181-267-2	01	1	9407-	●
12	PROTECTOR; HEAT,TURBOCHARGER,EXH MANIF ENGINE OIL LEVEL GAUGE WIDE NECK<WY9> (A)	1-14181-267-2	01	1	9407-		●
12	PROTECTOR; HEAT,TURBOCHARGER,EXH MANIF (B)	1-14181-170-0	01	1	9202-		●
12	PROTECTOR; HEAT,TURBOCHARGER,EXH MANIF (A)	8-94393-266-0	01	1	9202-9405			●
12	PROTECTOR; HEAT,TURBOCHARGER,EXH MANIF (A)	8-94395-204-0	01	1	9406-			●
12	PROTECTOR; HEAT,TURBOCHARGER,EXH MANIF (B)	8-94396-538-1	01	1	9202-9412			●
12	PROTECTOR; HEAT,TURBOCHARGER,EXH MANIF (C)	8-94395-413-1	01	1	9501-			●
16	STUD; EXH PIPE TO MANIF M12X90 L=110	1-09302-035-0	03	1	9206-9410	●
16	STUD; EXH PIPE TO MANIF M12X100 L=120	8-94397-322-0	03	1	9411-	●
16	STUD; EXH PIPE TO MANIF M12X105 L=125	8-94396-505-0	03	1	9202-9204			●
16	STUD; EXH PIPE TO MANIF M12X103 L=123	8-94394-656-0	03	1	9205-			●
18	NUT; EXH MANIF M10	9-09110-510-0	12	1	9202-	●	●
18	NUT; EXH MANIF M10 FLANGE	0-91150-210-0	12	1	9202-			●
20	WASHER; PL,HEAT PROTECTOR ID=8.4 OD=18	9-09160-608-0	07	1	9202-9309			●
20	WASHER; PL,HEAT PROTECTOR ID=8.4 OD=18	9-09160-608-0	01	1	9310-			●
33	WASHER; EXH MANIF (A) T=2.2	1-09556-015-0	12	1	9202-	●	●	●
33	WASHER; EXH MANIF (B) T=5.5	1-14149-042-0	12	1	9202-9412	●	●	●
33	WASHER; EXH MANIF (B) T=5.5	1-14149-042-0	12	1	9501-	●	●
33	WASHER; EXH MANIF (B) T=5.5	1-14149-042-0	10	1	9501-			●
34	COLLAR; DIST,EXH MANIF ENGINE OIL LEVEL GAUGE WIDE NECK<WY9> L=43	1-14149-048-1	07	1	9202-	●	●
34	COLLAR; DIST,EXH MANIF ENGINE OIL LEVEL GAUGE WIDE NECK<WY9> L=75	1-14149-197-0	05	1	9202-	●	●
34	COLLAR; DIST,EXH MANIF EXC. ENGINE OIL LEVEL GAUGE WIDE NECK<WY9> L=43	1-14149-048-1	12	1	9202-	●	●
34	COLLAR; DIST,EXH MANIF (B) L=43	8-94396-406-0	10	1	9202-			●
34	COLLAR; DIST,EXH MANIF (A) L=24.0	8-94396-410-0	02	1	9202-9412			●
34	COLLAR; DIST,EXH MANIF (A) L=28	8-94395-679-0	02	1	9501-			●
57	BOLT; HEAT PROTECTOR,EXH MANIF EXC. AUSTRALIA EQUIPMENT(RR3) M8X14 W/LK WASHER	0-50040-814-0	02	1	9202-9405	●
57	BOLT; HEAT PROTECTOR,EXH MANIF M8X14 W/LK WASHER	0-50040-814-0	02	1	9406-9410	●
57	BOLT; HEAT PROTECTOR,EXH MANIF EXC. HONG KONG EQUIPMENT(PQ1) M8X14 W/LK WASHER	0-50040-814-0	02	1	9411-	●
57	BOLT; HEAT PROTECTOR,EXH MANIF EXC. AUSTRALIA EQUIPMENT(RR3) M8X20 W/LK WASHER	0-50040-820-0	02	1	9202-9405	●
57	BOLT; HEAT PROTECTOR,EXH MANIF M8X20 W/LK WASHER	0-50040-820-0	02	1	9406-9410	●
57	BOLT; HEAT PROTECTOR,EXH MANIF EXC. HONG KONG EQUIPMENT(PQ1) M8X20 W/LK WASHER	0-50040-820-0	02	1	9411-	●
57	BOLT; HEAT PROTECTOR,EXH MANIF EXC. AUSTRALIA EQUIPMENT(RR3) M10X16 W/LK WASHER	1-09033-012-0	01	1	9202-9405	●
57	BOLT; HEAT PROTECTOR,EXH MANIF M10X16 W/LK WASHER	1-09033-012-0	01	1	9406-9410	●
57	BOLT; HEAT PROTECTOR,EXH MANIF EXC. HONG KONG EQUIPMENT(PQ1) M10X16 W/LK WASHER	1-09033-012-0	01	1	9411-	●
57	BOLT; HEAT PROTECTOR,EXH MANIF M8X16 W/LK WASHER	0-50040-816-0	01	1	9202-		●
57	BOLT; HEAT PROTECTOR,EXH MANIF M8X14 FLANGE	8-94312-699-0	06	1	9202-9309			●
57	BOLT; HEAT PROTECTOR,EXH MANIF M8X14 FLANGE	8-94312-699-1	04	1	9310-			●
57	BOLT; HEAT PROTECTOR,EXH MANIF M8X12 FLANGE	0-28080-812-0	02	1	9310-			●
58	STUD; HEAT PROTECTOR	8-94396-828-2	01	1	9202-			●
64	NUT; HEAT PROTECTOR ENGINE OIL LEVEL GAUGE WIDE NECK<WY9> M10 FLANGE	0-91150-110-0	04	1	9406-9406	●	●
64	NUT; HEAT PROTECTOR ENGINE OIL LEVEL GAUGE WIDE NECK<WY9> EXC. AUSTRALIA EQUIPMENT(RR3) M10 FLANGE	0-91150-110-0	04	1	9407-	●
64	NUT; HEAT PROTECTOR ENGINE OIL LEVEL GAUGE WIDE NECK<WY9> M10 FLANGE	0-91150-110-0	04	1	9407-		●
