◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXD ▶ 10865 - EXD RHD FUEL TANK 400L/400L+200L ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-15 - FIXING PARTS; WIRING HARNESS ▶
8-15 — FIXING PARTS; WIRING HARNESS (#10256) — 357 parça

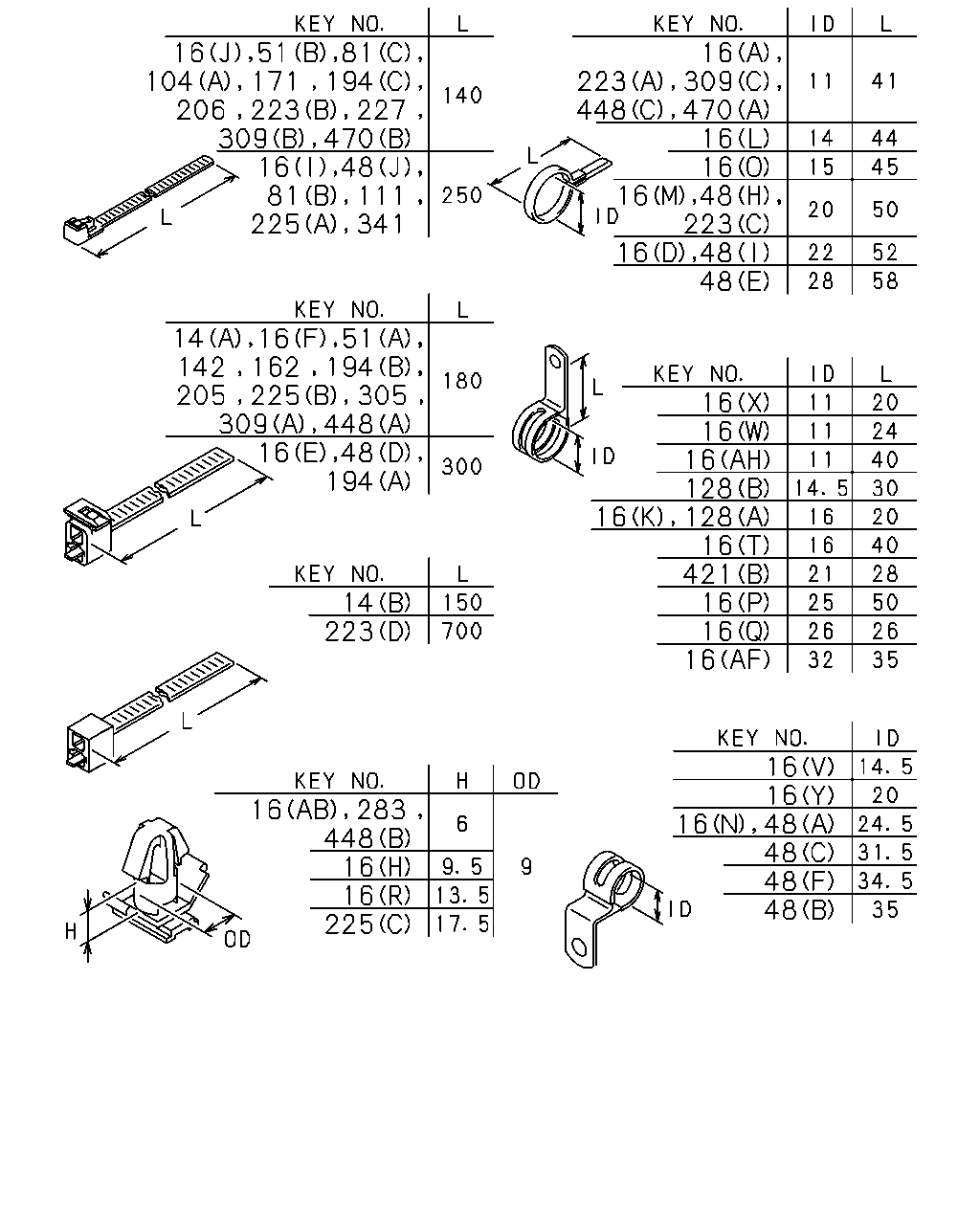

çizim 22434
104 171 194 81 111 16 16 16 223 48 14 194 16 16 16 128 16 128 16 421 16 16 16 14 223 16 16 48 48 48 448 16 16 225 16 51 81 206 223 227 309 470 16 48 225 341 16 51 194 162 142 205 225 305 309 448 16 48 223 309 448 470 16 48 16 16 48 16 283 48
BalonParca AdiParca NoAdetTipApplied Date
14 CLIP; BAND,HARNESS
(A) L=180 		1-09707-162-1 01 1 0107-
14 CLIP; BAND,HARNESS
AIR DRYER<PS7> (A) L=180 		1-09707-162-1 01 1 0107-
14 CLIP; BAND,HARNESS
ANTILOCK BRAKE SYSTEM(BFA) (B) L=150 		1-09707-145-1 02 1 0107-
16 CLIP; HARNESS
ZF M/T<X9E> EXC. IRELAND EQUIPMENT(NJY) (Z) ID=19 L=28 		9-09525-856-0 01 1 0107-
16 CLIP; HARNESS
(O) ID=15 L=45 		1-09700-402-0 01 1 0107-
16 CLIP; HARNESS
(A) ID=11 L=41 		1-09700-403-0 01 1 0107-0107
16 CLIP; HARNESS
(A) ID=11 L=41 		1-09700-403-0 05 1 0107-
16 CLIP; HARNESS
(A) ID=11 L=41 		1-09700-403-0 07 1 0107-0107
16 CLIP; HARNESS
(A) ID=15 L=28 		1-09701-216-0 01 1 0107-
16 CLIP; HARNESS
(B) ID=15 L=42 		1-09700-479-0 02 1 0107-
16 CLIP; HARNESS
(C) ID=15 L=35 		1-09700-507-0 01 1 0107-
16 CLIP; HARNESS
(Y) ID=20 H=23 L=27 		1-09700-861-0 01 1 0107-
16 CLIP; HARNESS
(N) ID=24.5 H=23 L=25 		1-09700-862-0 01 1 0107-0107
16 CLIP; HARNESS
(N) ID=24.5 H=23 L=25 		1-09700-862-0 03 1 0107-
16 CLIP; HARNESS
(N) ID=24.5 H=23 L=25 		1-09700-862-0 02 1 0107-
16 CLIP; HARNESS
(P) ID=25 L=50 		1-09701-019-0 02 1 0107-0107
16 CLIP; HARNESS
AUTO CAB TILT<WV2> (A) ID=11 L=41 		1-09700-403-0 01 1 0107-
16 CLIP; HARNESS
(U) ID=4.8 		1-09701-218-0 01 1 0107-0107
16 CLIP; HARNESS
AUTO CAB TILT<WV2> (U) ID=4.8 		1-09701-218-0 01 1 0107-
16 CLIP; HARNESS
(Q) ID=26 L=26 		1-09701-236-0 01 1 0107-
16 CLIP; HARNESS
(AF) ID=32 L=35 		1-09701-244-0 01 1 0107-
16 CLIP; HARNESS
(E) L=300 		1-09707-001-1 03 1 0107-
16 CLIP; HARNESS
(F) L=180 		1-09707-162-1 03 1 0107-0107
16 CLIP; HARNESS
(F) L=180 		1-09707-162-1 02 1 0107-
16 CLIP; HARNESS
(G) WO/SPONGE RUBBER 		1-09709-103-1 02 1 0107-
16 CLIP; HARNESS
(G) W/SPONGE RUBBER 		1-09709-150-0 01 1 0107-
16 CLIP; HARNESS
(AB) OD=9 H=6 		1-09709-178-0 08 1 0107-0107
16 CLIP; HARNESS
AUTO CAB TILT<WV2> (AB) OD=9 H=6 		1-09709-178-0 04 1 0107-
16 CLIP; HARNESS
(R) OD=9 H=13.5 		1-09709-180-0 01 1 0107-
16 CLIP; HARNESS
(S) ID=6-10 & 6-10 		1-09709-192-1 01 1 0107-0107
16 CLIP; HARNESS
(AB) OD=9 H=6 		1-09709-178-0 03 1 0107-
16 CLIP; HARNESS
MJX16P M/T(Y3Z) (AB) OD=9 H=6 		1-09709-178-0 03 1 0107-
16 CLIP; HARNESS
ZF M/T<X9E> (AB) OD=9 H=6 		1-09709-178-0 03 1 0107-
16 CLIP; HARNESS
(I) L=250 		5-09707-030-1 03 1 0107-
16 CLIP; HARNESS
ZF M/T<X9E> (I) L=250 		5-09707-030-1 03 1 0107-
16 CLIP; HARNESS
(J) L=140 		5-09707-031-1 02 1 0107-
16 CLIP; HARNESS
(AD) ID=14-20 		8-97061-603-0 03 1 0107-
16 CLIP; HARNESS
(W) ID=11 L=20 		9-09525-032-0 01 1 0107-
16 CLIP; HARNESS
(K) ID=16 L=20 		9-09525-535-0 03 1 0107-
16 CLIP; HARNESS
(L) ID=14 L=44 		9-09917-427-0 01 1 0107-0107
16 CLIP; HARNESS
(L) ID=14 L=44 		9-09917-427-0 01 1 0107-
16 CLIP; HARNESS
EXC. AUTO CAB TILT<WV2> (L) ID=14 L=44 		9-09917-427-0 01 1 0107-
16 CLIP; HARNESS
(L) ID=14 L=44 		9-09917-427-0 03 1 0107-0107
16 CLIP; HARNESS
INSPECTION LAMP<T95> (F) L=180 		1-09707-162-1 01 1 0107-
16 CLIP; HARNESS
(M) ID=20 L=50 		9-09917-430-0 01 1 0107-0107
16 CLIP; HARNESS
AUTO CAB TILT<WV2> (M) ID=20 L=50 		9-09917-430-0 01 1 0107-
16 CLIP; HARNESS
(M) ID=20 L=50 		9-09917-430-0 01 1 0107-
16 CLIP; HARNESS
(M) ID=20 L=50 		9-09917-430-0 01 1 0107-
16 CLIP; HARNESS
(M) ID=20 L=50 		9-09917-430-0 03 1 0107-0107
16 CLIP; HARNESS
(M) ID=20 L=50 		9-09917-430-0 03 1 0107-
16 CLIP; HARNESS
(M) ID=20 L=50 		9-09917-430-0 03 1 0107-
16 CLIP; HARNESS
(M) ID=20 L=50 		9-09917-430-0 06 1 0107-0107
16 CLIP; HARNESS
(D) ID=22 L=52 		9-09917-431-0 03 1 0107-
16 CLIP; HARNESS
ANTILOCK BRAKE SYSTEM(BFA) (J) L=140 		5-09707-031-1 07 1 0107-
16 CLIP; HARNESS
ANTILOCK BRAKE SYSTEM(BFA) (X) ID=11 L=20 		9-09525-035-0 02 1 0107-
16 CLIP; HARNESS
IRELAND EQUIPMENT(NJY) (Z) ID=22 L=32 		1-09700-126-1 03 1 0107-
16 CLIP; HARNESS
IRELAND EQUIPMENT(NJY) (AE) FOR PLATE T=22 ID=5-12 L=22 		1-09709-288-0 02 1 0107-
16 CLIP; HARNESS
IRELAND EQUIPMENT(NJY) (AE) FOR PLATE T=22 ID=13-18 L=22 		1-09709-292-0 04 1 0107-
16 CLIP; HARNESS
IRELAND EQUIPMENT(NJY) (AE) FOR PLATE T=18 ID=18-24 L=18 		1-09709-294-0 06 1 0107-
16 CLIP; HARNESS
IRELAND EQUIPMENT(NJY) (AE) FOR PLATE T=22 ID=18-24 L=22 		1-09709-295-0 07 1 0107-
16 CLIP; HARNESS
EXC. IRELAND EQUIPMENT(NJY) (A) ID=11 L=41 		1-09700-403-0 02 1 0107-0107
16 CLIP; HARNESS
(A) ID=11 L=41 		1-09700-403-0 02 1 0107-
16 CLIP; HARNESS
(A) ID=11 L=41 		1-09700-403-0 02 1 0107-
16 CLIP; HARNESS
EXC. IRELAND EQUIPMENT(NJY) (A) ID=11 L=41 		1-09700-403-0 02 1 0107-
16 CLIP; HARNESS
INSPECTION LAMP<T95> (A) ID=11 L=41 		1-09700-403-0 02 1 0107-
16 CLIP; HARNESS
EXC. IRELAND EQUIPMENT(NJY) (AA) W/RUBBER ID=42.7 L=38 		1-09700-583-1 01 1 0107-
16 CLIP; HARNESS
EXC. IRELAND EQUIPMENT(NJY) (M) ID=20 L=50 		9-09917-430-0 02 1 0107-
16 CLIP; HARNESS
MJD7S M/T(Y2Y),MJX16P M/T(Y3Z) (AG) ID=10 H=25 L=20 		1-09700-519-0 01 1 0107-0107
16 CLIP; HARNESS
MJX16P M/T(Y3Z) (AB) OD=9 H=6 		1-09709-178-0 03 1 0107-0107
16 CLIP; HARNESS
ZF M/T<X9E> (AB) OD=9 H=6 		1-09709-178-0 03 1 0107-0107
16 CLIP; HARNESS
INSPECTION LAMP<T95> (AB) OD=9 H=6 		1-09709-178-0 01 1 0107-
16 CLIP; HARNESS
MJX16P M/T(Y3Z) (I) L=250 		5-09707-030-1 01 1 0107-
16 CLIP; HARNESS
MJX16P M/T(Y3Z) (AH) ID=11 L=40 		9-09525-075-0 01 1 0107-
16 CLIP; HARNESS
MJX16P M/T(Y3Z) (K) ID=16 L=20 		9-09525-535-0 01 1 0107-
16 CLIP; HARNESS
REVERSING WARNING BUZZER<YM9> (H) OD=9 H=9.5 		1-09709-179-0 01 1 0107-
16 CLIP; HARNESS
SPEAKER SYSTEM 4 SPEAKER<NBV>,SPEAKER SYSTEM RR 2 SPEAKERS<TLS> HIGH ROOF<S2F> (AC) L=20 SET=10 PIECE 		1-09987-246-2 04 1 0107-
16 CLIP; HARNESS
TRANSMISSION-ZF 16S221 OD(Y1U) (V) ID=14.5 H=23 L=30 		1-09700-859-0 01 1 0107-
16 CLIP; HARNESS
WHEEL BASE 3500MM(35W) (D) ID=22 L=52 		9-09917-431-0 10 1 0107-
16 CLIP; HARNESS
EXC. ZF M/T<X9E> (T) ID=16 L=40 		9-09525-576-0 01 1 0107-
48 CLIP; FRAME HARNESS
(A) ID=24.5 H=23 L=25 		1-09700-862-0 03 1 0107-
48 CLIP; FRAME HARNESS
(C) ID=31.5 H=23 L=25 		1-09701-017-0 04 1 0107-
48 CLIP; FRAME HARNESS
(D) L=300 		1-09707-001-1 06 1 0107-
48 CLIP; FRAME HARNESS
IRELAND EQUIPMENT(NJY) (D) L=300 		1-09707-001-1 06 1 0107-
48 CLIP; FRAME HARNESS
IRELAND EQUIPMENT(NJY) (E) ID=28 L=58 		1-09700-400-0 03 1 0107-
48 CLIP; FRAME HARNESS
IRELAND EQUIPMENT(NJY) (F) ID=34.5 H=23 L=27.5 		1-09700-905-0 06 1 0107-
48 CLIP; FRAME HARNESS
IRELAND EQUIPMENT(NJY) (B) VYNYL CHLORIDE COATING ID=35 H=45 L=33 		1-09701-047-0 01 1 0107-
48 CLIP; FRAME HARNESS
IRELAND EQUIPMENT(NJY) (G) ID=18-24 L=22 		1-09709-295-0 02 1 0107-
48 CLIP; FRAME HARNESS
IRELAND EQUIPMENT(NJY) (H) ID=20 L=50 		9-09917-430-0 02 1 0107-
48 CLIP; FRAME HARNESS
IRELAND EQUIPMENT(NJY) (I) ID=22 L=52 		9-09917-431-0 02 1 0107-
48 CLIP; FRAME HARNESS
EXC. IRELAND EQUIPMENT(NJY) (B) NYLON COATING ID=35 H=45 L=33 		1-09700-947-0 01 1 0107-
48 CLIP; FRAME HARNESS
EXC. IRELAND EQUIPMENT(NJY) (C) ID=31.5 H=23 L=25 		1-09701-017-0 02 1 0107-
48 CLIP; FRAME HARNESS
EXC. IRELAND EQUIPMENT(NJY) (D) L=300 		1-09707-001-1 05 1 0107-
48 CLIP; FRAME HARNESS
EXC. IRELAND EQUIPMENT(NJY) (J) L=250 		5-09707-030-1 01 1 0107-
51 CLIP; COOLER CMPR
AIR CONDITIONER MANUAL CONTROL(C60) (A) L=180 		1-09707-162-1 01 1 0107-
51 CLIP; COOLER CMPR
AIR CONDITIONER MANUAL CONTROL(C60) (B) L=140 		5-09707-031-1 01 1 0107-
81 CLIP; HARNESS
(B) L=250 		5-09707-030-1 01 1 0107-
81 CLIP; HARNESS
(C) L=140 		5-09707-031-1 02 1 0107-
81 CLIP; HARNESS
(A) ID=7-10 		8-94472-578-0 02 1 0107-
104 CLIP; HEADLAMP HARNESS
(C) ID=13-18 L=14.5 		1-09709-290-0 08 1 0107-
104 CLIP; HEADLAMP HARNESS
(A) L=140 		5-09707-031-1 02 1 0107-
104 CLIP; HEADLAMP HARNESS
(B) ID=21 L=47.5 		8-94178-108-0 02 1 0107-
111 CLIP; STOP LAMP SW HARNESS
L=250 		5-09707-030-1 01 1 0107-
128 CLIP; COMB SW HARNESS,STRG COLUMN
(A) ID=16 L=20 		9-09525-535-0 01 1 0107-
128 CLIP; COMB SW HARNESS,STRG COLUMN
(B) ID=14.5 L=30 		9-09916-893-1 01 1 0107-
142 CLIP; HARNESS,ENG
GLOW SYSTEM-FAST DIESEL ENGINE<KM6> L=180 		1-09707-162-1 02 1 0107-
142 CLIP; HARNESS,ENG
EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6> L=180 		1-09707-162-1 01 1 0107-
162 CLIP; SW HARNESS
L=180 		1-09707-162-1 01 1 0107-
171 CLIP; STARTER HARNESS
L=140 		5-09707-031-1 06 1 0107-
194 CLIP; BAND
(A) L=300 		1-09707-001-1 01 1 0107-
194 CLIP; BAND
(B) L=180 		1-09707-162-1 03 1 0107-
194 CLIP; BAND
(C) L=140 		5-09707-031-1 01 1 0107-
194 CLIP; BAND
AUTO CAB TILT<WV2> (B) L=180 		1-09707-162-1 01 1 0107-
194 CLIP; BAND
IRELAND EQUIPMENT(NJY) (C) L=140 		5-09707-031-1 02 1 0107-
205 CLIP; BACK LAMP HARNESS
EXC. IRELAND EQUIPMENT(NJY) L=180 		1-09707-162-1 01 1 0107-
206 CLIP; FUEL TANK HARNESS
L=140 		5-09707-031-1 02 1 0107-
223 CLIP; AIR TANK HARNESS
(A) ID=11 L=41 		1-09700-403-0 02 1 0107-
223 CLIP; AIR TANK HARNESS
(B) L=140 		5-09707-031-1 08 1 0107-
223 CLIP; AIR TANK HARNESS
(C) ID=20 L=50 		9-09917-430-0 01 1 0107-
223 CLIP; AIR TANK HARNESS
AIR DRYER<PS7> (D) L=700 		1-09707-190-0 01 1 0107-
225 CLIP; AIR TANK HARNESS
(B) L=180 		1-09707-162-1 08 1 0107-
225 CLIP; AIR TANK HARNESS
(A) L=250 		5-09707-030-1 01 1 0107-
225 CLIP; AIR TANK HARNESS
AIR DRYER<PS7> (C) OD=9 H=17.5 		1-09709-181-0 01 1 0107-
227 CLIP; FOG LAMP HARNESS
FOG LAMP<T96> L=140 		5-09707-031-1 02 1 0107-
283 CLIP; SUB SW HARNESS
OD=9 H=6 		1-09709-178-0 01 1 0107-
305 CLIP; ENG HARNESS
L=180 		1-09707-162-1 01 1 0107-
309 CLIP; HARNESS,HAND BRAKE CABLE
(A) L=180 		1-09707-162-1 01 1 0107-
309 CLIP; HARNESS,HAND BRAKE CABLE
IRELAND EQUIPMENT(NJY) (B) L=140 		5-09707-031-1 01 1 0107-
309 CLIP; HARNESS,HAND BRAKE CABLE
EXC. IRELAND EQUIPMENT(NJY) (C) ID=11 L=41 		1-09700-403-0 02 1 0107-
341 CLIP; BAND,STARTER RELAY
L=250 		5-09707-030-1 01 1 0107-
421 CLIP; FLOOR HARNESS
(B) ID=21 L=28 		1-09700-673-1 02 1 0107-
421 CLIP; FLOOR HARNESS
(A) L=20 SET=10 PIECE 		1-09987-246-2 01 1 0107-
421 CLIP; FLOOR HARNESS
(A) L=20 SET=10 PIECE 		1-09987-246-2 05 1 0107-
448 CLIP; AIR SUSP HARNESS
(C) ID=11 L=41 		1-09700-403-0 02 1 0107-
448 CLIP; AIR SUSP HARNESS
FULL FLOATING CAB(W16) (A) L=180 		1-09707-162-1 01 1 0107-
448 CLIP; AIR SUSP HARNESS
FULL FLOATING CAB(W16) (B) OD=9 H=6 		1-09709-178-0 01 1 0107-0107
470 CLIP; HARNESS,LICENSE LAMP
(A) ID=11 L=41 		1-09700-403-0 01 1 0107-
470 CLIP; HARNESS,LICENSE LAMP
IRELAND EQUIPMENT(NJY) (B) L=140 		5-09707-031-1 01 1 0107-
çizim 22436
119 255 38 133 239 38 88 64 150 38 524 242 313 38 139 313 38 38 38 423 516 358 38 242 38 313 38 242 294 219 515 340 219 294
BalonParca AdiParca NoAdetTipApplied Date
38 BOLT; CLIP,HARNESS
(J) M8X35 FLANGE 		0-28680-835-0 02 1 0107-
38 BOLT; CLIP,HARNESS
(E) M6X8 		0-20800-608-0 01 1 0107-
38 BOLT; CLIP,HARNESS
(F) M8X12 FLANGE 		0-28080-812-0 01 1 0107-
38 BOLT; CLIP,HARNESS
IRELAND EQUIPMENT(NJY) (F) M8X12 FLANGE 		0-28080-812-0 01 1 0107-
38 BOLT; CLIP,HARNESS
(G) M8X20 FLANGE 		0-28080-820-0 01 1 0107-
38 BOLT; CLIP,HARNESS
MJX16P M/T(Y3Z) (A) M8X20 FLANGE 		0-28680-820-0 03 1 0107-0107
38 BOLT; CLIP,HARNESS
(A) M8X20 FLANGE 		0-28680-820-0 03 1 0107-
38 BOLT; CLIP,HARNESS
MJX16P M/T(Y3Z) (A) M8X20 FLANGE 		0-28680-820-0 03 1 0107-
38 BOLT; CLIP,HARNESS
(B) M8X25 FLANGE 		0-28680-825-0 02 1 0107-
38 BOLT; CLIP,HARNESS
(H) M8X30 FLANGE 		0-28680-830-0 01 1 0107-
38 BOLT; CLIP,HARNESS
(H) M8X30 FLANGE 		0-28680-830-0 02 1 0107-
38 BOLT; CLIP,HARNESS
(H) M8X30 FLANGE 		0-28680-830-0 04 1 0107-
38 BOLT; CLIP,HARNESS
(C) M12X16 FLANGE 		1-09044-079-0 01 1 0107-
38 BOLT; CLIP,HARNESS
(D) M8X16 W/LK&PL WASHER 		8-97087-055-0 03 1 0107-
38 BOLT; CLIP,HARNESS
ANTILOCK BRAKE SYSTEM(BFA) (A) M8X20 FLANGE 		0-28680-820-0 02 1 0107-
38 BOLT; CLIP,HARNESS
(A) M8X20 FLANGE 		0-28680-820-0 01 1 0107-0107
38 BOLT; CLIP,HARNESS
IRELAND EQUIPMENT(NJY) (A) M8X20 FLANGE 		0-28680-820-0 01 1 0107-0107
38 BOLT; CLIP,HARNESS
(A) M8X20 FLANGE 		0-28680-820-0 01 1 0107-0107
38 BOLT; CLIP,HARNESS
ZF M/T<X9E> EXC. IRELAND EQUIPMENT(NJY) (A) M8X20 FLANGE 		0-28680-820-0 01 1 0107-0107
38 BOLT; CLIP,HARNESS
IRELAND EQUIPMENT(NJY) (A) M8X20 FLANGE 		0-28680-820-0 01 1 0107-
38 BOLT; CLIP,HARNESS
(A) M8X20 FLANGE 		0-28680-820-0 01 1 0107-
38 BOLT; CLIP,HARNESS
ZF M/T<X9E> EXC. IRELAND EQUIPMENT(NJY) (A) M8X20 FLANGE 		0-28680-820-0 01 1 0107-
38 BOLT; CLIP,HARNESS
IRELAND EQUIPMENT(NJY) (B) M8X25 FLANGE 		0-28680-825-0 01 1 0107-
38 BOLT; CLIP,HARNESS
IRELAND EQUIPMENT(NJY) (H) M8X30 FLANGE 		0-28680-830-0 03 1 0107-
38 BOLT; CLIP,HARNESS
EXC. IRELAND EQUIPMENT(NJY) (H) M8X30 FLANGE 		0-28680-830-0 07 1 0107-
38 BOLT; CLIP,HARNESS
MJD7S M/T(Y2Y),MJX16P M/T(Y3Z) (I) M10X20 FLANGE 		0-28781-020-0 01 1 0107-
64 SCREW; CLIP
M6X12 TAPPING W/PL WASHER 		0-74100-612-0 02 1 0107-
88 BOLT; DOOR HARNESS EARTH
M8X25 W/LK&PL WASHER 		8-97087-203-0 02 1 0107-
119 SCREW; DOOR HARNESS EARTH
POWER WINDOW<A30> M5X14 W/PL WASHER 		8-94447-551-0 02 1 0107-
133 SCREW; HARNESS CLIP,STRG COLUMN
M6X12 W/LK&PL WASHER 		8-94279-200-0 01 1 0107-
133 SCREW; HARNESS CLIP,STRG COLUMN
M6X16 W/LK&PL WASHER 		8-94279-402-0 02 1 0107-0107
133 SCREW; HARNESS CLIP,STRG COLUMN
M6X16 W/LK&PL WASHER 		8-94279-402-0 01 1 0107-
139 BOLT; BRKT
IRELAND EQUIPMENT(NJY) M8X30 FLANGE 		0-28680-830-0 02 1 0107-
139 BOLT; BRKT
ANTILOCK BRAKE SYSTEM(BFA) M8X30 FLANGE 		0-28680-830-0 02 1 0107-
150 BOLT; CLIP
M6X12 FLANGE 		0-28080-612-0 01 1 0107-
219 NUT
(A) M8 FLANGE 		0-91150-108-0 02 1 0107-
219 NUT
ANTILOCK BRAKE SYSTEM(BFA) (A) M8 FLANGE 		0-91150-108-0 02 1 0107-
219 NUT
(A) M8 FLANGE 		0-91150-108-0 01 1 0107-
219 NUT
(A) M8 FLANGE 		0-91150-108-0 10 1 0107-0107
219 NUT
(A) M8 FLANGE 		0-91150-108-0 09 1 0107-
219 NUT
(B) M10 FLANGE 		0-91250-210-0 01 1 0107-
219 NUT
IRELAND EQUIPMENT(NJY) (A) M8 FLANGE 		0-91150-108-0 05 1 0107-
219 NUT
EXC. IRELAND EQUIPMENT(NJY) (A) M8 FLANGE 		0-91150-108-0 06 1 0107-
239 BOLT; GRAND
M6X14 W/LK&PL WASHER 		8-97086-822-0 02 1 0107-
242 BOLT; BRKT,HARNESS
(B) M8X12 FLANGE 		0-28080-812-0 01 1 0107-
242 BOLT; BRKT,HARNESS
(A) M8X20 FLANGE 		0-28680-820-0 02 1 0107-
242 BOLT; BRKT,HARNESS
(A) M8X20 FLANGE 		0-28680-820-0 02 1 0107-
242 BOLT; BRKT,HARNESS
IRELAND EQUIPMENT(NJY) (C) M8X25 FLANGE 		0-28680-825-0 01 1 0107-
255 SCREW; TAP CLIP
M6X20 TAPPING W/PL WASHER 		0-74305-620-0 02 1 0107-
294 NUT
MJD7S M/T(Y2Y) EXC. IRELAND EQUIPMENT(NJY) (B) M10 FLANGE 		0-91150-210-0 01 1 0107-
294 NUT
(A) M8 FLANGE 		0-91150-108-0 01 1 0107-
294 NUT
EXC. LIGHT DUTY PACKAGE TRUCK<Y21> (A) M8 FLANGE 		0-91150-108-0 01 1 0107-
294 NUT
EXC. IRELAND EQUIPMENT(NJY) (A) M8 FLANGE 		0-91150-108-0 01 1 0107-
294 NUT
ANTILOCK BRAKE SYSTEM(BFA) (A) M8 FLANGE 		0-91150-108-0 02 1 0107-
294 NUT
IRELAND EQUIPMENT(NJY) (A) M8 FLANGE 		0-91150-108-0 02 1 0107-
313 BOLT; BRKT
(B) M8X20 FLANGE 		0-28080-820-0 01 1 0107-
313 BOLT; BRKT
(B) M8X20 FLANGE 		0-28080-820-0 02 1 0107-
313 BOLT; BRKT
(A) M8X30 FLANGE 		0-28680-830-0 01 1 0107-
313 BOLT; BRKT
EXC. IRELAND EQUIPMENT(NJY) (A) M8X30 FLANGE 		0-28680-830-0 01 1 0107-
313 BOLT; BRKT
EXC. LIGHT DUTY PACKAGE TRUCK<Y21> (C) M8X20 FLANGE 		0-28680-820-0 01 1 0107-
313 BOLT; BRKT
EXC. AIR CONDITIONER MANUAL CONTROL(C60) (C) M8X20 FLANGE 		0-28680-820-0 01 1 0107-
313 BOLT; BRKT
ZF M/T<X9E> EXC. IRELAND EQUIPMENT(NJY) (C) M8X20 FLANGE 		0-28680-820-0 01 1 0107-
313 BOLT; BRKT
WHEEL BASE 3800MM(38W) (A) M8X30 FLANGE 		0-28680-830-0 02 1 0107-
340 NUT; HARNESS CAB TO FRAME
M8 FLANGE 		0-91150-108-0 01 1 0107-
340 NUT; HARNESS CAB TO FRAME
M8 FLANGE 		0-91150-108-0 01 1 0107-
358 BOLT; EARTH
AUTO CAB TILT<WV2> M5X16 W/LK&PL WASHER 		8-94198-538-0 01 1 0107-
423 WASHER; HARNESS,EARTH
ID=8.4 		1-09503-264-0 03 1 0107-
515 NUT; BRKT
IRELAND EQUIPMENT(NJY) M8 FLANGE 		0-91150-108-0 03 1 0107-
516 BOLT; HARNESS
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0107-
524 NUT; HARNESS
M6 FLANGE 		0-91150-106-0 01 1 0107-
çizim 74521
5 178 178 178 178 178 178 185 1 178 530 503 510
BalonParca AdiParca NoAdetTipApplied Date
1 SLEEVE; RUBBER
AIR CONDITIONER MANUAL CONTROL(C60) ID=38.1 L=50 		5-09360-835-0 01 1 0107-
5 GUIDE; HARNESS
L=360 		1-82699-476-1 01 1 0107-
178 GROMMET; HARNESS
(A) ID=28 OD=35 T=25 		1-09332-011-1 02 1 0107-
178 GROMMET; HARNESS
(E) ID=24 OD=30 T=22 		1-09332-104-0 02 1 0107-
178 GROMMET; HARNESS
ANTILOCK BRAKE SYSTEM(BFA) (E) ID=24 OD=30 T=22 		1-09332-104-0 02 1 0107-
178 GROMMET; HARNESS
(B) ID=15 OD=20 T=26 		1-09332-132-0 01 1 0107-
178 GROMMET; HARNESS
(C) ID=32 OD=40 T=18 		1-09891-003-0 02 1 0107-
178 GROMMET; HARNESS
(G) 		1-82699-891-0 01 1 0107-
178 GROMMET; HARNESS
(D) ID=19 OD=23 T=18 		9-09956-130-1 01 1 0107-0107
178 GROMMET; HARNESS
INSPECTION LAMP<T95> (D) ID=19 OD=23 T=18 		9-09956-130-1 01 1 0107-
178 GROMMET; HARNESS
(A) ID=28 OD=35 T=12 		9-09956-725-0 01 1 0107-
178 GROMMET; HARNESS
IRELAND EQUIPMENT(NJY) (F) ID=39 OD=45 T=13 		1-09332-076-0 02 1 0107-
178 GROMMET; HARNESS
IRELAND EQUIPMENT(NJY) (B) ID=15 OD=20 T=17.5 		1-09332-130-0 02 1 0107-
178 GROMMET; HARNESS
EXC. IRELAND EQUIPMENT(NJY) (A) ID=28 OD=35 T=25 		1-09332-011-1 01 1 0107-
178 GROMMET; HARNESS
EXC. IRELAND EQUIPMENT(NJY) (F) ID=39 OD=45 T=19 		1-09332-077-0 01 1 0107-
178 GROMMET; HARNESS
EXC. IRELAND EQUIPMENT(NJY) (B) ID=15 OD=20 T=26 		1-09332-132-0 02 1 0107-
185 SLEEVE; RUBBER
ID=6 L=30 		5-09360-352-0 01 1 0107-
503 CONNECTOR
EXC. AUTO CAB TILT<WV2> 2P MALE LIGHT GRAY 		1-82691-078-0 01 1 0107-
510 GROMMET; SCREW
D=9.7X9.7 L=8 		8-94222-314-0 02 1 0107-
530 SEAL; HARNESS
180X40 		1-72498-019-0 07 1 0107-
530 SEAL; HARNESS
180X40 		1-72498-019-0 06 1 0107-
530 SEAL; HARNESS
EXC. HIGH ROOF<S2F> 100X40 		1-72498-022-0 01 1 0107-

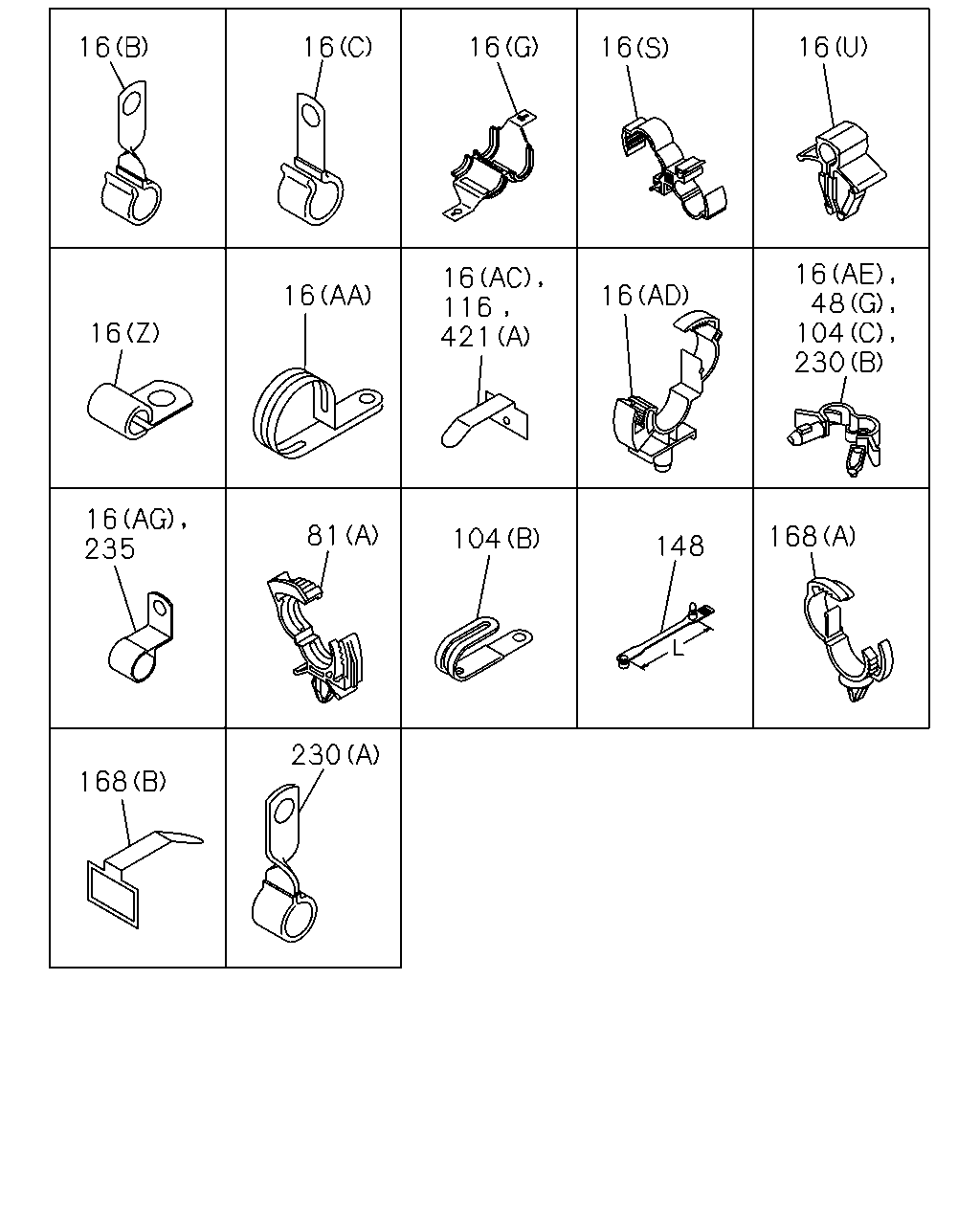

çizim 74822
16 16 16 16 16 48 104 230 16 116 421 16 16 16 16 235 81 168 104 148 230 168 16
BalonParca AdiParca NoAdetTipApplied Date
16 CLIP; HARNESS
ZF M/T<X9E> EXC. IRELAND EQUIPMENT(NJY) (Z) ID=19 L=28 		9-09525-856-0 01 1 0107-
16 CLIP; HARNESS
(O) ID=15 L=45 		1-09700-402-0 01 1 0107-
16 CLIP; HARNESS
(A) ID=11 L=41 		1-09700-403-0 01 1 0107-0107
16 CLIP; HARNESS
(A) ID=11 L=41 		1-09700-403-0 05 1 0107-
16 CLIP; HARNESS
(A) ID=11 L=41 		1-09700-403-0 07 1 0107-0107
16 CLIP; HARNESS
(A) ID=15 L=28 		1-09701-216-0 01 1 0107-
16 CLIP; HARNESS
(B) ID=15 L=42 		1-09700-479-0 02 1 0107-
16 CLIP; HARNESS
(C) ID=15 L=35 		1-09700-507-0 01 1 0107-
16 CLIP; HARNESS
(Y) ID=20 H=23 L=27 		1-09700-861-0 01 1 0107-
16 CLIP; HARNESS
(N) ID=24.5 H=23 L=25 		1-09700-862-0 01 1 0107-0107
16 CLIP; HARNESS
(N) ID=24.5 H=23 L=25 		1-09700-862-0 03 1 0107-
16 CLIP; HARNESS
(N) ID=24.5 H=23 L=25 		1-09700-862-0 02 1 0107-
16 CLIP; HARNESS
(P) ID=25 L=50 		1-09701-019-0 02 1 0107-0107
16 CLIP; HARNESS
AUTO CAB TILT<WV2> (A) ID=11 L=41 		1-09700-403-0 01 1 0107-
16 CLIP; HARNESS
(U) ID=4.8 		1-09701-218-0 01 1 0107-0107
16 CLIP; HARNESS
AUTO CAB TILT<WV2> (U) ID=4.8 		1-09701-218-0 01 1 0107-
16 CLIP; HARNESS
(Q) ID=26 L=26 		1-09701-236-0 01 1 0107-
16 CLIP; HARNESS
(AF) ID=32 L=35 		1-09701-244-0 01 1 0107-
16 CLIP; HARNESS
(E) L=300 		1-09707-001-1 03 1 0107-
16 CLIP; HARNESS
(F) L=180 		1-09707-162-1 03 1 0107-0107
16 CLIP; HARNESS
(F) L=180 		1-09707-162-1 02 1 0107-
16 CLIP; HARNESS
(G) WO/SPONGE RUBBER 		1-09709-103-1 02 1 0107-
16 CLIP; HARNESS
(G) W/SPONGE RUBBER 		1-09709-150-0 01 1 0107-
16 CLIP; HARNESS
(AB) OD=9 H=6 		1-09709-178-0 08 1 0107-0107
16 CLIP; HARNESS
AUTO CAB TILT<WV2> (AB) OD=9 H=6 		1-09709-178-0 04 1 0107-
16 CLIP; HARNESS
(R) OD=9 H=13.5 		1-09709-180-0 01 1 0107-
16 CLIP; HARNESS
(S) ID=6-10 & 6-10 		1-09709-192-1 01 1 0107-0107
16 CLIP; HARNESS
(AB) OD=9 H=6 		1-09709-178-0 03 1 0107-
16 CLIP; HARNESS
MJX16P M/T(Y3Z) (AB) OD=9 H=6 		1-09709-178-0 03 1 0107-
16 CLIP; HARNESS
ZF M/T<X9E> (AB) OD=9 H=6 		1-09709-178-0 03 1 0107-
16 CLIP; HARNESS
(I) L=250 		5-09707-030-1 03 1 0107-
16 CLIP; HARNESS
ZF M/T<X9E> (I) L=250 		5-09707-030-1 03 1 0107-
16 CLIP; HARNESS
(J) L=140 		5-09707-031-1 02 1 0107-
16 CLIP; HARNESS
(AD) ID=14-20 		8-97061-603-0 03 1 0107-
16 CLIP; HARNESS
(W) ID=11 L=20 		9-09525-032-0 01 1 0107-
16 CLIP; HARNESS
(K) ID=16 L=20 		9-09525-535-0 03 1 0107-
16 CLIP; HARNESS
(L) ID=14 L=44 		9-09917-427-0 01 1 0107-0107
16 CLIP; HARNESS
(L) ID=14 L=44 		9-09917-427-0 01 1 0107-
16 CLIP; HARNESS
EXC. AUTO CAB TILT<WV2> (L) ID=14 L=44 		9-09917-427-0 01 1 0107-
16 CLIP; HARNESS
(L) ID=14 L=44 		9-09917-427-0 03 1 0107-0107
16 CLIP; HARNESS
INSPECTION LAMP<T95> (F) L=180 		1-09707-162-1 01 1 0107-
16 CLIP; HARNESS
(M) ID=20 L=50 		9-09917-430-0 01 1 0107-0107
16 CLIP; HARNESS
AUTO CAB TILT<WV2> (M) ID=20 L=50 		9-09917-430-0 01 1 0107-
16 CLIP; HARNESS
(M) ID=20 L=50 		9-09917-430-0 01 1 0107-
16 CLIP; HARNESS
(M) ID=20 L=50 		9-09917-430-0 01 1 0107-
16 CLIP; HARNESS
(M) ID=20 L=50 		9-09917-430-0 03 1 0107-0107
16 CLIP; HARNESS
(M) ID=20 L=50 		9-09917-430-0 03 1 0107-
16 CLIP; HARNESS
(M) ID=20 L=50 		9-09917-430-0 03 1 0107-
16 CLIP; HARNESS
(M) ID=20 L=50 		9-09917-430-0 06 1 0107-0107
16 CLIP; HARNESS
(D) ID=22 L=52 		9-09917-431-0 03 1 0107-
16 CLIP; HARNESS
ANTILOCK BRAKE SYSTEM(BFA) (J) L=140 		5-09707-031-1 07 1 0107-
16 CLIP; HARNESS
ANTILOCK BRAKE SYSTEM(BFA) (X) ID=11 L=20 		9-09525-035-0 02 1 0107-
16 CLIP; HARNESS
IRELAND EQUIPMENT(NJY) (Z) ID=22 L=32 		1-09700-126-1 03 1 0107-
16 CLIP; HARNESS
IRELAND EQUIPMENT(NJY) (AE) FOR PLATE T=22 ID=5-12 L=22 		1-09709-288-0 02 1 0107-
16 CLIP; HARNESS
IRELAND EQUIPMENT(NJY) (AE) FOR PLATE T=22 ID=13-18 L=22 		1-09709-292-0 04 1 0107-
16 CLIP; HARNESS
IRELAND EQUIPMENT(NJY) (AE) FOR PLATE T=18 ID=18-24 L=18 		1-09709-294-0 06 1 0107-
16 CLIP; HARNESS
IRELAND EQUIPMENT(NJY) (AE) FOR PLATE T=22 ID=18-24 L=22 		1-09709-295-0 07 1 0107-
16 CLIP; HARNESS
EXC. IRELAND EQUIPMENT(NJY) (A) ID=11 L=41 		1-09700-403-0 02 1 0107-0107
16 CLIP; HARNESS
(A) ID=11 L=41 		1-09700-403-0 02 1 0107-
16 CLIP; HARNESS
(A) ID=11 L=41 		1-09700-403-0 02 1 0107-
16 CLIP; HARNESS
EXC. IRELAND EQUIPMENT(NJY) (A) ID=11 L=41 		1-09700-403-0 02 1 0107-
16 CLIP; HARNESS
INSPECTION LAMP<T95> (A) ID=11 L=41 		1-09700-403-0 02 1 0107-
16 CLIP; HARNESS
EXC. IRELAND EQUIPMENT(NJY) (AA) W/RUBBER ID=42.7 L=38 		1-09700-583-1 01 1 0107-
16 CLIP; HARNESS
EXC. IRELAND EQUIPMENT(NJY) (M) ID=20 L=50 		9-09917-430-0 02 1 0107-
16 CLIP; HARNESS
MJD7S M/T(Y2Y),MJX16P M/T(Y3Z) (AG) ID=10 H=25 L=20 		1-09700-519-0 01 1 0107-0107
16 CLIP; HARNESS
MJX16P M/T(Y3Z) (AB) OD=9 H=6 		1-09709-178-0 03 1 0107-0107
16 CLIP; HARNESS
ZF M/T<X9E> (AB) OD=9 H=6 		1-09709-178-0 03 1 0107-0107
16 CLIP; HARNESS
INSPECTION LAMP<T95> (AB) OD=9 H=6 		1-09709-178-0 01 1 0107-
16 CLIP; HARNESS
MJX16P M/T(Y3Z) (I) L=250 		5-09707-030-1 01 1 0107-
16 CLIP; HARNESS
MJX16P M/T(Y3Z) (AH) ID=11 L=40 		9-09525-075-0 01 1 0107-
16 CLIP; HARNESS
MJX16P M/T(Y3Z) (K) ID=16 L=20 		9-09525-535-0 01 1 0107-
16 CLIP; HARNESS
REVERSING WARNING BUZZER<YM9> (H) OD=9 H=9.5 		1-09709-179-0 01 1 0107-
16 CLIP; HARNESS
SPEAKER SYSTEM 4 SPEAKER<NBV>,SPEAKER SYSTEM RR 2 SPEAKERS<TLS> HIGH ROOF<S2F> (AC) L=20 SET=10 PIECE 		1-09987-246-2 04 1 0107-
16 CLIP; HARNESS
TRANSMISSION-ZF 16S221 OD(Y1U) (V) ID=14.5 H=23 L=30 		1-09700-859-0 01 1 0107-
16 CLIP; HARNESS
WHEEL BASE 3500MM(35W) (D) ID=22 L=52 		9-09917-431-0 10 1 0107-
16 CLIP; HARNESS
EXC. ZF M/T<X9E> (T) ID=16 L=40 		9-09525-576-0 01 1 0107-
48 CLIP; FRAME HARNESS
(A) ID=24.5 H=23 L=25 		1-09700-862-0 03 1 0107-
48 CLIP; FRAME HARNESS
(C) ID=31.5 H=23 L=25 		1-09701-017-0 04 1 0107-
48 CLIP; FRAME HARNESS
(D) L=300 		1-09707-001-1 06 1 0107-
48 CLIP; FRAME HARNESS
IRELAND EQUIPMENT(NJY) (D) L=300 		1-09707-001-1 06 1 0107-
48 CLIP; FRAME HARNESS
IRELAND EQUIPMENT(NJY) (E) ID=28 L=58 		1-09700-400-0 03 1 0107-
48 CLIP; FRAME HARNESS
IRELAND EQUIPMENT(NJY) (F) ID=34.5 H=23 L=27.5 		1-09700-905-0 06 1 0107-
48 CLIP; FRAME HARNESS
IRELAND EQUIPMENT(NJY) (B) VYNYL CHLORIDE COATING ID=35 H=45 L=33 		1-09701-047-0 01 1 0107-
48 CLIP; FRAME HARNESS
IRELAND EQUIPMENT(NJY) (G) ID=18-24 L=22 		1-09709-295-0 02 1 0107-
48 CLIP; FRAME HARNESS
IRELAND EQUIPMENT(NJY) (H) ID=20 L=50 		9-09917-430-0 02 1 0107-
48 CLIP; FRAME HARNESS
IRELAND EQUIPMENT(NJY) (I) ID=22 L=52 		9-09917-431-0 02 1 0107-
48 CLIP; FRAME HARNESS
EXC. IRELAND EQUIPMENT(NJY) (B) NYLON COATING ID=35 H=45 L=33 		1-09700-947-0 01 1 0107-
48 CLIP; FRAME HARNESS
EXC. IRELAND EQUIPMENT(NJY) (C) ID=31.5 H=23 L=25 		1-09701-017-0 02 1 0107-
48 CLIP; FRAME HARNESS
EXC. IRELAND EQUIPMENT(NJY) (D) L=300 		1-09707-001-1 05 1 0107-
48 CLIP; FRAME HARNESS
EXC. IRELAND EQUIPMENT(NJY) (J) L=250 		5-09707-030-1 01 1 0107-
81 CLIP; HARNESS
(B) L=250 		5-09707-030-1 01 1 0107-
81 CLIP; HARNESS
(C) L=140 		5-09707-031-1 02 1 0107-
81 CLIP; HARNESS
(A) ID=7-10 		8-94472-578-0 02 1 0107-
104 CLIP; HEADLAMP HARNESS
(C) ID=13-18 L=14.5 		1-09709-290-0 08 1 0107-
104 CLIP; HEADLAMP HARNESS
(A) L=140 		5-09707-031-1 02 1 0107-
104 CLIP; HEADLAMP HARNESS
(B) ID=21 L=47.5 		8-94178-108-0 02 1 0107-
116 CLIP; ROOF HARNESS
L=20 SET=10 PIECE 		1-09987-246-2 05 1 0107-
116 CLIP; ROOF HARNESS
HIGH ROOF<S2F> ROOF MARKER LAMP<U01> L=20 SET=10 PIECE 		1-09987-246-2 06 1 0107-
148 CLIP; BAND,HEADLAMP HARNESS
L=85 		8-94232-611-0 04 1 0107-
168 CLIP; DASH HARNESS
(A) ID=6 & 10-13 		8-97069-515-0 06 1 0107-
168 CLIP; DASH HARNESS
EXC. AIR CONDITIONER MANUAL CONTROL(C60) (B) L=30 SET=10 PIECE 		1-09987-265-0 01 1 0107-
230 CLIP; C/MBR HARNESS
IRELAND EQUIPMENT(NJY) (A) ID=25 L=54 		1-09700-392-0 01 1 0107-
230 CLIP; C/MBR HARNESS
IRELAND EQUIPMENT(NJY) (B) FOR PLATE T=18 ID=13-18 L=18 		1-09709-291-0 02 1 0107-
230 CLIP; C/MBR HARNESS
IRELAND EQUIPMENT(NJY) (B) FOR PLATE T=18 ID=18-24 L=18 		1-09709-294-0 03 1 0107-
235 CLIP; HARNESS,SPD SENSOR,SSPS
MJD7S M/T(Y2Y),MJX16P M/T(Y3Z) ID=10 H=25 L=20 		1-09700-519-0 01 1 0107-
421 CLIP; FLOOR HARNESS
(B) ID=21 L=28 		1-09700-673-1 02 1 0107-
421 CLIP; FLOOR HARNESS
(A) L=20 SET=10 PIECE 		1-09987-246-2 01 1 0107-
421 CLIP; FLOOR HARNESS
(A) L=20 SET=10 PIECE 		1-09987-246-2 05 1 0107-

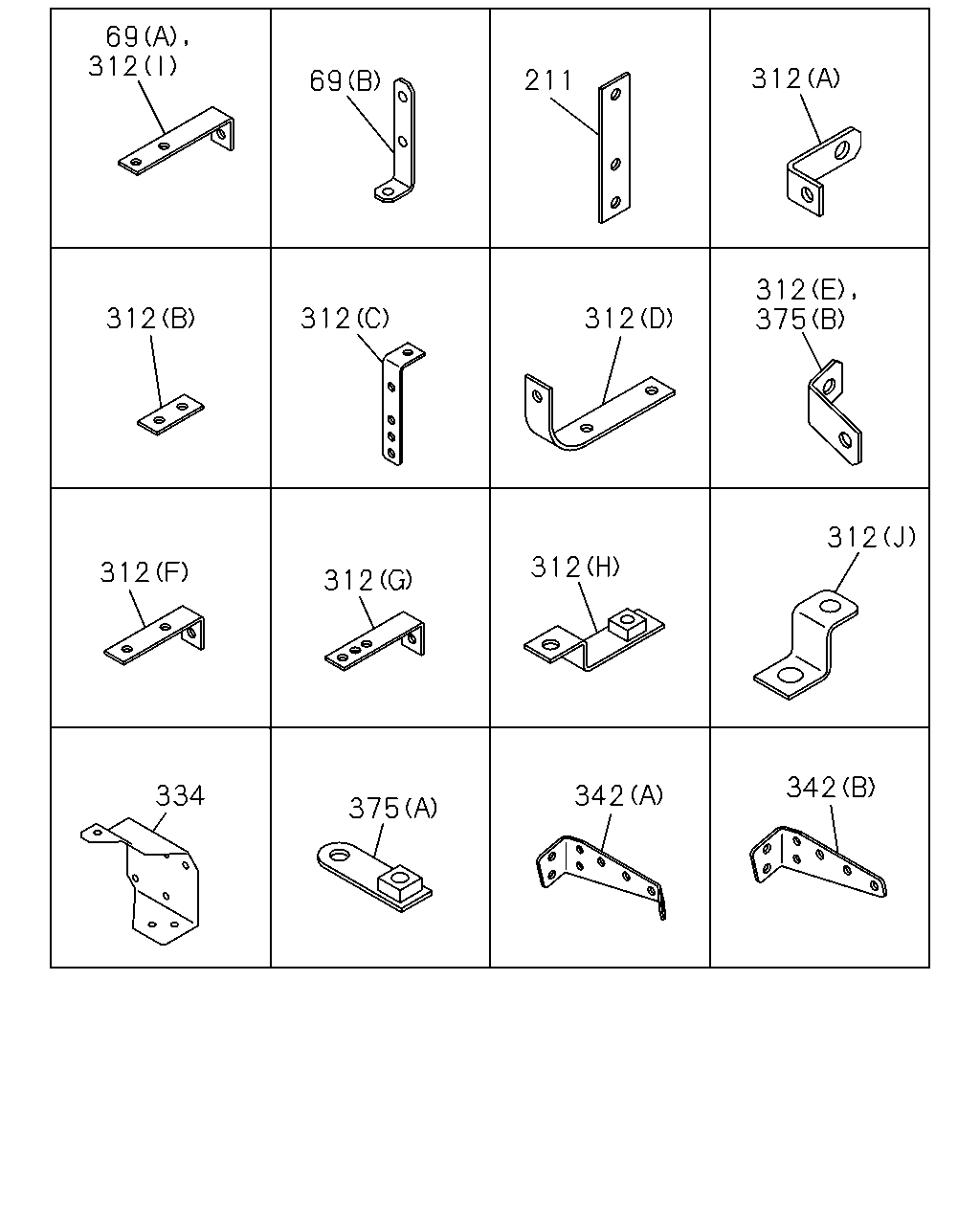

çizim 77102
69 312 312 211 69 312 375 312 312 312 312 312 312 312 342 334 342 375
BalonParca AdiParca NoAdetTipApplied Date
69 BRACKET; CLIP
IRELAND EQUIPMENT(NJY) (A) L=90 B=25 		1-47476-630-0 01 1 0107-
69 BRACKET; CLIP
IRELAND EQUIPMENT(NJY) (B) L=60 H=30 		1-47477-716-1 01 1 0107-
211 BRACKET; AXLE HARNESS
ANTILOCK BRAKE SYSTEM(BFA) L=117 		1-47478-116-0 02 1 0107-
312 BRACKET; CLIP HARNESS
ZF M/T<X9E> EXC. IRELAND EQUIPMENT(NJY) (H) L=80 H=20 		1-82699-304-0 01 1 0107-
312 BRACKET; CLIP HARNESS
EXC. LIGHT DUTY PACKAGE TRUCK<Y21> (I) 		1-82698-382-0 01 1 0107-
312 BRACKET; CLIP HARNESS
MJD7S M/T(Y2Y) EXC. IRELAND EQUIPMENT(NJY) (J) 		1-82699-425-0 01 1 0107-
312 BRACKET; CLIP HARNESS
(F) L=90 B=25 		1-47476-630-0 01 1 0107-
312 BRACKET; CLIP HARNESS
IRELAND EQUIPMENT(NJY) (F) L=90 B=25 		1-47476-630-0 01 1 0107-
312 BRACKET; CLIP HARNESS
(D) 		1-47478-769-0 01 1 0107-
312 BRACKET; CLIP HARNESS
(C) 		1-82698-358-0 01 1 0107-
312 BRACKET; CLIP HARNESS
EXC. IRELAND EQUIPMENT(NJY) (C) 		1-82698-358-0 01 1 0107-
312 BRACKET; CLIP HARNESS
(E) 		1-82699-199-0 01 1 0107-
312 BRACKET; CLIP HARNESS
EXC. AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-82699-239-0 01 1 0107-
312 BRACKET; CLIP HARNESS
IRELAND EQUIPMENT(NJY) (A) L=60 H=30 		1-47477-716-1 01 1 0107-
312 BRACKET; CLIP HARNESS
IRELAND EQUIPMENT(NJY) (G) L=120 H=35 		1-82698-088-0 01 1 0107-
334 BRACKET 1-53458-362-0 01 1 0107-
342 BRACKET; HARNESS CAB MTG
ZF M/T<X9E> (A) 		1-82698-224-0 01 1 0107-
342 BRACKET; HARNESS CAB MTG
EXC. ZF M/T<X9E> (B) 		1-82699-625-0 01 1 0107-
375 BRACKET; AC GEN HARNESS CLIP
(A) 		1-82699-182-0 01 1 0107-
375 BRACKET; AC GEN HARNESS CLIP
IRELAND EQUIPMENT(NJY) (B) 		1-82699-199-0 01 1 0107-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
