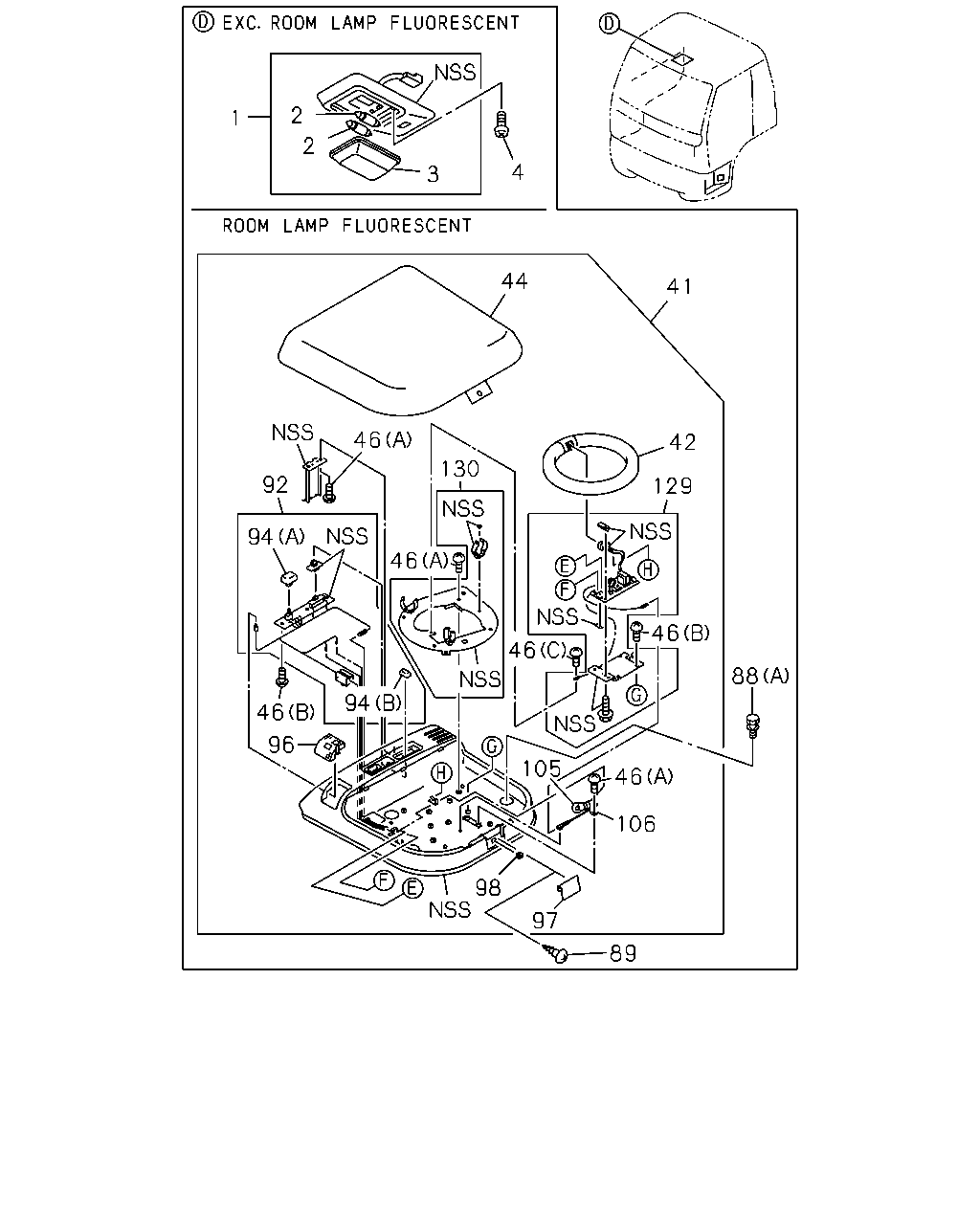

8-05 — INTERIOR LAMP (#10254) — 35 parça

2 1 2 4 3 44 41 46 42 130 92 129 94 46 46 46 88 94 46 96 105 46 106 98 97 89

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	LAMP ASM; ROOM EXC. ROOM LAMP FLUORESCENT<NGG>	1-82140-050-1	01	1	0107-
2	BULB; ROOM LAMP EXC. ROOM LAMP FLUORESCENT<NGG> 24V 10W	1-82195-001-0	02	1	0107-
3	LENS; ROOM LAMP EXC. ROOM LAMP FLUORESCENT<NGG>	1-82145-020-0	01	1	0107-
4	SCREW; ROOM LAMP EXC. ROOM LAMP FLUORESCENT<NGG> M5X20 TAPPING	9-07066-520-0	03	1	0107-
41	LAMP ASM; FLUORESCENT ROOM LAMP FLUORESCENT<NGG>	1-86830-315-2	01	1	0107-
42	LAMP; FLUORESCENT ROOM LAMP FLUORESCENT<NGG>	1-86830-094-1	01	1	0107-
44	LENS; FLUORESCENT LAMP ROOM LAMP FLUORESCENT<NGG>	1-86830-092-0	01	1	0107-
46	SCREW; FLUORESCENT LAMP ROOM LAMP FLUORESCENT<NGG> (A) M5X10 TAPPING	1-86830-095-0	08	1	0107-
46	SCREW; FLUORESCENT LAMP ROOM LAMP FLUORESCENT<NGG> (B) M4X12	1-86830-202-0	07	1	0107-
46	SCREW; FLUORESCENT LAMP ROOM LAMP FLUORESCENT<NGG> (C) M3X6 TAPPING	1-86830-336-0	01	1	0107-
88	BOLT; LAMP DELUXE CAB(W14) (B) M8X20.5 W/LK&PL WASHER	8-94279-207-0	01	1	0107-
88	BOLT; LAMP ROOM LAMP FLUORESCENT<NGG> (A) M6X16 W/LK&PL WASHER	1-09980-574-0	04	1	0107-
89	SCREW; LENS,FLUORESCENT LAMP ROOM LAMP FLUORESCENT<NGG> M5X10 TAPPING	9-07076-510-0	01	1	0107-
92	SWITCH ASM; FLUORESCENT ROOM LAMP FLUORESCENT<NGG>	1-86830-341-0	01	1	0107-
94	KNOB; ROOM LAMP SW ROOM LAMP FLUORESCENT<NGG> (A)	1-86830-312-0	01	1	0107-
94	KNOB; ROOM LAMP SW ROOM LAMP FLUORESCENT<NGG> (B)	1-86830-313-0	01	1	0107-
96	CAP; SPOT LAMP ROOM LAMP FLUORESCENT<NGG>	1-86830-337-0	01	1	0107-
97	CAP; LENS FIX ROOM LAMP FLUORESCENT<NGG>	1-86830-311-0	01	1	0107-
98	GROMMET; SCREW,LENS FIX ROOM LAMP FLUORESCENT<NGG>	1-86830-102-0	01	1	0107-
105	BULB; FLUORESCENT LAMP ROOM LAMP FLUORESCENT<NGG> 28V 20W	1-86830-200-0	01	1	0107-
106	SOCKET; BULB ROOM LAMP FLUORESCENT<NGG>	1-86830-201-0	01	1	0107-
129	INVERTER ASM; FLUORESCENT LAMP ROOM LAMP FLUORESCENT<NGG>	1-86830-338-0	01	1	0107-
130	PLATE ASM; FLUORESCENT LAMP ROOM LAMP FLUORESCENT<NGG>	1-86830-339-0	01	1	0107-

34 35 33 33 24 25 27 35 56 88 33 15

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
15	LAMP; INSPECTION DELUXE CAB(W14)	1-82140-052-1	01	1	0107-
24	LAMP; STEP	1-82140-052-1	01	1	0107-
25	BULB; STEP LAMP 24V 5W	1-82194-042-0	01	1	0107-
27	LENS; STEP LAMP	1-82145-019-0	01	1	0107-
33	GROMMET; SCREW,LAMP (A) M4	5-09470-002-0	02	1	0107-
33	GROMMET; SCREW,LAMP DELUXE CAB(W14) (B)	1-09983-182-0	01	1	0107-
34	COVER; STEP LAMP EXC. CORNERING LAMP<TDS>	1-71907-444-0	02	1	0107-
35	SCREW; STEP LAMP (A) M4X20	1-82149-006-0	02	1	0107-
35	SCREW; STEP LAMP EXC. CORNERING LAMP<TDS> (B) M4X20 TAPPING W/PL WASHER	0-74310-420-0	04	1	0107-
56	BRACKET; LAMP DELUXE CAB(W14)	1-86830-302-1	01	1	0107-
88	BOLT; LAMP DELUXE CAB(W14) (B) M8X20.5 W/LK&PL WASHER	8-94279-207-0	01	1	0107-
88	BOLT; LAMP ROOM LAMP FLUORESCENT<NGG> (A) M6X16 W/LK&PL WASHER	1-09980-574-0	04	1	0107-
