8-03 — LAMP; REAR AND REAR SIDE (#10253) — 110 parça

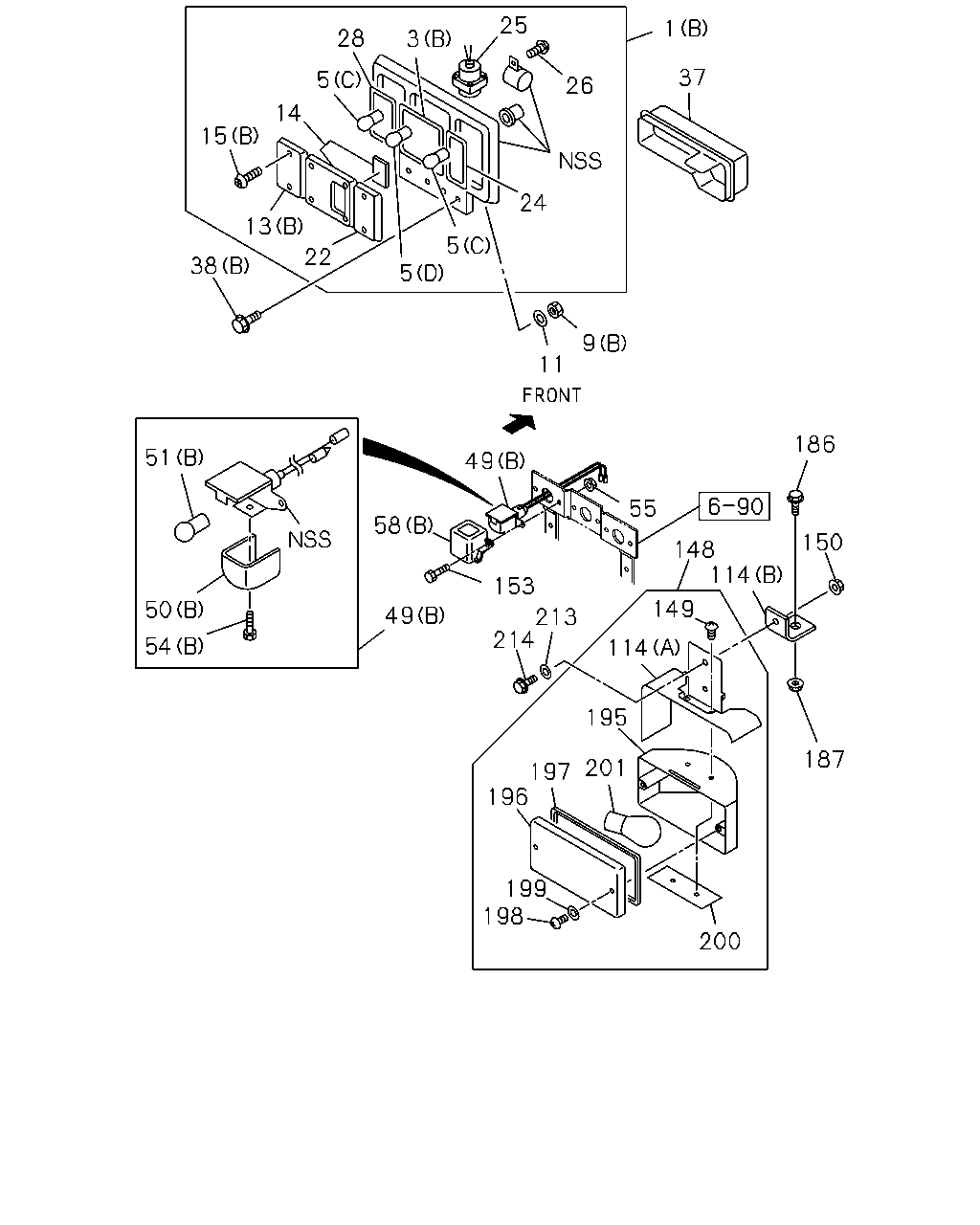

25 1 28 3 37 5 26 14 15 24 13 5 5 22 38 11 186 51 49 55 58 150 148 114 153 149 50 49 213 214 54 114 195 187 201 197 196 199 198 200 9

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	LAMP ASM; RR COMB IRELAND EQUIPMENT(NJY) (B)	1-82230-135-2	01	1	0107-
1	LAMP ASM; RR COMB IRELAND EQUIPMENT(NJY) REVERSING WARNING BUZZER<YM9> (B)	1-82230-132-2	01	1	0107-
1	LAMP ASM; RR COMB IRELAND EQUIPMENT(NJY) EXC. REVERSING WARNING BUZZER<YM9> (B)	1-82230-134-2	01	1	0107-
1	LAMP ASM; RR COMB EXC. IRELAND EQUIPMENT(NJY) (A)	1-82230-160-2	01	1	0107-
1	LAMP ASM; RR COMB EXC. IRELAND EQUIPMENT(NJY) (A)	1-82230-159-2	01	1	0107-
3	GASKET; RR COMB LAMP IRELAND EQUIPMENT(NJY) (B)	8-94257-505-0	01	1	0107-
3	GASKET; RR COMB LAMP IRELAND EQUIPMENT(NJY) (B)	8-94257-505-0	01	1	0107-
3	GASKET; RR COMB LAMP EXC. IRELAND EQUIPMENT(NJY) (A)	1-82236-003-0	04	1	0107-
5	BULB; RR COMB LAMP IRELAND EQUIPMENT(NJY) (C) 24V 21W	8-94125-956-0	02	1	0107-
5	BULB; RR COMB LAMP IRELAND EQUIPMENT(NJY) (C) 24V 21W	8-94125-956-0	02	1	0107-
5	BULB; RR COMB LAMP IRELAND EQUIPMENT(NJY) (D) 24V 21/5W	8-94125-957-0	01	1	0107-
5	BULB; RR COMB LAMP IRELAND EQUIPMENT(NJY) (D) 24V 21/5W	8-94125-957-0	01	1	0107-
5	BULB; RR COMB LAMP EXC. IRELAND EQUIPMENT(NJY) (A) 24V 21W	1-82194-036-0	02	1	0107-
5	BULB; RR COMB LAMP EXC. IRELAND EQUIPMENT(NJY) (B) 24V 21/5W	1-82194-038-0	02	1	0107-
9	NUT; LAMP,RR COMB IRELAND EQUIPMENT(NJY) (B) M6	9-09110-406-0	06	1	0107-
9	NUT; LAMP,RR COMB EXC. IRELAND EQUIPMENT(NJY) (A) M8 FLANGE	0-91150-108-0	02	1	0107-
11	WASHER; PL,LAMP,RR COMB IRELAND EQUIPMENT(NJY) ID=6.4 OD=18	9-09160-706-0	06	1	0107-
13	LENS; TURN SIGNAL IRELAND EQUIPMENT(NJY) (A)	1-82235-014-0	01	1	0107-
13	LENS; TURN SIGNAL IRELAND EQUIPMENT(NJY) (B)	1-82235-015-0	01	1	0107-
13	LENS; TURN SIGNAL EXC. IRELAND EQUIPMENT(NJY) (A)	1-82235-016-0	02	1	0107-
14	LENS; TAIL & STOP,RR COMB LAMP IRELAND EQUIPMENT(NJY)	8-94257-511-0	01	1	0107-
14	LENS; TAIL & STOP,RR COMB LAMP IRELAND EQUIPMENT(NJY)	8-94257-510-0	01	1	0107-
15	SCREW; RR COMB LAMP IRELAND EQUIPMENT(NJY) (B) M4X20 TAPPING STAINLESS	0-71190-420-0	08	1	0107-
15	SCREW; RR COMB LAMP IRELAND EQUIPMENT(NJY) (B) M4X20 TAPPING STAINLESS	0-71190-420-0	08	1	0107-
15	SCREW; RR COMB LAMP EXC. IRELAND EQUIPMENT(NJY) (A)	1-82239-019-0	16	1	0107-
22	LENS; BACKUP,RR COMB LAMP IRELAND EQUIPMENT(NJY)	8-94257-512-0	01	1	0107-
22	LENS; BACKUP,RR COMB LAMP IRELAND EQUIPMENT(NJY)	8-94257-512-0	01	1	0107-
24	GASKET; BACK,LAMP IRELAND EQUIPMENT(NJY)	8-94257-506-0	01	1	0107-
24	GASKET; BACK,LAMP IRELAND EQUIPMENT(NJY)	8-94257-506-0	01	1	0107-
25	HORN ASM; BACK IRELAND EQUIPMENT(NJY) REVERSING WARNING BUZZER<YM9>	8-94257-518-0	01	1	0107-
26	SCREW; BACK HORN IRELAND EQUIPMENT(NJY) M4X12 TAPPING	9-07076-412-0	01	1	0107-
26	SCREW; BACK HORN IRELAND EQUIPMENT(NJY) REVERSING WARNING BUZZER<YM9> M4X14 TAPPING	9-07076-414-0	02	1	0107-
26	SCREW; BACK HORN IRELAND EQUIPMENT(NJY) EXC. REVERSING WARNING BUZZER<YM9> M4X10 TAPPING	9-07076-410-0	01	1	0107-
28	GASKET; TURN,LAMP IRELAND EQUIPMENT(NJY)	8-94257-507-0	01	1	0107-
28	GASKET; TURN,LAMP IRELAND EQUIPMENT(NJY)	8-94257-507-0	01	1	0107-
37	COVER; RR COMB LAMP IRELAND EQUIPMENT(NJY)	1-82239-008-0	01	1	0107-
37	COVER; RR COMB LAMP IRELAND EQUIPMENT(NJY)	1-82239-007-0	01	1	0107-
38	BOLT; LAMP,RR COMB IRELAND EQUIPMENT(NJY) (B) M6X30 W/LK&PL WASHER	0-50140-630-0	06	1	0107-
38	BOLT; LAMP,RR COMB EXC. IRELAND EQUIPMENT(NJY) (A) M8X40 W/LK&PL WASHER	0-50140-840-0	02	1	0107-
49	LAMP; LICENSE PLATE IRELAND EQUIPMENT(NJY) (B) 24V 5W	8-97105-380-0	02	1	0107-
49	LAMP; LICENSE PLATE EXC. IRELAND EQUIPMENT(NJY) (A) 24V 10W	1-82120-024-1	01	1	0107-
50	LENS; LICENSE PLATE LAMP IRELAND EQUIPMENT(NJY) (B)	8-97108-212-0	02	1	0107-
50	LENS; LICENSE PLATE LAMP EXC. IRELAND EQUIPMENT(NJY) (A)	1-82235-006-0	01	1	0107-
51	BULB; LICENSE PLATE LAMP IRELAND EQUIPMENT(NJY) (B) 24V 5W	1-82194-039-0	02	1	0107-
51	BULB; LICENSE PLATE LAMP EXC. IRELAND EQUIPMENT(NJY) (A) 24V 10W	1-82194-037-0	01	1	0107-
54	SCREW; LICENSE PLATE LAMP IRELAND EQUIPMENT(NJY) (B) M4X8	8-94419-312-0	02	1	0107-
54	SCREW; LICENSE PLATE LAMP EXC. IRELAND EQUIPMENT(NJY) (A) M5X20	1-82129-007-0	02	1	0107-
55	NUT; LICENSE PLATE LAMP IRELAND EQUIPMENT(NJY) M5 FLANGE	8-94153-039-0	04	1	0107-
58	COVER; LICENSE PLATE LAMP IRELAND EQUIPMENT(NJY) (B)	8-97076-590-1	02	1	0107-
58	COVER; LICENSE PLATE LAMP EXC. IRELAND EQUIPMENT(NJY) (A)	1-82129-005-0	01	1	0107-
114	BRACKET; RR FOG LAMP FOG LAMP REAR<NHD> (A)	8-97108-583-0	01	1	0107-
114	BRACKET; RR FOG LAMP IRELAND EQUIPMENT(NJY) (B)	1-82237-083-0	01	1	0107-
148	LAMP ASM; RR FOG FOG LAMP REAR<NHD>	8-97181-000-0	01	1	0107-
149	SCREW; BRKT TO LAMP BODY FOG LAMP REAR<NHD>	8-94336-372-0	02	1	0107-
150	NUT; RR FOG LAMP FOG LAMP REAR<NHD> M6 FLANGE	5-09440-004-0	01	1	0107-
153	BOLT; LICENSE PLATE LAMP IRELAND EQUIPMENT(NJY) M5X20	9-93490-520-0	04	1	0107-
186	BOLT; BRKT IRELAND EQUIPMENT(NJY) M10X30 FLANGE	0-28681-030-0	01	1	0107-
187	NUT; BRKT IRELAND EQUIPMENT(NJY) M10 FLANGE	0-91150-210-0	01	1	0107-
195	LAMP UNIT; RR FOG FOG LAMP REAR<NHD>	8-94336-322-0	01	1	0107-
196	LENS; RR FOG LAMP FOG LAMP REAR<NHD>	8-94336-325-0	01	1	0107-
197	GASKET; RR FOG LAMP FOG LAMP REAR<NHD>	8-94336-324-0	01	1	0107-
198	SCREW; LENS TO BODY FOG LAMP REAR<NHD>	0-71190-416-0	02	1	0107-
199	WASHER; LENS,RR FOG LAMP FOG LAMP REAR<NHD>	8-94336-326-0	02	1	0107-
200	PLATE; SET,RR FOG LAMP FOG LAMP REAR<NHD>	8-94336-323-0	01	1	0107-
201	BULB; RR FOG LAMP FOG LAMP REAR<NHD> 24V 21W	1-82194-036-0	01	1	0107-
213	WASHER; PL,RR FOG LAMP FOG LAMP REAR<NHD>	1-09985-144-0	01	1	0107-
214	BOLT; RR FOG LAMP FOG LAMP REAR<NHD> M6X20 FLANGE	0-28680-620-0	01	1	0107-

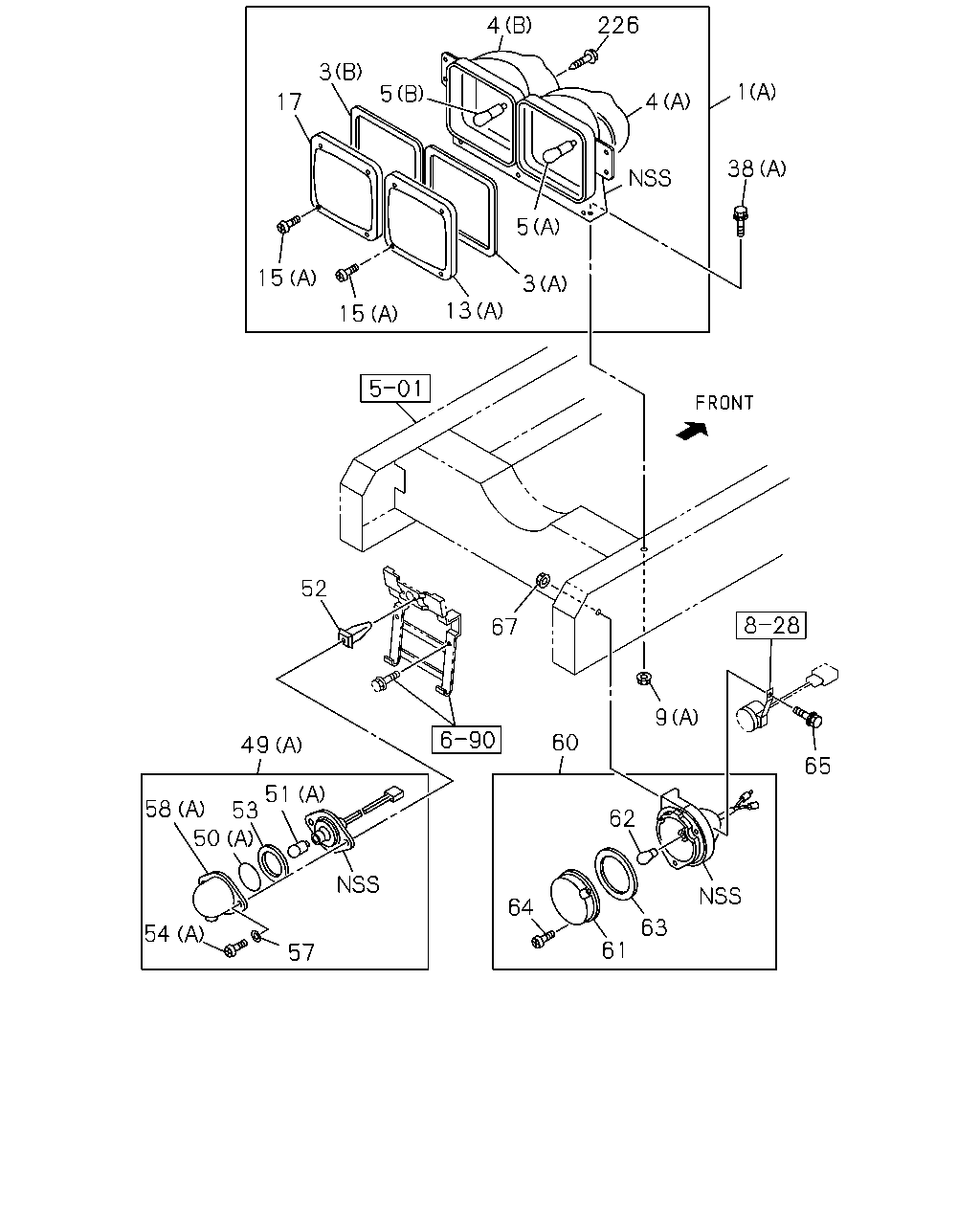

226 4 3 5 17 4 5 52 67 9 60 65 51 53 62 64 63 61 57 49 58 50 54 15 15 13 3

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
3	GASKET; RR COMB LAMP IRELAND EQUIPMENT(NJY) (B)	8-94257-505-0	01	1	0107-
3	GASKET; RR COMB LAMP IRELAND EQUIPMENT(NJY) (B)	8-94257-505-0	01	1	0107-
3	GASKET; RR COMB LAMP EXC. IRELAND EQUIPMENT(NJY) (A)	1-82236-003-0	04	1	0107-
4	COVER; RR,RR COMB LAMP EXC. IRELAND EQUIPMENT(NJY) (A)	1-82239-033-0	02	1	0107-
4	COVER; RR,RR COMB LAMP EXC. IRELAND EQUIPMENT(NJY) (B)	1-82239-034-0	02	1	0107-
5	BULB; RR COMB LAMP IRELAND EQUIPMENT(NJY) (C) 24V 21W	8-94125-956-0	02	1	0107-
5	BULB; RR COMB LAMP IRELAND EQUIPMENT(NJY) (C) 24V 21W	8-94125-956-0	02	1	0107-
5	BULB; RR COMB LAMP IRELAND EQUIPMENT(NJY) (D) 24V 21/5W	8-94125-957-0	01	1	0107-
5	BULB; RR COMB LAMP IRELAND EQUIPMENT(NJY) (D) 24V 21/5W	8-94125-957-0	01	1	0107-
5	BULB; RR COMB LAMP EXC. IRELAND EQUIPMENT(NJY) (A) 24V 21W	1-82194-036-0	02	1	0107-
5	BULB; RR COMB LAMP EXC. IRELAND EQUIPMENT(NJY) (B) 24V 21/5W	1-82194-038-0	02	1	0107-
9	NUT; LAMP,RR COMB IRELAND EQUIPMENT(NJY) (B) M6	9-09110-406-0	06	1	0107-
9	NUT; LAMP,RR COMB EXC. IRELAND EQUIPMENT(NJY) (A) M8 FLANGE	0-91150-108-0	02	1	0107-
13	LENS; TURN SIGNAL IRELAND EQUIPMENT(NJY) (A)	1-82235-014-0	01	1	0107-
13	LENS; TURN SIGNAL IRELAND EQUIPMENT(NJY) (B)	1-82235-015-0	01	1	0107-
13	LENS; TURN SIGNAL EXC. IRELAND EQUIPMENT(NJY) (A)	1-82235-016-0	02	1	0107-
15	SCREW; RR COMB LAMP IRELAND EQUIPMENT(NJY) (B) M4X20 TAPPING STAINLESS	0-71190-420-0	08	1	0107-
15	SCREW; RR COMB LAMP IRELAND EQUIPMENT(NJY) (B) M4X20 TAPPING STAINLESS	0-71190-420-0	08	1	0107-
15	SCREW; RR COMB LAMP EXC. IRELAND EQUIPMENT(NJY) (A)	1-82239-019-0	16	1	0107-
17	LENS; STOP,RR COMB LAMP EXC. IRELAND EQUIPMENT(NJY)	1-82235-002-0	02	1	0107-
49	LAMP; LICENSE PLATE IRELAND EQUIPMENT(NJY) (B) 24V 5W	8-97105-380-0	02	1	0107-
49	LAMP; LICENSE PLATE EXC. IRELAND EQUIPMENT(NJY) (A) 24V 10W	1-82120-024-1	01	1	0107-
50	LENS; LICENSE PLATE LAMP IRELAND EQUIPMENT(NJY) (B)	8-97108-212-0	02	1	0107-
50	LENS; LICENSE PLATE LAMP EXC. IRELAND EQUIPMENT(NJY) (A)	1-82235-006-0	01	1	0107-
51	BULB; LICENSE PLATE LAMP IRELAND EQUIPMENT(NJY) (B) 24V 5W	1-82194-039-0	02	1	0107-
51	BULB; LICENSE PLATE LAMP EXC. IRELAND EQUIPMENT(NJY) (A) 24V 10W	1-82194-037-0	01	1	0107-
52	GROMMET; SCREW,LICENSE PLATE LAMP EXC. IRELAND EQUIPMENT(NJY) D=7.8X7.8 L=18 M5 BLACK	8-94275-946-0	02	1	0107-
53	GASKET; LICENSE LAMP EXC. IRELAND EQUIPMENT(NJY)	1-82126-005-0	01	1	0107-
54	SCREW; LICENSE PLATE LAMP IRELAND EQUIPMENT(NJY) (B) M4X8	8-94419-312-0	02	1	0107-
54	SCREW; LICENSE PLATE LAMP EXC. IRELAND EQUIPMENT(NJY) (A) M5X20	1-82129-007-0	02	1	0107-
57	WASHER; PL,LICENSE PLATE LAMP EXC. IRELAND EQUIPMENT(NJY)	1-82129-008-0	02	1	0107-
58	COVER; LICENSE PLATE LAMP IRELAND EQUIPMENT(NJY) (B)	8-97076-590-1	02	1	0107-
58	COVER; LICENSE PLATE LAMP EXC. IRELAND EQUIPMENT(NJY) (A)	1-82129-005-0	01	1	0107-
60	LAMP; BACKUP EXC. IRELAND EQUIPMENT(NJY)	1-82130-016-1	01	1	0107-
61	LENS; BACKUP LAMP EXC. IRELAND EQUIPMENT(NJY)	1-82135-003-0	01	1	0107-
62	BULB; BACKUP LAMP EXC. IRELAND EQUIPMENT(NJY) 24V 25W	9-82691-347-0	01	1	0107-
63	GASKET; BACKUP LAMP EXC. IRELAND EQUIPMENT(NJY)	1-82136-002-0	01	1	0107-
64	SCREW; BACKUP LAMP EXC. IRELAND EQUIPMENT(NJY)	1-82139-002-0	03	1	0107-
65	BOLT; LAMP,BACKUP EXC. IRELAND EQUIPMENT(NJY) M10X35 W/LK&PL WASHER	0-50141-035-0	02	1	0107-
67	NUT; FLANGE EXC. IRELAND EQUIPMENT(NJY) M10 FLANGE	0-91150-210-0	02	1	0107-
226	SCREW; PROTECTOR EXC. IRELAND EQUIPMENT(NJY)	1-82239-032-0	08	1	0107-

250 253

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
	250	LAMP ASM; SEARCH LIGHT INSPECTION LAMP<T95>	1-82180-014-0	01	1	0107-
	253	BULB; SEARCH LIGHT INSPECTION LAMP<T95> 24V 70W	1-82194-087-0	01	1	0107-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
