◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXD ▶ 10865 - EXD RHD FUEL TANK 400L/400L+200L ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-01 - LAMP; FRONT AND FRONT SIDE ▶
8-01 — LAMP; FRONT AND FRONT SIDE (#10252) — 159 parça

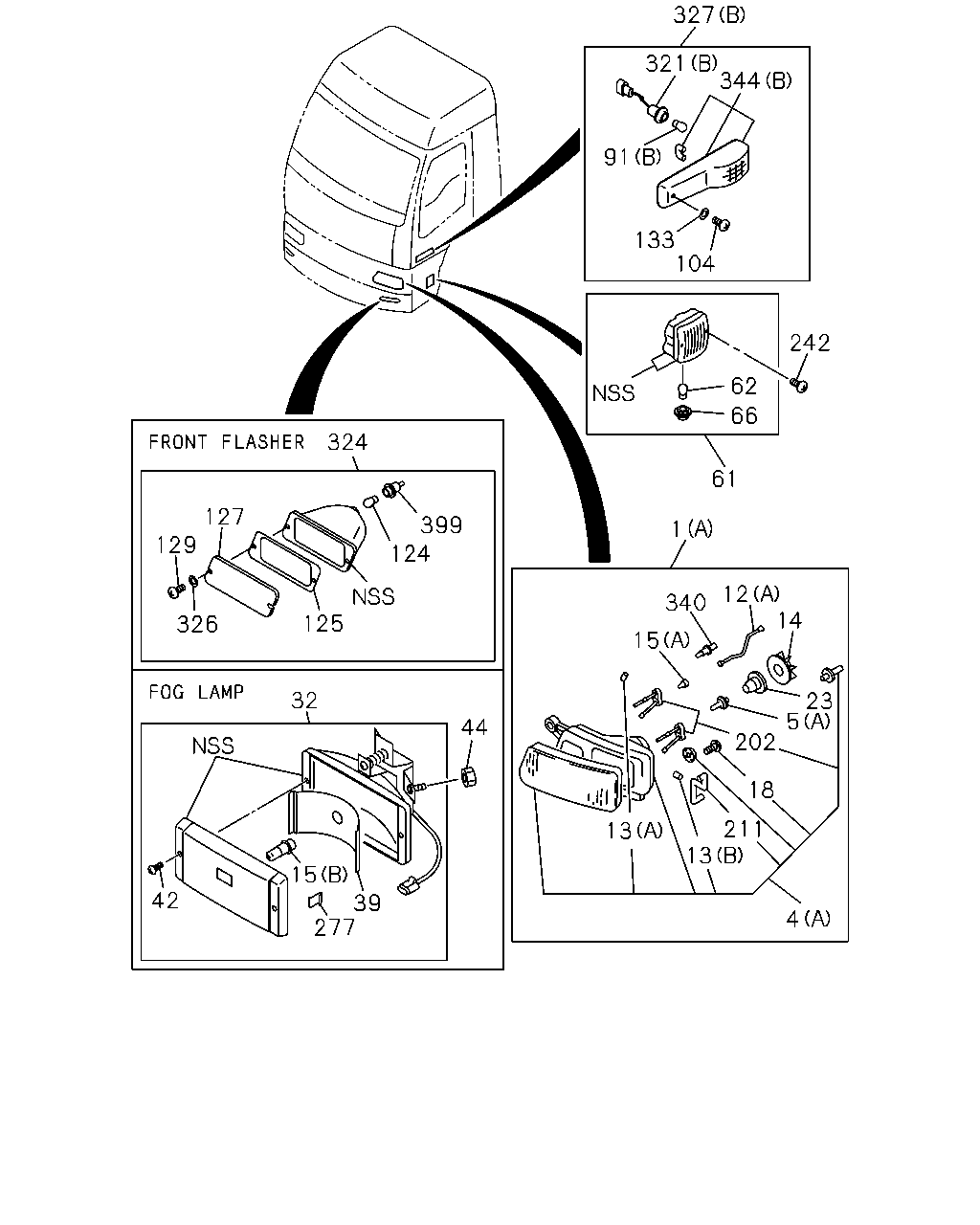

çizim 21016
327 321 344 91 133 104 242 62 66 324 61 127 399 124 1 129 12 14 340 125 326 15 32 23 5 44 202 18 211 13 13 15 42 39 277 4
BalonParca AdiParca NoAdetTipApplied Date
1 LAMP ASM; HEAD
HEADLAMPS VARIANT SQUARE<TEA> (B) 		1-82110-373-2 01 1 0107-
1 LAMP ASM; HEAD
HEADLAMPS VARIANT SQUARE<TEA> (B) 		1-82110-372-2 01 1 0107-
1 LAMP ASM; HEAD
EXC. HEADLAMPS VARIANT SQUARE<TEA> (A) 		1-82110-396-2 01 1 0107-
1 LAMP ASM; HEAD
EXC. HEADLAMPS VARIANT SQUARE<TEA> (A) 		1-82110-395-2 01 1 0107-
4 HEADLAMP UNIT
HEADLAMPS VARIANT SQUARE<TEA> (B) 		1-82119-172-0 01 1 0107-
4 HEADLAMP UNIT
HEADLAMPS VARIANT SQUARE<TEA> (B) 		1-82119-171-0 01 1 0107-
4 HEADLAMP UNIT
EXC. HEADLAMPS VARIANT SQUARE<TEA> (A) 24V 75/70W 		1-82119-129-0 01 1 0107-
4 HEADLAMP UNIT
EXC. HEADLAMPS VARIANT SQUARE<TEA> (A) 24V 75/70W 		1-82119-128-0 01 1 0107-
5 BULB; HEADLAMP
HEADLAMPS VARIANT SQUARE<TEA> (B) 24V 75/70W 		8-94405-657-0 02 1 0107-
5 BULB; HEADLAMP
EXC. HEADLAMPS VARIANT SQUARE<TEA> (A) 24V 75/70W 		1-82194-063-0 02 1 0107-
12 HARNESS; HEADLAMP
HEADLAMPS VARIANT SQUARE<TEA> (B) 		1-82118-014-0 02 1 0107-
12 HARNESS; HEADLAMP
EXC. HEADLAMPS VARIANT SQUARE<TEA> (A) 		1-82118-012-0 02 1 0107-
13 CLIP; HEADLAMP
(A) 		1-82119-084-0 04 1 0107-
13 CLIP; HEADLAMP
(B) 		8-94381-588-0 14 1 0107-
14 CAP; BULB,LAMP 1-86830-148-0 02 1 0107-
15 BULB; FOG LAMP
HEADLAMPS VARIANT SQUARE<TEA> FOG LAMP<T96> (B) 24V 70W 		8-97203-926-0 02 1 0107-
15 BULB; FOG LAMP
EXC. HEADLAMPS VARIANT SQUARE<TEA> (A) 24V 55W 		1-82194-079-0 02 1 0107-
18 SCREW; GEAR CASE
M4X16 TAPPING 		1-82119-067-0 08 1 0107-
23 COVER; BULB,HEADLAMP 1-86830-147-0 02 1 0107-
32 LAMP ASM; FOG
HEADLAMPS VARIANT SQUARE<TEA> FOG LAMP<T96> 		8-97181-942-0 01 1 0107-
32 LAMP ASM; FOG
HEADLAMPS VARIANT SQUARE<TEA> FOG LAMP<T96> 		8-97181-940-0 01 1 0107-
39 UNIT; FOG LAMP
HEADLAMPS VARIANT SQUARE<TEA> FOG LAMP<T96> 		8-97357-929-0 02 1 0107-
42 SCREW; LENS,FOG LAMP
HEADLAMPS VARIANT SQUARE<TEA> FOG LAMP<T96> 		8-97357-931-0 04 1 0107-
44 NUT; FOG LAMP
HEADLAMPS VARIANT SQUARE<TEA> FOG LAMP<T96> M8 FLANGE 		0-91150-108-0 02 1 0107-
44 NUT; FOG LAMP
HEADLAMPS VARIANT SQUARE<TEA> FOG LAMP<T96> M5 CAP NUT 		9-61167-090-0 02 1 0107-
61 LAMP ASM; CORNERING
CORNERING LAMP<TDS> 24V 30W 		1-86830-188-2 01 1 0107-
61 LAMP ASM; CORNERING
CORNERING LAMP<TDS> 24V 30W 		1-86830-187-2 01 1 0107-
62 BULB; CORNERING LAMP
CORNERING LAMP<TDS> 24V 30W 		8-97010-179-0 01 1 0107-
62 BULB; CORNERING LAMP
CORNERING LAMP<TDS> 24V 30W 		8-97010-179-0 01 1 0107-
66 HARNESS; CORNERING LAMP
CORNERING LAMP<TDS> 		1-86830-146-0 01 1 0107-
66 HARNESS; CORNERING LAMP
CORNERING LAMP<TDS> 		1-86830-146-0 01 1 0107-
91 BULB; SIDE TURN SIGNAL
IRELAND EQUIPMENT(NJY) (A) 24V 21W 		1-82194-036-0 02 1 0107-
91 BULB; SIDE TURN SIGNAL
EXC. IRELAND EQUIPMENT(NJY) (B) 24V 12W 		1-82194-030-0 02 1 0107-
104 SCREW; SIDE TURN SIGNAL 1-86830-149-0 02 1 0107-
124 BULB; FRT TURN SIGNAL
24V 21W 		1-82194-036-0 02 1 0107-
125 GASKET; FRT TURN SIGNAL 1-82216-033-0 02 1 0107-
127 LENS; FRT TURN SIGNAL
ORANGE 		1-82215-065-0 01 1 0107-
127 LENS; FRT TURN SIGNAL
ORANGE 		1-82215-064-0 01 1 0107-
129 SCREW; FRT TURN SIGNAL 1-82219-026-0 04 1 0107-
133 WASHER; PL,SIDE FLASHER LAMP 1-86830-150-0 02 1 0107-
202 GEAR UNIT; HEADLAMP 1-86830-139-0 04 1 0107-
211 TUBE; HEADLAMP 1-86830-331-0 01 1 0107-
211 TUBE; HEADLAMP 1-86830-330-0 01 1 0107-
242 SCREW; CORNERING LAMP
CORNERING LAMP<TDS> M4X20 TAPPING STAINLESS 		0-71190-420-0 04 1 0107-
277 CLIP; LENS,FOG LAMP
HEADLAMPS VARIANT SQUARE<TEA> FOG LAMP<T96> 		8-97357-930-0 02 1 0107-
321 HARNESS; SIDE FLASHER LAMP
IRELAND EQUIPMENT(NJY) (A) 		1-82218-002-0 02 1 0107-
321 HARNESS; SIDE FLASHER LAMP
EXC. IRELAND EQUIPMENT(NJY) (B) 		1-86830-253-0 02 1 0107-
324 LAMP; FRT FLASHER 1-82210-203-1 01 1 0107-
324 LAMP; FRT FLASHER 1-82210-202-1 01 1 0107-
326 WASHER; PL,FRT TURN SIGNAL 1-82216-032-0 04 1 0107-
327 LAMP ASM; SIDE TURN SIGNAL
IRELAND EQUIPMENT(NJY) (A) 		1-82210-228-2 01 1 0107-
327 LAMP ASM; SIDE TURN SIGNAL
IRELAND EQUIPMENT(NJY) (A) 		1-82210-227-2 01 1 0107-
327 LAMP ASM; SIDE TURN SIGNAL
EXC. IRELAND EQUIPMENT(NJY) (B) 		1-86830-011-6 01 1 0107-
327 LAMP ASM; SIDE TURN SIGNAL
EXC. IRELAND EQUIPMENT(NJY) (B) 		1-86830-007-6 01 1 0107-
340 BULB; POSITION
24V 5W 		1-82194-042-0 02 1 0107-
344 LAMP UNIT; SIDE TURN SIGNAL
IRELAND EQUIPMENT(NJY) (A) 		1-82213-021-0 01 1 0107-
344 LAMP UNIT; SIDE TURN SIGNAL
IRELAND EQUIPMENT(NJY) (A) 		1-82213-020-0 01 1 0107-
344 LAMP UNIT; SIDE TURN SIGNAL
EXC. IRELAND EQUIPMENT(NJY) (B) 		1-86830-241-1 01 1 0107-
344 LAMP UNIT; SIDE TURN SIGNAL
EXC. IRELAND EQUIPMENT(NJY) (B) 		1-86830-240-1 01 1 0107-
399 SOCKET; TURN SIGNAL 1-82219-034-0 02 1 0107-
çizim 21205
256 325 84 83 325 185 328 325 185
BalonParca AdiParca NoAdetTipApplied Date
83 LENS; MARKER LAMP
HIGH ROOF<S2F> EXC. IRELAND EQUIPMENT(NJY) 		1-86830-321-0 03 1 0107-
84 GASKET; MARKER LAMP
HIGH ROOF<S2F> EXC. IRELAND EQUIPMENT(NJY) 		1-86830-153-0 03 1 0107-
185 GROMMET; SCREW
M5 SCREW GROMMET 		1-09983-131-0 12 1 0107-
256 LAMP; MARKER
HIGH ROOF<S2F> EXC. IRELAND EQUIPMENT(NJY) (B) ROOF MARKER WO/BULB 		1-82210-230-0 03 1 0107-
256 LAMP; MARKER
IRELAND EQUIPMENT(NJY) (A) SIDE MARKER 		1-82210-244-0 06 1 0107-
325 SCREW; SPD INDICATOR LAMP
HIGH ROOF<S2F> M5X20 TAPPING 		0-71090-520-0 18 1 0107-
325 SCREW; SPD INDICATOR LAMP
ROOF MARKER LAMP<U01> EXC. HIGH ROOF<S2F> M5X20 TAPPING 		0-71090-520-0 18 1 0107-
325 SCREW; SPD INDICATOR LAMP
EXC. HIGH ROOF<S2F>,ROOF MARKER LAMP<U01> M5X14 TAPPING 		9-07066-514-0 12 1 0107-
328 COVER; LAMP
EXC. HIGH ROOF<S2F>,ROOF MARKER LAMP<U01> 		1-76217-122-1 03 1 0107-

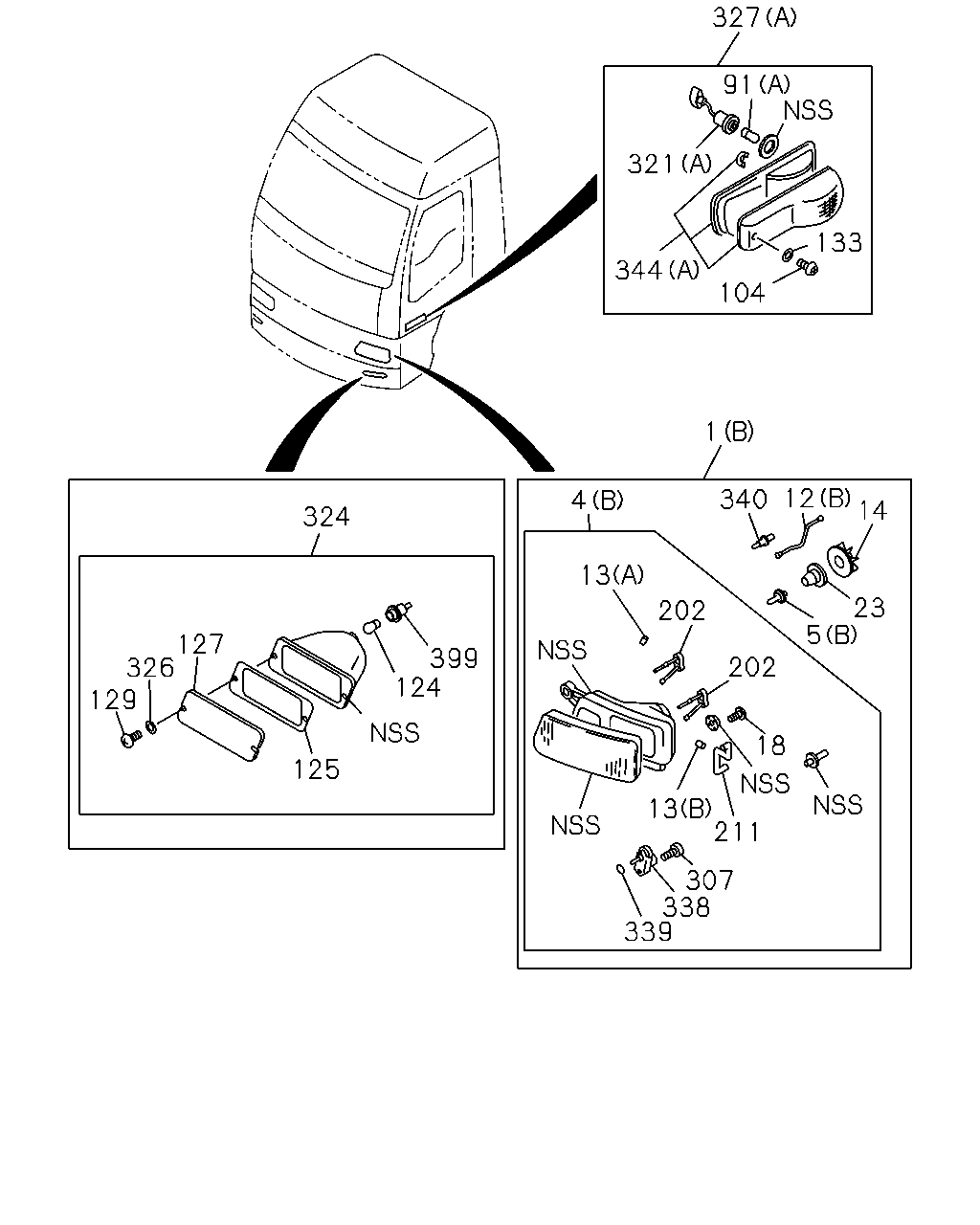

çizim 73039
327 91 321 133 344 104 1 12 14 340 4 324 13 23 5 202 127 326 129 399 124 202 18 125 13 211 307 338 339
BalonParca AdiParca NoAdetTipApplied Date
1 LAMP ASM; HEAD
HEADLAMPS VARIANT SQUARE<TEA> (B) 		1-82110-373-2 01 1 0107-
1 LAMP ASM; HEAD
HEADLAMPS VARIANT SQUARE<TEA> (B) 		1-82110-372-2 01 1 0107-
1 LAMP ASM; HEAD
EXC. HEADLAMPS VARIANT SQUARE<TEA> (A) 		1-82110-396-2 01 1 0107-
1 LAMP ASM; HEAD
EXC. HEADLAMPS VARIANT SQUARE<TEA> (A) 		1-82110-395-2 01 1 0107-
4 HEADLAMP UNIT
HEADLAMPS VARIANT SQUARE<TEA> (B) 		1-82119-172-0 01 1 0107-
4 HEADLAMP UNIT
HEADLAMPS VARIANT SQUARE<TEA> (B) 		1-82119-171-0 01 1 0107-
4 HEADLAMP UNIT
EXC. HEADLAMPS VARIANT SQUARE<TEA> (A) 24V 75/70W 		1-82119-129-0 01 1 0107-
4 HEADLAMP UNIT
EXC. HEADLAMPS VARIANT SQUARE<TEA> (A) 24V 75/70W 		1-82119-128-0 01 1 0107-
5 BULB; HEADLAMP
HEADLAMPS VARIANT SQUARE<TEA> (B) 24V 75/70W 		8-94405-657-0 02 1 0107-
5 BULB; HEADLAMP
EXC. HEADLAMPS VARIANT SQUARE<TEA> (A) 24V 75/70W 		1-82194-063-0 02 1 0107-
12 HARNESS; HEADLAMP
HEADLAMPS VARIANT SQUARE<TEA> (B) 		1-82118-014-0 02 1 0107-
12 HARNESS; HEADLAMP
EXC. HEADLAMPS VARIANT SQUARE<TEA> (A) 		1-82118-012-0 02 1 0107-
13 CLIP; HEADLAMP
(A) 		1-82119-084-0 04 1 0107-
13 CLIP; HEADLAMP
(B) 		8-94381-588-0 14 1 0107-
14 CAP; BULB,LAMP 1-86830-148-0 02 1 0107-
18 SCREW; GEAR CASE
M4X16 TAPPING 		1-82119-067-0 08 1 0107-
23 COVER; BULB,HEADLAMP 1-86830-147-0 02 1 0107-
91 BULB; SIDE TURN SIGNAL
IRELAND EQUIPMENT(NJY) (A) 24V 21W 		1-82194-036-0 02 1 0107-
91 BULB; SIDE TURN SIGNAL
EXC. IRELAND EQUIPMENT(NJY) (B) 24V 12W 		1-82194-030-0 02 1 0107-
104 SCREW; SIDE TURN SIGNAL 1-86830-149-0 02 1 0107-
124 BULB; FRT TURN SIGNAL
24V 21W 		1-82194-036-0 02 1 0107-
125 GASKET; FRT TURN SIGNAL 1-82216-033-0 02 1 0107-
127 LENS; FRT TURN SIGNAL
ORANGE 		1-82215-065-0 01 1 0107-
127 LENS; FRT TURN SIGNAL
ORANGE 		1-82215-064-0 01 1 0107-
129 SCREW; FRT TURN SIGNAL 1-82219-026-0 04 1 0107-
133 WASHER; PL,SIDE FLASHER LAMP 1-86830-150-0 02 1 0107-
202 GEAR UNIT; HEADLAMP 1-86830-139-0 04 1 0107-
211 TUBE; HEADLAMP 1-86830-331-0 01 1 0107-
211 TUBE; HEADLAMP 1-86830-330-0 01 1 0107-
307 SCREW; TAPPING,HEAD LAMP
HEADLAMPS VARIANT SQUARE<TEA> M4X16 TAPPING 		1-82119-067-0 02 1 0107-
321 HARNESS; SIDE FLASHER LAMP
IRELAND EQUIPMENT(NJY) (A) 		1-82218-002-0 02 1 0107-
321 HARNESS; SIDE FLASHER LAMP
EXC. IRELAND EQUIPMENT(NJY) (B) 		1-86830-253-0 02 1 0107-
324 LAMP; FRT FLASHER 1-82210-203-1 01 1 0107-
324 LAMP; FRT FLASHER 1-82210-202-1 01 1 0107-
326 WASHER; PL,FRT TURN SIGNAL 1-82216-032-0 04 1 0107-
327 LAMP ASM; SIDE TURN SIGNAL
IRELAND EQUIPMENT(NJY) (A) 		1-82210-228-2 01 1 0107-
327 LAMP ASM; SIDE TURN SIGNAL
IRELAND EQUIPMENT(NJY) (A) 		1-82210-227-2 01 1 0107-
327 LAMP ASM; SIDE TURN SIGNAL
EXC. IRELAND EQUIPMENT(NJY) (B) 		1-86830-011-6 01 1 0107-
327 LAMP ASM; SIDE TURN SIGNAL
EXC. IRELAND EQUIPMENT(NJY) (B) 		1-86830-007-6 01 1 0107-
338 LEVELING; HEADLAMP
HEADLAMPS VARIANT SQUARE<TEA> 		1-86830-138-0 02 1 0107-
339 GASKET; LEVELING
HEADLAMPS VARIANT SQUARE<TEA> 		1-86830-158-0 02 1 0107-
340 BULB; POSITION
24V 5W 		1-82194-042-0 02 1 0107-
344 LAMP UNIT; SIDE TURN SIGNAL
IRELAND EQUIPMENT(NJY) (A) 		1-82213-021-0 01 1 0107-
344 LAMP UNIT; SIDE TURN SIGNAL
IRELAND EQUIPMENT(NJY) (A) 		1-82213-020-0 01 1 0107-
344 LAMP UNIT; SIDE TURN SIGNAL
EXC. IRELAND EQUIPMENT(NJY) (B) 		1-86830-241-1 01 1 0107-
344 LAMP UNIT; SIDE TURN SIGNAL
EXC. IRELAND EQUIPMENT(NJY) (B) 		1-86830-240-1 01 1 0107-
399 SOCKET; TURN SIGNAL 1-82219-034-0 02 1 0107-

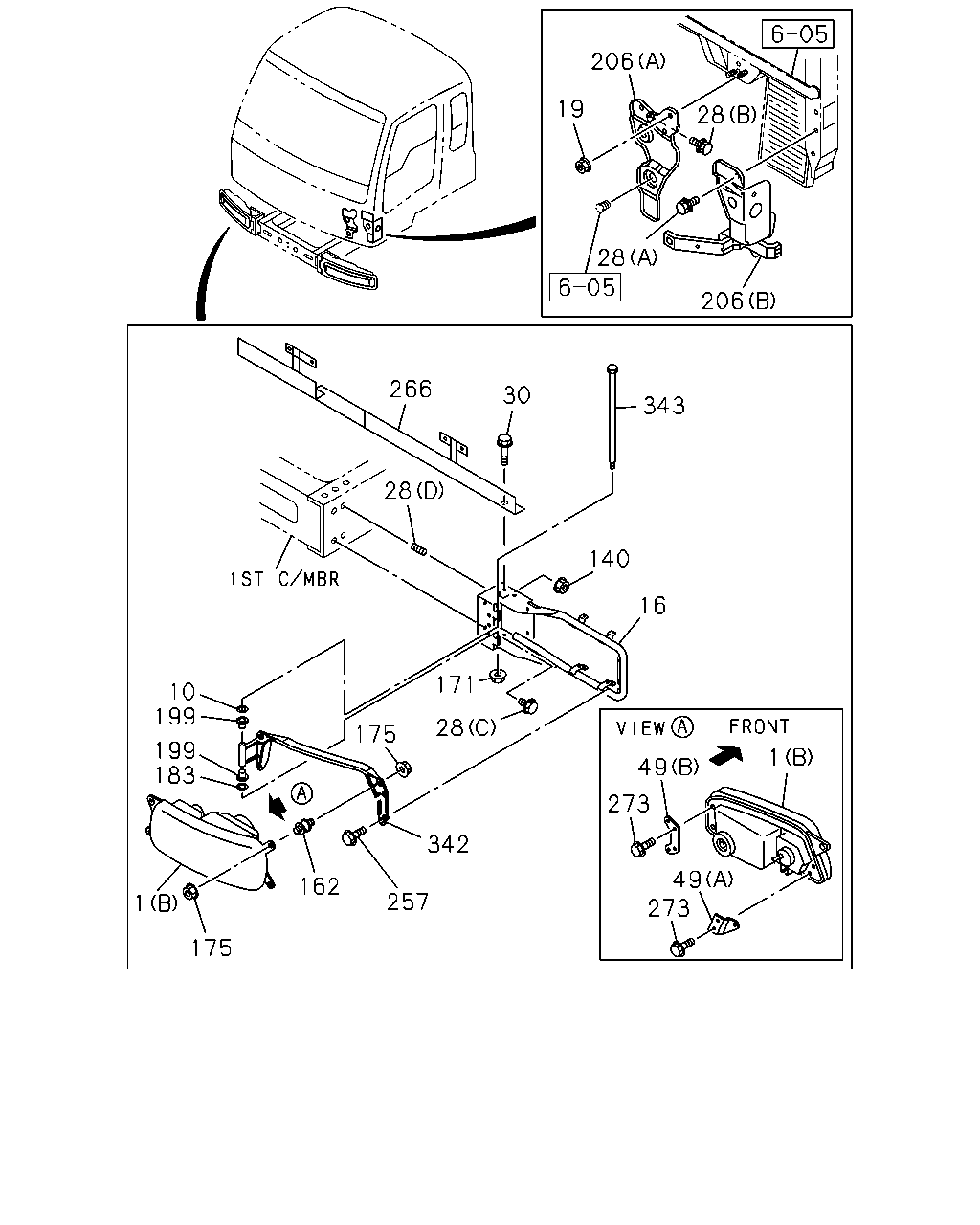

çizim 74816
206 19 28 28 206 266 30 343 28 140 16 171 10 199 28 175 199 183 1 49 273 342 49 273 162 1 257 175
BalonParca AdiParca NoAdetTipApplied Date
1 LAMP ASM; HEAD
HEADLAMPS VARIANT SQUARE<TEA> (B) 		1-82110-373-2 01 1 0107-
1 LAMP ASM; HEAD
HEADLAMPS VARIANT SQUARE<TEA> (B) 		1-82110-372-2 01 1 0107-
1 LAMP ASM; HEAD
EXC. HEADLAMPS VARIANT SQUARE<TEA> (A) 		1-82110-396-2 01 1 0107-
1 LAMP ASM; HEAD
EXC. HEADLAMPS VARIANT SQUARE<TEA> (A) 		1-82110-395-2 01 1 0107-
10 WASHER; PL,HEADLAMP RIM
ID=8.4 		9-09160-508-0 02 1 0107-
16 BRACKET; HEADLAMP 1-82117-120-2 01 1 0107-
16 BRACKET; HEADLAMP 1-82117-119-2 01 1 0107-
19 NUT; HEADLAMP
M8 CUTTING NUT W/FLANGE 		1-09985-340-0 04 1 0107-
28 BOLT; HEADLAMP
(C) M10X30 FLANGE 		0-28681-030-0 06 1 0107-
28 BOLT; HEADLAMP
(D) M10X28,M10X15 L=50 		5-09300-050-0 02 1 0107-
28 BOLT; HEADLAMP
(A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 06 1 0107-
28 BOLT; HEADLAMP
(B) M8X20.5 W/LK&PL WASHER 		8-94279-207-0 02 1 0107-
30 BOLT; STAY
M10X25 FLANGE 		0-28681-025-0 04 1 0107-
49 BRACKET; LAMP
(A) 		1-82117-100-0 02 1 0107-
49 BRACKET; LAMP
(B) 		1-82117-102-0 01 1 0107-
49 BRACKET; LAMP
(B) 		1-82117-101-0 01 1 0107-
140 NUT
M10 FLANGE 		0-91150-210-0 02 1 0107-
162 RUBBER; CUSHION UPR 1-82117-086-0 08 1 0107-
171 NUT
M6 FLANGE 		0-91150-106-0 02 1 0107-
175 NUT; BRKT CUSHION RUBBER
M8 FLANGE 		0-91150-108-0 16 1 0107-
183 WASHER; HEADLAMP
ID=8.5 		9-09855-333-0 02 1 0107-
199 BUSHING 5-15549-001-1 04 1 0107-
206 HOLDER; HEADLAMP
(A) 		1-65671-570-6 01 1 0107-
206 HOLDER; HEADLAMP
(B) 		1-65671-762-3 01 1 0107-
206 HOLDER; HEADLAMP
(A) 		1-65671-569-5 01 1 0107-
206 HOLDER; HEADLAMP
(B) 		1-65671-761-3 01 1 0107-
257 BOLT; BRKT HD LAMP
M8X20 FLANGE 		0-28080-820-0 04 1 0107-
266 STAY; BRKT,HEADLAMP 1-82117-137-1 01 1 0107-
273 BOLT; BRKT
M6X16 FLANGE 		0-28680-616-0 08 1 0107-
342 HINGE; LAMP 1-82117-087-2 01 1 0107-
342 HINGE; LAMP 1-82117-088-2 01 1 0107-
343 SHAFT; HINGE 1-82119-096-1 02 1 0107-

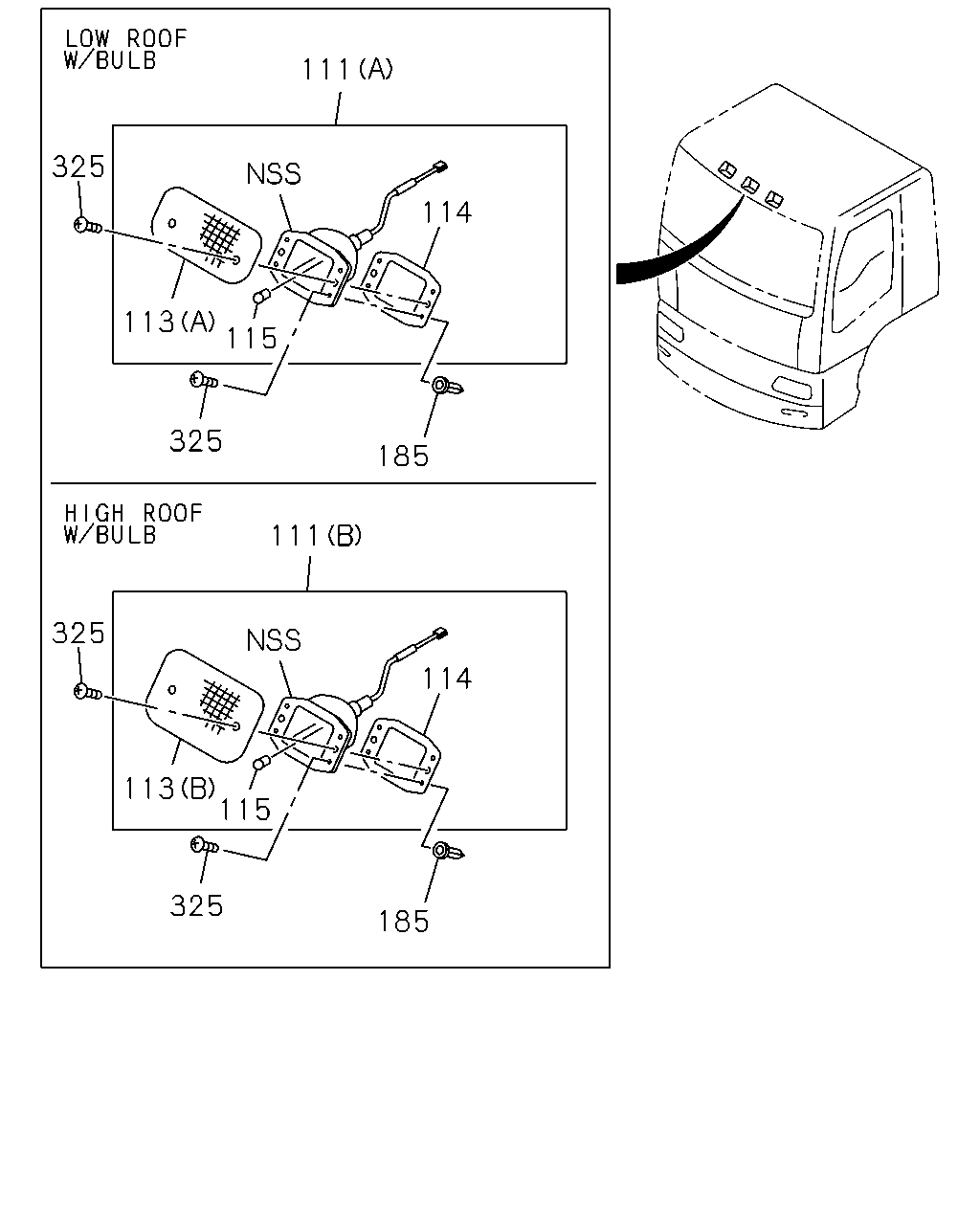

çizim 77126
111 325 114 113 115 325 185 111 325 114 113 115 325 185
BalonParca AdiParca NoAdetTipApplied Date
111 LAMP; SPD INDICATOR
HIGH ROOF<S2F> ROOF MARKER LAMP<U01> (B) 		1-86830-120-1 03 1 0107-
111 LAMP; SPD INDICATOR
ROOF MARKER LAMP<U01> EXC. HIGH ROOF<S2F> (A) 		1-86830-008-6 03 1 0107-
113 LENS; SPD INDICATOR LAMP
HIGH ROOF<S2F> ROOF MARKER LAMP<U01> (B) 		1-86830-182-0 03 1 0107-
113 LENS; SPD INDICATOR LAMP
ROOF MARKER LAMP<U01> EXC. HIGH ROOF<S2F> (A) 		1-86830-151-0 03 1 0107-
114 GASKET; BASE,SPD INDICATOR LAMP
ROOF MARKER LAMP<U01> 		1-86830-153-0 03 1 0107-
115 BULB; SPD INDICATOR LAMP
ROOF MARKER LAMP<U01> 24V 12W 		9-82691-302-0 03 1 0107-
185 GROMMET; SCREW
M5 SCREW GROMMET 		1-09983-131-0 12 1 0107-
325 SCREW; SPD INDICATOR LAMP
HIGH ROOF<S2F> M5X20 TAPPING 		0-71090-520-0 18 1 0107-
325 SCREW; SPD INDICATOR LAMP
ROOF MARKER LAMP<U01> EXC. HIGH ROOF<S2F> M5X20 TAPPING 		0-71090-520-0 18 1 0107-
325 SCREW; SPD INDICATOR LAMP
EXC. HIGH ROOF<S2F>,ROOF MARKER LAMP<U01> M5X14 TAPPING 		9-07066-514-0 12 1 0107-
çizim 77158
80
BalonParca AdiParca NoAdetTipApplied Date
80 BULB; MARKER LAMP
IRELAND EQUIPMENT(NJY) 24V 3W 		1-82219-035-0 06 1 0107-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
