◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXD ▶ 10865 - EXD RHD FUEL TANK 400L/400L+200L ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-60 - SEAT BELT ▶
7-60 — SEAT BELT (#10250) — 16 parça

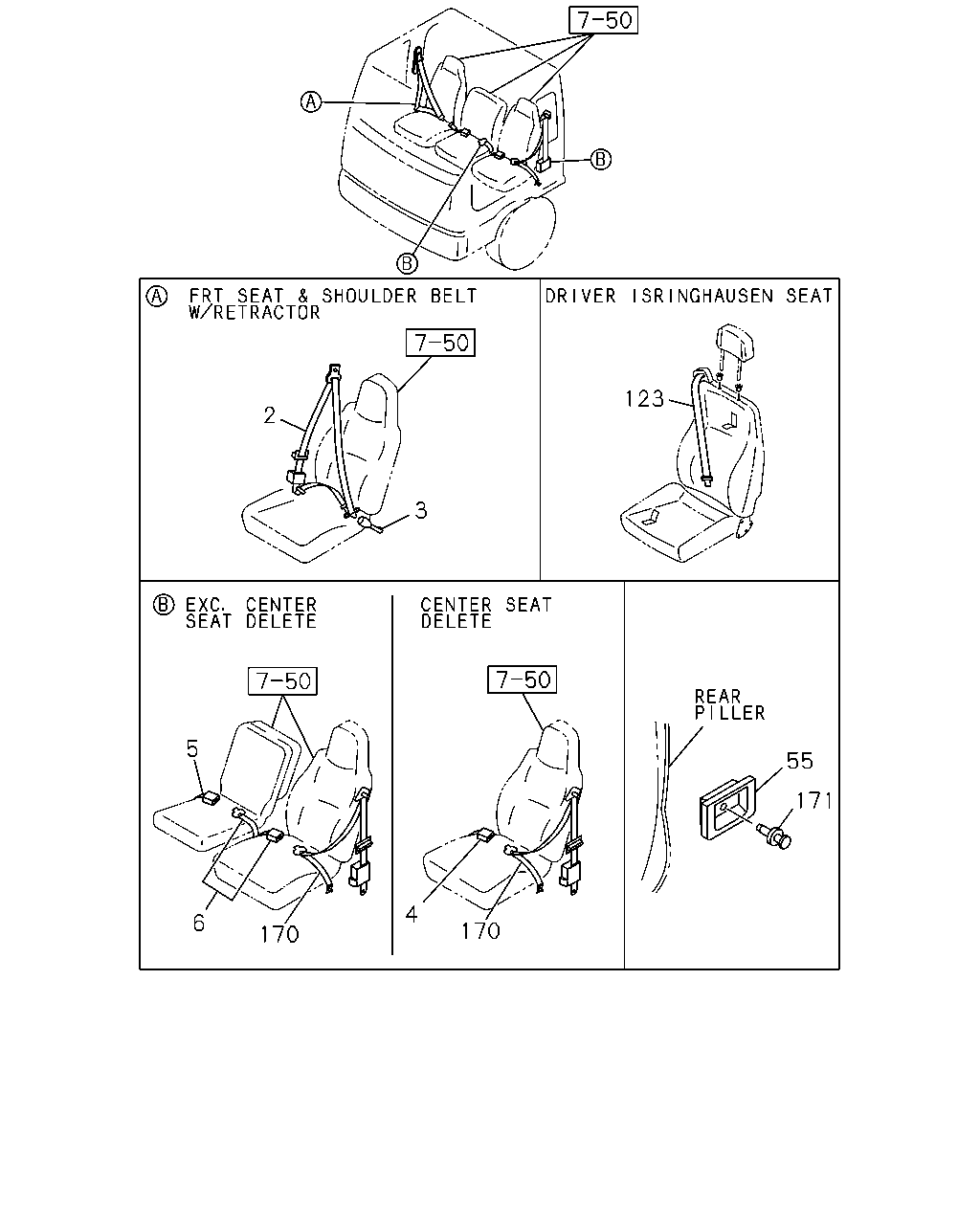

çizim 21813
123 2 3 5 55 171 4 6 170 170
BalonParca AdiParca NoAdetTipApplied Date
2 BELT; SEAT,TONGUE SIDE
FRT SEAT & SHOULDER BELT W/RETRACTOR(AK3) EXC. DRIVER ISRINGHAUSEN SEAT(SJA) 		1-75618-938-3 01 1 0107-
3 BELT; SEAT,BUCKLE SIDE
FRT SEAT & SHOULDER BELT W/RETRACTOR(AK3) EXC. DRIVER ISRINGHAUSEN SEAT(SJA) 		1-75618-914-0 01 1 0107-
4 BELT; PASSENGER SEAT,BUCKLE SIDE
FRT SEAT & SHOULDER BELT W/RETRACTOR(AK3) CENTER SEAT DELETE(SP9) 		1-75617-546-1 01 1 0107-
5 BELT; CENTER SEAT,BUCKLE SIDE
FRT SEAT & SHOULDER BELT W/RETRACTOR(AK3) EXC. CENTER SEAT DELETE(SP9) 		1-75617-553-1 01 1 0107-
6 BELT; CENTER SEAT,TONGUE SIDE
DRIVER ISRINGHAUSEN SEAT(SJA) EXC. CENTER SEAT DELETE(SP9) 		1-75618-926-1 01 1 0107-
6 BELT; CENTER SEAT,TONGUE SIDE
FRT SEAT & SHOULDER BELT W/RETRACTOR(AK3) EXC. DRIVER ISRINGHAUSEN SEAT(SJA),CENTER SEAT DELETE(SP9) 		1-75617-547-4 01 1 0107-
55 GUIDE; SEAT BELT
FRT SEAT & SHOULDER BELT W/RETRACTOR(AK3) DRIVER ISRINGHAUSEN SEAT(SJA) 		1-75617-556-0 01 1 0107-
55 GUIDE; SEAT BELT
EXC. FRT SEAT & SHOULDER BELT W/RETRACTOR(AK3) 		1-75617-556-0 02 1 0107-
123 BELT ASM; SEAT
DRIVER ISRINGHAUSEN SEAT(SJA) 		1-75617-570-0 01 1 0107-
170 BELT; PASSENGER SEAT,TONGUE SIDE
FRT SEAT & SHOULDER BELT W/RETRACTOR(AK3) DRIVER ISRINGHAUSEN SEAT(SJA) 		1-75618-924-2 01 1 0107-
170 BELT; PASSENGER SEAT,TONGUE SIDE
FRT SEAT & SHOULDER BELT W/RETRACTOR(AK3) EXC. DRIVER ISRINGHAUSEN SEAT(SJA) 		1-75617-550-4 01 1 0107-
171 CLIP; SEAT BELT GUIDE 1-09987-239-0 02 1 0107-

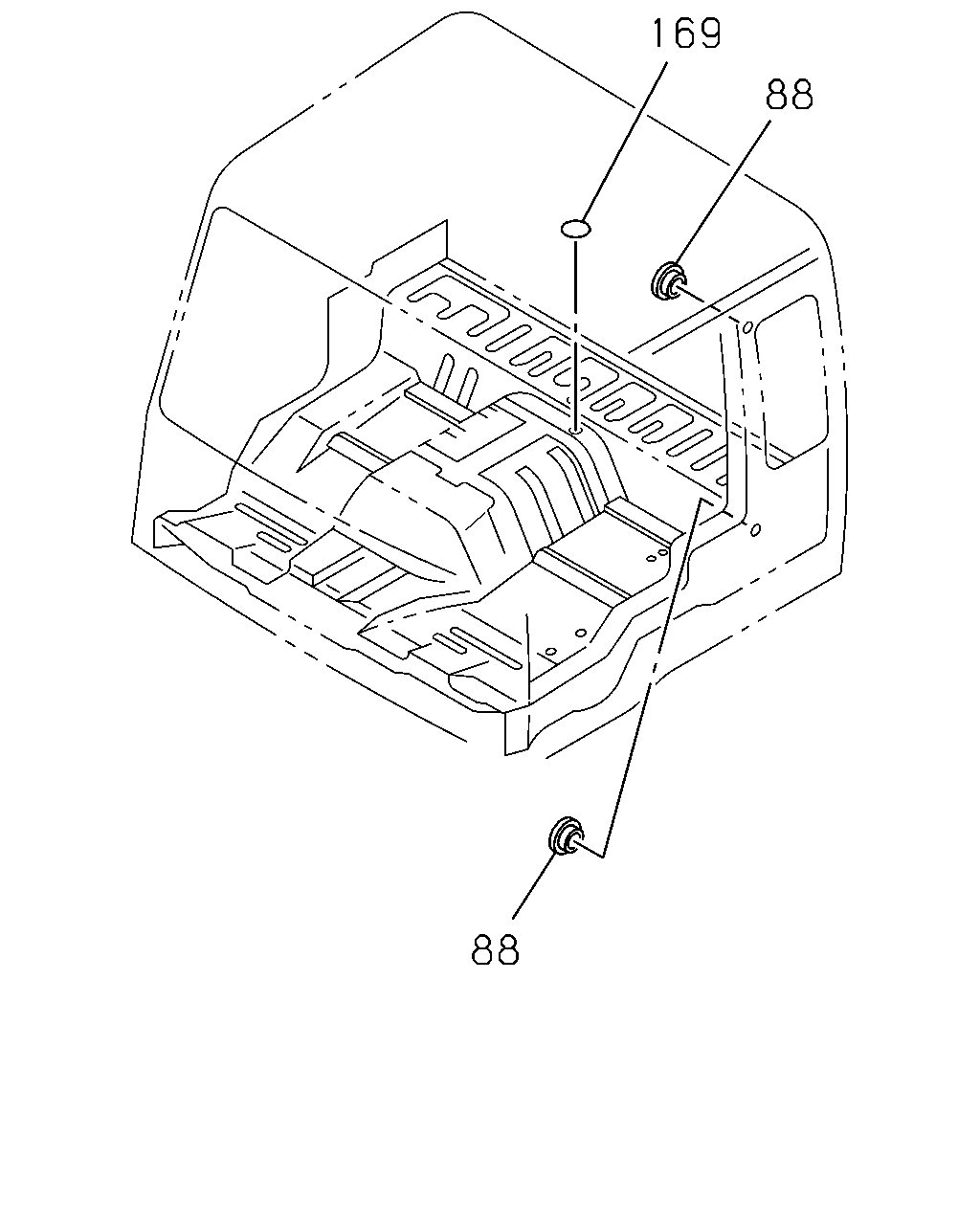

çizim 74787
169 88 88
BalonParca AdiParca NoAdetTipApplied Date
88 PLUG; HOLE
EXC. FRT SEAT & SHOULDER BELT W/RETRACTOR(AK3) OD=31.6 		8-94198-177-0 02 1 0107-
169 SEAL
CENTER SEAT DELETE(SP9) OD=25 BLACK 		1-76798-019-0 01 1 0107-
169 SEAL
FRT SEAT & SHOULDER BELT W/RETRACTOR(AK3) DRIVER ISRINGHAUSEN SEAT(SJA) OD=25 BLACK 		1-76798-019-0 02 1 0107-
169 SEAL
EXC. FRT SEAT & SHOULDER BELT W/RETRACTOR(AK3) OD=25 BLACK 		1-76798-019-0 04 1 0107-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
