7-45 — CONSOLE BOX (#10248) — 73 parça

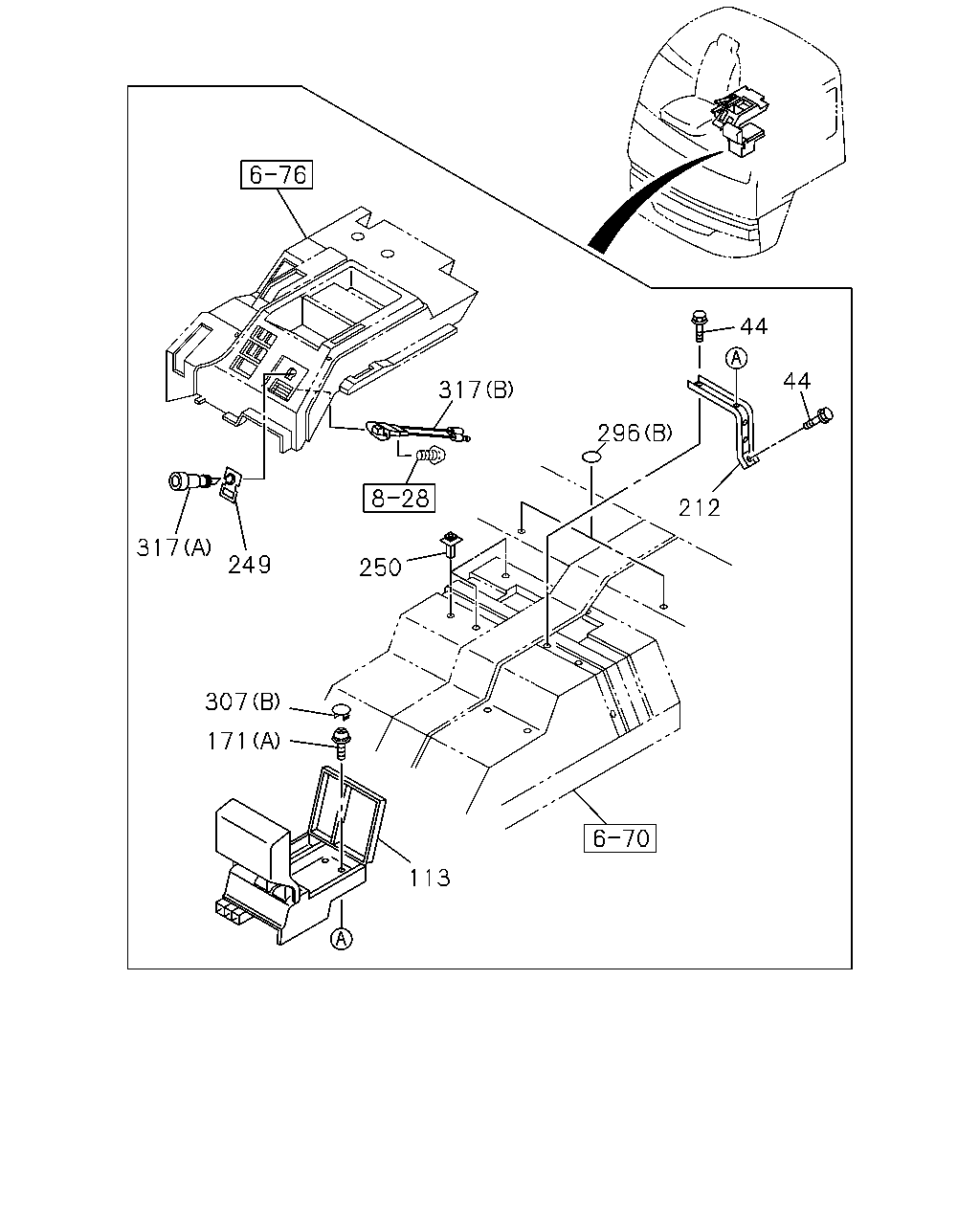

çizim 21273
44 44 317 296 212 317 249 250 307 171 113
BalonParca AdiParca NoAdetTipApplied Date
44 BOLT; SUPPORT,CTR CONSOLE
CENTER SEAT DELETE(SP9) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 02 1 0107-
113 BOX; CONSOLE
CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL> COOL & HOT BOX<TMU> 		1-72537-180-0 01 1 0107-
113 BOX; CONSOLE
CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL> EXC. COOL & HOT BOX<TMU> 		1-72537-220-0 01 1 0107-
113 BOX; CONSOLE
CENTER SEAT DELETE(SP9) EXC. TABLE CONSOLE BOX<TDL>,COOL & HOT BOX<TMU> 		1-72537-181-0 01 1 0107-
171 SCREW; CONSOLE BOX
CENTER SEAT DELETE(SP9) (A) M6X24 W/LK&PL WASHER 		8-94279-404-0 04 1 0107-
171 SCREW; CONSOLE BOX
CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL> (B) M5X14 FLAT HEAD 		1-72537-169-0 06 1 0107-
212 SUPPORT; CONSOLE TO COMPT
CENTER SEAT DELETE(SP9) 		1-72537-095-1 01 1 0107-
249 COVER
ELEC OUTLET 12V<TAW> 		1-82529-001-0 01 1 0107-
250 GROMMET; CONSOLE BOX
D=7.8X7.8 L=18 NATURAL 		8-94279-043-0 03 1 0107-
296 SEAL
(B) OD=25 BLACK 		1-76798-019-0 02 1 0107-
296 SEAL
CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL> (A) 		1-72537-094-1 01 1 0107-
307 COVER; HOLE,CTR CONSOLE
CENTER SEAT DELETE(SP9) (B) 		1-76337-461-0 04 1 0107-
307 COVER; HOLE,CTR CONSOLE
CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL> (A) 		1-72537-188-0 02 1 0107-
317 CONSENT
(B) 		1-82523-020-2 01 1 0107-
317 CONSENT
ELEC OUTLET 12V<TAW> (A) 		8-94382-451-1 01 1 0107-

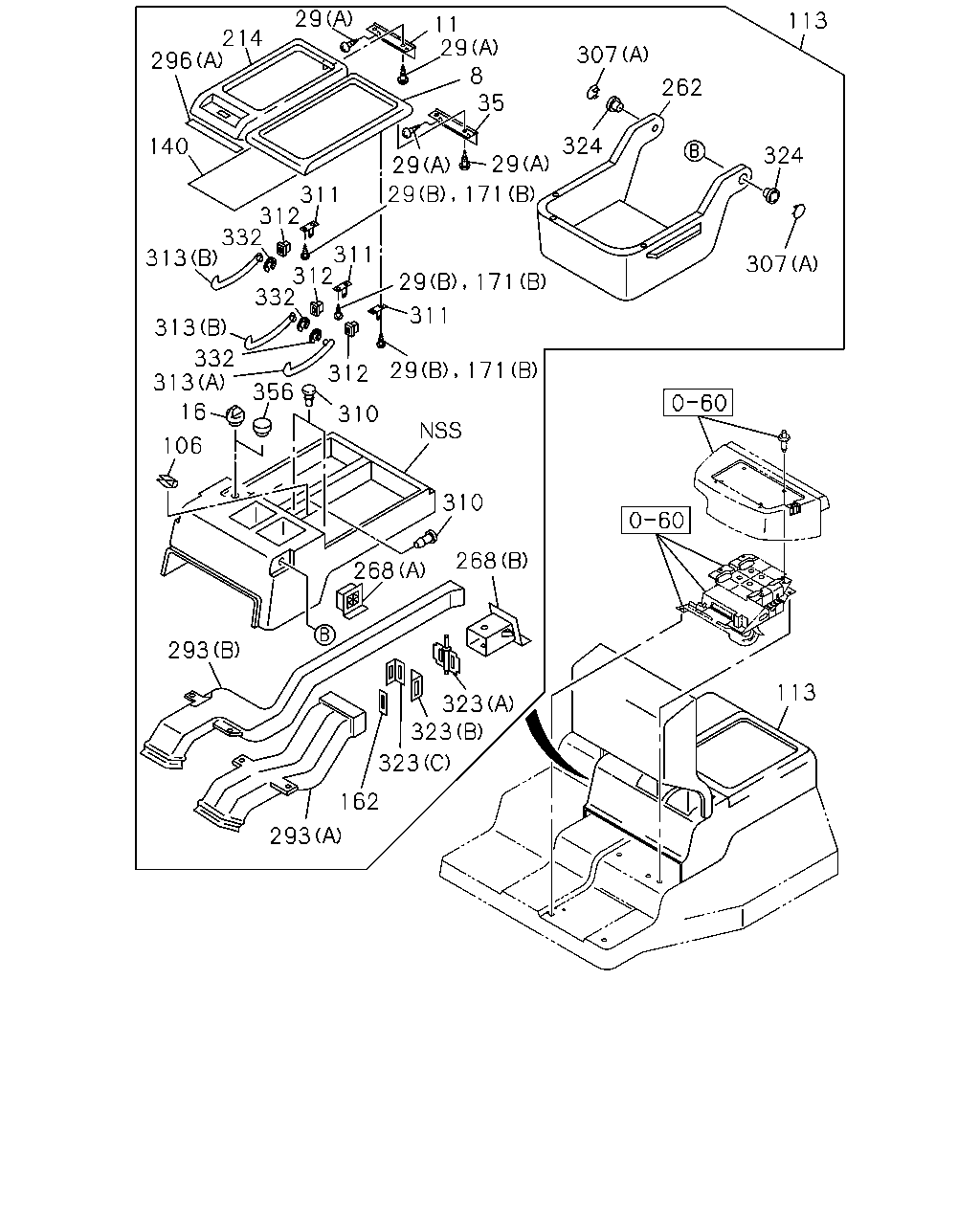

çizim 21275
29 113 11 29 8 35 214 307 296 262 324 140 324 29 29 171 29 311 312 332 313 311 312 332 307 29 171 311 313 332 313 29 171 312 356 16 310 106 310 268 268 293 113 323 323 323 162 293
BalonParca AdiParca NoAdetTipApplied Date
8 LID; CENTER CONSOLE
CENTER SEAT DELETE(SP9) EXC. TABLE CONSOLE BOX<TDL>,COOL & HOT BOX<TMU> 		1-72537-185-0 01 1 0107-
8 LID; CENTER CONSOLE
CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL> 		1-72537-185-0 01 1 0107-
11 HINGE; CONSOLE LID
CENTER SEAT DELETE(SP9) EXC. TABLE CONSOLE BOX<TDL>,COOL & HOT BOX<TMU> 		1-72537-070-2 01 1 0107-
11 HINGE; CONSOLE LID
CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL> 		1-72537-070-2 01 1 0107-
16 KNOB ASM
CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL> COOL & HOT BOX<TMU> 		1-72537-189-0 01 1 0107-
29 SCREW; HINGE
CENTER SEAT DELETE(SP9) EXC. TABLE CONSOLE BOX<TDL>,COOL & HOT BOX<TMU> (A) M5X14 BINDING HEAD 		1-72537-168-0 08 1 0107-
29 SCREW; HINGE
CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL> (A) M5X14 BINDING HEAD 		1-72537-168-0 08 1 0107-
29 SCREW; HINGE
CENTER SEAT DELETE(SP9) EXC. TABLE CONSOLE BOX<TDL>,COOL & HOT BOX<TMU> (B) M5X14 FLAT HEAD 		1-72537-169-0 06 1 0107-
35 HINGE; CENTER CONSOLE
CENTER SEAT DELETE(SP9) EXC. TABLE CONSOLE BOX<TDL>,COOL & HOT BOX<TMU> 		1-72538-182-1 01 1 0107-
35 HINGE; CENTER CONSOLE
CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL> 		1-72538-182-1 01 1 0107-
106 LOCK; CONSOLE LID
CENTER SEAT DELETE(SP9) EXC. TABLE CONSOLE BOX<TDL>,COOL & HOT BOX<TMU> 		1-72537-079-0 02 1 0107-
106 LOCK; CONSOLE LID
CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL> 		1-72537-079-0 02 1 0107-
113 BOX; CONSOLE
CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL> COOL & HOT BOX<TMU> 		1-72537-180-0 01 1 0107-
113 BOX; CONSOLE
CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL> EXC. COOL & HOT BOX<TMU> 		1-72537-220-0 01 1 0107-
113 BOX; CONSOLE
CENTER SEAT DELETE(SP9) EXC. TABLE CONSOLE BOX<TDL>,COOL & HOT BOX<TMU> 		1-72537-181-0 01 1 0107-
140 SHEET
CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL> 		1-72537-093-1 01 1 0107-
162 CUSHION; PARCEL BOX
CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL> COOL & HOT BOX<TMU> 		1-72537-128-0 03 1 0107-
171 SCREW; CONSOLE BOX
CENTER SEAT DELETE(SP9) (A) M6X24 W/LK&PL WASHER 		8-94279-404-0 04 1 0107-
171 SCREW; CONSOLE BOX
CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL> (B) M5X14 FLAT HEAD 		1-72537-169-0 06 1 0107-
214 LID; CONSOLE
CENTER SEAT DELETE(SP9) EXC. TABLE CONSOLE BOX<TDL>,COOL & HOT BOX<TMU> 		1-72537-186-0 01 1 0107-
214 LID; CONSOLE
CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL> 		1-72537-186-0 01 1 0107-
262 TABLE ASM
CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL> 		1-72537-187-1 01 1 0107-
268 COVER; DUCT
CENTER SEAT DELETE(SP9) EXC. TABLE CONSOLE BOX<TDL>,COOL & HOT BOX<TMU> (B) 		1-72537-183-0 01 1 0107-
268 COVER; DUCT
CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL> (B) 		1-72537-183-0 01 1 0107-
268 COVER; DUCT
CENTER SEAT DELETE(SP9) EXC. TABLE CONSOLE BOX<TDL>,COOL & HOT BOX<TMU> (A) 		1-72537-184-0 01 1 0107-
268 COVER; DUCT
CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL> (A) 		1-72537-184-0 01 1 0107-
293 DUCT
CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL> COOL & HOT BOX<TMU> (A) 		1-72537-081-3 01 1 0107-
293 DUCT
CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL> COOL & HOT BOX<TMU> (B) 		1-72537-083-2 01 1 0107-
296 SEAL
(B) OD=25 BLACK 		1-76798-019-0 02 1 0107-
296 SEAL
CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL> (A) 		1-72537-094-1 01 1 0107-
307 COVER; HOLE,CTR CONSOLE
CENTER SEAT DELETE(SP9) (B) 		1-76337-461-0 04 1 0107-
307 COVER; HOLE,CTR CONSOLE
CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL> (A) 		1-72537-188-0 02 1 0107-
310 CUSHION; CTR CONSOLE
CENTER SEAT DELETE(SP9) EXC. TABLE CONSOLE BOX<TDL>,COOL & HOT BOX<TMU> 		1-72538-187-0 02 1 0107-
310 CUSHION; CTR CONSOLE
CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL> 		1-72538-187-0 02 1 0107-
311 HOLDER; CONSOLE
CENTER SEAT DELETE(SP9) EXC. TABLE CONSOLE BOX<TDL>,COOL & HOT BOX<TMU> 		1-72538-188-2 03 1 0107-
311 HOLDER; CONSOLE
CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL> 		1-72538-188-2 03 1 0107-
312 STOPPER; CONSOLE
CENTER SEAT DELETE(SP9) EXC. TABLE CONSOLE BOX<TDL>,COOL & HOT BOX<TMU> 		1-72538-186-1 03 1 0107-
312 STOPPER; CONSOLE
CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL> 		1-72538-186-1 03 1 0107-
313 ARM; CTR CONSOLE
CENTER SEAT DELETE(SP9) EXC. TABLE CONSOLE BOX<TDL>,COOL & HOT BOX<TMU> (A) 		1-72538-184-3 01 1 0107-
313 ARM; CTR CONSOLE
CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL> (A) 		1-72538-184-3 01 1 0107-
313 ARM; CTR CONSOLE
CENTER SEAT DELETE(SP9) EXC. TABLE CONSOLE BOX<TDL>,COOL & HOT BOX<TMU> (B) 		1-72538-185-3 02 1 0107-
313 ARM; CTR CONSOLE
CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL> (B) 		1-72538-185-3 02 1 0107-
323 SHUTTER
CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL> (B) 		1-72537-126-0 01 1 0107-
323 SHUTTER
CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL> COOL & HOT BOX<TMU> (A) 		1-72537-084-1 01 1 0107-
323 SHUTTER
CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL> COOL & HOT BOX<TMU> (C) 		1-72537-127-0 01 1 0107-
324 BUSHING
CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL> 		1-72537-116-0 02 1 0107-
332 RING; SNAP,CONSOLE BOX
CENTER SEAT DELETE(SP9) EXC. TABLE CONSOLE BOX<TDL>,COOL & HOT BOX<TMU> 		1-72537-170-0 03 1 0107-
332 RING; SNAP,CONSOLE BOX
CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL> 		1-72537-170-0 03 1 0107-
356 COVER; KNOB
CENTER SEAT DELETE(SP9) EXC. COOL & HOT BOX<TMU> 		1-72537-155-0 01 1 0107-

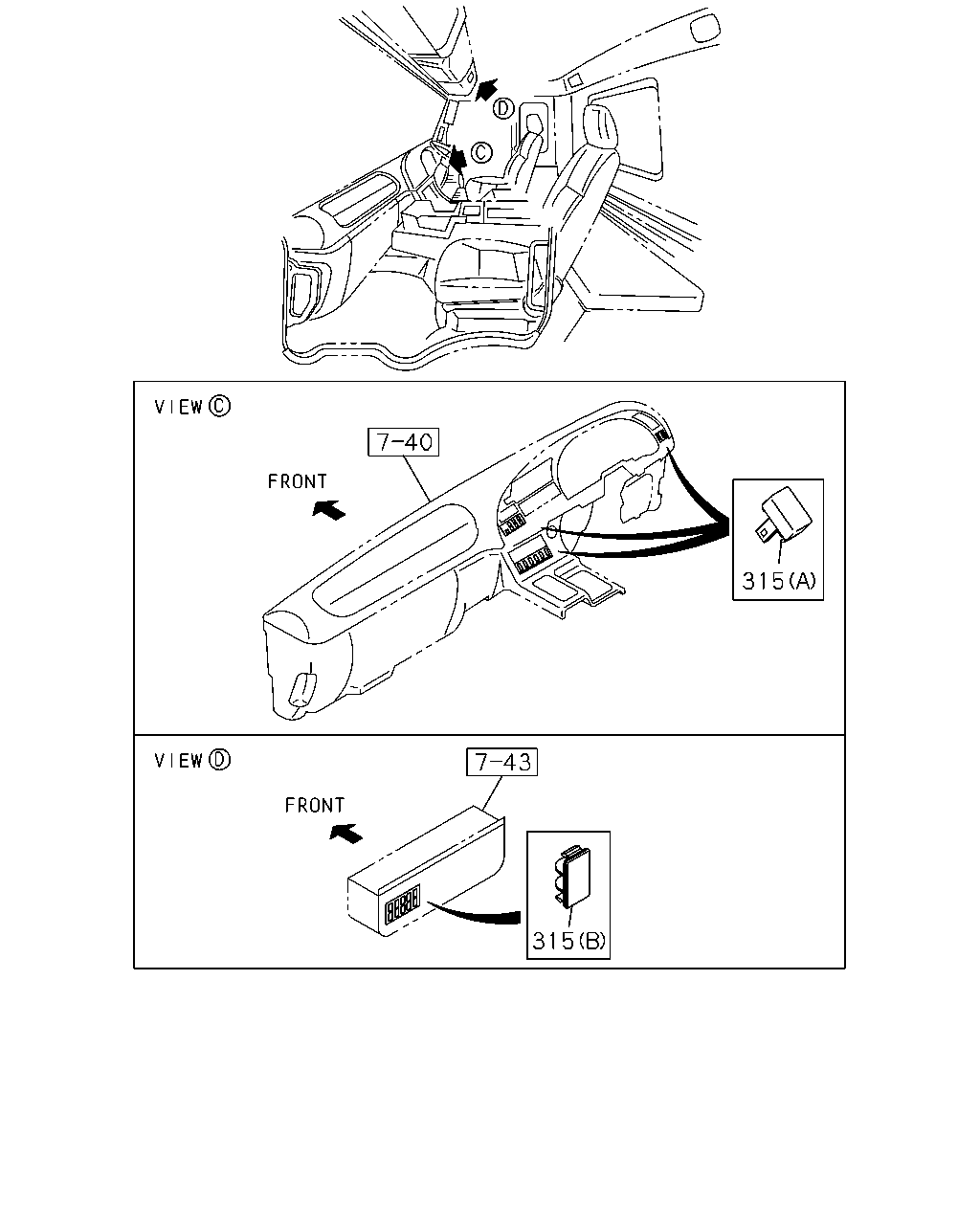

çizim 74807
315 315
BalonParca AdiParca NoAdetTipApplied Date
315 COVER; HOLE,SW
(A) 		1-82359-069-2 19 1 0107-
315 COVER; HOLE,SW
(B) 		8-97043-732-1 03 1 0107-
315 COVER; HOLE,SW
EXC. IRELAND EQUIPMENT(NJY) (A) 		1-82359-069-2 01 1 0107-
315 COVER; HOLE,SW
EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5),PTO CONTROL OPERATION CAB BACK<TBZ> (A) 		1-82359-069-2 01 1 0107-
315 COVER; HOLE,SW
EXC. DIFF LOCK<C3N> (A) 		1-82359-069-2 01 1 0107-
315 COVER; HOLE,SW
(A) 		1-82359-069-2 01 1 0107-
315 COVER; HOLE,SW
EXC. AUTO CRUISE W/RESUME<NKA> (A) 		1-82359-069-2 01 1 0107-
315 COVER; HOLE,SW
EXC. FOG LAMP REAR<NHD> (A) 		1-82359-069-2 01 1 0107-
315 COVER; HOLE,SW
EXC. IRELAND EQUIPMENT(NJY) (B) 		8-97043-732-1 01 1 0107-
