◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXD ▶ 10865 - EXD RHD FUEL TANK 400L/400L+200L ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-10 - CAUTION PLATE AND LABEL ▶
7-10 — CAUTION PLATE AND LABEL (#10243) — 31 parça
çizim 19848
181 181
BalonParca AdiParca NoAdetTipApplied Date
181 PLATE; CAUTION,AIR CLEANER
ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> EXC. CAUTIONS CHINESE<SL7> (B) 		1-85886-884-0 01 1 0107-
181 PLATE; CAUTION,AIR CLEANER
LIGHT DUTY PACKAGE TRUCK<Y21> (A) 		1-85886-796-1 01 1 0107-
181 PLATE; CAUTION,AIR CLEANER
CAUTIONS CHINESE<SL7> (A) 		1-85886-796-1 01 1 0107-
181 PLATE; CAUTION,AIR CLEANER
EXC. ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y>, CAUTIONS CHINESE<SL7> (A) 		1-85886-796-1 01 1 0107-
çizim 21101
60 58 58 228
BalonParca AdiParca NoAdetTipApplied Date
58 PLATE; CAUTION,ENG START
CAUTIONS CHINESE<SL7> (B) 		1-85887-536-0 01 1 0107-
58 PLATE; CAUTION,ENG START
EXC. CAUTIONS CHINESE<SL7> (A) 		1-85887-457-0 01 1 0107-
60 PLATE; CAUTION,CAB TILT
CAUTIONS CHINESE<SL7> 		1-85883-175-0 01 1 0107-
60 PLATE; CAUTION,CAB TILT
EXC. CAUTIONS CHINESE<SL7> 		1-85883-174-0 01 1 0107-
228 PLATE; CAUTION,AIR DRYER
AIR DRYER<PS7> CAUTIONS CHINESE<SL7> 		1-85887-934-0 01 1 0107-
228 PLATE; CAUTION,AIR DRYER
AIR DRYER<PS7> EXC. CAUTIONS CHINESE<SL7> 		1-85887-935-0 01 1 0107-

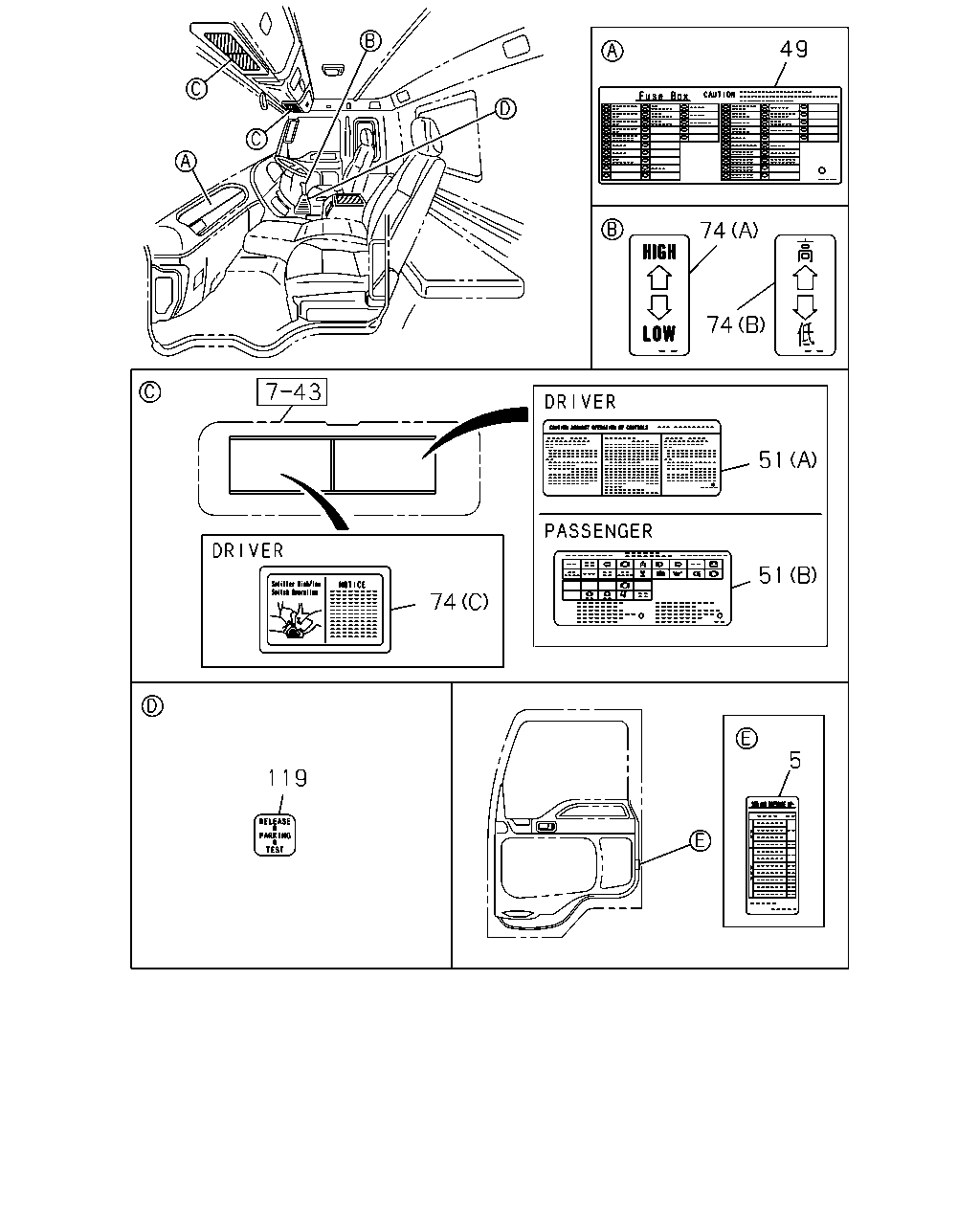

çizim 77160
49 74 74 51 51 74 5 119
BalonParca AdiParca NoAdetTipApplied Date
5 LABEL; TIRE AIR PRESSURE 1-85880-764-0 01 1 0107-
49 PLATE; CAUTION,FUSE BOX
CAUTIONS CHINESE<SL7> 		1-85878-359-0 01 1 0107-
49 PLATE; CAUTION,FUSE BOX
EXC. CAUTIONS CHINESE<SL7> 		1-85878-327-0 01 1 0107-
51 PLATE; CAUTION,WARNING
CAUTIONS CHINESE<SL7> (B) WARNING LAMP 		1-85878-334-1 01 1 0107-
51 PLATE; CAUTION,WARNING
CAUTIONS CHINESE<SL7> (A) DRIVE 		1-85880-727-0 01 1 0107-
51 PLATE; CAUTION,WARNING
EXC. CAUTIONS CHINESE<SL7> (B) WARNING LAMP 		1-85878-333-1 01 1 0107-
51 PLATE; CAUTION,WARNING
(A) DRIVE 		1-85880-725-0 01 1 0107-0107
51 PLATE; CAUTION,WARNING
EXC. CAUTIONS CHINESE<SL7> (A) DRIVE 		1-85880-725-0 01 1 0107-0107
51 PLATE; CAUTION,WARNING
EXC. CAUTIONS CHINESE<SL7> (A) DRIVE 		1-85880-725-0 01 1 0107-
74 PLATE; CAUTION,CHANGE LEV
TRANSMISSION-ZF 16S221 OD(Y1U),MJX16P M/T(Y3Z) CAUTIONS CHINESE<SL7> (B) 		1-85881-666-2 01 1 0107-
74 PLATE; CAUTION,CHANGE LEV
MJX16P M/T(Y3Z) CAUTIONS CHINESE<SL7> (C) 		1-85881-849-0 01 1 0107-
74 PLATE; CAUTION,CHANGE LEV
MJX16P M/T(Y3Z) EXC. CAUTIONS CHINESE<SL7> (C) 		1-85881-836-0 01 1 0107-
74 PLATE; CAUTION,CHANGE LEV
TRANSMISSION-ZF 16S221 OD(Y1U),MJX16P M/T(Y3Z) EXC. CAUTIONS CHINESE<SL7> (A) 		1-85881-736-1 01 1 0107-
119 PLATE; CAUTION,HAND BRK LEVER
IRELAND EQUIPMENT(NJY) 		1-85881-791-0 01 1 0107-

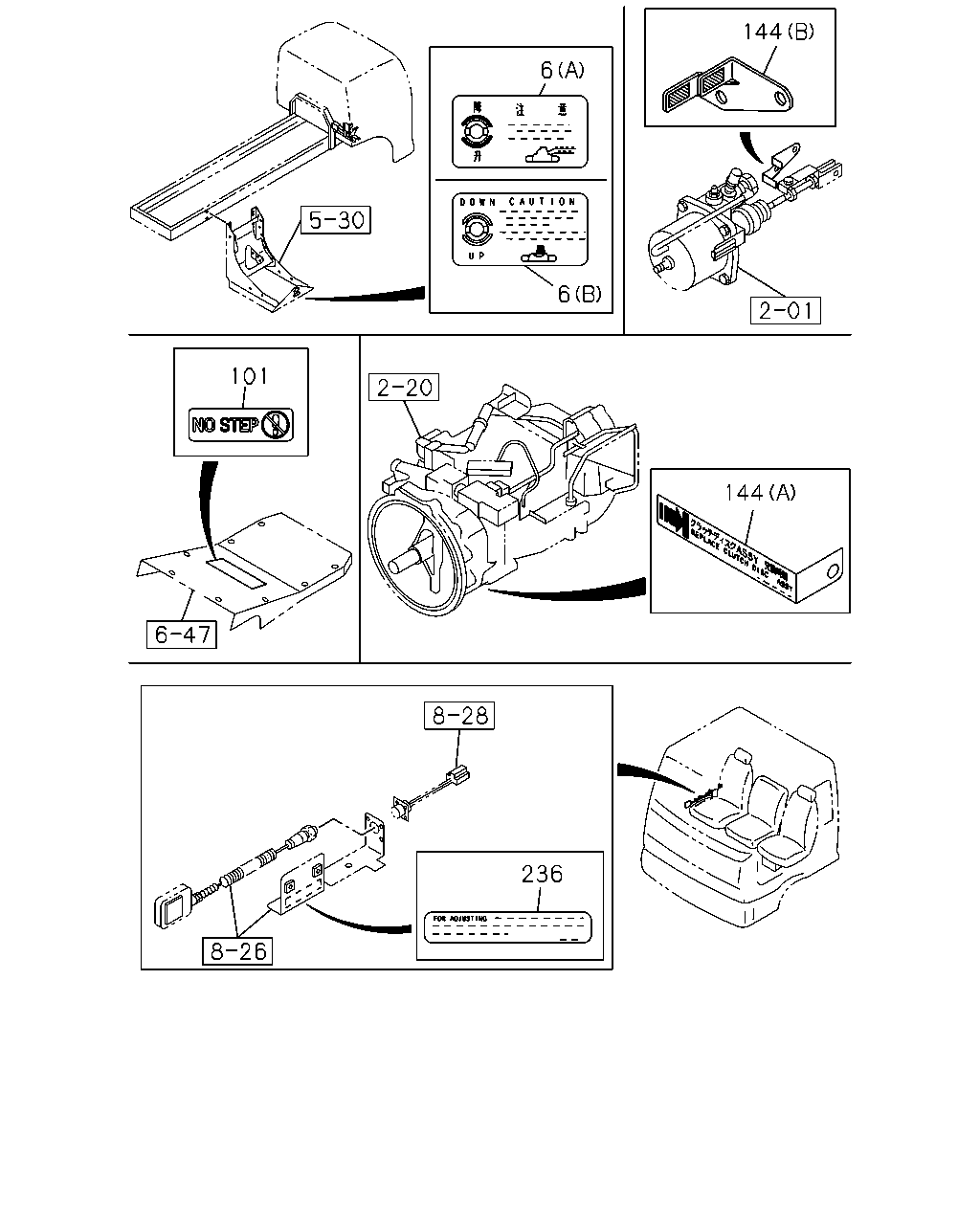

çizim 77161
144 6 6 101 144 236
BalonParca AdiParca NoAdetTipApplied Date
6 PLATE; CAUTION,SPARE TIRE
SPARE WHEEL CARRIER FRAME SIDE<P13> CAUTIONS CHINESE<SL7> (A) 		1-85883-113-0 01 1 0107-
6 PLATE; CAUTION,SPARE TIRE
LIGHT DUTY PACKAGE TRUCK<Y21> (B) 		1-53639-004-0 01 1 0107-
6 PLATE; CAUTION,SPARE TIRE
SPARE WHEEL CARRIER FRAME SIDE<P13> EXC. CAUTIONS CHINESE<SL7> (B) 		1-53639-004-0 01 1 0107-
101 PLATE; CAUTION,NO STEP
IRELAND EQUIPMENT(NJY) 		8-94272-517-0 02 1 0107-
144 PLATE; CAUTION,CLU
MJX16P M/T(Y3Z) (B) 		1-85878-345-0 01 1 0107-
144 PLATE; CAUTION,CLU
ZF M/T<X9E> (A) 		1-85888-690-0 01 1 0107-
236 PLATE; CAUTION,AIR SUS 1-85881-823-0 01 1 0107-
