◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXD ▶ 10865 - EXD RHD FUEL TANK 400L/400L+200L ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-75 - MAT AND CARPET ▶
6-75 — MAT AND CARPET (#10234) — 30 parça

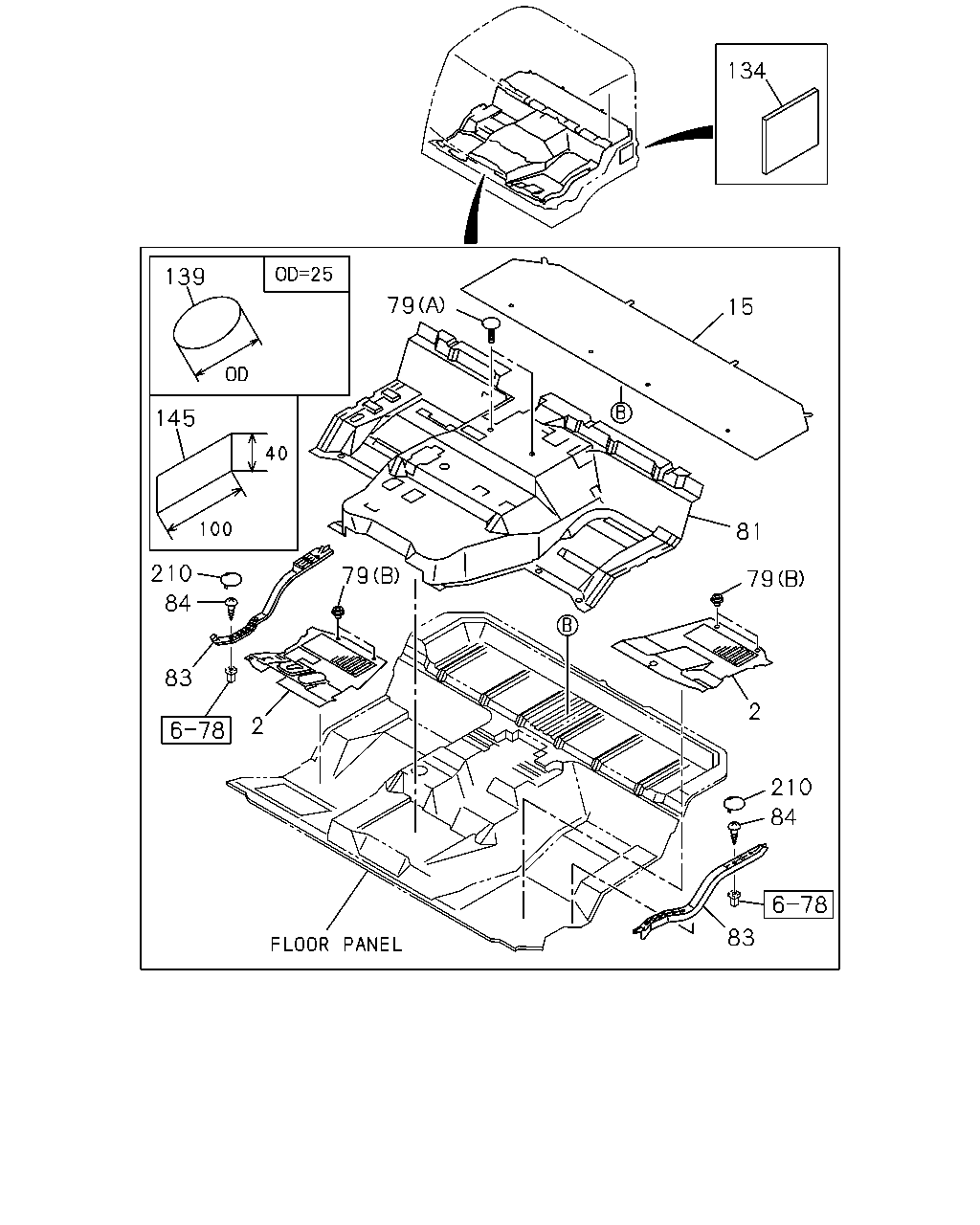

çizim 19888
134 139 79 15 145 81 79 210 79 84 83 2 2 210 84 83
BalonParca AdiParca NoAdetTipApplied Date
2 MAT; FLOOR
EXC. DELUXE CARPET<BF2> 		1-73237-574-0 01 1 0107-
2 MAT; FLOOR
EXC. DELUXE CARPET<BF2> 		1-73237-676-0 01 1 0107-
15 MAT; FLOOR REAR
EXC. DELUXE CARPET<BF2>,MATTRESS SLEEPER CAB<E40> 		1-73237-757-1 01 1 0107-
79 HOOK; MALE
(A) D6X23 BLACK 		1-09987-114-0 02 1 0107-
79 HOOK; MALE
(B) BLACK 		8-94279-089-0 08 1 0107-
81 MAT; FLOOR,CENTER
CENTER SEAT DELETE(SP9) EXC. DELUXE CARPET<BF2>,IRELAND EQUIPMENT(NJY) 		1-73237-721-0 01 1 0107-
81 MAT; FLOOR,CENTER
EXC. DELUXE CARPET<BF2>,IRELAND EQUIPMENT(NJY), CENTER SEAT DELETE(SP9) 		1-73237-722-0 01 1 0107-
81 MAT; FLOOR,CENTER
IRELAND EQUIPMENT(NJY) CENTER SEAT DELETE(SP9) EXC. DELUXE CARPET<BF2> 		1-73237-756-0 01 1 0107-
83 PLATE; KICKING,FLOOR MAT 1-76798-046-0 01 1 0107-
83 PLATE; KICKING,FLOOR MAT 1-76798-045-0 01 1 0107-
84 SCREW; PLATE TO FLOOR
M5X16 		8-94279-312-0 08 1 0107-
134 SILENCER; RR FLOOR,SIDE
EXC. BAGGAGE BOX CAB RR SIDE<TBM> 		1-73367-016-2 01 1 0107-
139 SEAL; FLOOR
OD=25 BLACK 		1-76798-019-0 04 1 0107-
145 SEAL; FLOOR PANEL
100X40 		1-72498-022-0 01 1 0107-
210 COVER; KICKING PLATE 1-76337-461-0 09 1 0107-

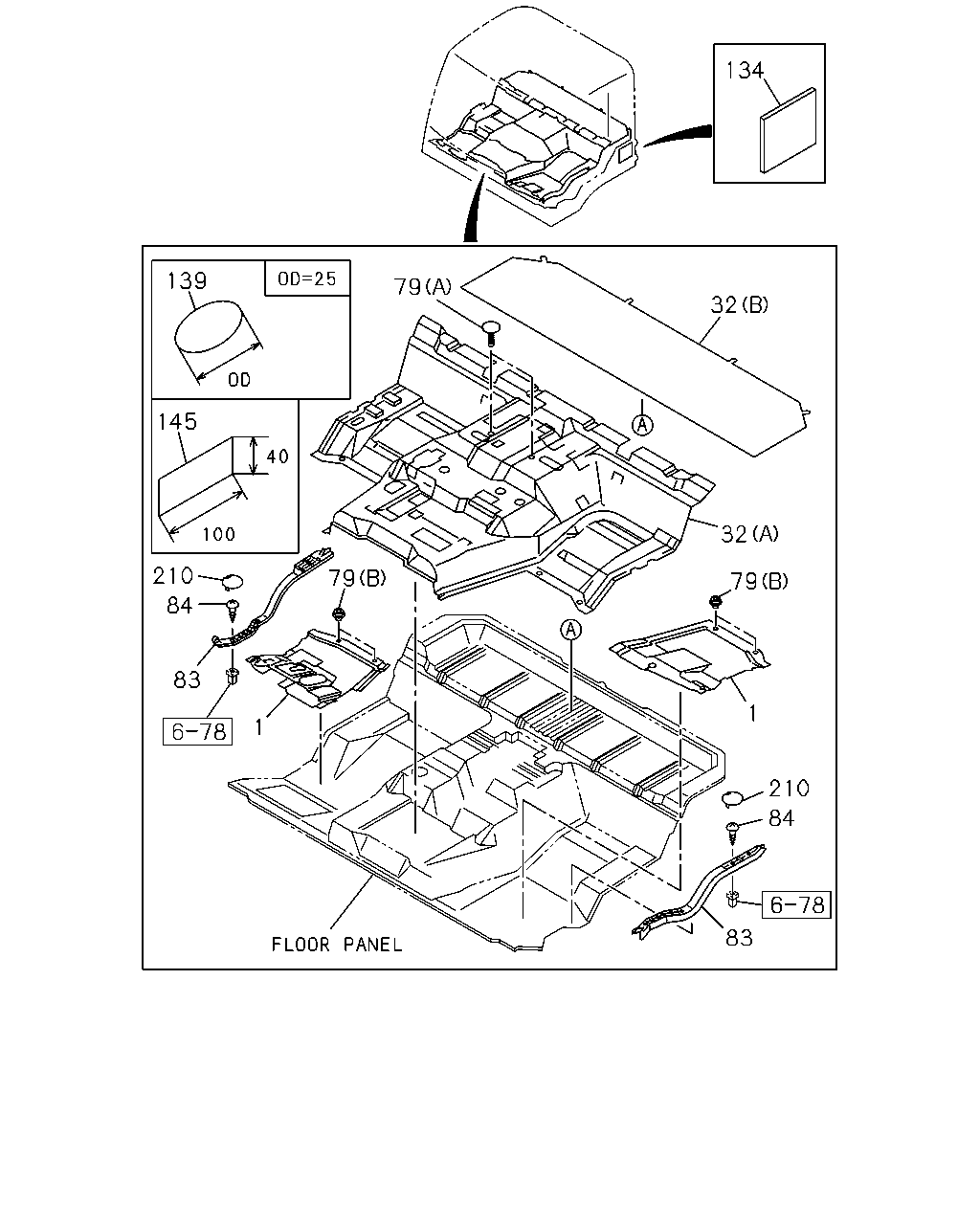

çizim 75070
134 139 79 32 145 32 210 79 79 84 83 1 210 84 83
BalonParca AdiParca NoAdetTipApplied Date
1 CARPET; FLOOR,FRT
DELUXE CARPET<BF2> 		1-73237-571-1 01 1 0107-
1 CARPET; FLOOR,FRT
DELUXE CARPET<BF2> 		1-73237-669-0 01 1 0107-
32 CARPET; FLOOR
DELUXE CARPET<BF2> CENTER SEAT DELETE(SP9) EXC. IRELAND EQUIPMENT(NJY) (A) 		1-73237-717-1 01 1 0107-
32 CARPET; FLOOR
DELUXE CARPET<BF2> IRELAND EQUIPMENT(NJY) CENTER SEAT DELETE(SP9) (A) 		1-73237-753-1 01 1 0107-
32 CARPET; FLOOR
DELUXE CARPET<BF2> EXC. IRELAND EQUIPMENT(NJY),CENTER SEAT DELETE(SP9) (A) 		1-73237-718-1 01 1 0107-
32 CARPET; FLOOR
DELUXE CARPET<BF2> EXC. MATTRESS SLEEPER CAB<E40> (B) 		1-73237-720-0 01 1 0107-
79 HOOK; MALE
(A) D6X23 BLACK 		1-09987-114-0 02 1 0107-
79 HOOK; MALE
(B) BLACK 		8-94279-089-0 08 1 0107-
83 PLATE; KICKING,FLOOR MAT 1-76798-046-0 01 1 0107-
83 PLATE; KICKING,FLOOR MAT 1-76798-045-0 01 1 0107-
84 SCREW; PLATE TO FLOOR
M5X16 		8-94279-312-0 08 1 0107-
134 SILENCER; RR FLOOR,SIDE
EXC. BAGGAGE BOX CAB RR SIDE<TBM> 		1-73367-016-2 01 1 0107-
139 SEAL; FLOOR
OD=25 BLACK 		1-76798-019-0 04 1 0107-
145 SEAL; FLOOR PANEL
100X40 		1-72498-022-0 01 1 0107-
210 COVER; KICKING PLATE 1-76337-461-0 09 1 0107-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
