Sayfa 6-47 - Isuzu EPC

6-47 — MUD GUARD AND INSULATOR (#10230) — 230 parça

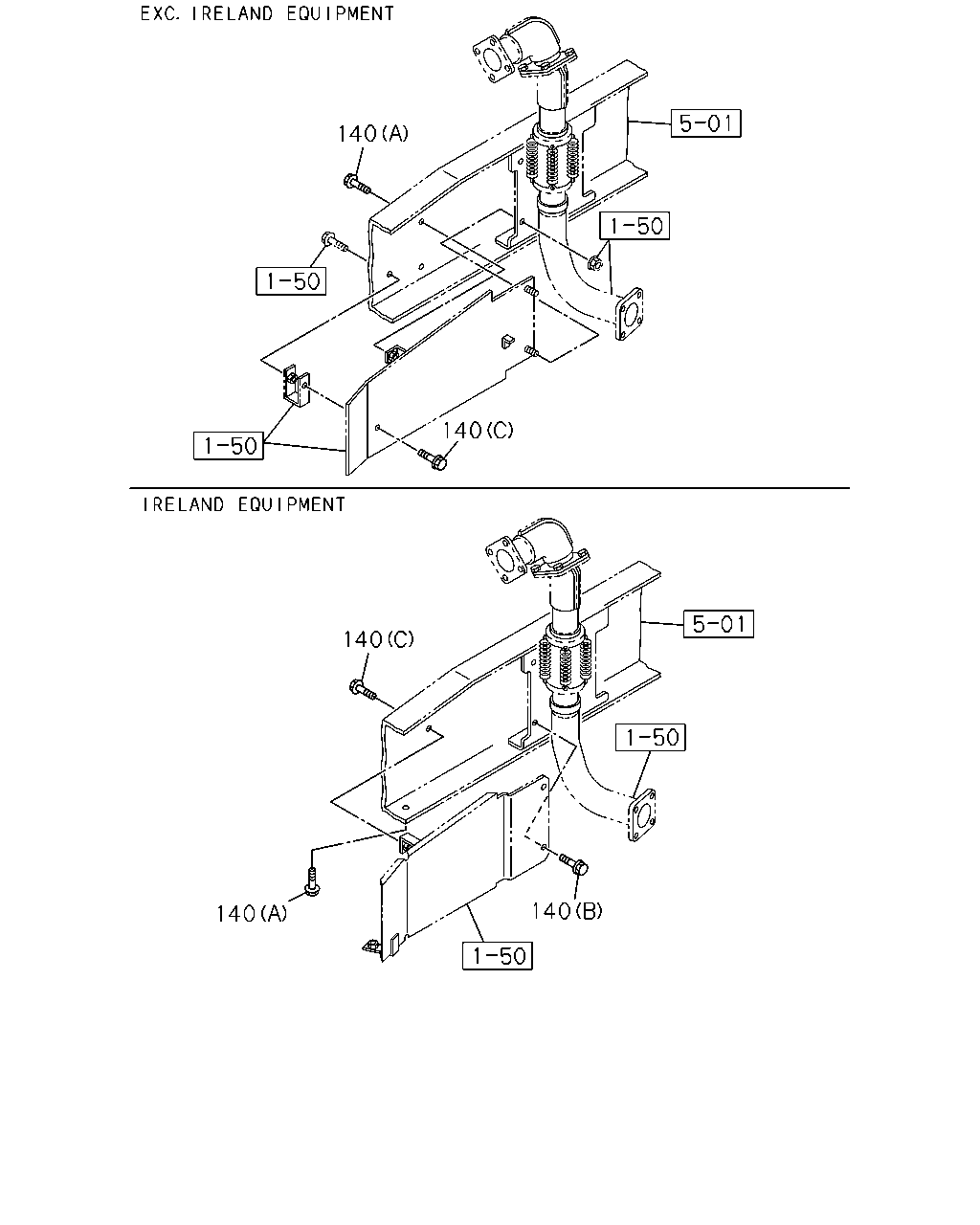

140 140 140 140 140

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
140	BOLT; SIDE PANEL (A) M8X30 FLANGE	0-28680-830-0	02	1	0107-
140	BOLT; SIDE PANEL IRELAND EQUIPMENT(NJY) (B) M8X20 FLANGE	0-28680-820-0	02	1	0107-
140	BOLT; SIDE PANEL EXC. IRELAND EQUIPMENT(NJY) (C) M8X20 FLANGE	0-28680-820-0	01	1	0107-

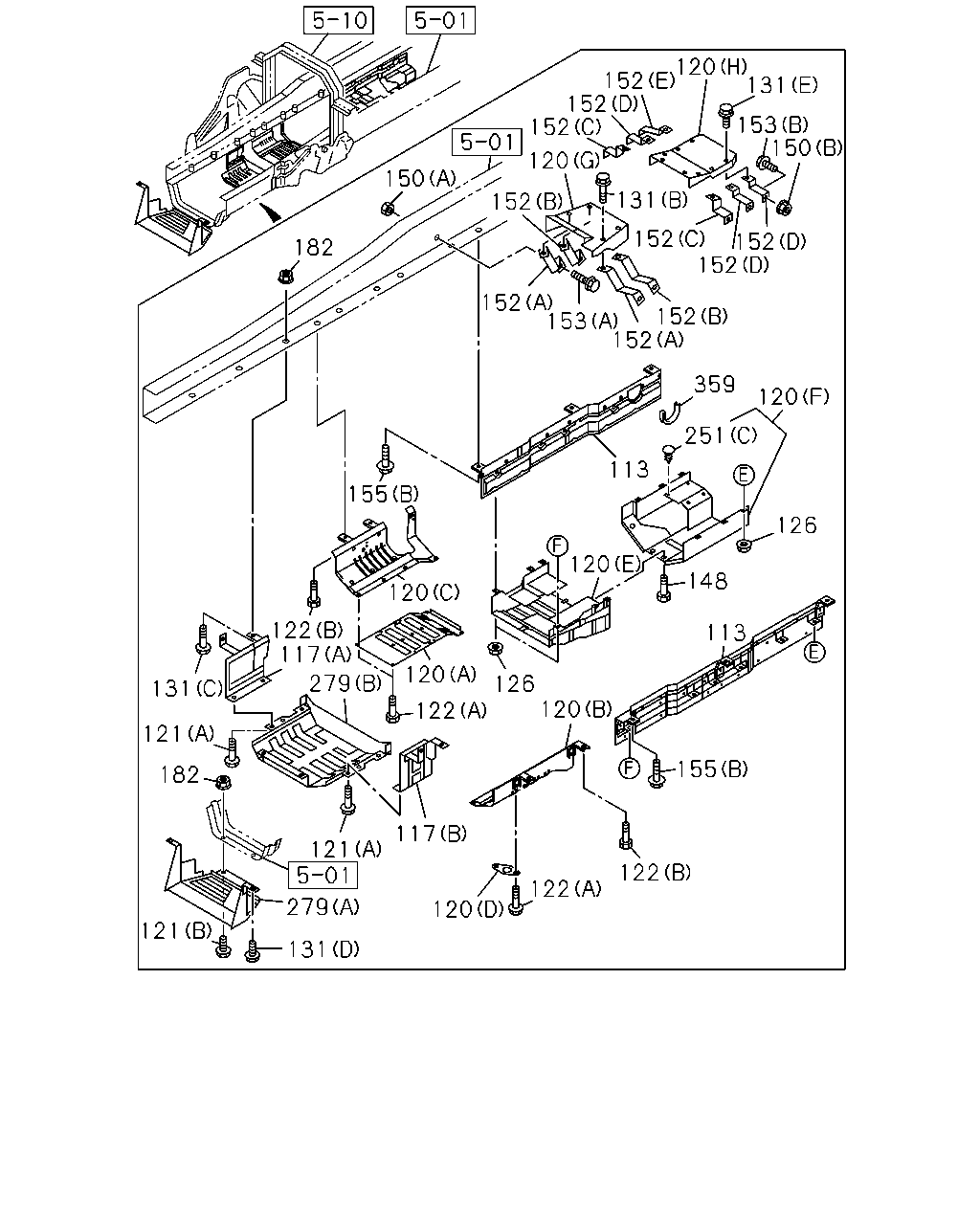

120 152 131 152 152 153 150 120 150 131 152 152 152 152 182 152 153 152 152 359 120 251 113 155 126 120 148 120 122 117 113 120 279 126 120 131 122 121 155 182 117 121 122 122 279 120 121 131

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
113	PANEL; SIDE IRELAND EQUIPMENT(NJY)	1-53193-905-1	01	1	0107-
113	PANEL; SIDE IRELAND EQUIPMENT(NJY)	1-53194-074-1	01	1	0107-
117	PANEL; SIDE,B UNDER IRELAND EQUIPMENT(NJY) (B)	1-53194-013-0	01	1	0107-
117	PANEL; SIDE,B UNDER IRELAND EQUIPMENT(NJY) (A)	1-53194-012-0	01	1	0107-
120	PANEL; UNDER IRELAND EQUIPMENT(NJY) (A) ENG UNDER RR	1-53193-314-1	01	1	0107-
120	PANEL; UNDER IRELAND EQUIPMENT(NJY) (E) TRANS UNDER FRT	1-53193-900-0	01	1	0107-
120	PANEL; UNDER IRELAND EQUIPMENT(NJY) (F) TRANS UNDER RR	1-53193-979-1	01	1	0107-
120	PANEL; UNDER IRELAND EQUIPMENT(NJY) (G) TRANS UPPER FRT	1-53194-076-2	01	1	0107-
120	PANEL; UNDER IRELAND EQUIPMENT(NJY) (H) TRANS UPPER FRT	1-53194-083-0	01	1	0107-
120	PANEL; UNDER IRELAND EQUIPMENT(NJY) (B) ENG UNDER RR	1-53194-015-0	01	1	0107-
120	PANEL; UNDER IRELAND EQUIPMENT(NJY) (D) ENG UNDER RR	1-53194-073-0	01	1	0107-
120	PANEL; UNDER IRELAND EQUIPMENT(NJY) (C) ENG UNDER RR	1-53194-092-0	01	1	0107-
121	BOLT IRELAND EQUIPMENT(NJY) (A) M8X20 FLANGE	0-28680-820-0	06	1	0107-
121	BOLT IRELAND EQUIPMENT(NJY) (B) M10X25 FLANGE	0-28681-025-0	02	1	0107-
122	BOLT IRELAND EQUIPMENT(NJY) (A) M8X20 FLANGE	0-28680-820-0	10	1	0107-
122	BOLT IRELAND EQUIPMENT(NJY) (B) M8X25 FLANGE	0-28680-825-0	04	1	0107-
126	NUT; PANEL IRELAND EQUIPMENT(NJY) M8 CAP NUT FLANGE	1-09468-015-0	12	1	0107-
131	BOLT; PANEL (A) M8X25 W/LK&PL WASHER	1-09030-074-0	08	1	0107-
131	BOLT; PANEL IRELAND EQUIPMENT(NJY) (B) M8X20 FLANGE	0-28680-820-0	04	1	0107-
131	BOLT; PANEL IRELAND EQUIPMENT(NJY) (C) M8X25 FLANGE	0-28680-825-0	04	1	0107-
131	BOLT; PANEL IRELAND EQUIPMENT(NJY) (D) M8X30 FLANGE	0-28680-830-0	04	1	0107-
131	BOLT; PANEL IRELAND EQUIPMENT(NJY) (E) M8X22 W/LK&PL WASHER	1-09030-042-0	08	1	0107-
148	BOLT; PANEL TO PANEL IRELAND EQUIPMENT(NJY) M8X20 FLANGE	0-28680-820-0	02	1	0107-
150	NUT; SIDE PANEL IRELAND EQUIPMENT(NJY) (A) M8 FLANGE	0-91150-108-0	04	1	0107-
150	NUT; SIDE PANEL IRELAND EQUIPMENT(NJY) (B) M8 FLANGE	0-91150-108-0	06	1	0107-
152	BRACKET; PANEL,TRANS IRELAND EQUIPMENT(NJY) (D)	1-22139-150-0	03	1	0107-
152	BRACKET; PANEL,TRANS IRELAND EQUIPMENT(NJY) (E)	1-22139-155-0	01	1	0107-
152	BRACKET; PANEL,TRANS IRELAND EQUIPMENT(NJY) (B)	1-22139-145-0	01	1	0107-
152	BRACKET; PANEL,TRANS IRELAND EQUIPMENT(NJY) (A)	1-22139-147-0	01	1	0107-
152	BRACKET; PANEL,TRANS IRELAND EQUIPMENT(NJY) (C)	1-22139-149-0	01	1	0107-
152	BRACKET; PANEL,TRANS IRELAND EQUIPMENT(NJY) (B)	1-22139-144-0	01	1	0107-
152	BRACKET; PANEL,TRANS IRELAND EQUIPMENT(NJY) (A)	1-22139-146-0	01	1	0107-
152	BRACKET; PANEL,TRANS IRELAND EQUIPMENT(NJY) (C)	1-22139-148-0	01	1	0107-
153	BOLT; BRKT IRELAND EQUIPMENT(NJY) (A) M8X25 W/LK&PL WASHER	1-09030-074-0	04	1	0107-
153	BOLT; BRKT IRELAND EQUIPMENT(NJY) (B) M8X25 W/LK&PL WASHER	1-09030-074-0	06	1	0107-
155	BOLT; PANEL IRELAND EQUIPMENT(NJY) (A) M8X25 FLANGE	0-28680-825-0	01	1	0107-
155	BOLT; PANEL IRELAND EQUIPMENT(NJY) (B) M8X40 FLANGE	0-28680-840-0	06	1	0107-
182	NUT; COVER IRELAND EQUIPMENT(NJY) M10 FLANGE	0-91150-210-0	02	1	0107-
251	CLIP; NOISE INSULATOR ANTI NOISE EQUIPMENT<SV9> EXC. BRAKE SYSTEM SPRING BRAKE(BCR) (A)	8-94279-048-0	14	1	0107-
251	CLIP; NOISE INSULATOR IRELAND EQUIPMENT(NJY) (A)	8-94279-048-0	14	1	0107-
251	CLIP; NOISE INSULATOR IRELAND EQUIPMENT(NJY) (B)	5-09987-033-0	23	1	0107-
251	CLIP; NOISE INSULATOR IRELAND EQUIPMENT(NJY) (C)	8-94279-048-0	51	1	0107-
279	COVER; UNDER IRELAND EQUIPMENT(NJY) (B)	1-53194-014-0	01	1	0107-
279	COVER; UNDER IRELAND EQUIPMENT(NJY) (A)	1-53194-069-0	01	1	0107-
359	FINISHER; TRANS UNDER PANEL IRELAND EQUIPMENT(NJY) L=175 SERVICED BY L=2040	1-71997-513-1	01	1	0107-

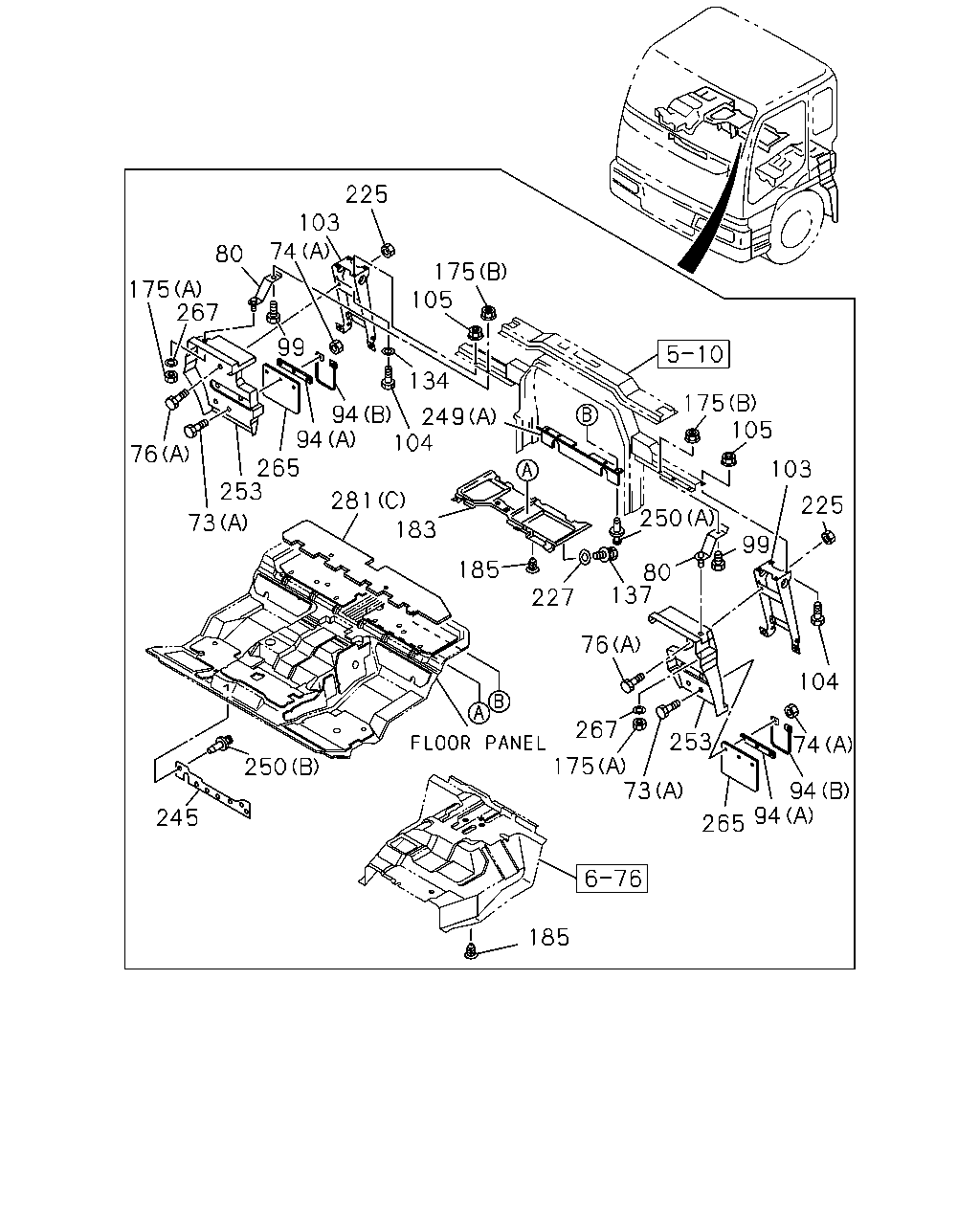

225 103 74 80 175 105 175 267 99 134 175 105 94 249 94 104 265 253 76 103 281 183 225 250 73 99 185 80 137 227 76 104 267 253 175 74 73 250 94 94 245 265 185

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
73	BOLT; MUD COVER BRKT (A) M8X25 W/LK&PL WASHER	1-09030-074-0	06	1	0107-
73	BOLT; MUD COVER BRKT IRELAND EQUIPMENT(NJY) (B) M8X16 FLANGE	0-28280-816-0	08	1	0107-
73	BOLT; MUD COVER BRKT BRAKE SYSTEM SPRING BRAKE(BCR) EXC. IRELAND EQUIPMENT(NJY),ANTI NOISE EQUIPMENT<SV9> (B) M8X16 FLANGE	0-28280-816-0	08	1	0107-
73	BOLT; MUD COVER BRKT EXC. BRAKE SYSTEM SPRING BRAKE(BCR) (B) M8X16 FLANGE	0-28280-816-0	08	1	0107-
74	NUT (A) M8 FLANGE	0-91150-108-0	06	1	0107-
74	NUT ANTI NOISE EQUIPMENT<SV9> EXC. BRAKE SYSTEM SPRING BRAKE(BCR) (B) M8 FLANGE	0-91150-108-0	02	1	0107-
74	NUT IRELAND EQUIPMENT(NJY) (B) M8 FLANGE	0-91150-108-0	02	1	0107-
74	NUT EXC. BRAKE SYSTEM SPRING BRAKE(BCR),ANTI NOISE EQUIPMENT<SV9> (B) M8 FLANGE	0-91150-108-0	03	1	0107-
74	NUT BRAKE SYSTEM SPRING BRAKE(BCR) EXC. IRELAND EQUIPMENT(NJY),ANTI NOISE EQUIPMENT<SV9> (B) M8 FLANGE	0-91150-108-0	03	1	0107-
76	BOLT; MUD GUARD (A) M8X25 W/LK&PL WASHER	1-09030-074-0	08	1	0107-
76	BOLT; MUD GUARD (B) M6X20 W/LK&PL WASHER	8-94279-203-0	04	1	0107-
76	BOLT; MUD GUARD (C) M8X30 W/LK&PL WASHER	8-94279-210-0	06	1	0107-
80	BRACKET; MUD GUARD STAY	1-79931-159-1	02	1	0107-
94	RETAINER; FLAP RUBBER (A)	1-79931-091-2	02	1	0107-
94	RETAINER; FLAP RUBBER (B)	1-79931-194-0	02	1	0107-
94	RETAINER; FLAP RUBBER IRELAND EQUIPMENT(NJY) (C)	1-53199-014-0	06	1	0107-
99	BOLT; STAY TO MUD GUARD M10X20 FLANGE	0-28681-020-0	02	1	0107-
103	BRACKET ASM; RR MUD FLAP	1-79931-307-1	01	1	0107-
103	BRACKET ASM; RR MUD FLAP	1-79931-308-1	01	1	0107-
104	BOLT; BRKT M10X30 FLANGE	0-28681-030-0	08	1	0107-
105	NUT; BRKT M10 FLANGE	0-91150-210-0	08	1	0107-
134	WASHER; PL ID=10.5 OD=26	9-09160-710-0	02	1	0107-
137	BOLT M8X24.5 W/LK&PL WASHER	8-94279-208-0	01	1	0107-
175	NUT; STAY FIX (A) M8 FLANGE	0-91150-108-0	02	1	0107-
175	NUT; STAY FIX (B) M10 FLANGE	0-91150-210-0	02	1	0107-
183	INSULATOR; HEAT,BED PAN	1-71907-526-4	01	1	0107-
185	CLIP; HEAT INSULATOR ID=6.2 L=11.4	8-97808-623-0	19	1	0107-
185	CLIP; HEAT INSULATOR ID=6.2 L=11.4	8-97808-623-0	06	1	0107-
185	CLIP; HEAT INSULATOR ID=6.2 L=11.4	8-97808-623-0	06	1	0107-
185	CLIP; HEAT INSULATOR ID=6.2 L=11.4	8-97808-623-0	09	1	0107-
225	NUT; MUD GUARD M8 FLANGE	0-91150-108-0	08	1	0107-
227	SEAL; MUD GUARD T=2.0	8-94279-641-0	01	1	0107-
245	RUBBER; SHUTTER,RAD	1-79937-982-1	01	1	0107-
249	RUBBER; SHUTTER (B)	1-79937-979-1	01	1	0107-
249	RUBBER; SHUTTER (C)	1-79937-981-1	01	1	0107-
249	RUBBER; SHUTTER (A)	1-79937-924-2	01	1	0107-
249	RUBBER; SHUTTER (D)	1-79937-966-2	01	1	0107-
249	RUBBER; SHUTTER (F)	1-79937-967-1	01	1	0107-
249	RUBBER; SHUTTER (E)	1-79937-965-1	01	1	0107-
250	FASTENER; SHUTTER (A) D6X16 PUSH RIVET	1-09983-105-0	06	1	0107-
250	FASTENER; SHUTTER (B) D6X16 PUSH RIVET	1-09983-105-0	07	1	0107-
250	FASTENER; SHUTTER (C) D8X13.5	1-09987-248-1	01	1	0107-
250	FASTENER; SHUTTER (D) D8X13.5	1-09987-248-1	04	1	0107-
250	FASTENER; SHUTTER (D) D8X13.5	1-09987-248-1	05	1	0107-
253	GUARD; MUD	1-79931-067-7	01	1	0107-
253	GUARD; MUD	1-79931-065-7	01	1	0107-
265	RUBBER; FLAP,REAR	1-79930-978-0	02	1	0107-
267	WASHER; PL,STAY ID=8.4 OD=26	9-09164-808-0	02	1	0107-
281	INSULATOR; NOISE (B)	1-71907-171-2	01	1	0107-
281	INSULATOR; NOISE (A)	1-71907-455-0	01	1	0107-
281	INSULATOR; NOISE (B)	1-71907-170-1	01	1	0107-
281	INSULATOR; NOISE MATTRESS SLEEPER CAB<E40> (C)	1-73237-445-4	01	1	0107-

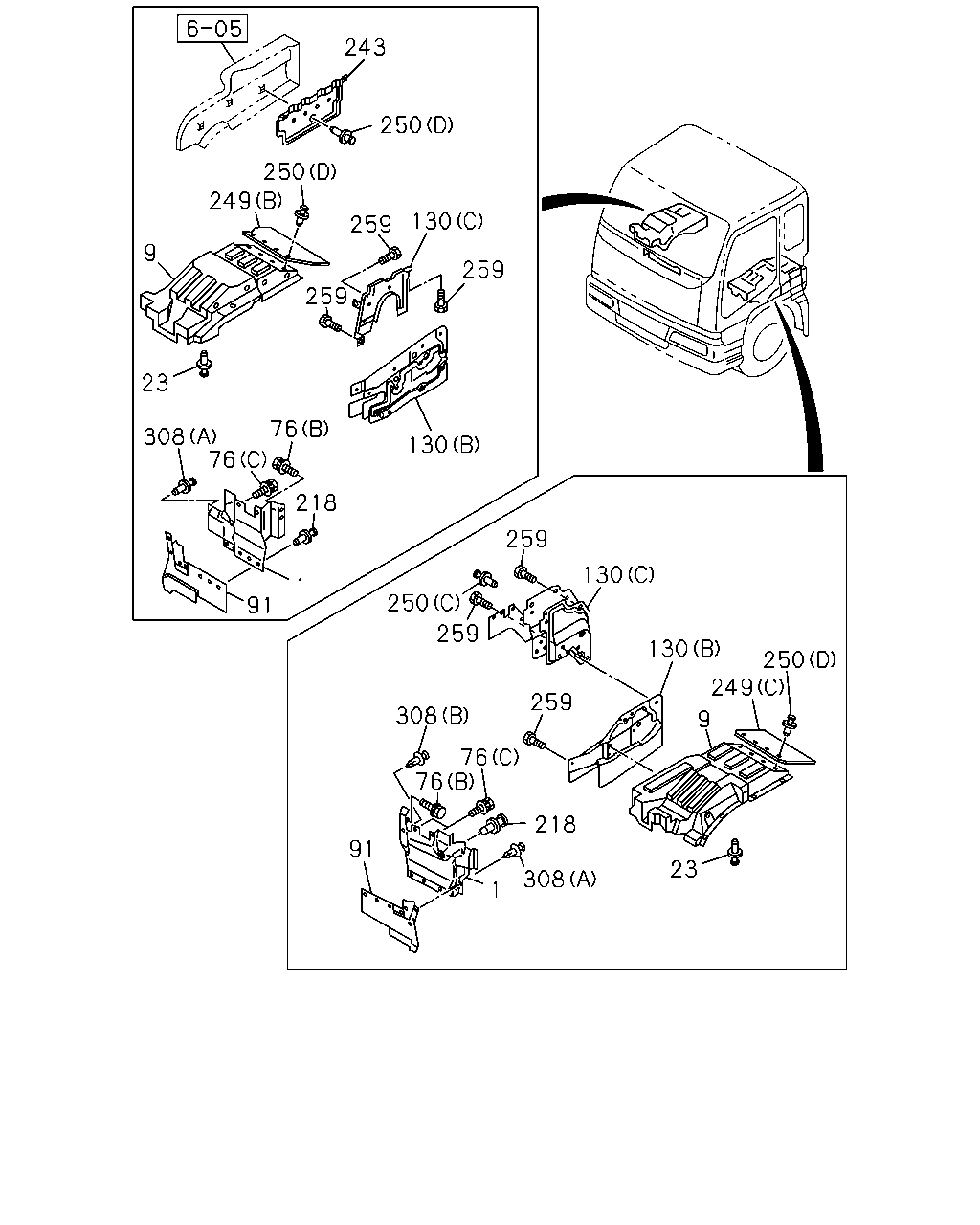

243 250 250 249 130 259 9 259 259 23 76 308 76 130 218 259 130 1 250 91 259 130 250 249 259 308 9 76 76 218 91 23 308 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	GUARD; MUD,FRT	1-79937-894-6	01	1	0107-
1	GUARD; MUD,FRT	1-79937-895-5	01	1	0107-
9	GUARD; SPLASH,WHEEL HOUSE	1-79937-908-4	01	1	0107-
9	GUARD; SPLASH,WHEEL HOUSE	1-79937-907-4	01	1	0107-
23	FASTENER; MUD COVER D8X13.5	1-09987-248-1	21	1	0107-
76	BOLT; MUD GUARD (A) M8X25 W/LK&PL WASHER	1-09030-074-0	08	1	0107-
76	BOLT; MUD GUARD (B) M6X20 W/LK&PL WASHER	8-94279-203-0	04	1	0107-
76	BOLT; MUD GUARD (C) M8X30 W/LK&PL WASHER	8-94279-210-0	06	1	0107-
91	COVER; MUD,FRT	1-79931-204-1	01	1	0107-
91	COVER; MUD,FRT	1-79931-203-1	01	1	0107-
130	PANEL; SHUTTER NOISE (B)	1-79937-960-4	01	1	0107-
130	PANEL; SHUTTER NOISE (C)	1-79937-969-3	01	1	0107-
130	PANEL; SHUTTER NOISE (C)	1-79937-919-2	01	1	0107-
130	PANEL; SHUTTER NOISE (B)	1-79937-959-2	01	1	0107-
130	PANEL; SHUTTER NOISE ANTI NOISE EQUIPMENT<SV9> EXC. BRAKE SYSTEM SPRING BRAKE(BCR) (D)	1-53192-790-5	01	1	0107-
130	PANEL; SHUTTER NOISE ANTI NOISE EQUIPMENT<SV9> EXC. BRAKE SYSTEM SPRING BRAKE(BCR) (A)	1-53192-782-7	01	1	0107-
130	PANEL; SHUTTER NOISE BRAKE SYSTEM SPRING BRAKE(BCR) EXC. IRELAND EQUIPMENT(NJY),ANTI NOISE EQUIPMENT<SV9> (F)	1-53193-333-2	01	1	0107-
130	PANEL; SHUTTER NOISE BRAKE SYSTEM SPRING BRAKE(BCR) EXC. IRELAND EQUIPMENT(NJY),ANTI NOISE EQUIPMENT<SV9> (E)	1-53193-332-2	01	1	0107-
130	PANEL; SHUTTER NOISE EXC. BRAKE SYSTEM SPRING BRAKE(BCR),ANTI NOISE EQUIPMENT<SV9> (F)	1-53193-329-1	01	1	0107-
130	PANEL; SHUTTER NOISE EXC. BRAKE SYSTEM SPRING BRAKE(BCR),ANTI NOISE EQUIPMENT<SV9> (E)	1-53193-328-1	01	1	0107-
130	PANEL; SHUTTER NOISE IRELAND EQUIPMENT(NJY) (D)	1-53193-200-3	01	1	0107-
130	PANEL; SHUTTER NOISE IRELAND EQUIPMENT(NJY) (A)	1-53193-207-4	01	1	0107-
218	FASTENER; RUBBER ID=6X6 OD=8	1-09987-194-0	08	1	0107-
243	PROTECTOR; NOISE SHUT PANEL	1-79937-906-2	01	1	0107-
249	RUBBER; SHUTTER (B)	1-79937-979-1	01	1	0107-
249	RUBBER; SHUTTER (C)	1-79937-981-1	01	1	0107-
249	RUBBER; SHUTTER (A)	1-79937-924-2	01	1	0107-
249	RUBBER; SHUTTER (D)	1-79937-966-2	01	1	0107-
249	RUBBER; SHUTTER (F)	1-79937-967-1	01	1	0107-
249	RUBBER; SHUTTER (E)	1-79937-965-1	01	1	0107-
250	FASTENER; SHUTTER (A) D6X16 PUSH RIVET	1-09983-105-0	06	1	0107-
250	FASTENER; SHUTTER (B) D6X16 PUSH RIVET	1-09983-105-0	07	1	0107-
250	FASTENER; SHUTTER (C) D8X13.5	1-09987-248-1	01	1	0107-
250	FASTENER; SHUTTER (D) D8X13.5	1-09987-248-1	04	1	0107-
250	FASTENER; SHUTTER (D) D8X13.5	1-09987-248-1	05	1	0107-
259	BOLT; NOISE PANEL M8X24.5 W/LK&PL WASHER	8-94279-208-0	12	1	0107-
308	FASTENER; MUD GUARD (A)	1-09470-007-0	08	1	0107-
308	FASTENER; MUD GUARD (B) ID=6X6 OD=8	1-09987-194-0	02	1	0107-

68 113 94 251 68 251 68 68 359 94 251 68 113 251 68 155 68 251 120 120 69 251 68 69

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
68	STAY; COVER IRELAND EQUIPMENT(NJY) (A)	1-53441-541-0	04	1	0107-
68	STAY; COVER IRELAND EQUIPMENT(NJY) (E)	1-53193-907-0	01	1	0107-
68	STAY; COVER IRELAND EQUIPMENT(NJY) (F)	1-53193-921-0	01	1	0107-
68	STAY; COVER IRELAND EQUIPMENT(NJY) (G)	1-53193-943-0	01	1	0107-
68	STAY; COVER IRELAND EQUIPMENT(NJY) (B)	1-53193-523-0	01	1	0107-
68	STAY; COVER IRELAND EQUIPMENT(NJY) (C)	1-53193-822-0	01	1	0107-
68	STAY; COVER IRELAND EQUIPMENT(NJY) (D)	1-53193-906-0	01	1	0107-
69	BOLT; COVER TO STAY IRELAND EQUIPMENT(NJY) M8X16 FLANGE	0-28280-816-0	08	1	0107-
94	RETAINER; FLAP RUBBER (A)	1-79931-091-2	02	1	0107-
94	RETAINER; FLAP RUBBER (B)	1-79931-194-0	02	1	0107-
94	RETAINER; FLAP RUBBER IRELAND EQUIPMENT(NJY) (C)	1-53199-014-0	06	1	0107-
113	PANEL; SIDE IRELAND EQUIPMENT(NJY)	1-53193-905-1	01	1	0107-
113	PANEL; SIDE IRELAND EQUIPMENT(NJY)	1-53194-074-1	01	1	0107-
120	PANEL; UNDER IRELAND EQUIPMENT(NJY) (A) ENG UNDER RR	1-53193-314-1	01	1	0107-
120	PANEL; UNDER IRELAND EQUIPMENT(NJY) (E) TRANS UNDER FRT	1-53193-900-0	01	1	0107-
120	PANEL; UNDER IRELAND EQUIPMENT(NJY) (F) TRANS UNDER RR	1-53193-979-1	01	1	0107-
120	PANEL; UNDER IRELAND EQUIPMENT(NJY) (G) TRANS UPPER FRT	1-53194-076-2	01	1	0107-
120	PANEL; UNDER IRELAND EQUIPMENT(NJY) (H) TRANS UPPER FRT	1-53194-083-0	01	1	0107-
120	PANEL; UNDER IRELAND EQUIPMENT(NJY) (B) ENG UNDER RR	1-53194-015-0	01	1	0107-
120	PANEL; UNDER IRELAND EQUIPMENT(NJY) (D) ENG UNDER RR	1-53194-073-0	01	1	0107-
120	PANEL; UNDER IRELAND EQUIPMENT(NJY) (C) ENG UNDER RR	1-53194-092-0	01	1	0107-
155	BOLT; PANEL IRELAND EQUIPMENT(NJY) (A) M8X25 FLANGE	0-28680-825-0	01	1	0107-
155	BOLT; PANEL IRELAND EQUIPMENT(NJY) (B) M8X40 FLANGE	0-28680-840-0	06	1	0107-
251	CLIP; NOISE INSULATOR ANTI NOISE EQUIPMENT<SV9> EXC. BRAKE SYSTEM SPRING BRAKE(BCR) (A)	8-94279-048-0	14	1	0107-
251	CLIP; NOISE INSULATOR IRELAND EQUIPMENT(NJY) (A)	8-94279-048-0	14	1	0107-
251	CLIP; NOISE INSULATOR IRELAND EQUIPMENT(NJY) (B)	5-09987-033-0	23	1	0107-
251	CLIP; NOISE INSULATOR IRELAND EQUIPMENT(NJY) (C)	8-94279-048-0	51	1	0107-
359	FINISHER; TRANS UNDER PANEL IRELAND EQUIPMENT(NJY) L=175 SERVICED BY L=2040	1-71997-513-1	01	1	0107-

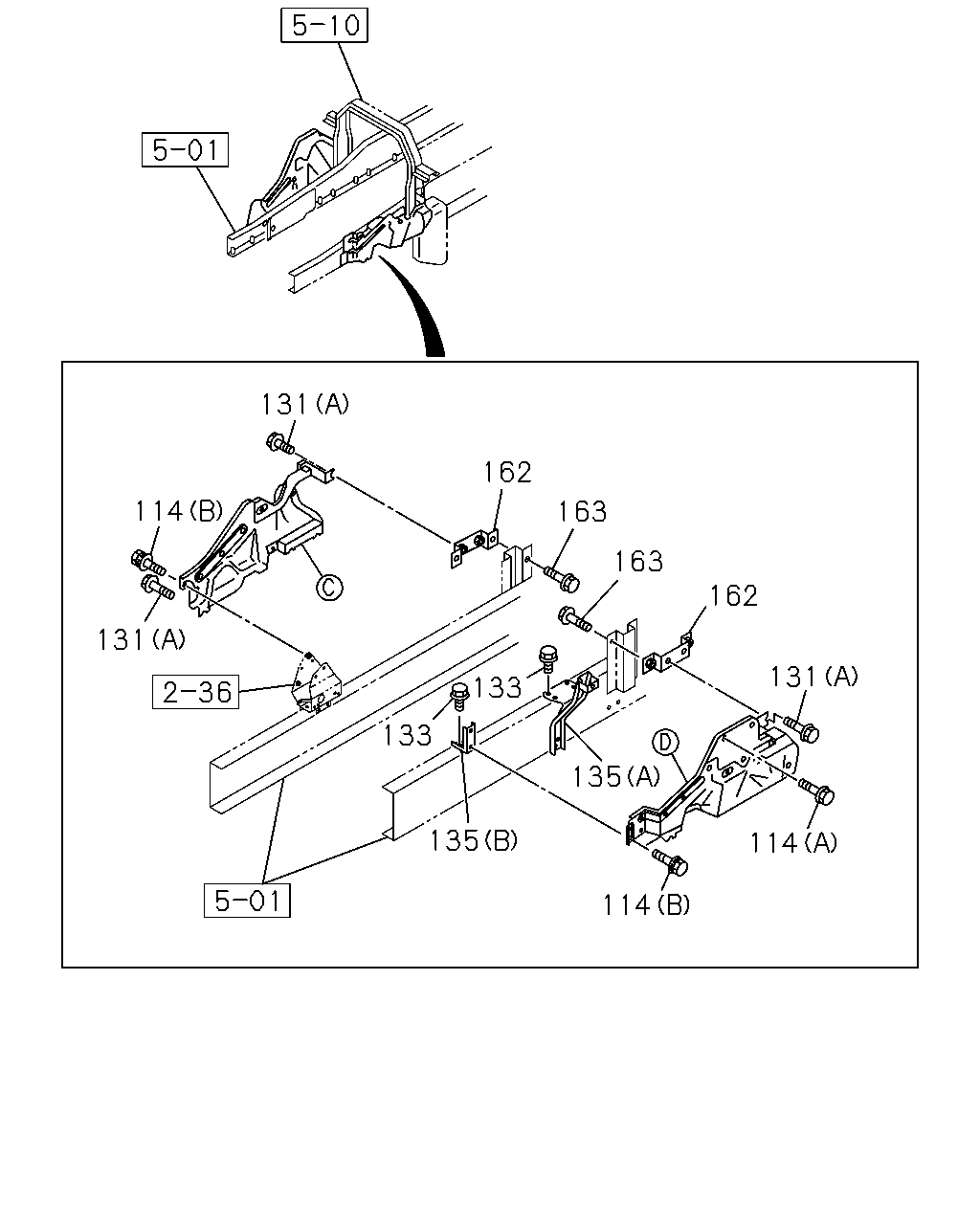

131 162 114 163 163 162 131 131 133 133 135 135 114 114

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
114	BOLT (A) M8X20 FLANGE	0-28680-820-0	05	1	0107-
114	BOLT (B) M8X22 W/LK&PL WASHER	1-09030-042-0	05	1	0107-
131	BOLT; PANEL (A) M8X25 W/LK&PL WASHER	1-09030-074-0	08	1	0107-
131	BOLT; PANEL IRELAND EQUIPMENT(NJY) (B) M8X20 FLANGE	0-28680-820-0	04	1	0107-
131	BOLT; PANEL IRELAND EQUIPMENT(NJY) (C) M8X25 FLANGE	0-28680-825-0	04	1	0107-
131	BOLT; PANEL IRELAND EQUIPMENT(NJY) (D) M8X30 FLANGE	0-28680-830-0	04	1	0107-
131	BOLT; PANEL IRELAND EQUIPMENT(NJY) (E) M8X22 W/LK&PL WASHER	1-09030-042-0	08	1	0107-
133	BOLT; FRAME M8X35 FLANGE	0-28680-835-0	04	1	0107-
135	BRACKET; SIDE PANEL (B)	1-53441-507-0	01	1	0107-
135	BRACKET; SIDE PANEL (A)	1-53441-598-1	01	1	0107-
162	BRACKET	1-53441-520-0	02	1	0107-
163	BOLT; BRKT M8X20 FLANGE	0-28680-820-0	04	1	0107-

281 185 130 259 249 249 130 259 281 185 130 130 259 281 185 185 249 185

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
130	PANEL; SHUTTER NOISE (B)	1-79937-960-4	01	1	0107-
130	PANEL; SHUTTER NOISE (C)	1-79937-969-3	01	1	0107-
130	PANEL; SHUTTER NOISE (C)	1-79937-919-2	01	1	0107-
130	PANEL; SHUTTER NOISE (B)	1-79937-959-2	01	1	0107-
130	PANEL; SHUTTER NOISE ANTI NOISE EQUIPMENT<SV9> EXC. BRAKE SYSTEM SPRING BRAKE(BCR) (D)	1-53192-790-5	01	1	0107-
130	PANEL; SHUTTER NOISE ANTI NOISE EQUIPMENT<SV9> EXC. BRAKE SYSTEM SPRING BRAKE(BCR) (A)	1-53192-782-7	01	1	0107-
130	PANEL; SHUTTER NOISE BRAKE SYSTEM SPRING BRAKE(BCR) EXC. IRELAND EQUIPMENT(NJY),ANTI NOISE EQUIPMENT<SV9> (F)	1-53193-333-2	01	1	0107-
130	PANEL; SHUTTER NOISE BRAKE SYSTEM SPRING BRAKE(BCR) EXC. IRELAND EQUIPMENT(NJY),ANTI NOISE EQUIPMENT<SV9> (E)	1-53193-332-2	01	1	0107-
130	PANEL; SHUTTER NOISE EXC. BRAKE SYSTEM SPRING BRAKE(BCR),ANTI NOISE EQUIPMENT<SV9> (F)	1-53193-329-1	01	1	0107-
130	PANEL; SHUTTER NOISE EXC. BRAKE SYSTEM SPRING BRAKE(BCR),ANTI NOISE EQUIPMENT<SV9> (E)	1-53193-328-1	01	1	0107-
130	PANEL; SHUTTER NOISE IRELAND EQUIPMENT(NJY) (D)	1-53193-200-3	01	1	0107-
130	PANEL; SHUTTER NOISE IRELAND EQUIPMENT(NJY) (A)	1-53193-207-4	01	1	0107-
185	CLIP; HEAT INSULATOR ID=6.2 L=11.4	8-97808-623-0	19	1	0107-
185	CLIP; HEAT INSULATOR ID=6.2 L=11.4	8-97808-623-0	06	1	0107-
185	CLIP; HEAT INSULATOR ID=6.2 L=11.4	8-97808-623-0	06	1	0107-
185	CLIP; HEAT INSULATOR ID=6.2 L=11.4	8-97808-623-0	09	1	0107-
249	RUBBER; SHUTTER (B)	1-79937-979-1	01	1	0107-
249	RUBBER; SHUTTER (C)	1-79937-981-1	01	1	0107-
249	RUBBER; SHUTTER (A)	1-79937-924-2	01	1	0107-
249	RUBBER; SHUTTER (D)	1-79937-966-2	01	1	0107-
249	RUBBER; SHUTTER (F)	1-79937-967-1	01	1	0107-
249	RUBBER; SHUTTER (E)	1-79937-965-1	01	1	0107-
259	BOLT; NOISE PANEL M8X24.5 W/LK&PL WASHER	8-94279-208-0	12	1	0107-
281	INSULATOR; NOISE (B)	1-71907-171-2	01	1	0107-
281	INSULATOR; NOISE (A)	1-71907-455-0	01	1	0107-
281	INSULATOR; NOISE (B)	1-71907-170-1	01	1	0107-
281	INSULATOR; NOISE MATTRESS SLEEPER CAB<E40> (C)	1-73237-445-4	01	1	0107-

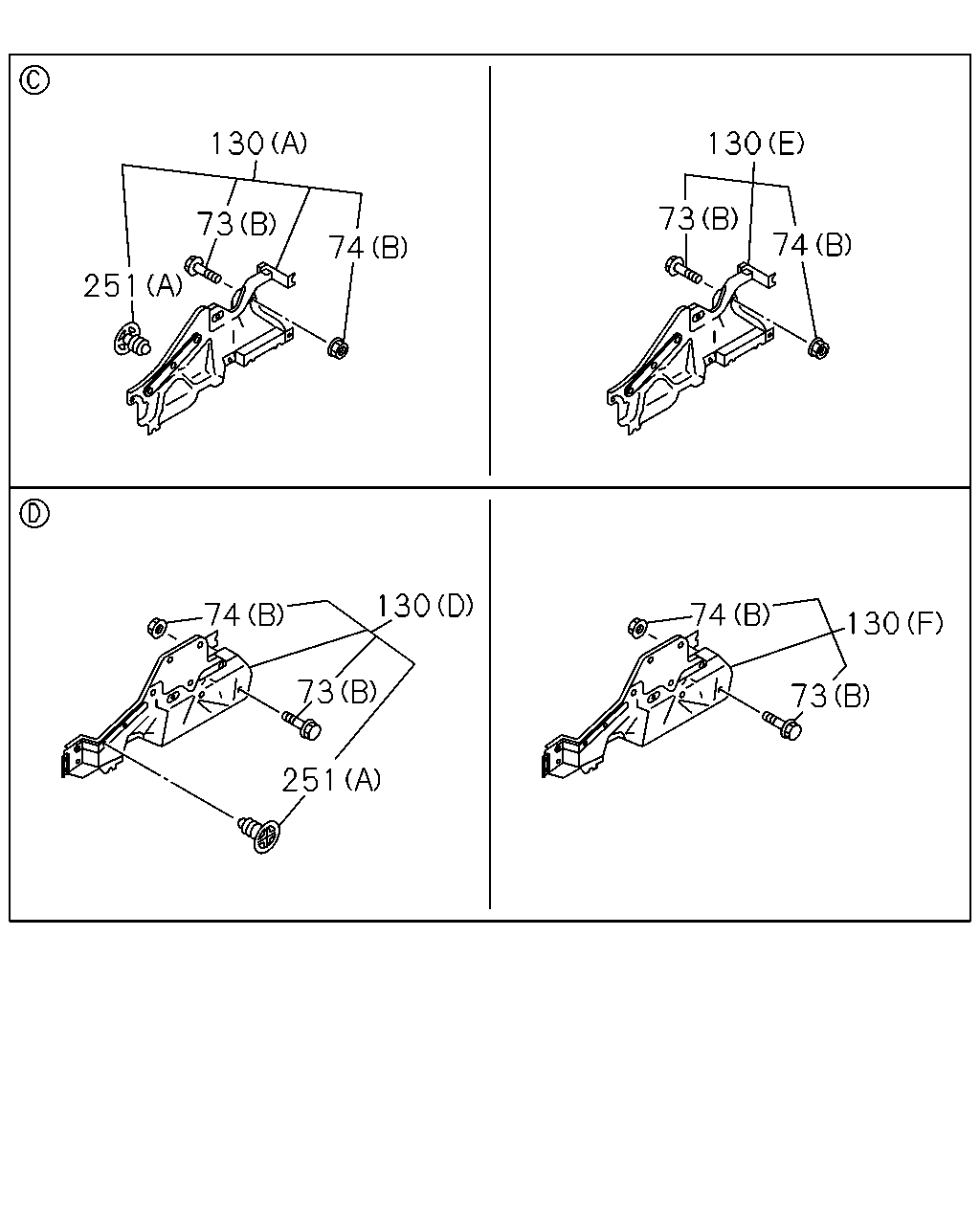

130 130 73 73 74 74 251 130 74 74 130 73 73 251

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
73	BOLT; MUD COVER BRKT (A) M8X25 W/LK&PL WASHER	1-09030-074-0	06	1	0107-
73	BOLT; MUD COVER BRKT IRELAND EQUIPMENT(NJY) (B) M8X16 FLANGE	0-28280-816-0	08	1	0107-
73	BOLT; MUD COVER BRKT BRAKE SYSTEM SPRING BRAKE(BCR) EXC. IRELAND EQUIPMENT(NJY),ANTI NOISE EQUIPMENT<SV9> (B) M8X16 FLANGE	0-28280-816-0	08	1	0107-
73	BOLT; MUD COVER BRKT EXC. BRAKE SYSTEM SPRING BRAKE(BCR) (B) M8X16 FLANGE	0-28280-816-0	08	1	0107-
74	NUT (A) M8 FLANGE	0-91150-108-0	06	1	0107-
74	NUT ANTI NOISE EQUIPMENT<SV9> EXC. BRAKE SYSTEM SPRING BRAKE(BCR) (B) M8 FLANGE	0-91150-108-0	02	1	0107-
74	NUT IRELAND EQUIPMENT(NJY) (B) M8 FLANGE	0-91150-108-0	02	1	0107-
74	NUT EXC. BRAKE SYSTEM SPRING BRAKE(BCR),ANTI NOISE EQUIPMENT<SV9> (B) M8 FLANGE	0-91150-108-0	03	1	0107-
74	NUT BRAKE SYSTEM SPRING BRAKE(BCR) EXC. IRELAND EQUIPMENT(NJY),ANTI NOISE EQUIPMENT<SV9> (B) M8 FLANGE	0-91150-108-0	03	1	0107-
130	PANEL; SHUTTER NOISE (B)	1-79937-960-4	01	1	0107-
130	PANEL; SHUTTER NOISE (C)	1-79937-969-3	01	1	0107-
130	PANEL; SHUTTER NOISE (C)	1-79937-919-2	01	1	0107-
130	PANEL; SHUTTER NOISE (B)	1-79937-959-2	01	1	0107-
130	PANEL; SHUTTER NOISE ANTI NOISE EQUIPMENT<SV9> EXC. BRAKE SYSTEM SPRING BRAKE(BCR) (D)	1-53192-790-5	01	1	0107-
130	PANEL; SHUTTER NOISE ANTI NOISE EQUIPMENT<SV9> EXC. BRAKE SYSTEM SPRING BRAKE(BCR) (A)	1-53192-782-7	01	1	0107-
130	PANEL; SHUTTER NOISE BRAKE SYSTEM SPRING BRAKE(BCR) EXC. IRELAND EQUIPMENT(NJY),ANTI NOISE EQUIPMENT<SV9> (F)	1-53193-333-2	01	1	0107-
130	PANEL; SHUTTER NOISE BRAKE SYSTEM SPRING BRAKE(BCR) EXC. IRELAND EQUIPMENT(NJY),ANTI NOISE EQUIPMENT<SV9> (E)	1-53193-332-2	01	1	0107-
130	PANEL; SHUTTER NOISE EXC. BRAKE SYSTEM SPRING BRAKE(BCR),ANTI NOISE EQUIPMENT<SV9> (F)	1-53193-329-1	01	1	0107-
130	PANEL; SHUTTER NOISE EXC. BRAKE SYSTEM SPRING BRAKE(BCR),ANTI NOISE EQUIPMENT<SV9> (E)	1-53193-328-1	01	1	0107-
130	PANEL; SHUTTER NOISE IRELAND EQUIPMENT(NJY) (D)	1-53193-200-3	01	1	0107-
130	PANEL; SHUTTER NOISE IRELAND EQUIPMENT(NJY) (A)	1-53193-207-4	01	1	0107-
251	CLIP; NOISE INSULATOR ANTI NOISE EQUIPMENT<SV9> EXC. BRAKE SYSTEM SPRING BRAKE(BCR) (A)	8-94279-048-0	14	1	0107-
251	CLIP; NOISE INSULATOR IRELAND EQUIPMENT(NJY) (A)	8-94279-048-0	14	1	0107-
251	CLIP; NOISE INSULATOR IRELAND EQUIPMENT(NJY) (B)	5-09987-033-0	23	1	0107-
251	CLIP; NOISE INSULATOR IRELAND EQUIPMENT(NJY) (C)	8-94279-048-0	51	1	0107-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
