Isuzu WW
▶
TRUCKS
▶
EXD
▶
10865 - EXD RHD FUEL TANK 400L/400L+200L
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶

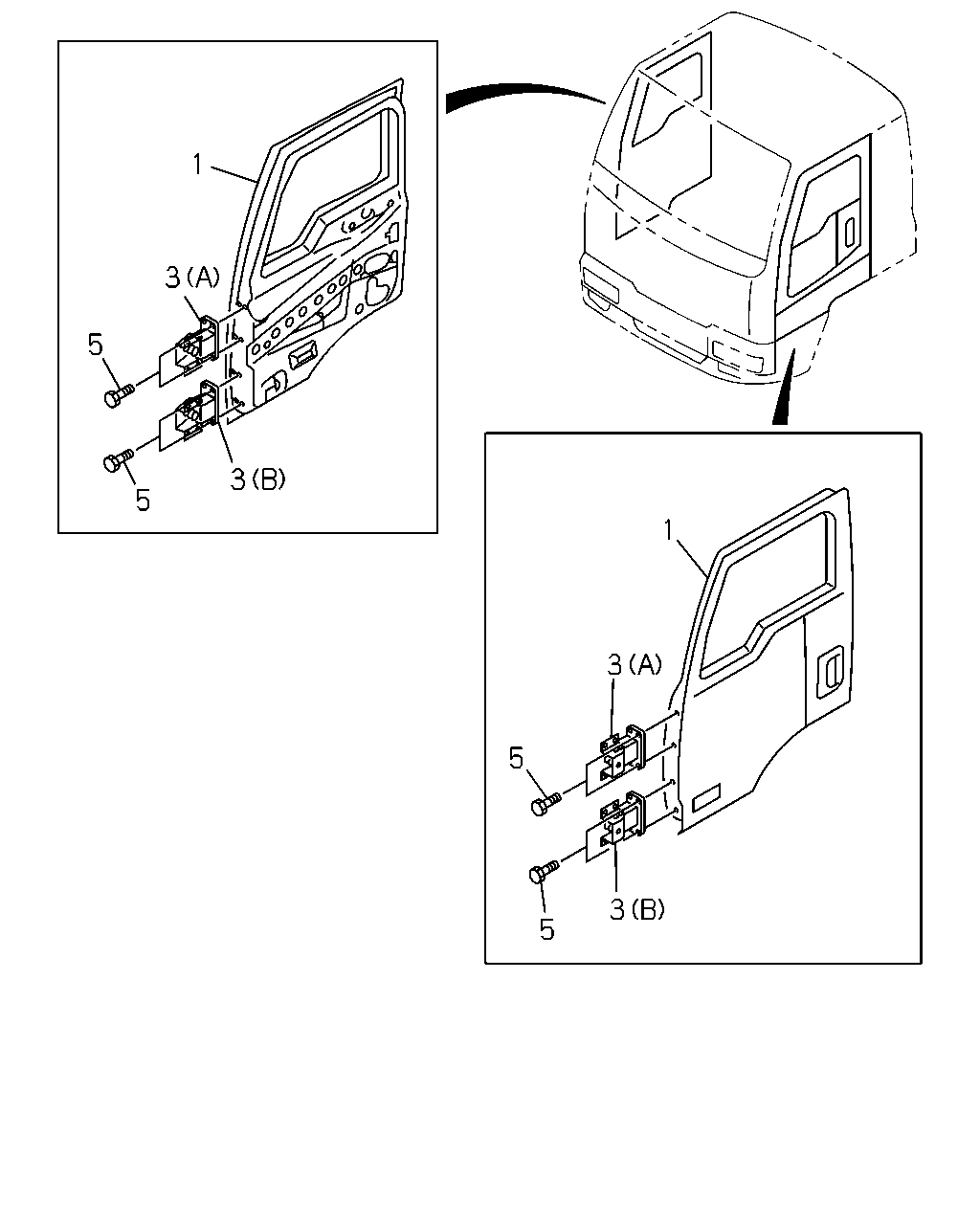

6-30 - FRONT DOOR AND HINGE
▶
6-30 — FRONT DOOR AND HINGE
(#10224) — 15 parça
1
3
5
3
5
1
3
5
3
5
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
DOOR ASM; FRT,WO/TRIM
IRELAND EQUIPMENT(NJY)
1-64080-394-2
01
1
0107-
1
DOOR ASM; FRT,WO/TRIM
IRELAND EQUIPMENT(NJY)
1-64080-395-2
01
1
0107-
1
DOOR ASM; FRT,WO/TRIM
EXC. IRELAND EQUIPMENT(NJY)
1-64080-390-2
01
1
0107-
1
DOOR ASM; FRT,WO/TRIM
MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>
1-64080-391-2
01
1
0107-
1
DOOR ASM; FRT,WO/TRIM
EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>, IRELAND EQUIPMENT(NJY)
1-64080-392-2
01
1
0107-
3
HINGE; DOOR FRT
IRELAND EQUIPMENT(NJY) (B) LOWER
1-64780-090-2
02
1
0107-
3
HINGE; DOOR FRT
IRELAND EQUIPMENT(NJY) (A) UPPER
1-64780-091-2
02
1
0107-
3
HINGE; DOOR FRT
EXC. IRELAND EQUIPMENT(NJY) (A) UPPER
1-64780-088-3
01
1
0107-
3
HINGE; DOOR FRT
EXC. IRELAND EQUIPMENT(NJY) (A) UPPER
1-64780-088-3
01
1
0107-
3
HINGE; DOOR FRT
EXC. IRELAND EQUIPMENT(NJY) (B) LOWER
1-64780-089-3
01
1
0107-
3
HINGE; DOOR FRT
EXC. IRELAND EQUIPMENT(NJY) (B) LOWER
1-64780-089-3
01
1
0107-
5
BOLT; HINGE
M8X29.5 W/LK+PL WASHER
8-94279-209-0
16
1
0107-
5
BOLT; HINGE
IRELAND EQUIPMENT(NJY) M8X29.5 W/LK+PL WASHER
8-94279-209-0
16
1
0107-
5
BOLT; HINGE
EXC. IRELAND EQUIPMENT(NJY) M8X29.5 W/LK+PL WASHER
8-94279-209-0
08
1
0107-
5
BOLT; HINGE
EXC. IRELAND EQUIPMENT(NJY) M8X29.5 W/LK+PL WASHER
8-94279-209-0
08
1
0107-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
