Isuzu WW
▶
TRUCKS
▶
EXR
▶
10868 - EXR LHD FUEL TANK 400L
▶
5 - Frame, Cab Mounting
▶
5-20 - BATTERY CARRIER
▶

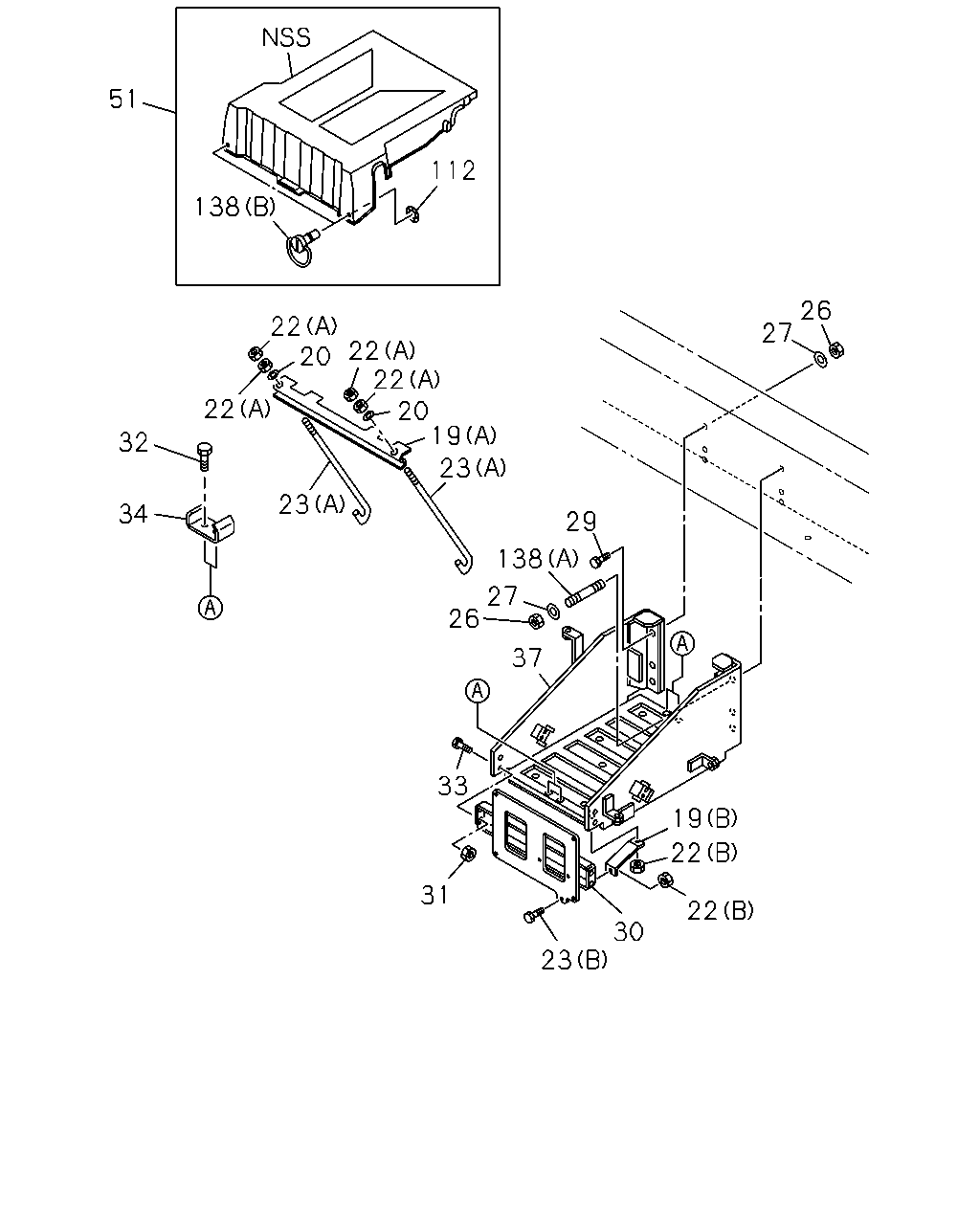

5-20 — BATTERY CARRIER
(#10216) — 23 parça
51
112
138
26
27
22
22
20
22
20
19
23
22
32
23
34
29
138
27
26
37
33
19
22
31
22
30
23
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
19
STAY; BATTERY
(A)
1-53618-039-2
01
1
0105-
19
STAY; BATTERY
(B)
1-53618-061-0
01
1
0105-
20
WASHER; PL,STAY
ID=8.4 OD=22
9-09164-708-0
02
1
0105-
22
NUT; STAY
(B) M8 FLANGE
0-91150-108-0
02
1
0105-
22
NUT; STAY
(A) M8
9-09110-408-0
04
1
0105-
23
BOLT; STAY
(B) M8X20 FLANGE
0-28680-820-0
01
1
0105-
23
BOLT; STAY
(A) L=250
1-53616-108-0
02
1
0105-
26
NUT; BRKT
M14
9-99110-514-0
04
1
0105-
27
WASHER; LK,BRKT
ID=14.2
9-09150-514-0
04
1
0105-
29
BOLT; BRKT TO FRAME
M14X40
0-20801-440-0
02
1
0105-
30
PLATE; BATTERY
1-53619-128-1
01
1
0105-
31
NUT; PLATE
M8 FLANGE
0-91150-108-0
02
1
0204-
32
BOLT; PLATE TO SPACER
EXC. BATTERY 145G51 N150<SJ8>,BATTERY 165G51 NS200<SQ4> M8X16 FLANGE
0-28080-816-0
04
1
0105-
33
BOLT; PLATE TO BRKT
M8X16 FLANGE
0-28080-816-0
04
1
0105-
34
SPACER; BATTERY BRKT
EXC. BATTERY 145G51 N150<SJ8>,BATTERY 165G51 NS200<SQ4>
1-53619-084-0
02
1
0105-
37
BRACKET; BATTERY
1-53610-152-0
01
1
0105-0105
37
BRACKET; BATTERY
1-53610-153-0
01
1
0106-
51
COVER; BATTERY
1-53612-065-1
01
1
0105-0105
51
COVER; BATTERY
1-53612-067-0
01
1
0106-
112
RETAINER; BATTERY
1-53616-139-0
02
1
0105-
138
STUD
(A) M14X48 L=75
1-09300-094-0
02
1
0105-
138
STUD
(B)
1-53616-137-0
02
1
0105-0105
138
STUD
(B)
1-53616-142-0
02
1
0106-
