5-16 — OIL PUMP; CAB TILT (#10214) — 109 parça

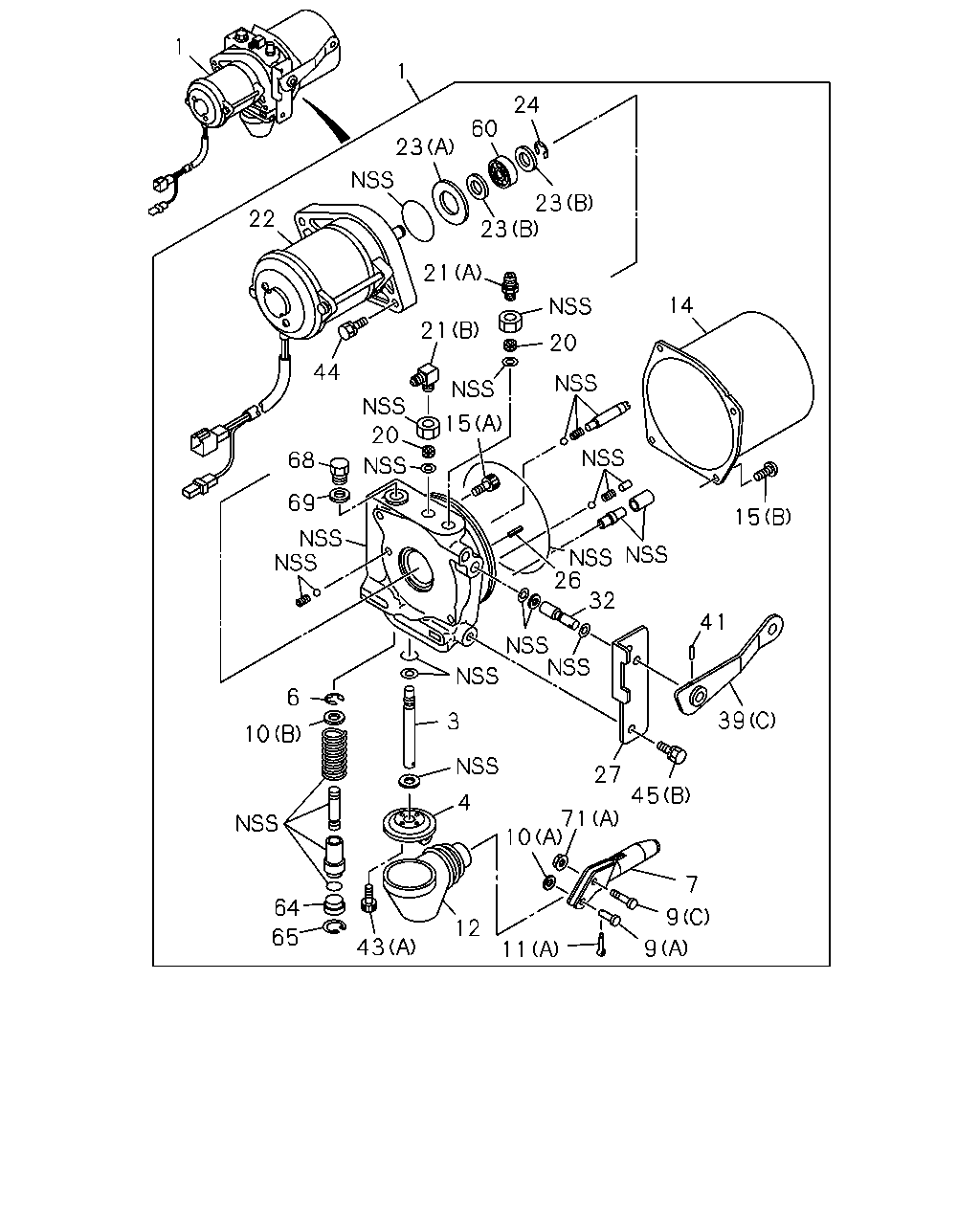

çizim 19819
1 24 60 23 23 23 22 21 14 21 20 15 20 44 26 32 68 69 15 41 39 6 3 10 27 45 71 10 4 7 9 9 64 65 12 43 11
BalonParca AdiParca NoAdetTipApplied Date
1 PUMP; OIL,CAB TILT
AUTO CAB TILT<WV2> 		1-53458-965-0 01 1 0105-
1 PUMP; OIL,CAB TILT
MANUAL CAB TILT<SHK> 		1-53458-916-0 01 1 0105-
3 PISTON; MANUAL
AUTO CAB TILT<WV2> 		1-53458-842-0 01 1 0105-
4 BRACKET; OIL PUMP
AUTO CAB TILT<WV2> 		1-53458-566-0 01 1 0105-
6 RING; SNAP
AUTO CAB TILT<WV2> 		1-53458-411-0 01 1 0105-
7 SOCKET; OIL PUMP
AUTO CAB TILT<WV2> 		1-53458-724-1 01 1 0105-
9 PIN; OIL PUMP
AUTO CAB TILT<WV2> (B) L=27.7 		1-09987-141-0 02 1 0105-
9 PIN; OIL PUMP
AUTO CAB TILT<WV2> (A) 		1-53458-060-0 01 1 0105-
9 PIN; OIL PUMP
AUTO CAB TILT<WV2> (C) 		1-53458-844-0 01 1 0105-
10 WASHER; OIL PUMP
AUTO CAB TILT<WV2> (A) 		1-53458-013-0 01 1 0105-
10 WASHER; OIL PUMP
AUTO CAB TILT<WV2> (B) 		1-53458-561-0 01 1 0105-
10 WASHER; OIL PUMP
AUTO CAB TILT<WV2> (C) ID=8.4 OD=22 		9-09160-708-0 02 1 0105-
11 PIN; SPLIT,OIL PUMP
AUTO CAB TILT<WV2> (A) 		1-53458-058-0 01 1 0105-
11 PIN; SPLIT,OIL PUMP
AUTO CAB TILT<WV2> (B) OD=8 L=17 		9-08223-817-0 02 1 0105-
12 BOOT; OIL PUMP
AUTO CAB TILT<WV2> 		1-53458-560-0 01 1 0105-
14 RESERVOIR; OIL PUMP
AUTO CAB TILT<WV2> 		1-53458-432-0 01 1 0105-
15 BOLT; RESERVOIR
AUTO CAB TILT<WV2> (B) M5X8 		1-53458-005-0 04 1 0105-
15 BOLT; RESERVOIR
AUTO CAB TILT<WV2> (A) M5X8 		1-53458-433-0 02 1 0105-
20 FILTER; OIL PUMP
AUTO CAB TILT<WV2> 		1-53458-048-0 02 1 0105-
21 CONNECTOR; OIL PUMP
AUTO CAB TILT<WV2> (B) 		1-53457-026-0 01 1 0105-
21 CONNECTOR; OIL PUMP
AUTO CAB TILT<WV2> (A) M12 		1-53458-941-0 01 1 0105-
22 MOTOR; OIL PUMP
AUTO CAB TILT<WV2> 		1-53458-731-0 01 1 0105-
23 WASHER; MOTOR
AUTO CAB TILT<WV2> (A) 		1-53458-018-0 01 1 0105-
23 WASHER; MOTOR
AUTO CAB TILT<WV2> (B) 		1-53458-045-0 02 1 0105-
24 RING; SNAP,MOTOR
AUTO CAB TILT<WV2> 		1-53458-044-0 01 1 0105-
26 PIN; SPR,OIL PUMP
AUTO CAB TILT<WV2> 		1-53458-038-0 01 1 0105-
27 COVER; OIL PUMP
AUTO CAB TILT<WV2> 		1-53458-725-0 01 1 0105-
32 VALVE; OIL PUMP
AUTO CAB TILT<WV2> 		1-53458-569-0 01 1 0105-
39 LEVER; OIL PUMP
AUTO CAB TILT<WV2> (C) 		1-53458-723-0 01 1 0105-
39 LEVER; OIL PUMP
AUTO CAB TILT<WV2> (A) 		1-53458-779-1 01 1 0105-
39 LEVER; OIL PUMP
AUTO CAB TILT<WV2> (B) 		1-53458-872-0 01 1 0105-
41 PIN; SPR,LEVER
AUTO CAB TILT<WV2> 		1-53458-019-0 01 1 0105-
43 BOLT; LEVER
AUTO CAB TILT<WV2> (B) M8X20 FLANGE 		0-28680-820-0 01 1 0105-
43 BOLT; LEVER
AUTO CAB TILT<WV2> (C) M10X25 FLANGE 		0-28681-025-0 01 1 0105-
43 BOLT; LEVER
AUTO CAB TILT<WV2> (A) M5X12 		1-53458-420-0 02 1 0105-
44 BOLT; MOTOR
AUTO CAB TILT<WV2> M6X20 		1-53458-007-0 02 1 0105-
45 BOLT; COVER
(A) M8X20 FLANGE 		0-28680-820-0 01 1 0105-0107
45 BOLT; COVER
(A) M8X20 FLANGE 		0-28680-820-0 01 1 0105-0105
45 BOLT; COVER
MANUAL CAB TILT<SHK> (A) M8X20 FLANGE 		0-28680-820-0 01 1 0105-0105
45 BOLT; COVER
MANUAL CAB TILT<SHK> (A) M8X20 FLANGE 		0-28680-820-0 02 1 0105-0107
45 BOLT; COVER
(A) M8X20 FLANGE 		0-28680-820-0 02 1 0108-
45 BOLT; COVER
MANUAL CAB TILT<SHK> (A) M8X20 FLANGE 		0-28680-820-0 02 1 0108-
45 BOLT; COVER
(A) M8X25 FLANGE 		0-28680-825-0 01 1 0105-0107
45 BOLT; COVER
AUTO CAB TILT<WV2> (B) M6X8 		1-53458-004-0 02 1 0105-
60 BEARING; OIL PUMP
AUTO CAB TILT<WV2> 		1-53458-423-0 01 1 0105-
64 SLEEVE; OIL PUMP
AUTO CAB TILT<WV2> 		1-53458-572-0 01 1 0105-
65 RING; SNAP,SLEEVE
AUTO CAB TILT<WV2> 		1-53458-570-0 01 1 0105-
68 PLUG; FILLER
AUTO CAB TILT<WV2> 		1-53458-428-0 01 1 0105-
69 GASKET; FILLER PLUG
AUTO CAB TILT<WV2> 		1-53458-427-0 01 1 0105-
71 NUT; PUSH
AUTO CAB TILT<WV2> (A) 		1-53458-845-0 01 1 0105-
71 NUT; PUSH
AUTO CAB TILT<WV2> (B) ID=9.9 PUSH NUT 		8-97022-566-0 01 1 0105-

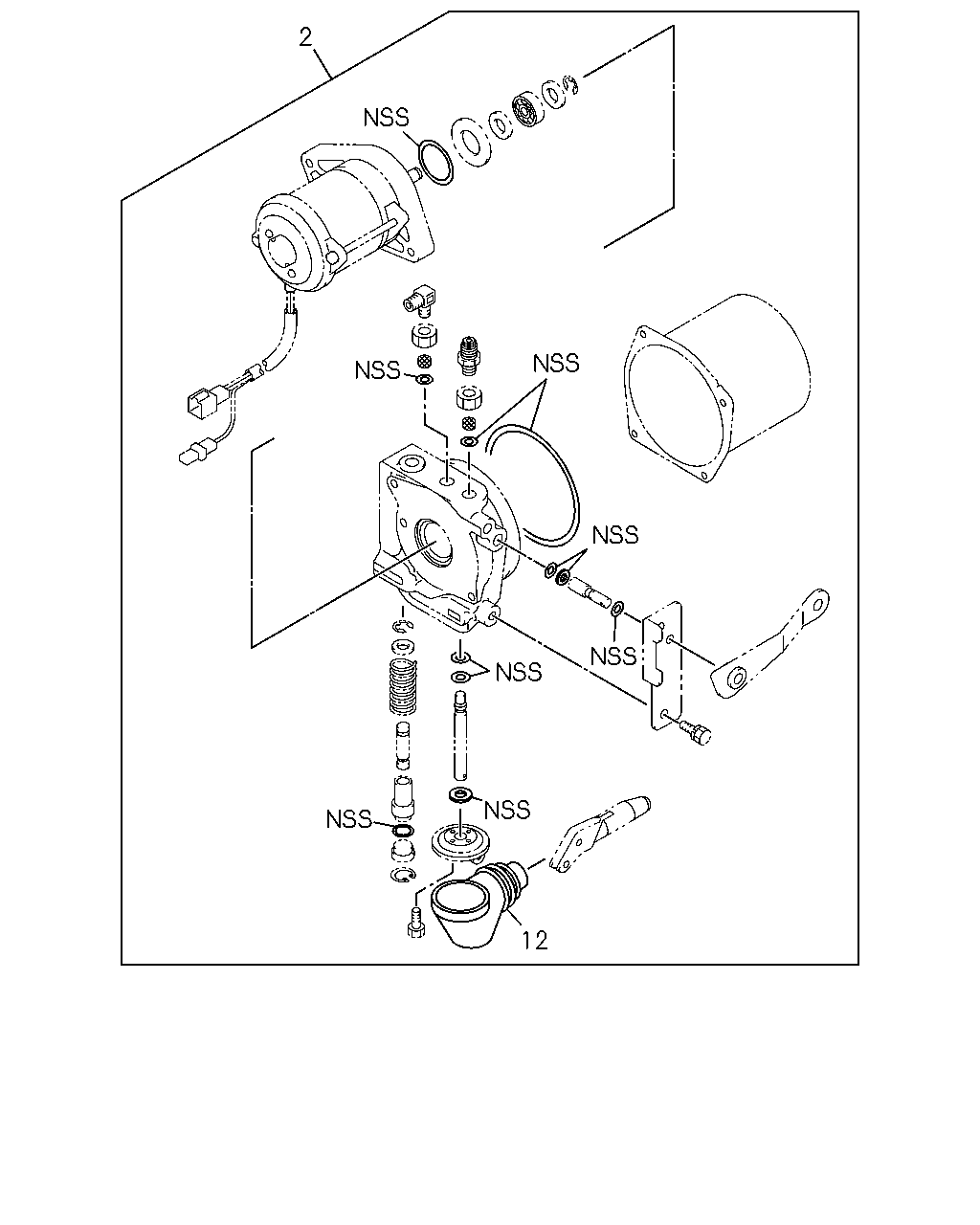

çizim 19821
2 12
BalonParca AdiParca NoAdetTipApplied Date
2 REPAIR KIT; OIL PUMP
AUTO CAB TILT<WV2> 		1-85579-058-0 01 1 0105-
12 BOOT; OIL PUMP
AUTO CAB TILT<WV2> 		1-53458-560-0 01 1 0105-

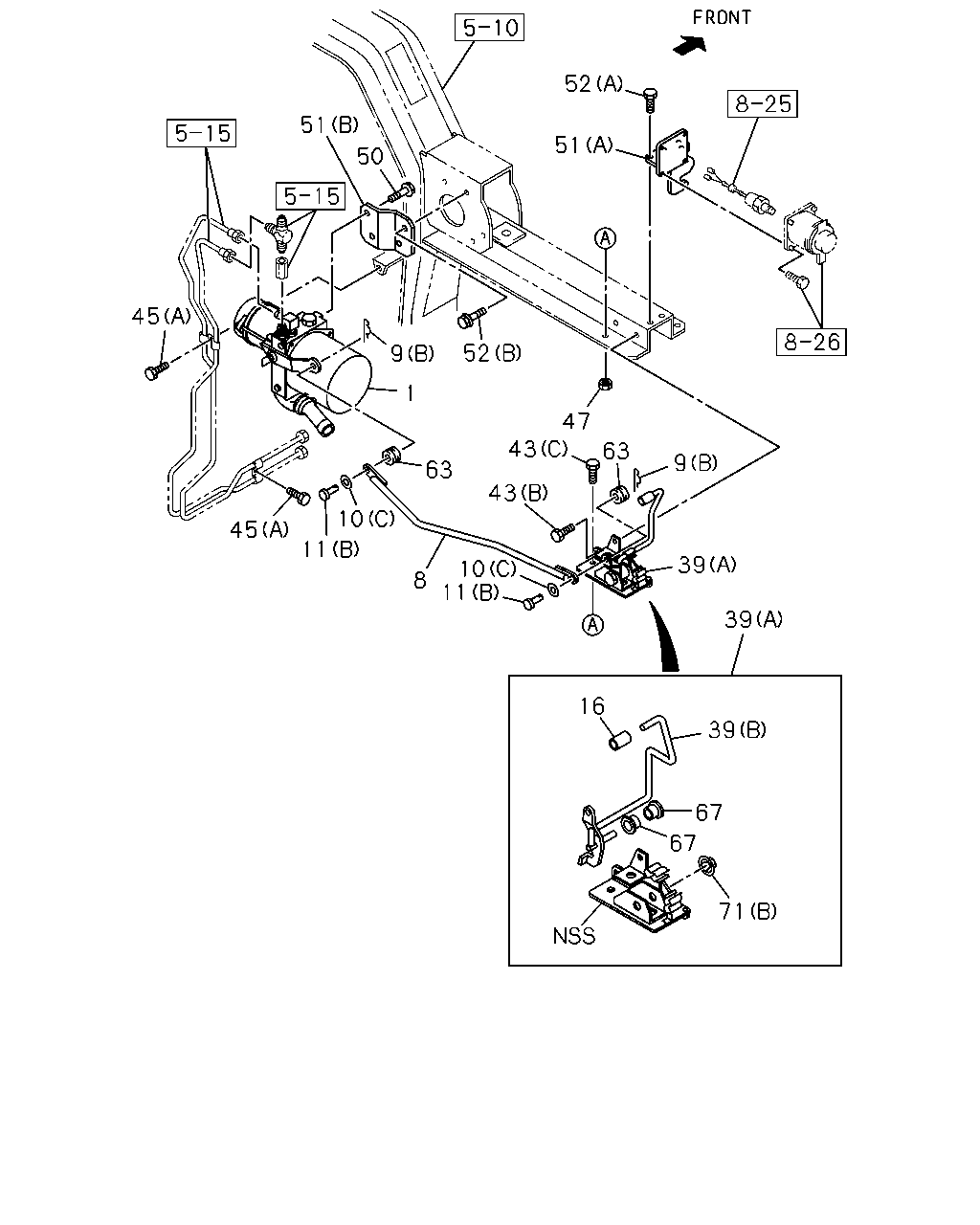

çizim 76861
52 51 50 51 45 52 9 1 47 43 63 9 63 10 45 11 43 39 10 11 8 39 16 39 67 67 71
BalonParca AdiParca NoAdetTipApplied Date
1 PUMP; OIL,CAB TILT
AUTO CAB TILT<WV2> 		1-53458-965-0 01 1 0105-
1 PUMP; OIL,CAB TILT
MANUAL CAB TILT<SHK> 		1-53458-916-0 01 1 0105-
8 LINK; OIL PUMP
AUTO CAB TILT<WV2> 		1-53458-929-0 01 1 0105-
9 PIN; OIL PUMP
AUTO CAB TILT<WV2> (B) L=27.7 		1-09987-141-0 02 1 0105-
9 PIN; OIL PUMP
AUTO CAB TILT<WV2> (A) 		1-53458-060-0 01 1 0105-
9 PIN; OIL PUMP
AUTO CAB TILT<WV2> (C) 		1-53458-844-0 01 1 0105-
10 WASHER; OIL PUMP
AUTO CAB TILT<WV2> (A) 		1-53458-013-0 01 1 0105-
10 WASHER; OIL PUMP
AUTO CAB TILT<WV2> (B) 		1-53458-561-0 01 1 0105-
10 WASHER; OIL PUMP
AUTO CAB TILT<WV2> (C) ID=8.4 OD=22 		9-09160-708-0 02 1 0105-
11 PIN; SPLIT,OIL PUMP
AUTO CAB TILT<WV2> (A) 		1-53458-058-0 01 1 0105-
11 PIN; SPLIT,OIL PUMP
AUTO CAB TILT<WV2> (B) OD=8 L=17 		9-08223-817-0 02 1 0105-
16 CAP
AUTO CAB TILT<WV2> ID=9.0 		8-94207-303-0 01 1 0105-
39 LEVER; OIL PUMP
AUTO CAB TILT<WV2> (C) 		1-53458-723-0 01 1 0105-
39 LEVER; OIL PUMP
AUTO CAB TILT<WV2> (A) 		1-53458-779-1 01 1 0105-
39 LEVER; OIL PUMP
AUTO CAB TILT<WV2> (B) 		1-53458-872-0 01 1 0105-
43 BOLT; LEVER
AUTO CAB TILT<WV2> (B) M8X20 FLANGE 		0-28680-820-0 01 1 0105-
43 BOLT; LEVER
AUTO CAB TILT<WV2> (C) M10X25 FLANGE 		0-28681-025-0 01 1 0105-
43 BOLT; LEVER
AUTO CAB TILT<WV2> (A) M5X12 		1-53458-420-0 02 1 0105-
45 BOLT; COVER
(A) M8X20 FLANGE 		0-28680-820-0 01 1 0105-0107
45 BOLT; COVER
(A) M8X20 FLANGE 		0-28680-820-0 01 1 0105-0105
45 BOLT; COVER
MANUAL CAB TILT<SHK> (A) M8X20 FLANGE 		0-28680-820-0 01 1 0105-0105
45 BOLT; COVER
MANUAL CAB TILT<SHK> (A) M8X20 FLANGE 		0-28680-820-0 02 1 0105-0107
45 BOLT; COVER
(A) M8X20 FLANGE 		0-28680-820-0 02 1 0108-
45 BOLT; COVER
MANUAL CAB TILT<SHK> (A) M8X20 FLANGE 		0-28680-820-0 02 1 0108-
45 BOLT; COVER
(A) M8X25 FLANGE 		0-28680-825-0 01 1 0105-0107
45 BOLT; COVER
AUTO CAB TILT<WV2> (B) M6X8 		1-53458-004-0 02 1 0105-
47 NUT; LEVER
AUTO CAB TILT<WV2> M10 FLANGE 		0-91150-210-0 01 1 0105-
50 BOLT; OIL PUMP
AUTO CAB TILT<WV2> M10X16 FLANGE 		0-28081-016-0 02 1 0105-
50 BOLT; OIL PUMP
MANUAL CAB TILT<SHK> M10X30 FLANGE 		0-28681-030-0 02 1 0105-
51 BRACKET; OIL PUMP
AUTO CAB TILT<WV2> (B) 		1-53458-666-0 01 1 0105-
51 BRACKET; OIL PUMP
AUTO CAB TILT<WV2> (A) 		1-53458-781-0 01 1 0105-
51 BRACKET; OIL PUMP
MANUAL CAB TILT<SHK> (C) 		1-53457-023-0 01 1 0105-
52 BOLT; BRKT
AUTO CAB TILT<WV2> (B) M10X25 FLANGE 		0-28681-025-0 02 1 0105-
52 BOLT; BRKT
MANUAL CAB TILT<SHK>,AUTO CAB TILT<WV2> (A) M8X20 FLANGE 		0-28680-820-0 02 1 0105-
63 GROMMET
AUTO CAB TILT<WV2> ID=10 OD=23 T=8 		1-09983-010-0 02 1 0105-
67 BUSHING
AUTO CAB TILT<WV2> T=6 OD=17.5 		9-33659-249-0 02 1 0105-
71 NUT; PUSH
AUTO CAB TILT<WV2> (A) 		1-53458-845-0 01 1 0105-
71 NUT; PUSH
AUTO CAB TILT<WV2> (B) ID=9.9 PUSH NUT 		8-97022-566-0 01 1 0105-

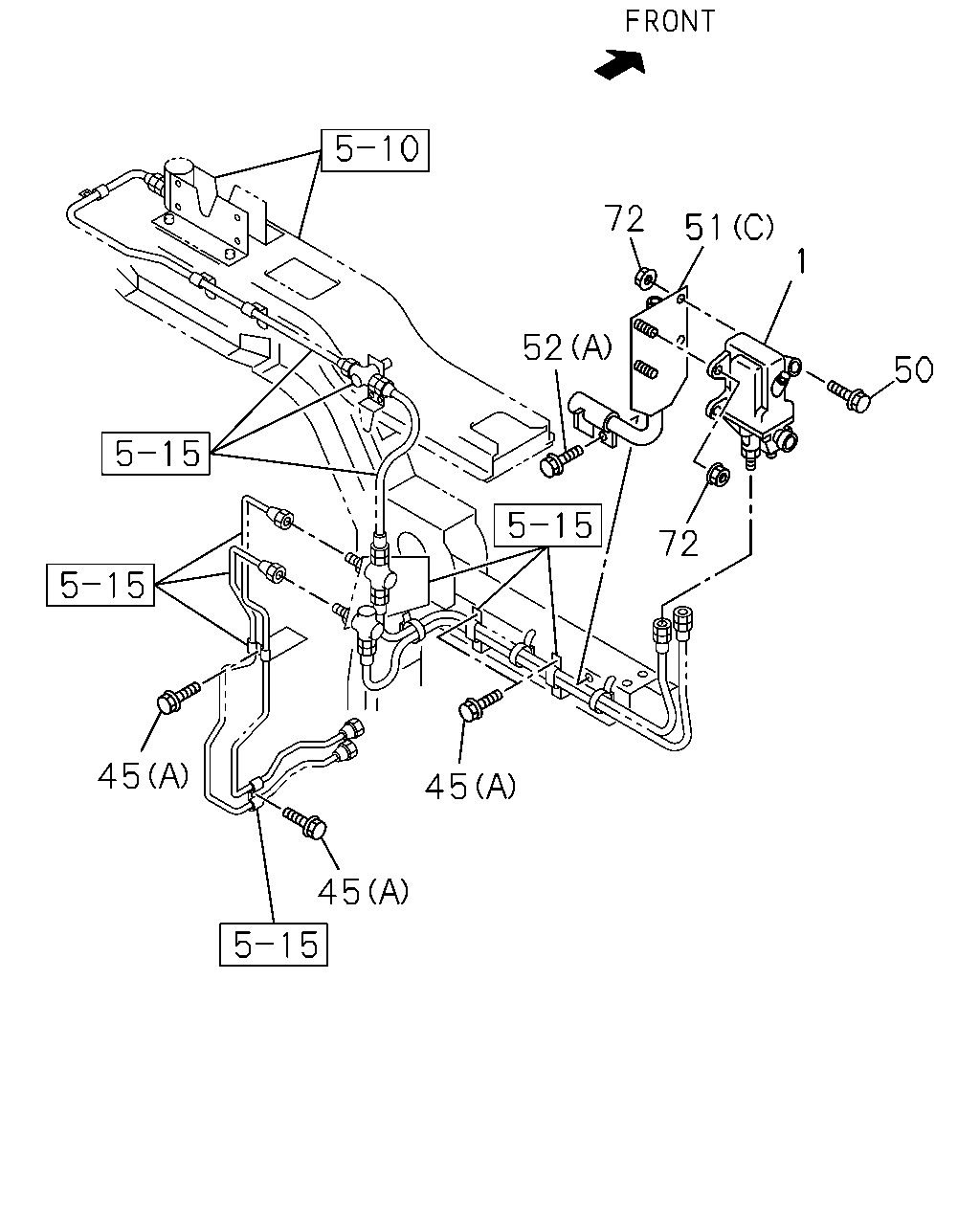

çizim 78412
72 51 1 52 50 72 45 45 45
BalonParca AdiParca NoAdetTipApplied Date
1 PUMP; OIL,CAB TILT
AUTO CAB TILT<WV2> 		1-53458-965-0 01 1 0105-
1 PUMP; OIL,CAB TILT
MANUAL CAB TILT<SHK> 		1-53458-916-0 01 1 0105-
45 BOLT; COVER
(A) M8X20 FLANGE 		0-28680-820-0 01 1 0105-0107
45 BOLT; COVER
(A) M8X20 FLANGE 		0-28680-820-0 01 1 0105-0105
45 BOLT; COVER
MANUAL CAB TILT<SHK> (A) M8X20 FLANGE 		0-28680-820-0 01 1 0105-0105
45 BOLT; COVER
MANUAL CAB TILT<SHK> (A) M8X20 FLANGE 		0-28680-820-0 02 1 0105-0107
45 BOLT; COVER
(A) M8X20 FLANGE 		0-28680-820-0 02 1 0108-
45 BOLT; COVER
MANUAL CAB TILT<SHK> (A) M8X20 FLANGE 		0-28680-820-0 02 1 0108-
45 BOLT; COVER
(A) M8X25 FLANGE 		0-28680-825-0 01 1 0105-0107
45 BOLT; COVER
AUTO CAB TILT<WV2> (B) M6X8 		1-53458-004-0 02 1 0105-
50 BOLT; OIL PUMP
AUTO CAB TILT<WV2> M10X16 FLANGE 		0-28081-016-0 02 1 0105-
50 BOLT; OIL PUMP
MANUAL CAB TILT<SHK> M10X30 FLANGE 		0-28681-030-0 02 1 0105-
51 BRACKET; OIL PUMP
AUTO CAB TILT<WV2> (B) 		1-53458-666-0 01 1 0105-
51 BRACKET; OIL PUMP
AUTO CAB TILT<WV2> (A) 		1-53458-781-0 01 1 0105-
51 BRACKET; OIL PUMP
MANUAL CAB TILT<SHK> (C) 		1-53457-023-0 01 1 0105-
52 BOLT; BRKT
AUTO CAB TILT<WV2> (B) M10X25 FLANGE 		0-28681-025-0 02 1 0105-
52 BOLT; BRKT
MANUAL CAB TILT<SHK>,AUTO CAB TILT<WV2> (A) M8X20 FLANGE 		0-28680-820-0 02 1 0105-
72 NUT; OIL PUMP
MANUAL CAB TILT<SHK> M10 FLANGE 		0-91150-210-0 04 1 0105-
