5-01 — FRAME AND OTHER PARTS
(#10211) — 58 parça
◀

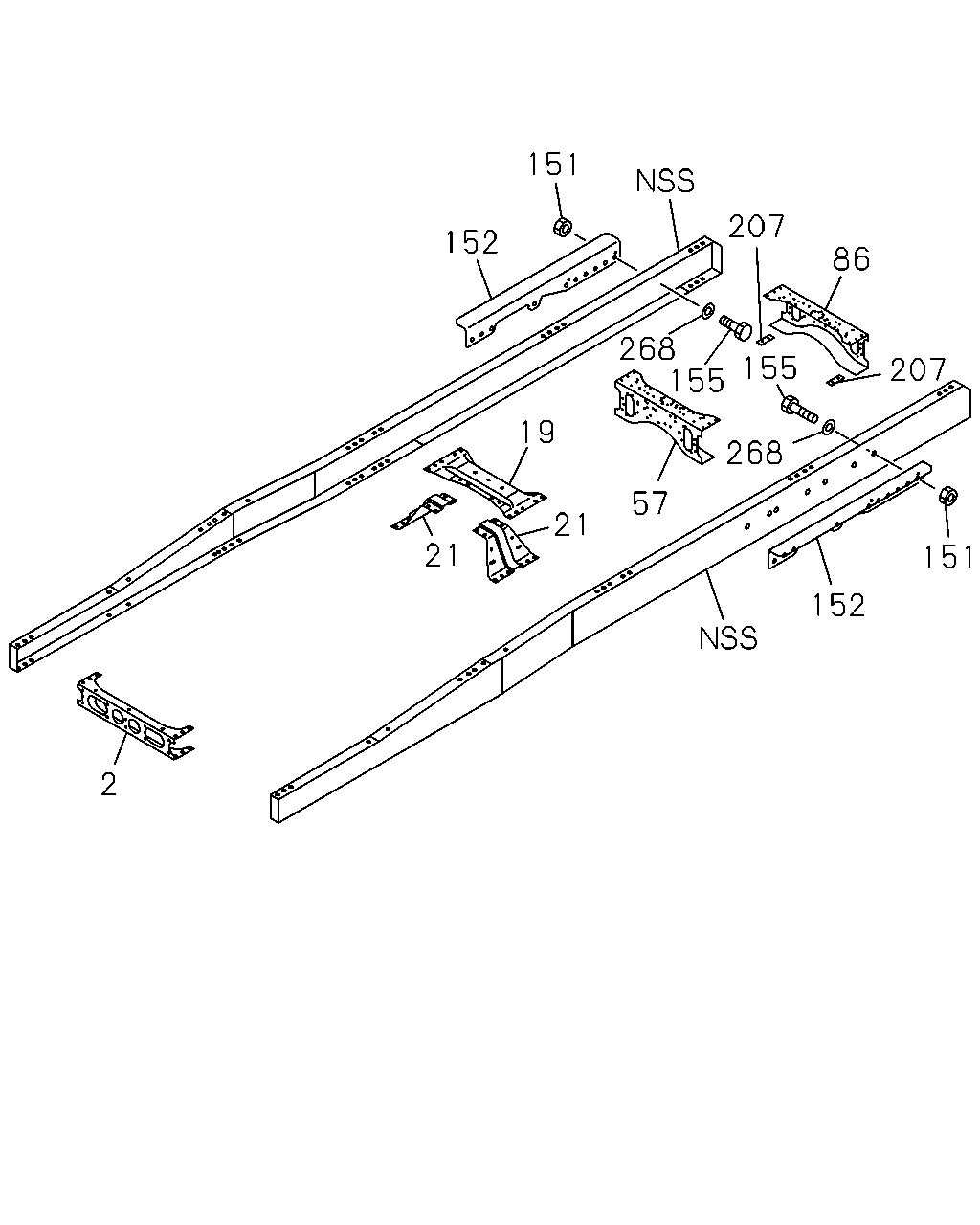

[501A] CROSS MEMBER AND OUTRIGGER (11 parça)

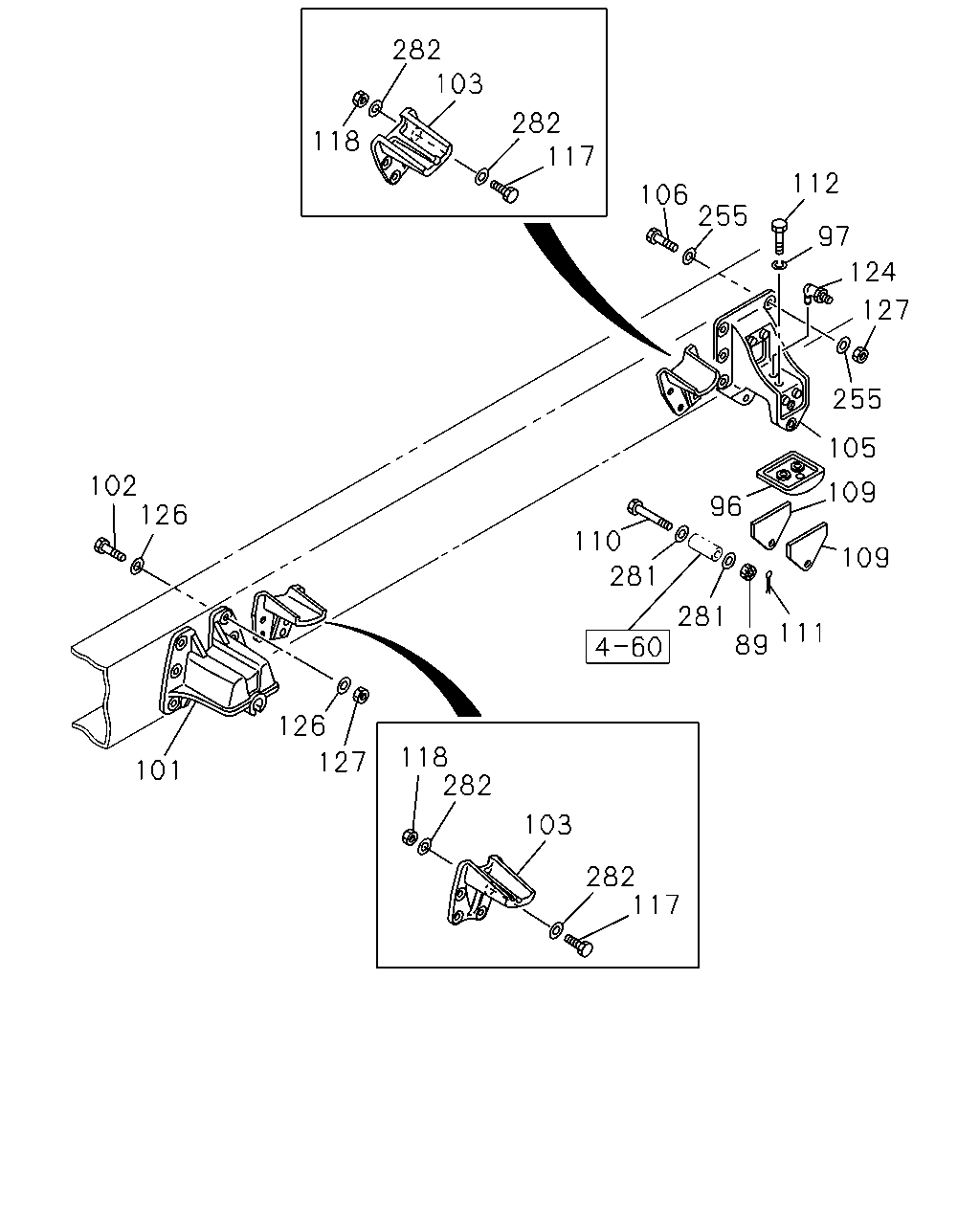

[501A] BRACKET;REAR (22 parça)

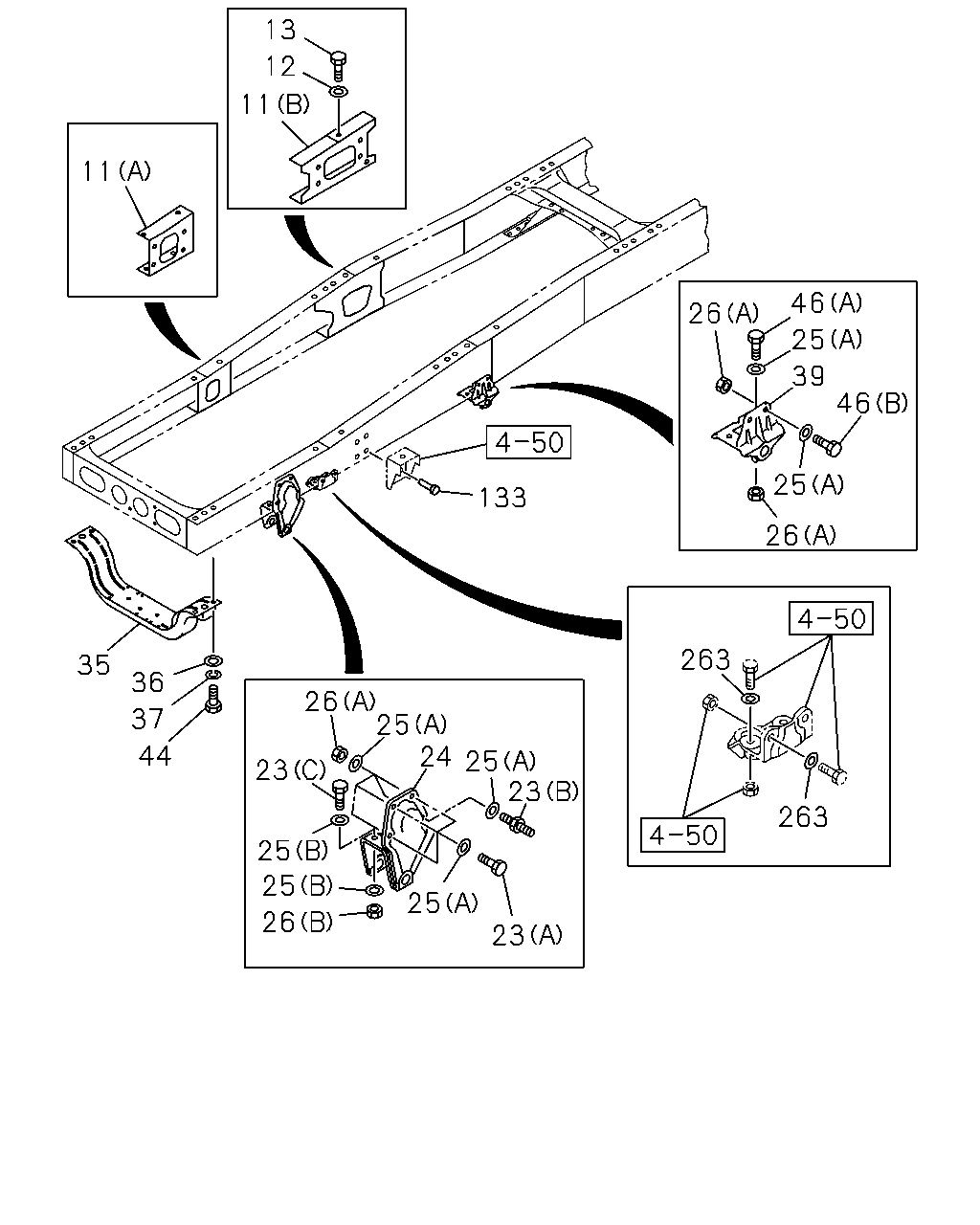

[501A] BRACKET;FRONT AND UNDER MEMBER (25 parça)
▶
151
207
152
86
268
155
268
155
207
19
57
21
21
151
152
2
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
MEMBER; CROSS,1ST
1-53181-526-4
01
1
0105-
19
MEMBER; CROSS,2ND
1-53174-231-1
01
1
0105-
21
GUSSET; 2ND CROSS
1-53164-212-0
02
1
0105-
57
MEMBER; CROSS,RR SUSP FRT
1-53181-319-8
01
1
0105-
86
MEMBER; CROSS,RR SUSP RR
1-53181-319-8
01
1
0105-
151
NUT; OUTRIGGER
M16
9-99110-516-0
AR
1
0105-
152
OUTRIGGER
1-53456-298-2
01
1
0105-
152
OUTRIGGER
1-53456-299-2
01
1
0105-
155
BOLT; OUTRIGGER
M16X50
9-92061-650-0
AR
1
0105-
207
SPACER; 4TH C/MBR
1-53168-171-1
02
1
0105-
268
WASHER; PL,OUTRIGGER
ID=17 OD=30
9-09851-935-0
AR
1
0105-
282
103
282
117
118
112
106
255
97
124
127
255
105
102
126
109
96
110
109
281
281
111
89
126
118
282
127
101
103
282
117
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
89
NUT; LEAF SPR STOPPER
M14
9-99116-414-0
AR
1
0105-
96
PAD; RR SPR
1-53359-047-0
02
1
0105-
97
WASHER; LK,PAD
ID=14.2
9-09150-514-0
AR
1
0105-
101
BRACKET; RR SPR,FRT
1-53353-081-2
02
1
0105-
102
BOLT; BRKT,RR SPR
M14X50
9-92061-450-0
AR
1
0105-
103
STOPPER; SUB SPR
1-53356-057-0
04
1
0105-
105
BRACKET; RR SPR,RR
1-53354-066-2
02
1
0105-
106
BOLT; BRKT
M14X50
9-92061-450-0
AR
1
0105-
109
SHIM; RR SPR
T=4.5
1-53359-061-1
02
1
0105-
109
SHIM; RR SPR
T=3.2
1-53359-062-1
02
1
0105-
110
BOLT; LEAF SPR STOPPER
1-09000-007-0
AR
1
0105-
111
PIN; SPLIT,LEAF SPR STOPPER
OD=2.8 L=28
9-08113-028-0
02
1
0105-
112
BOLT; PAD
M14X35
9-92061-435-0
AR
1
0105-
117
BOLT; STOPPER
M14X40
9-92061-440-0
AR
1
0105-
118
NUT; STOPPER
M14
9-99110-514-0
AR
1
0105-
124
NIPPLE; GREASE
PT1/8 ELBOW
9-09031-210-0
02
1
0105-0105
124
NIPPLE; GREASE
PT1/8 ELBOW 67.5 DEGREES
9-09031-110-0
02
1
0105-
126
WASHER; PL,BRKT
ID=15
9-09651-069-0
AR
1
0105-
127
NUT; BRKT
M14
9-99110-514-0
AR
1
0105-
255
WASHER; PL,BRKT
ID=15
9-09651-069-0
AR
1
0105-
281
WASHER; LEAF SPR STOPPER
ID=15 OD=30
9-09160-614-0
AR
1
0105-
282
WASHER; PL,STOPPER
ID=15
9-09651-069-0
AR
1
0105-
13
12
11
11
46
26
25
39
46
25
133
26
263
35
36
26
25
24
37
44
25
23
23
263
25
25
25
26
23
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
11
BRACKET; ENG MTG
(A)
1-53219-784-1
01
1
0105-
11
BRACKET; ENG MTG
(B)
1-53219-868-1
01
1
0105-
11
BRACKET; ENG MTG
(A)
1-53219-783-1
01
1
0105-
11
BRACKET; ENG MTG
(B)
1-53219-867-0
01
1
0105-
12
WASHER; PL,BRKT,ENG MTG
ID=15
9-09651-069-0
AR
1
0105-
13
BOLT; BRKT,ENG MTG
M14X40
9-92061-440-0
AR
1
0105-
23
BOLT; BRKT,SPR
(B) M12X35,M14X45 L=100
1-09029-075-0
AR
1
0105-
23
BOLT; BRKT,SPR
(A) M14X40
9-92061-440-0
AR
1
0105-
23
BOLT; BRKT,SPR
(C) M16X50
9-92061-650-0
AR
1
0105-
24
BRACKET; FRT SPR,FRT
1-53351-220-0
01
1
0105-
24
BRACKET; FRT SPR,FRT
1-53351-219-0
01
1
0105-
25
WASHER; PL,BRKT
(B) ID=16.2
1-09503-223-0
AR
1
0105-
25
WASHER; PL,BRKT
(A) ID=15
9-09651-069-0
AR
1
0105-
26
NUT; BRKT,SPR
(A) M14
9-99110-514-0
AR
1
0105-
26
NUT; BRKT,SPR
(B) M16
9-99110-516-0
AR
1
0105-
35
MEMBER; UNDER
1-53174-263-2
01
1
0105-
36
WASHER; PL,UNDER MBR
ID=17
9-09164-516-0
AR
1
0105-
37
WASHER; LK,UNDER MBR
ID=16.2
9-09150-816-0
AR
1
0105-
39
BRACKET; FRT SPR,RR
1-53352-147-0
01
1
0105-
39
BRACKET; FRT SPR,RR
1-53352-146-0
01
1
0105-
44
BOLT; UNDER MBR
M16X45
9-92061-645-0
AR
1
0105-
46
BOLT; BRKT FIX
(B) M14X40
9-92061-440-0
AR
1
0105-
46
BOLT; BRKT FIX
(A) M14X50
9-92061-450-0
AR
1
0105-
133
RIVET; BRKT
D13X36 PLATED TAPER END
9-06771-336-0
08
1
0105-
263
WASHER; PL,SUB FRAME
ID=15
9-09651-069-0
AR
1
0105-
