Isuzu WW
▶
TRUCKS
▶
FVR
▶
10630 - FVR-RHD
▶
0 - Engine, Emission, Engine Electrical
▶
0-14 - CAMSHAFT AND VALVE
▶
0-14 — CAMSHAFT AND VALVE
(#1021) — 165 parça
Tümü
A - 6SA1 STD ENG
B - 6SA1TC ENG
C - 6HE1 STD ENG
◀

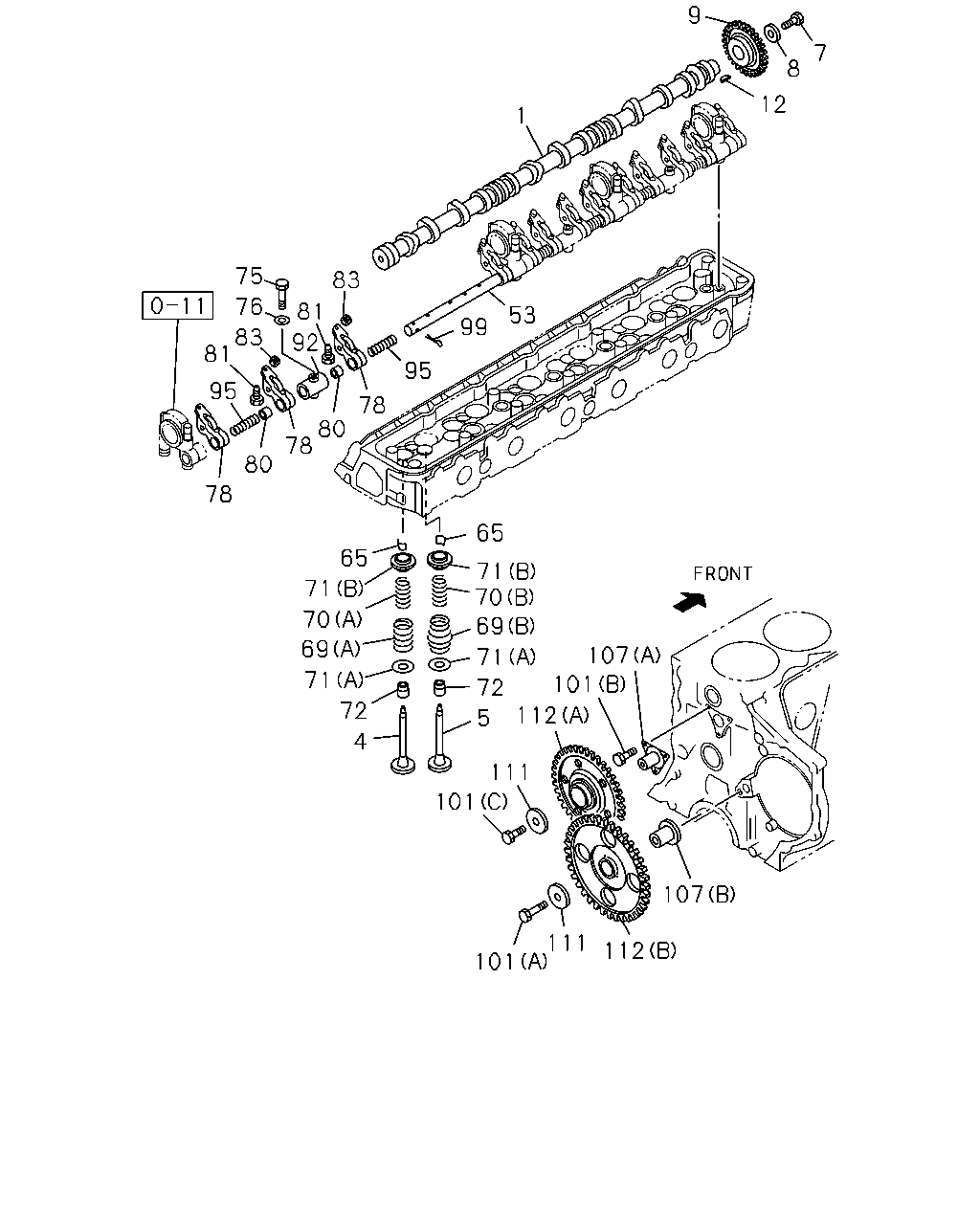

[014A] 6SA1 ENG (81 parça)

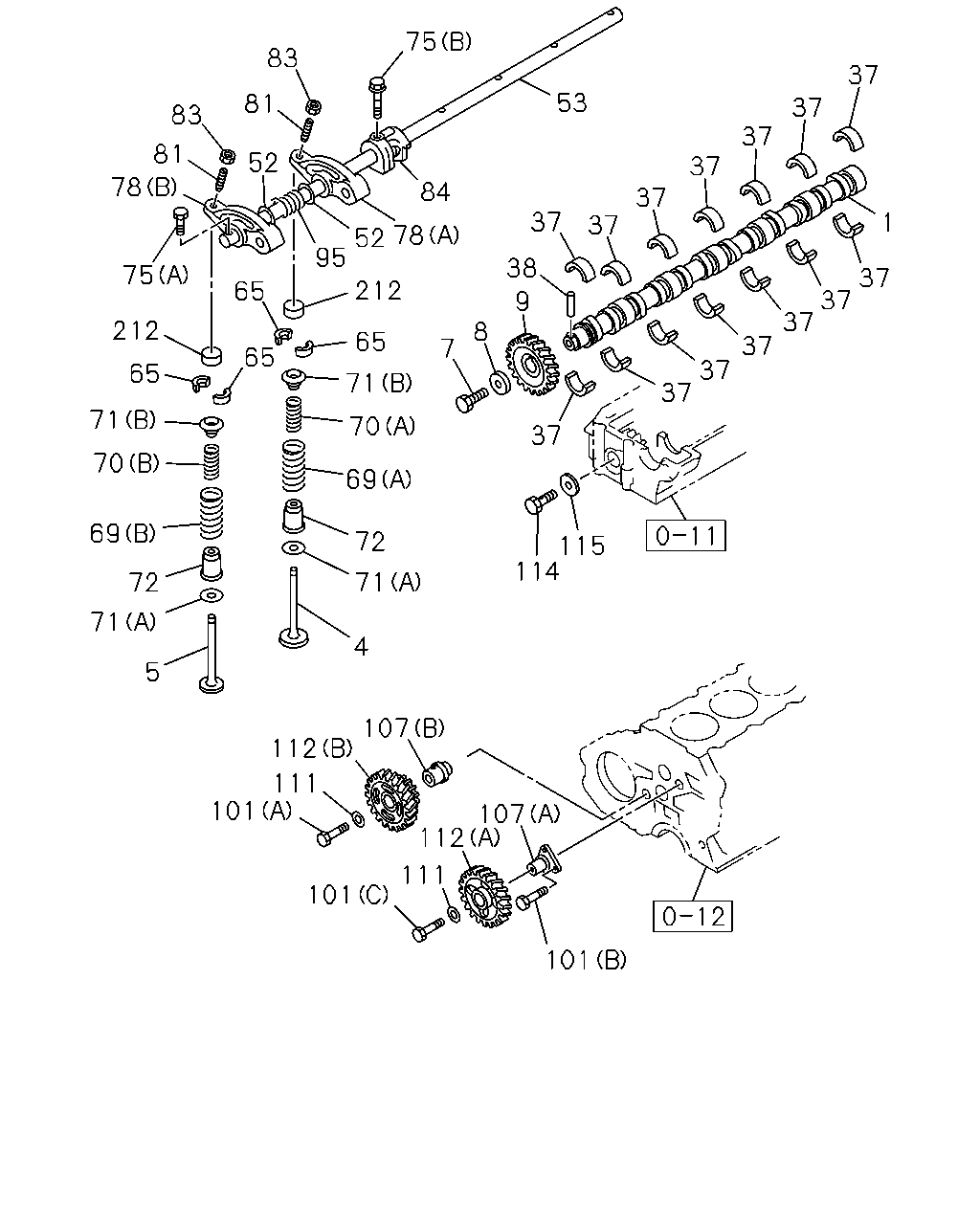

[014A] 6HE1 ENG (84 parça)
▶
9
7
8
12
1
75
83
76
81
92
53
99
83
81
95
95
78
80
78
80
78
65
65
71
70
69
71
70
69
107
101
71
71
72
72
112
5
4
111
101
107
111
112
101
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
1
CAMSHAFT
1-12511-217-3
01
1
9202-
●
1
CAMSHAFT
1-12511-201-3
01
1
9202-
●
1
CAMSHAFT
8-94396-425-1
01
1
9202-9509
●
1
CAMSHAFT
8-94395-576-1
01
1
9510-
●
4
VALVE; INL
1-12551-089-1
06
1
9202-
●
4
VALVE; INL
1-12551-111-1
06
1
9202-
●
4
VALVE; INL
8-94399-387-3
06
1
9202-9306
●
4
VALVE; INL
8-94395-112-0
06
1
9307-
●
5
VALVE; EXH
1-12552-085-0
06
1
9202-
●
●
5
VALVE; EXH
8-94399-386-3
06
1
9202-9203
●
5
VALVE; EXH
8-97060-415-0
06
1
9204-
●
7
BOLT; CM/SHF GEAR
M14X28
9-92061-428-0
01
1
9202-
●
●
7
BOLT; CM/SHF GEAR
M14X40
8-94396-439-0
01
1
9202-
●
8
WASHER; CM/SHF GEAR
ID=14.5
9-09851-850-3
01
1
9202-
●
●
●
9
GEAR; CM/SHF
Z=36
1-12522-026-1
01
1
9202-
●
●
9
GEAR; CM/SHF
Z=35
8-94396-836-0
01
1
9202-9302
●
9
GEAR; CM/SHF
Z=35
8-97094-440-2
01
1
9303-
●
12
KEY; CAM GEAR SET
9-08055-516-0
01
1
9202-
●
●
53
SHAFT; ROCKER ARM
1-12621-051-0
01
1
9202-
●
●
53
SHAFT; ROCKER ARM
8-94396-671-1
01
1
9202-9202
●
53
SHAFT; ROCKER ARM
8-94393-984-1
01
1
9203-
●
65
COLLAR; SPLIT
1-12565-002-0
24
1
9202-
●
●
65
COLLAR; SPLIT
5-12565-006-0
24
1
9202-
●
69
SPRING; VLV,OUTER
(A)
1-12561-051-0
06
1
9202-
●
69
SPRING; VLV,OUTER
(B) EXHAUST
1-12561-052-0
06
1
9202-
●
69
SPRING; VLV,OUTER
(A) INLET
1-12561-011-0
06
1
9202-
●
69
SPRING; VLV,OUTER
(B) EXHAUST
1-12561-047-0
06
1
9202-
●
69
SPRING; VLV,OUTER
(B)
8-94393-310-0
06
1
9202-
●
69
SPRING; VLV,OUTER
(A) INLET
8-94393-396-1
06
1
9202-9410
●
69
SPRING; VLV,OUTER
(A)
8-94394-996-0
06
1
9411-
●
70
SPRING; VLV,INNER
(A)
1-12562-032-0
06
1
9202-
●
70
SPRING; VLV,INNER
(B) EXHAUST
1-12562-033-0
06
1
9202-
●
70
SPRING; VLV,INNER
(B) EXHAUST
1-12561-048-0
06
1
9202-
●
70
SPRING; VLV,INNER
(A) INLET
1-12562-008-0
06
1
9202-
●
70
SPRING; VLV,INNER
(A) INLET
8-94393-397-1
06
1
9202-9410
●
70
SPRING; VLV,INNER
(A)
8-94395-266-0
06
1
9411-
●
70
SPRING; VLV,INNER
(B)
8-94397-500-0
06
1
9202-
●
71
SEAT; SPR
(B)
1-12563-033-1
12
1
9202-
●
●
71
SEAT; SPR
(A)
9-12563-231-0
12
1
9202-
●
●
71
SEAT; SPR
(A) OD=38
8-94385-029-1
12
1
9202-
●
71
SEAT; SPR
(B) ID=14.3 T=0.5
8-94396-014-0
12
1
9202-
●
72
SEAL; VLV GUIDE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
1-12569-016-0
12
1
9202-9501
●
●
72
SEAL; VLV GUIDE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
1-12569-017-0
12
1
9502-
●
●
72
SEAL; VLV GUIDE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
8-94396-609-2
12
1
9202-
●
75
BOLT; BRKT
M8X55
9-01065-855-0
03
1
9202-
●
●
75
BOLT; BRKT
(A) M8X35 FLANGE
0-28080-835-0
02
1
9202-
●
75
BOLT; BRKT
(B) M10X62 FLANGE
8-94393-131-0
05
1
9202-
●
76
WASHER; PL,BRKT
9-09851-430-0
03
1
9202-
●
●
78
ARM; ROCKER
1-12610-045-1
12
1
9202-
●
●
78
ARM; ROCKER
(A)
8-94397-253-1
06
1
9202-9202
●
78
ARM; ROCKER
(A)
8-94394-424-0
06
1
9203-
●
78
ARM; ROCKER
(B)
8-94397-362-1
06
1
9202-
●
80
BUSHING; ROCKER ARM
1-12615-013-1
12
1
9202-
●
●
81
SCREW; ADJ,ROCKER ARM
1-12616-035-0
12
1
9202-
●
●
81
SCREW; ADJ,ROCKER ARM
8-94393-679-0
12
1
9202-9312
●
81
SCREW; ADJ,ROCKER ARM
M10 L=32
8-94395-024-0
12
1
9401-
●
83
NUT; ADJ SCREW,LK
M8 FLANGE
9-09844-574-0
12
1
9202-
●
●
83
NUT; ADJ SCREW,LK
M10
9-09111-510-0
12
1
9202-
●
92
BRACKET; ROCKER ARM
1-12628-045-0
03
1
9202-
●
●
95
SPRING; ROCKER SHAFT
1-09580-335-0
06
1
9202-
●
●
95
SPRING; ROCKER SHAFT
JBK
8-94397-263-0
06
1
9202-
●
99
PIN; SPLIT,ROCKER ARM SHAFT
9-08112-028-0
02
1
9202-
●
●
101
BOLT; THRUST COLLAR
(B) M8X16 W/LK WASHER
0-50040-816-0
03
1
9202-9410
●
●
101
BOLT; THRUST COLLAR
(C) M14X16
1-09000-284-0
01
1
9202-
●
●
101
BOLT; THRUST COLLAR
(B) M8X14 FLANGE
0-28080-814-0
03
1
9411-
●
●
101
BOLT; THRUST COLLAR
(A) M14X60
9-91666-460-0
01
1
9202-
●
●
●
101
BOLT; THRUST COLLAR
(B) M8X14
8-97073-782-0
03
1
9202-
●
101
BOLT; THRUST COLLAR
(C) M14X30
9-92361-430-0
01
1
9202-
●
107
SHAFT; IDLE GEAR
(A)
1-12531-011-1
01
1
9202-
●
●
107
SHAFT; IDLE GEAR
(B)
8-94399-245-4
01
1
9202-9405
●
●
●
107
SHAFT; IDLE GEAR
(B)
8-97104-380-0
01
1
9406-
●
●
●
107
SHAFT; IDLE GEAR
(A)
8-97073-938-1
01
1
9202-
●
111
COLLAR; THRUST,IDLE GEAR
ID=14.5 OD=46
8-94370-688-0
02
1
9202-
●
●
●
112
GEAR; IDLE
(B) Z=69-27
1-12523-080-0
01
1
9202-9404
●
112
GEAR; IDLE
(A) Z=62
1-12523-109-0
01
1
9202-
●
●
112
GEAR; IDLE
(B) Z=69-27
1-12523-122-0
01
1
9202-9404
●
112
GEAR; IDLE
(B) Z=69-27
1-12523-122-0
01
1
9405-
●
●
112
GEAR; IDLE
(A) Z=61
8-94396-832-1
01
1
9202-9303
●
112
GEAR; IDLE
(A) Z=61
8-97094-546-1
01
1
9304-
●
112
GEAR; IDLE
(B) Z=72 & 30
8-94396-960-1
01
1
9202-9303
●
112
GEAR; IDLE
(B) Z=72-30
8-94395-107-1
01
1
9304-
●
75
83
37
53
81
37
83
37
81
52
37
78
84
37
37
1
37
52
78
95
38
75
37
37
37
37
212
65
9
212
8
65
7
65
37
37
65
71
71
70
37
70
69
69
72
115
114
71
72
71
4
5
107
112
111
101
107
112
111
101
101
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
1
CAMSHAFT
1-12511-217-3
01
1
9202-
●
1
CAMSHAFT
1-12511-201-3
01
1
9202-
●
1
CAMSHAFT
8-94396-425-1
01
1
9202-9509
●
1
CAMSHAFT
8-94395-576-1
01
1
9510-
●
4
VALVE; INL
1-12551-089-1
06
1
9202-
●
4
VALVE; INL
1-12551-111-1
06
1
9202-
●
4
VALVE; INL
8-94399-387-3
06
1
9202-9306
●
4
VALVE; INL
8-94395-112-0
06
1
9307-
●
5
VALVE; EXH
1-12552-085-0
06
1
9202-
●
●
5
VALVE; EXH
8-94399-386-3
06
1
9202-9203
●
5
VALVE; EXH
8-97060-415-0
06
1
9204-
●
7
BOLT; CM/SHF GEAR
M14X28
9-92061-428-0
01
1
9202-
●
●
7
BOLT; CM/SHF GEAR
M14X40
8-94396-439-0
01
1
9202-
●
8
WASHER; CM/SHF GEAR
ID=14.5
9-09851-850-3
01
1
9202-
●
●
●
9
GEAR; CM/SHF
Z=36
1-12522-026-1
01
1
9202-
●
●
9
GEAR; CM/SHF
Z=35
8-94396-836-0
01
1
9202-9302
●
9
GEAR; CM/SHF
Z=35
8-97094-440-2
01
1
9303-
●
37
METAL; CM/SHF
8-94363-100-0
14
1
9202-9211
●
37
METAL; CM/SHF
8-94393-380-0
14
1
9212-
●
38
PIN; CAM BRG SET
8-94399-487-0
01
1
9202-
●
52
WASHER; ROCKER ARM SHAFT
8-94362-105-0
12
1
9202-
●
53
SHAFT; ROCKER ARM
1-12621-051-0
01
1
9202-
●
●
53
SHAFT; ROCKER ARM
8-94396-671-1
01
1
9202-9202
●
53
SHAFT; ROCKER ARM
8-94393-984-1
01
1
9203-
●
65
COLLAR; SPLIT
1-12565-002-0
24
1
9202-
●
●
65
COLLAR; SPLIT
5-12565-006-0
24
1
9202-
●
69
SPRING; VLV,OUTER
(A)
1-12561-051-0
06
1
9202-
●
69
SPRING; VLV,OUTER
(B) EXHAUST
1-12561-052-0
06
1
9202-
●
69
SPRING; VLV,OUTER
(A) INLET
1-12561-011-0
06
1
9202-
●
69
SPRING; VLV,OUTER
(B) EXHAUST
1-12561-047-0
06
1
9202-
●
69
SPRING; VLV,OUTER
(B)
8-94393-310-0
06
1
9202-
●
69
SPRING; VLV,OUTER
(A) INLET
8-94393-396-1
06
1
9202-9410
●
69
SPRING; VLV,OUTER
(A)
8-94394-996-0
06
1
9411-
●
70
SPRING; VLV,INNER
(A)
1-12562-032-0
06
1
9202-
●
70
SPRING; VLV,INNER
(B) EXHAUST
1-12562-033-0
06
1
9202-
●
70
SPRING; VLV,INNER
(B) EXHAUST
1-12561-048-0
06
1
9202-
●
70
SPRING; VLV,INNER
(A) INLET
1-12562-008-0
06
1
9202-
●
70
SPRING; VLV,INNER
(A) INLET
8-94393-397-1
06
1
9202-9410
●
70
SPRING; VLV,INNER
(A)
8-94395-266-0
06
1
9411-
●
70
SPRING; VLV,INNER
(B)
8-94397-500-0
06
1
9202-
●
71
SEAT; SPR
(B)
1-12563-033-1
12
1
9202-
●
●
71
SEAT; SPR
(A)
9-12563-231-0
12
1
9202-
●
●
71
SEAT; SPR
(A) OD=38
8-94385-029-1
12
1
9202-
●
71
SEAT; SPR
(B) ID=14.3 T=0.5
8-94396-014-0
12
1
9202-
●
72
SEAL; VLV GUIDE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
1-12569-016-0
12
1
9202-9501
●
●
72
SEAL; VLV GUIDE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
1-12569-017-0
12
1
9502-
●
●
72
SEAL; VLV GUIDE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
8-94396-609-2
12
1
9202-
●
75
BOLT; BRKT
M8X55
9-01065-855-0
03
1
9202-
●
●
75
BOLT; BRKT
(A) M8X35 FLANGE
0-28080-835-0
02
1
9202-
●
75
BOLT; BRKT
(B) M10X62 FLANGE
8-94393-131-0
05
1
9202-
●
78
ARM; ROCKER
1-12610-045-1
12
1
9202-
●
●
78
ARM; ROCKER
(A)
8-94397-253-1
06
1
9202-9202
●
78
ARM; ROCKER
(A)
8-94394-424-0
06
1
9203-
●
78
ARM; ROCKER
(B)
8-94397-362-1
06
1
9202-
●
81
SCREW; ADJ,ROCKER ARM
1-12616-035-0
12
1
9202-
●
●
81
SCREW; ADJ,ROCKER ARM
8-94393-679-0
12
1
9202-9312
●
81
SCREW; ADJ,ROCKER ARM
M10 L=32
8-94395-024-0
12
1
9401-
●
83
NUT; ADJ SCREW,LK
M8 FLANGE
9-09844-574-0
12
1
9202-
●
●
83
NUT; ADJ SCREW,LK
M10
9-09111-510-0
12
1
9202-
●
84
BRACKET; ROCKER SHAFT,INTER
JBK
8-94388-109-3
05
1
9202-
●
95
SPRING; ROCKER SHAFT
1-09580-335-0
06
1
9202-
●
●
95
SPRING; ROCKER SHAFT
JBK
8-94397-263-0
06
1
9202-
●
101
BOLT; THRUST COLLAR
(B) M8X16 W/LK WASHER
0-50040-816-0
03
1
9202-9410
●
●
101
BOLT; THRUST COLLAR
(C) M14X16
1-09000-284-0
01
1
9202-
●
●
101
BOLT; THRUST COLLAR
(B) M8X14 FLANGE
0-28080-814-0
03
1
9411-
●
●
101
BOLT; THRUST COLLAR
(A) M14X60
9-91666-460-0
01
1
9202-
●
●
●
101
BOLT; THRUST COLLAR
(B) M8X14
8-97073-782-0
03
1
9202-
●
101
BOLT; THRUST COLLAR
(C) M14X30
9-92361-430-0
01
1
9202-
●
107
SHAFT; IDLE GEAR
(A)
1-12531-011-1
01
1
9202-
●
●
107
SHAFT; IDLE GEAR
(B)
8-94399-245-4
01
1
9202-9405
●
●
●
107
SHAFT; IDLE GEAR
(B)
8-97104-380-0
01
1
9406-
●
●
●
107
SHAFT; IDLE GEAR
(A)
8-97073-938-1
01
1
9202-
●
111
COLLAR; THRUST,IDLE GEAR
ID=14.5 OD=46
8-94370-688-0
02
1
9202-
●
●
●
112
GEAR; IDLE
(B) Z=69-27
1-12523-080-0
01
1
9202-9404
●
112
GEAR; IDLE
(A) Z=62
1-12523-109-0
01
1
9202-
●
●
112
GEAR; IDLE
(B) Z=69-27
1-12523-122-0
01
1
9202-9404
●
112
GEAR; IDLE
(B) Z=69-27
1-12523-122-0
01
1
9405-
●
●
112
GEAR; IDLE
(A) Z=61
8-94396-832-1
01
1
9202-9303
●
112
GEAR; IDLE
(A) Z=61
8-97094-546-1
01
1
9304-
●
112
GEAR; IDLE
(B) Z=72 & 30
8-94396-960-1
01
1
9202-9303
●
112
GEAR; IDLE
(B) Z=72-30
8-94395-107-1
01
1
9304-
●
114
BOLT; IDLE GEAR
M14X36.5
8-94372-221-1
01
1
9202-
●
115
WASHER; THRUST,IDLE GEAR
ID=14.5 OD=46
8-94370-688-0
01
1
9202-
●
212
CAP; ADJ SCREW
8-94396-015-1
12
1
9202-
●
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
