4-65 — REAR LEAF SPRING (#10209) — 156 parça

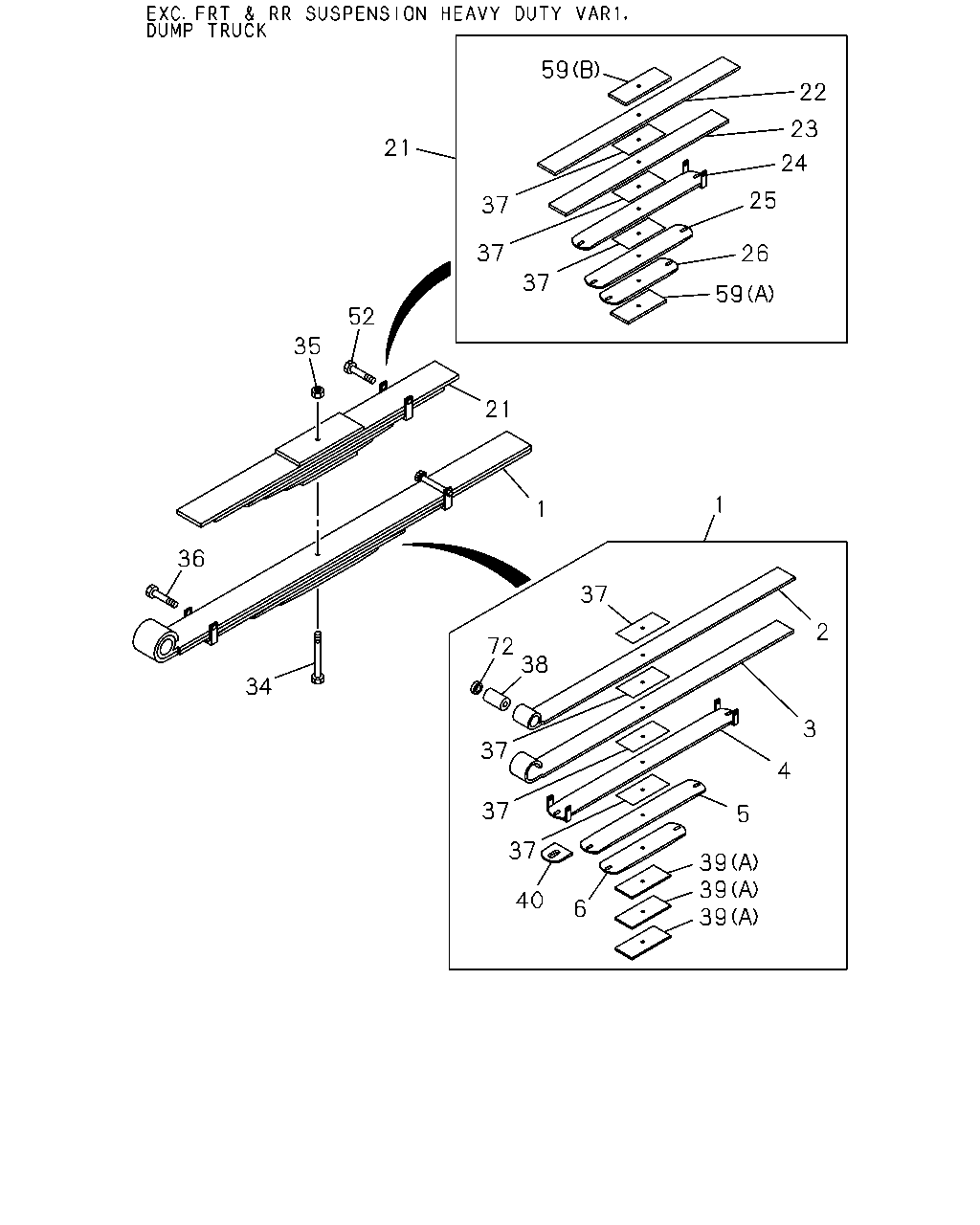

59 22 37 23 21 24 25 37 37 26 52 37 35 59 21 1 1 37 36 2 72 38 3 34 37 37 4 37 5 6 39 40 39 39

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	SPRING ASM; LEAF,RR MAIN ASM PART: A = 1-51300-616-0	1-51410-261-0	01	1	-
1	SPRING ASM; LEAF,RR MAIN ASM PART: B = 1-51300-617-0	1-51410-262-0	01	1	-
1	SPRING ASM; LEAF,RR MAIN ASM PART: C = 1-51300-618-0	1-51410-263-0	01	1	-
2	SPRING; LEAF,NO 1,RR MAIN ASM PART: A = 1-51300-616-0	1-51411-261-0	01	1	-
2	SPRING; LEAF,NO 1,RR MAIN ASM PART: B = 1-51300-617-0	1-51411-262-0	01	1	-
2	SPRING; LEAF,NO 1,RR MAIN ASM PART: C = 1-51300-618-0	1-51411-263-0	01	1	-
3	SPRING; LEAF,NO 2,RR MAIN ASM PART: A = 1-51300-616-0	1-51412-261-0	01	1	-
3	SPRING; LEAF,NO 2,RR MAIN ASM PART: B = 1-51300-617-0	1-51412-262-0	01	1	-
3	SPRING; LEAF,NO 2,RR MAIN ASM PART: C = 1-51300-618-0	1-51412-263-0	01	1	-
4	SPRING; LEAF,NO 3,RR MAIN W/CLIP ASM PART: A = 1-51300-616-0	1-51413-261-0	01	1	-
4	SPRING; LEAF,NO 3,RR MAIN W/CLIP ASM PART: B = 1-51300-617-0	1-51413-262-0	01	1	-
4	SPRING; LEAF,NO 3,RR MAIN ASM PART: C = 1-51300-618-0	1-51413-263-0	01	1	-
5	SPRING; LEAF,NO 4,RR MAIN ASM PART: A = 1-51300-616-0	1-51414-261-0	01	1	-
5	SPRING; LEAF,NO 4,RR MAIN ASM PART: B = 1-51300-617-0	1-51414-262-0	01	1	-
5	SPRING; LEAF,NO 4,RR MAIN ASM PART: C = 1-51300-618-0	1-51414-263-0	01	1	-
6	SPRING; LEAF,NO 5,RR MAIN ASM PART: A = 1-51300-616-0	1-51415-261-0	01	1	-
6	SPRING; LEAF,NO 5,RR MAIN ASM PART: B = 1-51300-617-0	1-51415-262-0	01	1	-
6	SPRING; LEAF,NO 5,RR MAIN ASM PART: C = 1-51300-618-0	1-51415-263-0	01	1	-
21	SPRING ASM; LEAF,RR SUB ASM PART: A = 1-51300-616-0	1-51340-644-0	01	1	-
21	SPRING ASM; LEAF,RR SUB ASM PART: B = 1-51300-617-0	1-51340-672-0	01	1	-
21	SPRING ASM; LEAF,RR SUB ASM PART: C = 1-51300-618-0	1-51340-673-0	01	1	-
22	SPRING; LEAF,NO 1,RR SUB ASM PART: A = 1-51300-616-0	1-51341-644-0	01	1	-
22	SPRING; LEAF,NO 1,RR SUB ASM PART: B = 1-51300-617-0	1-51341-672-0	01	1	-
22	SPRING; LEAF,NO 1,RR SUB ASM PART: C = 1-51300-618-0	1-51341-673-0	01	1	-
23	SPRING; LEAF,NO 2,RR SUB ASM PART: A = 1-51300-616-0	1-51342-644-0	01	1	-
23	SPRING; LEAF,NO 2,RR SUB ASM PART: B = 1-51300-617-0	1-51342-672-0	01	1	-
23	SPRING; LEAF,NO 2,RR SUB ASM PART: C = 1-51300-618-0	1-51342-673-0	01	1	-
24	SPRING; LEAF,NO 3,RR SUB W/CLIP ASM PART: A = 1-51300-616-0	1-51343-644-0	01	1	-
24	SPRING; LEAF,NO 3,RR SUB W/CLIP ASM PART: B = 1-51300-617-0	1-51343-672-0	01	1	-
24	SPRING; LEAF,NO 3,RR SUB ASM PART: C = 1-51300-618-0	1-51343-673-0	01	1	-
25	SPRING; LEAF,NO 4,RR SUB ASM PART: A = 1-51300-616-0	1-51344-644-0	01	1	-
25	SPRING; LEAF,NO 4,RR SUB ASM PART: B = 1-51300-617-0	1-51344-672-0	01	1	-
25	SPRING; LEAF,NO 4,RR SUB ASM PART: C = 1-51300-618-0	1-51344-673-0	01	1	-
26	SPRING; LEAF,NO 5,RR SUB ASM PART: A = 1-51300-616-0	1-51345-644-0	01	1	-
26	SPRING; LEAF,NO 5,RR SUB ASM PART: B = 1-51300-617-0	1-51345-672-0	01	1	-
26	SPRING; LEAF,NO 5,RR SUB ASM PART: C = 1-51300-618-0	1-51345-673-0	01	1	-
34	BOLT; CENTER,LEAF SPR,RR MAIN L=200 ASM PART: A = 1-51300-616-0, B = 1-51300-617-0	1-51356-213-0	01	1	-
34	BOLT; CENTER,LEAF SPR,RR MAIN L=255 ASM PART: C = 1-51300-618-0	1-51356-360-0	01	1	-
35	NUT; CENTER BOLT,LEAF SPR,RR M16 ASM PART: A = 1-51300-616-0, B = 1-51300-617-0, C = 1-51300-618-0	1-09400-054-0	01	1	-
36	BOLT; CLIP,LEAF SPR,RR M10X117 ASM PART: A = 1-51300-616-0, B = 1-51300-617-0, C = 1-51300-618-0	1-09000-334-0	02	1	-
37	SPACER; CENTER,LEAF SPR,RR T=1 ASM PART: B = 1-51300-617-0, C = 1-51300-618-0	1-51377-159-0	08	1	-
37	SPACER; CENTER,LEAF SPR,RR T=1 ASM PART: A = 1-51300-616-0	1-51377-159-0	07	1	-
38	BUSHING; LEAF SPR,RR ASM PART: A = 1-51300-616-0, B = 1-51300-617-0, C = 1-51300-618-0	1-51351-037-0	01	1	-
39	SEAT; LEAF SPR,RR MAIN (A), T=10 ASM PART: C = 1-51300-618-0	1-51377-118-0	02	1	-
39	SEAT; LEAF SPR,RR MAIN (A), T=10 ASM PART: A = 1-51300-616-0, B = 1-51300-617-0	1-51377-118-0	03	1	-
39	SEAT; LEAF SPR,RR MAIN (B), T=13 ASM PART: C = 1-51300-618-0	1-51377-241-0	05	1	-
40	LINER; LEAF SPR,RR ASM PART: A = 1-51300-616-0, B = 1-51300-617-0, C = 1-51300-618-0	1-51159-024-0	06	1	-
52	BOLT; CLIP,LEAF SPR,RR SUB M10X117 ASM PART: A = 1-51300-616-0, B = 1-51300-617-0, C = 1-51300-618-0	1-09000-334-0	01	1	-
59	SEAT; RR SPRING,SUB (A), T=10 ASM PART: B = 1-51300-617-0, C = 1-51300-618-0	1-51377-118-0	02	1	-
59	SEAT; RR SPRING,SUB (A), T=10 ASM PART: A = 1-51300-616-0	1-51377-118-0	01	1	-
59	SEAT; RR SPRING,SUB (B), T=13 ASM PART: A = 1-51300-616-0	1-51377-260-0	01	1	-
72	SEAL; DUST ASM PART: A = 1-51300-616-0, B = 1-51300-617-0, C = 1-51300-618-0	1-51177-321-0	02	1	-

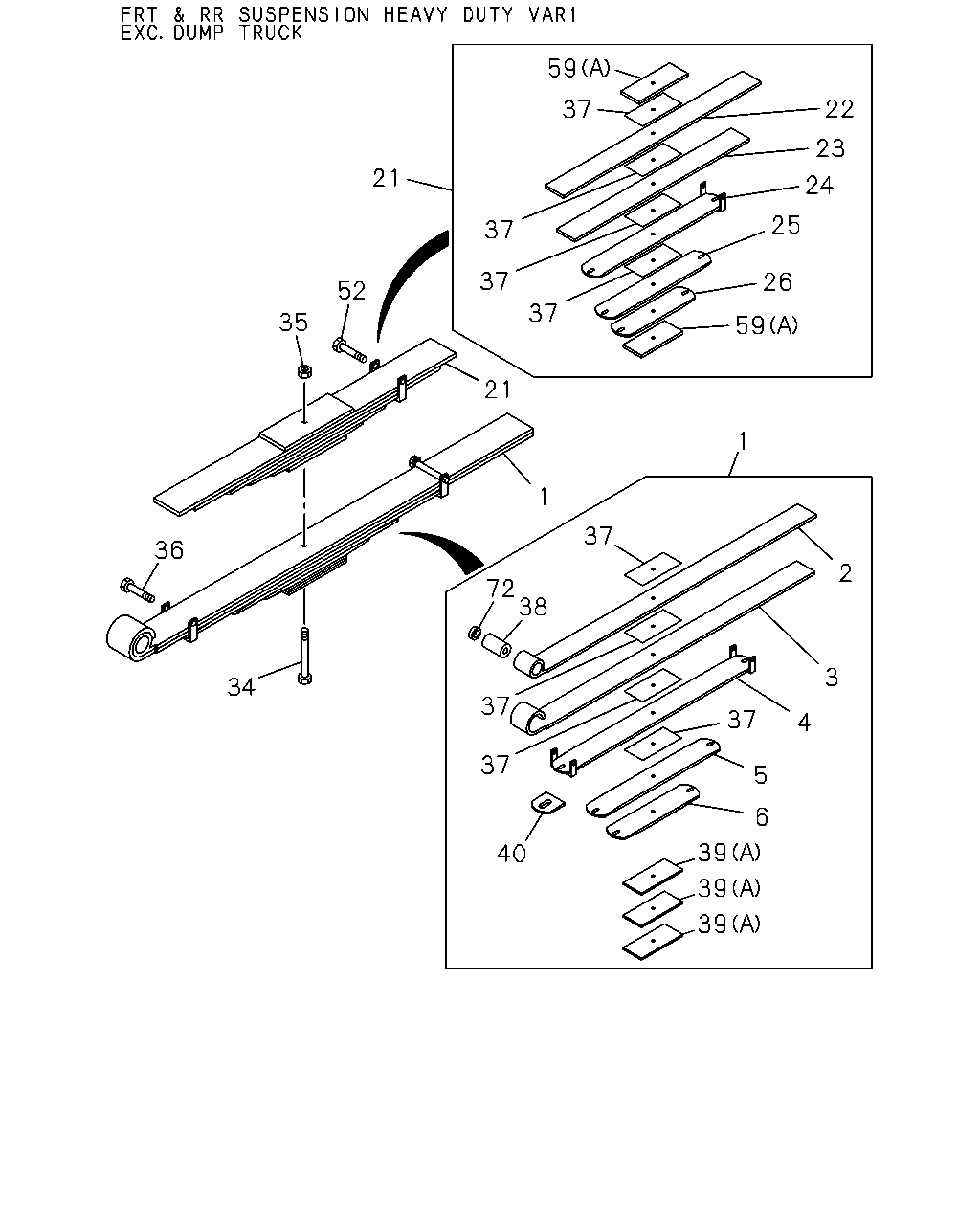

59 22 37 21 23 24 25 37 37 26 37 35 59 52 21 1 37 36 2 72 38 34 3 1 37 4 37 5 37 6 39 39 39 39 39 39 39 40

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	SPRING ASM; LEAF,RR MAIN ASM PART: A = 1-51300-616-0	1-51410-261-0	01	1	-
1	SPRING ASM; LEAF,RR MAIN ASM PART: B = 1-51300-617-0	1-51410-262-0	01	1	-
1	SPRING ASM; LEAF,RR MAIN ASM PART: C = 1-51300-618-0	1-51410-263-0	01	1	-
2	SPRING; LEAF,NO 1,RR MAIN ASM PART: A = 1-51300-616-0	1-51411-261-0	01	1	-
2	SPRING; LEAF,NO 1,RR MAIN ASM PART: B = 1-51300-617-0	1-51411-262-0	01	1	-
2	SPRING; LEAF,NO 1,RR MAIN ASM PART: C = 1-51300-618-0	1-51411-263-0	01	1	-
3	SPRING; LEAF,NO 2,RR MAIN ASM PART: A = 1-51300-616-0	1-51412-261-0	01	1	-
3	SPRING; LEAF,NO 2,RR MAIN ASM PART: B = 1-51300-617-0	1-51412-262-0	01	1	-
3	SPRING; LEAF,NO 2,RR MAIN ASM PART: C = 1-51300-618-0	1-51412-263-0	01	1	-
4	SPRING; LEAF,NO 3,RR MAIN W/CLIP ASM PART: A = 1-51300-616-0	1-51413-261-0	01	1	-
4	SPRING; LEAF,NO 3,RR MAIN W/CLIP ASM PART: B = 1-51300-617-0	1-51413-262-0	01	1	-
4	SPRING; LEAF,NO 3,RR MAIN ASM PART: C = 1-51300-618-0	1-51413-263-0	01	1	-
5	SPRING; LEAF,NO 4,RR MAIN ASM PART: A = 1-51300-616-0	1-51414-261-0	01	1	-
5	SPRING; LEAF,NO 4,RR MAIN ASM PART: B = 1-51300-617-0	1-51414-262-0	01	1	-
5	SPRING; LEAF,NO 4,RR MAIN ASM PART: C = 1-51300-618-0	1-51414-263-0	01	1	-
6	SPRING; LEAF,NO 5,RR MAIN ASM PART: A = 1-51300-616-0	1-51415-261-0	01	1	-
6	SPRING; LEAF,NO 5,RR MAIN ASM PART: B = 1-51300-617-0	1-51415-262-0	01	1	-
6	SPRING; LEAF,NO 5,RR MAIN ASM PART: C = 1-51300-618-0	1-51415-263-0	01	1	-
21	SPRING ASM; LEAF,RR SUB ASM PART: A = 1-51300-616-0	1-51340-644-0	01	1	-
21	SPRING ASM; LEAF,RR SUB ASM PART: B = 1-51300-617-0	1-51340-672-0	01	1	-
21	SPRING ASM; LEAF,RR SUB ASM PART: C = 1-51300-618-0	1-51340-673-0	01	1	-
22	SPRING; LEAF,NO 1,RR SUB ASM PART: A = 1-51300-616-0	1-51341-644-0	01	1	-
22	SPRING; LEAF,NO 1,RR SUB ASM PART: B = 1-51300-617-0	1-51341-672-0	01	1	-
22	SPRING; LEAF,NO 1,RR SUB ASM PART: C = 1-51300-618-0	1-51341-673-0	01	1	-
23	SPRING; LEAF,NO 2,RR SUB ASM PART: A = 1-51300-616-0	1-51342-644-0	01	1	-
23	SPRING; LEAF,NO 2,RR SUB ASM PART: B = 1-51300-617-0	1-51342-672-0	01	1	-
23	SPRING; LEAF,NO 2,RR SUB ASM PART: C = 1-51300-618-0	1-51342-673-0	01	1	-
24	SPRING; LEAF,NO 3,RR SUB W/CLIP ASM PART: A = 1-51300-616-0	1-51343-644-0	01	1	-
24	SPRING; LEAF,NO 3,RR SUB W/CLIP ASM PART: B = 1-51300-617-0	1-51343-672-0	01	1	-
24	SPRING; LEAF,NO 3,RR SUB ASM PART: C = 1-51300-618-0	1-51343-673-0	01	1	-
25	SPRING; LEAF,NO 4,RR SUB ASM PART: A = 1-51300-616-0	1-51344-644-0	01	1	-
25	SPRING; LEAF,NO 4,RR SUB ASM PART: B = 1-51300-617-0	1-51344-672-0	01	1	-
25	SPRING; LEAF,NO 4,RR SUB ASM PART: C = 1-51300-618-0	1-51344-673-0	01	1	-
26	SPRING; LEAF,NO 5,RR SUB ASM PART: A = 1-51300-616-0	1-51345-644-0	01	1	-
26	SPRING; LEAF,NO 5,RR SUB ASM PART: B = 1-51300-617-0	1-51345-672-0	01	1	-
26	SPRING; LEAF,NO 5,RR SUB ASM PART: C = 1-51300-618-0	1-51345-673-0	01	1	-
34	BOLT; CENTER,LEAF SPR,RR MAIN L=200 ASM PART: A = 1-51300-616-0, B = 1-51300-617-0	1-51356-213-0	01	1	-
34	BOLT; CENTER,LEAF SPR,RR MAIN L=255 ASM PART: C = 1-51300-618-0	1-51356-360-0	01	1	-
35	NUT; CENTER BOLT,LEAF SPR,RR M16 ASM PART: A = 1-51300-616-0, B = 1-51300-617-0, C = 1-51300-618-0	1-09400-054-0	01	1	-
36	BOLT; CLIP,LEAF SPR,RR M10X117 ASM PART: A = 1-51300-616-0, B = 1-51300-617-0, C = 1-51300-618-0	1-09000-334-0	02	1	-
37	SPACER; CENTER,LEAF SPR,RR T=1 ASM PART: B = 1-51300-617-0, C = 1-51300-618-0	1-51377-159-0	08	1	-
37	SPACER; CENTER,LEAF SPR,RR T=1 ASM PART: A = 1-51300-616-0	1-51377-159-0	07	1	-
38	BUSHING; LEAF SPR,RR ASM PART: A = 1-51300-616-0, B = 1-51300-617-0, C = 1-51300-618-0	1-51351-037-0	01	1	-
39	SEAT; LEAF SPR,RR MAIN (A), T=10 ASM PART: C = 1-51300-618-0	1-51377-118-0	02	1	-
39	SEAT; LEAF SPR,RR MAIN (A), T=10 ASM PART: A = 1-51300-616-0, B = 1-51300-617-0	1-51377-118-0	03	1	-
39	SEAT; LEAF SPR,RR MAIN (B), T=13 ASM PART: C = 1-51300-618-0	1-51377-241-0	05	1	-
40	LINER; LEAF SPR,RR ASM PART: A = 1-51300-616-0, B = 1-51300-617-0, C = 1-51300-618-0	1-51159-024-0	06	1	-
52	BOLT; CLIP,LEAF SPR,RR SUB M10X117 ASM PART: A = 1-51300-616-0, B = 1-51300-617-0, C = 1-51300-618-0	1-09000-334-0	01	1	-
59	SEAT; RR SPRING,SUB (A), T=10 ASM PART: B = 1-51300-617-0, C = 1-51300-618-0	1-51377-118-0	02	1	-
59	SEAT; RR SPRING,SUB (A), T=10 ASM PART: A = 1-51300-616-0	1-51377-118-0	01	1	-
59	SEAT; RR SPRING,SUB (B), T=13 ASM PART: A = 1-51300-616-0	1-51377-260-0	01	1	-
72	SEAL; DUST ASM PART: A = 1-51300-616-0, B = 1-51300-617-0, C = 1-51300-618-0	1-51177-321-0	02	1	-

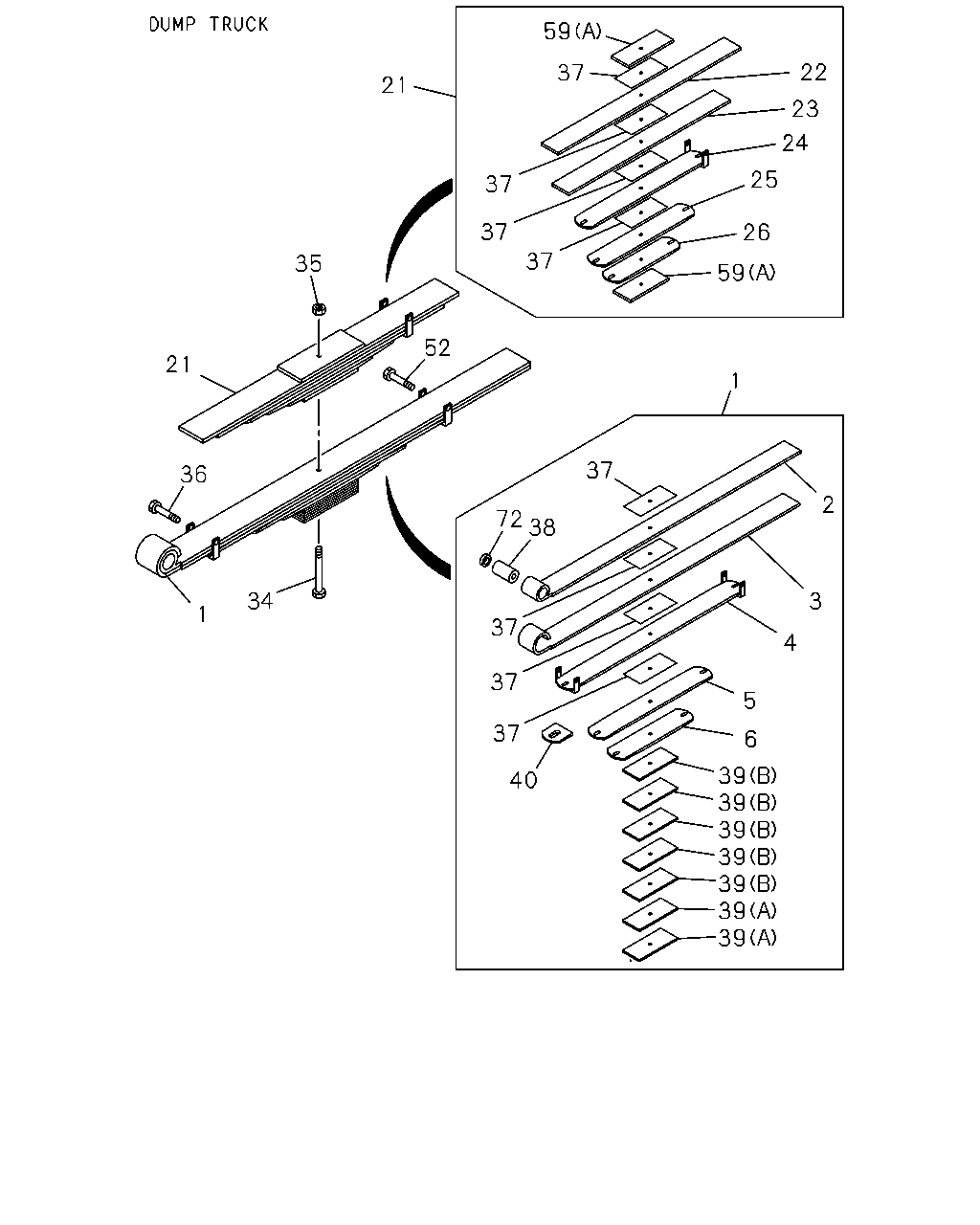

59 22 23 21 24 25 37 37 26 37 59 52 35 21 1 1 36 37 2 72 38 34 3 37 4 37 5 37 39 39 39 40 6

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	SPRING ASM; LEAF,RR MAIN ASM PART: A = 1-51300-616-0	1-51410-261-0	01	1	-
1	SPRING ASM; LEAF,RR MAIN ASM PART: B = 1-51300-617-0	1-51410-262-0	01	1	-
1	SPRING ASM; LEAF,RR MAIN ASM PART: C = 1-51300-618-0	1-51410-263-0	01	1	-
2	SPRING; LEAF,NO 1,RR MAIN ASM PART: A = 1-51300-616-0	1-51411-261-0	01	1	-
2	SPRING; LEAF,NO 1,RR MAIN ASM PART: B = 1-51300-617-0	1-51411-262-0	01	1	-
2	SPRING; LEAF,NO 1,RR MAIN ASM PART: C = 1-51300-618-0	1-51411-263-0	01	1	-
3	SPRING; LEAF,NO 2,RR MAIN ASM PART: A = 1-51300-616-0	1-51412-261-0	01	1	-
3	SPRING; LEAF,NO 2,RR MAIN ASM PART: B = 1-51300-617-0	1-51412-262-0	01	1	-
3	SPRING; LEAF,NO 2,RR MAIN ASM PART: C = 1-51300-618-0	1-51412-263-0	01	1	-
4	SPRING; LEAF,NO 3,RR MAIN W/CLIP ASM PART: A = 1-51300-616-0	1-51413-261-0	01	1	-
4	SPRING; LEAF,NO 3,RR MAIN W/CLIP ASM PART: B = 1-51300-617-0	1-51413-262-0	01	1	-
4	SPRING; LEAF,NO 3,RR MAIN ASM PART: C = 1-51300-618-0	1-51413-263-0	01	1	-
5	SPRING; LEAF,NO 4,RR MAIN ASM PART: A = 1-51300-616-0	1-51414-261-0	01	1	-
5	SPRING; LEAF,NO 4,RR MAIN ASM PART: B = 1-51300-617-0	1-51414-262-0	01	1	-
5	SPRING; LEAF,NO 4,RR MAIN ASM PART: C = 1-51300-618-0	1-51414-263-0	01	1	-
6	SPRING; LEAF,NO 5,RR MAIN ASM PART: A = 1-51300-616-0	1-51415-261-0	01	1	-
6	SPRING; LEAF,NO 5,RR MAIN ASM PART: B = 1-51300-617-0	1-51415-262-0	01	1	-
6	SPRING; LEAF,NO 5,RR MAIN ASM PART: C = 1-51300-618-0	1-51415-263-0	01	1	-
21	SPRING ASM; LEAF,RR SUB ASM PART: A = 1-51300-616-0	1-51340-644-0	01	1	-
21	SPRING ASM; LEAF,RR SUB ASM PART: B = 1-51300-617-0	1-51340-672-0	01	1	-
21	SPRING ASM; LEAF,RR SUB ASM PART: C = 1-51300-618-0	1-51340-673-0	01	1	-
22	SPRING; LEAF,NO 1,RR SUB ASM PART: A = 1-51300-616-0	1-51341-644-0	01	1	-
22	SPRING; LEAF,NO 1,RR SUB ASM PART: B = 1-51300-617-0	1-51341-672-0	01	1	-
22	SPRING; LEAF,NO 1,RR SUB ASM PART: C = 1-51300-618-0	1-51341-673-0	01	1	-
23	SPRING; LEAF,NO 2,RR SUB ASM PART: A = 1-51300-616-0	1-51342-644-0	01	1	-
23	SPRING; LEAF,NO 2,RR SUB ASM PART: B = 1-51300-617-0	1-51342-672-0	01	1	-
23	SPRING; LEAF,NO 2,RR SUB ASM PART: C = 1-51300-618-0	1-51342-673-0	01	1	-
24	SPRING; LEAF,NO 3,RR SUB W/CLIP ASM PART: A = 1-51300-616-0	1-51343-644-0	01	1	-
24	SPRING; LEAF,NO 3,RR SUB W/CLIP ASM PART: B = 1-51300-617-0	1-51343-672-0	01	1	-
24	SPRING; LEAF,NO 3,RR SUB ASM PART: C = 1-51300-618-0	1-51343-673-0	01	1	-
25	SPRING; LEAF,NO 4,RR SUB ASM PART: A = 1-51300-616-0	1-51344-644-0	01	1	-
25	SPRING; LEAF,NO 4,RR SUB ASM PART: B = 1-51300-617-0	1-51344-672-0	01	1	-
25	SPRING; LEAF,NO 4,RR SUB ASM PART: C = 1-51300-618-0	1-51344-673-0	01	1	-
26	SPRING; LEAF,NO 5,RR SUB ASM PART: A = 1-51300-616-0	1-51345-644-0	01	1	-
26	SPRING; LEAF,NO 5,RR SUB ASM PART: B = 1-51300-617-0	1-51345-672-0	01	1	-
26	SPRING; LEAF,NO 5,RR SUB ASM PART: C = 1-51300-618-0	1-51345-673-0	01	1	-
34	BOLT; CENTER,LEAF SPR,RR MAIN L=200 ASM PART: A = 1-51300-616-0, B = 1-51300-617-0	1-51356-213-0	01	1	-
34	BOLT; CENTER,LEAF SPR,RR MAIN L=255 ASM PART: C = 1-51300-618-0	1-51356-360-0	01	1	-
35	NUT; CENTER BOLT,LEAF SPR,RR M16 ASM PART: A = 1-51300-616-0, B = 1-51300-617-0, C = 1-51300-618-0	1-09400-054-0	01	1	-
36	BOLT; CLIP,LEAF SPR,RR M10X117 ASM PART: A = 1-51300-616-0, B = 1-51300-617-0, C = 1-51300-618-0	1-09000-334-0	02	1	-
37	SPACER; CENTER,LEAF SPR,RR T=1 ASM PART: B = 1-51300-617-0, C = 1-51300-618-0	1-51377-159-0	08	1	-
37	SPACER; CENTER,LEAF SPR,RR T=1 ASM PART: A = 1-51300-616-0	1-51377-159-0	07	1	-
38	BUSHING; LEAF SPR,RR ASM PART: A = 1-51300-616-0, B = 1-51300-617-0, C = 1-51300-618-0	1-51351-037-0	01	1	-
39	SEAT; LEAF SPR,RR MAIN (A), T=10 ASM PART: C = 1-51300-618-0	1-51377-118-0	02	1	-
39	SEAT; LEAF SPR,RR MAIN (A), T=10 ASM PART: A = 1-51300-616-0, B = 1-51300-617-0	1-51377-118-0	03	1	-
39	SEAT; LEAF SPR,RR MAIN (B), T=13 ASM PART: C = 1-51300-618-0	1-51377-241-0	05	1	-
40	LINER; LEAF SPR,RR ASM PART: A = 1-51300-616-0, B = 1-51300-617-0, C = 1-51300-618-0	1-51159-024-0	06	1	-
52	BOLT; CLIP,LEAF SPR,RR SUB M10X117 ASM PART: A = 1-51300-616-0, B = 1-51300-617-0, C = 1-51300-618-0	1-09000-334-0	01	1	-
59	SEAT; RR SPRING,SUB (A), T=10 ASM PART: B = 1-51300-617-0, C = 1-51300-618-0	1-51377-118-0	02	1	-
59	SEAT; RR SPRING,SUB (A), T=10 ASM PART: A = 1-51300-616-0	1-51377-118-0	01	1	-
59	SEAT; RR SPRING,SUB (B), T=13 ASM PART: A = 1-51300-616-0	1-51377-260-0	01	1	-
72	SEAL; DUST ASM PART: A = 1-51300-616-0, B = 1-51300-617-0, C = 1-51300-618-0	1-51177-321-0	02	1	-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.

Isuzu EPC — test · veri: yerel (eski sürüm)
