4-60 — REAR SUSPENSION (#10207) — 50 parça

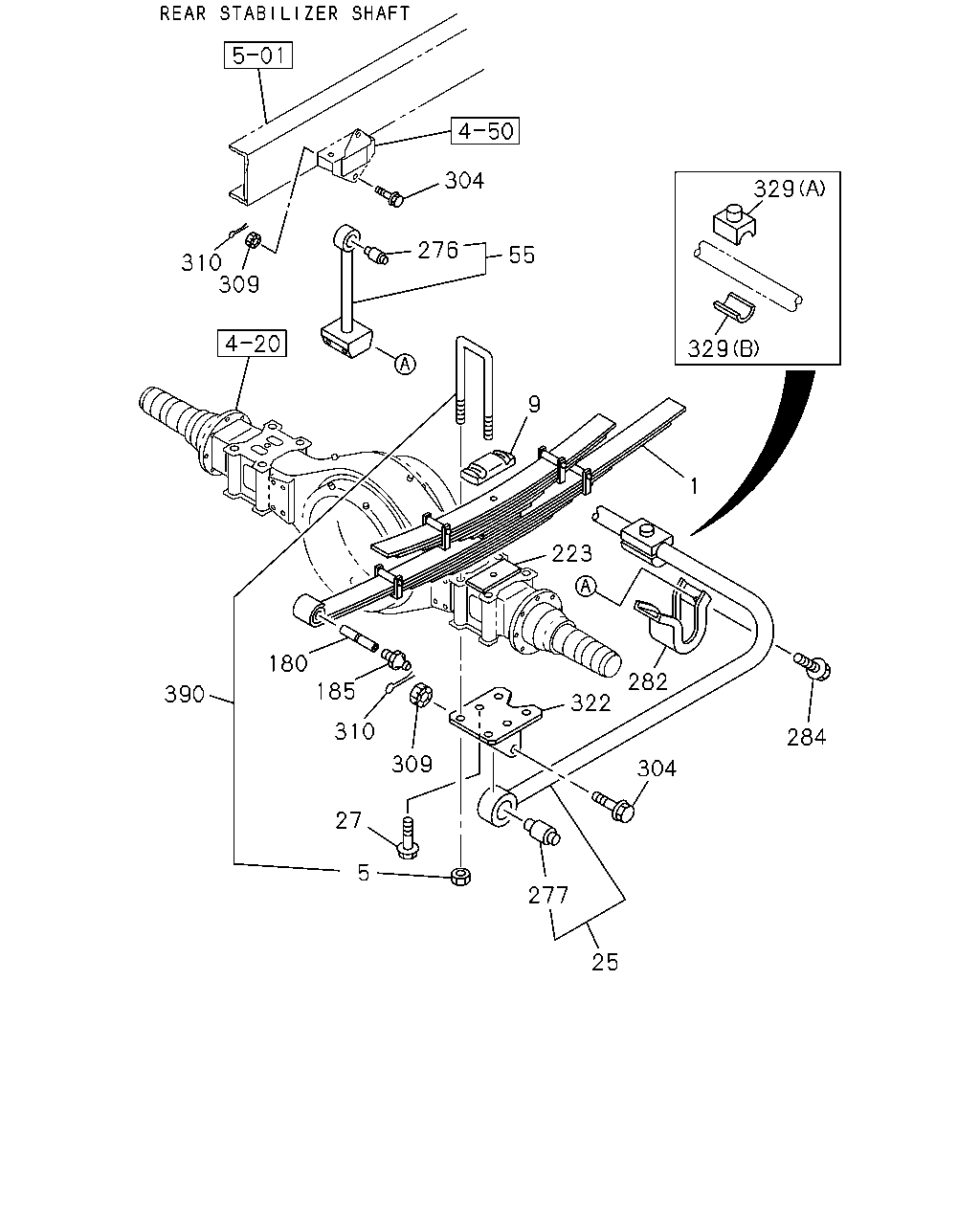

çizim 75879
304 329 276 55 310 309 329 9 1 223 180 282 185 390 322 310 284 309 304 27 5 277 25
BalonParca AdiParca NoAdetTipApplied Date
1 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. DUMP TRUCK<RA1> 10-LEAF 		1-51300-618-0 02 1 0105-
1 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. FRT & RR SUSPENSION HEAVY DUTY VAR1(F40) EXC. DUMP TRUCK<RA1> 10-LEAF 		1-51300-617-0 02 1 0105-
1 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. EXC. FRT & RR SUSPENSION HEAVY DUTY VAR1(F40),DUMP TRUCK<RA1> 10-LEAF 		1-51300-616-0 02 1 0105-
5 NUT; U-BOLT,RR SPR
M24 		9-99112-824-0 08 1 0105-
9 PAD; U BOLT,RR SPR 1-51372-030-0 02 1 0105-
25 BAR ASM; STAB,RR SUSP
REAR STABILIZER SHAFT(F61) 		1-51770-030-2 01 1 0105-
27 BOLT; STAB
REAR STABILIZER SHAFT(F61) M10X20 FLANGE 		0-28081-020-0 04 1 0105-
55 ROD; STAB
REAR STABILIZER SHAFT(F61) EXC. DUMP TRUCK<RA1> 		1-51770-024-1 02 1 0105-
180 PIN; RR SPR 1-51361-020-0 02 1 0105-
185 NIPPLE; GREASE,PIN,RR SPR
PT1/8 STRAIGHT 		9-09031-010-0 02 1 0105-
223 SPACER; U BOLT,RR SPR 1-51377-369-1 02 1 0105-
276 BUSHING; STAB ROD
REAR STABILIZER SHAFT(F61) EXC. DUMP TRUCK<RA1> 		1-51779-019-0 04 1 0105-0401
276 BUSHING; STAB ROD
REAR STABILIZER SHAFT(F61) EXC. DUMP TRUCK<RA1> 		1-51779-019-0 02 1 0402-
277 BUSHING; STAB,RR UPR
REAR STABILIZER SHAFT(F61) 		1-51779-067-0 02 1 0105-
282 RETAINER; STAB BAR
REAR STABILIZER SHAFT(F61) 		1-51789-015-2 02 1 0105-
284 BOLT; RET TO RET
REAR STABILIZER SHAFT(F61) M10X25 		8-94463-351-0 08 1 0105-
304 PIN; STAB ROD
REAR STABILIZER SHAFT(F61) 		1-51789-020-2 04 1 0105-
309 NUT; STAB ROD
REAR STABILIZER SHAFT(F61) M24 		9-99116-424-0 04 1 0105-
310 PIN; SPLIT,STAB ROD
REAR STABILIZER SHAFT(F61) OD=4.6 L=45 		9-08115-045-0 04 1 0105-
322 BRACKET; STAB BAR TO RR AXLE
REAR STABILIZER SHAFT(F61) 		1-51781-102-0 02 1 0105-0110
322 BRACKET; STAB BAR TO RR AXLE
REAR STABILIZER SHAFT(F61) 		1-51781-048-4 02 1 0111-
329 BUSHING; STAB ROD
REAR STABILIZER SHAFT(F61) (A) 		1-51789-051-1 02 1 0105-
329 BUSHING; STAB ROD
REAR STABILIZER SHAFT(F61) (B) 		1-51789-052-0 02 1 0105-
390 U-BOLT SET; RR SPRING
DUMP TRUCK<RA1> L=510 		1-87870-422-1 04 1 0105-
390 U-BOLT SET; RR SPRING
FRT & RR SUSPENSION HEAVY DUTY VAR1(F40) EXC. DUMP TRUCK<RA1> L=490 		1-87870-299-0 04 1 0105-0312
390 U-BOLT SET; RR SPRING
FRT & RR SUSPENSION HEAVY DUTY VAR1(F40) REAR STABILIZER SHAFT(F61) EXC. DUMP TRUCK<RA1> L=490 		1-87870-299-1 04 1 0401-
390 U-BOLT SET; RR SPRING
EXC. FRT & RR SUSPENSION HEAVY DUTY VAR1(F40),DUMP TRUCK<RA1> L=470 		1-87870-017-3 04 1 0105-0312
390 U-BOLT SET; RR SPRING
FRT & RR SUSPENSION HEAVY DUTY VAR1(F40) EXC. REAR STABILIZER SHAFT(F61),DUMP TRUCK<RA1> L=470 		1-87870-017-4 04 1 0401-
390 U-BOLT SET; RR SPRING
EXC. FRT & RR SUSPENSION HEAVY DUTY VAR1(F40),DUMP TRUCK<RA1> L=470 		1-87870-017-4 04 1 0401-

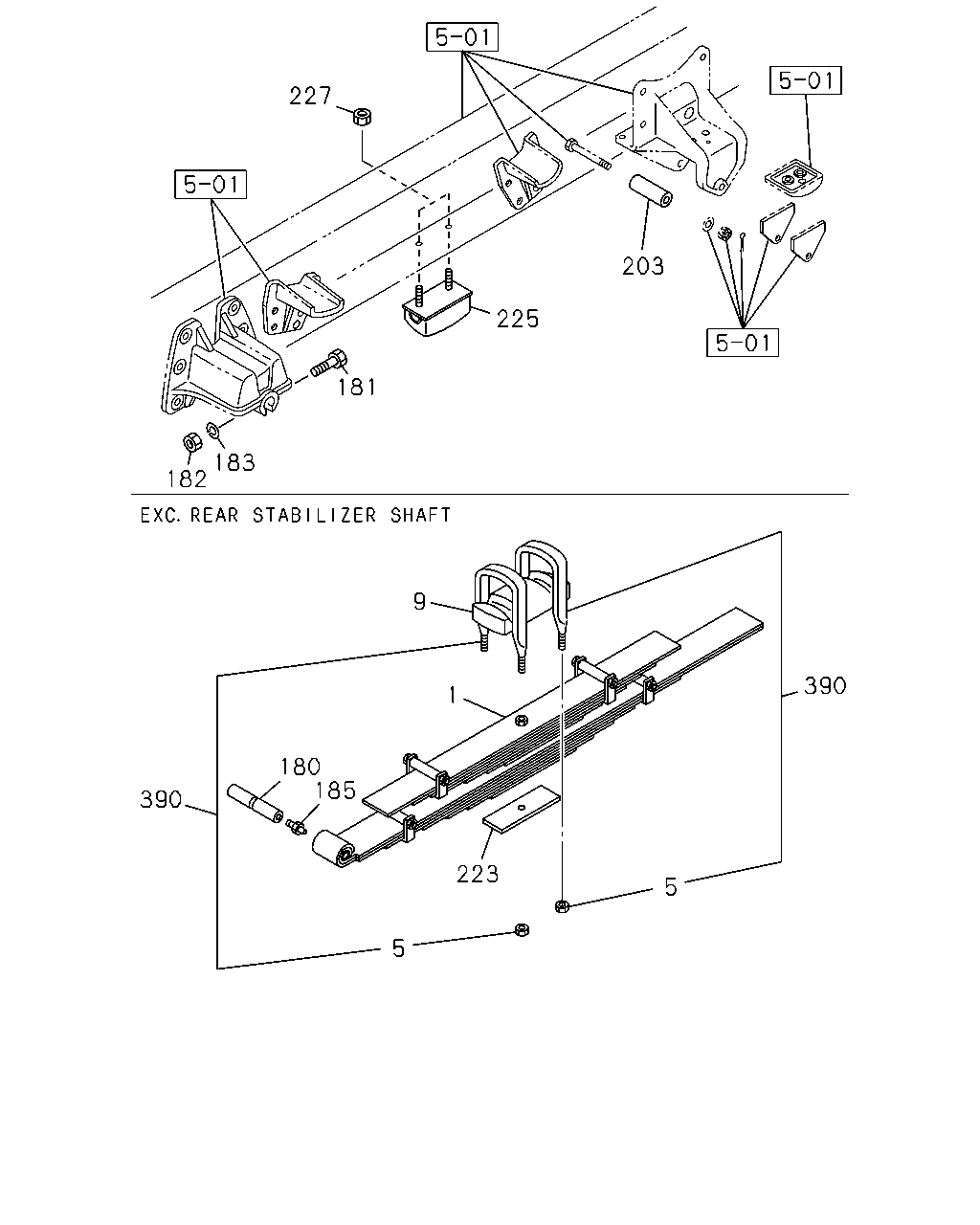

çizim 77430
227 203 225 181 183 182 9 390 1 180 185 390 223 5 5
BalonParca AdiParca NoAdetTipApplied Date
1 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. DUMP TRUCK<RA1> 10-LEAF 		1-51300-618-0 02 1 0105-
1 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. FRT & RR SUSPENSION HEAVY DUTY VAR1(F40) EXC. DUMP TRUCK<RA1> 10-LEAF 		1-51300-617-0 02 1 0105-
1 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. EXC. FRT & RR SUSPENSION HEAVY DUTY VAR1(F40),DUMP TRUCK<RA1> 10-LEAF 		1-51300-616-0 02 1 0105-
5 NUT; U-BOLT,RR SPR
M24 		9-99112-824-0 08 1 0105-
9 PAD; U BOLT,RR SPR 1-51372-030-0 02 1 0105-
180 PIN; RR SPR 1-51361-020-0 02 1 0105-
181 BOLT; SPR & SHACKLE
M14X80 		0-10806-480-0 02 1 0105-
182 NUT; PIN,RR SPR
M14 		9-99110-414-0 02 1 0105-
183 WASHER; LK,PIN,RR SPR
ID=14.2 		9-09150-514-0 02 1 0105-
185 NIPPLE; GREASE,PIN,RR SPR
PT1/8 STRAIGHT 		9-09031-010-0 02 1 0105-
203 COLLAR; LEAF SPR STOPPER 1-53359-004-0 02 1 0105-
223 SPACER; U BOLT,RR SPR 1-51377-369-1 02 1 0105-
225 RUBBER; CUSHION,RR SPR
DUMP TRUCK<RA1> 		1-53366-029-1 02 1 0105-
225 RUBBER; CUSHION,RR SPR
EXC. DUMP TRUCK<RA1> 		1-53366-067-3 02 1 0105-
227 NUT; CUSHION RUBBER
M12 FLANGE 		0-91150-212-0 04 1 0105-
390 U-BOLT SET; RR SPRING
DUMP TRUCK<RA1> L=510 		1-87870-422-1 04 1 0105-
390 U-BOLT SET; RR SPRING
FRT & RR SUSPENSION HEAVY DUTY VAR1(F40) EXC. DUMP TRUCK<RA1> L=490 		1-87870-299-0 04 1 0105-0312
390 U-BOLT SET; RR SPRING
FRT & RR SUSPENSION HEAVY DUTY VAR1(F40) REAR STABILIZER SHAFT(F61) EXC. DUMP TRUCK<RA1> L=490 		1-87870-299-1 04 1 0401-
390 U-BOLT SET; RR SPRING
EXC. FRT & RR SUSPENSION HEAVY DUTY VAR1(F40),DUMP TRUCK<RA1> L=470 		1-87870-017-3 04 1 0105-0312
390 U-BOLT SET; RR SPRING
FRT & RR SUSPENSION HEAVY DUTY VAR1(F40) EXC. REAR STABILIZER SHAFT(F61),DUMP TRUCK<RA1> L=470 		1-87870-017-4 04 1 0401-
390 U-BOLT SET; RR SPRING
EXC. FRT & RR SUSPENSION HEAVY DUTY VAR1(F40),DUMP TRUCK<RA1> L=470 		1-87870-017-4 04 1 0401-
