4-55 — FRONT LEAF SPRING (#10206) — 54 parça

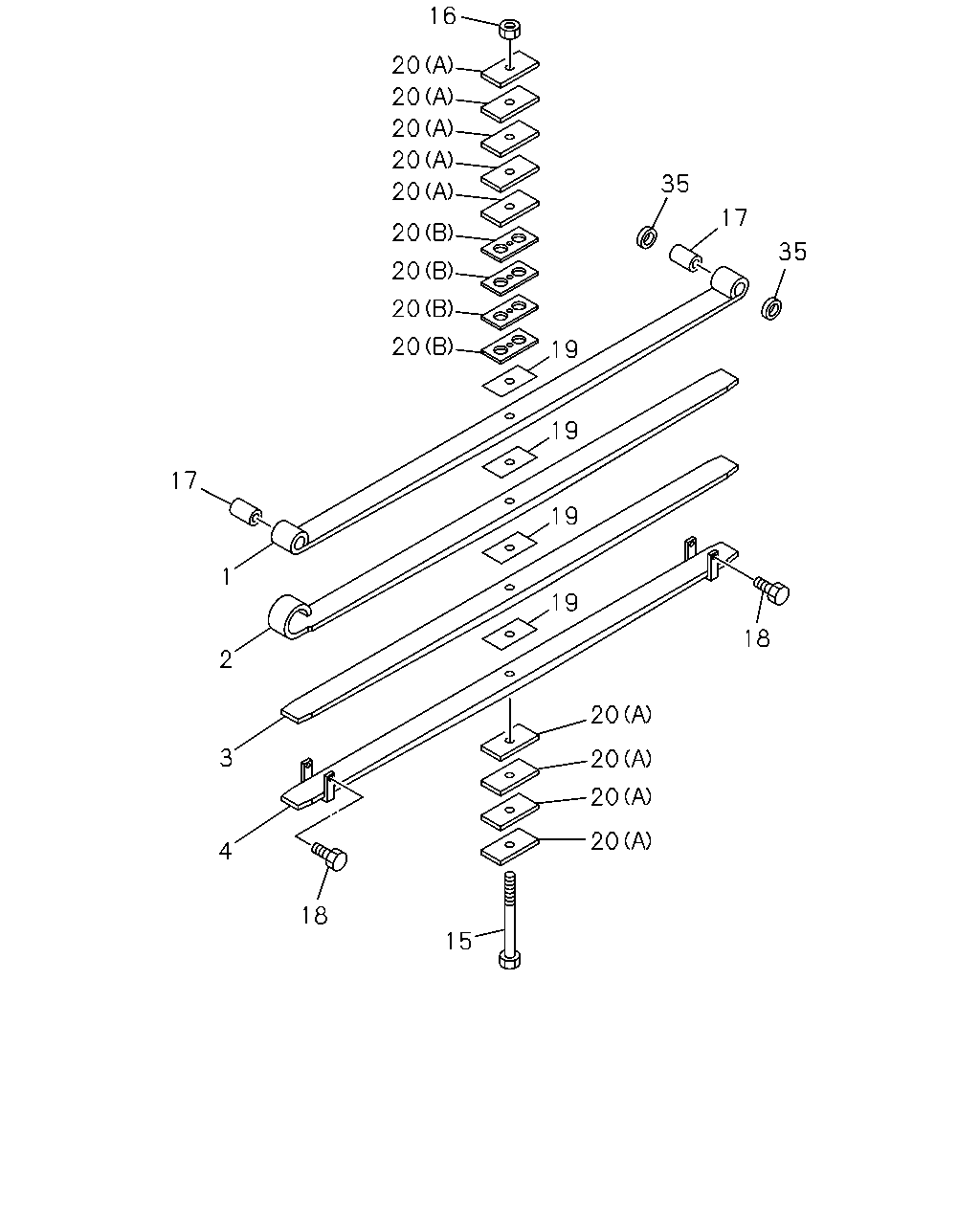

16 20 20 20 20 35 20 17 20 35 20 20 20 19 19 17 19 1 19 18 2 20 3 20 20 20 4 18 15

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	SPRING; LEAF,NO 1,FRT ASM PART: A = 1-51130-731-0	1-51131-731-0	01	1	-
1	SPRING; LEAF,NO 1,FRT ASM PART: B = 1-51130-734-0	1-51131-734-0	01	1	-
1	SPRING; LEAF,NO 1,FRT ASM PART: C = 1-51130-816-0	1-51131-816-0	01	1	-
2	SPRING; LEAF,NO 2,FRT ASM PART: A = 1-51130-731-0	1-51132-731-0	01	1	-
2	SPRING; LEAF,NO 2,FRT ASM PART: B = 1-51130-734-0	1-51132-734-0	01	1	-
2	SPRING; LEAF,NO 2,FRT ASM PART: C = 1-51130-816-0	1-51132-816-0	01	1	-
3	SPRING; LEAF,NO 3,FRT ASM PART: A = 1-51130-731-0	1-51133-731-0	01	1	-
3	SPRING; LEAF,NO 3,FRT ASM PART: B = 1-51130-734-0	1-51133-734-0	01	1	-
3	SPRING; LEAF,NO 3,FRT ASM PART: C = 1-51130-816-0	1-51133-816-0	01	1	-
4	SPRING; LEAF,NO 4,FRT W/CLIP ASM PART: A = 1-51130-731-0	1-51134-731-0	01	1	-
4	SPRING; LEAF,NO 4,FRT W/CLIP ASM PART: B = 1-51130-734-0	1-51134-734-0	01	1	-
4	SPRING; LEAF,NO 4,FRT ASM PART: C = 1-51130-816-0	1-51134-816-0	01	1	-
15	BOLT; CENTER,LEAF SPR,FRT L=160 ASM PART: B = 1-51130-734-0	1-51156-296-0	01	1	-
15	BOLT; CENTER,LEAF SPR,FRT L=140 ASM PART: A = 1-51130-731-0	1-51156-304-0	01	1	-
15	BOLT; CENTER,LEAF SPR,FRT L=245 ASM PART: C = 1-51130-816-0	1-51156-396-0	01	1	-
16	NUT; CENTER BOLT,LEAF SPR,FRT M16 ASM PART: A = 1-51130-731-0, B = 1-51130-734-0, C = 1-51130-816-0	1-09400-054-0	01	1	-
17	BUSHING; LEAF SPR,FRT OD=42 ASM PART: A = 1-51130-731-0, B = 1-51130-734-0, C = 1-51130-816-0	1-51351-036-0	02	1	-
18	BOLT; CLIP,LEAF SPR,FRT M10X99 ASM PART: A = 1-51130-731-0, B = 1-51130-734-0, C = 1-51130-816-0	1-09000-328-0	02	1	-
19	SPACER; LEAF SPRING,FRT T=1 ASM PART: A = 1-51130-731-0, B = 1-51130-734-0, C = 1-51130-816-0	1-51177-071-0	04	1	-
20	SEAT; LEAF SPR,FRT (A), T=12 ASM PART: A = 1-51130-731-0, B = 1-51130-734-0	1-51177-107-0	01	1	-
20	SEAT; LEAF SPR,FRT (A), T=9 ASM PART: C = 1-51130-816-0	1-51177-114-0	09	1	-
20	SEAT; LEAF SPR,FRT (C), T=10 ASM PART: A = 1-51130-731-0	1-51177-161-0	01	1	-
20	SEAT; LEAF SPR,FRT (C), T=10 ASM PART: B = 1-51130-734-0	1-51177-161-0	03	1	-
20	SEAT; LEAF SPR,FRT (B), T=8 ASM PART: B = 1-51130-734-0	1-51177-178-0	01	1	-
20	SEAT; LEAF SPR,FRT (B), T=13 ASM PART: A = 1-51130-731-0	1-51177-181-0	01	1	-
20	SEAT; LEAF SPR,FRT (B), T=13 ASM PART: C = 1-51130-816-0	1-51177-181-0	04	1	-
35	SEAL; DUST ASM PART: A = 1-51130-731-0, B = 1-51130-734-0, C = 1-51130-816-0	1-51177-321-0	04	1	-

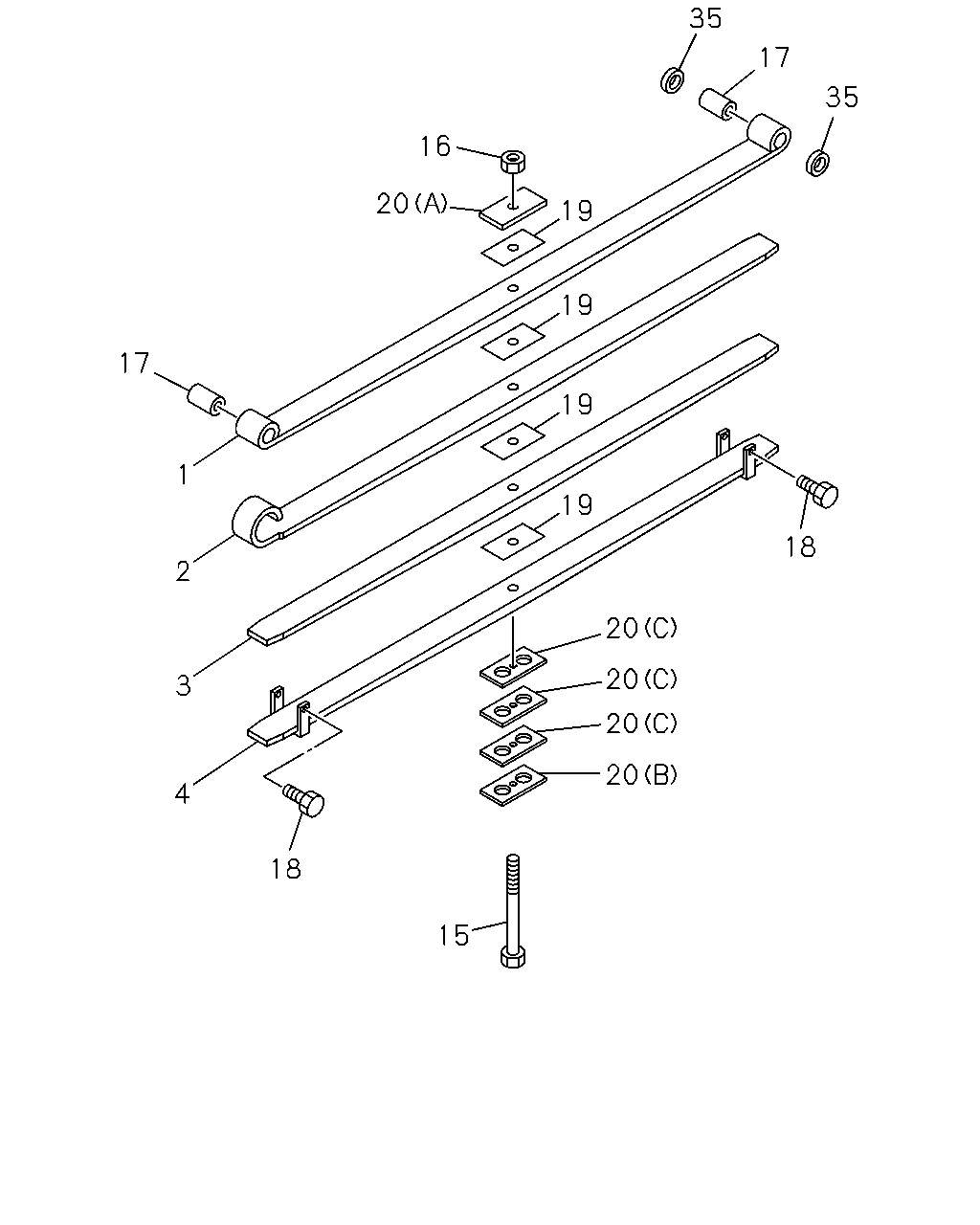

35 17 35 16 20 19 19 17 19 1 19 18 2 20 20 3 20 20 4 18 15

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	SPRING; LEAF,NO 1,FRT ASM PART: A = 1-51130-731-0	1-51131-731-0	01	1	-
1	SPRING; LEAF,NO 1,FRT ASM PART: B = 1-51130-734-0	1-51131-734-0	01	1	-
1	SPRING; LEAF,NO 1,FRT ASM PART: C = 1-51130-816-0	1-51131-816-0	01	1	-
2	SPRING; LEAF,NO 2,FRT ASM PART: A = 1-51130-731-0	1-51132-731-0	01	1	-
2	SPRING; LEAF,NO 2,FRT ASM PART: B = 1-51130-734-0	1-51132-734-0	01	1	-
2	SPRING; LEAF,NO 2,FRT ASM PART: C = 1-51130-816-0	1-51132-816-0	01	1	-
3	SPRING; LEAF,NO 3,FRT ASM PART: A = 1-51130-731-0	1-51133-731-0	01	1	-
3	SPRING; LEAF,NO 3,FRT ASM PART: B = 1-51130-734-0	1-51133-734-0	01	1	-
3	SPRING; LEAF,NO 3,FRT ASM PART: C = 1-51130-816-0	1-51133-816-0	01	1	-
4	SPRING; LEAF,NO 4,FRT W/CLIP ASM PART: A = 1-51130-731-0	1-51134-731-0	01	1	-
4	SPRING; LEAF,NO 4,FRT W/CLIP ASM PART: B = 1-51130-734-0	1-51134-734-0	01	1	-
4	SPRING; LEAF,NO 4,FRT ASM PART: C = 1-51130-816-0	1-51134-816-0	01	1	-
15	BOLT; CENTER,LEAF SPR,FRT L=160 ASM PART: B = 1-51130-734-0	1-51156-296-0	01	1	-
15	BOLT; CENTER,LEAF SPR,FRT L=140 ASM PART: A = 1-51130-731-0	1-51156-304-0	01	1	-
15	BOLT; CENTER,LEAF SPR,FRT L=245 ASM PART: C = 1-51130-816-0	1-51156-396-0	01	1	-
16	NUT; CENTER BOLT,LEAF SPR,FRT M16 ASM PART: A = 1-51130-731-0, B = 1-51130-734-0, C = 1-51130-816-0	1-09400-054-0	01	1	-
17	BUSHING; LEAF SPR,FRT OD=42 ASM PART: A = 1-51130-731-0, B = 1-51130-734-0, C = 1-51130-816-0	1-51351-036-0	02	1	-
18	BOLT; CLIP,LEAF SPR,FRT M10X99 ASM PART: A = 1-51130-731-0, B = 1-51130-734-0, C = 1-51130-816-0	1-09000-328-0	02	1	-
19	SPACER; LEAF SPRING,FRT T=1 ASM PART: A = 1-51130-731-0, B = 1-51130-734-0, C = 1-51130-816-0	1-51177-071-0	04	1	-
20	SEAT; LEAF SPR,FRT (A), T=12 ASM PART: A = 1-51130-731-0, B = 1-51130-734-0	1-51177-107-0	01	1	-
20	SEAT; LEAF SPR,FRT (A), T=9 ASM PART: C = 1-51130-816-0	1-51177-114-0	09	1	-
20	SEAT; LEAF SPR,FRT (C), T=10 ASM PART: A = 1-51130-731-0	1-51177-161-0	01	1	-
20	SEAT; LEAF SPR,FRT (C), T=10 ASM PART: B = 1-51130-734-0	1-51177-161-0	03	1	-
20	SEAT; LEAF SPR,FRT (B), T=8 ASM PART: B = 1-51130-734-0	1-51177-178-0	01	1	-
20	SEAT; LEAF SPR,FRT (B), T=13 ASM PART: A = 1-51130-731-0	1-51177-181-0	01	1	-
20	SEAT; LEAF SPR,FRT (B), T=13 ASM PART: C = 1-51130-816-0	1-51177-181-0	04	1	-
35	SEAL; DUST ASM PART: A = 1-51130-731-0, B = 1-51130-734-0, C = 1-51130-816-0	1-51177-321-0	04	1	-
