4-35 — POWER STEERING CONTROL; CHASSIS SIDE (#10201) — 106 parça

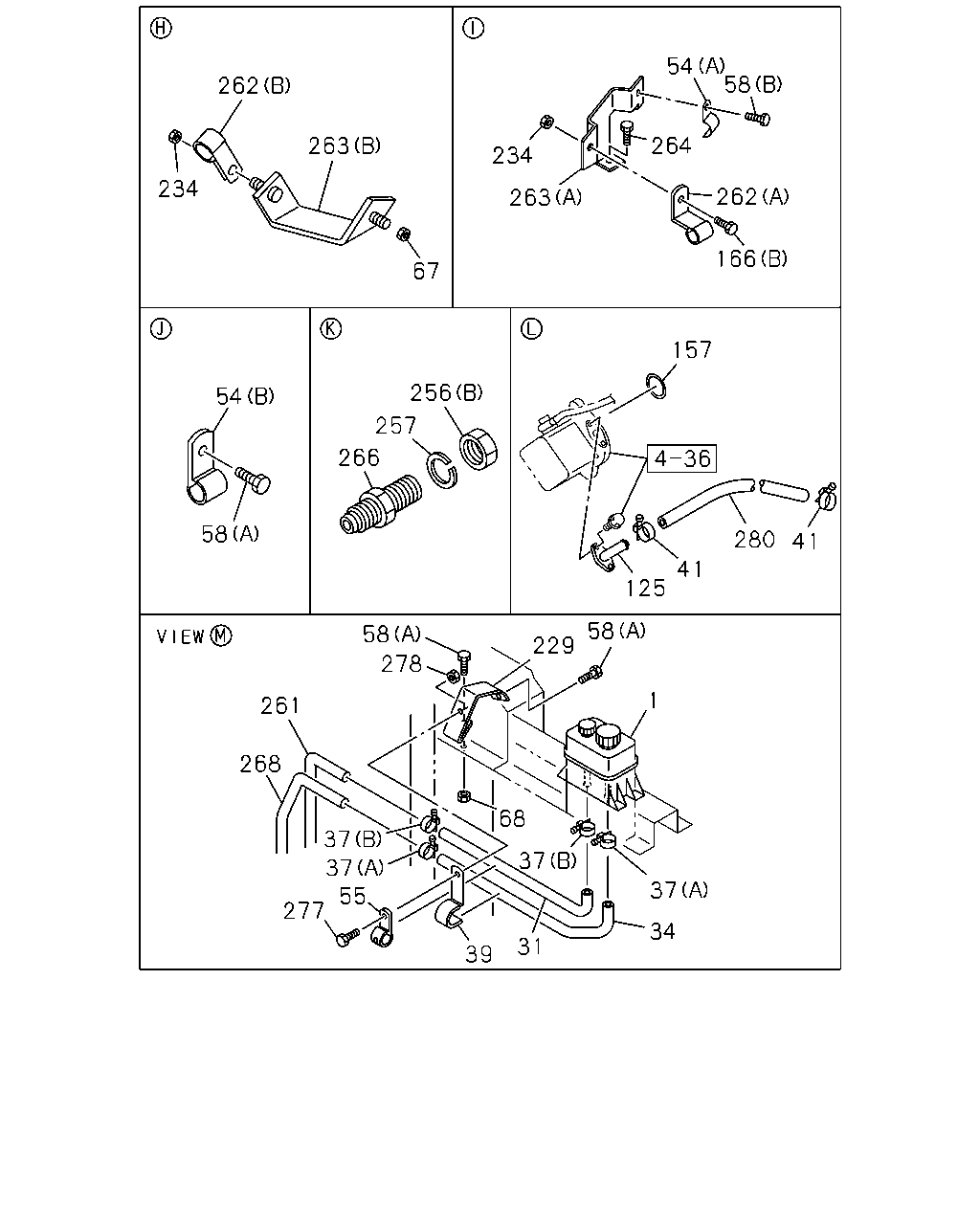

54 58 262 264 263 234 234 262 263 166 67 157 256 54 257 266 58 280 41 41 125 58 58 229 278 1 261 268 68 37 37 37 55 37 277 34 31 39

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	TANK ASM; OIL,P/S	1-21210-195-2	01	1	0105-
31	HOSE; P/S OIL TANK,INL	1-21114-284-0	01	1	0105-
34	HOSE; P/S OIL TANK,OUTLET	1-21114-283-0	01	1	0105-
37	CLIP; HOSE,P/S (A) ID=38	9-09915-041-1	02	1	0105-
37	CLIP; HOSE,P/S (B) ID=28	9-09915-672-1	02	1	0105-
39	CLIP; FLEX HOSE ID=32 L=75	1-09700-702-0	01	1	0105-
41	CLIP; HOSE,P/S ID=38	9-09915-041-1	02	1	0105-
54	CLIP; OIL PIPE (A) ID=23.6 L=35	1-09700-634-0	02	1	0105-
54	CLIP; OIL PIPE (B) ID=16 L=20	9-09525-535-0	01	1	0105-
55	CLIP; P/S RUBBER HOSE ID=28 L=30	1-09700-607-1	01	1	0105-
58	BOLT; CLIP (A) M8X20 FLANGE	0-28680-820-0	01	1	0105-
58	BOLT; CLIP (A) M8X20 FLANGE	0-28680-820-0	04	1	0105-
58	BOLT; CLIP (A) M8X25 FLANGE	0-28680-825-0	01	1	0105-
58	BOLT; CLIP (A) M8X25 FLANGE	0-28680-825-0	01	1	0105-
58	BOLT; CLIP (B) M10X25 FLANGE	0-28681-025-0	02	1	0105-
67	NUT; BRKT M8 FLANGE	0-91150-108-0	01	1	0105-
68	NUT; CLIP,OIL PIPE M8 FLANGE	0-91150-108-0	01	1	0105-
68	NUT; CLIP,OIL PIPE M8 FLANGE	0-91150-108-0	01	1	0105-
125	CONNECTOR; P/S PUMP	1-13313-532-0	01	1	0105-
157	GASKET; P/S PUMP ALSO INCLUDED IN GASKET SET(ENGINE). ID=79.6	1-09623-421-0	01	1	0105-
166	BOLT; CLIP (A) M8X20 FLANGE	0-28680-820-0	02	1	0105-
166	BOLT; CLIP (B) M8X25 FLANGE	0-28680-825-0	01	1	0105-
229	BRACKET; HOSE,POWER STRG	1-21464-407-1	01	1	0105-
234	NUT; PIPE CLIP,P/S M8 FLANGE	0-91150-108-0	02	1	0105-
256	NUT; UNION (A) M22	9-09111-422-0	01	1	0105-
256	NUT; UNION (B) M22	9-09111-522-0	01	1	0105-
257	WASHER; LK,UNION ID=22.5	9-09150-522-0	01	1	0105-
261	PIPE; OIL,UNION TO HOSE L=1031	1-21117-048-0	01	1	0105-
262	CLIP; P/S PIPE (A) ID=15 H=24 L=20	1-09700-606-0	01	1	0105-
262	CLIP; P/S PIPE (B) ID=16 L=20	9-09525-535-0	01	1	0105-
263	BRACKET; P/S PIPE (A)	1-47476-483-2	01	1	0105-
263	BRACKET; P/S PIPE (B)	1-47477-597-3	01	1	0105-
264	BOLT; PIPE BRKT M8X30 FLANGE	0-28680-830-0	01	1	0105-
266	UNION; OIL PIPE,P/S M20 & M22 STRAIGHT	1-09654-167-1	01	1	0105-
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE L=1315	1-21116-855-0	01	1	0105-
277	BOLT; HOSE CLIP M10X25 FLANGE	0-28681-025-0	01	1	0105-
278	NUT; HOSE CLIP M10 FLANGE	0-91150-210-0	01	1	0105-
280	HOSE; P/S OIL PUMP,INL	1-21115-865-0	01	1	0105-

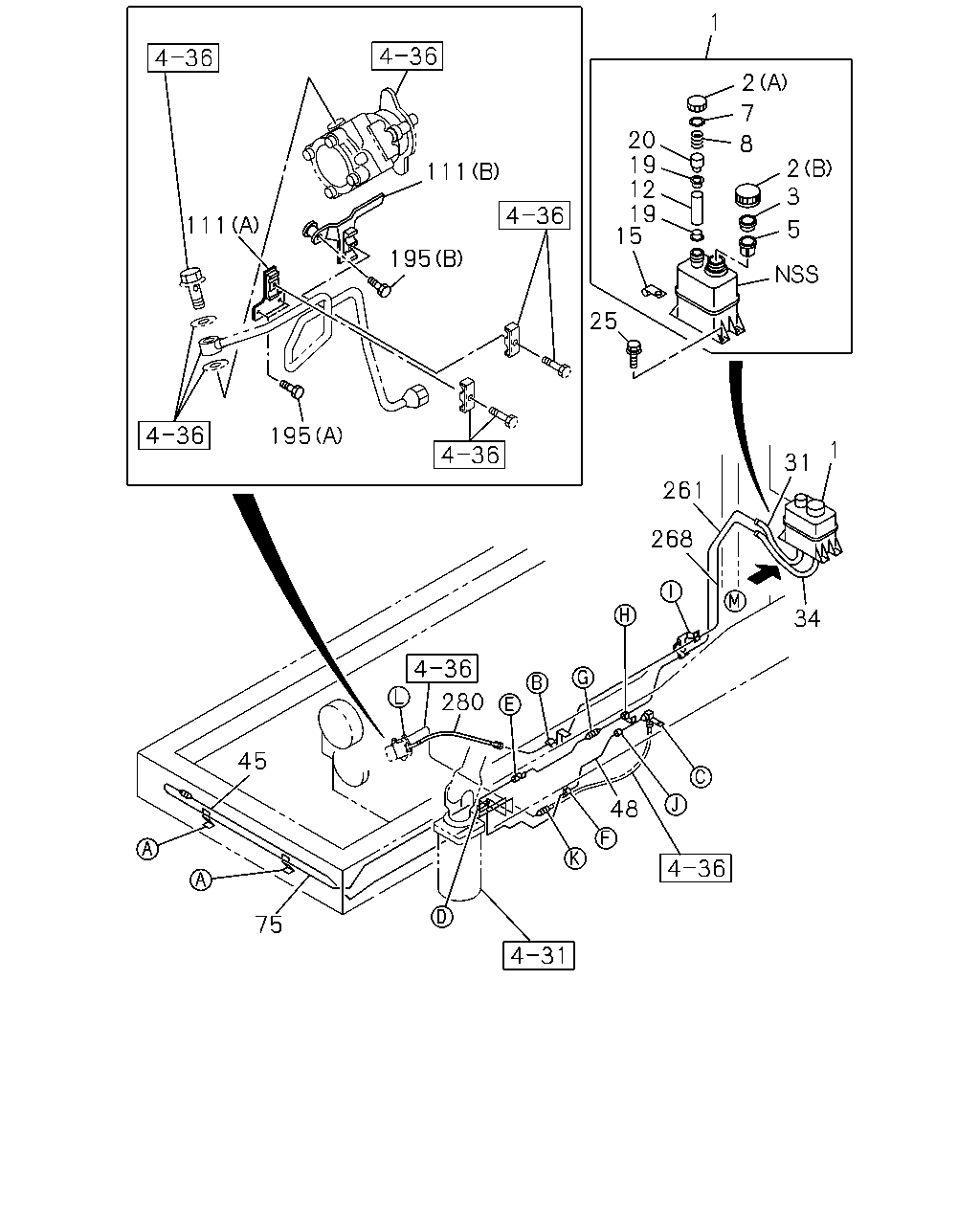

1 2 7 20 19 12 19 15 8 2 3 111 111 5 195 25 195 1 31 261 268 34 280 45 75 48

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	TANK ASM; OIL,P/S	1-21210-195-2	01	1	0105-
2	CAP; OIL TANK,P/S (A) WO/GAUGE	1-21241-003-6	01	1	0105-
2	CAP; OIL TANK,P/S (B) W/GAUGE	1-21241-006-4	01	1	0105-
3	GASKET; OIL TANK,P/S	1-21249-006-2	01	1	0105-
5	STRAINER; OIL TANK,P/S	1-21235-006-1	01	1	0105-
7	RING; GASKET,OIL TANK,P/S	1-21249-005-0	01	1	0105-
8	SPRING; OIL TANK,P/S	1-09580-319-1	01	1	0105-
12	FILTER; MICROBON,OIL TANK,P/S	1-21235-004-1	01	1	0105-
15	PLATE; FILTER,OIL TANK	1-21249-007-1	04	1	0105-
19	SEAT; OIL TANK	1-21262-001-0	02	1	0105-
20	HOLDER; FILTER,OIL TANK,P/S	1-21239-001-2	01	1	0105-
25	BOLT; OIL TANK BRKT M8X20 FLANGE	0-28680-820-0	04	1	0105-
31	HOSE; P/S OIL TANK,INL	1-21114-284-0	01	1	0105-
34	HOSE; P/S OIL TANK,OUTLET	1-21114-283-0	01	1	0105-
45	PIPE; OIL,P/S UNIT TO UNION	1-21116-848-0	01	1	0105-
48	PIPE; OIL,FLEX HOSE TO STRG UNIT	1-21116-186-0	01	1	0105-0108
48	PIPE; OIL,FLEX HOSE TO STRG UNIT	1-21117-135-0	01	1	0109-
75	PIPE; OIL,P/S,UNION TO UNION	1-21116-403-0	01	1	0105-0106
75	PIPE; OIL,P/S,UNION TO UNION	1-21117-075-0	01	1	0107-
111	BRACKET; OIL PIPE (A)	1-13345-186-0	01	1	0105-
111	BRACKET; OIL PIPE (B)	1-13345-187-0	01	1	0105-
195	BOLT; BRKT (A) M8X12 FLANGE	0-28080-812-0	02	1	0105-
195	BOLT; BRKT (B) M10X35 FLANGE	0-28181-035-0	01	1	0105-
195	BOLT; BRKT (C) M8X25 FLANGE	0-28680-825-0	02	1	0105-
261	PIPE; OIL,UNION TO HOSE L=1031	1-21117-048-0	01	1	0105-
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE L=1315	1-21116-855-0	01	1	0105-
280	HOSE; P/S OIL PUMP,INL	1-21115-865-0	01	1	0105-

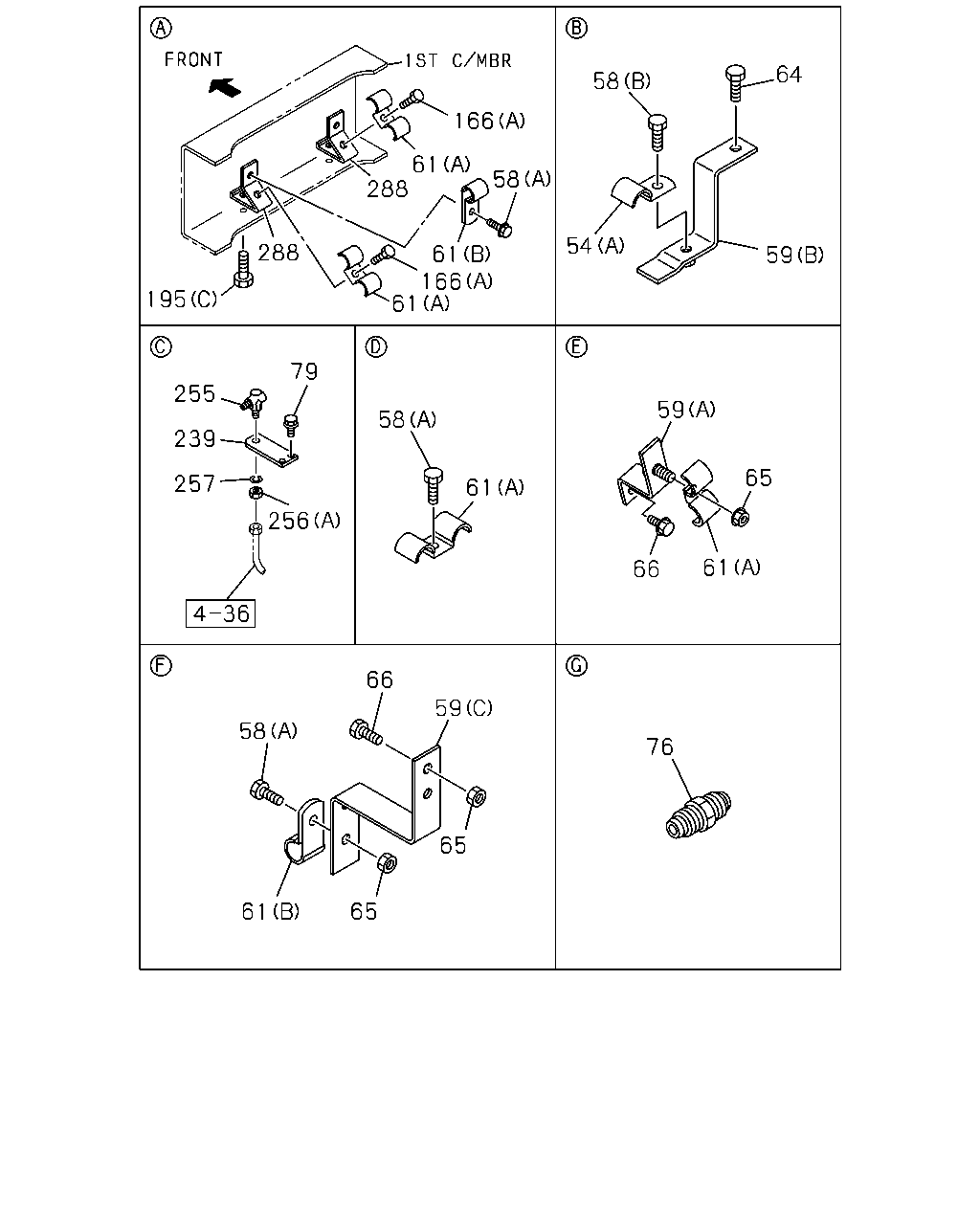

64 58 166 61 288 58 288 54 61 166 61 59 195 79 255 59 58 239 65 257 61 256 61 66 66 59 58 76 65 61 65

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
54	CLIP; OIL PIPE (A) ID=23.6 L=35	1-09700-634-0	02	1	0105-
54	CLIP; OIL PIPE (B) ID=16 L=20	9-09525-535-0	01	1	0105-
58	BOLT; CLIP (A) M8X20 FLANGE	0-28680-820-0	01	1	0105-
58	BOLT; CLIP (A) M8X20 FLANGE	0-28680-820-0	04	1	0105-
58	BOLT; CLIP (A) M8X25 FLANGE	0-28680-825-0	01	1	0105-
58	BOLT; CLIP (A) M8X25 FLANGE	0-28680-825-0	01	1	0105-
58	BOLT; CLIP (B) M10X25 FLANGE	0-28681-025-0	02	1	0105-
59	BRACKET; CLIP,OIL PIPE (C)	1-47475-963-1	01	1	0105-
59	BRACKET; CLIP,OIL PIPE (B)	1-47477-145-0	01	1	0105-
59	BRACKET; CLIP,OIL PIPE (A)	1-47477-235-0	01	1	0105-0106
59	BRACKET; CLIP,OIL PIPE (A)	1-47477-669-1	01	1	0107-
61	CLIP; OIL PIPE (A) ID=16 & 9 L=21 & 18	1-09700-676-0	01	1	0105-
61	CLIP; OIL PIPE ISUZU M/T<X9A> (A) ID=16 & 9 L=21 & 18	1-09700-676-0	01	1	0105-
61	CLIP; OIL PIPE (B) ID=16 L=20	9-09525-535-0	01	1	0105-
61	CLIP; OIL PIPE ZF M/T<X9E> (B) ID=16 L=20	9-09525-535-0	01	1	0105-
61	CLIP; OIL PIPE (B) ID=16 L=20	9-09525-535-0	02	1	0105-
61	CLIP; OIL PIPE ISUZU M/T<X9A> (A) ID=16 & 11 L=21.5 & 21.5	1-09700-924-0	01	1	0105-
61	CLIP; OIL PIPE MJD7S M/T(Y2Y) (A) ID=16 & 11 L=21.5 & 21.5	1-09700-924-0	01	1	0105-
61	CLIP; OIL PIPE ZF M/T<X9E> (A) ID=16 & 16 L=21.5 & 21.5	1-09700-674-0	01	1	0105-0106
61	CLIP; OIL PIPE ZF M/T<X9E> (A) ID=16 & 16 L=21.5 & 21.5	1-09700-674-0	01	1	0105-0106
61	CLIP; OIL PIPE ZF M/T<X9E> (A) ID=16 & 16 L=21.5 & 21.5	1-09700-674-0	01	1	0107-
61	CLIP; OIL PIPE MJX16P M/T(Y3Z) (A) ID=16 & 16 L=21.5 & 21.5	1-09700-674-0	01	1	0107-
61	CLIP; OIL PIPE ZF M/T<X9E> (A) ID=16 & 16 L=21.5 & 21.5	1-09700-674-0	01	1	0107-
64	BOLT; CLIP BRKT M8X20 FLANGE	0-28080-820-0	01	1	0105-
65	NUT; BRKT M8 FLANGE	0-91150-108-0	01	1	0105-
65	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	0105-
66	BOLT; BRKT,OIL PIPE M8X30 FLANGE	0-28680-830-0	01	1	0105-
66	BOLT; BRKT,OIL PIPE M8X30 FLANGE	0-28680-830-0	01	1	0105-
76	UNION; OIL PIPE M22	9-09233-015-1	01	1	0105-
79	BOLT; BRKT M8X35 FLANGE	0-28680-835-0	02	1	0105-
166	BOLT; CLIP (A) M8X20 FLANGE	0-28680-820-0	02	1	0105-
166	BOLT; CLIP (B) M8X25 FLANGE	0-28680-825-0	01	1	0105-
195	BOLT; BRKT (A) M8X12 FLANGE	0-28080-812-0	02	1	0105-
195	BOLT; BRKT (B) M10X35 FLANGE	0-28181-035-0	01	1	0105-
195	BOLT; BRKT (C) M8X25 FLANGE	0-28680-825-0	02	1	0105-
239	BRACKET; FLEX HOSE	1-47476-679-4	01	1	0105-
255	UNION; FLEX HOSE M22 & M22 ELBOW	1-09654-163-1	01	1	0105-
256	NUT; UNION (A) M22	9-09111-422-0	01	1	0105-
256	NUT; UNION (B) M22	9-09111-522-0	01	1	0105-
257	WASHER; LK,UNION ID=22.5	9-09150-522-0	01	1	0105-
288	BRACKET; CLIP,P/S	1-47477-621-1	02	1	0105-
