Isuzu WW
▶
TRUCKS
▶
EXR
▶
10868 - EXR LHD FUEL TANK 400L
▶
4 - Propeller Shaft, Axles, Steering, Suspension
▶
4-33 - STEERING LINKAGE
▶
4-33 — STEERING LINKAGE
(#10200) — 24 parça
◀
[433A] DUMP TRUCK (11 parça)
[433A] EXC.DUMP TRUCK (13 parça)
▶

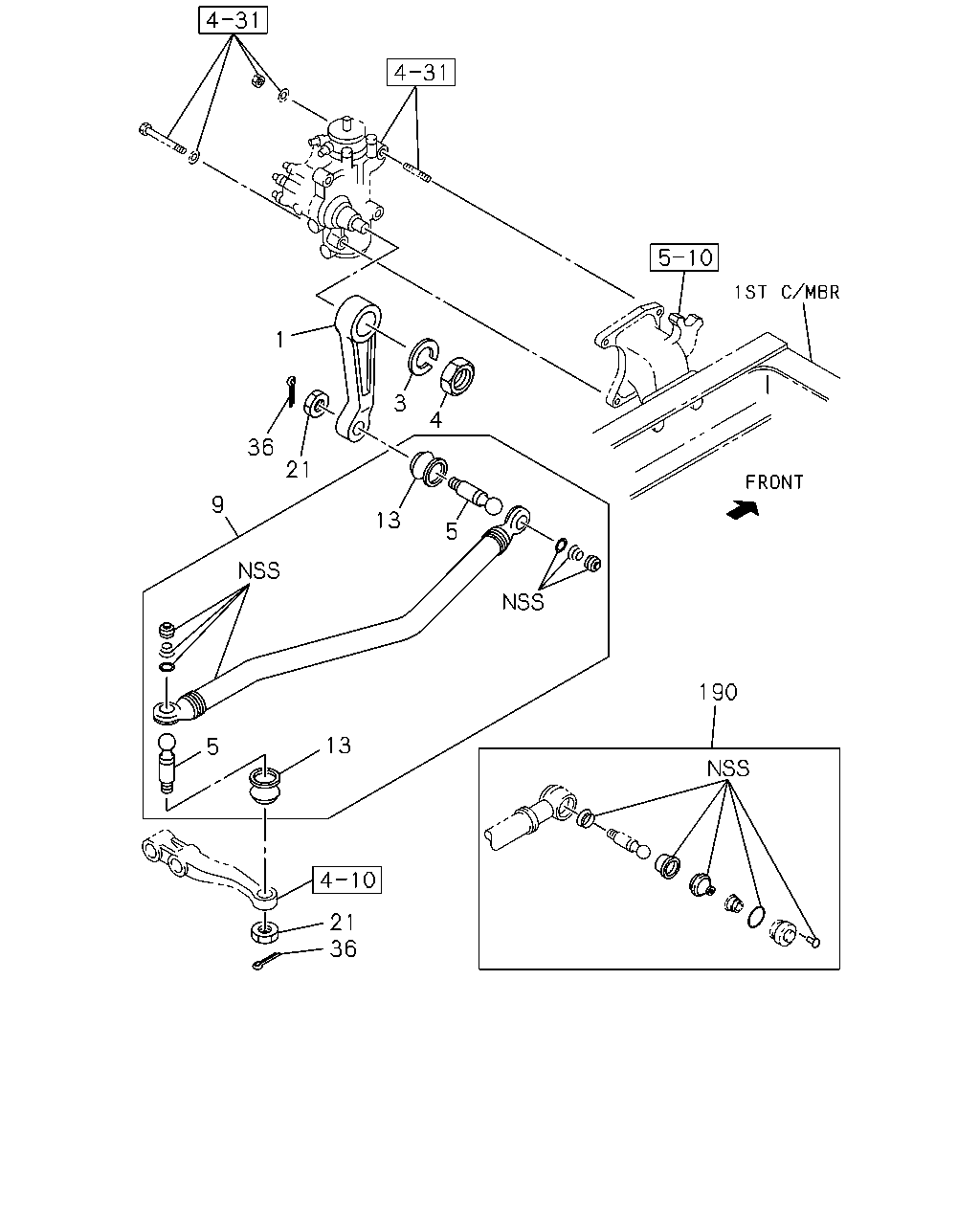

1
3
4
36
21
9
13
5
190
13
5
21
36
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
ARM; PITMAN,STRG
DUMP TRUCK<RA1>
1-44341-465-0
01
1
0105-
1
ARM; PITMAN,STRG
EXC. DUMP TRUCK<RA1>
1-44341-443-0
01
1
0105-
3
WASHER; LK,PITMAN ARM
ID=36.5
1-09500-021-0
01
1
0105-
4
NUT; PITMAN ARM
M36 FLANGE
1-09440-013-0
01
1
0105-
5
BALL; JOINT,DRAG LINK
1-44361-105-1
02
1
0105-
9
LINK; DRAG
DUMP TRUCK<RA1>
1-44380-226-1
01
1
0105-
9
LINK; DRAG
EXC. DUMP TRUCK<RA1>
1-44380-151-1
01
1
0105-
13
BOOT; DRAG LINK
1-43159-107-0
02
1
0105-
21
NUT; LK,JOINT BALL
M24 SLOTTED
1-09442-020-0
02
1
0105-
36
PIN; SPLIT,DRAG LINK
OD=4.6 L=35
9-08115-035-0
02
1
0105-
190
REPAIR KIT; DRAG LINK
1-85574-041-0
02
1
0105-

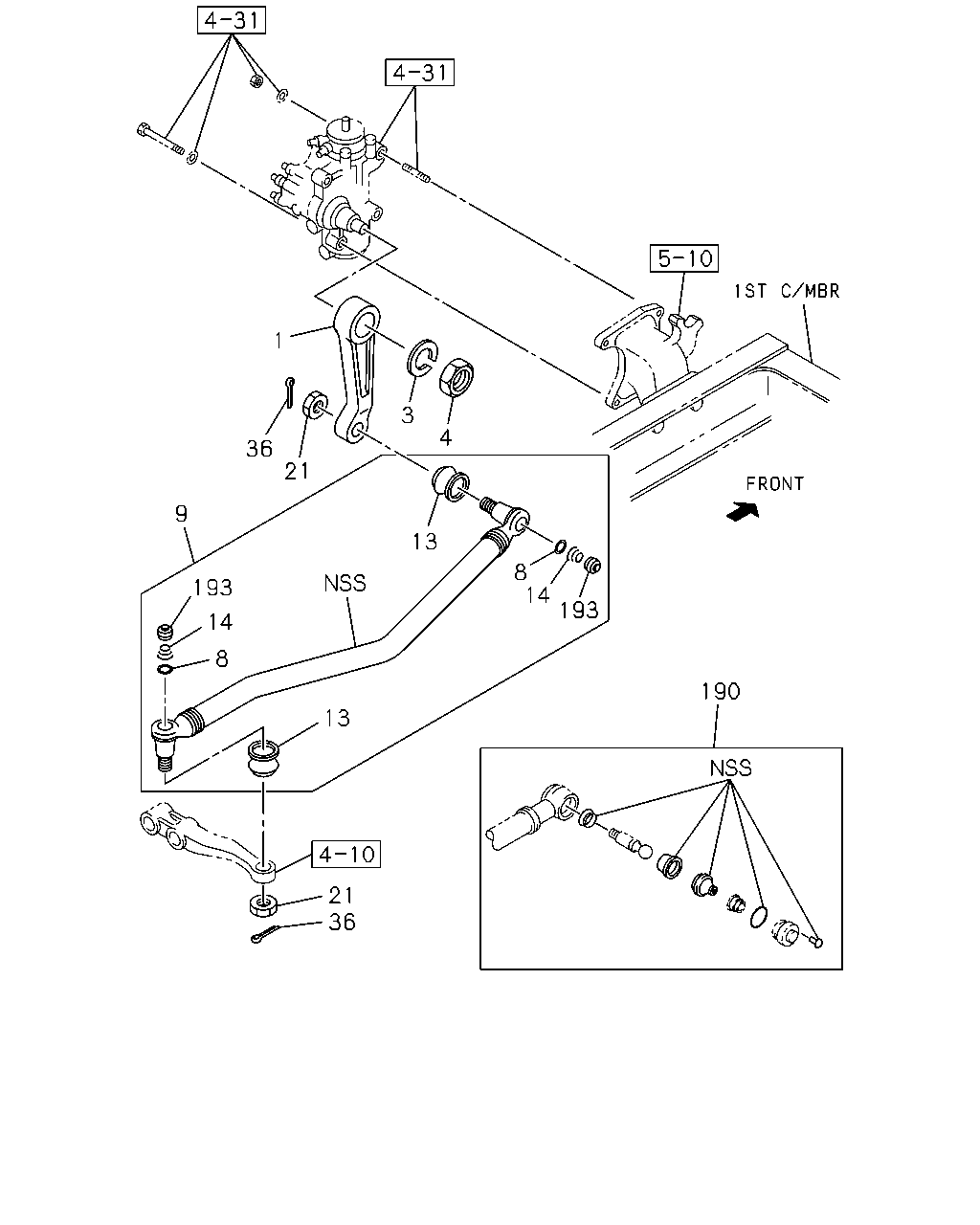

1
3
4
36
21
9
13
8
14
193
193
14
8
190
13
21
36
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
ARM; PITMAN,STRG
DUMP TRUCK<RA1>
1-44341-465-0
01
1
0105-
1
ARM; PITMAN,STRG
EXC. DUMP TRUCK<RA1>
1-44341-443-0
01
1
0105-
3
WASHER; LK,PITMAN ARM
ID=36.5
1-09500-021-0
01
1
0105-
4
NUT; PITMAN ARM
M36 FLANGE
1-09440-013-0
01
1
0105-
8
SEAT; SPR,ROD END
1-43159-075-0
02
1
0105-
9
LINK; DRAG
DUMP TRUCK<RA1>
1-44380-226-1
01
1
0105-
9
LINK; DRAG
EXC. DUMP TRUCK<RA1>
1-44380-151-1
01
1
0105-
13
BOOT; DRAG LINK
1-43159-107-0
02
1
0105-
14
SPRING; COIL,DRAG LINK
1-43159-074-0
02
1
0105-
21
NUT; LK,JOINT BALL
M24 SLOTTED
1-09442-020-0
02
1
0105-
36
PIN; SPLIT,DRAG LINK
OD=4.6 L=35
9-08115-035-0
02
1
0105-
190
REPAIR KIT; DRAG LINK
1-85574-041-0
02
1
0105-
193
PLUG; END,DRAG LINK
1-43159-093-0
02
1
0105-
