0-13 — OIL PAN AND LEVEL GAUGE (#1020) — 83 parça

255

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
	255	STAY; OIL FILLER CAB BACK OIL FILLER<E2J>	1-22131-617-1	01	1	9202-	●	●

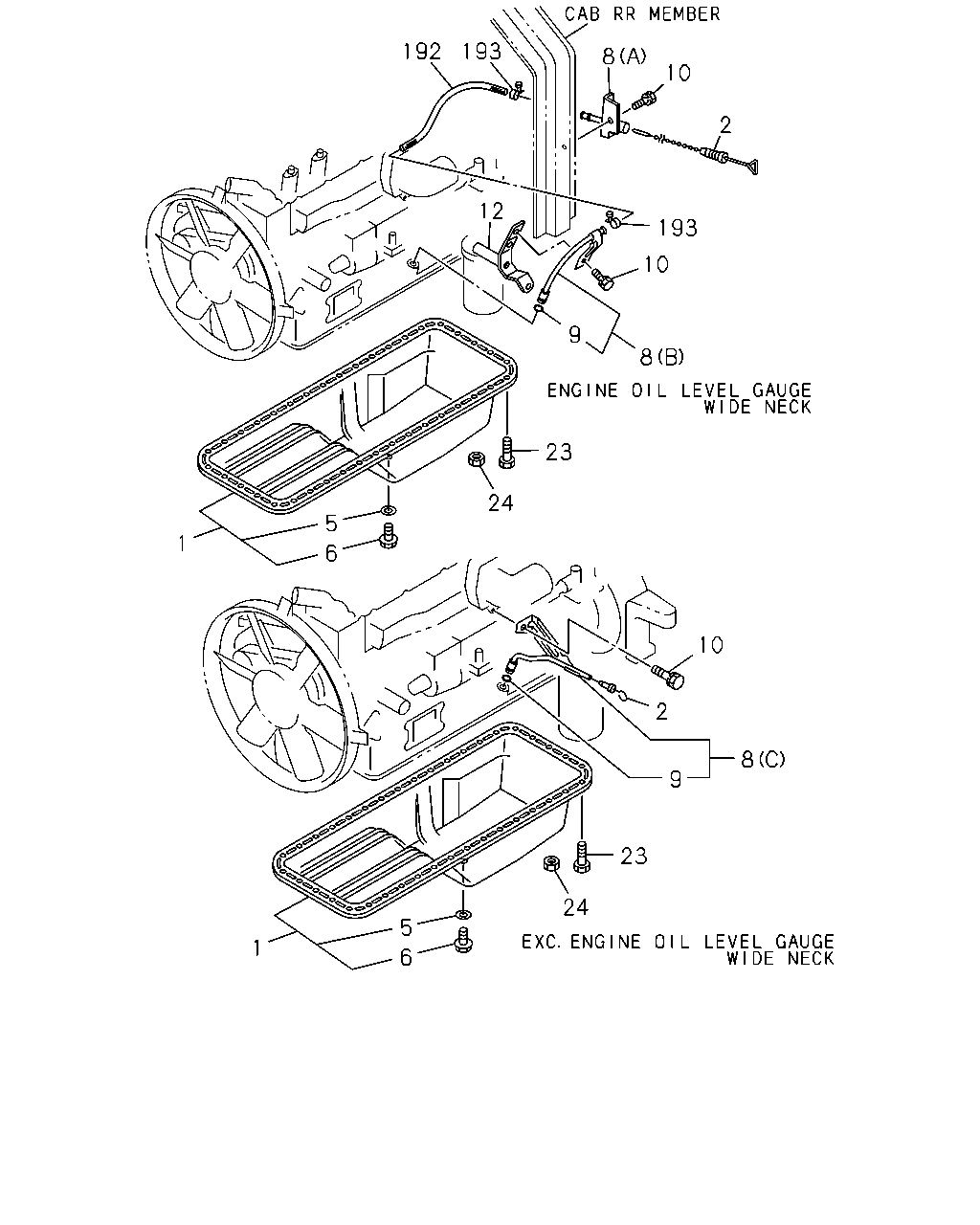

192 193 8 10 2 12 193 10 9 8 23 24 5 1 6 10 2 8 9 23 24 5 1 6

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	PAN ASM; OIL ANTI NOISE EQUIPMENT VAR E<SLK>	1-11360-742-1	01	1	9202-	●	●
1	PAN ASM; OIL EXC. ANTI NOISE EQUIPMENT VAR E<SLK>	1-11360-635-2	01	1	9202-	●	●
1	PAN ASM; OIL	8-94393-176-0	01	1	9202-			●
2	GAUGE; OIL LEVEL ENGINE OIL LEVEL GAUGE WIDE NECK<WY9>	1-11760-328-0	01	1	9202-	●	●
2	GAUGE; OIL LEVEL EXC. ENGINE OIL LEVEL GAUGE WIDE NECK<WY9>	1-11760-358-1	01	1	9202-	●	●
2	GAUGE; OIL LEVEL ENGINE OIL LEVEL GAUGE WIDE NECK<WY9>	8-94393-101-0	01	1	9202-9203			●
2	GAUGE; OIL LEVEL ENGINE OIL LEVEL GAUGE WIDE NECK<WY9>	8-94394-687-0	01	1	9204-			●
2	GAUGE; OIL LEVEL EXC. ENGINE OIL LEVEL GAUGE WIDE NECK<WY9>	8-94393-034-0	01	1	9202-			●
5	GASKET; PLUG,OIL DRAIN ALSO INCLUDED IN GASKET SET(ENGINE).	1-09623-179-0	01	1	9202-	●	●
5	GASKET; PLUG,OIL DRAIN ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.4	1-09623-183-0	01	1	9202-			●
6	PLUG; OIL DRAIN M24X17 FLANGE	1-09604-064-1	01	1	9202-	●	●
6	PLUG; OIL DRAIN	9-09662-012-0	01	1	9202-			●
8	TUBE; GUIDE,OIL LEVEL GAUGE ENGINE OIL LEVEL GAUGE WIDE NECK<WY9> (A)	1-11766-403-0	01	1	9202-	●	●
8	TUBE; GUIDE,OIL LEVEL GAUGE ENGINE OIL LEVEL GAUGE WIDE NECK<WY9> (B)	1-11766-411-0	01	1	9202-	●	●
8	TUBE; GUIDE,OIL LEVEL GAUGE EXC. ENGINE OIL LEVEL GAUGE WIDE NECK<WY9> (C)	1-11766-380-0	01	1	9202-	●	●
8	TUBE; GUIDE,OIL LEVEL GAUGE ENGINE OIL LEVEL GAUGE WIDE NECK VAR2<Q2M> (B)	8-94394-624-0	01	1	9204-			●
8	TUBE; GUIDE,OIL LEVEL GAUGE ENGINE OIL LEVEL GAUGE WIDE NECK<WY9> (A)	8-94393-613-1	01	1	9202-			●
8	TUBE; GUIDE,OIL LEVEL GAUGE EXC. ENGINE OIL LEVEL GAUGE WIDE NECK<WY9> (C)	8-94393-038-0	01	1	9202-			●
9	GASKET; GUIDE TUBE,OIL LEVEL GAUGE ALSO INCLUDED IN GASKET SET(ENGINE). EXC. ENGINE OIL LEVEL GAUGE WIDE NECK<WY9> ID=11	5-09623-002-0	02	1	9202-			●
10	BOLT; GUIDE TUBE ENGINE OIL LEVEL GAUGE WIDE NECK<WY9> M10X25 W/LK WASHER	0-50041-025-0	01	1	9202-	●	●
10	BOLT; GUIDE TUBE EXC. ENGINE OIL LEVEL GAUGE WIDE NECK<WY9> M8X25 W/LK&PL WASHER	0-50140-825-0	01	1	9202-	●	●
10	BOLT; GUIDE TUBE M8X16 FLANGE	0-28080-816-0	01	1	9202-			●
10	BOLT; GUIDE TUBE ENGINE OIL LEVEL GAUGE WIDE NECK VAR2<Q2M> M10X140 FLANGE	8-94373-016-1	01	1	9204-			●
10	BOLT; GUIDE TUBE ENGINE OIL LEVEL GAUGE WIDE NECK VAR2<Q2M> M10X120	8-94396-689-0	01	1	9204-			●
12	BRACKET; TUBE,OIL LEVEL GAUGE ENGINE OIL LEVEL GAUGE WIDE NECK VAR2<Q2M>	8-94393-088-1	01	1	9204-			●
23	BOLT; OIL PAN M8X20 W/LK WASHER	0-50040-820-0	30	1	9202-	●	●
23	BOLT; OIL PAN M8X18 FLANGE	0-28080-818-0	31	1	9202-9501			●
23	BOLT; OIL PAN M8X18 FLANGE	0-28080-818-0	28	1	9502-			●
23	BOLT; OIL PAN ENGINE OIL LEVEL GAUGE WIDE NECK<WY9> M8X28 FLANGE	0-28080-828-0	02	1	9202-			●
23	BOLT; OIL PAN EXC. ENGINE OIL LEVEL GAUGE WIDE NECK<WY9> M8X18 FLANGE	0-28080-818-0	02	1	9202-			●
24	NUT; OIL PAN M8	9-09110-408-0	06	1	9202-	●	●
24	NUT; OIL PAN M8 FLANGE	8-94328-243-0	01	1	9202-9309			●
24	NUT; OIL PAN M8 FLANGE	0-91150-108-0	01	1	9310-9501			●
24	NUT; OIL PAN M8 FLANGE	0-91150-108-0	04	1	9502-			●
192	HOSE; GUIDE TUBE ENGINE OIL LEVEL GAUGE WIDE NECK<WY9> L=350 SERVICED BY L=3000	0-02361-300-0	01	1	9202-	●	●
192	HOSE; GUIDE TUBE ENGINE OIL LEVEL GAUGE WIDE NECK<WY9>	0-02311-320-0	01	1	9202-9203			●
192	HOSE; GUIDE TUBE	0-02311-320-0	01	1	9204-			●
193	CLIP; HOSE,GUIDE TUBE ENGINE OIL LEVEL GAUGE WIDE NECK<WY9> ID=17	1-09707-158-0	02	1	9202-	●	●	●

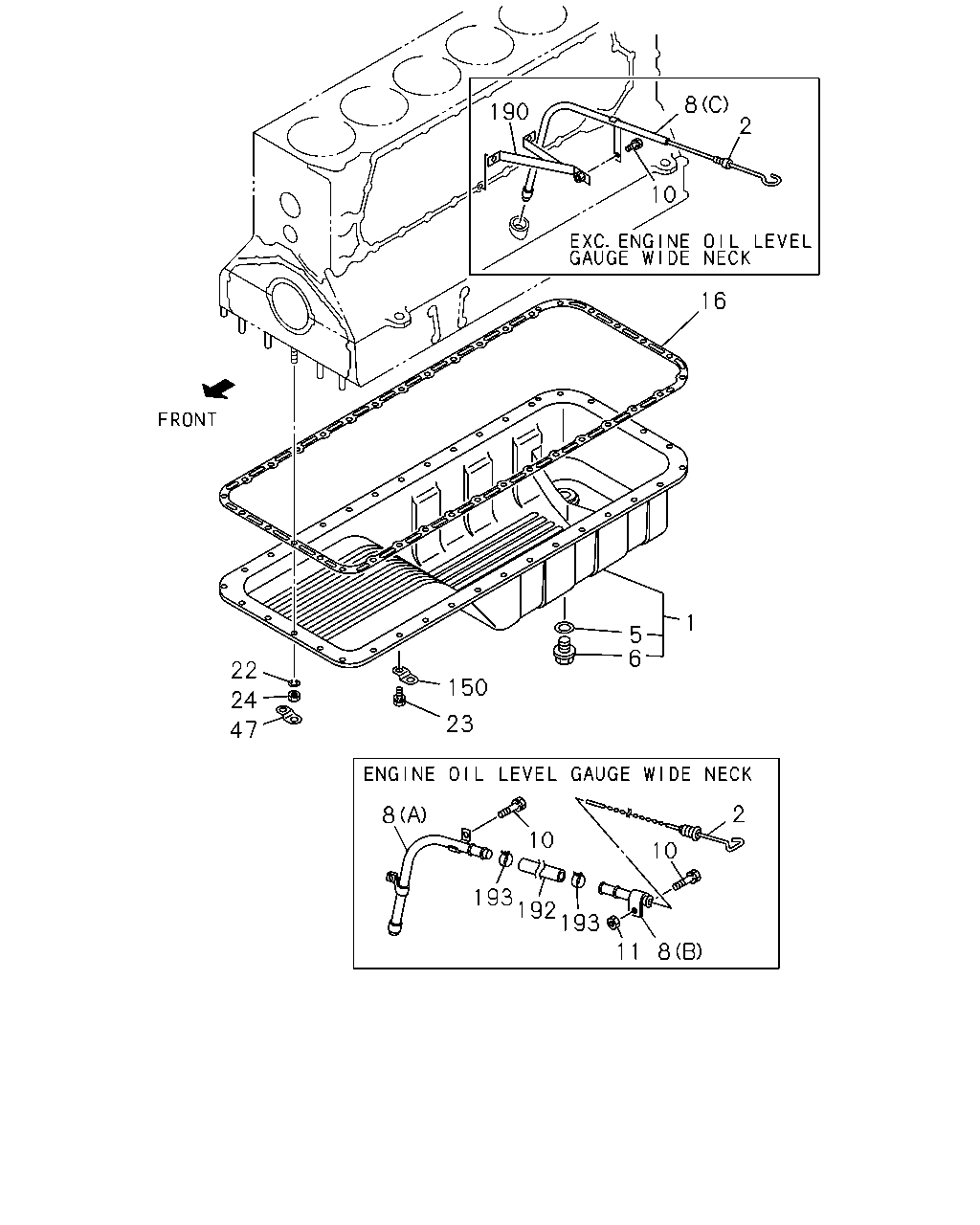

8 190 2 10 16 1 5 6 22 150 24 23 47 2 8 10 10 193 192 193 8 11

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	PAN ASM; OIL ANTI NOISE EQUIPMENT VAR E<SLK>	1-11360-742-1	01	1	9202-	●	●
1	PAN ASM; OIL EXC. ANTI NOISE EQUIPMENT VAR E<SLK>	1-11360-635-2	01	1	9202-	●	●
1	PAN ASM; OIL	8-94393-176-0	01	1	9202-			●
2	GAUGE; OIL LEVEL ENGINE OIL LEVEL GAUGE WIDE NECK<WY9>	1-11760-328-0	01	1	9202-	●	●
2	GAUGE; OIL LEVEL EXC. ENGINE OIL LEVEL GAUGE WIDE NECK<WY9>	1-11760-358-1	01	1	9202-	●	●
2	GAUGE; OIL LEVEL ENGINE OIL LEVEL GAUGE WIDE NECK<WY9>	8-94393-101-0	01	1	9202-9203			●
2	GAUGE; OIL LEVEL ENGINE OIL LEVEL GAUGE WIDE NECK<WY9>	8-94394-687-0	01	1	9204-			●
2	GAUGE; OIL LEVEL EXC. ENGINE OIL LEVEL GAUGE WIDE NECK<WY9>	8-94393-034-0	01	1	9202-			●
5	GASKET; PLUG,OIL DRAIN ALSO INCLUDED IN GASKET SET(ENGINE).	1-09623-179-0	01	1	9202-	●	●
5	GASKET; PLUG,OIL DRAIN ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.4	1-09623-183-0	01	1	9202-			●
6	PLUG; OIL DRAIN M24X17 FLANGE	1-09604-064-1	01	1	9202-	●	●
6	PLUG; OIL DRAIN	9-09662-012-0	01	1	9202-			●
8	TUBE; GUIDE,OIL LEVEL GAUGE ENGINE OIL LEVEL GAUGE WIDE NECK<WY9> (A)	1-11766-403-0	01	1	9202-	●	●
8	TUBE; GUIDE,OIL LEVEL GAUGE ENGINE OIL LEVEL GAUGE WIDE NECK<WY9> (B)	1-11766-411-0	01	1	9202-	●	●
8	TUBE; GUIDE,OIL LEVEL GAUGE EXC. ENGINE OIL LEVEL GAUGE WIDE NECK<WY9> (C)	1-11766-380-0	01	1	9202-	●	●
8	TUBE; GUIDE,OIL LEVEL GAUGE ENGINE OIL LEVEL GAUGE WIDE NECK VAR2<Q2M> (B)	8-94394-624-0	01	1	9204-			●
8	TUBE; GUIDE,OIL LEVEL GAUGE ENGINE OIL LEVEL GAUGE WIDE NECK<WY9> (A)	8-94393-613-1	01	1	9202-			●
8	TUBE; GUIDE,OIL LEVEL GAUGE EXC. ENGINE OIL LEVEL GAUGE WIDE NECK<WY9> (C)	8-94393-038-0	01	1	9202-			●
10	BOLT; GUIDE TUBE ENGINE OIL LEVEL GAUGE WIDE NECK<WY9> M10X25 W/LK WASHER	0-50041-025-0	01	1	9202-	●	●
10	BOLT; GUIDE TUBE EXC. ENGINE OIL LEVEL GAUGE WIDE NECK<WY9> M8X25 W/LK&PL WASHER	0-50140-825-0	01	1	9202-	●	●
10	BOLT; GUIDE TUBE M8X16 FLANGE	0-28080-816-0	01	1	9202-			●
10	BOLT; GUIDE TUBE ENGINE OIL LEVEL GAUGE WIDE NECK VAR2<Q2M> M10X140 FLANGE	8-94373-016-1	01	1	9204-			●
10	BOLT; GUIDE TUBE ENGINE OIL LEVEL GAUGE WIDE NECK VAR2<Q2M> M10X120	8-94396-689-0	01	1	9204-			●
11	NUT; GUIDE,OIL LEVEL GAUGE ENGINE OIL LEVEL GAUGE WIDE NECK<WY9> M10 FLANGE	0-91150-110-0	01	1	9202-	●	●
16	GASKET; OIL PAN TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	1-11367-050-1	01	1	9202-	●	●
22	WASHER; LK,OIL PAN ID=8.2	9-09150-508-0	06	1	9202-	●	●
23	BOLT; OIL PAN M8X20 W/LK WASHER	0-50040-820-0	30	1	9202-	●	●
23	BOLT; OIL PAN M8X18 FLANGE	0-28080-818-0	31	1	9202-9501			●
23	BOLT; OIL PAN M8X18 FLANGE	0-28080-818-0	28	1	9502-			●
23	BOLT; OIL PAN ENGINE OIL LEVEL GAUGE WIDE NECK<WY9> M8X28 FLANGE	0-28080-828-0	02	1	9202-			●
23	BOLT; OIL PAN EXC. ENGINE OIL LEVEL GAUGE WIDE NECK<WY9> M8X18 FLANGE	0-28080-818-0	02	1	9202-			●
24	NUT; OIL PAN M8	9-09110-408-0	06	1	9202-	●	●
24	NUT; OIL PAN M8 FLANGE	8-94328-243-0	01	1	9202-9309			●
24	NUT; OIL PAN M8 FLANGE	0-91150-108-0	01	1	9310-9501			●
24	NUT; OIL PAN M8 FLANGE	0-91150-108-0	04	1	9502-			●
47	CLIP; HOSE,AIR BREATHER	1-11229-014-0	01	1	9202-		●
150	CLIP; WATER,OIL DRAIN	9-11229-070-0	02	1	9202-9407	●	●
150	CLIP; WATER,OIL DRAIN EXC. OIL FILTER SETTING DOWNWARD<E7V>	9-11229-070-0	02	1	9408-	●	●
150	CLIP; WATER,OIL DRAIN OIL FILTER SETTING DOWNWARD<E7V>	9-11229-070-0	01	1	9408-	●	●
190	STAY; OIL LEVEL GAUGE EXC. ENGINE OIL LEVEL GAUGE WIDE NECK<WY9> L=192.8	1-11769-139-0	01	1	9202-	●	●
192	HOSE; GUIDE TUBE ENGINE OIL LEVEL GAUGE WIDE NECK<WY9> L=350 SERVICED BY L=3000	0-02361-300-0	01	1	9202-	●	●
192	HOSE; GUIDE TUBE ENGINE OIL LEVEL GAUGE WIDE NECK<WY9>	0-02311-320-0	01	1	9202-9203			●
192	HOSE; GUIDE TUBE	0-02311-320-0	01	1	9204-			●
193	CLIP; HOSE,GUIDE TUBE ENGINE OIL LEVEL GAUGE WIDE NECK<WY9> ID=17	1-09707-158-0	02	1	9202-	●	●	●
