◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSR ▶ 10624 - FSR-RHD ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-43 - SUN VISOR AND ASSIST GRIP ▶
7-43 — SUN VISOR AND ASSIST GRIP (#102) — 70 parça

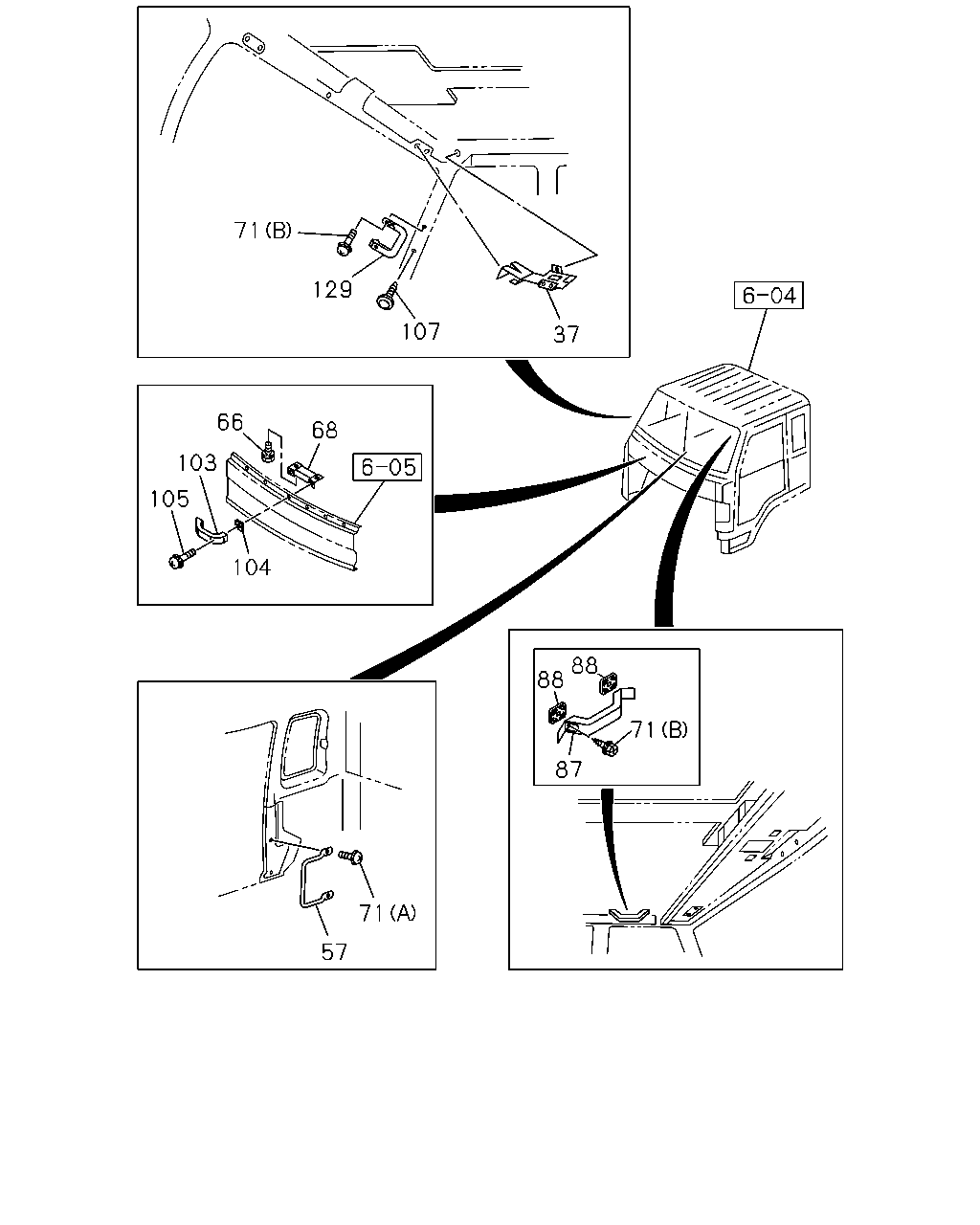

çizim 92430
71 129 107 37 66 68 103 105 104 88 88 71 87 71 57
BalonParca AdiParca NoAdetTipApplied Date A B
37 SUPPORT; SUN VISOR & HTR SHELF FRAME
DELUXE CAB(W14) 		1-73318-234-2 01 1 9202- ● ●
37 SUPPORT; SUN VISOR & HTR SHELF FRAME
DELUXE CAB(W14) 		1-73318-233-2 01 1 9202- ● ●
57 GRIP; ASSIST,RR PILLAR
HEAVY DUTY PACKAGE TRUCK<RD2> BRAKE SYSTEM HEAVY DUTY VAR2(WG3) 		1-71998-467-0 01 1 9202-9207 ● ●
57 GRIP; ASSIST,RR PILLAR
HEAVY DUTY PACKAGE TRUCK<RD2> BRAKE SYSTEM HEAVY DUTY VAR2(WG3) 		1-71998-467-0 02 1 9208- ● ●
66 BOLT; ASSIST GRIP BRKT
M6X20 W/LK&PL WASHER 		1-09980-493-0 02 1 9202- ● ●
68 BRACKET; ASSIST GRIP,FRT PANEL 1-65580-192-0 01 1 9202- ● ●
71 SCREW
(B) M6X20 W/LK&PL WASHER 		1-09981-509-0 04 1 9202- ● ●
71 SCREW
DELUXE CAB(W14) (B) M6X37 W/PL WASHER 		1-09981-423-0 02 1 9202- ● ●
71 SCREW
HEAVY DUTY PACKAGE TRUCK<RD2> BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (A) M6X16 W/LK&PL WASHER 		1-09981-172-0 04 1 9202-9305 ● ●
71 SCREW
(A) M6X16 W/LK&PL WASHER 		1-09981-172-0 04 1 9202-9305 ●
71 SCREW
HEAVY DUTY PACKAGE TRUCK<RD2> BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (A) M6X16 W/LK&PL WASHER 		1-09981-172-0 04 1 9306- ●
71 SCREW
(A) M6X16 W/LK&PL WASHER 		1-09981-172-0 04 1 9306- ●
87 GRIP; ASSIST,CANT RAIL SIDE
DELUXE CAB(W14) 		1-73618-156-0 01 1 9202- ● ●
88 BASE; ASSIST GRIP
DELUXE CAB(W14) 		1-73618-157-0 02 1 9202- ●
103 GRIP; ASSIST,FRT PNL
WHITE 		1-71998-131-0 01 1 9202- ● ●
104 SPACER; ASSIST GRIP 1-71997-529-2 02 1 9202- ● ●
105 SCREW; ASSIST GRIP
M6X30 W/PL WASHER M6X33.5 W/LK&PL WASHER 		1-09980-613-1 02 1 9202- ● ●
107 PLUG; ASSIST GRIP,DUMMY HOLE
DELUXE CAB(W14) 		1-76378-240-0 04 1 9202- ●
129 GRIP; ASSIST,FRT PILLAR 1-73618-158-2 02 1 9202- ● ●
çizim 92817
75 77 77 142 75 74 72 75 75 71 93 95 139 92 97 96 94
BalonParca AdiParca NoAdetTipApplied Date A B
71 SCREW
(B) M6X20 W/LK&PL WASHER 		1-09981-509-0 04 1 9202- ● ●
71 SCREW
DELUXE CAB(W14) (B) M6X37 W/PL WASHER 		1-09981-423-0 02 1 9202- ● ●
71 SCREW
HEAVY DUTY PACKAGE TRUCK<RD2> BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (A) M6X16 W/LK&PL WASHER 		1-09981-172-0 04 1 9202-9305 ● ●
71 SCREW
(A) M6X16 W/LK&PL WASHER 		1-09981-172-0 04 1 9202-9305 ●
71 SCREW
HEAVY DUTY PACKAGE TRUCK<RD2> BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (A) M6X16 W/LK&PL WASHER 		1-09981-172-0 04 1 9306- ●
71 SCREW
(A) M6X16 W/LK&PL WASHER 		1-09981-172-0 04 1 9306- ●
72 GRIP; ASSIST,CAB ENTRY,BACK
WHITE 		1-71998-278-0 02 1 9202- ●
74 GRIP; ASSIST,CAB ENTRY,BACK CENTER
WHITE L=199 		1-71998-437-0 02 1 9202- ●
75 SHEET; ASSIST GRIP,CAB ENTRY 1-71997-478-1 08 1 9202- ●
77 SCREW; ASSIST GRIP
M8X25 		1-09981-429-0 08 1 9202- ●
92 BAR; ASSIST 1-73618-123-2 01 1 9202- ●
93 BRACKET; ASSIST BAR 1-73618-126-1 02 1 9202- ●
94 NUT; CAP,ASSIST BAR
M8 FLANGE 		1-09984-126-0 04 1 9202- ●
95 SCREW; ASSIST BAR BRKT
M8X20 W/LK&PL WASHER 		1-09980-496-0 04 1 9202- ●
96 WASHER; LK,ASSIST BAR
ID=8.2 		1-09985-177-0 04 1 9202- ●
97 WASHER; PL,ASSIST BAR
ID=8.4 OD=16 		1-09985-174-0 04 1 9202- ●
139 GRIP; ASSIST,CTR PILLAR 1-73618-158-2 02 1 9202- ●
142 SEAL; ASSIST GRIP
BLUE 		1-76777-075-0 16 1 9405- ●
142 SEAL; ASSIST GRIP
WHITE 		1-76777-076-0 16 1 9405- ●
142 SEAL; ASSIST GRIP
OD=20 T=0.4 BLACK 		1-76798-020-0 16 1 9405- ●

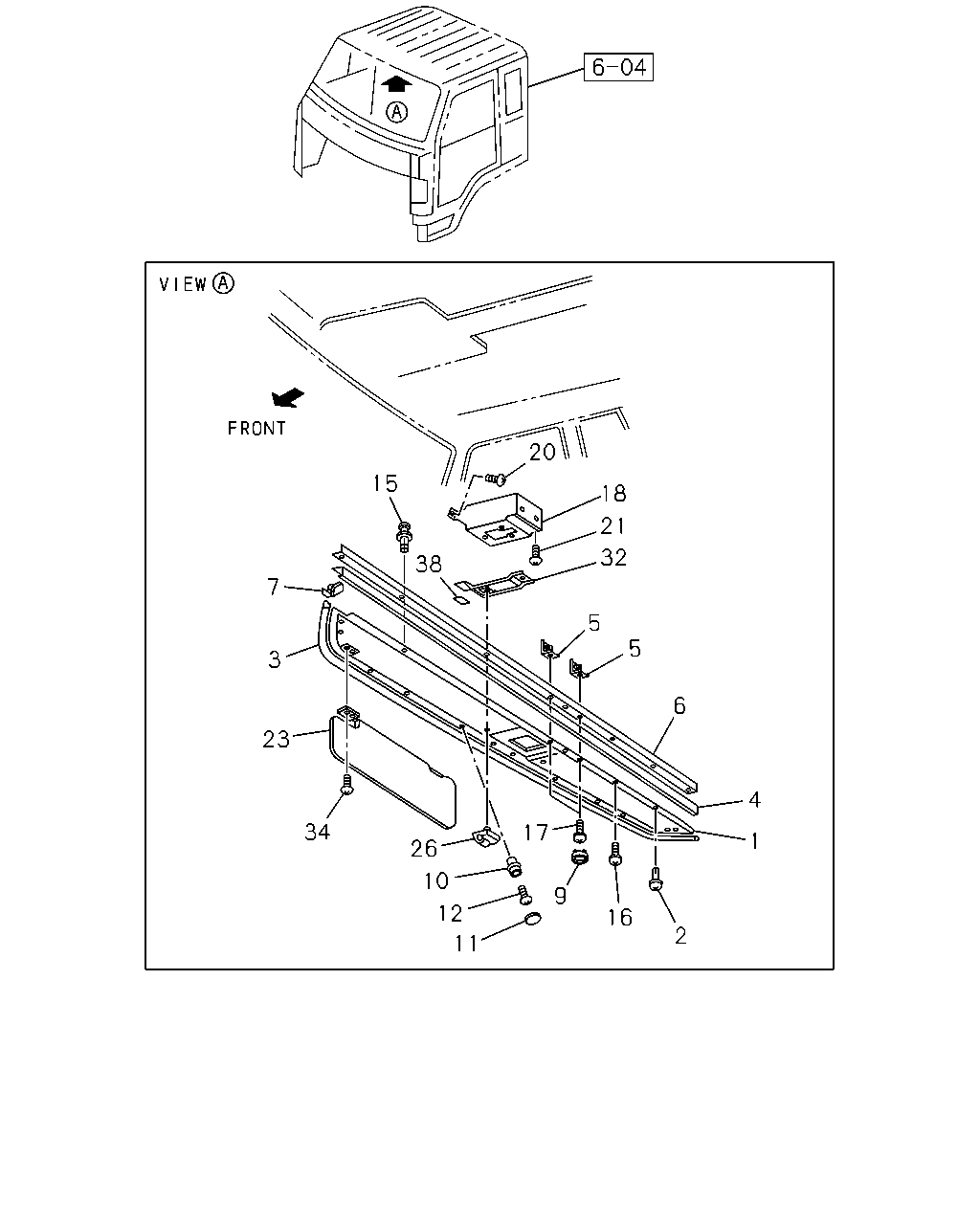

çizim 93494
20 15 18 21 32 38 7 5 5 3 6 23 4 34 17 1 26 10 9 12 16 2 11
BalonParca AdiParca NoAdetTipApplied Date A B
1 BOARD; HEADER SHELF
DELUXE CAB(W14) 		1-73318-501-2 01 1 9202- ● ●
2 FASTENER; HEADER SHELF BOARD
DELUXE CAB(W14) GRAY 		1-73318-356-0 04 1 9202- ● ●
3 FINISHER; HEADER SHELF,FRT
DELUXE CAB(W14) L=2030 		1-73318-363-0 01 1 9202- ● ●
4 FRAME; HEADER SHELF
DELUXE CAB(W14) 		1-73318-204-5 01 1 9202- ● ●
5 BRACKET; HEADER SHELF FRAME
DELUXE CAB(W14) 		1-73318-206-0 02 1 9202- ● ●
6 FINISHER; HEADER SHELF,REAR
DELUXE CAB(W14) L=1596 		1-73318-147-4 01 1 9202- ● ●
7 FINISHER; HEADER SHELF,CORNER
DELUXE CAB(W14) 		1-73318-269-1 01 1 9202- ● ●
7 FINISHER; HEADER SHELF,CORNER
DELUXE CAB(W14) 		1-73318-268-1 01 1 9202- ● ●
9 COVER; HOLE,HEADER SHELF CENTER
DELUXE CAB(W14) EXC. RADIO AM & TAPE PLAYER(UM1),SPEAKER SYSTEM FRT 2 SPEAKERS<UX6> 		1-73317-231-0 02 1 9202-9403 ● ●
9 COVER; HOLE,HEADER SHELF CENTER
DELUXE CAB(W14) EXC. RADIO AM & TAPE PLAYER(UM1) 		1-73317-231-0 02 1 9404- ● ●
10 COLLAR; HEADER SHELF
DELUXE CAB(W14) 		1-73318-341-0 06 1 9202- ● ●
11 CAP; HEADER SHELF
DELUXE CAB(W14) GRAY 		1-73318-357-0 06 1 9202- ● ●
12 SCREW; HEADER SHELF
DELUXE CAB(W14) M6X16 		1-09981-531-0 06 1 9202- ● ●
15 FASTENER; HEADER SHELF BOARD
DELUXE CAB(W14) D6.8X11 PUSH RIVET 		1-73318-230-0 07 1 9202- ● ●
16 SCREW; FRAME,HEADER SHELF
DELUXE CAB(W14) M6X12 W/LK WASHER 		9-03910-612-0 04 1 9202- ● ●
17 SCREW; BRKT,HEADER SHELF FRAME
DELUXE CAB(W14) M6X12 W/LK WASHER 		9-03910-612-0 02 1 9202- ● ●
18 SUPPORT; HEADER SHELF CENTER
DELUXE CAB(W14) EXC. RADIO AM & TAPE PLAYER(UM1),SPEAKER SYSTEM FRT 2 SPEAKERS<UX6> 		1-73318-476-0 01 1 9202-9403 ● ●
18 SUPPORT; HEADER SHELF CENTER
DELUXE CAB(W14) EXC. RADIO AM & TAPE PLAYER(UM1) 		1-73318-476-0 01 1 9404- ● ●
18 SUPPORT; HEADER SHELF CENTER
RADIO AM & TAPE PLAYER(UM1) DELUXE CAB(W14) 		1-73318-417-1 01 1 9202-9403 ● ●
18 SUPPORT; HEADER SHELF CENTER
SPEAKER SYSTEM FRT 2 SPEAKERS<UX6> DELUXE CAB(W14) 		1-73318-417-1 01 1 9202-9403 ● ●
18 SUPPORT; HEADER SHELF CENTER
RADIO AM & TAPE PLAYER(UM1) DELUXE CAB(W14) GRAY 		1-73318-416-1 01 1 9404- ● ●
20 SCREW; SUPPORT,HEADER SHELF
DELUXE CAB(W14) M6X12 W/LK WASHER 		9-03910-612-0 06 1 9202- ● ●
21 SCREW; SUPPORT,HEADER SHELF CENTER
DELUXE CAB(W14) M6X12 W/LK WASHER 		9-03910-612-0 04 1 9202- ● ●
23 SUN VISOR
DELUXE CAB(W14) 		1-73138-111-2 01 1 9202- ● ●
23 SUN VISOR
DELUXE CAB(W14) 		1-73138-110-2 01 1 9202- ● ●
23 SUN VISOR
EXC. DELUXE CAB(W14) 		1-73138-120-0 01 1 9202- ● ●
23 SUN VISOR
EXC. DELUXE CAB(W14) 		1-73138-119-0 01 1 9202- ● ●
26 HOLDER; SUN VISOR
GRAY 		1-73137-141-0 02 1 9202- ● ●
32 PLATE; HOLDER,SUN VISOR
DELUXE CAB(W14) 		1-73318-229-0 02 1 9202- ● ●
34 SCREW; SUN VISOR
M6X20 		1-09981-310-0 04 1 9202- ● ●
38 CUSHION; PLATE
DELUXE CAB(W14) 		1-73318-286-0 02 1 9202- ● ●
