Sayfa 4-25B - Isuzu EPC

4-25B — REAR FINAL DRIVE (#10197) — 430 parça

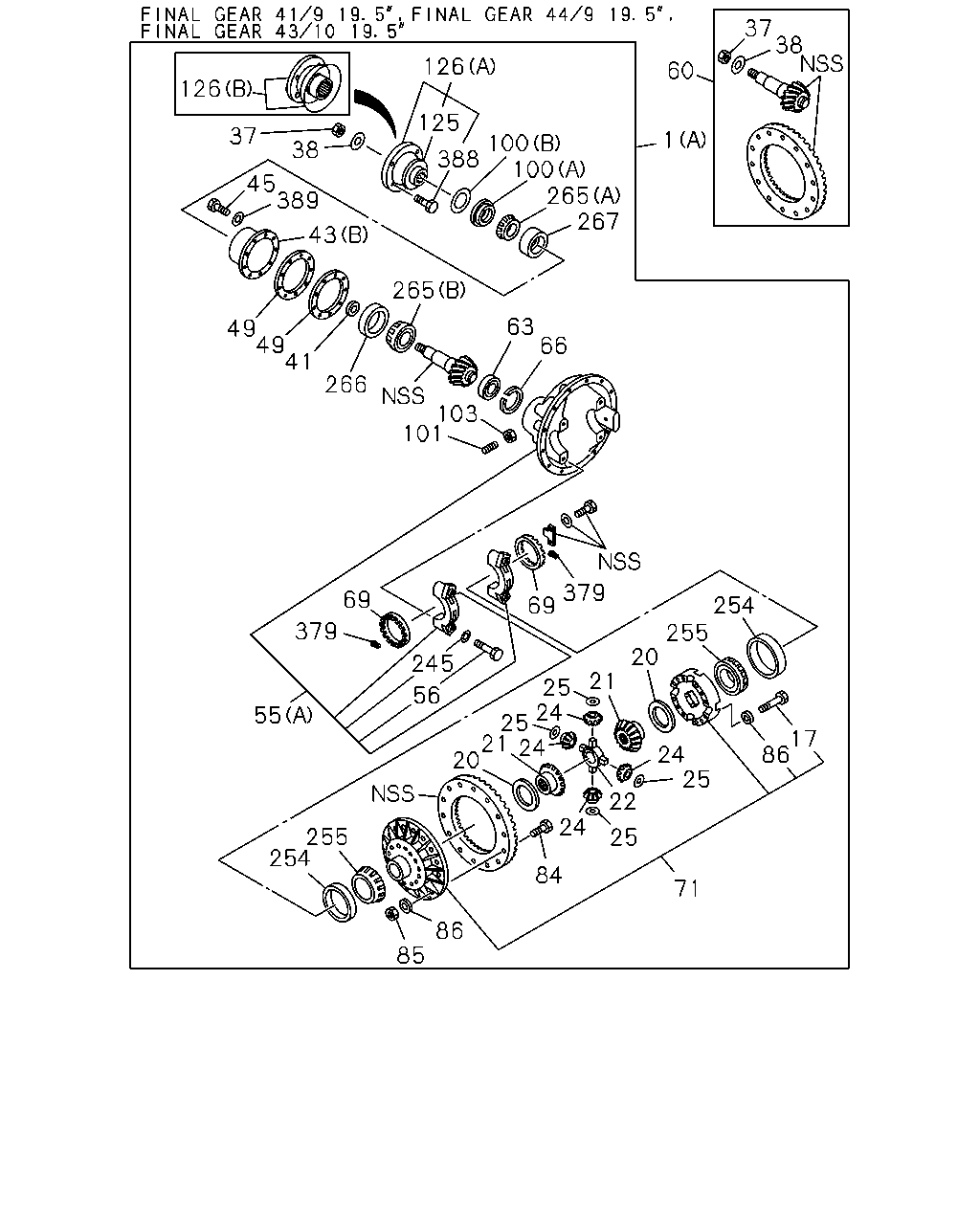

37 38 126 60 126 125 37 1 100 100 265 267 38 388 45 389 43 265 63 66 49 49 41 266 103 101 379 69 69 254 255 20 379 245 21 25 24 25 21 24 20 56 55 17 86 24 25 22 24 255 254 25 84 71 86 85

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	DRIVE ASM; FINAL,RR BRAKE SYSTEM RETARDER<RE2> (B) 41/9	1-41001-922-0	01	1	0105-0105	●
1	DRIVE ASM; FINAL,RR BRAKE SYSTEM RETARDER<RE2> (B) 41/9	1-41002-803-0	01	1	0106-0205	●
1	DRIVE ASM; FINAL,RR (B) 41/9	1-41002-803-0	01	1	0206-	●
1	DRIVE ASM; FINAL,RR EXC. BRAKE SYSTEM RETARDER<RE2> (A) 41/9	1-41001-687-0	01	1	0105-0205	●
1	DRIVE ASM; FINAL,RR BRAKE SYSTEM RETARDER<RE2> (B) 44/9	1-41001-920-0	01	1	0105-0205		●
1	DRIVE ASM; FINAL,RR BRAKE SYSTEM RETARDER<RE2> (B) 44/9	1-41002-802-0	01	1	0206-0209		●
1	DRIVE ASM; FINAL,RR (B) 44/9	1-41002-802-0	01	1	0210-		●
1	DRIVE ASM; FINAL,RR EXC. BRAKE SYSTEM RETARDER<RE2> (A) 44/9	1-41001-686-0	01	1	0105-0209		●
1	DRIVE ASM; FINAL,RR EXC. BRAKE SYSTEM RETARDER<RE2> (A) 43/10	1-41001-852-0	01	1	0105-0108			●
1	DRIVE ASM; FINAL,RR BRAKE SYSTEM RETARDER<RE2> (C) 43/10	1-41002-804-0	01	1	0105-0108			●
1	DRIVE ASM; FINAL,RR (C) 43/10	1-41002-804-0	01	1	0109-			●
17	BOLT; DIFF CAGE SETTING	1-41519-037-0	12	1	0105-	●	●	●
20	WASHER; THRUST,SIDE GEAR	1-41562-269-0	02	1	0105-	●	●	●
21	GEAR; SIDE,DIFF	1-41561-113-0	02	1	0105-	●	●	●
22	SPIDER; DIFF PINION	1-41521-054-0	01	1	0105-	●	●	●
24	GEAR; PINION,DIFF	1-41551-035-0	04	1	0105-	●	●	●
25	WASHER; THRUST,PINION	1-41552-037-0	04	1	0105-	●	●	●
37	NUT; DRIVING PINION	1-41219-028-0	01	1	0105-	●	●	●
38	WASHER; PL,DRIVING PINION	1-41349-058-0	01	1	0105-	●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=6.35	1-41229-283-0	01	1	0105-	●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=6.38	1-41229-284-0	01	1	0105-	●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=6.40	1-41229-285-0	01	1	0105-	●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=6.43	1-41229-286-0	01	1	0105-	●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=6.45	1-41229-287-0	01	1	0105-	●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=6.50	1-41229-288-0	01	1	0105-	●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=6.60	1-41229-289-0	01	1	0105-	●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=6.63	1-41229-290-0	01	1	0105-	●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=6.65	1-41229-291-0	01	1	0105-	●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=6.68	1-41229-292-0	01	1	0105-	●	●	●
43	CAGE; FINAL PINION BRAKE SYSTEM RETARDER<RE2> (A)	1-41151-082-0	01	1	0105-0108	●	●	●
43	CAGE; FINAL PINION BRAKE SYSTEM RETARDER<RE2> (A)	1-41151-082-0	01	1	0109-0205	●	●
43	CAGE; FINAL PINION (A)	1-41151-082-0	01	1	0109-0205			●
43	CAGE; FINAL PINION (A)	1-41151-082-0	01	1	0206-0209	●		●
43	CAGE; FINAL PINION BRAKE SYSTEM RETARDER<RE2> (A)	1-41151-082-0	01	1	0206-0209		●
43	CAGE; FINAL PINION (A)	1-41151-082-0	01	1	0210-	●	●	●
43	CAGE; FINAL PINION EXC. BRAKE SYSTEM RETARDER<RE2> (B)	1-41151-064-0	01	1	0105-0108	●	●	●
43	CAGE; FINAL PINION EXC. BRAKE SYSTEM RETARDER<RE2> (B)	1-41151-064-0	01	1	0109-0205	●	●
43	CAGE; FINAL PINION EXC. BRAKE SYSTEM RETARDER<RE2> (B)	1-41151-064-0	01	1	0206-0209		●
45	BOLT; FINAL PINION CAGE	1-41159-010-0	08	1	0105-	●	●	●
49	SHIM; FINAL PINION CAGE T=0.050	1-41154-085-0	AR	1	0105-	●	●	●
49	SHIM; FINAL PINION CAGE T=0.125	1-41154-086-0	AR	1	0105-	●	●	●
49	SHIM; FINAL PINION CAGE T=0.200	1-41154-087-0	AR	1	0105-	●	●	●
49	SHIM; FINAL PINION CAGE T=0.500	1-41154-088-0	AR	1	0105-	●	●	●
55	CARRIER; DIFF (A)	1-41110-106-0	01	1	0105-0105	●	●
55	CARRIER; DIFF EXC. BRAKE SYSTEM RETARDER<RE2> (A)	1-41110-106-0	01	1	0105-0105			●
55	CARRIER; DIFF EXC. BRAKE SYSTEM RETARDER<RE2> (A)	1-41110-106-0	01	1	0106-0108	●		●
55	CARRIER; DIFF (A)	1-41110-106-0	01	1	0106-0108		●
55	CARRIER; DIFF EXC. BRAKE SYSTEM RETARDER<RE2> (A)	1-41110-106-0	01	1	0109-0205	●
55	CARRIER; DIFF (A)	1-41110-106-0	01	1	0109-0205		●
55	CARRIER; DIFF EXC. BRAKE SYSTEM RETARDER<RE2> (A)	1-41110-106-0	01	1	0206-0209		●
55	CARRIER; DIFF BRAKE SYSTEM RETARDER<RE2> (B)	1-41110-107-0	01	1	0105-0105			●
55	CARRIER; DIFF BRAKE SYSTEM RETARDER<RE2> (B)	1-41110-107-0	01	1	0106-0108	●		●
55	CARRIER; DIFF BRAKE SYSTEM RETARDER<RE2> (B)	1-41110-107-0	01	1	0109-0205	●
55	CARRIER; DIFF (B)	1-41110-107-0	01	1	0109-0205			●
55	CARRIER; DIFF (B)	1-41110-107-0	01	1	0206-0209	●		●
55	CARRIER; DIFF BRAKE SYSTEM RETARDER<RE2> (B)	1-41110-107-0	01	1	0206-0209		●
55	CARRIER; DIFF (B)	1-41110-107-0	01	1	0210-	●	●	●
56	BOLT; BRG CAP	1-41119-066-0	04	1	0105-	●	●	●
60	GEAR SET; FINAL DRIVE,RR 41/9	1-41210-505-0	01	1	0105-	●
60	GEAR SET; FINAL DRIVE,RR 44/9	1-41210-559-0	01	1	0105-		●
60	GEAR SET; FINAL DRIVE,RR 43/10	1-41210-558-0	01	1	0105-			●
63	BEARING; PINION PILOT	1-41219-034-0	01	1	0105-	●	●	●
66	RING; SNAP,PILOT BRG	1-41219-035-0	01	1	0105-	●	●	●
69	NUT; ADJ,DIFF CAGE	1-41121-040-0	01	1	0105-	●	●	●
69	NUT; ADJ,DIFF CAGE	1-41121-041-0	01	1	0105-	●	●	●
71	CAGE ASM; DIFF,FINAL DRIVE BRAKE SYSTEM RETARDER<RE2>	1-41510-235-0	01	1	0105-0205	●
71	CAGE ASM; DIFF,FINAL DRIVE	1-41510-235-0	01	1	0206-0209	●
71	CAGE ASM; DIFF,FINAL DRIVE BRAKE SYSTEM RETARDER<RE2>	1-41510-235-0	01	1	0206-0209		●
71	CAGE ASM; DIFF,FINAL DRIVE	1-41510-235-0	01	1	0210-	●	●
71	CAGE ASM; DIFF,FINAL DRIVE	1-41510-234-0	01	1	0105-0105	●	●
71	CAGE ASM; DIFF,FINAL DRIVE EXC. BRAKE SYSTEM RETARDER<RE2>	1-41510-234-0	01	1	0106-0205	●
71	CAGE ASM; DIFF,FINAL DRIVE	1-41510-234-0	01	1	0106-0205		●
71	CAGE ASM; DIFF,FINAL DRIVE EXC. BRAKE SYSTEM RETARDER<RE2>	1-41510-234-0	01	1	0206-0209		●
71	CAGE ASM; DIFF,FINAL DRIVE BRAKE SYSTEM RETARDER<RE2>	1-41510-237-0	01	1	0105-0108			●
71	CAGE ASM; DIFF,FINAL DRIVE	1-41510-237-0	01	1	0109-			●
71	CAGE ASM; DIFF,FINAL DRIVE EXC. BRAKE SYSTEM RETARDER<RE2>	1-41510-236-0	01	1	0105-0108			●
84	BOLT; FINAL DRIVE GEAR	1-41519-036-0	16	1	0105-	●	●	●
85	NUT; DIFF CAGE SETTING	1-41519-034-0	16	1	0105-	●	●	●
86	WASHER; PL,DIFF CAGE SETTING	1-41519-035-0	28	1	0105-	●	●	●
100	SEAL; OIL,FINAL PINION (A)	1-41219-029-0	01	1	0105-0105	●	●
100	SEAL; OIL,FINAL PINION EXC. BRAKE SYSTEM RETARDER<RE2> (A)	1-41219-029-0	01	1	0105-0105			●
100	SEAL; OIL,FINAL PINION EXC. BRAKE SYSTEM RETARDER<RE2> (A)	1-41219-029-0	01	1	0106-0108	●		●
100	SEAL; OIL,FINAL PINION (A)	1-41219-029-0	01	1	0106-0108		●
100	SEAL; OIL,FINAL PINION EXC. BRAKE SYSTEM RETARDER<RE2> (A)	1-41219-029-0	01	1	0109-0205	●
100	SEAL; OIL,FINAL PINION (A)	1-41219-029-0	01	1	0109-0205		●
100	SEAL; OIL,FINAL PINION EXC. BRAKE SYSTEM RETARDER<RE2> (A)	1-41219-029-0	01	1	0206-0209		●
100	SEAL; OIL,FINAL PINION EXC. BRAKE SYSTEM RETARDER<RE2> (B)	1-41219-051-0	01	1	0105-0108	●	●	●
100	SEAL; OIL,FINAL PINION EXC. BRAKE SYSTEM RETARDER<RE2> (B)	1-41219-051-0	01	1	0109-0205	●	●
100	SEAL; OIL,FINAL PINION EXC. BRAKE SYSTEM RETARDER<RE2> (B)	1-41219-051-0	01	1	0206-0209		●
100	SEAL; OIL,FINAL PINION BRAKE SYSTEM RETARDER<RE2> (A)	1-41349-180-0	01	1	0105-0105			●
100	SEAL; OIL,FINAL PINION BRAKE SYSTEM RETARDER<RE2> (A)	1-41349-180-0	01	1	0106-0108	●		●
100	SEAL; OIL,FINAL PINION BRAKE SYSTEM RETARDER<RE2> (A)	1-41349-180-0	01	1	0109-0205	●
100	SEAL; OIL,FINAL PINION (A)	1-41349-180-0	01	1	0109-0205			●
100	SEAL; OIL,FINAL PINION (A)	1-41349-180-0	01	1	0206-0209	●		●
100	SEAL; OIL,FINAL PINION BRAKE SYSTEM RETARDER<RE2> (A)	1-41349-180-0	01	1	0206-0209		●
100	SEAL; OIL,FINAL PINION (A)	1-41349-180-0	01	1	0210-	●	●	●
101	BOLT; ADJ,DRIVEN GEAR THRUST	1-41259-001-0	01	1	0105-	●	●	●
103	NUT; ADJ BOLT	1-41259-002-0	01	1	0105-	●	●	●
125	THROWER; OIL,COUPLING EXC. BRAKE SYSTEM RETARDER<RE2>	1-37249-145-0	01	1	0105-0108	●	●	●
125	THROWER; OIL,COUPLING EXC. BRAKE SYSTEM RETARDER<RE2>	1-37249-145-0	01	1	0109-0205	●	●
125	THROWER; OIL,COUPLING EXC. BRAKE SYSTEM RETARDER<RE2>	1-37249-145-0	01	1	0206-0209		●
126	COUPLING; DRIVING PINION EXC. BRAKE SYSTEM RETARDER<RE2> (B)	1-37245-373-0	01	1	0109-0205			●
126	COUPLING; DRIVING PINION EXC. BRAKE SYSTEM RETARDER<RE2> (B)	1-37245-373-0	01	1	0206-0209	●		●
126	COUPLING; DRIVING PINION EXC. BRAKE SYSTEM RETARDER<RE2> (B)	1-37245-373-0	01	1	0210-	●	●	●
126	COUPLING; DRIVING PINION EXC. BRAKE SYSTEM RETARDER<RE2> (A)	1-37245-318-0	01	1	0105-0108	●	●	●
126	COUPLING; DRIVING PINION EXC. BRAKE SYSTEM RETARDER<RE2> (A)	1-37245-318-0	01	1	0109-0205	●	●
126	COUPLING; DRIVING PINION EXC. BRAKE SYSTEM RETARDER<RE2> (A)	1-37245-318-0	01	1	0206-0209		●
245	WASHER; PL,BRG CAP	1-41119-065-0	04	1	0105-	●	●	●
254	CUP; DIFF BRG	1-41519-052-0	01	1	0105-	●	●	●
254	CUP; DIFF BRG	1-41519-031-0	01	1	0105-	●	●	●
255	CONE; DIFF BRG	1-41519-053-0	01	1	0105-	●	●	●
255	CONE; DIFF BRG	1-41519-033-0	01	1	0105-	●	●	●
265	CONE; BRG,FINAL DRIVE PINION (A)	1-41219-030-0	01	1	0105-	●	●	●
265	CONE; BRG,FINAL DRIVE PINION (B)	1-41219-033-0	01	1	0105-	●	●	●
266	CUP; BRG,FINAL DRIVE PINION,INNER	1-41219-032-0	01	1	0105-	●	●	●
267	CUP; BRG,FINAL DRIVE PINION,OUTER	1-41219-031-0	01	1	0105-	●	●	●
379	PIN; SPLIT	1-41129-012-0	02	1	0105-0105	●	●
379	PIN; SPLIT EXC. BRAKE SYSTEM RETARDER<RE2>	1-41129-012-0	02	1	0105-0105			●
379	PIN; SPLIT EXC. BRAKE SYSTEM RETARDER<RE2>	1-41129-012-0	02	1	0106-0108	●		●
379	PIN; SPLIT	1-41129-012-0	02	1	0106-0108		●
379	PIN; SPLIT BRAKE SYSTEM RETARDER<RE2>	1-41129-012-0	01	1	0109-0205	●
379	PIN; SPLIT	1-41129-012-0	01	1	0109-0205			●
379	PIN; SPLIT	1-41129-012-0	01	1	0206-0209	●		●
379	PIN; SPLIT BRAKE SYSTEM RETARDER<RE2>	1-41129-012-0	01	1	0206-0209		●
379	PIN; SPLIT	1-41129-012-0	01	1	0210-	●	●	●
379	PIN; SPLIT BRAKE SYSTEM RETARDER<RE2>	1-41129-012-0	01	1	0105-0105			●
379	PIN; SPLIT BRAKE SYSTEM RETARDER<RE2>	1-41129-012-0	01	1	0106-0108	●		●
379	PIN; SPLIT EXC. BRAKE SYSTEM RETARDER<RE2>	1-41129-012-0	02	1	0109-0205	●
379	PIN; SPLIT	1-41129-012-0	02	1	0109-0205		●
379	PIN; SPLIT EXC. BRAKE SYSTEM RETARDER<RE2>	1-41129-012-0	02	1	0206-0209		●
388	BOLT; COUPLING EXC. BRAKE SYSTEM RETARDER<RE2> M14X48.5	1-09046-013-0	04	1	0109-0205			●
388	BOLT; COUPLING EXC. BRAKE SYSTEM RETARDER<RE2> M14X48.5	1-09046-013-0	04	1	0206-0209	●		●
388	BOLT; COUPLING EXC. BRAKE SYSTEM RETARDER<RE2> M14X48.5	1-09046-013-0	04	1	0210-	●	●	●
388	BOLT; COUPLING EXC. BRAKE SYSTEM RETARDER<RE2>	1-37249-165-0	04	1	0105-0108	●	●	●
388	BOLT; COUPLING EXC. BRAKE SYSTEM RETARDER<RE2>	1-37249-165-0	04	1	0109-0205	●	●
388	BOLT; COUPLING EXC. BRAKE SYSTEM RETARDER<RE2>	1-37249-165-0	04	1	0206-0209		●
389	WASHER; FINAL PINION CAGE	1-41329-034-0	08	1	0105-	●	●	●

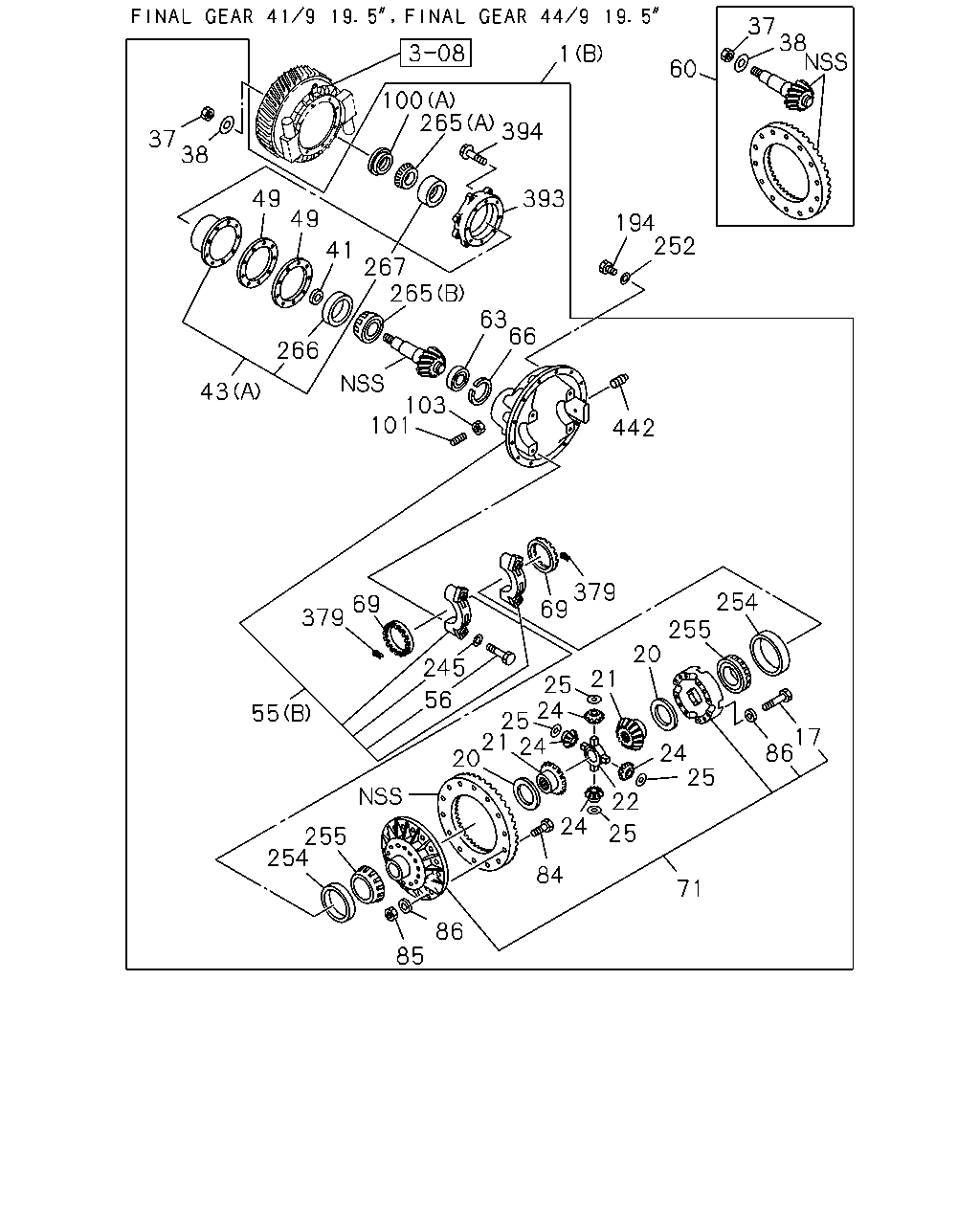

37 38 1 60 100 265 394 37 38 49 393 194 252 49 41 267 265 63 66 266 103 101 43 442 358 69 69 379 254 255 20 245 21 25 24 25 21 24 20 56 55 17 86 24 25 22 24 25 25 254 84 71 86 85

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	DRIVE ASM; FINAL,RR BRAKE SYSTEM RETARDER<RE2> (B) 41/9	1-41001-922-0	01	1	0105-0105	●
1	DRIVE ASM; FINAL,RR BRAKE SYSTEM RETARDER<RE2> (B) 41/9	1-41002-803-0	01	1	0106-0205	●
1	DRIVE ASM; FINAL,RR (B) 41/9	1-41002-803-0	01	1	0206-	●
1	DRIVE ASM; FINAL,RR EXC. BRAKE SYSTEM RETARDER<RE2> (A) 41/9	1-41001-687-0	01	1	0105-0205	●
1	DRIVE ASM; FINAL,RR BRAKE SYSTEM RETARDER<RE2> (B) 44/9	1-41001-920-0	01	1	0105-0205		●
1	DRIVE ASM; FINAL,RR BRAKE SYSTEM RETARDER<RE2> (B) 44/9	1-41002-802-0	01	1	0206-0209		●
1	DRIVE ASM; FINAL,RR (B) 44/9	1-41002-802-0	01	1	0210-		●
1	DRIVE ASM; FINAL,RR EXC. BRAKE SYSTEM RETARDER<RE2> (A) 44/9	1-41001-686-0	01	1	0105-0209		●
1	DRIVE ASM; FINAL,RR EXC. BRAKE SYSTEM RETARDER<RE2> (A) 43/10	1-41001-852-0	01	1	0105-0108			●
1	DRIVE ASM; FINAL,RR BRAKE SYSTEM RETARDER<RE2> (C) 43/10	1-41002-804-0	01	1	0105-0108			●
1	DRIVE ASM; FINAL,RR (C) 43/10	1-41002-804-0	01	1	0109-			●
17	BOLT; DIFF CAGE SETTING	1-41519-037-0	12	1	0105-	●	●	●
20	WASHER; THRUST,SIDE GEAR	1-41562-269-0	02	1	0105-	●	●	●
21	GEAR; SIDE,DIFF	1-41561-113-0	02	1	0105-	●	●	●
22	SPIDER; DIFF PINION	1-41521-054-0	01	1	0105-	●	●	●
24	GEAR; PINION,DIFF	1-41551-035-0	04	1	0105-	●	●	●
25	WASHER; THRUST,PINION	1-41552-037-0	04	1	0105-	●	●	●
37	NUT; DRIVING PINION	1-41219-028-0	01	1	0105-	●	●	●
38	WASHER; PL,DRIVING PINION	1-41349-058-0	01	1	0105-	●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=6.35	1-41229-283-0	01	1	0105-	●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=6.38	1-41229-284-0	01	1	0105-	●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=6.40	1-41229-285-0	01	1	0105-	●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=6.43	1-41229-286-0	01	1	0105-	●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=6.45	1-41229-287-0	01	1	0105-	●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=6.50	1-41229-288-0	01	1	0105-	●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=6.60	1-41229-289-0	01	1	0105-	●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=6.63	1-41229-290-0	01	1	0105-	●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=6.65	1-41229-291-0	01	1	0105-	●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=6.68	1-41229-292-0	01	1	0105-	●	●	●
43	CAGE; FINAL PINION BRAKE SYSTEM RETARDER<RE2> (A)	1-41151-082-0	01	1	0105-0108	●	●	●
43	CAGE; FINAL PINION BRAKE SYSTEM RETARDER<RE2> (A)	1-41151-082-0	01	1	0109-0205	●	●
43	CAGE; FINAL PINION (A)	1-41151-082-0	01	1	0109-0205			●
43	CAGE; FINAL PINION (A)	1-41151-082-0	01	1	0206-0209	●		●
43	CAGE; FINAL PINION BRAKE SYSTEM RETARDER<RE2> (A)	1-41151-082-0	01	1	0206-0209		●
43	CAGE; FINAL PINION (A)	1-41151-082-0	01	1	0210-	●	●	●
43	CAGE; FINAL PINION EXC. BRAKE SYSTEM RETARDER<RE2> (B)	1-41151-064-0	01	1	0105-0108	●	●	●
43	CAGE; FINAL PINION EXC. BRAKE SYSTEM RETARDER<RE2> (B)	1-41151-064-0	01	1	0109-0205	●	●
43	CAGE; FINAL PINION EXC. BRAKE SYSTEM RETARDER<RE2> (B)	1-41151-064-0	01	1	0206-0209		●
49	SHIM; FINAL PINION CAGE T=0.050	1-41154-085-0	AR	1	0105-	●	●	●
49	SHIM; FINAL PINION CAGE T=0.125	1-41154-086-0	AR	1	0105-	●	●	●
49	SHIM; FINAL PINION CAGE T=0.200	1-41154-087-0	AR	1	0105-	●	●	●
49	SHIM; FINAL PINION CAGE T=0.500	1-41154-088-0	AR	1	0105-	●	●	●
55	CARRIER; DIFF (A)	1-41110-106-0	01	1	0105-0105	●	●
55	CARRIER; DIFF EXC. BRAKE SYSTEM RETARDER<RE2> (A)	1-41110-106-0	01	1	0105-0105			●
55	CARRIER; DIFF EXC. BRAKE SYSTEM RETARDER<RE2> (A)	1-41110-106-0	01	1	0106-0108	●		●
55	CARRIER; DIFF (A)	1-41110-106-0	01	1	0106-0108		●
55	CARRIER; DIFF EXC. BRAKE SYSTEM RETARDER<RE2> (A)	1-41110-106-0	01	1	0109-0205	●
55	CARRIER; DIFF (A)	1-41110-106-0	01	1	0109-0205		●
55	CARRIER; DIFF EXC. BRAKE SYSTEM RETARDER<RE2> (A)	1-41110-106-0	01	1	0206-0209		●
55	CARRIER; DIFF BRAKE SYSTEM RETARDER<RE2> (B)	1-41110-107-0	01	1	0105-0105			●
55	CARRIER; DIFF BRAKE SYSTEM RETARDER<RE2> (B)	1-41110-107-0	01	1	0106-0108	●		●
55	CARRIER; DIFF BRAKE SYSTEM RETARDER<RE2> (B)	1-41110-107-0	01	1	0109-0205	●
55	CARRIER; DIFF (B)	1-41110-107-0	01	1	0109-0205			●
55	CARRIER; DIFF (B)	1-41110-107-0	01	1	0206-0209	●		●
55	CARRIER; DIFF BRAKE SYSTEM RETARDER<RE2> (B)	1-41110-107-0	01	1	0206-0209		●
55	CARRIER; DIFF (B)	1-41110-107-0	01	1	0210-	●	●	●
56	BOLT; BRG CAP	1-41119-066-0	04	1	0105-	●	●	●
60	GEAR SET; FINAL DRIVE,RR 41/9	1-41210-505-0	01	1	0105-	●
60	GEAR SET; FINAL DRIVE,RR 44/9	1-41210-559-0	01	1	0105-		●
60	GEAR SET; FINAL DRIVE,RR 43/10	1-41210-558-0	01	1	0105-			●
63	BEARING; PINION PILOT	1-41219-034-0	01	1	0105-	●	●	●
66	RING; SNAP,PILOT BRG	1-41219-035-0	01	1	0105-	●	●	●
69	NUT; ADJ,DIFF CAGE	1-41121-040-0	01	1	0105-	●	●	●
69	NUT; ADJ,DIFF CAGE	1-41121-041-0	01	1	0105-	●	●	●
71	CAGE ASM; DIFF,FINAL DRIVE BRAKE SYSTEM RETARDER<RE2>	1-41510-235-0	01	1	0105-0205	●
71	CAGE ASM; DIFF,FINAL DRIVE	1-41510-235-0	01	1	0206-0209	●
71	CAGE ASM; DIFF,FINAL DRIVE BRAKE SYSTEM RETARDER<RE2>	1-41510-235-0	01	1	0206-0209		●
71	CAGE ASM; DIFF,FINAL DRIVE	1-41510-235-0	01	1	0210-	●	●
71	CAGE ASM; DIFF,FINAL DRIVE	1-41510-234-0	01	1	0105-0105	●	●
71	CAGE ASM; DIFF,FINAL DRIVE EXC. BRAKE SYSTEM RETARDER<RE2>	1-41510-234-0	01	1	0106-0205	●
71	CAGE ASM; DIFF,FINAL DRIVE	1-41510-234-0	01	1	0106-0205		●
71	CAGE ASM; DIFF,FINAL DRIVE EXC. BRAKE SYSTEM RETARDER<RE2>	1-41510-234-0	01	1	0206-0209		●
71	CAGE ASM; DIFF,FINAL DRIVE BRAKE SYSTEM RETARDER<RE2>	1-41510-237-0	01	1	0105-0108			●
71	CAGE ASM; DIFF,FINAL DRIVE	1-41510-237-0	01	1	0109-			●
71	CAGE ASM; DIFF,FINAL DRIVE EXC. BRAKE SYSTEM RETARDER<RE2>	1-41510-236-0	01	1	0105-0108			●
84	BOLT; FINAL DRIVE GEAR	1-41519-036-0	16	1	0105-	●	●	●
85	NUT; DIFF CAGE SETTING	1-41519-034-0	16	1	0105-	●	●	●
86	WASHER; PL,DIFF CAGE SETTING	1-41519-035-0	28	1	0105-	●	●	●
100	SEAL; OIL,FINAL PINION (A)	1-41219-029-0	01	1	0105-0105	●	●
100	SEAL; OIL,FINAL PINION EXC. BRAKE SYSTEM RETARDER<RE2> (A)	1-41219-029-0	01	1	0105-0105			●
100	SEAL; OIL,FINAL PINION EXC. BRAKE SYSTEM RETARDER<RE2> (A)	1-41219-029-0	01	1	0106-0108	●		●
100	SEAL; OIL,FINAL PINION (A)	1-41219-029-0	01	1	0106-0108		●
100	SEAL; OIL,FINAL PINION EXC. BRAKE SYSTEM RETARDER<RE2> (A)	1-41219-029-0	01	1	0109-0205	●
100	SEAL; OIL,FINAL PINION (A)	1-41219-029-0	01	1	0109-0205		●
100	SEAL; OIL,FINAL PINION EXC. BRAKE SYSTEM RETARDER<RE2> (A)	1-41219-029-0	01	1	0206-0209		●
100	SEAL; OIL,FINAL PINION EXC. BRAKE SYSTEM RETARDER<RE2> (B)	1-41219-051-0	01	1	0105-0108	●	●	●
100	SEAL; OIL,FINAL PINION EXC. BRAKE SYSTEM RETARDER<RE2> (B)	1-41219-051-0	01	1	0109-0205	●	●
100	SEAL; OIL,FINAL PINION EXC. BRAKE SYSTEM RETARDER<RE2> (B)	1-41219-051-0	01	1	0206-0209		●
100	SEAL; OIL,FINAL PINION BRAKE SYSTEM RETARDER<RE2> (A)	1-41349-180-0	01	1	0105-0105			●
100	SEAL; OIL,FINAL PINION BRAKE SYSTEM RETARDER<RE2> (A)	1-41349-180-0	01	1	0106-0108	●		●
100	SEAL; OIL,FINAL PINION BRAKE SYSTEM RETARDER<RE2> (A)	1-41349-180-0	01	1	0109-0205	●
100	SEAL; OIL,FINAL PINION (A)	1-41349-180-0	01	1	0109-0205			●
100	SEAL; OIL,FINAL PINION (A)	1-41349-180-0	01	1	0206-0209	●		●
100	SEAL; OIL,FINAL PINION BRAKE SYSTEM RETARDER<RE2> (A)	1-41349-180-0	01	1	0206-0209		●
100	SEAL; OIL,FINAL PINION (A)	1-41349-180-0	01	1	0210-	●	●	●
101	BOLT; ADJ,DRIVEN GEAR THRUST	1-41259-001-0	01	1	0105-	●	●	●
103	NUT; ADJ BOLT	1-41259-002-0	01	1	0105-	●	●	●
194	PLUG BRAKE SYSTEM RETARDER<RE2>	1-41119-072-0	01	1	0105-0105			●
194	PLUG BRAKE SYSTEM RETARDER<RE2>	1-41119-072-0	01	1	0106-0108	●		●
194	PLUG BRAKE SYSTEM RETARDER<RE2>	1-41119-072-0	01	1	0109-0205	●
194	PLUG	1-41119-072-0	01	1	0109-0205			●
194	PLUG	1-41119-072-0	01	1	0206-0209	●		●
194	PLUG BRAKE SYSTEM RETARDER<RE2>	1-41119-072-0	01	1	0206-0209		●
194	PLUG	1-41119-072-0	01	1	0210-	●	●	●
245	WASHER; PL,BRG CAP	1-41119-065-0	04	1	0105-	●	●	●
252	GASKET; CARRIER BRAKE SYSTEM RETARDER<RE2>	1-41229-121-0	01	1	0105-0105			●
252	GASKET; CARRIER BRAKE SYSTEM RETARDER<RE2>	1-41229-121-0	01	1	0106-0108	●		●
252	GASKET; CARRIER BRAKE SYSTEM RETARDER<RE2>	1-41229-121-0	01	1	0109-0205	●
252	GASKET; CARRIER	1-41229-121-0	01	1	0109-0205			●
252	GASKET; CARRIER	1-41229-121-0	01	1	0206-0209	●		●
252	GASKET; CARRIER BRAKE SYSTEM RETARDER<RE2>	1-41229-121-0	01	1	0206-0209		●
252	GASKET; CARRIER	1-41229-121-0	01	1	0210-	●	●	●
254	CUP; DIFF BRG	1-41519-052-0	01	1	0105-	●	●	●
254	CUP; DIFF BRG	1-41519-031-0	01	1	0105-	●	●	●
255	CONE; DIFF BRG	1-41519-053-0	01	1	0105-	●	●	●
255	CONE; DIFF BRG	1-41519-033-0	01	1	0105-	●	●	●
265	CONE; BRG,FINAL DRIVE PINION (A)	1-41219-030-0	01	1	0105-	●	●	●
265	CONE; BRG,FINAL DRIVE PINION (B)	1-41219-033-0	01	1	0105-	●	●	●
266	CUP; BRG,FINAL DRIVE PINION,INNER	1-41219-032-0	01	1	0105-	●	●	●
267	CUP; BRG,FINAL DRIVE PINION,OUTER	1-41219-031-0	01	1	0105-	●	●	●
358	PIN; SPR BRAKE SYSTEM RETARDER<RE2>	1-41129-013-0	01	1	0105-0105			●
358	PIN; SPR BRAKE SYSTEM RETARDER<RE2>	1-41129-013-0	01	1	0106-0108	●		●
358	PIN; SPR BRAKE SYSTEM RETARDER<RE2>	1-41129-013-0	01	1	0109-0205	●
358	PIN; SPR	1-41129-013-0	01	1	0109-0205			●
358	PIN; SPR	1-41129-013-0	01	1	0206-0209	●		●
358	PIN; SPR BRAKE SYSTEM RETARDER<RE2>	1-41129-013-0	01	1	0206-0209		●
358	PIN; SPR	1-41129-013-0	01	1	0210-	●	●	●
379	PIN; SPLIT	1-41129-012-0	02	1	0105-0105	●	●
379	PIN; SPLIT EXC. BRAKE SYSTEM RETARDER<RE2>	1-41129-012-0	02	1	0105-0105			●
379	PIN; SPLIT EXC. BRAKE SYSTEM RETARDER<RE2>	1-41129-012-0	02	1	0106-0108	●		●
379	PIN; SPLIT	1-41129-012-0	02	1	0106-0108		●
379	PIN; SPLIT BRAKE SYSTEM RETARDER<RE2>	1-41129-012-0	01	1	0109-0205	●
379	PIN; SPLIT	1-41129-012-0	01	1	0109-0205			●
379	PIN; SPLIT	1-41129-012-0	01	1	0206-0209	●		●
379	PIN; SPLIT BRAKE SYSTEM RETARDER<RE2>	1-41129-012-0	01	1	0206-0209		●
379	PIN; SPLIT	1-41129-012-0	01	1	0210-	●	●	●
379	PIN; SPLIT BRAKE SYSTEM RETARDER<RE2>	1-41129-012-0	01	1	0105-0105			●
379	PIN; SPLIT BRAKE SYSTEM RETARDER<RE2>	1-41129-012-0	01	1	0106-0108	●		●
379	PIN; SPLIT EXC. BRAKE SYSTEM RETARDER<RE2>	1-41129-012-0	02	1	0109-0205	●
379	PIN; SPLIT	1-41129-012-0	02	1	0109-0205		●
379	PIN; SPLIT EXC. BRAKE SYSTEM RETARDER<RE2>	1-41129-012-0	02	1	0206-0209		●
393	ADAPTER; CASE BRAKE SYSTEM RETARDER<RE2>	1-41151-076-2	01	1	0105-	●	●	●
394	BOLT; ADAPTER BRAKE SYSTEM RETARDER<RE2>	0-28191-290-0	08	1	0105-	●	●	●
442	COVER; CARRIER,DIFF LK BRAKE SYSTEM RETARDER<RE2>	1-48269-181-0	01	1	0105-0105			●
442	COVER; CARRIER,DIFF LK BRAKE SYSTEM RETARDER<RE2>	1-48269-181-0	01	1	0106-0108	●		●
442	COVER; CARRIER,DIFF LK BRAKE SYSTEM RETARDER<RE2>	1-48269-181-0	01	1	0109-0205	●
442	COVER; CARRIER,DIFF LK	1-48269-181-0	01	1	0109-0205			●
442	COVER; CARRIER,DIFF LK	1-48269-181-0	01	1	0206-0209	●		●
442	COVER; CARRIER,DIFF LK BRAKE SYSTEM RETARDER<RE2>	1-48269-181-0	01	1	0206-0209		●
442	COVER; CARRIER,DIFF LK	1-48269-181-0	01	1	0210-	●	●	●

37 38 1 60 100 265 394 37 38 49 49 393 194 252 41 267 265 63 66 266 103 101 43 442 379 69 254 255 20 69 379 245 21 25 24 25 21 24 20 56 55 17 86 24 25 22 24 25 25 254 84 71 86 85

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	DRIVE ASM; FINAL,RR BRAKE SYSTEM RETARDER<RE2> (B) 41/9	1-41001-922-0	01	1	0105-0105	●
1	DRIVE ASM; FINAL,RR BRAKE SYSTEM RETARDER<RE2> (B) 41/9	1-41002-803-0	01	1	0106-0205	●
1	DRIVE ASM; FINAL,RR (B) 41/9	1-41002-803-0	01	1	0206-	●
1	DRIVE ASM; FINAL,RR EXC. BRAKE SYSTEM RETARDER<RE2> (A) 41/9	1-41001-687-0	01	1	0105-0205	●
1	DRIVE ASM; FINAL,RR BRAKE SYSTEM RETARDER<RE2> (B) 44/9	1-41001-920-0	01	1	0105-0205		●
1	DRIVE ASM; FINAL,RR BRAKE SYSTEM RETARDER<RE2> (B) 44/9	1-41002-802-0	01	1	0206-0209		●
1	DRIVE ASM; FINAL,RR (B) 44/9	1-41002-802-0	01	1	0210-		●
1	DRIVE ASM; FINAL,RR EXC. BRAKE SYSTEM RETARDER<RE2> (A) 44/9	1-41001-686-0	01	1	0105-0209		●
1	DRIVE ASM; FINAL,RR EXC. BRAKE SYSTEM RETARDER<RE2> (A) 43/10	1-41001-852-0	01	1	0105-0108			●
1	DRIVE ASM; FINAL,RR BRAKE SYSTEM RETARDER<RE2> (C) 43/10	1-41002-804-0	01	1	0105-0108			●
1	DRIVE ASM; FINAL,RR (C) 43/10	1-41002-804-0	01	1	0109-			●
17	BOLT; DIFF CAGE SETTING	1-41519-037-0	12	1	0105-	●	●	●
20	WASHER; THRUST,SIDE GEAR	1-41562-269-0	02	1	0105-	●	●	●
21	GEAR; SIDE,DIFF	1-41561-113-0	02	1	0105-	●	●	●
22	SPIDER; DIFF PINION	1-41521-054-0	01	1	0105-	●	●	●
24	GEAR; PINION,DIFF	1-41551-035-0	04	1	0105-	●	●	●
25	WASHER; THRUST,PINION	1-41552-037-0	04	1	0105-	●	●	●
37	NUT; DRIVING PINION	1-41219-028-0	01	1	0105-	●	●	●
38	WASHER; PL,DRIVING PINION	1-41349-058-0	01	1	0105-	●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=6.35	1-41229-283-0	01	1	0105-	●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=6.38	1-41229-284-0	01	1	0105-	●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=6.40	1-41229-285-0	01	1	0105-	●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=6.43	1-41229-286-0	01	1	0105-	●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=6.45	1-41229-287-0	01	1	0105-	●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=6.50	1-41229-288-0	01	1	0105-	●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=6.60	1-41229-289-0	01	1	0105-	●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=6.63	1-41229-290-0	01	1	0105-	●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=6.65	1-41229-291-0	01	1	0105-	●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=6.68	1-41229-292-0	01	1	0105-	●	●	●
43	CAGE; FINAL PINION BRAKE SYSTEM RETARDER<RE2> (A)	1-41151-082-0	01	1	0105-0108	●	●	●
43	CAGE; FINAL PINION BRAKE SYSTEM RETARDER<RE2> (A)	1-41151-082-0	01	1	0109-0205	●	●
43	CAGE; FINAL PINION (A)	1-41151-082-0	01	1	0109-0205			●
43	CAGE; FINAL PINION (A)	1-41151-082-0	01	1	0206-0209	●		●
43	CAGE; FINAL PINION BRAKE SYSTEM RETARDER<RE2> (A)	1-41151-082-0	01	1	0206-0209		●
43	CAGE; FINAL PINION (A)	1-41151-082-0	01	1	0210-	●	●	●
43	CAGE; FINAL PINION EXC. BRAKE SYSTEM RETARDER<RE2> (B)	1-41151-064-0	01	1	0105-0108	●	●	●
43	CAGE; FINAL PINION EXC. BRAKE SYSTEM RETARDER<RE2> (B)	1-41151-064-0	01	1	0109-0205	●	●
43	CAGE; FINAL PINION EXC. BRAKE SYSTEM RETARDER<RE2> (B)	1-41151-064-0	01	1	0206-0209		●
49	SHIM; FINAL PINION CAGE T=0.050	1-41154-085-0	AR	1	0105-	●	●	●
49	SHIM; FINAL PINION CAGE T=0.125	1-41154-086-0	AR	1	0105-	●	●	●
49	SHIM; FINAL PINION CAGE T=0.200	1-41154-087-0	AR	1	0105-	●	●	●
49	SHIM; FINAL PINION CAGE T=0.500	1-41154-088-0	AR	1	0105-	●	●	●
55	CARRIER; DIFF (A)	1-41110-106-0	01	1	0105-0105	●	●
55	CARRIER; DIFF EXC. BRAKE SYSTEM RETARDER<RE2> (A)	1-41110-106-0	01	1	0105-0105			●
55	CARRIER; DIFF EXC. BRAKE SYSTEM RETARDER<RE2> (A)	1-41110-106-0	01	1	0106-0108	●		●
55	CARRIER; DIFF (A)	1-41110-106-0	01	1	0106-0108		●
55	CARRIER; DIFF EXC. BRAKE SYSTEM RETARDER<RE2> (A)	1-41110-106-0	01	1	0109-0205	●
55	CARRIER; DIFF (A)	1-41110-106-0	01	1	0109-0205		●
55	CARRIER; DIFF EXC. BRAKE SYSTEM RETARDER<RE2> (A)	1-41110-106-0	01	1	0206-0209		●
55	CARRIER; DIFF BRAKE SYSTEM RETARDER<RE2> (B)	1-41110-107-0	01	1	0105-0105			●
55	CARRIER; DIFF BRAKE SYSTEM RETARDER<RE2> (B)	1-41110-107-0	01	1	0106-0108	●		●
55	CARRIER; DIFF BRAKE SYSTEM RETARDER<RE2> (B)	1-41110-107-0	01	1	0109-0205	●
55	CARRIER; DIFF (B)	1-41110-107-0	01	1	0109-0205			●
55	CARRIER; DIFF (B)	1-41110-107-0	01	1	0206-0209	●		●
55	CARRIER; DIFF BRAKE SYSTEM RETARDER<RE2> (B)	1-41110-107-0	01	1	0206-0209		●
55	CARRIER; DIFF (B)	1-41110-107-0	01	1	0210-	●	●	●
56	BOLT; BRG CAP	1-41119-066-0	04	1	0105-	●	●	●
60	GEAR SET; FINAL DRIVE,RR 41/9	1-41210-505-0	01	1	0105-	●
60	GEAR SET; FINAL DRIVE,RR 44/9	1-41210-559-0	01	1	0105-		●
60	GEAR SET; FINAL DRIVE,RR 43/10	1-41210-558-0	01	1	0105-			●
63	BEARING; PINION PILOT	1-41219-034-0	01	1	0105-	●	●	●
66	RING; SNAP,PILOT BRG	1-41219-035-0	01	1	0105-	●	●	●
69	NUT; ADJ,DIFF CAGE	1-41121-040-0	01	1	0105-	●	●	●
69	NUT; ADJ,DIFF CAGE	1-41121-041-0	01	1	0105-	●	●	●
71	CAGE ASM; DIFF,FINAL DRIVE BRAKE SYSTEM RETARDER<RE2>	1-41510-235-0	01	1	0105-0205	●
71	CAGE ASM; DIFF,FINAL DRIVE	1-41510-235-0	01	1	0206-0209	●
71	CAGE ASM; DIFF,FINAL DRIVE BRAKE SYSTEM RETARDER<RE2>	1-41510-235-0	01	1	0206-0209		●
71	CAGE ASM; DIFF,FINAL DRIVE	1-41510-235-0	01	1	0210-	●	●
71	CAGE ASM; DIFF,FINAL DRIVE	1-41510-234-0	01	1	0105-0105	●	●
71	CAGE ASM; DIFF,FINAL DRIVE EXC. BRAKE SYSTEM RETARDER<RE2>	1-41510-234-0	01	1	0106-0205	●
71	CAGE ASM; DIFF,FINAL DRIVE	1-41510-234-0	01	1	0106-0205		●
71	CAGE ASM; DIFF,FINAL DRIVE EXC. BRAKE SYSTEM RETARDER<RE2>	1-41510-234-0	01	1	0206-0209		●
71	CAGE ASM; DIFF,FINAL DRIVE BRAKE SYSTEM RETARDER<RE2>	1-41510-237-0	01	1	0105-0108			●
71	CAGE ASM; DIFF,FINAL DRIVE	1-41510-237-0	01	1	0109-			●
71	CAGE ASM; DIFF,FINAL DRIVE EXC. BRAKE SYSTEM RETARDER<RE2>	1-41510-236-0	01	1	0105-0108			●
84	BOLT; FINAL DRIVE GEAR	1-41519-036-0	16	1	0105-	●	●	●
85	NUT; DIFF CAGE SETTING	1-41519-034-0	16	1	0105-	●	●	●
86	WASHER; PL,DIFF CAGE SETTING	1-41519-035-0	28	1	0105-	●	●	●
100	SEAL; OIL,FINAL PINION (A)	1-41219-029-0	01	1	0105-0105	●	●
100	SEAL; OIL,FINAL PINION EXC. BRAKE SYSTEM RETARDER<RE2> (A)	1-41219-029-0	01	1	0105-0105			●
100	SEAL; OIL,FINAL PINION EXC. BRAKE SYSTEM RETARDER<RE2> (A)	1-41219-029-0	01	1	0106-0108	●		●
100	SEAL; OIL,FINAL PINION (A)	1-41219-029-0	01	1	0106-0108		●
100	SEAL; OIL,FINAL PINION EXC. BRAKE SYSTEM RETARDER<RE2> (A)	1-41219-029-0	01	1	0109-0205	●
100	SEAL; OIL,FINAL PINION (A)	1-41219-029-0	01	1	0109-0205		●
100	SEAL; OIL,FINAL PINION EXC. BRAKE SYSTEM RETARDER<RE2> (A)	1-41219-029-0	01	1	0206-0209		●
100	SEAL; OIL,FINAL PINION EXC. BRAKE SYSTEM RETARDER<RE2> (B)	1-41219-051-0	01	1	0105-0108	●	●	●
100	SEAL; OIL,FINAL PINION EXC. BRAKE SYSTEM RETARDER<RE2> (B)	1-41219-051-0	01	1	0109-0205	●	●
100	SEAL; OIL,FINAL PINION EXC. BRAKE SYSTEM RETARDER<RE2> (B)	1-41219-051-0	01	1	0206-0209		●
100	SEAL; OIL,FINAL PINION BRAKE SYSTEM RETARDER<RE2> (A)	1-41349-180-0	01	1	0105-0105			●
100	SEAL; OIL,FINAL PINION BRAKE SYSTEM RETARDER<RE2> (A)	1-41349-180-0	01	1	0106-0108	●		●
100	SEAL; OIL,FINAL PINION BRAKE SYSTEM RETARDER<RE2> (A)	1-41349-180-0	01	1	0109-0205	●
100	SEAL; OIL,FINAL PINION (A)	1-41349-180-0	01	1	0109-0205			●
100	SEAL; OIL,FINAL PINION (A)	1-41349-180-0	01	1	0206-0209	●		●
100	SEAL; OIL,FINAL PINION BRAKE SYSTEM RETARDER<RE2> (A)	1-41349-180-0	01	1	0206-0209		●
100	SEAL; OIL,FINAL PINION (A)	1-41349-180-0	01	1	0210-	●	●	●
101	BOLT; ADJ,DRIVEN GEAR THRUST	1-41259-001-0	01	1	0105-	●	●	●
103	NUT; ADJ BOLT	1-41259-002-0	01	1	0105-	●	●	●
194	PLUG BRAKE SYSTEM RETARDER<RE2>	1-41119-072-0	01	1	0105-0105			●
194	PLUG BRAKE SYSTEM RETARDER<RE2>	1-41119-072-0	01	1	0106-0108	●		●
194	PLUG BRAKE SYSTEM RETARDER<RE2>	1-41119-072-0	01	1	0109-0205	●
194	PLUG	1-41119-072-0	01	1	0109-0205			●
194	PLUG	1-41119-072-0	01	1	0206-0209	●		●
194	PLUG BRAKE SYSTEM RETARDER<RE2>	1-41119-072-0	01	1	0206-0209		●
194	PLUG	1-41119-072-0	01	1	0210-	●	●	●
245	WASHER; PL,BRG CAP	1-41119-065-0	04	1	0105-	●	●	●
252	GASKET; CARRIER BRAKE SYSTEM RETARDER<RE2>	1-41229-121-0	01	1	0105-0105			●
252	GASKET; CARRIER BRAKE SYSTEM RETARDER<RE2>	1-41229-121-0	01	1	0106-0108	●		●
252	GASKET; CARRIER BRAKE SYSTEM RETARDER<RE2>	1-41229-121-0	01	1	0109-0205	●
252	GASKET; CARRIER	1-41229-121-0	01	1	0109-0205			●
252	GASKET; CARRIER	1-41229-121-0	01	1	0206-0209	●		●
252	GASKET; CARRIER BRAKE SYSTEM RETARDER<RE2>	1-41229-121-0	01	1	0206-0209		●
252	GASKET; CARRIER	1-41229-121-0	01	1	0210-	●	●	●
254	CUP; DIFF BRG	1-41519-052-0	01	1	0105-	●	●	●
254	CUP; DIFF BRG	1-41519-031-0	01	1	0105-	●	●	●
255	CONE; DIFF BRG	1-41519-053-0	01	1	0105-	●	●	●
255	CONE; DIFF BRG	1-41519-033-0	01	1	0105-	●	●	●
265	CONE; BRG,FINAL DRIVE PINION (A)	1-41219-030-0	01	1	0105-	●	●	●
265	CONE; BRG,FINAL DRIVE PINION (B)	1-41219-033-0	01	1	0105-	●	●	●
266	CUP; BRG,FINAL DRIVE PINION,INNER	1-41219-032-0	01	1	0105-	●	●	●
267	CUP; BRG,FINAL DRIVE PINION,OUTER	1-41219-031-0	01	1	0105-	●	●	●
379	PIN; SPLIT	1-41129-012-0	02	1	0105-0105	●	●
379	PIN; SPLIT EXC. BRAKE SYSTEM RETARDER<RE2>	1-41129-012-0	02	1	0105-0105			●
379	PIN; SPLIT EXC. BRAKE SYSTEM RETARDER<RE2>	1-41129-012-0	02	1	0106-0108	●		●
379	PIN; SPLIT	1-41129-012-0	02	1	0106-0108		●
379	PIN; SPLIT BRAKE SYSTEM RETARDER<RE2>	1-41129-012-0	01	1	0109-0205	●
379	PIN; SPLIT	1-41129-012-0	01	1	0109-0205			●
379	PIN; SPLIT	1-41129-012-0	01	1	0206-0209	●		●
379	PIN; SPLIT BRAKE SYSTEM RETARDER<RE2>	1-41129-012-0	01	1	0206-0209		●
379	PIN; SPLIT	1-41129-012-0	01	1	0210-	●	●	●
379	PIN; SPLIT BRAKE SYSTEM RETARDER<RE2>	1-41129-012-0	01	1	0105-0105			●
379	PIN; SPLIT BRAKE SYSTEM RETARDER<RE2>	1-41129-012-0	01	1	0106-0108	●		●
379	PIN; SPLIT EXC. BRAKE SYSTEM RETARDER<RE2>	1-41129-012-0	02	1	0109-0205	●
379	PIN; SPLIT	1-41129-012-0	02	1	0109-0205		●
379	PIN; SPLIT EXC. BRAKE SYSTEM RETARDER<RE2>	1-41129-012-0	02	1	0206-0209		●
393	ADAPTER; CASE BRAKE SYSTEM RETARDER<RE2>	1-41151-076-2	01	1	0105-	●	●	●
394	BOLT; ADAPTER BRAKE SYSTEM RETARDER<RE2>	0-28191-290-0	08	1	0105-	●	●	●
442	COVER; CARRIER,DIFF LK BRAKE SYSTEM RETARDER<RE2>	1-48269-181-0	01	1	0105-0105			●
442	COVER; CARRIER,DIFF LK BRAKE SYSTEM RETARDER<RE2>	1-48269-181-0	01	1	0106-0108	●		●
442	COVER; CARRIER,DIFF LK BRAKE SYSTEM RETARDER<RE2>	1-48269-181-0	01	1	0109-0205	●
442	COVER; CARRIER,DIFF LK	1-48269-181-0	01	1	0109-0205			●
442	COVER; CARRIER,DIFF LK	1-48269-181-0	01	1	0206-0209	●		●
442	COVER; CARRIER,DIFF LK BRAKE SYSTEM RETARDER<RE2>	1-48269-181-0	01	1	0206-0209		●
442	COVER; CARRIER,DIFF LK	1-48269-181-0	01	1	0210-	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
