Sayfa 4-25A - Isuzu EPC

4-25A — REAR FINAL DRIVE (#10196) — 394 parça

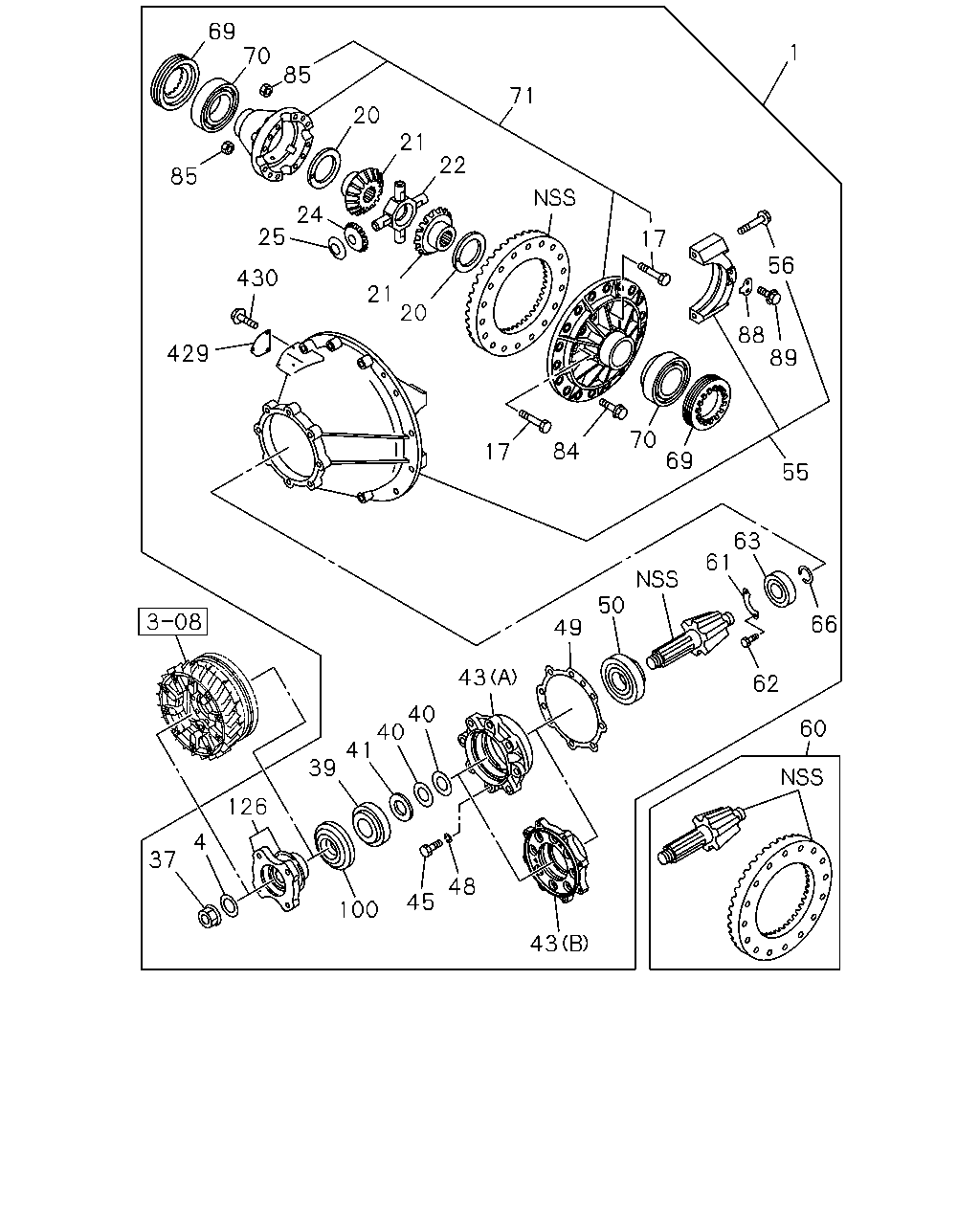

69 70 1 85 71 20 21 22 85 24 25 17 56 430 21 20 88 89 429 70 84 17 69 55 63 61 50 66 49 43 62 40 40 41 60 39 126 4 37 48 45 100 43

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	DRIVE ASM; FINAL,RR LIMITED SLIP DIFF VAR1(G85) EXC. BRAKE SYSTEM RETARDER<RE2> 39/8	1-41002-787-0	01	1	0105-	●
1	DRIVE ASM; FINAL,RR BRAKE SYSTEM RETARDER<RE2> EXC. LIMITED SLIP DIFF VAR1(G85),LIMITED SLIP DIFF VAR2(G86) 39/8	1-41002-694-0	01	1	0105-0312	●
1	DRIVE ASM; FINAL,RR BRAKE SYSTEM RETARDER<RE2> EXC. LIMITED SLIP DIFF VAR1(G85),LIMITED SLIP DIFF VAR2(G86) 39/8	1-41002-996-0	01	1	0401-	●
1	DRIVE ASM; FINAL,RR LIMITED SLIP DIFF VAR1(G85) BRAKE SYSTEM RETARDER<RE2> 39/8	1-41002-795-0	01	1	0105-0312	●
1	DRIVE ASM; FINAL,RR LIMITED SLIP DIFF VAR1(G85) BRAKE SYSTEM RETARDER<RE2> 39/8	1-41003-058-0	01	1	0401-	●
1	DRIVE ASM; FINAL,RR EXC. LIMITED SLIP DIFF VAR1(G85),LIMITED SLIP DIFF VAR2(G86),BRAKE SYSTEM RETARDER<RE2> 39/8	1-41002-395-0	01	1	0105-	●
1	DRIVE ASM; FINAL,RR LIMITED SLIP DIFF VAR2(G86) EXC. BRAKE SYSTEM RETARDER<RE2> 39/8	1-41002-777-0	01	1	0105-	●
1	DRIVE ASM; FINAL,RR BRAKE SYSTEM RETARDER<RE2> EXC. LIMITED SLIP DIFF VAR1(G85) 38/7	1-41002-792-0	01	1	0105-0312		●
1	DRIVE ASM; FINAL,RR BRAKE SYSTEM RETARDER<RE2> EXC. LIMITED SLIP DIFF VAR1(G85) 38/7	1-41002-994-0	01	1	0401-		●
1	DRIVE ASM; FINAL,RR LIMITED SLIP DIFF VAR1(G85) BRAKE SYSTEM RETARDER<RE2> 38/7	1-41002-793-0	01	1	0105-0312		●
1	DRIVE ASM; FINAL,RR LIMITED SLIP DIFF VAR1(G85) BRAKE SYSTEM RETARDER<RE2> 38/7	1-41003-056-0	01	1	0401-		●
1	DRIVE ASM; FINAL,RR LIMITED SLIP DIFF VAR1(G85) EXC. BRAKE SYSTEM RETARDER<RE2> 38/7	1-41002-785-0	01	1	0105-		●
1	DRIVE ASM; FINAL,RR EXC. LIMITED SLIP DIFF VAR1(G85),LIMITED SLIP DIFF VAR2(G86),BRAKE SYSTEM RETARDER<RE2> 38/7	1-41002-393-0	01	1	0105-		●
1	DRIVE ASM; FINAL,RR LIMITED SLIP DIFF VAR2(G86) EXC. BRAKE SYSTEM RETARDER<RE2> 38/7	1-41002-775-0	01	1	0105-		●
1	DRIVE ASM; FINAL,RR BRAKE SYSTEM RETARDER<RE2> EXC. LIMITED SLIP DIFF VAR1(G85) 41/8	1-41002-693-0	01	1	0105-0312			●
1	DRIVE ASM; FINAL,RR BRAKE SYSTEM RETARDER<RE2> EXC. LIMITED SLIP DIFF VAR1(G85) 41/8	1-41002-995-0	01	1	0401-			●
1	DRIVE ASM; FINAL,RR LIMITED SLIP DIFF VAR1(G85) BRAKE SYSTEM RETARDER<RE2> 41/8	1-41002-794-0	01	1	0105-0312			●
1	DRIVE ASM; FINAL,RR LIMITED SLIP DIFF VAR1(G85) BRAKE SYSTEM RETARDER<RE2> 41/8	1-41003-057-0	01	1	0401-			●
1	DRIVE ASM; FINAL,RR LIMITED SLIP DIFF VAR1(G85) EXC. BRAKE SYSTEM RETARDER<RE2> 41/8	1-41002-786-0	01	1	0105-			●
1	DRIVE ASM; FINAL,RR EXC. LIMITED SLIP DIFF VAR1(G85),LIMITED SLIP DIFF VAR2(G86),BRAKE SYSTEM RETARDER<RE2> 41/8	1-41002-394-0	01	1	0105-			●
1	DRIVE ASM; FINAL,RR LIMITED SLIP DIFF VAR2(G86) EXC. BRAKE SYSTEM RETARDER<RE2> 41/8	1-41002-776-0	01	1	0105-			●
1	DRIVE ASM; FINAL,RR BRAKE SYSTEM RETARDER<RE2> EXC. LIMITED SLIP DIFF VAR1(G85) 41/9	1-41002-695-0	01	1	0105-0312				●
1	DRIVE ASM; FINAL,RR BRAKE SYSTEM RETARDER<RE2> EXC. LIMITED SLIP DIFF VAR1(G85) 41/9	1-41002-998-0	01	1	0401-				●
1	DRIVE ASM; FINAL,RR LIMITED SLIP DIFF VAR1(G85) BRAKE SYSTEM RETARDER<RE2> 41/9	1-41002-796-0	01	1	0105-0312				●
1	DRIVE ASM; FINAL,RR LIMITED SLIP DIFF VAR1(G85) BRAKE SYSTEM RETARDER<RE2> 41/9	1-41003-059-0	01	1	0401-				●
1	DRIVE ASM; FINAL,RR LIMITED SLIP DIFF VAR1(G85) EXC. BRAKE SYSTEM RETARDER<RE2> 41/9	1-41002-788-0	01	1	0105-				●
1	DRIVE ASM; FINAL,RR EXC. LIMITED SLIP DIFF VAR1(G85),LIMITED SLIP DIFF VAR2(G86),BRAKE SYSTEM RETARDER<RE2> 41/9	1-41002-396-0	01	1	0105-				●
1	DRIVE ASM; FINAL,RR LIMITED SLIP DIFF VAR2(G86) EXC. BRAKE SYSTEM RETARDER<RE2> 41/9	1-41002-778-0	01	1	0105-				●
1	DRIVE ASM; FINAL,RR BRAKE SYSTEM RETARDER<RE2> EXC. LIMITED SLIP DIFF VAR1(G85) 41/10	1-41002-697-0	01	1	0105-0312					●
1	DRIVE ASM; FINAL,RR BRAKE SYSTEM RETARDER<RE2> EXC. LIMITED SLIP DIFF VAR1(G85) 41/10	1-41003-002-0	01	1	0401-					●
1	DRIVE ASM; FINAL,RR LIMITED SLIP DIFF VAR1(G85) BRAKE SYSTEM RETARDER<RE2> 41/10	1-41002-798-0	01	1	0105-0312					●
1	DRIVE ASM; FINAL,RR LIMITED SLIP DIFF VAR1(G85) BRAKE SYSTEM RETARDER<RE2> 41/10	1-41003-061-0	01	1	0401-					●
1	DRIVE ASM; FINAL,RR LIMITED SLIP DIFF VAR1(G85) EXC. BRAKE SYSTEM RETARDER<RE2> 41/10	1-41002-790-0	01	1	0105-					●
1	DRIVE ASM; FINAL,RR EXC. LIMITED SLIP DIFF VAR1(G85),LIMITED SLIP DIFF VAR2(G86),BRAKE SYSTEM RETARDER<RE2> 41/10	1-41002-398-0	01	1	0105-					●
1	DRIVE ASM; FINAL,RR LIMITED SLIP DIFF VAR2(G86) EXC. BRAKE SYSTEM RETARDER<RE2> 41/10	1-41002-780-0	01	1	0105-					●
1	DRIVE ASM; FINAL,RR BRAKE SYSTEM RETARDER<RE2> EXC. LIMITED SLIP DIFF VAR1(G85) 39/9	1-41002-696-0	01	1	0105-0312						●
1	DRIVE ASM; FINAL,RR BRAKE SYSTEM RETARDER<RE2> EXC. LIMITED SLIP DIFF VAR1(G85) 39/9	1-41003-001-0	01	1	0401-						●
1	DRIVE ASM; FINAL,RR LIMITED SLIP DIFF VAR1(G85) BRAKE SYSTEM RETARDER<RE2> 39/9	1-41002-797-0	01	1	0105-0312						●
1	DRIVE ASM; FINAL,RR LIMITED SLIP DIFF VAR1(G85) BRAKE SYSTEM RETARDER<RE2> 39/9	1-41003-060-0	01	1	0401-						●
1	DRIVE ASM; FINAL,RR LIMITED SLIP DIFF VAR1(G85) EXC. BRAKE SYSTEM RETARDER<RE2> 39/9	1-41002-789-0	01	1	0105-						●
1	DRIVE ASM; FINAL,RR EXC. LIMITED SLIP DIFF VAR1(G85),LIMITED SLIP DIFF VAR2(G86),BRAKE SYSTEM RETARDER<RE2> 39/9	1-41002-397-0	01	1	0105-						●
1	DRIVE ASM; FINAL,RR LIMITED SLIP DIFF VAR2(G86) EXC. BRAKE SYSTEM RETARDER<RE2> 39/9	1-41002-779-0	01	1	0105-						●
4	GASKET; FLANGE,FINAL PINION ID=57	1-09623-386-0	01	1	0105-	●	●	●	●	●	●
17	BOLT; DIFF CAGE SETTING EXC. LIMITED SLIP DIFF VAR1(G85) M16X141 FLANGE	1-09070-013-0	08	1	0105-	●	●	●	●	●	●
17	BOLT; DIFF CAGE SETTING EXC. LIMITED SLIP DIFF VAR1(G85) M16X105 FLANGE	1-09070-014-0	04	1	0105-	●	●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF VAR1(G85),LIMITED SLIP DIFF VAR2(G86) T=2.8	1-41562-270-1	AR	1	0105-	●	●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF VAR1(G85),LIMITED SLIP DIFF VAR2(G86) T=2.9	1-41562-271-1	AR	1	0105-	●	●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF VAR1(G85),LIMITED SLIP DIFF VAR2(G86) T=3.0	1-41562-272-1	AR	1	0105-	●	●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF VAR1(G85),LIMITED SLIP DIFF VAR2(G86) T=3.1	1-41562-273-1	AR	1	0105-	●	●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF VAR1(G85),LIMITED SLIP DIFF VAR2(G86) T=3.2	1-41562-274-1	AR	1	0105-	●	●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF VAR1(G85),LIMITED SLIP DIFF VAR2(G86) T=3.3	1-41562-275-1	AR	1	0105-	●	●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF VAR1(G85),LIMITED SLIP DIFF VAR2(G86) T=3.4	1-41562-276-1	AR	1	0105-	●	●	●	●	●	●
21	GEAR; SIDE,DIFF EXC. LIMITED SLIP DIFF VAR1(G85),LIMITED SLIP DIFF VAR2(G86) Z=16	1-41561-114-0	02	1	0105-0405	●	●	●	●	●	●
21	GEAR; SIDE,DIFF EXC. LIMITED SLIP DIFF VAR1(G85),LIMITED SLIP DIFF VAR2(G86) Z=16	1-41561-142-0	02	1	0406-	●	●	●	●	●	●
22	SPIDER; DIFF PINION EXC. LIMITED SLIP DIFF VAR1(G85),LIMITED SLIP DIFF VAR2(G86) OD=35	1-41521-052-0	01	1	0105-	●	●	●	●	●	●
24	GEAR; PINION,DIFF EXC. LIMITED SLIP DIFF VAR1(G85),LIMITED SLIP DIFF VAR2(G86) Z=10	1-41551-034-0	04	1	0105-	●	●	●	●	●	●
25	WASHER; THRUST,PINION EXC. LIMITED SLIP DIFF VAR1(G85),LIMITED SLIP DIFF VAR2(G86) T=1.6	1-41552-003-0	04	1	0105-	●	●	●	●	●	●
37	NUT; DRIVING PINION M46 FLANGE	1-09449-071-0	01	1	0105-	●	●	●	●	●	●
39	BEARING; FINAL PINION NSK	1-09812-075-0	01	1	0105-	●	●	●	●	●	●
39	BEARING; FINAL PINION KOYO	1-09812-076-1	01	1	0105-	●	●	●	●	●	●
40	SHIM; FINAL PINION T=3.25	1-41229-245-0	AR	1	0105-	●	●	●	●	●	●
40	SHIM; FINAL PINION T=3.26	1-41229-246-0	AR	1	0105-	●	●	●	●	●	●
40	SHIM; FINAL PINION T=3.27	1-41229-247-0	AR	1	0105-	●	●	●	●	●	●
40	SHIM; FINAL PINION T=3.28	1-41229-248-0	AR	1	0105-	●	●	●	●	●	●
40	SHIM; FINAL PINION T=3.29	1-41229-249-0	AR	1	0105-	●	●	●	●	●	●
40	SHIM; FINAL PINION T=3.30	1-41229-250-0	AR	1	0105-	●	●	●	●	●	●
40	SHIM; FINAL PINION T=3.31	1-41229-251-0	AR	1	0105-	●	●	●	●	●	●
40	SHIM; FINAL PINION T=3.32	1-41229-252-0	AR	1	0105-	●	●	●	●	●	●
40	SHIM; FINAL PINION T=3.33	1-41229-253-0	AR	1	0105-	●	●	●	●	●	●
40	SHIM; FINAL PINION T=3.34	1-41229-254-0	AR	1	0105-	●	●	●	●	●	●
40	SHIM; FINAL PINION T=3.35	1-41229-255-0	AR	1	0105-	●	●	●	●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=7.60	1-41229-237-0	AR	1	0105-	●	●	●	●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=7.80	1-41229-238-0	AR	1	0105-	●	●	●	●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=8.00	1-41229-239-0	AR	1	0105-	●	●	●	●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=8.20	1-41229-240-0	AR	1	0105-	●	●	●	●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=8.40	1-41229-241-0	AR	1	0105-	●	●	●	●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=8.60	1-41229-242-0	AR	1	0105-	●	●	●	●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=8.80	1-41229-243-0	AR	1	0105-	●	●	●	●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=9.00	1-41229-244-0	AR	1	0105-	●	●	●	●	●	●
43	CAGE; FINAL PINION BRAKE SYSTEM RETARDER<RE2> (B)	1-41151-087-0	01	1	0105-	●	●	●	●	●	●
43	CAGE; FINAL PINION EXC. BRAKE SYSTEM RETARDER<RE2> (A) T=82	1-41151-057-0	01	1	0105-	●	●	●	●	●	●
45	BOLT; FINAL PINION CAGE M16X55	0-16806-655-0	08	1	0105-	●	●	●	●	●	●
48	WASHER; LK,FINAL PINION ID=16.2	9-09150-516-0	08	1	0105-	●	●	●	●	●	●
49	SHIM; FINAL PINION CAGE T=0.50	1-41154-077-0	AR	1	0105-	●	●	●	●	●	●
49	SHIM; FINAL PINION CAGE T=1.000	1-41154-078-0	AR	1	0105-	●	●	●	●	●	●
49	SHIM; FINAL PINION CAGE T=0.30	1-41154-079-0	AR	1	0105-	●	●	●	●	●	●
49	SHIM; FINAL PINION CAGE T=0.40	1-41154-080-0	AR	1	0105-	●	●	●	●	●	●
50	BEARING; FINAL PINION NSK	1-09812-073-1	01	1	0105-	●	●	●	●	●	●
50	BEARING; FINAL PINION KOYO	1-09812-074-1	01	1	0105-	●	●	●	●	●	●
55	CARRIER; DIFF LIMITED SLIP DIFF VAR1(G85)	1-41110-102-0	01	1	0105-	●	●	●	●	●	●
55	CARRIER; DIFF EXC. LIMITED SLIP DIFF VAR1(G85)	1-41110-117-0	01	1	0105-	●	●	●	●	●	●
56	BOLT; BRG CAP M20X125 FLANGE	1-09070-015-0	04	1	0105-	●	●	●	●	●	●
60	GEAR SET; FINAL DRIVE,RR 39/8	1-41210-618-0	01	1	0105-	●
60	GEAR SET; FINAL DRIVE,RR 38/7	1-41210-616-0	01	1	0105-		●
60	GEAR SET; FINAL DRIVE,RR 41/8	1-41210-617-0	01	1	0105-			●
60	GEAR SET; FINAL DRIVE,RR 41/9	1-41210-619-0	01	1	0105-				●
60	GEAR SET; FINAL DRIVE,RR 41/10	1-41210-621-0	01	1	0105-					●
60	GEAR SET; FINAL DRIVE,RR 39/9	1-41210-620-0	01	1	0105-						●
61	RETAINER; PILOT BRG,PINION LIMITED SLIP DIFF VAR1(G85) T=3.2	1-41227-008-0	02	1	0105-	●	●	●	●	●	●
61	RETAINER; PILOT BRG,PINION EXC. LIMITED SLIP DIFF VAR1(G85) T=3.2	1-41227-008-0	01	1	0105-	●	●	●	●	●	●
62	BOLT; RET LIMITED SLIP DIFF VAR1(G85) M8X42 W/PIN HOLE	1-09042-037-0	02	1	0105-	●	●	●	●	●	●
62	BOLT; RET EXC. LIMITED SLIP DIFF VAR1(G85) M8X16	0-20800-816-0	02	1	0105-	●	●	●	●	●	●
63	BEARING; PINION PILOT NSK	1-09810-152-0	01	1	0105-	●	●	●	●	●	●
63	BEARING; PINION PILOT KOYO	1-09810-153-0	01	1	0105-	●	●	●	●	●	●
66	RING; SNAP,PILOT BRG OD=45.9	1-09588-061-0	01	1	0105-	●	●	●	●	●	●
69	NUT; ADJ,DIFF CAGE LIMITED SLIP DIFF VAR1(G85)	1-41121-004-0	01	1	0105-	●	●	●	●	●	●
69	NUT; ADJ,DIFF CAGE LIMITED SLIP DIFF VAR1(G85)	1-41121-003-2	01	1	0105-	●	●	●	●	●	●
69	NUT; ADJ,DIFF CAGE EXC. LIMITED SLIP DIFF VAR1(G85)	1-41121-051-0	01	1	0105-	●	●	●	●	●	●
69	NUT; ADJ,DIFF CAGE EXC. LIMITED SLIP DIFF VAR1(G85)	1-41121-050-0	01	1	0105-	●	●	●	●	●	●
70	BEARING; DIFF CAGE LIMITED SLIP DIFF VAR1(G85) NSK ID=101 OD=168 T=41.3	9-00093-119-0	01	1	0105-	●	●	●	●	●	●
70	BEARING; DIFF CAGE LIMITED SLIP DIFF VAR1(G85) NSK ID=100 OD=157 T=36.5	9-00093-120-0	01	1	0105-	●	●	●	●	●	●
70	BEARING; DIFF CAGE EXC. LIMITED SLIP DIFF VAR1(G85) KOYO ID=110 OD=170 T=38	1-09812-226-0	02	1	0105-	●	●	●	●	●	●
71	CAGE ASM; DIFF,FINAL DRIVE EXC. LIMITED SLIP DIFF VAR1(G85)	1-41510-253-0	01	1	0105-	●	●	●	●	●	●
84	BOLT; FINAL DRIVE GEAR LIMITED SLIP DIFF VAR1(G85) M18X42	1-09009-092-0	18	1	0105-	●	●	●	●	●	●
84	BOLT; FINAL DRIVE GEAR EXC. LIMITED SLIP DIFF VAR1(G85) M18X38 FLANGE	1-09009-049-1	18	1	0105-	●	●	●	●	●	●
85	NUT; DIFF CAGE SETTING EXC. LIMITED SLIP DIFF VAR1(G85) M16	9-99110-516-0	12	1	0105-	●	●	●	●	●	●
88	PLATE; LK,ADJ NUT LIMITED SLIP DIFF VAR1(G85)	9-41124-013-0	02	1	0105-	●	●	●	●	●	●
88	PLATE; LK,ADJ NUT EXC. LIMITED SLIP DIFF VAR1(G85) T=3.2	1-41124-026-0	02	1	0105-	●	●	●	●	●	●
89	BOLT; LK PLATE M10X20 FLANGE	0-28781-020-0	04	1	0105-	●	●	●	●	●	●
100	SEAL; OIL,FINAL PINION NOK	1-09625-322-0	01	1	0105-	●	●	●	●	●	●
126	COUPLING; DRIVING PINION EXC. BRAKE SYSTEM RETARDER<RE2>	1-37245-343-0	01	1	0105-	●	●	●	●	●	●
429	PLATE; DUMMY EXC. LIMITED SLIP DIFF VAR1(G85)	1-41279-014-0	01	1	0105-	●	●	●	●	●	●
430	BOLT; PLATE,DUMMY EXC. LIMITED SLIP DIFF VAR1(G85) M8X20 FLANGE	0-28680-820-0	03	1	0105-	●	●	●	●	●	●

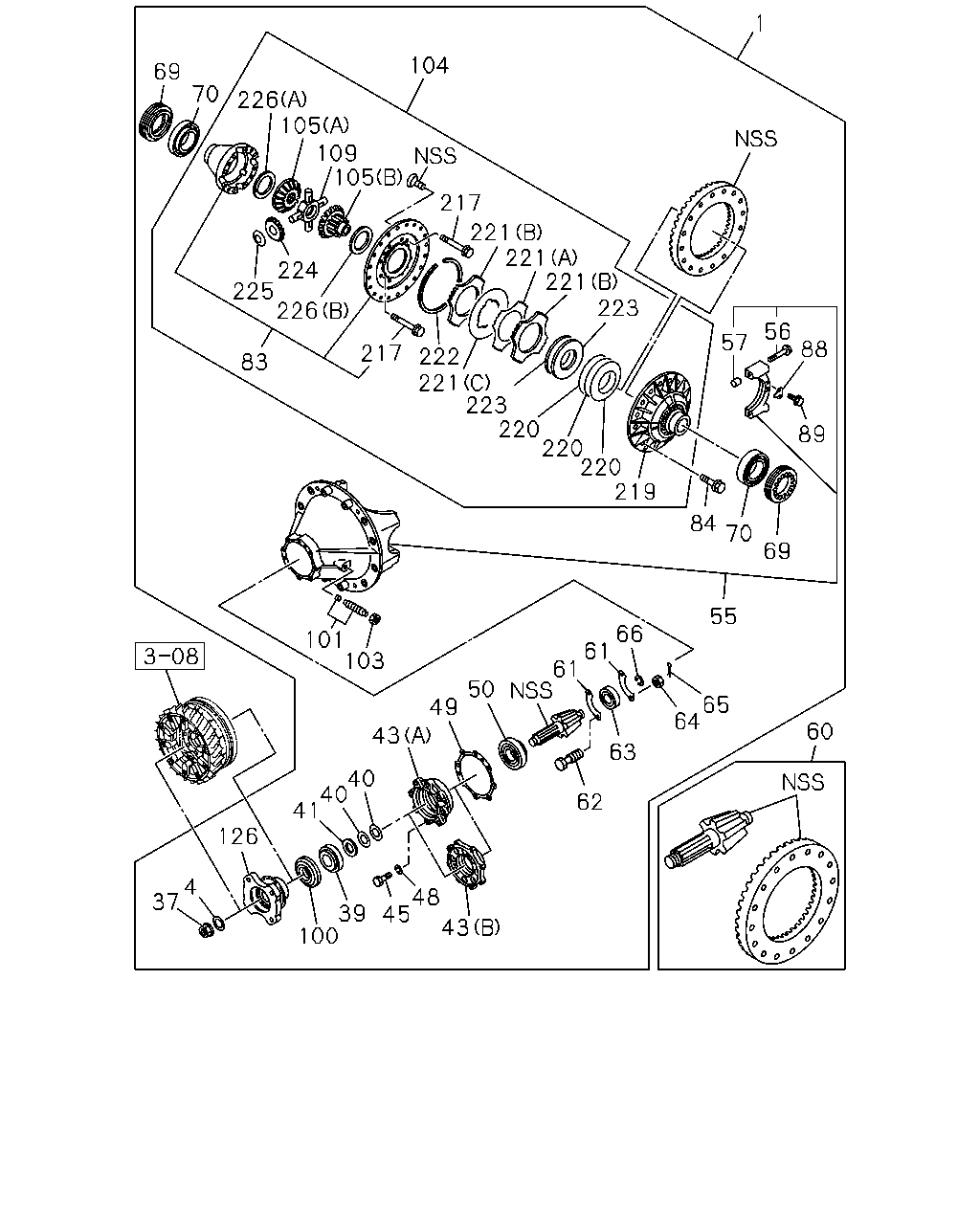

1 104 69 70 226 105 109 105 217 221 221 221 223 224 225 226 56 57 88 217 222 221 223 220 220 220 219 83 89 84 70 69 55 66 101 103 61 61 50 65 64 49 60 43 63 40 40 41 62 126 4 37 48 45 39 100 43

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	DRIVE ASM; FINAL,RR LIMITED SLIP DIFF VAR1(G85) EXC. BRAKE SYSTEM RETARDER<RE2> 39/8	1-41002-787-0	01	1	0105-	●
1	DRIVE ASM; FINAL,RR BRAKE SYSTEM RETARDER<RE2> EXC. LIMITED SLIP DIFF VAR1(G85),LIMITED SLIP DIFF VAR2(G86) 39/8	1-41002-694-0	01	1	0105-0312	●
1	DRIVE ASM; FINAL,RR BRAKE SYSTEM RETARDER<RE2> EXC. LIMITED SLIP DIFF VAR1(G85),LIMITED SLIP DIFF VAR2(G86) 39/8	1-41002-996-0	01	1	0401-	●
1	DRIVE ASM; FINAL,RR LIMITED SLIP DIFF VAR1(G85) BRAKE SYSTEM RETARDER<RE2> 39/8	1-41002-795-0	01	1	0105-0312	●
1	DRIVE ASM; FINAL,RR LIMITED SLIP DIFF VAR1(G85) BRAKE SYSTEM RETARDER<RE2> 39/8	1-41003-058-0	01	1	0401-	●
1	DRIVE ASM; FINAL,RR EXC. LIMITED SLIP DIFF VAR1(G85),LIMITED SLIP DIFF VAR2(G86),BRAKE SYSTEM RETARDER<RE2> 39/8	1-41002-395-0	01	1	0105-	●
1	DRIVE ASM; FINAL,RR LIMITED SLIP DIFF VAR2(G86) EXC. BRAKE SYSTEM RETARDER<RE2> 39/8	1-41002-777-0	01	1	0105-	●
1	DRIVE ASM; FINAL,RR BRAKE SYSTEM RETARDER<RE2> EXC. LIMITED SLIP DIFF VAR1(G85) 38/7	1-41002-792-0	01	1	0105-0312		●
1	DRIVE ASM; FINAL,RR BRAKE SYSTEM RETARDER<RE2> EXC. LIMITED SLIP DIFF VAR1(G85) 38/7	1-41002-994-0	01	1	0401-		●
1	DRIVE ASM; FINAL,RR LIMITED SLIP DIFF VAR1(G85) BRAKE SYSTEM RETARDER<RE2> 38/7	1-41002-793-0	01	1	0105-0312		●
1	DRIVE ASM; FINAL,RR LIMITED SLIP DIFF VAR1(G85) BRAKE SYSTEM RETARDER<RE2> 38/7	1-41003-056-0	01	1	0401-		●
1	DRIVE ASM; FINAL,RR LIMITED SLIP DIFF VAR1(G85) EXC. BRAKE SYSTEM RETARDER<RE2> 38/7	1-41002-785-0	01	1	0105-		●
1	DRIVE ASM; FINAL,RR EXC. LIMITED SLIP DIFF VAR1(G85),LIMITED SLIP DIFF VAR2(G86),BRAKE SYSTEM RETARDER<RE2> 38/7	1-41002-393-0	01	1	0105-		●
1	DRIVE ASM; FINAL,RR LIMITED SLIP DIFF VAR2(G86) EXC. BRAKE SYSTEM RETARDER<RE2> 38/7	1-41002-775-0	01	1	0105-		●
1	DRIVE ASM; FINAL,RR BRAKE SYSTEM RETARDER<RE2> EXC. LIMITED SLIP DIFF VAR1(G85) 41/8	1-41002-693-0	01	1	0105-0312			●
1	DRIVE ASM; FINAL,RR BRAKE SYSTEM RETARDER<RE2> EXC. LIMITED SLIP DIFF VAR1(G85) 41/8	1-41002-995-0	01	1	0401-			●
1	DRIVE ASM; FINAL,RR LIMITED SLIP DIFF VAR1(G85) BRAKE SYSTEM RETARDER<RE2> 41/8	1-41002-794-0	01	1	0105-0312			●
1	DRIVE ASM; FINAL,RR LIMITED SLIP DIFF VAR1(G85) BRAKE SYSTEM RETARDER<RE2> 41/8	1-41003-057-0	01	1	0401-			●
1	DRIVE ASM; FINAL,RR LIMITED SLIP DIFF VAR1(G85) EXC. BRAKE SYSTEM RETARDER<RE2> 41/8	1-41002-786-0	01	1	0105-			●
1	DRIVE ASM; FINAL,RR EXC. LIMITED SLIP DIFF VAR1(G85),LIMITED SLIP DIFF VAR2(G86),BRAKE SYSTEM RETARDER<RE2> 41/8	1-41002-394-0	01	1	0105-			●
1	DRIVE ASM; FINAL,RR LIMITED SLIP DIFF VAR2(G86) EXC. BRAKE SYSTEM RETARDER<RE2> 41/8	1-41002-776-0	01	1	0105-			●
1	DRIVE ASM; FINAL,RR BRAKE SYSTEM RETARDER<RE2> EXC. LIMITED SLIP DIFF VAR1(G85) 41/9	1-41002-695-0	01	1	0105-0312				●
1	DRIVE ASM; FINAL,RR BRAKE SYSTEM RETARDER<RE2> EXC. LIMITED SLIP DIFF VAR1(G85) 41/9	1-41002-998-0	01	1	0401-				●
1	DRIVE ASM; FINAL,RR LIMITED SLIP DIFF VAR1(G85) BRAKE SYSTEM RETARDER<RE2> 41/9	1-41002-796-0	01	1	0105-0312				●
1	DRIVE ASM; FINAL,RR LIMITED SLIP DIFF VAR1(G85) BRAKE SYSTEM RETARDER<RE2> 41/9	1-41003-059-0	01	1	0401-				●
1	DRIVE ASM; FINAL,RR LIMITED SLIP DIFF VAR1(G85) EXC. BRAKE SYSTEM RETARDER<RE2> 41/9	1-41002-788-0	01	1	0105-				●
1	DRIVE ASM; FINAL,RR EXC. LIMITED SLIP DIFF VAR1(G85),LIMITED SLIP DIFF VAR2(G86),BRAKE SYSTEM RETARDER<RE2> 41/9	1-41002-396-0	01	1	0105-				●
1	DRIVE ASM; FINAL,RR LIMITED SLIP DIFF VAR2(G86) EXC. BRAKE SYSTEM RETARDER<RE2> 41/9	1-41002-778-0	01	1	0105-				●
1	DRIVE ASM; FINAL,RR BRAKE SYSTEM RETARDER<RE2> EXC. LIMITED SLIP DIFF VAR1(G85) 41/10	1-41002-697-0	01	1	0105-0312					●
1	DRIVE ASM; FINAL,RR BRAKE SYSTEM RETARDER<RE2> EXC. LIMITED SLIP DIFF VAR1(G85) 41/10	1-41003-002-0	01	1	0401-					●
1	DRIVE ASM; FINAL,RR LIMITED SLIP DIFF VAR1(G85) BRAKE SYSTEM RETARDER<RE2> 41/10	1-41002-798-0	01	1	0105-0312					●
1	DRIVE ASM; FINAL,RR LIMITED SLIP DIFF VAR1(G85) BRAKE SYSTEM RETARDER<RE2> 41/10	1-41003-061-0	01	1	0401-					●
1	DRIVE ASM; FINAL,RR LIMITED SLIP DIFF VAR1(G85) EXC. BRAKE SYSTEM RETARDER<RE2> 41/10	1-41002-790-0	01	1	0105-					●
1	DRIVE ASM; FINAL,RR EXC. LIMITED SLIP DIFF VAR1(G85),LIMITED SLIP DIFF VAR2(G86),BRAKE SYSTEM RETARDER<RE2> 41/10	1-41002-398-0	01	1	0105-					●
1	DRIVE ASM; FINAL,RR LIMITED SLIP DIFF VAR2(G86) EXC. BRAKE SYSTEM RETARDER<RE2> 41/10	1-41002-780-0	01	1	0105-					●
1	DRIVE ASM; FINAL,RR BRAKE SYSTEM RETARDER<RE2> EXC. LIMITED SLIP DIFF VAR1(G85) 39/9	1-41002-696-0	01	1	0105-0312						●
1	DRIVE ASM; FINAL,RR BRAKE SYSTEM RETARDER<RE2> EXC. LIMITED SLIP DIFF VAR1(G85) 39/9	1-41003-001-0	01	1	0401-						●
1	DRIVE ASM; FINAL,RR LIMITED SLIP DIFF VAR1(G85) BRAKE SYSTEM RETARDER<RE2> 39/9	1-41002-797-0	01	1	0105-0312						●
1	DRIVE ASM; FINAL,RR LIMITED SLIP DIFF VAR1(G85) BRAKE SYSTEM RETARDER<RE2> 39/9	1-41003-060-0	01	1	0401-						●
1	DRIVE ASM; FINAL,RR LIMITED SLIP DIFF VAR1(G85) EXC. BRAKE SYSTEM RETARDER<RE2> 39/9	1-41002-789-0	01	1	0105-						●
1	DRIVE ASM; FINAL,RR EXC. LIMITED SLIP DIFF VAR1(G85),LIMITED SLIP DIFF VAR2(G86),BRAKE SYSTEM RETARDER<RE2> 39/9	1-41002-397-0	01	1	0105-						●
1	DRIVE ASM; FINAL,RR LIMITED SLIP DIFF VAR2(G86) EXC. BRAKE SYSTEM RETARDER<RE2> 39/9	1-41002-779-0	01	1	0105-						●
4	GASKET; FLANGE,FINAL PINION ID=57	1-09623-386-0	01	1	0105-	●	●	●	●	●	●
37	NUT; DRIVING PINION M46 FLANGE	1-09449-071-0	01	1	0105-	●	●	●	●	●	●
39	BEARING; FINAL PINION NSK	1-09812-075-0	01	1	0105-	●	●	●	●	●	●
39	BEARING; FINAL PINION KOYO	1-09812-076-1	01	1	0105-	●	●	●	●	●	●
40	SHIM; FINAL PINION T=3.25	1-41229-245-0	AR	1	0105-	●	●	●	●	●	●
40	SHIM; FINAL PINION T=3.26	1-41229-246-0	AR	1	0105-	●	●	●	●	●	●
40	SHIM; FINAL PINION T=3.27	1-41229-247-0	AR	1	0105-	●	●	●	●	●	●
40	SHIM; FINAL PINION T=3.28	1-41229-248-0	AR	1	0105-	●	●	●	●	●	●
40	SHIM; FINAL PINION T=3.29	1-41229-249-0	AR	1	0105-	●	●	●	●	●	●
40	SHIM; FINAL PINION T=3.30	1-41229-250-0	AR	1	0105-	●	●	●	●	●	●
40	SHIM; FINAL PINION T=3.31	1-41229-251-0	AR	1	0105-	●	●	●	●	●	●
40	SHIM; FINAL PINION T=3.32	1-41229-252-0	AR	1	0105-	●	●	●	●	●	●
40	SHIM; FINAL PINION T=3.33	1-41229-253-0	AR	1	0105-	●	●	●	●	●	●
40	SHIM; FINAL PINION T=3.34	1-41229-254-0	AR	1	0105-	●	●	●	●	●	●
40	SHIM; FINAL PINION T=3.35	1-41229-255-0	AR	1	0105-	●	●	●	●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=7.60	1-41229-237-0	AR	1	0105-	●	●	●	●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=7.80	1-41229-238-0	AR	1	0105-	●	●	●	●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=8.00	1-41229-239-0	AR	1	0105-	●	●	●	●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=8.20	1-41229-240-0	AR	1	0105-	●	●	●	●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=8.40	1-41229-241-0	AR	1	0105-	●	●	●	●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=8.60	1-41229-242-0	AR	1	0105-	●	●	●	●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=8.80	1-41229-243-0	AR	1	0105-	●	●	●	●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=9.00	1-41229-244-0	AR	1	0105-	●	●	●	●	●	●
43	CAGE; FINAL PINION BRAKE SYSTEM RETARDER<RE2> (B)	1-41151-087-0	01	1	0105-	●	●	●	●	●	●
43	CAGE; FINAL PINION EXC. BRAKE SYSTEM RETARDER<RE2> (A) T=82	1-41151-057-0	01	1	0105-	●	●	●	●	●	●
45	BOLT; FINAL PINION CAGE M16X55	0-16806-655-0	08	1	0105-	●	●	●	●	●	●
48	WASHER; LK,FINAL PINION ID=16.2	9-09150-516-0	08	1	0105-	●	●	●	●	●	●
49	SHIM; FINAL PINION CAGE T=0.50	1-41154-077-0	AR	1	0105-	●	●	●	●	●	●
49	SHIM; FINAL PINION CAGE T=1.000	1-41154-078-0	AR	1	0105-	●	●	●	●	●	●
49	SHIM; FINAL PINION CAGE T=0.30	1-41154-079-0	AR	1	0105-	●	●	●	●	●	●
49	SHIM; FINAL PINION CAGE T=0.40	1-41154-080-0	AR	1	0105-	●	●	●	●	●	●
50	BEARING; FINAL PINION NSK	1-09812-073-1	01	1	0105-	●	●	●	●	●	●
50	BEARING; FINAL PINION KOYO	1-09812-074-1	01	1	0105-	●	●	●	●	●	●
55	CARRIER; DIFF LIMITED SLIP DIFF VAR1(G85)	1-41110-102-0	01	1	0105-	●	●	●	●	●	●
55	CARRIER; DIFF EXC. LIMITED SLIP DIFF VAR1(G85)	1-41110-117-0	01	1	0105-	●	●	●	●	●	●
56	BOLT; BRG CAP M20X125 FLANGE	1-09070-015-0	04	1	0105-	●	●	●	●	●	●
57	DOWEL; BRG CAP LIMITED SLIP DIFF VAR1(G85)	9-41119-033-1	04	1	0105-	●	●	●	●	●	●
60	GEAR SET; FINAL DRIVE,RR 39/8	1-41210-618-0	01	1	0105-	●
60	GEAR SET; FINAL DRIVE,RR 38/7	1-41210-616-0	01	1	0105-		●
60	GEAR SET; FINAL DRIVE,RR 41/8	1-41210-617-0	01	1	0105-			●
60	GEAR SET; FINAL DRIVE,RR 41/9	1-41210-619-0	01	1	0105-				●
60	GEAR SET; FINAL DRIVE,RR 41/10	1-41210-621-0	01	1	0105-					●
60	GEAR SET; FINAL DRIVE,RR 39/9	1-41210-620-0	01	1	0105-						●
61	RETAINER; PILOT BRG,PINION LIMITED SLIP DIFF VAR1(G85) T=3.2	1-41227-008-0	02	1	0105-	●	●	●	●	●	●
61	RETAINER; PILOT BRG,PINION EXC. LIMITED SLIP DIFF VAR1(G85) T=3.2	1-41227-008-0	01	1	0105-	●	●	●	●	●	●
62	BOLT; RET LIMITED SLIP DIFF VAR1(G85) M8X42 W/PIN HOLE	1-09042-037-0	02	1	0105-	●	●	●	●	●	●
62	BOLT; RET EXC. LIMITED SLIP DIFF VAR1(G85) M8X16	0-20800-816-0	02	1	0105-	●	●	●	●	●	●
63	BEARING; PINION PILOT NSK	1-09810-152-0	01	1	0105-	●	●	●	●	●	●
63	BEARING; PINION PILOT KOYO	1-09810-153-0	01	1	0105-	●	●	●	●	●	●
64	NUT; RET LIMITED SLIP DIFF VAR1(G85) M8 SLOTTED	9-09117-508-0	02	1	0105-	●	●	●	●	●	●
65	PIN; SPLIT,RET LIMITED SLIP DIFF VAR1(G85)	9-08112-012-0	02	1	0105-	●	●	●	●	●	●
66	RING; SNAP,PILOT BRG OD=45.9	1-09588-061-0	01	1	0105-	●	●	●	●	●	●
69	NUT; ADJ,DIFF CAGE LIMITED SLIP DIFF VAR1(G85)	1-41121-004-0	01	1	0105-	●	●	●	●	●	●
69	NUT; ADJ,DIFF CAGE LIMITED SLIP DIFF VAR1(G85)	1-41121-003-2	01	1	0105-	●	●	●	●	●	●
69	NUT; ADJ,DIFF CAGE EXC. LIMITED SLIP DIFF VAR1(G85)	1-41121-051-0	01	1	0105-	●	●	●	●	●	●
69	NUT; ADJ,DIFF CAGE EXC. LIMITED SLIP DIFF VAR1(G85)	1-41121-050-0	01	1	0105-	●	●	●	●	●	●
70	BEARING; DIFF CAGE LIMITED SLIP DIFF VAR1(G85) NSK ID=101 OD=168 T=41.3	9-00093-119-0	01	1	0105-	●	●	●	●	●	●
70	BEARING; DIFF CAGE LIMITED SLIP DIFF VAR1(G85) NSK ID=100 OD=157 T=36.5	9-00093-120-0	01	1	0105-	●	●	●	●	●	●
70	BEARING; DIFF CAGE EXC. LIMITED SLIP DIFF VAR1(G85) KOYO ID=110 OD=170 T=38	1-09812-226-0	02	1	0105-	●	●	●	●	●	●
83	CAGE ASM; DIFF LIMITED SLIP DIFF VAR1(G85)	1-41510-259-0	01	1	0105-	●	●	●
83	CAGE ASM; DIFF LIMITED SLIP DIFF VAR1(G85)	1-41510-260-0	01	1	0105-				●	●	●
84	BOLT; FINAL DRIVE GEAR LIMITED SLIP DIFF VAR1(G85) M18X42	1-09009-092-0	18	1	0105-	●	●	●	●	●	●
84	BOLT; FINAL DRIVE GEAR EXC. LIMITED SLIP DIFF VAR1(G85) M18X38 FLANGE	1-09009-049-1	18	1	0105-	●	●	●	●	●	●
88	PLATE; LK,ADJ NUT LIMITED SLIP DIFF VAR1(G85)	9-41124-013-0	02	1	0105-	●	●	●	●	●	●
88	PLATE; LK,ADJ NUT EXC. LIMITED SLIP DIFF VAR1(G85) T=3.2	1-41124-026-0	02	1	0105-	●	●	●	●	●	●
89	BOLT; LK PLATE M10X20 FLANGE	0-28781-020-0	04	1	0105-	●	●	●	●	●	●
100	SEAL; OIL,FINAL PINION NOK	1-09625-322-0	01	1	0105-	●	●	●	●	●	●
101	BOLT; ADJ,DRIVEN GEAR THRUST LIMITED SLIP DIFF VAR1(G85) M24X104	9-41127-006-0	01	1	0105-	●	●	●	●	●	●
103	NUT; ADJ BOLT LIMITED SLIP DIFF VAR1(G85) M28	9-09842-003-0	01	1	0105-	●	●	●	●	●	●
104	DIFF ASM; NO SPIN LIMITED SLIP DIFF VAR1(G85)	1-41530-043-3	01	1	0105-	●	●	●
104	DIFF ASM; NO SPIN LIMITED SLIP DIFF VAR2(G86)	1-41530-047-0	01	1	0105-	●	●	●	●	●	●
104	DIFF ASM; NO SPIN LIMITED SLIP DIFF VAR1(G85)	1-41530-045-3	01	1	0105-				●	●	●
105	GEAR; SIDE LIMITED SLIP DIFF VAR1(G85) (B) Z=16	1-41561-112-0	01	1	0105-0405	●	●	●	●	●	●
105	GEAR; SIDE LIMITED SLIP DIFF VAR1(G85) (B) Z=16	1-41561-143-0	01	1	0406-	●	●	●	●	●	●
105	GEAR; SIDE LIMITED SLIP DIFF VAR1(G85) (A) Z=16	1-41561-114-0	01	1	0105-0405	●	●	●	●	●	●
105	GEAR; SIDE LIMITED SLIP DIFF VAR1(G85) (A) Z=16	1-41561-142-0	01	1	0406-	●	●	●	●	●	●
105	GEAR; SIDE LIMITED SLIP DIFF VAR2(G86) (C)	1-41539-040-0	02	1	0105-	●	●	●	●	●	●
109	SPIDER; DIFF LIMITED SLIP DIFF VAR1(G85)	1-41521-053-0	01	1	0105-	●	●	●	●	●	●
109	SPIDER; DIFF LIMITED SLIP DIFF VAR2(G86)	1-41539-023-0	01	1	0105-	●	●	●	●	●	●
126	COUPLING; DRIVING PINION EXC. BRAKE SYSTEM RETARDER<RE2>	1-37245-343-0	01	1	0105-	●	●	●	●	●	●
217	BOLT; DIFF,CAGE LIMITED SLIP DIFF VAR1(G85) M16X100 FLANGE	1-09070-047-0	12	1	0105-	●	●	●	●	●	●
219	CASE; DIFF,CAGE LIMITED SLIP DIFF VAR1(G85)	1-41514-013-2	01	1	0105-	●	●	●
219	CASE; DIFF,CAGE LIMITED SLIP DIFF VAR1(G85)	1-41514-018-1	01	1	0105-				●	●	●
220	SPRING; DISH LIMITED SLIP DIFF VAR1(G85)	1-41519-030-0	03	1	0105-	●	●	●	●	●	●
221	PLATE; FRICTION LIMITED SLIP DIFF VAR1(G85) (A) T=2.0 OD=247	1-41564-011-1	09	1	0105-	●	●	●	●	●	●
221	PLATE; FRICTION LIMITED SLIP DIFF VAR1(G85) (B) T=4.0 OD=247	1-41564-012-1	02	1	0105-	●	●	●	●	●	●
221	PLATE; FRICTION LIMITED SLIP DIFF VAR1(G85) (C) T=2.0 OD=180	1-41564-013-1	10	1	0105-	●	●	●	●	●	●
222	RING; SNAP LIMITED SLIP DIFF VAR1(G85)	1-09587-066-0	01	1	0105-	●	●	●	●	●	●
223	WASHER; DIST LIMITED SLIP DIFF VAR1(G85)	1-41562-268-0	02	1	0105-	●	●	●	●	●	●
224	PINION; DIFF LIMITED SLIP DIFF VAR1(G85) Z=10	1-41551-034-0	04	1	0105-0405	●	●	●	●	●	●
224	PINION; DIFF LIMITED SLIP DIFF VAR1(G85) Z=10	1-41551-045-0	04	1	0406-	●	●	●	●	●	●
225	WASHER; THRUST LIMITED SLIP DIFF VAR1(G85) T=1.6	1-41552-003-0	04	1	0105-	●	●	●	●	●	●
226	WASHER; THRUST LIMITED SLIP DIFF VAR1(G85) (B) T=2.8	1-41562-206-0	AR	1	0105-	●	●	●	●	●	●
226	WASHER; THRUST LIMITED SLIP DIFF VAR1(G85) (B) T=2.9	1-41562-207-0	AR	1	0105-	●	●	●	●	●	●
226	WASHER; THRUST LIMITED SLIP DIFF VAR1(G85) (B) T=3.0	1-41562-208-0	AR	1	0105-	●	●	●	●	●	●
226	WASHER; THRUST LIMITED SLIP DIFF VAR1(G85) (B) T=3.1	1-41562-209-0	AR	1	0105-	●	●	●	●	●	●
226	WASHER; THRUST LIMITED SLIP DIFF VAR1(G85) (B) T=3.2	1-41562-210-0	AR	1	0105-	●	●	●	●	●	●
226	WASHER; THRUST LIMITED SLIP DIFF VAR1(G85) (B) T=3.3	1-41562-211-0	AR	1	0105-	●	●	●	●	●	●
226	WASHER; THRUST LIMITED SLIP DIFF VAR1(G85) (B) T=3.4	1-41562-212-0	AR	1	0105-	●	●	●	●	●	●
226	WASHER; THRUST LIMITED SLIP DIFF VAR1(G85) (A) T=2.8	1-41562-270-1	AR	1	0105-	●	●	●	●	●	●
226	WASHER; THRUST LIMITED SLIP DIFF VAR1(G85) (A) T=2.9	1-41562-271-1	AR	1	0105-	●	●	●	●	●	●
226	WASHER; THRUST LIMITED SLIP DIFF VAR1(G85) (A) T=3.0	1-41562-272-1	AR	1	0105-	●	●	●	●	●	●
226	WASHER; THRUST LIMITED SLIP DIFF VAR1(G85) (A) T=3.1	1-41562-273-1	AR	1	0105-	●	●	●	●	●	●
226	WASHER; THRUST LIMITED SLIP DIFF VAR1(G85) (A) T=3.2	1-41562-274-1	AR	1	0105-	●	●	●	●	●	●
226	WASHER; THRUST LIMITED SLIP DIFF VAR1(G85) (A) T=3.3	1-41562-275-1	AR	1	0105-	●	●	●	●	●	●
226	WASHER; THRUST LIMITED SLIP DIFF VAR1(G85) (A) T=3.4	1-41562-276-1	AR	1	0105-	●	●	●	●	●	●

69 70 1 85 104 71 85 107 105 105 106 17 107 109 106 56 430 88 89 429 70 69 84 17 55 63 61 49 66 43 62 40 40 41 50 60 39 100 126 4 37 48 45 43

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	DRIVE ASM; FINAL,RR LIMITED SLIP DIFF VAR1(G85) EXC. BRAKE SYSTEM RETARDER<RE2> 39/8	1-41002-787-0	01	1	0105-	●
1	DRIVE ASM; FINAL,RR BRAKE SYSTEM RETARDER<RE2> EXC. LIMITED SLIP DIFF VAR1(G85),LIMITED SLIP DIFF VAR2(G86) 39/8	1-41002-694-0	01	1	0105-0312	●
1	DRIVE ASM; FINAL,RR BRAKE SYSTEM RETARDER<RE2> EXC. LIMITED SLIP DIFF VAR1(G85),LIMITED SLIP DIFF VAR2(G86) 39/8	1-41002-996-0	01	1	0401-	●
1	DRIVE ASM; FINAL,RR LIMITED SLIP DIFF VAR1(G85) BRAKE SYSTEM RETARDER<RE2> 39/8	1-41002-795-0	01	1	0105-0312	●
1	DRIVE ASM; FINAL,RR LIMITED SLIP DIFF VAR1(G85) BRAKE SYSTEM RETARDER<RE2> 39/8	1-41003-058-0	01	1	0401-	●
1	DRIVE ASM; FINAL,RR EXC. LIMITED SLIP DIFF VAR1(G85),LIMITED SLIP DIFF VAR2(G86),BRAKE SYSTEM RETARDER<RE2> 39/8	1-41002-395-0	01	1	0105-	●
1	DRIVE ASM; FINAL,RR LIMITED SLIP DIFF VAR2(G86) EXC. BRAKE SYSTEM RETARDER<RE2> 39/8	1-41002-777-0	01	1	0105-	●
1	DRIVE ASM; FINAL,RR BRAKE SYSTEM RETARDER<RE2> EXC. LIMITED SLIP DIFF VAR1(G85) 38/7	1-41002-792-0	01	1	0105-0312		●
1	DRIVE ASM; FINAL,RR BRAKE SYSTEM RETARDER<RE2> EXC. LIMITED SLIP DIFF VAR1(G85) 38/7	1-41002-994-0	01	1	0401-		●
1	DRIVE ASM; FINAL,RR LIMITED SLIP DIFF VAR1(G85) BRAKE SYSTEM RETARDER<RE2> 38/7	1-41002-793-0	01	1	0105-0312		●
1	DRIVE ASM; FINAL,RR LIMITED SLIP DIFF VAR1(G85) BRAKE SYSTEM RETARDER<RE2> 38/7	1-41003-056-0	01	1	0401-		●
1	DRIVE ASM; FINAL,RR LIMITED SLIP DIFF VAR1(G85) EXC. BRAKE SYSTEM RETARDER<RE2> 38/7	1-41002-785-0	01	1	0105-		●
1	DRIVE ASM; FINAL,RR EXC. LIMITED SLIP DIFF VAR1(G85),LIMITED SLIP DIFF VAR2(G86),BRAKE SYSTEM RETARDER<RE2> 38/7	1-41002-393-0	01	1	0105-		●
1	DRIVE ASM; FINAL,RR LIMITED SLIP DIFF VAR2(G86) EXC. BRAKE SYSTEM RETARDER<RE2> 38/7	1-41002-775-0	01	1	0105-		●
1	DRIVE ASM; FINAL,RR BRAKE SYSTEM RETARDER<RE2> EXC. LIMITED SLIP DIFF VAR1(G85) 41/8	1-41002-693-0	01	1	0105-0312			●
1	DRIVE ASM; FINAL,RR BRAKE SYSTEM RETARDER<RE2> EXC. LIMITED SLIP DIFF VAR1(G85) 41/8	1-41002-995-0	01	1	0401-			●
1	DRIVE ASM; FINAL,RR LIMITED SLIP DIFF VAR1(G85) BRAKE SYSTEM RETARDER<RE2> 41/8	1-41002-794-0	01	1	0105-0312			●
1	DRIVE ASM; FINAL,RR LIMITED SLIP DIFF VAR1(G85) BRAKE SYSTEM RETARDER<RE2> 41/8	1-41003-057-0	01	1	0401-			●
1	DRIVE ASM; FINAL,RR LIMITED SLIP DIFF VAR1(G85) EXC. BRAKE SYSTEM RETARDER<RE2> 41/8	1-41002-786-0	01	1	0105-			●
1	DRIVE ASM; FINAL,RR EXC. LIMITED SLIP DIFF VAR1(G85),LIMITED SLIP DIFF VAR2(G86),BRAKE SYSTEM RETARDER<RE2> 41/8	1-41002-394-0	01	1	0105-			●
1	DRIVE ASM; FINAL,RR LIMITED SLIP DIFF VAR2(G86) EXC. BRAKE SYSTEM RETARDER<RE2> 41/8	1-41002-776-0	01	1	0105-			●
1	DRIVE ASM; FINAL,RR BRAKE SYSTEM RETARDER<RE2> EXC. LIMITED SLIP DIFF VAR1(G85) 41/9	1-41002-695-0	01	1	0105-0312				●
1	DRIVE ASM; FINAL,RR BRAKE SYSTEM RETARDER<RE2> EXC. LIMITED SLIP DIFF VAR1(G85) 41/9	1-41002-998-0	01	1	0401-				●
1	DRIVE ASM; FINAL,RR LIMITED SLIP DIFF VAR1(G85) BRAKE SYSTEM RETARDER<RE2> 41/9	1-41002-796-0	01	1	0105-0312				●
1	DRIVE ASM; FINAL,RR LIMITED SLIP DIFF VAR1(G85) BRAKE SYSTEM RETARDER<RE2> 41/9	1-41003-059-0	01	1	0401-				●
1	DRIVE ASM; FINAL,RR LIMITED SLIP DIFF VAR1(G85) EXC. BRAKE SYSTEM RETARDER<RE2> 41/9	1-41002-788-0	01	1	0105-				●
1	DRIVE ASM; FINAL,RR EXC. LIMITED SLIP DIFF VAR1(G85),LIMITED SLIP DIFF VAR2(G86),BRAKE SYSTEM RETARDER<RE2> 41/9	1-41002-396-0	01	1	0105-				●
1	DRIVE ASM; FINAL,RR LIMITED SLIP DIFF VAR2(G86) EXC. BRAKE SYSTEM RETARDER<RE2> 41/9	1-41002-778-0	01	1	0105-				●
1	DRIVE ASM; FINAL,RR BRAKE SYSTEM RETARDER<RE2> EXC. LIMITED SLIP DIFF VAR1(G85) 41/10	1-41002-697-0	01	1	0105-0312					●
1	DRIVE ASM; FINAL,RR BRAKE SYSTEM RETARDER<RE2> EXC. LIMITED SLIP DIFF VAR1(G85) 41/10	1-41003-002-0	01	1	0401-					●
1	DRIVE ASM; FINAL,RR LIMITED SLIP DIFF VAR1(G85) BRAKE SYSTEM RETARDER<RE2> 41/10	1-41002-798-0	01	1	0105-0312					●
1	DRIVE ASM; FINAL,RR LIMITED SLIP DIFF VAR1(G85) BRAKE SYSTEM RETARDER<RE2> 41/10	1-41003-061-0	01	1	0401-					●
1	DRIVE ASM; FINAL,RR LIMITED SLIP DIFF VAR1(G85) EXC. BRAKE SYSTEM RETARDER<RE2> 41/10	1-41002-790-0	01	1	0105-					●
1	DRIVE ASM; FINAL,RR EXC. LIMITED SLIP DIFF VAR1(G85),LIMITED SLIP DIFF VAR2(G86),BRAKE SYSTEM RETARDER<RE2> 41/10	1-41002-398-0	01	1	0105-					●
1	DRIVE ASM; FINAL,RR LIMITED SLIP DIFF VAR2(G86) EXC. BRAKE SYSTEM RETARDER<RE2> 41/10	1-41002-780-0	01	1	0105-					●
1	DRIVE ASM; FINAL,RR BRAKE SYSTEM RETARDER<RE2> EXC. LIMITED SLIP DIFF VAR1(G85) 39/9	1-41002-696-0	01	1	0105-0312						●
1	DRIVE ASM; FINAL,RR BRAKE SYSTEM RETARDER<RE2> EXC. LIMITED SLIP DIFF VAR1(G85) 39/9	1-41003-001-0	01	1	0401-						●
1	DRIVE ASM; FINAL,RR LIMITED SLIP DIFF VAR1(G85) BRAKE SYSTEM RETARDER<RE2> 39/9	1-41002-797-0	01	1	0105-0312						●
1	DRIVE ASM; FINAL,RR LIMITED SLIP DIFF VAR1(G85) BRAKE SYSTEM RETARDER<RE2> 39/9	1-41003-060-0	01	1	0401-						●
1	DRIVE ASM; FINAL,RR LIMITED SLIP DIFF VAR1(G85) EXC. BRAKE SYSTEM RETARDER<RE2> 39/9	1-41002-789-0	01	1	0105-						●
1	DRIVE ASM; FINAL,RR EXC. LIMITED SLIP DIFF VAR1(G85),LIMITED SLIP DIFF VAR2(G86),BRAKE SYSTEM RETARDER<RE2> 39/9	1-41002-397-0	01	1	0105-						●
1	DRIVE ASM; FINAL,RR LIMITED SLIP DIFF VAR2(G86) EXC. BRAKE SYSTEM RETARDER<RE2> 39/9	1-41002-779-0	01	1	0105-						●
4	GASKET; FLANGE,FINAL PINION ID=57	1-09623-386-0	01	1	0105-	●	●	●	●	●	●
17	BOLT; DIFF CAGE SETTING EXC. LIMITED SLIP DIFF VAR1(G85) M16X141 FLANGE	1-09070-013-0	08	1	0105-	●	●	●	●	●	●
17	BOLT; DIFF CAGE SETTING EXC. LIMITED SLIP DIFF VAR1(G85) M16X105 FLANGE	1-09070-014-0	04	1	0105-	●	●	●	●	●	●
37	NUT; DRIVING PINION M46 FLANGE	1-09449-071-0	01	1	0105-	●	●	●	●	●	●
39	BEARING; FINAL PINION NSK	1-09812-075-0	01	1	0105-	●	●	●	●	●	●
39	BEARING; FINAL PINION KOYO	1-09812-076-1	01	1	0105-	●	●	●	●	●	●
40	SHIM; FINAL PINION T=3.25	1-41229-245-0	AR	1	0105-	●	●	●	●	●	●
40	SHIM; FINAL PINION T=3.26	1-41229-246-0	AR	1	0105-	●	●	●	●	●	●
40	SHIM; FINAL PINION T=3.27	1-41229-247-0	AR	1	0105-	●	●	●	●	●	●
40	SHIM; FINAL PINION T=3.28	1-41229-248-0	AR	1	0105-	●	●	●	●	●	●
40	SHIM; FINAL PINION T=3.29	1-41229-249-0	AR	1	0105-	●	●	●	●	●	●
40	SHIM; FINAL PINION T=3.30	1-41229-250-0	AR	1	0105-	●	●	●	●	●	●
40	SHIM; FINAL PINION T=3.31	1-41229-251-0	AR	1	0105-	●	●	●	●	●	●
40	SHIM; FINAL PINION T=3.32	1-41229-252-0	AR	1	0105-	●	●	●	●	●	●
40	SHIM; FINAL PINION T=3.33	1-41229-253-0	AR	1	0105-	●	●	●	●	●	●
40	SHIM; FINAL PINION T=3.34	1-41229-254-0	AR	1	0105-	●	●	●	●	●	●
40	SHIM; FINAL PINION T=3.35	1-41229-255-0	AR	1	0105-	●	●	●	●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=7.60	1-41229-237-0	AR	1	0105-	●	●	●	●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=7.80	1-41229-238-0	AR	1	0105-	●	●	●	●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=8.00	1-41229-239-0	AR	1	0105-	●	●	●	●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=8.20	1-41229-240-0	AR	1	0105-	●	●	●	●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=8.40	1-41229-241-0	AR	1	0105-	●	●	●	●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=8.60	1-41229-242-0	AR	1	0105-	●	●	●	●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=8.80	1-41229-243-0	AR	1	0105-	●	●	●	●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=9.00	1-41229-244-0	AR	1	0105-	●	●	●	●	●	●
43	CAGE; FINAL PINION BRAKE SYSTEM RETARDER<RE2> (B)	1-41151-087-0	01	1	0105-	●	●	●	●	●	●
43	CAGE; FINAL PINION EXC. BRAKE SYSTEM RETARDER<RE2> (A) T=82	1-41151-057-0	01	1	0105-	●	●	●	●	●	●
45	BOLT; FINAL PINION CAGE M16X55	0-16806-655-0	08	1	0105-	●	●	●	●	●	●
48	WASHER; LK,FINAL PINION ID=16.2	9-09150-516-0	08	1	0105-	●	●	●	●	●	●
49	SHIM; FINAL PINION CAGE T=0.50	1-41154-077-0	AR	1	0105-	●	●	●	●	●	●
49	SHIM; FINAL PINION CAGE T=1.000	1-41154-078-0	AR	1	0105-	●	●	●	●	●	●
49	SHIM; FINAL PINION CAGE T=0.30	1-41154-079-0	AR	1	0105-	●	●	●	●	●	●
49	SHIM; FINAL PINION CAGE T=0.40	1-41154-080-0	AR	1	0105-	●	●	●	●	●	●
50	BEARING; FINAL PINION NSK	1-09812-073-1	01	1	0105-	●	●	●	●	●	●
50	BEARING; FINAL PINION KOYO	1-09812-074-1	01	1	0105-	●	●	●	●	●	●
55	CARRIER; DIFF LIMITED SLIP DIFF VAR1(G85)	1-41110-102-0	01	1	0105-	●	●	●	●	●	●
55	CARRIER; DIFF EXC. LIMITED SLIP DIFF VAR1(G85)	1-41110-117-0	01	1	0105-	●	●	●	●	●	●
56	BOLT; BRG CAP M20X125 FLANGE	1-09070-015-0	04	1	0105-	●	●	●	●	●	●
60	GEAR SET; FINAL DRIVE,RR 39/8	1-41210-618-0	01	1	0105-	●
60	GEAR SET; FINAL DRIVE,RR 38/7	1-41210-616-0	01	1	0105-		●
60	GEAR SET; FINAL DRIVE,RR 41/8	1-41210-617-0	01	1	0105-			●
60	GEAR SET; FINAL DRIVE,RR 41/9	1-41210-619-0	01	1	0105-				●
60	GEAR SET; FINAL DRIVE,RR 41/10	1-41210-621-0	01	1	0105-					●
60	GEAR SET; FINAL DRIVE,RR 39/9	1-41210-620-0	01	1	0105-						●
61	RETAINER; PILOT BRG,PINION LIMITED SLIP DIFF VAR1(G85) T=3.2	1-41227-008-0	02	1	0105-	●	●	●	●	●	●
61	RETAINER; PILOT BRG,PINION EXC. LIMITED SLIP DIFF VAR1(G85) T=3.2	1-41227-008-0	01	1	0105-	●	●	●	●	●	●
62	BOLT; RET LIMITED SLIP DIFF VAR1(G85) M8X42 W/PIN HOLE	1-09042-037-0	02	1	0105-	●	●	●	●	●	●
62	BOLT; RET EXC. LIMITED SLIP DIFF VAR1(G85) M8X16	0-20800-816-0	02	1	0105-	●	●	●	●	●	●
63	BEARING; PINION PILOT NSK	1-09810-152-0	01	1	0105-	●	●	●	●	●	●
63	BEARING; PINION PILOT KOYO	1-09810-153-0	01	1	0105-	●	●	●	●	●	●
66	RING; SNAP,PILOT BRG OD=45.9	1-09588-061-0	01	1	0105-	●	●	●	●	●	●
69	NUT; ADJ,DIFF CAGE LIMITED SLIP DIFF VAR1(G85)	1-41121-004-0	01	1	0105-	●	●	●	●	●	●
69	NUT; ADJ,DIFF CAGE LIMITED SLIP DIFF VAR1(G85)	1-41121-003-2	01	1	0105-	●	●	●	●	●	●
69	NUT; ADJ,DIFF CAGE EXC. LIMITED SLIP DIFF VAR1(G85)	1-41121-051-0	01	1	0105-	●	●	●	●	●	●
69	NUT; ADJ,DIFF CAGE EXC. LIMITED SLIP DIFF VAR1(G85)	1-41121-050-0	01	1	0105-	●	●	●	●	●	●
70	BEARING; DIFF CAGE LIMITED SLIP DIFF VAR1(G85) NSK ID=101 OD=168 T=41.3	9-00093-119-0	01	1	0105-	●	●	●	●	●	●
70	BEARING; DIFF CAGE LIMITED SLIP DIFF VAR1(G85) NSK ID=100 OD=157 T=36.5	9-00093-120-0	01	1	0105-	●	●	●	●	●	●
70	BEARING; DIFF CAGE EXC. LIMITED SLIP DIFF VAR1(G85) KOYO ID=110 OD=170 T=38	1-09812-226-0	02	1	0105-	●	●	●	●	●	●
71	CAGE ASM; DIFF,FINAL DRIVE EXC. LIMITED SLIP DIFF VAR1(G85)	1-41510-253-0	01	1	0105-	●	●	●	●	●	●
84	BOLT; FINAL DRIVE GEAR LIMITED SLIP DIFF VAR1(G85) M18X42	1-09009-092-0	18	1	0105-	●	●	●	●	●	●
84	BOLT; FINAL DRIVE GEAR EXC. LIMITED SLIP DIFF VAR1(G85) M18X38 FLANGE	1-09009-049-1	18	1	0105-	●	●	●	●	●	●
85	NUT; DIFF CAGE SETTING EXC. LIMITED SLIP DIFF VAR1(G85) M16	9-99110-516-0	12	1	0105-	●	●	●	●	●	●
88	PLATE; LK,ADJ NUT LIMITED SLIP DIFF VAR1(G85)	9-41124-013-0	02	1	0105-	●	●	●	●	●	●
88	PLATE; LK,ADJ NUT EXC. LIMITED SLIP DIFF VAR1(G85) T=3.2	1-41124-026-0	02	1	0105-	●	●	●	●	●	●
89	BOLT; LK PLATE M10X20 FLANGE	0-28781-020-0	04	1	0105-	●	●	●	●	●	●
100	SEAL; OIL,FINAL PINION NOK	1-09625-322-0	01	1	0105-	●	●	●	●	●	●
104	DIFF ASM; NO SPIN LIMITED SLIP DIFF VAR1(G85)	1-41530-043-3	01	1	0105-	●	●	●
104	DIFF ASM; NO SPIN LIMITED SLIP DIFF VAR2(G86)	1-41530-047-0	01	1	0105-	●	●	●	●	●	●
104	DIFF ASM; NO SPIN LIMITED SLIP DIFF VAR1(G85)	1-41530-045-3	01	1	0105-				●	●	●
105	GEAR; SIDE LIMITED SLIP DIFF VAR1(G85) (B) Z=16	1-41561-112-0	01	1	0105-0405	●	●	●	●	●	●
105	GEAR; SIDE LIMITED SLIP DIFF VAR1(G85) (B) Z=16	1-41561-143-0	01	1	0406-	●	●	●	●	●	●
105	GEAR; SIDE LIMITED SLIP DIFF VAR1(G85) (A) Z=16	1-41561-114-0	01	1	0105-0405	●	●	●	●	●	●
105	GEAR; SIDE LIMITED SLIP DIFF VAR1(G85) (A) Z=16	1-41561-142-0	01	1	0406-	●	●	●	●	●	●
105	GEAR; SIDE LIMITED SLIP DIFF VAR2(G86) (C)	1-41539-040-0	02	1	0105-	●	●	●	●	●	●
106	SPRING; NO SPIN DIFF LIMITED SLIP DIFF VAR2(G86)	1-41535-004-0	02	1	0105-	●	●	●	●	●	●
107	CLUTCH; DRIVEN LIMITED SLIP DIFF VAR2(G86)	1-41532-014-0	02	1	0105-	●	●	●	●	●	●
109	SPIDER; DIFF LIMITED SLIP DIFF VAR1(G85)	1-41521-053-0	01	1	0105-	●	●	●	●	●	●
109	SPIDER; DIFF LIMITED SLIP DIFF VAR2(G86)	1-41539-023-0	01	1	0105-	●	●	●	●	●	●
126	COUPLING; DRIVING PINION EXC. BRAKE SYSTEM RETARDER<RE2>	1-37245-343-0	01	1	0105-	●	●	●	●	●	●
429	PLATE; DUMMY EXC. LIMITED SLIP DIFF VAR1(G85)	1-41279-014-0	01	1	0105-	●	●	●	●	●	●
430	BOLT; PLATE,DUMMY EXC. LIMITED SLIP DIFF VAR1(G85) M8X20 FLANGE	0-28680-820-0	03	1	0105-	●	●	●	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
