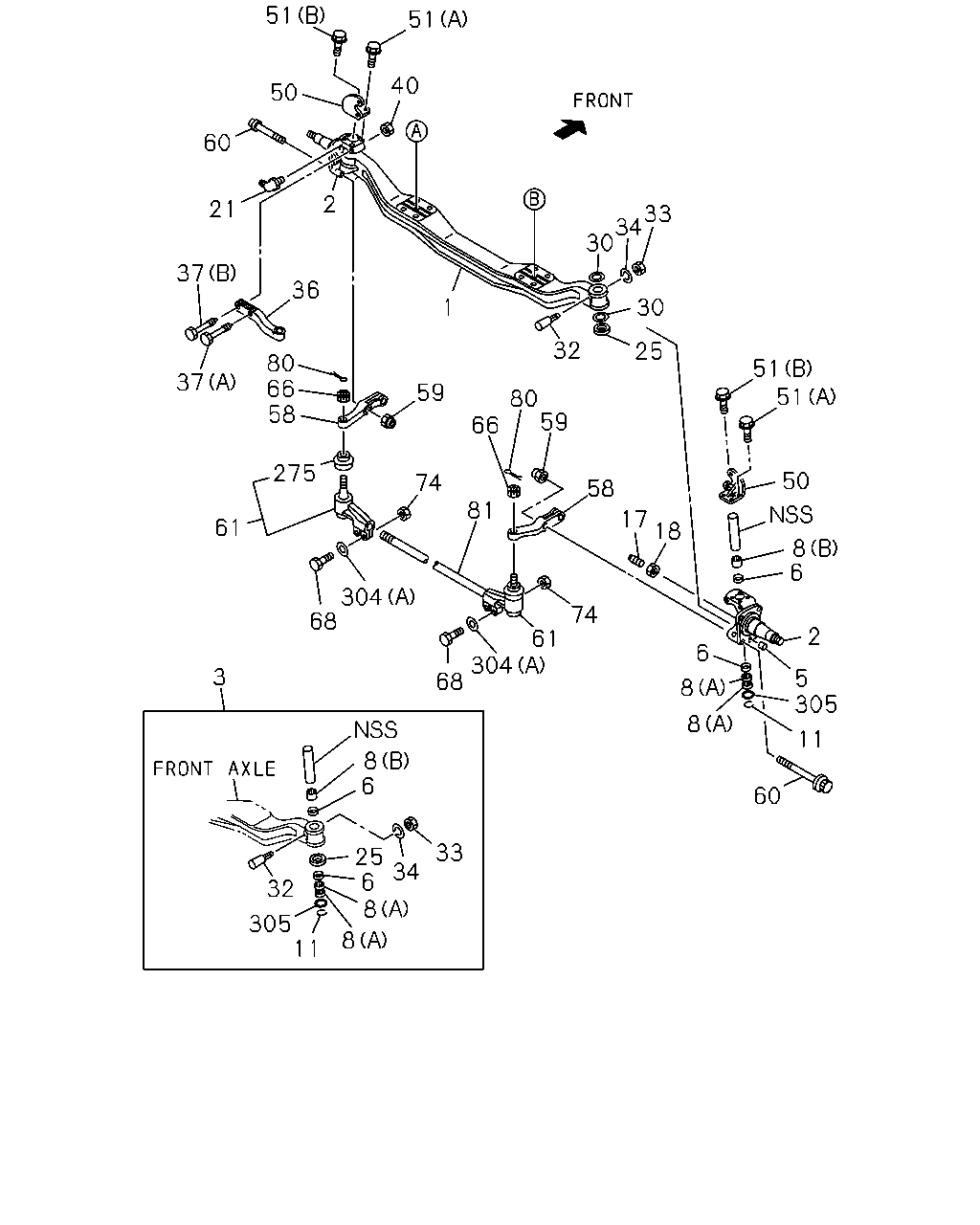

4-10 — FRONT AXLE (#10193) — 103 parça

51 51 40 50 60 2 21 33 34 30 37 36 30 1 32 25 80 66 58 51 51 37 59 80 59 66 275 50 74 58 81 17 18 61 8 6 304 68 74 2 61 304 68 6 3 5 305 8 8 11 8 6 60 33 25 34 6 8 32 305 11 8

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	AXLE; FRT	1-43111-107-5	01	1	0105-
2	KNUCKLE; FRT AXLE	1-43132-079-0	01	1	0105-
2	KNUCKLE; FRT AXLE	1-43131-079-0	01	1	0105-
3	KING PIN SET	1-87830-738-4	02	1	0105-
5	PIN; KNUCKLE TO DRUM COVER	1-09740-072-0	02	1	0105-
6	SEAL; KING PIN	9-09926-024-0	04	1	0105-
8	BEARING; NEEDLE,KING PIN (A) LOWER NTN	9-00096-242-0	04	1	0105-
8	BEARING; NEEDLE,KING PIN (B) UPPER NTN	9-00096-243-0	02	1	0105-
11	RING; SNAP,KNUCKLE PLUG	9-09950-204-0	02	1	0105-
17	BOLT; STOPPER KNUCKLE M18X43	1-09009-065-0	02	1	0105-
18	NUT; STOPPER BOLT,KNUCKLE M18	9-99110-518-0	02	1	0105-
21	NIPPLE; GREASE,KING PIN PT1/8 ELBOW 67.5 DEGREES	9-09031-110-0	04	1	0105-
25	BEARING; THRUST,KING PIN NSK	1-09829-043-2	02	1	0105-
30	WASHER; THRUST,KING PIN T=4.875 -4.900	1-43171-185-0	AR	1	0105-
30	WASHER; THRUST,KING PIN T=4.900 -4.925	1-43171-186-0	AR	1	0105-
30	WASHER; THRUST,KING PIN T=4.925 -4.950	1-43171-187-0	AR	1	0105-
30	WASHER; THRUST,KING PIN T=4.950 -4.975	1-43171-188-0	AR	1	0105-
30	WASHER; THRUST,KING PIN T=4.975 -5.000	1-43171-189-0	AR	1	0105-
30	WASHER; THRUST,KING PIN T=5.000 -5.025	1-43171-190-0	AR	1	0105-
30	WASHER; THRUST,KING PIN T=5.025 -5.050	1-43171-191-0	AR	1	0105-
30	WASHER; THRUST,KING PIN T=5.050 -5.075	1-43171-192-0	AR	1	0105-
30	WASHER; THRUST,KING PIN T=5.075 -5.100	1-43171-193-0	AR	1	0105-
30	WASHER; THRUST,KING PIN T=5.100 -5.125	1-43171-194-0	AR	1	0105-
30	WASHER; THRUST,KING PIN T=5.125 -5.150	1-43171-195-0	AR	1	0105-
30	WASHER; THRUST,KING PIN T=5.150 -5.175	1-43171-196-0	AR	1	0105-
30	WASHER; THRUST,KING PIN T=5.175 -5.200	1-43171-197-0	AR	1	0105-
30	WASHER; THRUST,KING PIN T=5.200 -5.225	1-43171-198-0	AR	1	0105-
30	WASHER; THRUST,KING PIN T=5.225 -5.250	1-43171-199-0	AR	1	0105-
32	BOLT; KEY,KING PIN	1-43116-002-1	02	1	0105-
33	NUT; KEY BOLT M10	9-09110-410-0	02	1	0105-
34	WASHER; LK,KEY BOLT ID=10.2	9-09150-510-0	02	1	0105-
36	ARM; KNUCKLE	1-43133-063-3	01	1	0105-
37	BOLT; KNUCKLE ARM (A) M22X179	1-09000-578-1	01	1	0105-
37	BOLT; KNUCKLE ARM (B) M22X167	9-09806-847-3	01	1	0105-
40	NUT; KNUCKLE ARM M22	9-09844-670-1	02	1	0105-
50	BRACKET; POWER CHAMBER	1-43145-010-3	01	1	0105-
50	BRACKET; POWER CHAMBER	1-43145-009-3	01	1	0105-
51	BOLT; POWER CHAMBER BRKT (A) M12X60 FLANGE	0-28081-260-0	02	1	0105-
51	BOLT; POWER CHAMBER BRKT ANTILOCK BRAKE SYSTEM(BFA) (B) M12X25 FLANGE	0-28681-225-0	02	1	0105-
51	BOLT; POWER CHAMBER BRKT ANTILOCK BRAKE SYSTEM(BFA) (C) M8X15,M12X26 L=52.7	1-09029-099-0	04	1	0105-
51	BOLT; POWER CHAMBER BRKT EXC. ANTILOCK BRAKE SYSTEM(BFA) (B) M12X25 FLANGE	0-28681-225-0	06	1	0105-
58	ARM; TIE ROD	1-43135-042-3	01	1	0105-
58	ARM; TIE ROD	1-43134-042-3	01	1	0105-
59	NUT; TIE ROD ARM M22	9-09844-670-1	04	1	0105-
60	BOLT; TIE ROD ARM M22X193	1-09000-154-2	04	1	0105-
61	ROD END; TIE ROD	1-43150-802-0	01	1	0105-
61	ROD END; TIE ROD	1-43150-801-0	01	1	0105-
66	NUT; TIE ROD END M24 SLOTTED	1-09442-020-0	02	1	0105-
68	BOLT; TIE ROD END M12X65	9-91061-265-0	04	1	0105-
74	NUT; TIE ROD END M12	9-99110-512-0	04	1	0105-
80	PIN; SPLIT,ROD END OD=4.6 L=35	9-08115-035-0	02	1	0105-
81	ROD; TIE	1-43151-118-0	01	1	0105-
275	BOOT; ROD END,TIE	1-43159-107-0	02	1	0105-
304	WASHER; PL (A) ID=12.5	9-09164-512-0	04	1	0105-
304	WASHER; PL (B) ID=21	9-09164-520-0	02	1	0105-
305	COVER; KNUCKLE	1-43175-021-0	02	1	0105-

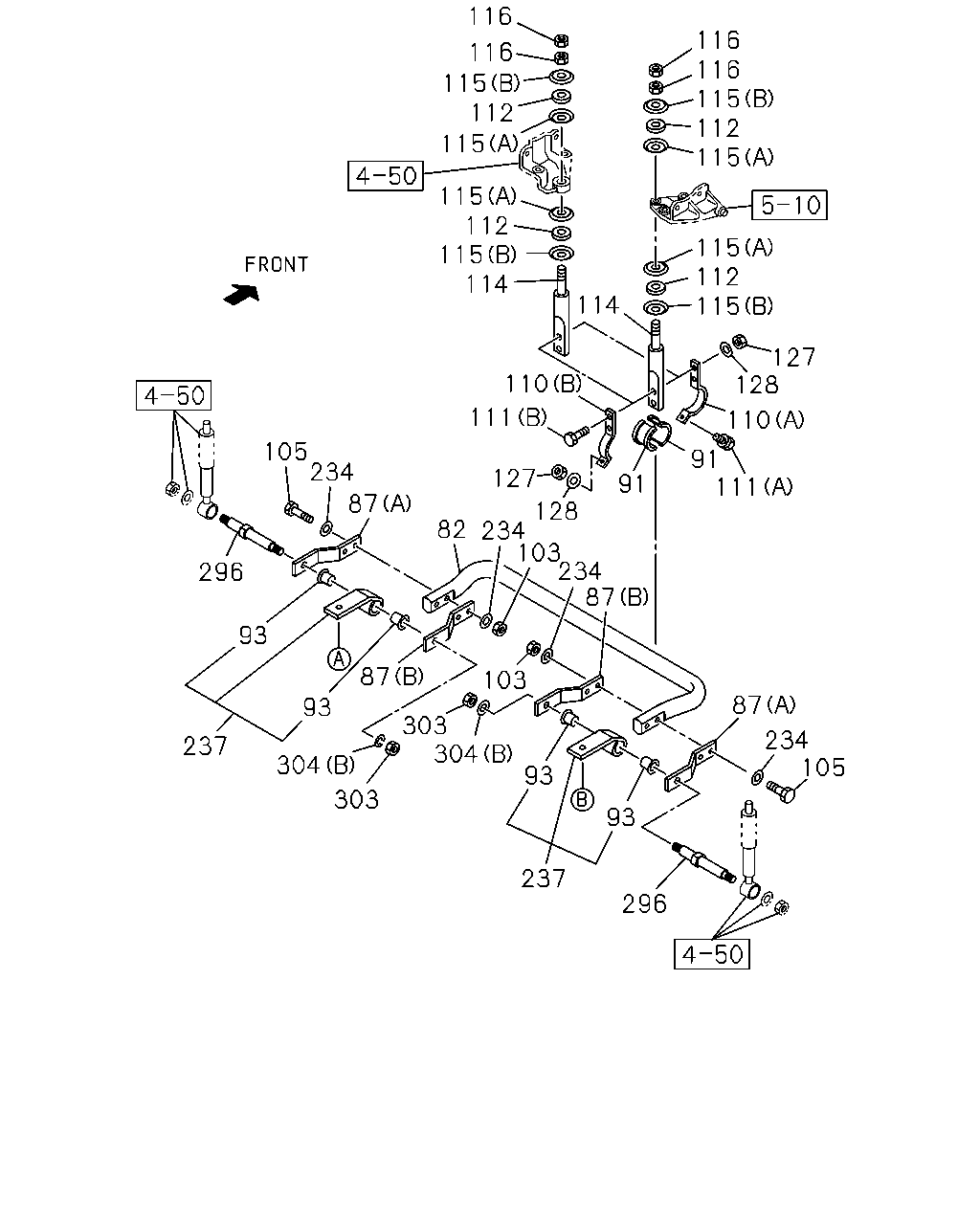

116 116 116 115 112 115 116 115 112 115 112 115 114 115 115 112 115 114 127 128 110 111 110 105 234 91 111 128 127 91 87 82 234 103 234 87 296 93 87 103 87 93 303 304 234 105 237 304 3 303 93 237 296

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
3	KING PIN SET	1-87830-738-4	02	1	0105-
82	BAR; STAB,FRT SUSP	1-51771-136-0	01	1	0105-
87	BRACKET; STABILIZER (A)	1-51781-083-1	02	1	0105-
87	BRACKET; STABILIZER (B)	1-51781-084-1	02	1	0105-
91	BUSHING; RUBBER,STAB BAR	1-51779-087-1	04	1	0105-
93	BUSHING; STABILIZER	1-51689-015-1	04	1	0105-
103	NUT; BRKT FIX M14	9-99110-514-0	04	1	0105-
105	BOLT; BRKT FIX M14X70	9-91061-470-0	04	1	0105-0206
105	BOLT; BRKT FIX M14X70	9-91066-470-0	04	1	0207-
110	CLAMP; STAB TO ROD (A)	1-51789-027-2	02	1	0105-
110	CLAMP; STAB TO ROD (B)	1-51789-028-1	02	1	0105-
111	BOLT; CLAMP TO ROD (A) M12X30	0-20801-230-0	02	1	0105-
111	BOLT; CLAMP TO ROD (B) M12X50	0-20801-250-0	04	1	0105-
112	BUSHING; ROD	9-51631-039-0	04	1	0105-
114	ROD; STAB BAR DUMP TRUCK<RA1>	1-51773-071-2	02	1	0105-
114	ROD; STAB BAR EXC. DUMP TRUCK<RA1>	1-51773-072-2	02	1	0105-
115	WASHER; CENTER,STAB TO FRAME (B) ID=16.5	9-51631-040-0	04	1	0105-
115	WASHER; CENTER,STAB TO FRAME (A) ID=20.8	9-51631-041-0	04	1	0105-
116	NUT; LK,STAB TO FRAME M14	9-99111-414-0	04	1	0105-
127	NUT; CLAMP M12	9-99110-412-0	06	1	0105-
128	WASHER; LK,CLAMP ID=12.2	9-09150-512-0	06	1	0105-
234	WASHER; STAB ID=15	9-09651-069-0	08	1	0105-
237	SUPPORT; STAB BAR	1-51681-662-0	02	1	0105-
296	PIN; STAB	1-51682-145-2	02	1	0105-
303	NUT; PIN M20	9-99110-520-0	02	1	0105-
304	WASHER; PL (A) ID=12.5	9-09164-512-0	04	1	0105-
304	WASHER; PL (B) ID=21	9-09164-520-0	02	1	0105-

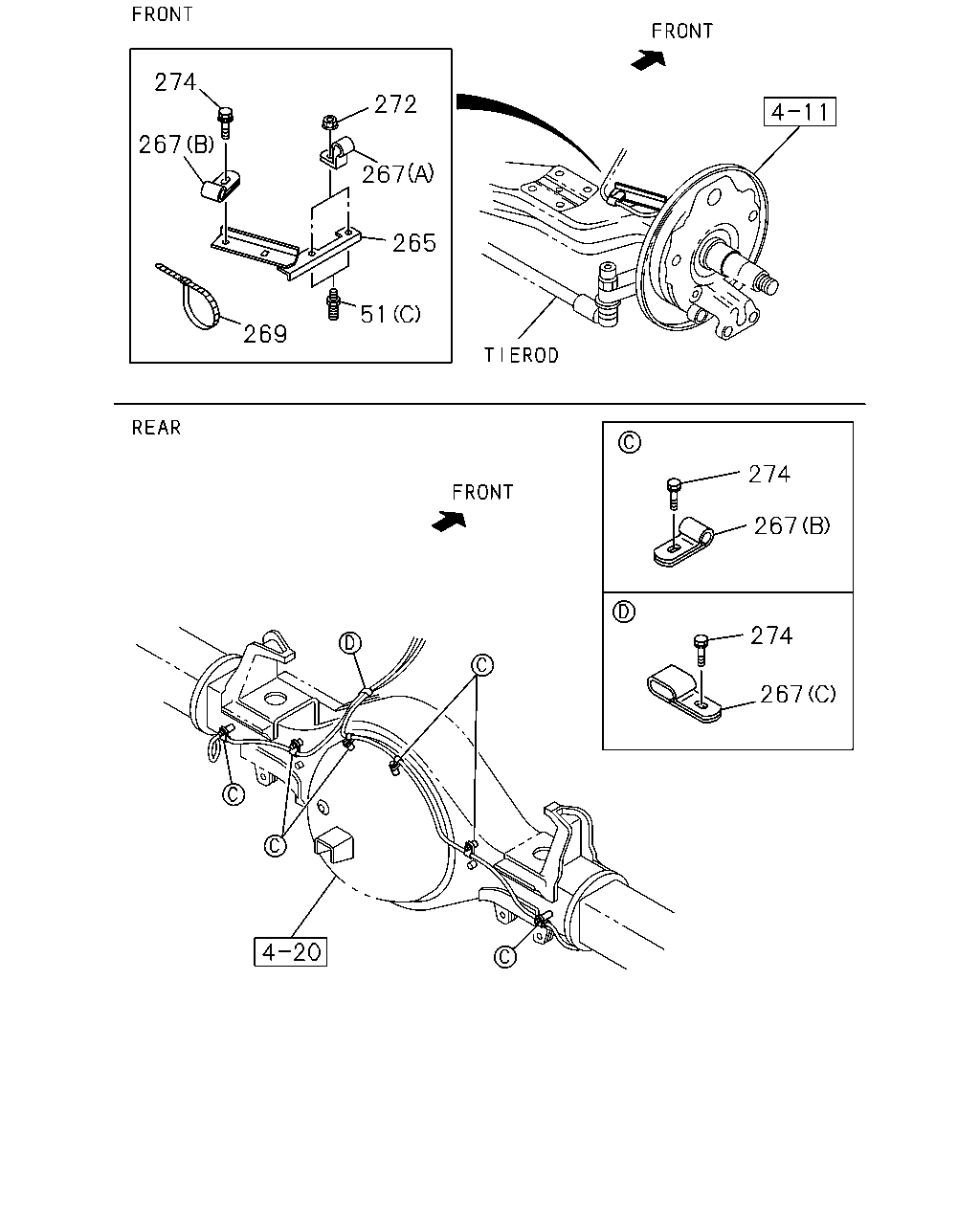

274 272 267 267 265 51 269 274 267 274 267

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
51	BOLT; POWER CHAMBER BRKT (A) M12X60 FLANGE	0-28081-260-0	02	1	0105-
51	BOLT; POWER CHAMBER BRKT ANTILOCK BRAKE SYSTEM(BFA) (B) M12X25 FLANGE	0-28681-225-0	02	1	0105-
51	BOLT; POWER CHAMBER BRKT ANTILOCK BRAKE SYSTEM(BFA) (C) M8X15,M12X26 L=52.7	1-09029-099-0	04	1	0105-
51	BOLT; POWER CHAMBER BRKT EXC. ANTILOCK BRAKE SYSTEM(BFA) (B) M12X25 FLANGE	0-28681-225-0	06	1	0105-
265	BRACKET; CLIP I BEAM ANTILOCK BRAKE SYSTEM(BFA)	1-82699-622-0	01	1	0105-
265	BRACKET; CLIP I BEAM ANTILOCK BRAKE SYSTEM(BFA)	1-82699-621-0	01	1	0105-
267	CLIP; HARNESS FINAL GEAR 18.5"<C1C> ANTILOCK BRAKE SYSTEM(BFA) (B) ID=11 L=16	9-09525-025-0	12	1	0106-
267	CLIP; HARNESS ANTILOCK BRAKE SYSTEM(BFA) (B) ID=11 L=16	9-09525-025-0	12	1	0106-
267	CLIP; HARNESS ANTILOCK BRAKE SYSTEM(BFA) (A) ID=11 H=20 L=20	5-09700-351-0	04	1	0105-
267	CLIP; HARNESS ANTILOCK BRAKE SYSTEM(BFA) (B) ID=11 L=16	9-09525-025-0	06	1	0105-
267	CLIP; HARNESS FINAL GEAR 18.5"<C1C> ANTILOCK BRAKE SYSTEM(BFA) (C) ID=11X2 L=16	9-09535-025-0	02	1	0105-0105
267	CLIP; HARNESS ANTILOCK BRAKE SYSTEM(BFA) (C) ID=11X2 L=16	9-09535-025-0	02	1	0105-0105
267	CLIP; HARNESS FINAL GEAR 18.5"<C1C> ANTILOCK BRAKE SYSTEM(BFA) (C) ID=11X2 L=16	9-09535-025-0	01	1	0106-
267	CLIP; HARNESS ANTILOCK BRAKE SYSTEM(BFA) (C) ID=11X2 L=16	9-09535-025-0	01	1	0106-
269	CLIP; BAND FINAL GEAR 18.5"<C1C> ANTILOCK BRAKE SYSTEM(BFA) L=140	5-09707-031-1	01	1	0106-
269	CLIP; BAND ANTILOCK BRAKE SYSTEM(BFA) L=140	5-09707-031-1	01	1	0106-
272	NUT; CLIP ANTILOCK BRAKE SYSTEM(BFA) M8 FLANGE	0-91150-108-0	04	1	0105-
274	BOLT; CLIP FINAL GEAR 18.5"<C1C> ANTILOCK BRAKE SYSTEM(BFA) M8X10 FLANGE	0-28080-810-0	13	1	0106-
274	BOLT; CLIP ANTILOCK BRAKE SYSTEM(BFA) M8X10 FLANGE	0-28080-810-0	13	1	0106-
274	BOLT; CLIP ANTILOCK BRAKE SYSTEM(BFA) M8X16 W/LK&PL WASHER	0-50140-816-0	04	1	0105-
