◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXR ▶ 10868 - EXR LHD FUEL TANK 400L ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-01 - PROPELLER SHAFT ▶
4-01 — PROPELLER SHAFT (#10192) — 20 parça

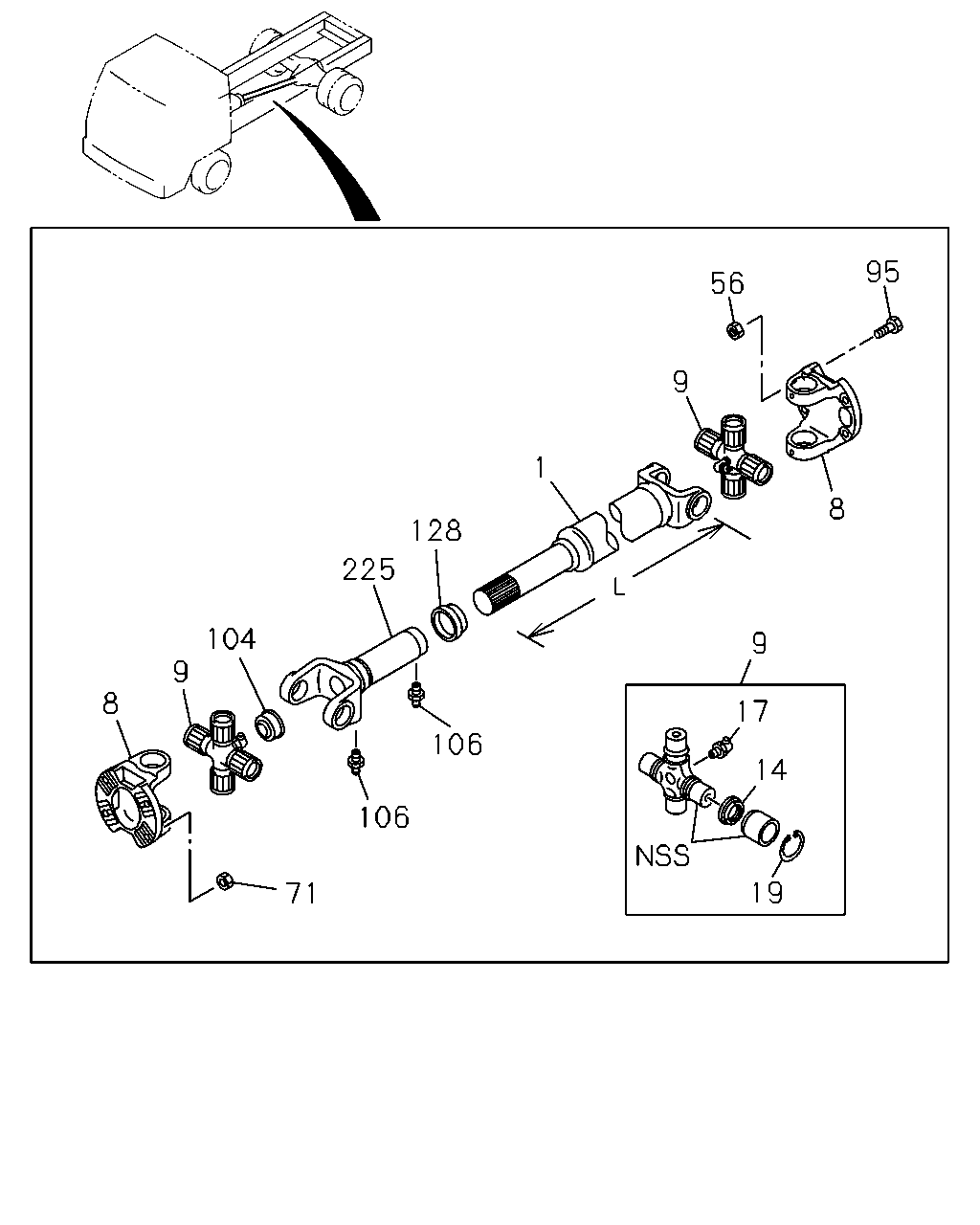

çizim 79260
95 56 9 1 8 128 225 104 9 9 8 17 106 14 106 19 71
BalonParca AdiParca NoAdetTipApplied Date
1 SHAFT; PROP
FINAL GEAR 19.5"<BDC> L=750 		1-37124-769-1 01 1 0105-0106
1 SHAFT; PROP
TRANSMISSION-ZF 16S151 OD(Y2N),MJD7S M/T(Y2Y) FINAL GEAR 19.5"<BDC> CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) L=750 		1-37124-769-1 01 1 0107-
1 SHAFT; PROP
EXC. FINAL GEAR 19.5"<BDC> L=805 		1-37124-950-0 01 1 0105-0106
1 SHAFT; PROP
TRANSMISSION-ZF 16S151 OD(Y2N),MJD7S M/T(Y2Y) CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) EXC. FINAL GEAR 19.5"<BDC> L=805 		1-37124-950-0 01 1 0107-
1 SHAFT; PROP
MJD7S M/T(Y2Y) EXC. FINAL GEAR 19.5"<BDC>,CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) L=840 		1-37124-641-1 01 1 0107-
1 SHAFT; PROP
MJX16P M/T(Y3Z) FINAL GEAR 19.5"<BDC> L=680 		1-37124-949-0 01 1 0107-
1 SHAFT; PROP
MJX16P M/T(Y3Z) EXC. FINAL GEAR 19.5"<BDC> L=725 		1-37124-628-1 01 1 0107-
8 YOKE; FLANGE,PROP SHAFT 1-37211-077-1 02 1 0105-
9 JOURNAL ASM; PROP SHAFT 1-37300-112-0 02 1 0105-
14 COVER; DUST,SPIDER 1-37249-133-0 AR 1 0105-
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES 		9-09031-110-0 AR 1 0105-
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
T=2.2 		1-09587-103-1 AR 1 0105-
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
T=2.17 		1-09587-107-0 AR 1 0105-
56 NUT; YOKE
M14 FLANGE 		1-09440-048-0 04 1 0105-
71 NUT; YOKE
M14 FLANGE 		1-09440-048-0 04 1 0105-
95 BOLT; YOKE,FINAL
FINAL GEAR 18.5"<C1C> EXC. BRAKE SYSTEM RETARDER<RE2> M14X50 		1-09000-645-0 04 1 0105-
104 PLUG; SLEEVE YOKE 1-09600-049-0 01 1 0105-
106 NIPPLE; GREASE,YOKE,PROP SHAFT
PT1/8 STRAIGHT 		9-09031-010-0 02 1 0105-
128 SEAL; SLEEVE 1-37247-020-0 01 1 0105-
225 YOKE; SLEEVE,PROP SHAFT
L=339 		1-37241-140-0 01 1 0105-
