0-12 — CYLINDER BLOCK (#1019) — 169 parça

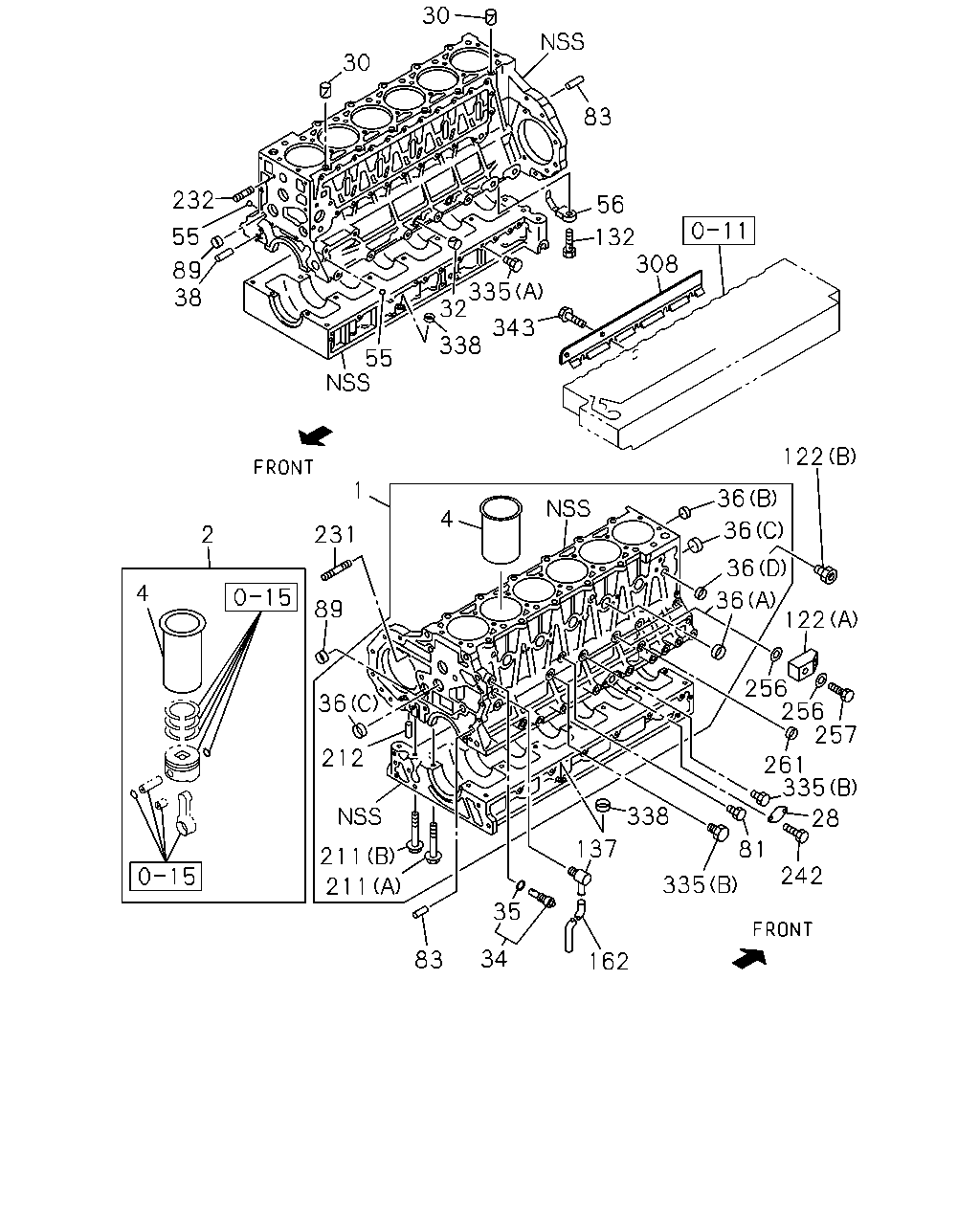

30 30 83 232 56 55 132 308 335 32 89 38 343 338 55 122 1 36 4 36 2 231 36 4 36 89 122 36 256 256 257 212 261 335 338 28 137 81 211 242 335 211 35 34 83 162

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	BLOCK ASM; CYL	1-11210-460-3	01	1	9202-9203	●	●
1	BLOCK ASM; CYL	1-11210-590-0	01	1	9204-	●	●
1	BLOCK ASM; CYL	8-94393-958-7	01	1	9202-			●
2	LINER SET; ENG CYL	1-87810-814-0	06	1	9202-9407	●
2	LINER SET; ENG CYL HONG KONG EQUIPMENT(PQ1)	1-87810-855-0	06	1	9411-	●
2	LINER SET; ENG CYL	1-87810-469-3	06	1	9202-		●
2	LINER SET; ENG CYL NON GRADE	1-87810-853-1	06	1	9202-			●
2	LINER SET; ENG CYL	1-87810-814-0	06	1	9408-9410	●
2	LINER SET; ENG CYL EXC. HONG KONG EQUIPMENT(PQ1)	1-87810-814-0	06	1	9411-	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET.	1-11261-094-1	06	1	9202-	●	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET.	8-94396-332-0	06	1	9202-9505			●
4	LINER; C/BL ALSO INCLUDED IN LINER SET.	8-94394-563-1	06	1	9506-			●
28	COVER; OIL PORT	1-11749-103-0	01	1	9202-	●
28	COVER; OIL PORT	1-11219-163-0	01	1	9202-			●
30	PIN; CYL HD GASKET SETTING OD=8 L=16	9-08150-816-0	03	1	9202-	●	●
30	PIN; CYL HD GASKET SETTING OD=18.15	8-94399-688-1	02	1	9202-			●
32	PIN; INJ PUMP BRKT OD=8 L=16	9-08150-816-0	02	1	9202-	●	●
32	PIN; INJ PUMP BRKT	8-94453-344-0	02	1	9202-			●
34	VALVE; OIL RELIEF	8-94393-077-1	01	1	9202-			●
35	GASKET; RELIEF VLV ALSO INCLUDED IN GASKET SET(ENGINE). ID=27.7	5-09623-035-0	01	1	9202-			●
36	CUP; SEALING,WATER JACKET (A) OD=25	1-09600-016-0	05	1	9202-	●	●
36	CUP; SEALING,WATER JACKET (B) OD=45	1-09600-058-0	07	1	9202-	●	●
36	CUP; SEALING,WATER JACKET (C) OD=32	1-09600-059-0	02	1	9202-	●	●
36	CUP; SEALING,WATER JACKET (A) OD=45	1-09600-005-1	05	1	9202-			●
36	CUP; SEALING,WATER JACKET (D) OD=25	1-09600-016-0	01	1	9202-			●
36	CUP; SEALING,WATER JACKET (B) OD=25	8-94399-005-0	01	1	9202-			●
36	CUP; SEALING,WATER JACKET (C) OD=40	8-94399-639-0	04	1	9202-			●
38	PIN; TIMING GEAR CASE L=22	8-94483-674-0	02	1	9202-			●
55	PLUG; OIL GALLERY 3/8" BALL	9-00097-011-0	02	1	9202-			●
56	JET; OIL,PISTON COOLING	1-13342-107-1	06	1	9202-	●
56	JET; OIL,PISTON COOLING	1-13342-116-1	06	1	9202-		●
56	JET; OIL,PISTON COOLING	8-94399-187-0	06	1	9202-			●
81	PLUG; WATER JACKET M14	8-94399-225-0	01	1	9202-			●
83	PIN; FLYWHEEL HSG	9-08151-025-0	02	1	9202-	●	●
83	PIN; FLYWHEEL HSG L=22	8-94483-674-0	02	1	9202-			●
89	CUP; SEALING,OIL GALLERY (A) OD=16	9-11129-081-0	01	1	9202-	●	●
89	CUP; SEALING,OIL GALLERY (B) OD=20	9-11219-192-0	02	1	9202-	●	●
89	CUP; SEALING,OIL GALLERY OD=20	9-11219-192-0	03	1	9202-			●
122	ADAPTER; OIL PRESSURE SWITCH (A)	8-94396-390-0	01	1	9202-9403			●
122	ADAPTER; OIL PRESSURE SWITCH (B)	8-94399-858-1	01	1	9404-			●
132	VALVE; CHECK,OIL M10X18.5	1-13161-012-0	06	1	9202-			●
137	COCK; DRAIN,WATER	1-09680-024-0	01	1	9202-			●
162	HOSE; WATER DRAIN,C/BL L=330 SERVICED BY L=3000	0-03259-300-0	01	1	9202-9308			●
162	HOSE; WATER DRAIN,C/BL L=310 SERVICED BY L=3000	0-03259-300-0	01	1	9309-			●
211	BOLT; CRANKCASE (B) M14X125 FLANGE W/PL WASHER	1-09070-043-1	14	1	9202-	●	●
211	BOLT; CRANKCASE (A) M10X98 FLANGE W/PL WASHER	1-09070-061-0	26	1	9202-	●	●
211	BOLT; CRANKCASE (A) M14X115 W/FLANGE	8-94396-207-1	14	1	9202-			●
211	BOLT; CRANKCASE (B) M10X82	8-94399-553-2	25	1	9202-			●
212	PIN; CRANKCASE	1-09740-031-0	02	1	9202-	●	●
212	PIN; CRANKCASE L=22	8-94483-674-0	02	1	9202-			●
231	STUD; AIR CMPR M12X67 L=82	1-09302-112-0	04	1	9202-	●
231	STUD; AIR CMPR M12X116 L=131	1-09302-109-1	01	1	9202-		●
231	STUD; AIR CMPR M12X67 L=82	1-09302-112-0	03	1	9202-		●
231	STUD; AIR CMPR M10X36.5 L=48.5	8-94396-145-0	02	1	9202-			●
232	STUD; WATER PUMP M8X55 L=67	9-04110-855-0	03	1	9202-			●
242	BOLT; COVER,OIL PORT M8X20 W/LK WASHER	0-50040-820-0	02	1	9202-	●
242	BOLT; COVER,OIL PORT M8X16 FLANGE	0-28080-816-0	02	1	9202-			●
256	GASKET; ADAPTER ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=20.0	9-09571-414-0	02	1	9202-9403			●
257	BOLT; EYE,ADAPTER M14X39 FLANGE	1-09675-089-0	01	1	9202-9403			●
261	PLUG; OIL PRESS UNIT OD=12.3	5-09600-013-0	01	1	9202-			●
308	PROTECTOR; HEAT,HD COVER	8-94393-265-0	01	1	9202-9405			●
308	PROTECTOR; HEAT,HD COVER	8-94395-205-0	01	1	9406-			●
335	PLUG; C/BL,SIDE (B) PT1/4	1-09605-019-0	04	1	9202-	●
335	PLUG; C/BL,SIDE (B) PT1/4	1-09605-019-0	02	1	9202-	●	●
335	PLUG; C/BL,SIDE (A) PT1/8	1-09605-050-0	02	1	9202-	●	●
335	PLUG; C/BL,SIDE (B) PT1/4	1-09605-019-0	03	1	9202-		●
335	PLUG; C/BL,SIDE (B) M14	8-94399-225-0	04	1	9202-			●
335	PLUG; C/BL,SIDE PARTIAL OIL FILTER CARTRIDGE<KC2> (A) M8X6	8-94399-421-0	01	1	9212-			●
338	CUP; SEALING,GUIDE TUBE HOLE OD=15.6	5-11129-003-0	02	1	9202-9301			●
338	CUP; SEALING,GUIDE TUBE HOLE OD=15.6	5-11129-003-0	01	1	9302-			●
343	BOLT; HEAT PROTECTOR M8X12 FLANGE	0-28080-812-0	05	1	9202-			●

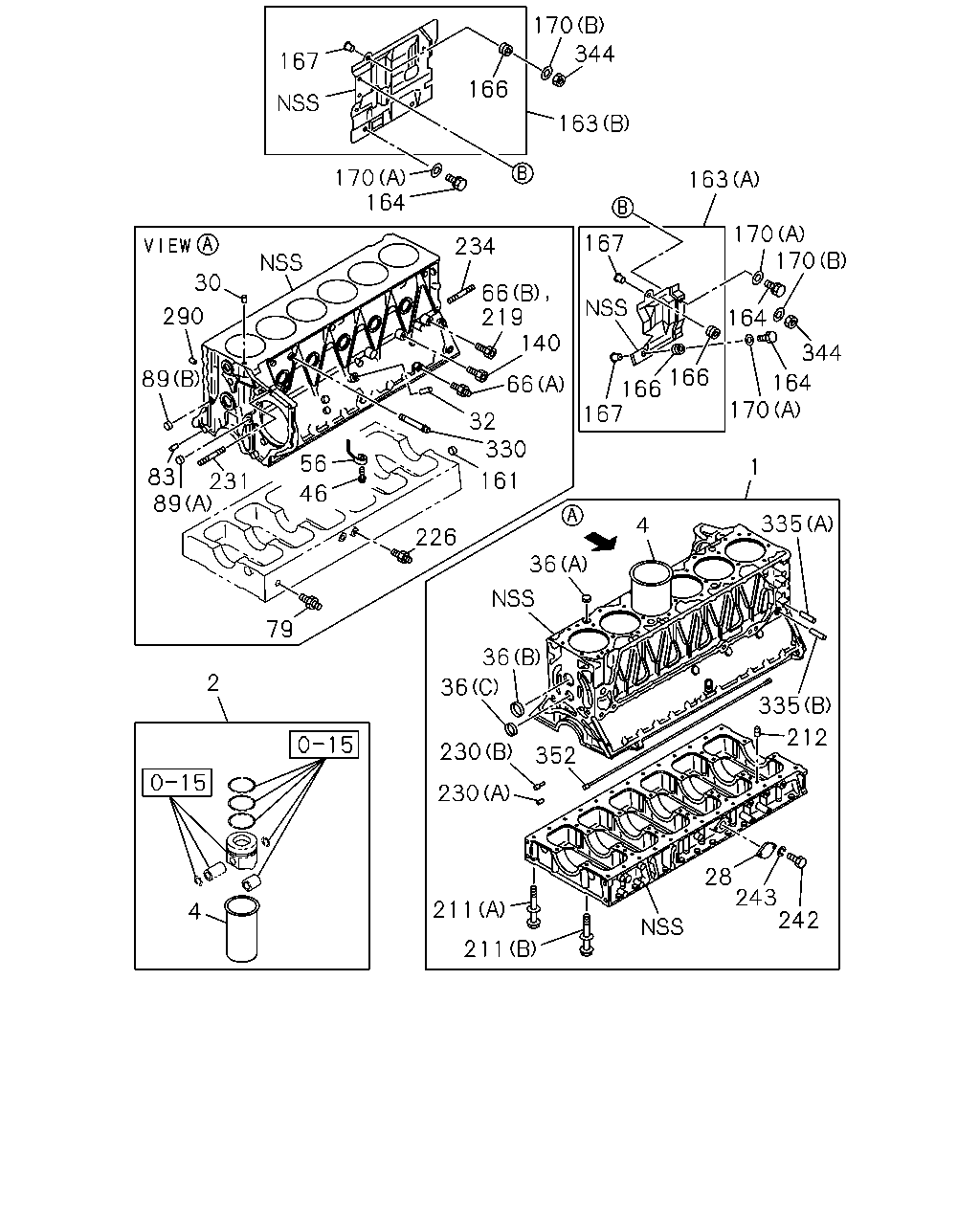

170 344 167 166 163 170 164 163 170 170 167 234 30 66 219 140 290 164 344 89 166 164 170 66 166 167 32 330 83 89 56 1 161 231 46 335 4 226 36 79 36 2 36 335 212 230 352 28 243 242 230 211 4 211

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	BLOCK ASM; CYL	1-11210-460-3	01	1	9202-9203	●	●
1	BLOCK ASM; CYL	1-11210-590-0	01	1	9204-	●	●
1	BLOCK ASM; CYL	8-94393-958-7	01	1	9202-			●
2	LINER SET; ENG CYL	1-87810-814-0	06	1	9202-9407	●
2	LINER SET; ENG CYL HONG KONG EQUIPMENT(PQ1)	1-87810-855-0	06	1	9411-	●
2	LINER SET; ENG CYL	1-87810-469-3	06	1	9202-		●
2	LINER SET; ENG CYL NON GRADE	1-87810-853-1	06	1	9202-			●
2	LINER SET; ENG CYL	1-87810-814-0	06	1	9408-9410	●
2	LINER SET; ENG CYL EXC. HONG KONG EQUIPMENT(PQ1)	1-87810-814-0	06	1	9411-	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET.	1-11261-094-1	06	1	9202-	●	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET.	8-94396-332-0	06	1	9202-9505			●
4	LINER; C/BL ALSO INCLUDED IN LINER SET.	8-94394-563-1	06	1	9506-			●
28	COVER; OIL PORT	1-11749-103-0	01	1	9202-	●
28	COVER; OIL PORT	1-11219-163-0	01	1	9202-			●
30	PIN; CYL HD GASKET SETTING OD=8 L=16	9-08150-816-0	03	1	9202-	●	●
30	PIN; CYL HD GASKET SETTING OD=18.15	8-94399-688-1	02	1	9202-			●
32	PIN; INJ PUMP BRKT OD=8 L=16	9-08150-816-0	02	1	9202-	●	●
32	PIN; INJ PUMP BRKT	8-94453-344-0	02	1	9202-			●
36	CUP; SEALING,WATER JACKET (A) OD=25	1-09600-016-0	05	1	9202-	●	●
36	CUP; SEALING,WATER JACKET (B) OD=45	1-09600-058-0	07	1	9202-	●	●
36	CUP; SEALING,WATER JACKET (C) OD=32	1-09600-059-0	02	1	9202-	●	●
36	CUP; SEALING,WATER JACKET (A) OD=45	1-09600-005-1	05	1	9202-			●
36	CUP; SEALING,WATER JACKET (D) OD=25	1-09600-016-0	01	1	9202-			●
36	CUP; SEALING,WATER JACKET (B) OD=25	8-94399-005-0	01	1	9202-			●
36	CUP; SEALING,WATER JACKET (C) OD=40	8-94399-639-0	04	1	9202-			●
46	BOLT; JOINT,OIL JET,PISTON COOLING	1-09675-105-1	06	1	9202-	●	●
56	JET; OIL,PISTON COOLING	1-13342-107-1	06	1	9202-	●
56	JET; OIL,PISTON COOLING	1-13342-116-1	06	1	9202-		●
56	JET; OIL,PISTON COOLING	8-94399-187-0	06	1	9202-			●
66	CONNECTOR; PARTIAL FILTER (A) M16 & PT1/4 STRAIGHT	1-09650-210-1	01	1	9202-	●	●
66	CONNECTOR; PARTIAL FILTER (B)	1-09660-155-0	01	1	9202-	●	●
79	NIPPLE; OIL FEED,TURBOCHARGER M16 & PT1/4 STRAIGHT	1-09650-210-1	01	1	9202-		●
83	PIN; FLYWHEEL HSG	9-08151-025-0	02	1	9202-	●	●
83	PIN; FLYWHEEL HSG L=22	8-94483-674-0	02	1	9202-			●
89	CUP; SEALING,OIL GALLERY (A) OD=16	9-11129-081-0	01	1	9202-	●	●
89	CUP; SEALING,OIL GALLERY (B) OD=20	9-11219-192-0	02	1	9202-	●	●
89	CUP; SEALING,OIL GALLERY OD=20	9-11219-192-0	03	1	9202-			●
140	NIPPLE; INJ PUMP	1-09660-108-0	01	1	9202-	●	●
161	DOWEL; FRT COVER	9-11229-032-0	02	1	9202-9406	●	●
161	DOWEL; FRT COVER	1-11229-012-1	02	1	9407-	●	●
163	COVER ASM; C/BL SKIRT ANTI NOISE EQUIPMENT VAR E<SLK> (A)	1-19380-098-4	01	1	9202-9410	●
163	COVER ASM; C/BL SKIRT HONG KONG EQUIPMENT(PQ1) (A)	1-19380-098-4	01	1	9411-	●
163	COVER ASM; C/BL SKIRT ANTI NOISE EQUIPMENT VAR E<SLK> (A)	1-19380-098-4	01	1	9411-	●
163	COVER ASM; C/BL SKIRT ANTI NOISE EQUIPMENT VAR E<SLK> (B)	1-19380-108-4	01	1	9202-9410	●
163	COVER ASM; C/BL SKIRT HONG KONG EQUIPMENT(PQ1) (B)	1-19380-108-4	01	1	9411-	●
163	COVER ASM; C/BL SKIRT ANTI NOISE EQUIPMENT VAR E<SLK> (B)	1-19380-108-4	01	1	9411-	●
164	BOLT; COVER BLOCK SKIRT ANTI NOISE EQUIPMENT VAR E<SLK> M6X12 W/LK WASHER	0-50040-612-0	03	1	9202-9410	●
164	BOLT; COVER BLOCK SKIRT HONG KONG EQUIPMENT(PQ1) M6X12 W/LK WASHER	0-50040-612-0	03	1	9411-	●
164	BOLT; COVER BLOCK SKIRT ANTI NOISE EQUIPMENT VAR E<SLK> M6X12 W/LK WASHER	0-50040-612-0	03	1	9411-	●
166	MOUNT; COVER BLOCK SKIRT ANTI NOISE EQUIPMENT VAR E<SLK>	1-09337-021-0	06	1	9202-9401	●
166	MOUNT; COVER BLOCK SKIRT ANTI NOISE EQUIPMENT VAR E<SLK>	1-09337-020-0	06	1	9402-9410	●
166	MOUNT; COVER BLOCK SKIRT HONG KONG EQUIPMENT(PQ1)	1-09337-020-0	06	1	9411-	●
166	MOUNT; COVER BLOCK SKIRT ANTI NOISE EQUIPMENT VAR E<SLK>	1-09337-020-0	06	1	9411-	●
167	TUBE; DIST,SIDE COVER ANTI NOISE EQUIPMENT VAR E<SLK>	1-19389-134-1	06	1	9202-9410	●
167	TUBE; DIST,SIDE COVER HONG KONG EQUIPMENT(PQ1)	1-19389-134-1	06	1	9411-	●
167	TUBE; DIST,SIDE COVER ANTI NOISE EQUIPMENT VAR E<SLK>	1-19389-134-1	06	1	9411-	●
170	WASHER; COVER ANTI NOISE EQUIPMENT VAR E<SLK> (A) ID=6.4 OD=18	9-09160-706-0	03	1	9202-9410	●
170	WASHER; COVER HONG KONG EQUIPMENT(PQ1) (A) ID=6.4 OD=18	9-09160-706-0	03	1	9411-	●
170	WASHER; COVER ANTI NOISE EQUIPMENT VAR E<SLK> (A) ID=6.4 OD=18	9-09160-706-0	03	1	9411-	●
170	WASHER; COVER ANTI NOISE EQUIPMENT VAR E<SLK> (B) ID=10.5 OD=26	9-09160-710-0	06	1	9202-9410	●
170	WASHER; COVER HONG KONG EQUIPMENT(PQ1) (B) ID=10.5 OD=26	9-09160-710-0	06	1	9411-	●
170	WASHER; COVER ANTI NOISE EQUIPMENT VAR E<SLK> (B) ID=10.5 OD=26	9-09160-710-0	06	1	9411-	●
211	BOLT; CRANKCASE (B) M14X125 FLANGE W/PL WASHER	1-09070-043-1	14	1	9202-	●	●
211	BOLT; CRANKCASE (A) M10X98 FLANGE W/PL WASHER	1-09070-061-0	26	1	9202-	●	●
211	BOLT; CRANKCASE (A) M14X115 W/FLANGE	8-94396-207-1	14	1	9202-			●
211	BOLT; CRANKCASE (B) M10X82	8-94399-553-2	25	1	9202-			●
212	PIN; CRANKCASE	1-09740-031-0	02	1	9202-	●	●
212	PIN; CRANKCASE L=22	8-94483-674-0	02	1	9202-			●
219	NIPPLE; AIR CMPR,WATER	1-09660-408-0	01	1	9202-	●	●
226	CONNECTOR; INJ PUMP,RETURN M20 & PT3/8 STRAIGHT	1-09650-211-1	01	1	9202-	●	●
230	PIN; THRUST METAL,CR/SHF (B) L=25	1-09749-025-1	02	1	9202-	●	●
230	PIN; THRUST METAL,CR/SHF (A) OD=5 L=10	9-08160-510-0	02	1	9202-	●	●
231	STUD; AIR CMPR M12X67 L=82	1-09302-112-0	04	1	9202-	●
231	STUD; AIR CMPR M12X116 L=131	1-09302-109-1	01	1	9202-		●
231	STUD; AIR CMPR M12X67 L=82	1-09302-112-0	03	1	9202-		●
231	STUD; AIR CMPR M10X36.5 L=48.5	8-94396-145-0	02	1	9202-			●
234	STUD; FRT COVER M10X50 L=65	1-09302-105-0	04	1	9202-	●
234	STUD; FRT COVER M10X50 L=65	1-09302-105-0	02	1	9202-		●
242	BOLT; COVER,OIL PORT M8X20 W/LK WASHER	0-50040-820-0	02	1	9202-	●
242	BOLT; COVER,OIL PORT M8X16 FLANGE	0-28080-816-0	02	1	9202-			●
243	WASHER; PL,COVER,OIL PORT ID=8.4 OD=18	9-09164-608-0	02	1	9202-	●
290	STUD; NOISE COVER ANTI NOISE EQUIPMENT VAR E<SLK> M8X35 L=47	9-04110-835-0	03	1	9202-9410	●
290	STUD; NOISE COVER HONG KONG EQUIPMENT(PQ1) M8X35 L=47	9-04110-835-0	03	1	9411-	●
290	STUD; NOISE COVER ANTI NOISE EQUIPMENT VAR E<SLK> M8X35 L=47	9-04110-835-0	03	1	9411-	●
330	JOINT; HTR	1-09660-504-1	01	1	9202-	●	●
335	PLUG; C/BL,SIDE (B) PT1/4	1-09605-019-0	04	1	9202-	●
335	PLUG; C/BL,SIDE (B) PT1/4	1-09605-019-0	02	1	9202-	●	●
335	PLUG; C/BL,SIDE (A) PT1/8	1-09605-050-0	02	1	9202-	●	●
335	PLUG; C/BL,SIDE (B) PT1/4	1-09605-019-0	03	1	9202-		●
335	PLUG; C/BL,SIDE (B) M14	8-94399-225-0	04	1	9202-			●
335	PLUG; C/BL,SIDE PARTIAL OIL FILTER CARTRIDGE<KC2> (A) M8X6	8-94399-421-0	01	1	9212-			●
344	NUT; NOISE COVER ANTI NOISE EQUIPMENT VAR E<SLK> M8 FLANGE	0-91150-108-0	03	1	9202-9410	●
344	NUT; NOISE COVER HONG KONG EQUIPMENT(PQ1) M8 FLANGE	0-91150-108-0	03	1	9411-	●
344	NUT; NOISE COVER ANTI NOISE EQUIPMENT VAR E<SLK> M8 FLANGE	0-91150-108-0	03	1	9411-	●
344	NUT; NOISE COVER ANTI NOISE EQUIPMENT VAR E<SLK> M10 FLANGE	0-91150-110-0	03	1	9202-9410	●
344	NUT; NOISE COVER HONG KONG EQUIPMENT(PQ1) M10 FLANGE	0-91150-110-0	03	1	9411-	●
344	NUT; NOISE COVER ANTI NOISE EQUIPMENT VAR E<SLK> M10 FLANGE	0-91150-110-0	03	1	9411-	●
352	GASKET; C/BL TO CRANKCASE ALSO INCLUDED IN GASKET SET(ENGINE).	1-11219-166-0	02	1	9204-	●	●
