3-78 — FIXING PARTS; AIR PIPING (#10189) — 160 parça

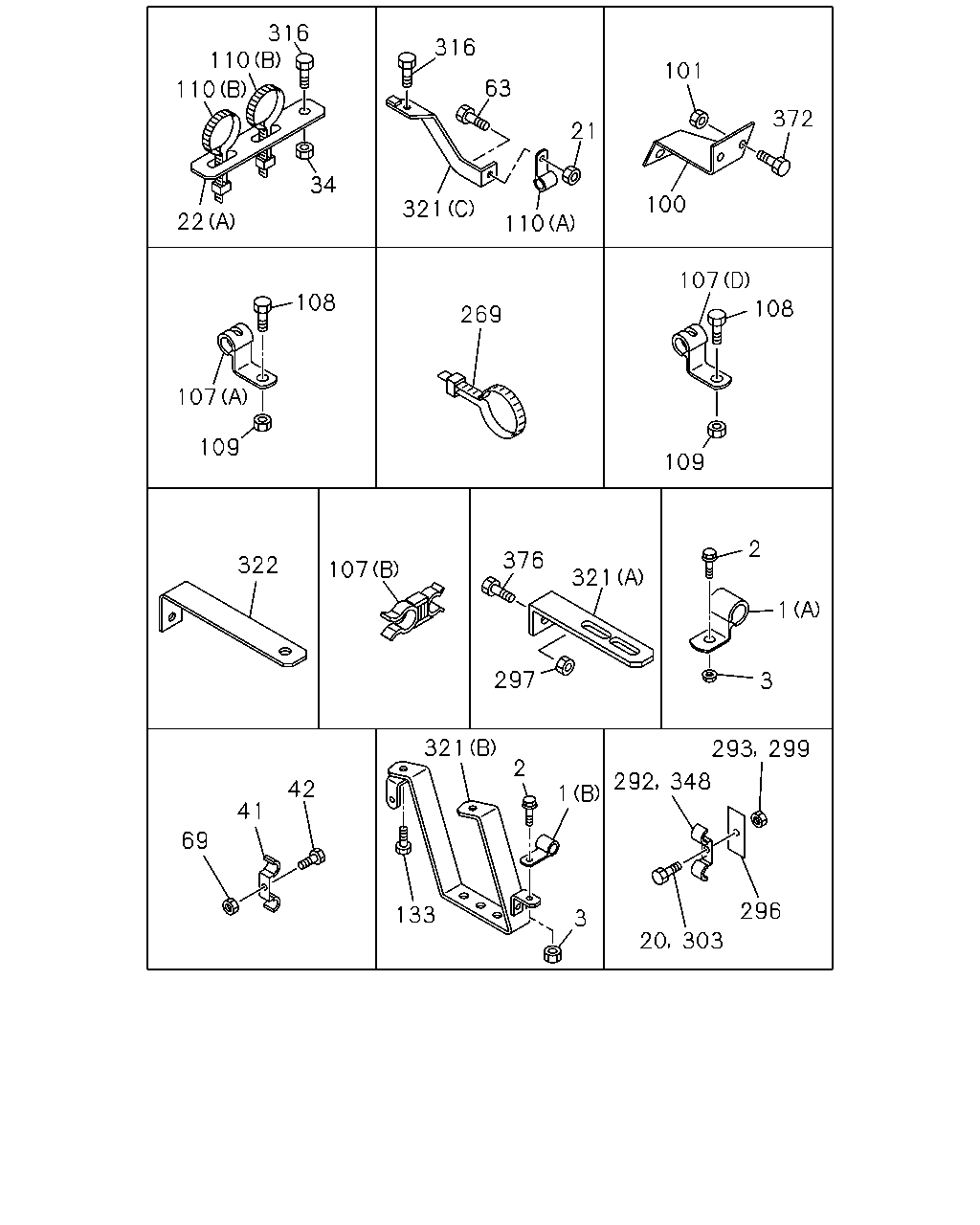

çizim 20222
316 110 316 101 63 110 372 21 34 100 321 22 110 107 108 108 269 107 109 109 2 376 322 107 321 1 297 3 321 293 299 2 348 292 42 1 41 69 296 133 3 20 303
BalonParca AdiParca NoAdetTipApplied Date
1 CLIP; AIR PIPE
(A) ID=6 H=20 L=20 		1-09700-603-0 01 1 0105-
1 CLIP; AIR PIPE
(B) ID=7 L=20 		9-09524-635-0 01 1 0105-
2 BOLT; CLIP FIX
M8X20 FLANGE 		0-28680-820-0 02 1 0105-
3 NUT; CLIP,AIR PIPE
M8 FLANGE 		0-91150-108-0 02 1 0105-
20 BOLT; CLIP
M8X16 FLANGE 		0-28080-816-0 01 1 0105-
21 NUT; CLIP
M8 FLANGE 		0-91150-108-0 01 1 0105-
22 BRACKET; CLIP
(B) L=100 		1-47477-620-1 01 1 0105-
22 BRACKET; CLIP
(A) L=125 		1-47477-975-1 02 1 0105-
34 NUT; BRKT
ISUZU M/T<X9A> M8 FLANGE 		0-91150-108-0 01 1 0105-
41 CLIP; AIR PIPE
ID=7 & 7 L=17.5 & 17.5 		1-09700-745-0 01 1 0105-
42 BOLT; CLIP,AIR PIPE
M8X20 FLANGE 		0-28680-820-0 01 1 0105-
63 BOLT; CLIP
M8X30 FLANGE 		0-28680-830-0 01 1 0105-
69 NUT; CLIP,AIR PIPE
M8 FLANGE 		0-91150-108-0 01 1 0105-
100 BRACKET; PIPE CLIP 1-47477-770-0 01 1 0105-
100 BRACKET; PIPE CLIP 1-47477-365-0 01 1 0105-
101 NUT; CLIP BRKT
M8 FLANGE 		0-91150-108-0 04 1 0105-
107 CLIP; NYLON TUBE
(E) ID=28 L=40 		1-09701-261-0 01 1 0108-
107 CLIP; NYLON TUBE
FULL FLOATING CAB(W16) (B) ID=11.8 & 7.5 		1-09709-182-0 01 1 0105-
107 CLIP; NYLON TUBE
MJD7S M/T(Y2Y) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (C) ID=25 H=30 L=35 		1-09700-875-0 03 1 0105-0107
107 CLIP; NYLON TUBE
MJD7S M/T(Y2Y) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (C) ID=25 H=30 L=35 		1-09700-875-0 02 1 0108-
107 CLIP; NYLON TUBE
EXC. TRAILER BRAKE HAND CONTROL<NLG> (A) ID=27.5 H=23 L=24 		1-09700-863-0 02 1 0105-
107 CLIP; NYLON TUBE
EXC. TRAILER BRAKE HAND CONTROL<NLG> (D) ID=29 H=50 L=45.5 		1-09701-027-0 02 1 0105-0105
107 CLIP; NYLON TUBE
TRAILER BRAKE HAND CONTROL<NLG> (D) ID=29 H=50 L=45.5 		1-09701-027-0 02 1 0105-
107 CLIP; NYLON TUBE
TRANSMISSION-ZF 16S151 OD(Y2N) (C) ID=28 H=45 L=30 		1-09700-948-0 03 1 0105-0106
107 CLIP; NYLON TUBE
MJD7S M/T(Y2Y) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (C) ID=28 H=45 L=30 		1-09700-948-0 03 1 0105-0106
107 CLIP; NYLON TUBE
TRANSMISSION-ZF 16S151 OD(Y2N),MJX16P M/T(Y3Z) (C) ID=28 H=45 L=30 		1-09700-948-0 03 1 0107-0107
107 CLIP; NYLON TUBE
MJD7S M/T(Y2Y) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (C) ID=28 H=45 L=30 		1-09700-948-0 03 1 0107-0107
107 CLIP; NYLON TUBE
TRANSMISSION-ZF 16S151 OD(Y2N),MJX16P M/T(Y3Z) (C) ID=28 H=45 L=30 		1-09700-948-0 02 1 0108-
107 CLIP; NYLON TUBE
MJD7S M/T(Y2Y) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (C) ID=28 H=45 L=30 		1-09700-948-0 02 1 0108-
108 BOLT; TUBE CLIP
M8X20 FLANGE 		0-28080-820-0 01 1 0108-
108 BOLT; TUBE CLIP
M8X25 FLANGE 		0-28080-825-0 05 1 0105-0107
108 BOLT; TUBE CLIP
M8X25 FLANGE 		0-28080-825-0 04 1 0108-
108 BOLT; TUBE CLIP
M8X30 FLANGE 		0-28680-830-0 02 1 0105-
109 NUT; TUBE CLIP
M8 FLANGE 		0-91150-108-0 02 1 0105-
109 NUT; TUBE CLIP
M8 FLANGE 		0-91150-108-0 02 1 0105-
109 NUT; TUBE CLIP
ISUZU M/T<X9A> M8 FLANGE 		0-91150-108-0 01 1 0105-0105
109 NUT; TUBE CLIP
ISUZU M/T<X9A>,ZF M/T<X9E> M8 FLANGE 		0-91150-108-0 01 1 0106-
110 CLIP; BAND,NYLON TUBE
(B) L=700 		1-09707-190-0 01 1 0302-
110 CLIP; BAND,NYLON TUBE
(A) ID=28 L=40 		1-09701-261-0 01 1 0105-
110 CLIP; BAND,NYLON TUBE
(B) L=250 		1-09707-126-0 37 1 0105-0105
110 CLIP; BAND,NYLON TUBE
(B) L=250 		1-09707-126-0 39 1 0106-
110 CLIP; BAND,NYLON TUBE
ANTILOCK BRAKE SYSTEM(BFA) (B) L=250 		1-09707-126-0 01 1 0105-0108
110 CLIP; BAND,NYLON TUBE
ANTILOCK BRAKE SYSTEM(BFA) (B) L=250 		1-09707-126-0 01 1 0109-
110 CLIP; BAND,NYLON TUBE
MJX16P M/T(Y3Z) (B) L=250 		1-09707-126-0 01 1 0109-
110 CLIP; BAND,NYLON TUBE
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) L=250 		1-09707-126-0 01 1 0109-
110 CLIP; BAND,NYLON TUBE
ZF M/T<X9E> (B) L=250 		1-09707-126-0 01 1 0109-
133 BOLT; BRKT
M8X25 FLANGE 		0-28680-825-0 02 1 0105-0204
133 BOLT; BRKT
M10X25 FLANGE 		0-28681-025-0 02 1 0205-
269 CLIP; BAND,NYLON TUBE
L=250 		1-09707-126-0 14 1 0105-
292 CLIP; AIR PIPE
ID=7 & 7 L=17.5 & 17.5 		1-09700-745-0 01 1 0105-
293 NUT; CLIP
M8 FLANGE 		0-91150-108-0 01 1 0105-
296 BRACKET; CLIP
L=50 		1-47475-299-2 01 1 0105-
297 NUT; BRKT
M8 FLANGE 		0-91150-108-0 03 1 0105-
299 NUT; CLIP
M8 FLANGE 		0-91150-108-0 01 1 0105-
303 BOLT; PIPE CLIP
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0105-
316 BOLT; CLIP
M8X40 FLANGE 		0-28680-840-0 01 1 0105-
321 BRACKET; CLIP
(B) 		1-47477-472-1 01 1 0105-
321 BRACKET; CLIP
(A) L=100 H=30 		1-47477-645-2 03 1 0105-
321 BRACKET; CLIP
(C) 		1-47477-746-0 01 1 0105-
322 BRACKET; CLIP
ISUZU M/T<X9A> L=112 		1-47475-694-1 01 1 0105-
348 CLIP; AIR PIPE
ID=9 & 9 L=15 & 15 		1-09700-061-0 03 1 0105-
372 BOLT; CLIP BRKT
M8X30 FLANGE 		0-28680-830-0 04 1 0105-
376 BOLT; BRKT
M8X30 FLANGE 		0-28680-830-0 03 1 0105-
376 BOLT; BRKT
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 06 1 0105-
376 BOLT; BRKT
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 03 1 0105-
376 BOLT; BRKT
ISUZU M/T<X9A> M8X25 FLANGE 		0-28680-825-0 01 1 0105-

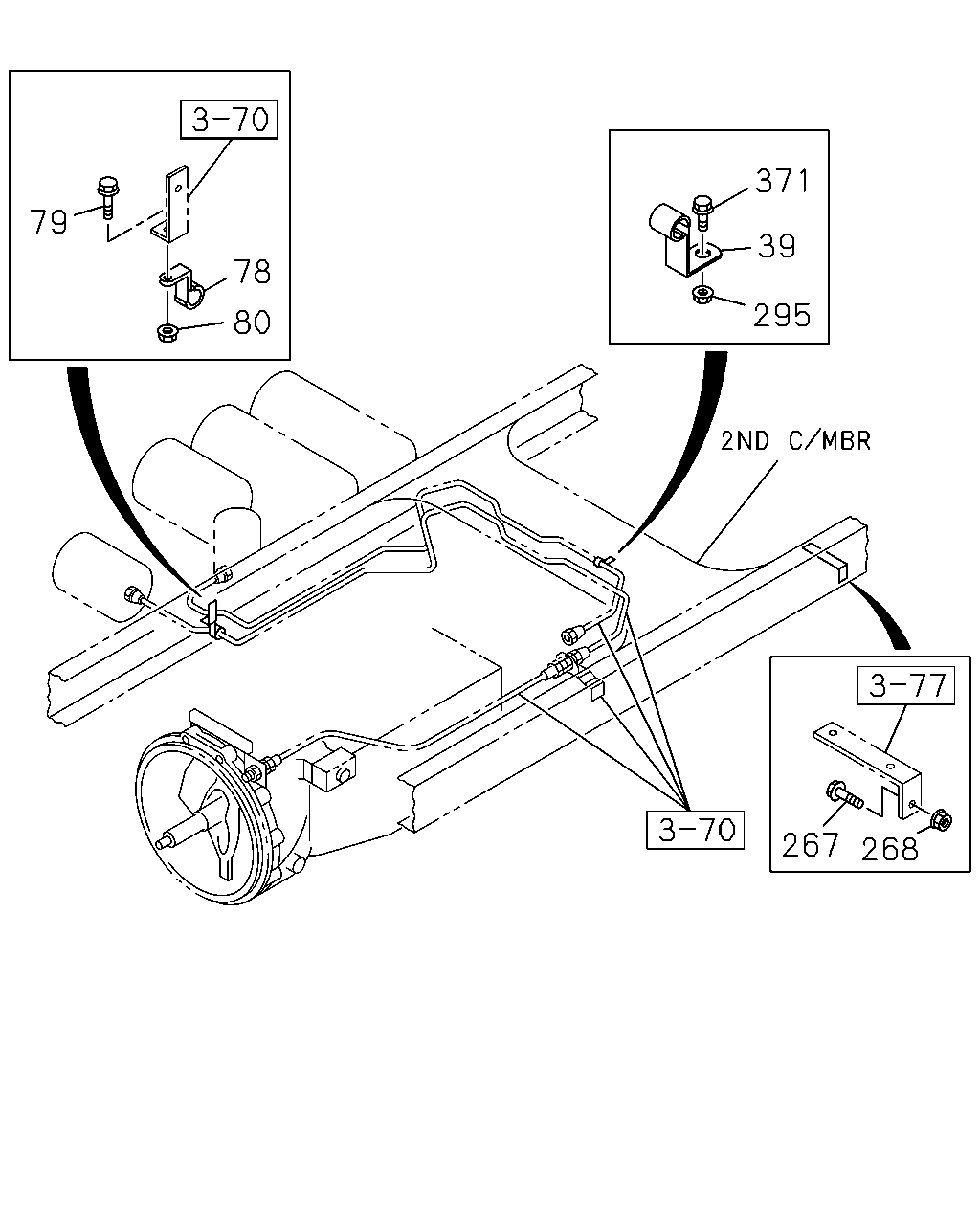

çizim 76960
371 79 39 78 295 80 267 268
BalonParca AdiParca NoAdetTipApplied Date
39 CLIP; AIR PIPE
ID=15 H=24 L=20 		1-09700-606-0 01 1 0105-
78 CLIP; AIR PIPE
ID=15 H=24 L=20 		1-09700-606-0 01 1 0105-
79 BOLT; PIPE CLIP
M8X20 FLANGE 		0-28680-820-0 01 1 0105-
80 NUT; CLIP,AIR PIPE
M8 FLANGE 		0-91150-108-0 01 1 0105-
267 BOLT; CLIP BRKT
M8X25 FLANGE 		0-28680-825-0 02 1 0105-
268 NUT; CLIP BRKT
M8 FLANGE 		0-91150-108-0 02 1 0105-
295 NUT; CLIP,AIR PIPE
M8 FLANGE 		0-91150-108-0 01 1 0105-
371 BOLT; CLIP,AIR PIPE
M8X25 FLANGE 		0-28680-825-0 01 1 0105-
çizim 78697
354 375 353 279 98 74 76 107 108 76 22 109 298 376 286 320 361 107 266 270 286 111 286 74 286 27 74 74 125 306 364 75 108
BalonParca AdiParca NoAdetTipApplied Date
22 BRACKET; CLIP
(B) L=100 		1-47477-620-1 01 1 0105-
22 BRACKET; CLIP
(A) L=125 		1-47477-975-1 02 1 0105-
27 CLIP; FLEX HOSE
ID=10 & 10 		1-09709-277-1 01 1 0105-
74 CLIP; NYLON TUBE
(A) ID=28 H=45 L=30 		1-09700-948-0 01 1 0105-
74 CLIP; NYLON TUBE
(B) L=250 		1-09707-126-0 03 1 0105-
74 CLIP; NYLON TUBE
(C) ID=6.35 & 12.2 		1-09709-275-1 01 1 0105-0105
74 CLIP; NYLON TUBE
(C) ID=12 & 12 		1-09709-280-1 01 1 0105-0105
74 CLIP; NYLON TUBE
AIR DRYER<PS7> (D) ID=12 & 15 		1-09709-281-1 01 1 0105-
75 BOLT; CLIP
M8X20 FLANGE 		0-28680-820-0 01 1 0105-
76 CLIP; NYLON TUBE
(A) ID=21 L=30 H=40 		1-09700-991-1 02 1 0105-
76 CLIP; NYLON TUBE
(B) ID=8.3 & 8.3 		8-94426-175-0 01 1 0105-0112
76 CLIP; NYLON TUBE
(B) ID=6 & 8.3 		8-94167-742-0 01 1 0201-
98 BOLT; PIPE CLIP
M8X30 FLANGE 		0-28680-830-0 01 1 0105-
107 CLIP; NYLON TUBE
(E) ID=28 L=40 		1-09701-261-0 01 1 0108-
107 CLIP; NYLON TUBE
FULL FLOATING CAB(W16) (B) ID=11.8 & 7.5 		1-09709-182-0 01 1 0105-
107 CLIP; NYLON TUBE
MJD7S M/T(Y2Y) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (C) ID=25 H=30 L=35 		1-09700-875-0 03 1 0105-0107
107 CLIP; NYLON TUBE
MJD7S M/T(Y2Y) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (C) ID=25 H=30 L=35 		1-09700-875-0 02 1 0108-
107 CLIP; NYLON TUBE
EXC. TRAILER BRAKE HAND CONTROL<NLG> (A) ID=27.5 H=23 L=24 		1-09700-863-0 02 1 0105-
107 CLIP; NYLON TUBE
EXC. TRAILER BRAKE HAND CONTROL<NLG> (D) ID=29 H=50 L=45.5 		1-09701-027-0 02 1 0105-0105
107 CLIP; NYLON TUBE
TRAILER BRAKE HAND CONTROL<NLG> (D) ID=29 H=50 L=45.5 		1-09701-027-0 02 1 0105-
107 CLIP; NYLON TUBE
TRANSMISSION-ZF 16S151 OD(Y2N) (C) ID=28 H=45 L=30 		1-09700-948-0 03 1 0105-0106
107 CLIP; NYLON TUBE
MJD7S M/T(Y2Y) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (C) ID=28 H=45 L=30 		1-09700-948-0 03 1 0105-0106
107 CLIP; NYLON TUBE
TRANSMISSION-ZF 16S151 OD(Y2N),MJX16P M/T(Y3Z) (C) ID=28 H=45 L=30 		1-09700-948-0 03 1 0107-0107
107 CLIP; NYLON TUBE
MJD7S M/T(Y2Y) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (C) ID=28 H=45 L=30 		1-09700-948-0 03 1 0107-0107
107 CLIP; NYLON TUBE
TRANSMISSION-ZF 16S151 OD(Y2N),MJX16P M/T(Y3Z) (C) ID=28 H=45 L=30 		1-09700-948-0 02 1 0108-
107 CLIP; NYLON TUBE
MJD7S M/T(Y2Y) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (C) ID=28 H=45 L=30 		1-09700-948-0 02 1 0108-
108 BOLT; TUBE CLIP
M8X20 FLANGE 		0-28080-820-0 01 1 0108-
108 BOLT; TUBE CLIP
M8X25 FLANGE 		0-28080-825-0 05 1 0105-0107
108 BOLT; TUBE CLIP
M8X25 FLANGE 		0-28080-825-0 04 1 0108-
108 BOLT; TUBE CLIP
M8X30 FLANGE 		0-28680-830-0 02 1 0105-
109 NUT; TUBE CLIP
M8 FLANGE 		0-91150-108-0 02 1 0105-
109 NUT; TUBE CLIP
M8 FLANGE 		0-91150-108-0 02 1 0105-
109 NUT; TUBE CLIP
ISUZU M/T<X9A> M8 FLANGE 		0-91150-108-0 01 1 0105-0105
109 NUT; TUBE CLIP
ISUZU M/T<X9A>,ZF M/T<X9E> M8 FLANGE 		0-91150-108-0 01 1 0106-
111 CLIP; AIR PIPE
MJD7S M/T(Y2Y) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) ID=25 L=50 		1-09701-019-0 01 1 0105-
111 CLIP; AIR PIPE
TRANSMISSION-ZF 16S151 OD(Y2N) ID=28 L=40 		1-09701-261-0 01 1 0105-0106
111 CLIP; AIR PIPE
MJD7S M/T(Y2Y) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) ID=28 L=40 		1-09701-261-0 01 1 0105-0106
111 CLIP; AIR PIPE
TRANSMISSION-ZF 16S151 OD(Y2N),MJX16P M/T(Y3Z) ID=28 L=40 		1-09701-261-0 01 1 0107-
111 CLIP; AIR PIPE
MJD7S M/T(Y2Y) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) ID=28 L=40 		1-09701-261-0 01 1 0107-
125 CLIP; NYLON TUBE
ANTILOCK BRAKE SYSTEM(BFA) ID=12 & 12 		1-09709-280-1 02 1 0105-
266 CLIP; NYLON TUBE
ID=18 H=23 L=28 		1-09700-860-0 01 1 0105-
270 CLIP; NYLON TUBE
(C) ID=35 H=45 L=33 		1-09701-047-0 01 1 0309-
270 CLIP; NYLON TUBE
(A) ID=35 L=33 		1-09700-945-0 03 1 0105-0308
270 CLIP; NYLON TUBE
(A) ID=35 L=33 		1-09700-945-0 02 1 0309-
270 CLIP; NYLON TUBE
(B) ID=26 L=26 		1-09701-236-0 01 1 0105-
279 NUT; BRKT
M8 FLANGE 		0-91150-108-0 01 1 0105-
286 CLIP; NYLON TUBE
PTO ZF TRANS RR(BDM) ZF M/T<X9E> (D) ID=35 H=45 L=33 		1-09700-947-0 01 1 0106-
286 CLIP; NYLON TUBE
ZF M/T<X9E> EXC. PTO ZF TRANS RR(BDM) (D) ID=28 H=45 L=30 		1-09700-948-0 01 1 0106-
286 CLIP; NYLON TUBE
ISUZU M/T<X9A> (A) ID=15 L=28 		1-09701-216-0 01 1 0105-
286 CLIP; NYLON TUBE
ISUZU M/T<X9A> (B) L=250 		5-09707-030-1 01 1 0105-0105
286 CLIP; NYLON TUBE
ZF M/T<X9E> (C) L=250 		1-09707-126-0 05 1 0105-
298 BOLT; CLIP
M8X20 FLANGE 		0-28680-820-0 01 1 0105-
306 CLIP; NYLON TUBE
ID=12 & 12 		1-09709-280-1 01 1 0106-
320 CLIP; BAND,FLEX FIX
L=140 		5-09707-031-1 01 1 0105-0105
353 CLIP; AIR PIPE
ID=9 L=16 		9-09524-822-0 01 1 0105-
354 BOLT; PIPE CLIP
M6X16 W/LK WASHER 		0-50040-616-0 01 1 0105-0211
354 BOLT; PIPE CLIP
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 01 1 0212-
361 CLIP; FLEX HOSE,AIR PRESS GAGE
L=250 		5-09707-030-1 01 1 0105-
364 CLIP; AIR PIPE
ID=8.3 & 10 		8-94176-792-0 01 1 0105-
375 CLIP; AIR PIPE
ID=6 H=20 L=20 		1-09700-603-0 01 1 0105-
376 BOLT; BRKT
M8X30 FLANGE 		0-28680-830-0 03 1 0105-
376 BOLT; BRKT
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 06 1 0105-
376 BOLT; BRKT
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 03 1 0105-
376 BOLT; BRKT
ISUZU M/T<X9A> M8X25 FLANGE 		0-28680-825-0 01 1 0105-

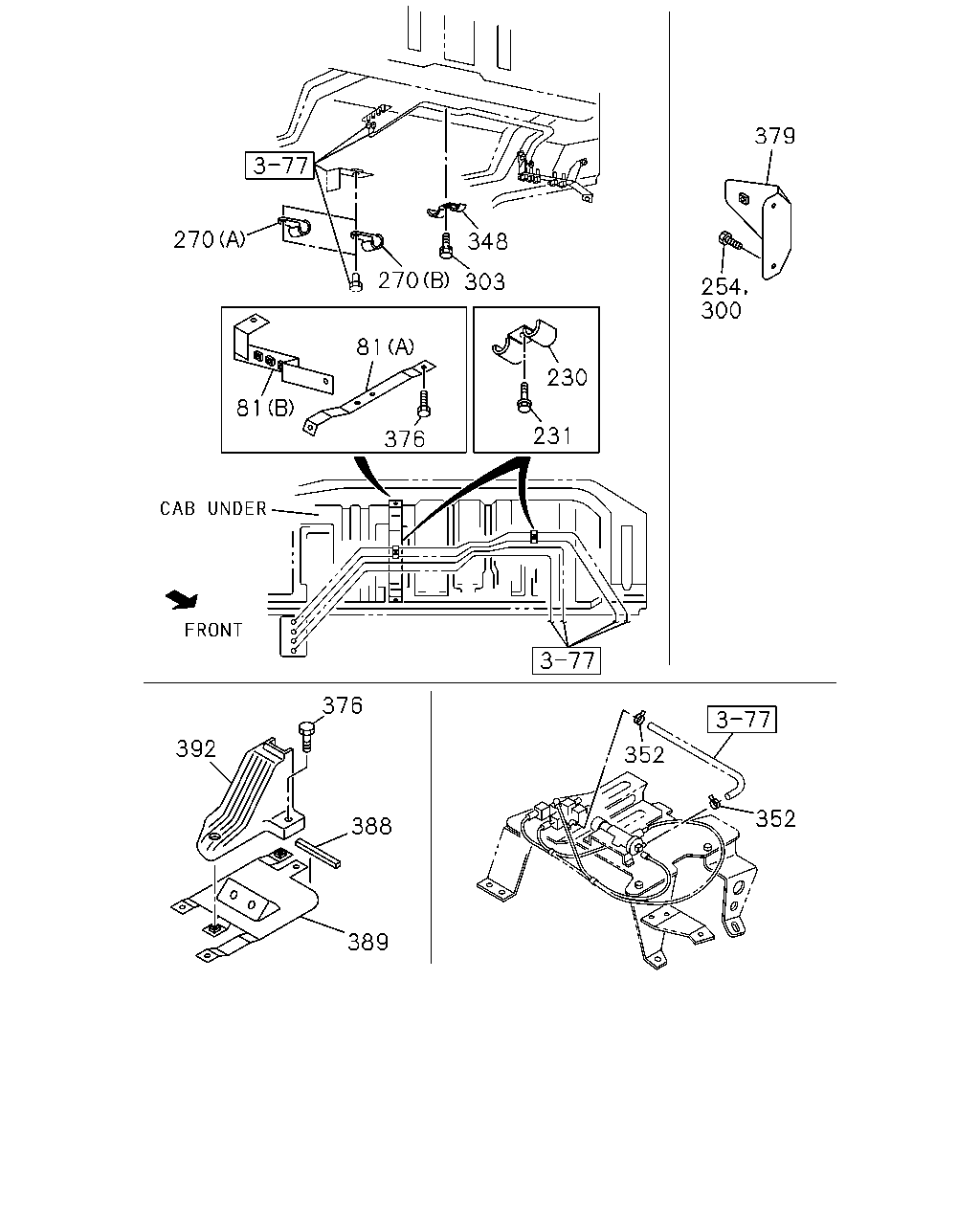

çizim 80704
379 270 348 270 303 254 300 81 230 81 231 376 376 392 352 352 388 389
BalonParca AdiParca NoAdetTipApplied Date
81 BRACKET; CLIP
(B) 		1-79996-133-2 01 1 0105-
81 BRACKET; CLIP
(A) 		1-79996-127-2 01 1 0105-
230 CLIP; PIPE,AIR
ID=11 & 9 L=15 & 15 		1-09700-062-0 02 1 0105-
231 BOLT; CLIP
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 03 1 0105-
254 BOLT; PIPE CLIP
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 02 1 0105-0204
254 BOLT; PIPE CLIP
M8X20.5 W/LK&PL WASHER 		8-94279-207-0 02 1 0205-0205
270 CLIP; NYLON TUBE
(C) ID=35 H=45 L=33 		1-09701-047-0 01 1 0309-
270 CLIP; NYLON TUBE
(A) ID=35 L=33 		1-09700-945-0 03 1 0105-0308
270 CLIP; NYLON TUBE
(A) ID=35 L=33 		1-09700-945-0 02 1 0309-
270 CLIP; NYLON TUBE
(B) ID=26 L=26 		1-09701-236-0 01 1 0105-
300 BOLT; TUBE CLIP
M8X20.5 W/LK&PL WASHER 		8-94279-207-0 02 1 0206-
303 BOLT; PIPE CLIP
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0105-
348 CLIP; AIR PIPE
ID=9 & 9 L=15 & 15 		1-09700-061-0 03 1 0105-
352 CLIP; EXH HOSE
ID=14 		8-94238-572-0 02 1 0105-
376 BOLT; BRKT
M8X30 FLANGE 		0-28680-830-0 03 1 0105-
376 BOLT; BRKT
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 06 1 0105-
376 BOLT; BRKT
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 03 1 0105-
376 BOLT; BRKT
ISUZU M/T<X9A> M8X25 FLANGE 		0-28680-825-0 01 1 0105-
379 BRACKET; NYLON TUBE 1-79996-110-2 01 1 0105-
388 SEAL
L=215 		1-79738-794-1 01 1 0105-
389 BRACKET; UNION 1-79738-790-1 01 1 0105-
392 COVER; BRKT 1-73996-264-1 01 1 0105-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
