3-77 — BRAKE PIPING; AIR,REAR (#10188) — 123 parça

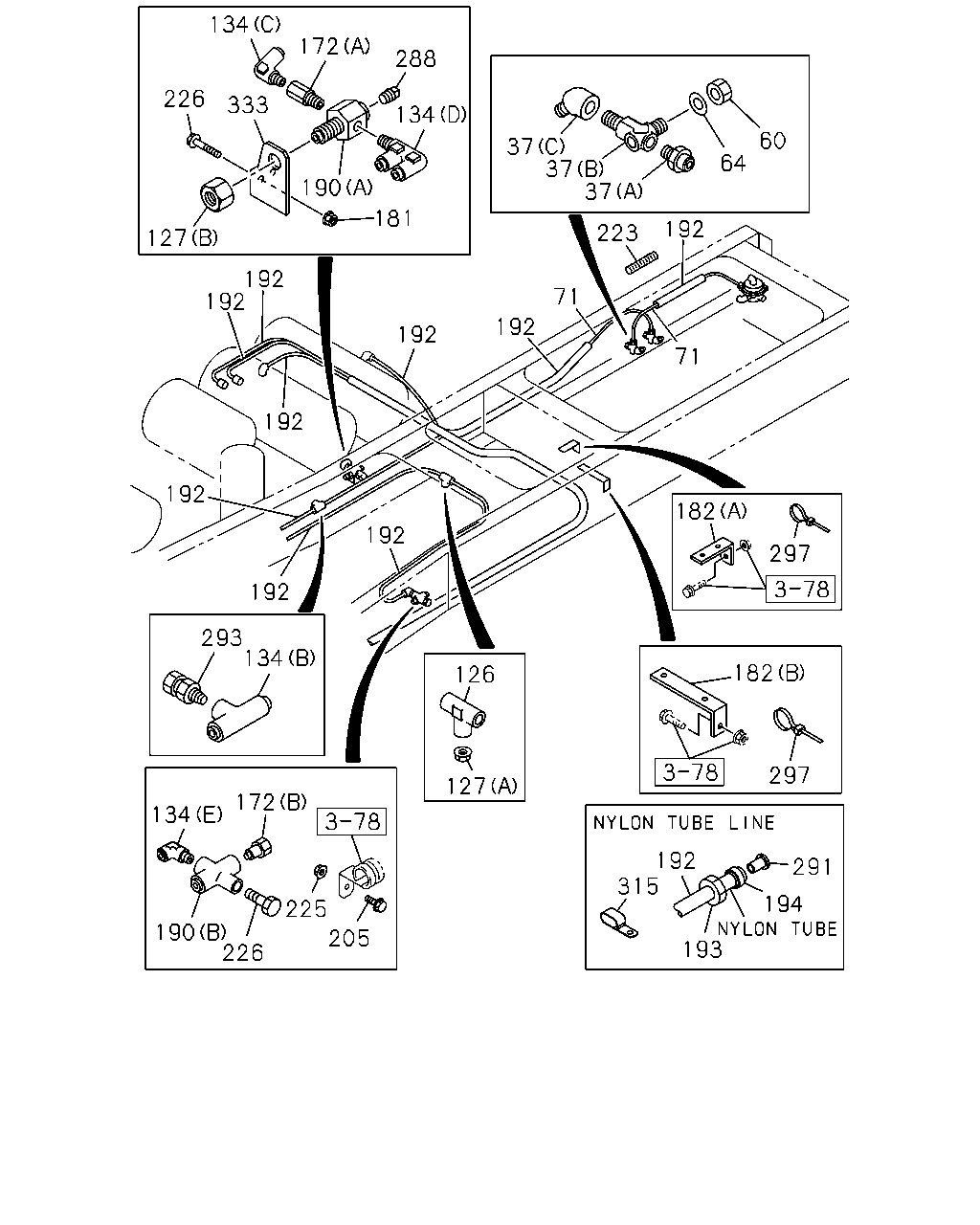

çizim 20294
134 172 288 226 333 134 60 37 37 37 64 190 181 192 223 127 192 192 71 192 192 71 192 192 182 192 297 192 293 134 182 126 297 127 172 134 192 315 291 194 193 225 190 226 205
BalonParca AdiParca NoAdetTipApplied Date
37 UNION; AIR PIPE
EXC. ANTILOCK BRAKE SYSTEM(BFA) (A) M27 & PT3/8 STRAIGHT 		1-09650-250-0 02 1 0105-
37 UNION; AIR PIPE
EXC. ANTILOCK BRAKE SYSTEM(BFA) (B) 		1-09650-251-1 02 1 0105-
37 UNION; AIR PIPE
EXC. ANTILOCK BRAKE SYSTEM(BFA) (C) 		1-09664-209-0 02 1 0105-
60 NUT; NIPPLE,AIR PIPE
EXC. ANTILOCK BRAKE SYSTEM(BFA) M20 		9-99111-420-0 02 1 0105-
64 GASKET; FLEX HOSE
ANTILOCK BRAKE SYSTEM(BFA) ID=11 OD=18 		9-09572-510-0 06 1 0105-
64 GASKET; FLEX HOSE
EXC. ANTILOCK BRAKE SYSTEM(BFA) ID=17.5 		9-09572-515-0 02 1 0105-
64 GASKET; FLEX HOSE
EXC. ANTILOCK BRAKE SYSTEM(BFA) ID=17.5 		9-09572-515-0 02 1 0105-
71 HOSE; FLEX,RWD RR
ANTILOCK BRAKE SYSTEM(BFA) L=630 		0-07847-630-1 03 1 0105-
71 HOSE; FLEX,RWD RR
EXC. ANTILOCK BRAKE SYSTEM(BFA),DUMP TRUCK<RA1> L=550 		0-07909-550-0 02 1 0105-
71 HOSE; FLEX,RWD RR
DUMP TRUCK<RA1> EXC. ANTILOCK BRAKE SYSTEM(BFA) L=580 		0-07909-580-0 02 1 0105-
126 UNION; NYLON TUBE 1-09661-133-0 01 1 0105-
127 NUT; UNION
(A) M8X20 FLANGE 		0-28080-820-0 01 1 0105-
127 NUT; UNION
(B) M22 		9-09111-422-0 01 1 0105-
134 CONNECTOR
(C) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 0105-
134 CONNECTOR
(D) DIN12X2 & PT3/8 DOUBLE ELBOW 		1-09661-026-0 01 1 0105-
134 CONNECTOR
ANTILOCK BRAKE SYSTEM(BFA) (A) DIN12 & M16 STRAIGHT 		1-09660-876-0 01 1 0105-
134 CONNECTOR
BRAKE REGULATION HONG KONG<TCZ> (B) DIN8X2 & R3/8 3WAY 		1-09660-996-0 01 1 0105-0105
134 CONNECTOR
EXC. BRAKE REGULATION HONG KONG<TCZ> (E) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0105-0105
134 CONNECTOR
(E) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0106-
172 ADAPTER; UNION
(A) PT3/8 		1-48319-058-0 01 1 0105-
172 ADAPTER; UNION
EXC. ANTILOCK BRAKE SYSTEM(BFA) (B) DIN12 & M20 STRAIGHT 		1-09660-877-0 02 1 0105-
181 NUT; TUBE UNION
M8 FLANGE 		0-91150-108-0 02 1 0105-
182 BRACKET; TUBE CLIP
(A) L=60 H=30 		1-47477-716-1 01 1 0105-
182 BRACKET; TUBE CLIP
(B) L=90 		1-47477-755-1 01 1 0105-
190 UNION; 3 WAY
(B) DIN8 & RC3/8 3WAY 		1-09661-129-0 01 1 0105-
190 UNION; 3 WAY
(A) 		1-09661-064-0 01 1 0105-
192 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87410-069-0 AR 1 0105-0212
192 TUBE; NYLON
SERVICED BY L=4000 OD=12 		1-87410-070-0 AR 1 0105-
192 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87410-073-0 AR 1 0105-
192 TUBE; NYLON
SERVICED BY L=4000 OD=8 		1-87410-074-0 AR 1 0105-
192 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 0301-
193 NUT; SLEEVE
ZF M/T<X9E> M18 		1-09660-213-0 01 1 0105-0105
194 SLEEVE; TUBE
BRAKE SYSTEM RETARDER<RE2> EXC. ANTILOCK BRAKE SYSTEM(BFA) ID=23 OD=27 L=40 		1-09337-015-0 03 1 0105-
194 SLEEVE; TUBE
ZF M/T<X9E> ID=12.15 OD=15 L=10 		1-09666-043-0 01 1 0105-0105
194 SLEEVE; TUBE
ANTILOCK BRAKE SYSTEM(BFA) EXC. BRAKE SYSTEM RETARDER<RE2> ID=10 OD=14 L=30 		9-09956-682-0 01 1 0106-
205 BOLT; TUBE CLIP
M8X16 FLANGE 		0-28080-816-0 04 1 0105-
205 BOLT; TUBE CLIP
M8X20 FLANGE 		0-28680-820-0 01 1 0105-
205 BOLT; TUBE CLIP
M6X16 W/LK WASHER 		0-50040-616-0 01 1 0105-0211
205 BOLT; TUBE CLIP
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 01 1 0212-0312
205 BOLT; TUBE CLIP
M8X20.5 W/LK&PL WASHER 		8-94279-207-0 01 1 0401-
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=10 		1-87410-088-0 AR 1 0105-
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=13 		1-87410-091-0 AR 1 0105-
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=19 		1-87410-094-0 AR 1 0105-
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=22 		1-87410-096-0 AR 1 0105-
225 NUT; TUBE CLIP
M8 FLANGE 		0-91150-108-0 01 1 0105-
226 BOLT; UNION
M8X20 FLANGE 		0-28080-820-0 01 1 0105-
226 BOLT; UNION
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 02 1 0105-
226 BOLT; UNION
M8X30 FLANGE 		0-28680-830-0 02 1 0105-
288 PLUG
PT1/4 		9-99204-513-0 01 1 0105-
291 INSERT
ZF M/T<X9E> ID=7.5 OD=8.8 L=18 		1-09669-055-0 01 1 0105-0105
293 VALVE; CHECK 1-48410-479-1 01 1 0105-
297 CLIP; BAND
L=250 		1-09707-126-0 02 1 0105-
297 CLIP; BAND
ANTILOCK BRAKE SYSTEM(BFA) EXC. BRAKE SYSTEM RETARDER<RE2> L=140 		5-09707-031-1 01 1 0106-
315 CLIP
ANTILOCK BRAKE SYSTEM(BFA) EXC. BRAKE SYSTEM RETARDER<RE2> ID=22X11 L=20 		1-09700-871-0 01 1 0106-
333 BRACKET; CONNECTOR 1-47478-839-1 01 1 0105-

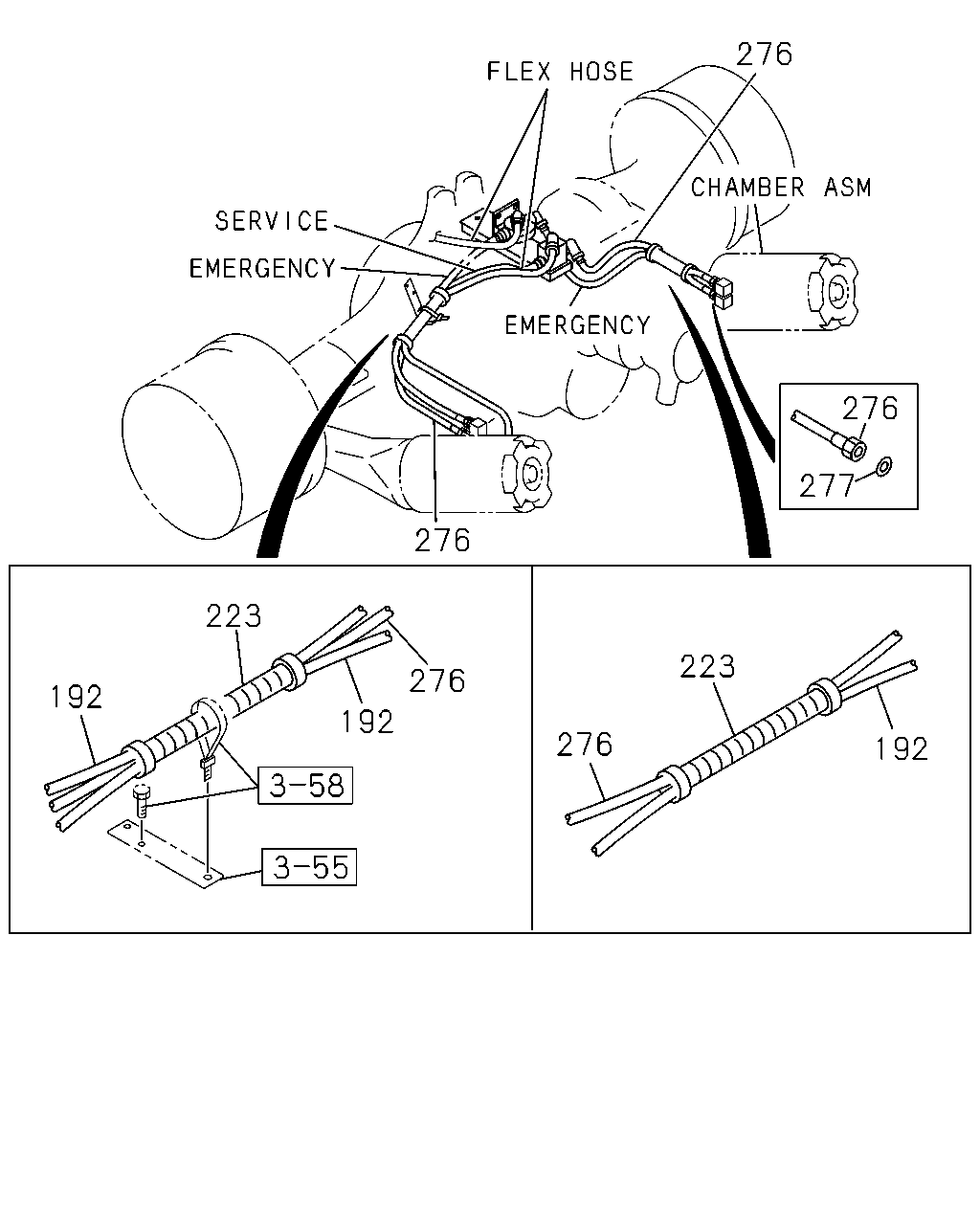

çizim 76896
276 276 277 276 223 223 276 192 276 192 192
BalonParca AdiParca NoAdetTipApplied Date
192 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87410-069-0 AR 1 0105-0212
192 TUBE; NYLON
SERVICED BY L=4000 OD=12 		1-87410-070-0 AR 1 0105-
192 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87410-073-0 AR 1 0105-
192 TUBE; NYLON
SERVICED BY L=4000 OD=8 		1-87410-074-0 AR 1 0105-
192 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 0301-
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=10 		1-87410-088-0 AR 1 0105-
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=13 		1-87410-091-0 AR 1 0105-
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=19 		1-87410-094-0 AR 1 0105-
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=22 		1-87410-096-0 AR 1 0105-
276 HOSE; SERVO
BRAKE SYSTEM RETARDER<RE2> EXC. ANTILOCK BRAKE SYSTEM(BFA) L=490 		0-07846-490-1 01 1 0105-
276 HOSE; SERVO
BRAKE SYSTEM RETARDER<RE2> EXC. ANTILOCK BRAKE SYSTEM(BFA) L=770 		0-07846-770-1 01 1 0105-
277 GASKET; HOSE SERVO
BRAKE SYSTEM RETARDER<RE2> EXC. ANTILOCK BRAKE SYSTEM(BFA) ID=11 OD=18 		9-09572-510-0 04 1 0105-
çizim 77369
50 50 79 90 46 10 10 67 46 71 71 64 64 64 71 100 262 175 134 330 67
BalonParca AdiParca NoAdetTipApplied Date
10 CONNECTOR; FLEX HOSE
ANTILOCK BRAKE SYSTEM(BFA) 		1-09650-360-1 02 1 0105-
46 NIPPLE; AIR PIPE
ANTILOCK BRAKE SYSTEM(BFA) DIN12 & M16 STRAIGHT 		1-09660-876-0 02 1 0105-
50 NUT; UNION BRKT
ANTILOCK BRAKE SYSTEM(BFA) M14 FLANGE 		0-91150-114-0 02 1 0105-
64 GASKET; FLEX HOSE
ANTILOCK BRAKE SYSTEM(BFA) ID=11 OD=18 		9-09572-510-0 06 1 0105-
64 GASKET; FLEX HOSE
EXC. ANTILOCK BRAKE SYSTEM(BFA) ID=17.5 		9-09572-515-0 02 1 0105-
64 GASKET; FLEX HOSE
EXC. ANTILOCK BRAKE SYSTEM(BFA) ID=17.5 		9-09572-515-0 02 1 0105-
67 NUT; HOSE BRKT
ANTILOCK BRAKE SYSTEM(BFA) M8 FLANGE 		0-91150-108-0 04 1 0105-
71 HOSE; FLEX,RWD RR
ANTILOCK BRAKE SYSTEM(BFA) L=630 		0-07847-630-1 03 1 0105-
71 HOSE; FLEX,RWD RR
EXC. ANTILOCK BRAKE SYSTEM(BFA),DUMP TRUCK<RA1> L=550 		0-07909-550-0 02 1 0105-
71 HOSE; FLEX,RWD RR
DUMP TRUCK<RA1> EXC. ANTILOCK BRAKE SYSTEM(BFA) L=580 		0-07909-580-0 02 1 0105-
79 BOLT; HOSE BRKT
ANTILOCK BRAKE SYSTEM(BFA) M8X25 FLANGE 		0-28680-825-0 02 1 0105-
90 BRACKET; PIPE UNION
ANTILOCK BRAKE SYSTEM(BFA) 		1-47475-611-4 01 1 0105-
100 NUT; UNION
ANTILOCK BRAKE SYSTEM(BFA) M14 FLANGE 		0-91150-114-0 01 1 0105-
134 CONNECTOR
(C) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 0105-
134 CONNECTOR
(D) DIN12X2 & PT3/8 DOUBLE ELBOW 		1-09661-026-0 01 1 0105-
134 CONNECTOR
ANTILOCK BRAKE SYSTEM(BFA) (A) DIN12 & M16 STRAIGHT 		1-09660-876-0 01 1 0105-
134 CONNECTOR
BRAKE REGULATION HONG KONG<TCZ> (B) DIN8X2 & R3/8 3WAY 		1-09660-996-0 01 1 0105-0105
134 CONNECTOR
EXC. BRAKE REGULATION HONG KONG<TCZ> (E) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0105-0105
134 CONNECTOR
(E) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0106-
175 BOLT; HOSE BRKT
ANTILOCK BRAKE SYSTEM(BFA) M8X25 FLANGE 		0-28680-825-0 02 1 0105-
262 BRACKET
(B) 		1-79996-143-0 01 1 0105-
262 BRACKET
(A) 		1-79996-258-1 01 1 0105-
262 BRACKET
ANTILOCK BRAKE SYSTEM(BFA) (C) 		1-47478-212-0 01 1 0105-
330 UNION; FLEX HOSE
ANTILOCK BRAKE SYSTEM(BFA) 		1-09650-360-1 01 1 0105-

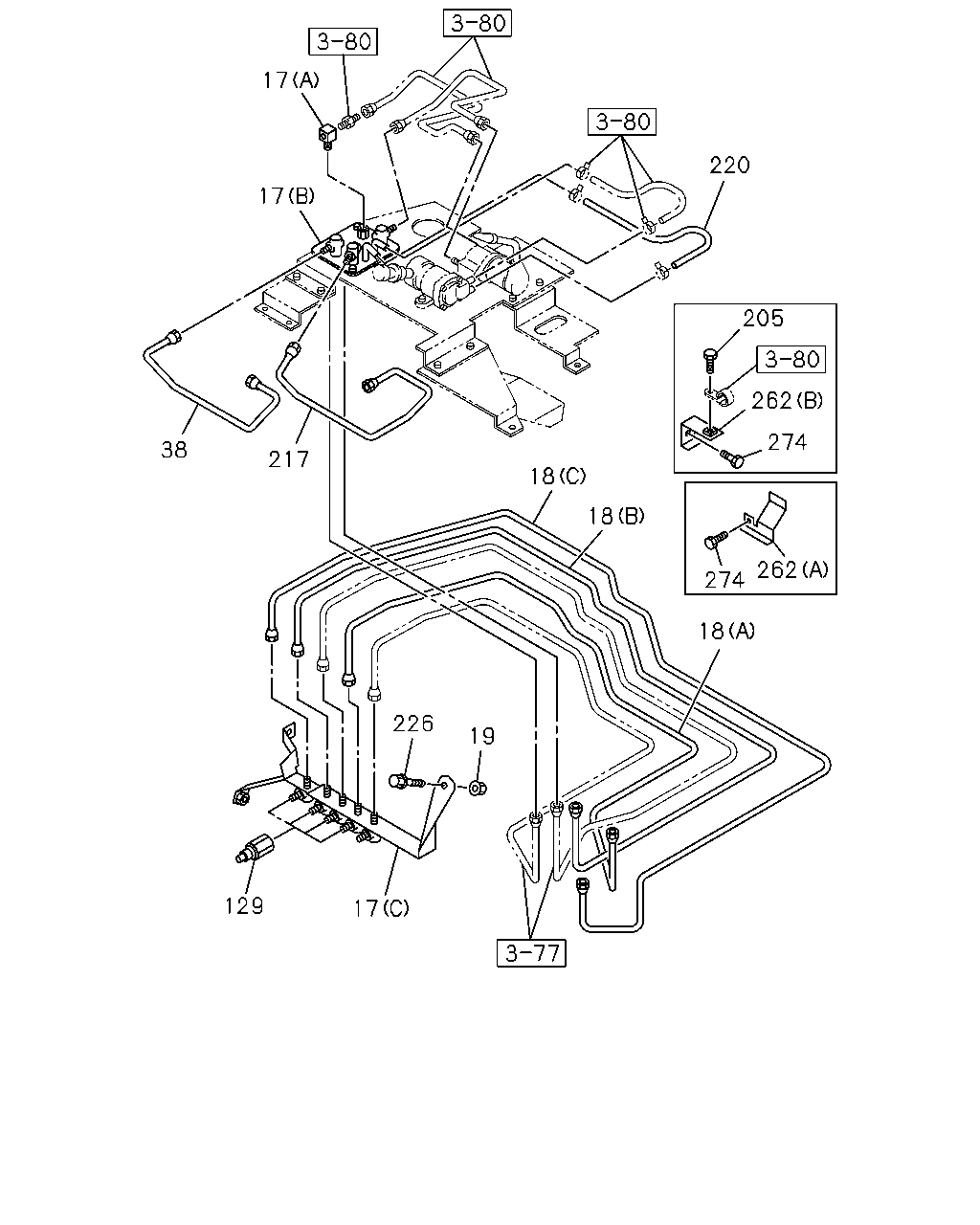

çizim 78411
17 220 17 205 262 274 38 217 18 18 262 274 18 226 19 129 17
BalonParca AdiParca NoAdetTipApplied Date
17 UNION; AIR PIPE
(A) 		1-09656-708-0 01 1 0105-
17 UNION; AIR PIPE
(B) 		1-47470-655-0 01 1 0105-0111
17 UNION; AIR PIPE
(C) 		1-47470-656-0 01 1 0105-
17 UNION; AIR PIPE
(B) 		1-47470-655-0 01 1 0112-
18 PIPE; AIR,UNION TO UNION
(A) L=1937 SERVICED BY L=1950 		1-47426-393-0 01 1 0105-
18 PIPE; AIR,UNION TO UNION
(C) L=2332 SERVICED BY L=2400 		1-47426-395-0 01 1 0105-
18 PIPE; AIR,UNION TO UNION
(B) L=2108 SERVICED BY L=2500 		1-47426-423-0 01 1 0105-
19 NUT; PIPE UNION
M8 FLANGE 		0-91150-108-0 02 1 0105-0111
19 NUT; PIPE UNION
M8 		9-09110-408-0 01 1 0105-0203
19 NUT; PIPE UNION
M8 FLANGE 		0-91150-108-0 02 1 0112-
38 PIPE; AIR,UNION TO MAG VLV 1-49122-879-0 01 1 0105-
129 CONNECTOR; NYLON TUBE
DIN8 & M14 STRAIGHT 		1-09660-874-0 03 1 0105-
129 CONNECTOR; NYLON TUBE
DIN12 & M16 STRAIGHT 		1-09660-876-0 01 1 0105-
205 BOLT; TUBE CLIP
M8X16 FLANGE 		0-28080-816-0 04 1 0105-
205 BOLT; TUBE CLIP
M8X20 FLANGE 		0-28680-820-0 01 1 0105-
205 BOLT; TUBE CLIP
M6X16 W/LK WASHER 		0-50040-616-0 01 1 0105-0211
205 BOLT; TUBE CLIP
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 01 1 0212-0312
205 BOLT; TUBE CLIP
M8X20.5 W/LK&PL WASHER 		8-94279-207-0 01 1 0401-
217 PIPE; AIR,PARKING BRK VLV TO UNION 1-49122-880-0 01 1 0105-0105
217 PIPE; AIR,PARKING BRK VLV TO UNION 1-49123-137-0 01 1 0106-0106
217 PIPE; AIR,PARKING BRK VLV TO UNION 1-49123-172-0 01 1 0107-
220 HOSE; VINYL,EXH,PARKING BRK VLV
L=260 ID=9.5 SERVICED BY L=10000 		9-09914-701-0 01 1 0105-0105
220 HOSE; VINYL,EXH,PARKING BRK VLV
L=240 ID=9.5 SERVICED BY L=10000 		9-09914-701-0 01 1 0106-0203
220 HOSE; VINYL,EXH,PARKING BRK VLV
L=350 SERVICED BY L=10000 		9-09914-701-0 01 1 0204-
226 BOLT; UNION
M8X20 FLANGE 		0-28080-820-0 01 1 0105-
226 BOLT; UNION
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 02 1 0105-
226 BOLT; UNION
M8X30 FLANGE 		0-28680-830-0 02 1 0105-
262 BRACKET
(B) 		1-79996-143-0 01 1 0105-
262 BRACKET
(A) 		1-79996-258-1 01 1 0105-
262 BRACKET
ANTILOCK BRAKE SYSTEM(BFA) (C) 		1-47478-212-0 01 1 0105-
274 BOLT; BRKT
M8X16 FLANGE 		0-28080-816-0 01 1 0105-
274 BOLT; BRKT
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 01 1 0105-
