3-70 — BRAKE PIPING; AIR,AIR MASTER (#10186) — 312 parça

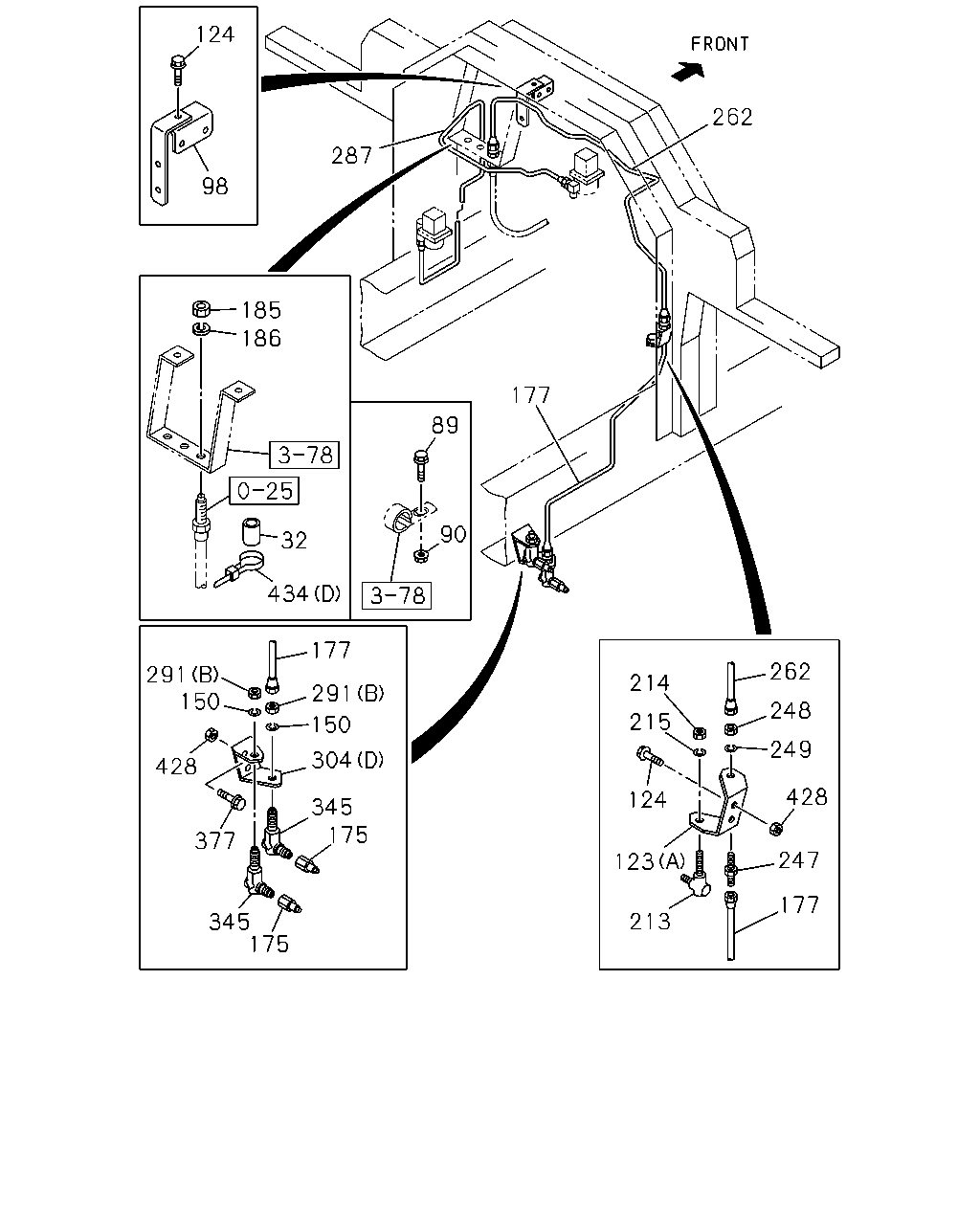

çizim 20322
124 262 287 98 185 186 177 89 90 32 434 177 262 291 150 214 291 248 215 150 249 304 428 428 124 345 175 377 247 123 177 213 345 175
BalonParca AdiParca NoAdetTipApplied Date
32 SLEEVE; RUBBER,AIR PIPE
ID=12.5 OD=15.5 L=30 		9-09714-002-0 02 1 0105-0105
89 BOLT; TUBE CLIP
M8X20 FLANGE 		0-28680-820-0 02 1 0105-
90 NUT; TUBE CLIP
M8 FLANGE 		0-91150-108-0 02 1 0105-
98 BRACKET; AIR PIPE 1-47477-471-0 01 1 0105-
123 BRACKET; UNION
EXC. FULL FLOATING CAB(W16) (B) 		1-53458-742-2 01 1 0111-
123 BRACKET; UNION
(A) 		1-47477-045-0 01 1 0105-
124 BOLT; BRKT
M8X25 FLANGE 		0-28680-825-0 01 1 0105-
124 BOLT; BRKT
M8X25 FLANGE 		0-28680-825-0 02 1 0105-
150 WASHER; LK,UNION
ID=12.2 		9-09150-512-0 02 1 0105-
175 CONNECTOR; AIR PIPE
DIN6 & M12 STRAIGHT 		1-09661-379-0 02 1 0105-
177 PIPE; AIR,UNION TO UNION
L=687 SERVICED BY L=700 		1-47428-811-0 01 1 0105-
185 NUT; FLEX HOSE,AIR GOV
M12 		9-09840-280-0 01 1 0105-
186 WASHER; LK,FLEX HOSE,AIR GOV
ID=12.2 		9-09150-512-0 01 1 0105-
213 UNION; AIR PIPE
M12 ELBOW 		9-09225-206-1 01 1 0105-
214 NUT; UNION,AIR PIPE
M12 		9-09840-280-0 01 1 0105-
215 WASHER; LK,UNION,AIR PIPE
ID=12.2 		9-09150-512-0 01 1 0105-
247 UNION; AIR PIPE
M12 L=66.5 		9-09223-306-1 01 1 0105-
248 NUT; PIPE UNION
M12 		9-09840-280-0 01 1 0105-
249 WASHER; LK,PIPE UNION
ID=12.2 		9-09150-512-0 01 1 0105-
262 PIPE; AIR,UNION TO FLEX 1-49121-783-0 01 1 0105-
287 PIPE; AIR,MAG VLV 1-49122-365-0 01 1 0105-0202
287 PIPE; AIR,MAG VLV
L=1269 SERVICED BY L=1370 		1-47428-818-0 01 1 0203-
291 NUT; UNION
(A) M22 		9-09111-422-0 01 1 0105-
291 NUT; UNION
(B) M12 		9-09840-280-0 02 1 0105-
304 BRACKET; UNION
(D) 		1-47477-045-0 01 1 0105-
304 BRACKET; UNION
ISUZU M/T<X9A> (B) 		1-47477-183-1 01 1 0105-0106
304 BRACKET; UNION
CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) ISUZU M/T<X9A> (B) 		1-47477-183-1 01 1 0107-
304 BRACKET; UNION
ISUZU M/T<X9A> EXC. CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) (B) 		1-47477-182-1 01 1 0107-
304 BRACKET; UNION
TRANSMISSION-ZF 16S151 OD(Y2N) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),AIR BAG(TFQ) (A) 		1-71117-210-0 01 1 0105-0106
304 BRACKET; UNION
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) EXC. AIR BAG(TFQ) (A) 		1-71117-210-0 01 1 0105-0106
304 BRACKET; UNION
TRANSMISSION-ZF 16S151 OD(Y2N),MJX16P M/T(Y3Z) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),AIR BAG(TFQ) (A) 		1-71117-210-0 01 1 0107-
304 BRACKET; UNION
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) EXC. AIR BAG(TFQ) (A) 		1-71117-210-0 01 1 0107-
304 BRACKET; UNION
ZF M/T<X9E> (C) 		1-47477-757-1 01 1 0105-
345 UNION; AIR PIPE
M12 ELBOW 		9-09225-206-1 02 1 0105-
377 BOLT; BRKT FIX
M8X35 FLANGE 		0-28680-835-0 02 1 0105-
428 NUT; BRKT
M8 FLANGE 		0-91150-108-0 02 1 0105-
434 CLIP
ZF M/T<X9E> (A) ID=25 H=30 L=35 		1-09700-875-0 01 1 0108-
434 CLIP
(A) D=24 L=21 		1-09700-380-0 01 1 0105-
434 CLIP
(B) L=250 		1-09707-126-0 01 1 0105-
434 CLIP
(D) ID=10 & 10 		1-09709-221-0 01 1 0105-
434 CLIP
TRANSMISSION-ZF 16S151 OD(Y2N) AIR BAG(TFQ) (C) ID=8.3 & 8.3 		8-94426-175-0 04 1 0105-0106
434 CLIP
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) AIR BAG(TFQ) (C) ID=8.3 & 8.3 		8-94426-175-0 04 1 0105-0106
434 CLIP
TRANSMISSION-ZF 16S151 OD(Y2N),MJX16P M/T(Y3Z) AIR BAG(TFQ) (C) ID=8.3 & 8.3 		8-94426-175-0 04 1 0107-
434 CLIP
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) AIR BAG(TFQ) (C) ID=8.3 & 8.3 		8-94426-175-0 04 1 0107-
434 CLIP
TRANSMISSION-ZF 16S151 OD(Y2N) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),AIR BAG(TFQ) (C) ID=8.3 & 8.3 		8-94426-175-0 03 1 0105-0106
434 CLIP
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) EXC. AIR BAG(TFQ) (C) ID=8.3 & 8.3 		8-94426-175-0 03 1 0105-0106
434 CLIP
TRANSMISSION-ZF 16S151 OD(Y2N),MJX16P M/T(Y3Z) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),AIR BAG(TFQ) (C) ID=8.3 & 8.3 		8-94426-175-0 03 1 0107-
434 CLIP
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) EXC. AIR BAG(TFQ) (C) ID=8.3 & 8.3 		8-94426-175-0 03 1 0107-

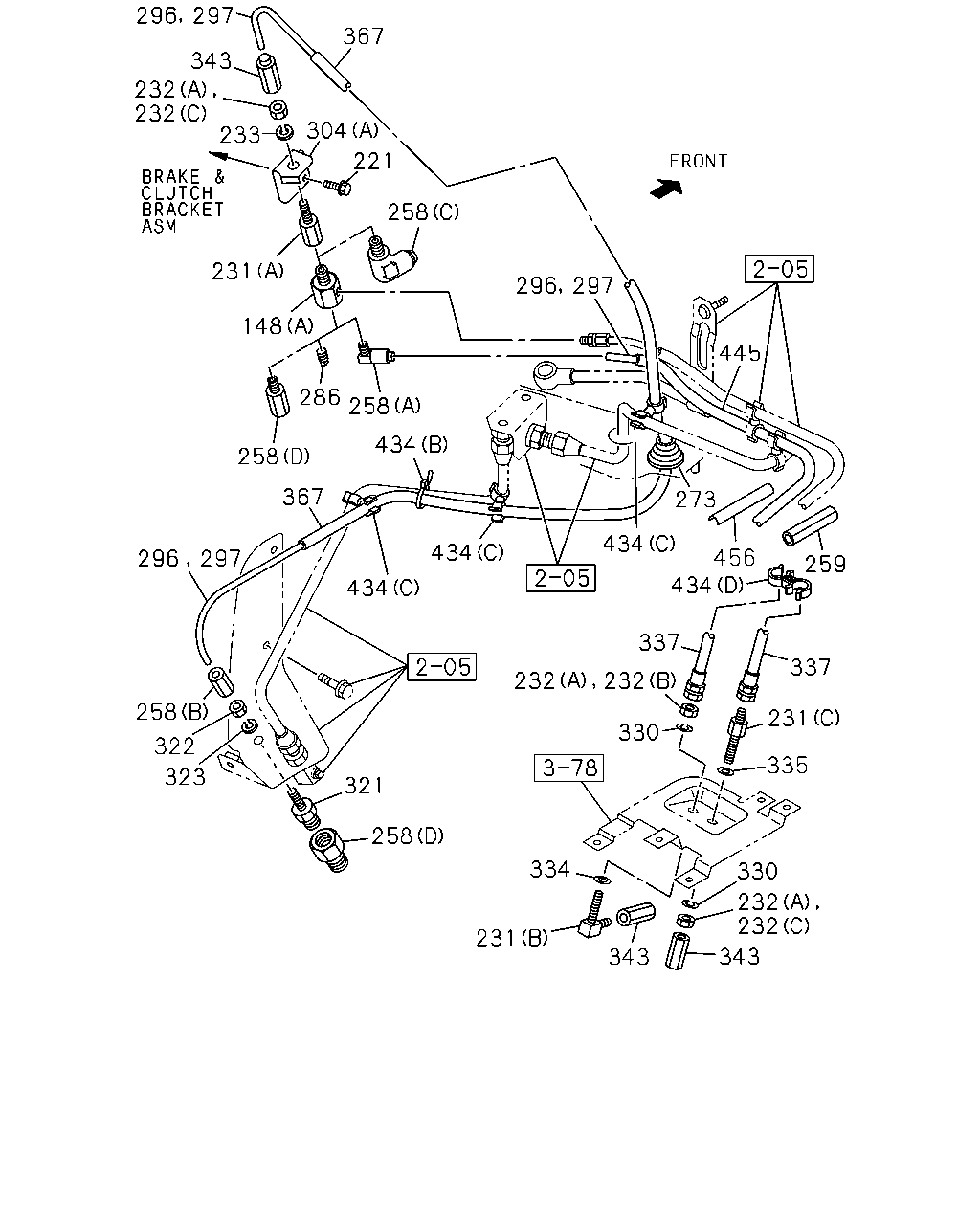

çizim 21103
367 343 232 232 304 233 221 258 231 148 445 286 258 434 258 367 273 434 434 456 434 259 434 337 337 258 231 330 322 335 323 321 258 334 330 232 232 231 343 343 296 297 232 232 296 297 296 297
BalonParca AdiParca NoAdetTipApplied Date
148 CONNECTOR; UNION
EXC. FULL FLOATING CAB(W16) (B) DIN6 & R1/4 ELBOW 		1-09661-067-0 01 1 0111-
148 CONNECTOR; UNION
TRANSMISSION-ZF 16S151 OD(Y2N) (A) 		8-94338-417-0 01 1 0105-0106
148 CONNECTOR; UNION
TRANSMISSION-ZF 16S151 OD(Y2N),MJX16P M/T(Y3Z) (A) 		8-94338-417-0 01 1 0107-
221 BOLT; BRKT
EXC. FULL FLOATING CAB(W16) M10X35 FLANGE 		0-28681-035-0 02 1 0111-
221 BOLT; BRKT
M8X25 FLANGE 		0-28680-825-0 02 1 0105-
221 BOLT; BRKT
M8X35 FLANGE 		0-28680-835-0 01 1 0105-
221 BOLT; BRKT
TRANSMISSION-ZF 16S151 OD(Y2N) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),AIR BAG(TFQ) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0105-0106
221 BOLT; BRKT
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) EXC. AIR BAG(TFQ) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0105-0106
221 BOLT; BRKT
TRANSMISSION-ZF 16S151 OD(Y2N),MJX16P M/T(Y3Z) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),AIR BAG(TFQ) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0107-
221 BOLT; BRKT
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) EXC. AIR BAG(TFQ) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0107-
231 UNION; AIR PIPE
(B) M10 ELBOW 		1-09654-186-2 01 1 0105-
231 UNION; AIR PIPE
(C) M10 STRAIGHT 		1-09654-361-0 01 1 0105-
231 UNION; AIR PIPE
TRANSMISSION-ZF 16S151 OD(Y2N) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) 		1-09656-713-2 01 1 0105-0106
231 UNION; AIR PIPE
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) 		1-09656-713-2 01 1 0105-0106
231 UNION; AIR PIPE
TRANSMISSION-ZF 16S151 OD(Y2N),MJX16P M/T(Y3Z) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) 		1-09656-713-2 01 1 0107-
231 UNION; AIR PIPE
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) 		1-09656-713-2 01 1 0107-
232 NUT; UNION,AIR PIPE
(A) M10 H=8 		1-09400-029-0 02 1 0105-0312
232 NUT; UNION,AIR PIPE
(B) M10 		9-09110-410-0 01 1 0401-
232 NUT; UNION,AIR PIPE
TRANSMISSION-ZF 16S151 OD(Y2N) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) M10 H=8 		1-09400-029-0 01 1 0105-0106
232 NUT; UNION,AIR PIPE
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) M10 H=8 		1-09400-029-0 01 1 0105-0106
232 NUT; UNION,AIR PIPE
TRANSMISSION-ZF 16S151 OD(Y2N),MJX16P M/T(Y3Z) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) M10 H=8 		1-09400-029-0 01 1 0107-0312
232 NUT; UNION,AIR PIPE
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) M10 H=8 		1-09400-029-0 01 1 0107-0312
232 NUT; UNION,AIR PIPE
(C) M10 H=8 		1-09400-029-0 01 1 0401-
232 NUT; UNION,AIR PIPE
TRANSMISSION-ZF 16S151 OD(Y2N),MJX16P M/T(Y3Z) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (C) M10 H=8 		1-09400-029-0 01 1 0401-
232 NUT; UNION,AIR PIPE
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (C) M10 H=8 		1-09400-029-0 01 1 0401-
233 WASHER; LK,UNION,AIR PIPE
TRANSMISSION-ZF 16S151 OD(Y2N) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) ID=10.2 		9-09150-510-0 01 1 0105-0106
233 WASHER; LK,UNION,AIR PIPE
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) ID=10.2 		9-09150-510-0 01 1 0105-0106
233 WASHER; LK,UNION,AIR PIPE
TRANSMISSION-ZF 16S151 OD(Y2N),MJX16P M/T(Y3Z) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) ID=10.2 		9-09150-510-0 01 1 0107-
233 WASHER; LK,UNION,AIR PIPE
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) ID=10.2 		9-09150-510-0 01 1 0107-
258 CONNECTOR; NYLON TUBE
TRANSMISSION-ZF 16S151 OD(Y2N) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) DIN6 & M12 STRAIGHT 		1-09661-379-0 02 1 0105-0106
258 CONNECTOR; NYLON TUBE
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) DIN6 & M12 STRAIGHT 		1-09661-379-0 02 1 0105-0106
258 CONNECTOR; NYLON TUBE
TRANSMISSION-ZF 16S151 OD(Y2N),MJX16P M/T(Y3Z) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) DIN6 & M12 STRAIGHT 		1-09661-379-0 02 1 0107-
258 CONNECTOR; NYLON TUBE
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) DIN6 & M12 STRAIGHT 		1-09661-379-0 02 1 0107-
258 CONNECTOR; NYLON TUBE
ISUZU M/T<X9A> (E) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 0105-
258 CONNECTOR; NYLON TUBE
ISUZU M/T<X9A> (C) 		1-09661-303-0 01 1 0105-
258 CONNECTOR; NYLON TUBE
MJD7S M/T(Y2Y) (D) 		1-48319-059-0 01 1 0105-
258 CONNECTOR; NYLON TUBE
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) DIN8 R1/8 ELBOW 		1-09660-644-1 01 1 0105-0302
258 CONNECTOR; NYLON TUBE
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) TRI LC6X4-R1/8 		1-09660-760-1 01 1 0303-
259 SLEEVE; RUBBER,NYLON TUBE
ISUZU M/T<X9A> ID=23 OD=27 L=40 		1-09337-015-0 02 1 0105-0105
273 GROMMET
TRANSMISSION-ZF 16S151 OD(Y2N) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-09332-102-0 01 1 0105-0106
273 GROMMET
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-09332-102-0 01 1 0105-0106
273 GROMMET
TRANSMISSION-ZF 16S151 OD(Y2N),MJX16P M/T(Y3Z) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-09332-102-0 01 1 0107-
273 GROMMET
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-09332-102-0 01 1 0107-
286 PLUG; AIR PIPE
EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		9-09204-510-0 01 1 0105-
296 TUBE; NYLON
L=1200 OD=6 		1-09366-256-0 AR 1 0105-
296 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87410-069-0 AR 1 0105-0212
296 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87410-073-0 AR 1 0105-
296 TUBE; NYLON
SERVICED BY L=2000 OD=6 		1-87410-081-0 AR 1 0105-0212
296 TUBE; NYLON
SERVICED BY L=4000 OD=6 		1-87410-082-0 AR 1 0105-
296 TUBE; NYLON
SERVICED BY L=2000 OD=6 		1-87411-001-0 AR 1 0301-
296 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 0301-
297 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87410-069-0 AR 1 0105-0212
297 TUBE; NYLON
SERVICED BY L=8000 OD=12 		1-87410-072-0 AR 1 0105-
297 TUBE; NYLON
SERVICED BY L=2000 OD=6 		1-87410-081-0 AR 1 0105-
297 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87410-073-0 AR 1 0301-
297 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 0301-
304 BRACKET; UNION
(D) 		1-47477-045-0 01 1 0105-
304 BRACKET; UNION
ISUZU M/T<X9A> (B) 		1-47477-183-1 01 1 0105-0106
304 BRACKET; UNION
CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) ISUZU M/T<X9A> (B) 		1-47477-183-1 01 1 0107-
304 BRACKET; UNION
ISUZU M/T<X9A> EXC. CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) (B) 		1-47477-182-1 01 1 0107-
304 BRACKET; UNION
TRANSMISSION-ZF 16S151 OD(Y2N) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),AIR BAG(TFQ) (A) 		1-71117-210-0 01 1 0105-0106
304 BRACKET; UNION
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) EXC. AIR BAG(TFQ) (A) 		1-71117-210-0 01 1 0105-0106
304 BRACKET; UNION
TRANSMISSION-ZF 16S151 OD(Y2N),MJX16P M/T(Y3Z) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),AIR BAG(TFQ) (A) 		1-71117-210-0 01 1 0107-
304 BRACKET; UNION
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) EXC. AIR BAG(TFQ) (A) 		1-71117-210-0 01 1 0107-
304 BRACKET; UNION
ZF M/T<X9E> (C) 		1-47477-757-1 01 1 0105-
321 JOINT; FLEX HOSE
TRANSMISSION-ZF 16S151 OD(Y2N) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M12 L=66.5 		9-09223-306-1 01 1 0105-0106
321 JOINT; FLEX HOSE
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M12 L=66.5 		9-09223-306-1 01 1 0105-0106
321 JOINT; FLEX HOSE
TRANSMISSION-ZF 16S151 OD(Y2N),MJX16P M/T(Y3Z) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M12 L=66.5 		9-09223-306-1 01 1 0107-
321 JOINT; FLEX HOSE
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M12 L=66.5 		9-09223-306-1 01 1 0107-
322 NUT; JOINT,FLEX HOSE
TRANSMISSION-ZF 16S151 OD(Y2N),MJX16P M/T(Y3Z) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M12 		9-09840-280-0 01 1 0302-
322 NUT; JOINT,FLEX HOSE
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M12 		9-09840-280-0 01 1 0302-
322 NUT; JOINT,FLEX HOSE
TRANSMISSION-ZF 16S151 OD(Y2N),MJX16P M/T(Y3Z) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M12 		9-09840-280-0 01 1 0105-0301
322 NUT; JOINT,FLEX HOSE
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M12 		9-09840-280-0 01 1 0105-0301
323 WASHER; LK,JOINT
TRANSMISSION-ZF 16S151 OD(Y2N),MJX16P M/T(Y3Z) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) ID=12.2 		9-09150-512-0 01 1 0302-
323 WASHER; LK,JOINT
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) ID=12.2 		9-09150-512-0 01 1 0302-
323 WASHER; LK,JOINT
TRANSMISSION-ZF 16S151 OD(Y2N),MJX16P M/T(Y3Z) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) ID=12.2 		9-09150-512-0 01 1 0105-0301
323 WASHER; LK,JOINT
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) ID=12.2 		9-09150-512-0 01 1 0105-0301
330 WASHER; LK,UNION,AIR PIPE
ID=10.2 		9-09150-510-0 02 1 0105-
334 SPACER; PIPE UNION
ID=10.5 OD=22 T=4 		1-09503-045-0 01 1 0105-
335 SEAL; UNION
MJD7S M/T(Y2Y) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) OD=30 BLACK 		1-76798-035-0 01 1 0105-
337 HOSE; FLEX,UNION TO AIR PRESS GAGE
L=720 		0-07210-720-0 02 1 0105-
343 UNION; NYLON TUBE 1-09660-796-1 02 1 0105-
343 UNION; NYLON TUBE
TRANSMISSION-ZF 16S151 OD(Y2N) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-09660-796-1 01 1 0105-0106
343 UNION; NYLON TUBE
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-09660-796-1 01 1 0105-0106
343 UNION; NYLON TUBE
TRANSMISSION-ZF 16S151 OD(Y2N),MJX16P M/T(Y3Z) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-09660-796-1 01 1 0107-
343 UNION; NYLON TUBE
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-09660-796-1 01 1 0107-
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=10 		1-87410-088-0 AR 1 0105-
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=13 		1-87410-091-0 AR 1 0105-
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=7 		1-87411-016-0 AR 1 0105-
434 CLIP
ZF M/T<X9E> (A) ID=25 H=30 L=35 		1-09700-875-0 01 1 0108-
434 CLIP
(A) D=24 L=21 		1-09700-380-0 01 1 0105-
434 CLIP
(B) L=250 		1-09707-126-0 01 1 0105-
434 CLIP
(D) ID=10 & 10 		1-09709-221-0 01 1 0105-
434 CLIP
TRANSMISSION-ZF 16S151 OD(Y2N) AIR BAG(TFQ) (C) ID=8.3 & 8.3 		8-94426-175-0 04 1 0105-0106
434 CLIP
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) AIR BAG(TFQ) (C) ID=8.3 & 8.3 		8-94426-175-0 04 1 0105-0106
434 CLIP
TRANSMISSION-ZF 16S151 OD(Y2N),MJX16P M/T(Y3Z) AIR BAG(TFQ) (C) ID=8.3 & 8.3 		8-94426-175-0 04 1 0107-
434 CLIP
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) AIR BAG(TFQ) (C) ID=8.3 & 8.3 		8-94426-175-0 04 1 0107-
434 CLIP
TRANSMISSION-ZF 16S151 OD(Y2N) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),AIR BAG(TFQ) (C) ID=8.3 & 8.3 		8-94426-175-0 03 1 0105-0106
434 CLIP
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) EXC. AIR BAG(TFQ) (C) ID=8.3 & 8.3 		8-94426-175-0 03 1 0105-0106
434 CLIP
TRANSMISSION-ZF 16S151 OD(Y2N),MJX16P M/T(Y3Z) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),AIR BAG(TFQ) (C) ID=8.3 & 8.3 		8-94426-175-0 03 1 0107-
434 CLIP
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) EXC. AIR BAG(TFQ) (C) ID=8.3 & 8.3 		8-94426-175-0 03 1 0107-
445 GUARD
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) AIR BAG(TFQ) L=800 		1-83129-031-1 01 1 0105-
445 GUARD
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) EXC. AIR BAG(TFQ) L=800 		1-83129-031-1 01 1 0105-
456 SEAL; NYLON TUBE
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 100X40 		1-72498-022-0 01 1 0105-

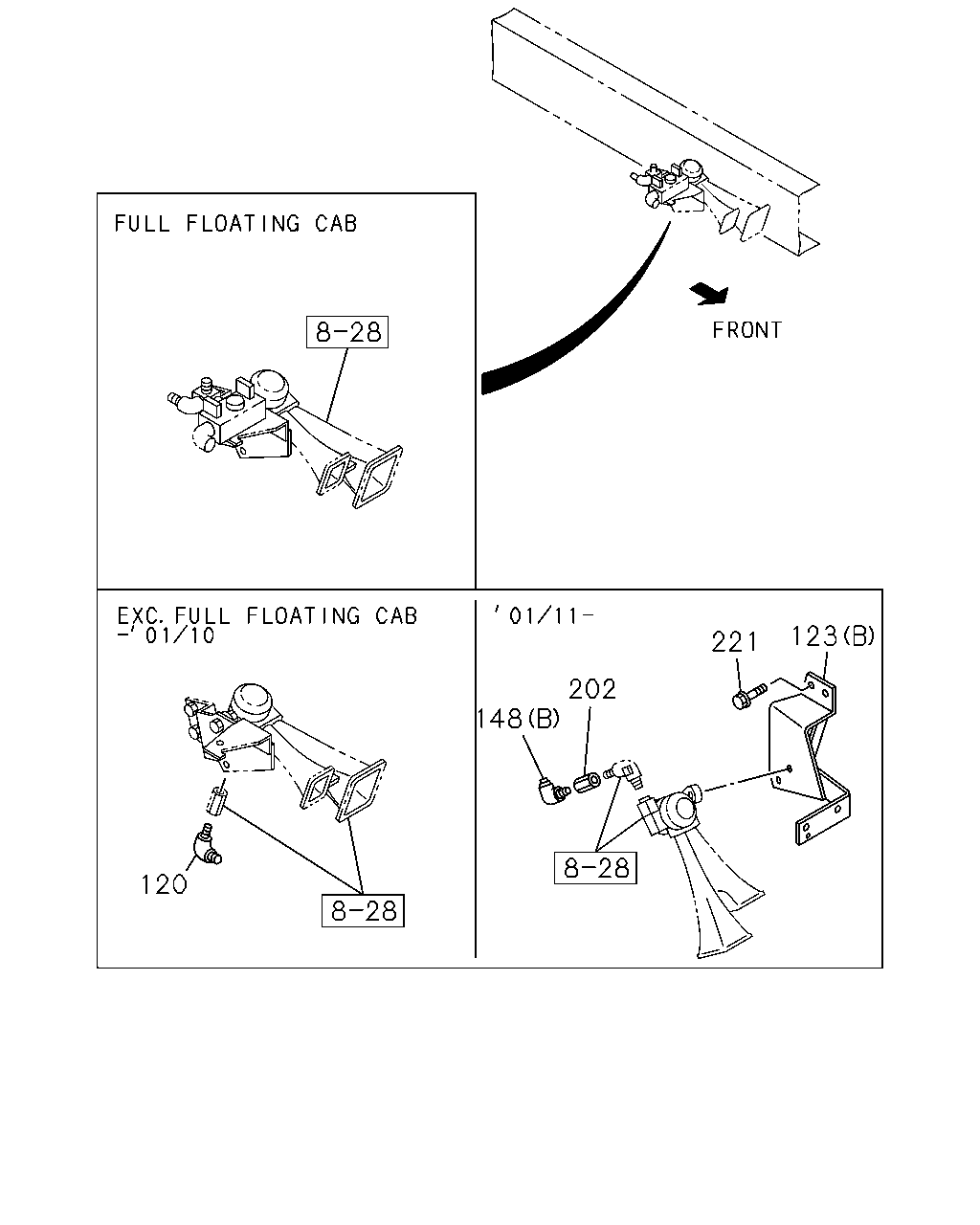

çizim 22112
123 221 202 148 120
BalonParca AdiParca NoAdetTipApplied Date
120 CONNECTOR; AIR PIPE
EXC. FULL FLOATING CAB(W16) DIN6 & R1/4 ELBOW 		1-09661-067-0 01 1 0105-0110
123 BRACKET; UNION
EXC. FULL FLOATING CAB(W16) (B) 		1-53458-742-2 01 1 0111-
123 BRACKET; UNION
(A) 		1-47477-045-0 01 1 0105-
148 CONNECTOR; UNION
EXC. FULL FLOATING CAB(W16) (B) DIN6 & R1/4 ELBOW 		1-09661-067-0 01 1 0111-
148 CONNECTOR; UNION
TRANSMISSION-ZF 16S151 OD(Y2N) (A) 		8-94338-417-0 01 1 0105-0106
148 CONNECTOR; UNION
TRANSMISSION-ZF 16S151 OD(Y2N),MJX16P M/T(Y3Z) (A) 		8-94338-417-0 01 1 0107-
202 ADAPTER
EXC. FULL FLOATING CAB(W16) M12 & RC1/4 STRAIGHT 		1-09660-885-0 02 1 0111-
221 BOLT; BRKT
EXC. FULL FLOATING CAB(W16) M10X35 FLANGE 		0-28681-035-0 02 1 0111-
221 BOLT; BRKT
M8X25 FLANGE 		0-28680-825-0 02 1 0105-
221 BOLT; BRKT
M8X35 FLANGE 		0-28680-835-0 01 1 0105-
221 BOLT; BRKT
TRANSMISSION-ZF 16S151 OD(Y2N) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),AIR BAG(TFQ) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0105-0106
221 BOLT; BRKT
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) EXC. AIR BAG(TFQ) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0105-0106
221 BOLT; BRKT
TRANSMISSION-ZF 16S151 OD(Y2N),MJX16P M/T(Y3Z) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),AIR BAG(TFQ) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0107-
221 BOLT; BRKT
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) EXC. AIR BAG(TFQ) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0107-

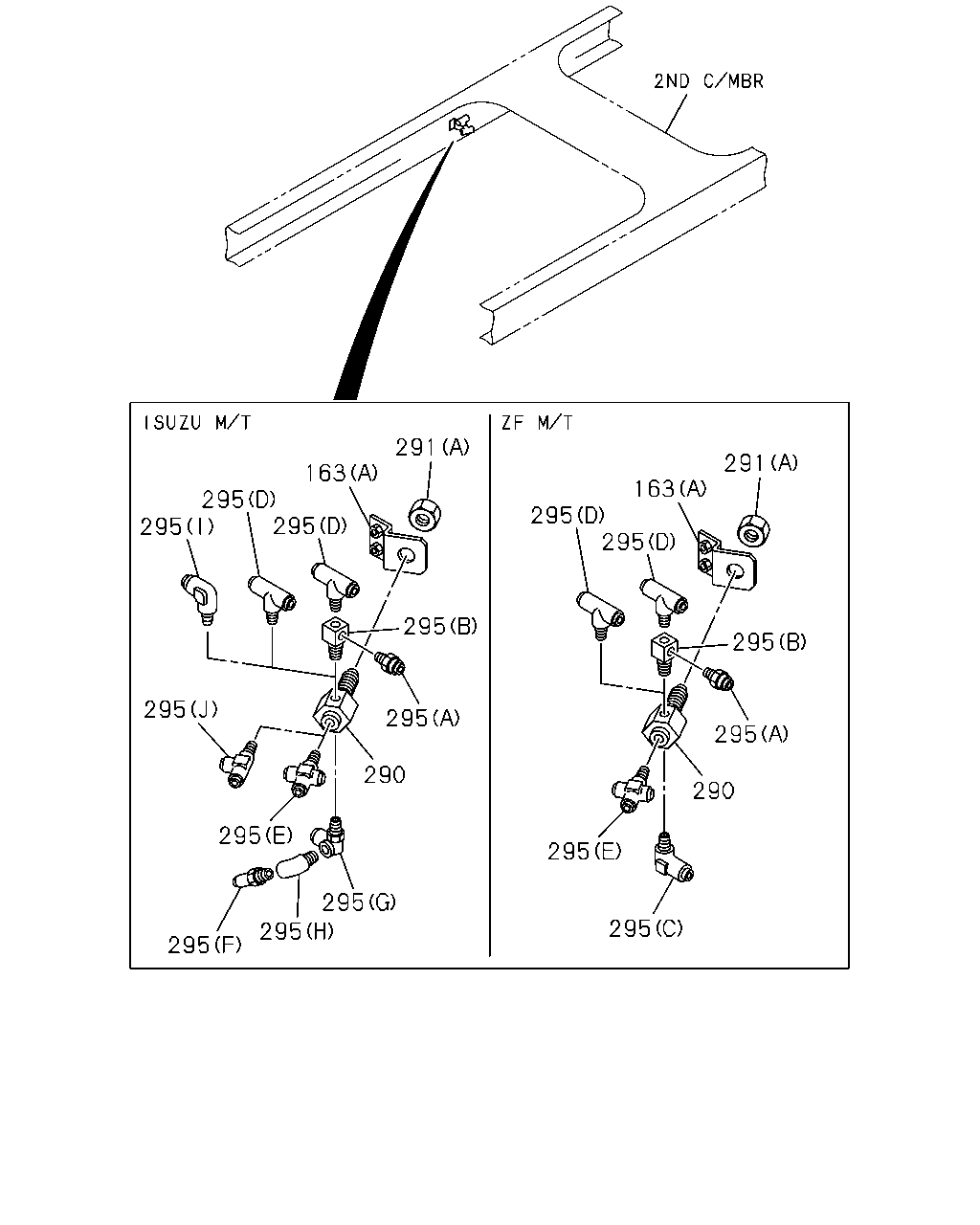

çizim 76701
291 291 163 163 295 295 295 295 295 295 295 295 295 295 290 290 295 295 295 295 295 295
BalonParca AdiParca NoAdetTipApplied Date
163 BRACKET; AIR PIPE
(B) 		1-34656-009-0 01 1 0105-
163 BRACKET; AIR PIPE
(A) 		1-47478-213-0 01 1 0105-
290 UNION; AIR PIPE 1-09661-064-0 01 1 0105-
291 NUT; UNION
(A) M22 		9-09111-422-0 01 1 0105-
291 NUT; UNION
(B) M12 		9-09840-280-0 02 1 0105-
295 CONNECTOR; NYLON TUBE
ELECTRICAL HORN(WB7) ZF M/T<X9E> (J) 		1-09661-073-0 01 1 0109-0206
295 CONNECTOR; NYLON TUBE
MJD7S M/T(Y2Y) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) ELECTRICAL HORN(WB7) (J) 		1-09661-073-0 01 1 0109-0206
295 CONNECTOR; NYLON TUBE
ELECTRICAL HORN(WB7) ZF M/T<X9E> EXC. FULL FLOATING CAB(W16) (J) 		1-09661-073-0 01 1 0207-
295 CONNECTOR; NYLON TUBE
MJD7S M/T(Y2Y) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) ELECTRICAL HORN(WB7) EXC. FULL FLOATING CAB(W16) (J) 		1-09661-073-0 01 1 0207-
295 CONNECTOR; NYLON TUBE
(D) DIN8X2 & R3/8 3WAY 		1-09660-996-0 01 1 0105-0106
295 CONNECTOR; NYLON TUBE
MJD7S M/T(Y2Y) TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. BRAKE SYSTEM RETARDER<RE2> (D) DIN8X2 & R3/8 3WAY 		1-09660-996-0 01 1 0107-0108
295 CONNECTOR; NYLON TUBE
MJD7S M/T(Y2Y),MJX16P M/T(Y3Z) BRAKE SYSTEM RETARDER<RE2> (D) DIN8X2 & R3/8 3WAY 		1-09660-996-0 01 1 0107-0108
295 CONNECTOR; NYLON TUBE
TRANSMISSION-ZF 16S151 OD(Y2N) (D) DIN8X2 & R3/8 3WAY 		1-09660-996-0 01 1 0107-0108
295 CONNECTOR; NYLON TUBE
MJD7S M/T(Y2Y) TRANSMISSION SIDE PTO WO/LEVER(SH5) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) ELECTRICAL HORN(WB7) EXC. BRAKE SYSTEM RETARDER<RE2> (D) DIN8X2 & R3/8 3WAY 		1-09660-996-0 01 1 0109-0206
295 CONNECTOR; NYLON TUBE
MJD7S M/T(Y2Y) TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. BRAKE SYSTEM RETARDER<RE2>,ELECTRICAL HORN(WB7) (D) DIN8X2 & R3/8 3WAY 		1-09660-996-0 01 1 0109-0206
295 CONNECTOR; NYLON TUBE
MJD7S M/T(Y2Y) BRAKE SYSTEM RETARDER<RE2> SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) ELECTRICAL HORN(WB7) (D) DIN8X2 & R3/8 3WAY 		1-09660-996-0 01 1 0109-0206
295 CONNECTOR; NYLON TUBE
ZF M/T<X9E> (D) DIN8X2 & R3/8 3WAY 		1-09660-996-0 01 1 0109-0206
295 CONNECTOR; NYLON TUBE
MJD7S M/T(Y2Y),MJX16P M/T(Y3Z) BRAKE SYSTEM RETARDER<RE2> EXC. ELECTRICAL HORN(WB7) (D) DIN8X2 & R3/8 3WAY 		1-09660-996-0 01 1 0109-0206
295 CONNECTOR; NYLON TUBE
MJD7S M/T(Y2Y) TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. BRAKE SYSTEM RETARDER<RE2> (D) DIN8X2 & R3/8 3WAY 		1-09660-996-0 01 1 0207-
295 CONNECTOR; NYLON TUBE
MJD7S M/T(Y2Y),MJX16P M/T(Y3Z) BRAKE SYSTEM RETARDER<RE2> (D) DIN8X2 & R3/8 3WAY 		1-09660-996-0 01 1 0207-
295 CONNECTOR; NYLON TUBE
TRANSMISSION-ZF 16S151 OD(Y2N) (D) DIN8X2 & R3/8 3WAY 		1-09660-996-0 01 1 0207-
295 CONNECTOR; NYLON TUBE
BRAKE SYSTEM RETARDER<RE2> (B) PT3/8 3WAY 		1-09661-300-0 01 1 0105-0106
295 CONNECTOR; NYLON TUBE
TRANSMISSION-ZF 16S151 OD(Y2N) BRAKE SYSTEM RETARDER<RE2> (B) PT3/8 3WAY 		1-09661-300-0 01 1 0107-0108
295 CONNECTOR; NYLON TUBE
MJD7S M/T(Y2Y) BRAKE SYSTEM RETARDER<RE2> TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) PT3/8 3WAY 		1-09661-300-0 01 1 0107-0108
295 CONNECTOR; NYLON TUBE
MJX16P M/T(Y3Z) (B) PT3/8 3WAY 		1-09661-300-0 01 1 0107-0108
295 CONNECTOR; NYLON TUBE
MJD7S M/T(Y2Y) BRAKE SYSTEM RETARDER<RE2> TRANSMISSION SIDE PTO WO/LEVER(SH5) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) ELECTRICAL HORN(WB7) (B) PT3/8 3WAY 		1-09661-300-0 01 1 0109-0206
295 CONNECTOR; NYLON TUBE
MJD7S M/T(Y2Y) BRAKE SYSTEM RETARDER<RE2> TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. ELECTRICAL HORN(WB7) (B) PT3/8 3WAY 		1-09661-300-0 01 1 0109-0206
295 CONNECTOR; NYLON TUBE
MJX16P M/T(Y3Z) EXC. ELECTRICAL HORN(WB7) (B) PT3/8 3WAY 		1-09661-300-0 01 1 0109-0206
295 CONNECTOR; NYLON TUBE
BRAKE SYSTEM RETARDER<RE2> ZF M/T<X9E> (B) PT3/8 3WAY 		1-09661-300-0 01 1 0109-0206
295 CONNECTOR; NYLON TUBE
TRANSMISSION-ZF 16S151 OD(Y2N) BRAKE SYSTEM RETARDER<RE2> (B) PT3/8 3WAY 		1-09661-300-0 01 1 0207-
295 CONNECTOR; NYLON TUBE
MJD7S M/T(Y2Y) BRAKE SYSTEM RETARDER<RE2> TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) PT3/8 3WAY 		1-09661-300-0 01 1 0207-
295 CONNECTOR; NYLON TUBE
MJX16P M/T(Y3Z) (B) PT3/8 3WAY 		1-09661-300-0 01 1 0207-
295 CONNECTOR; NYLON TUBE
BRAKE SYSTEM RETARDER<RE2> ZF M/T<X9E> (A) DIN8 & R3/8 STRAIGHT 		1-09660-964-0 01 1 0105-0105
295 CONNECTOR; NYLON TUBE
MJD7S M/T(Y2Y) BRAKE SYSTEM RETARDER<RE2> TRANSMISSION SIDE PTO WO/LEVER(SH5) (A) DIN8 & R3/8 STRAIGHT 		1-09660-964-0 01 1 0105-0105
295 CONNECTOR; NYLON TUBE
MJD7S M/T(Y2Y) (F) M12 & PT1/4 STRAIGHT 		1-09650-074-1 01 1 0105-0106
295 CONNECTOR; NYLON TUBE
MJD7S M/T(Y2Y),MJX16P M/T(Y3Z) (F) M12 & PT1/4 STRAIGHT 		1-09650-074-1 01 1 0107-0108
295 CONNECTOR; NYLON TUBE
MJD7S M/T(Y2Y),MJX16P M/T(Y3Z) (F) M12 & PT1/4 STRAIGHT 		1-09650-074-1 01 1 0109-
295 CONNECTOR; NYLON TUBE
MJD7S M/T(Y2Y) (G) 		1-09661-233-0 01 1 0105-0106
295 CONNECTOR; NYLON TUBE
MJD7S M/T(Y2Y),MJX16P M/T(Y3Z) (G) 		1-09661-233-0 01 1 0107-0108
295 CONNECTOR; NYLON TUBE
MJD7S M/T(Y2Y),MJX16P M/T(Y3Z) (G) 		1-09661-233-0 01 1 0109-
295 CONNECTOR; NYLON TUBE
MJD7S M/T(Y2Y) (H) R1/4 & RC1/4 		1-09664-211-0 01 1 0105-0106
295 CONNECTOR; NYLON TUBE
MJD7S M/T(Y2Y),MJX16P M/T(Y3Z) (H) R1/4 & RC1/4 		1-09664-211-0 01 1 0107-0108
295 CONNECTOR; NYLON TUBE
MJD7S M/T(Y2Y),MJX16P M/T(Y3Z) (H) R1/4 & RC1/4 		1-09664-211-0 01 1 0109-
295 CONNECTOR; NYLON TUBE
MJD7S M/T(Y2Y) EXC. BRAKE SYSTEM RETARDER<RE2>,TRANSMISSION SIDE PTO WO/LEVER(SH5) (I) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0105-0105
295 CONNECTOR; NYLON TUBE
BRAKE SYSTEM RETARDER<RE2> ZF M/T<X9E> (I) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0106-0106
295 CONNECTOR; NYLON TUBE
MJD7S M/T(Y2Y) EXC. BRAKE SYSTEM RETARDER<RE2>,TRANSMISSION SIDE PTO WO/LEVER(SH5) (I) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0106-0106
295 CONNECTOR; NYLON TUBE
MJD7S M/T(Y2Y) BRAKE SYSTEM RETARDER<RE2> TRANSMISSION SIDE PTO WO/LEVER(SH5) (I) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0106-0106
295 CONNECTOR; NYLON TUBE
BRAKE SYSTEM RETARDER<RE2> ZF M/T<X9E> (I) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0107-0108
295 CONNECTOR; NYLON TUBE
MJX16P M/T(Y3Z) EXC. BRAKE SYSTEM RETARDER<RE2> (I) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0107-0108
295 CONNECTOR; NYLON TUBE
MJD7S M/T(Y2Y) EXC. BRAKE SYSTEM RETARDER<RE2>,TRANSMISSION SIDE PTO WO/LEVER(SH5) (I) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0107-0108
295 CONNECTOR; NYLON TUBE
MJD7S M/T(Y2Y) BRAKE SYSTEM RETARDER<RE2> TRANSMISSION SIDE PTO WO/LEVER(SH5) (I) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0107-0108
295 CONNECTOR; NYLON TUBE
MJX16P M/T(Y3Z) EXC. BRAKE SYSTEM RETARDER<RE2>,ELECTRICAL HORN(WB7) (I) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0109-0206
295 CONNECTOR; NYLON TUBE
MJD7S M/T(Y2Y) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) ELECTRICAL HORN(WB7) EXC. BRAKE SYSTEM RETARDER<RE2>,TRANSMISSION SIDE PTO WO/LEVER(SH5) (I) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0109-0206
295 CONNECTOR; NYLON TUBE
MJD7S M/T(Y2Y) BRAKE SYSTEM RETARDER<RE2> TRANSMISSION SIDE PTO WO/LEVER(SH5) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) ELECTRICAL HORN(WB7) (I) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0109-0206
295 CONNECTOR; NYLON TUBE
MJD7S M/T(Y2Y) EXC. BRAKE SYSTEM RETARDER<RE2>,TRANSMISSION SIDE PTO WO/LEVER(SH5),ELECTRICAL HORN(WB7) (I) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0109-0206
295 CONNECTOR; NYLON TUBE
MJD7S M/T(Y2Y) BRAKE SYSTEM RETARDER<RE2> TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. ELECTRICAL HORN(WB7) (I) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0109-0206
295 CONNECTOR; NYLON TUBE
BRAKE SYSTEM RETARDER<RE2> ZF M/T<X9E> (I) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0109-0206
295 CONNECTOR; NYLON TUBE
BRAKE SYSTEM RETARDER<RE2> ZF M/T<X9E> (I) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0207-
295 CONNECTOR; NYLON TUBE
MJX16P M/T(Y3Z) EXC. BRAKE SYSTEM RETARDER<RE2> (I) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0207-
295 CONNECTOR; NYLON TUBE
MJD7S M/T(Y2Y) EXC. BRAKE SYSTEM RETARDER<RE2>,TRANSMISSION SIDE PTO WO/LEVER(SH5) (I) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0207-
295 CONNECTOR; NYLON TUBE
MJD7S M/T(Y2Y) BRAKE SYSTEM RETARDER<RE2> TRANSMISSION SIDE PTO WO/LEVER(SH5) (I) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0207-
295 CONNECTOR; NYLON TUBE
MJD7S M/T(Y2Y) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (J) DIN6X2 & R1/4 3WAY 		1-09661-070-0 01 1 0105-0108
295 CONNECTOR; NYLON TUBE
MJD7S M/T(Y2Y) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),ELECTRICAL HORN(WB7) (J) DIN6X2 & R1/4 3WAY 		1-09661-070-0 01 1 0109-0206
295 CONNECTOR; NYLON TUBE
MJD7S M/T(Y2Y) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),ELECTRICAL HORN(WB7) (J) DIN6X2 & R1/4 3WAY 		1-09661-070-0 01 1 0207-
295 CONNECTOR; NYLON TUBE
MJD7S M/T(Y2Y) ELECTRICAL HORN(WB7) FULL FLOATING CAB(W16) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (J) DIN6X2 & R1/4 3WAY 		1-09661-070-0 01 1 0207-
295 CONNECTOR; NYLON TUBE
MJX16P M/T(Y3Z) (A) DIN8X2 & R3/8 3WAY 		1-09660-997-0 01 1 0107-0108
295 CONNECTOR; NYLON TUBE
MJX16P M/T(Y3Z) EXC. ELECTRICAL HORN(WB7) (A) DIN8X2 & R3/8 3WAY 		1-09660-997-0 01 1 0109-0206
295 CONNECTOR; NYLON TUBE
MJX16P M/T(Y3Z) (A) DIN8X2 & R3/8 3WAY 		1-09660-997-0 01 1 0207-
295 CONNECTOR; NYLON TUBE
ZF M/T<X9E> (C) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 0105-
295 CONNECTOR; NYLON TUBE
ZF M/T<X9E> (E) 		1-09661-061-0 01 1 0105-0106
295 CONNECTOR; NYLON TUBE
MJD7S M/T(Y2Y) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (E) 		1-09661-061-0 01 1 0105-0106
295 CONNECTOR; NYLON TUBE
TRANSMISSION-ZF 16S151 OD(Y2N),MJX16P M/T(Y3Z) (E) 		1-09661-061-0 01 1 0107-0108
295 CONNECTOR; NYLON TUBE
MJD7S M/T(Y2Y) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (E) 		1-09661-061-0 01 1 0107-0108
295 CONNECTOR; NYLON TUBE
ZF M/T<X9E> EXC. ELECTRICAL HORN(WB7) (E) 		1-09661-061-0 01 1 0109-0206
295 CONNECTOR; NYLON TUBE
MJX16P M/T(Y3Z) EXC. ELECTRICAL HORN(WB7) (E) 		1-09661-061-0 01 1 0109-0206
295 CONNECTOR; NYLON TUBE
MJD7S M/T(Y2Y) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) EXC. ELECTRICAL HORN(WB7) (E) 		1-09661-061-0 01 1 0109-0206
295 CONNECTOR; NYLON TUBE
ZF M/T<X9E> EXC. ELECTRICAL HORN(WB7) (E) 		1-09661-061-0 01 1 0207-
295 CONNECTOR; NYLON TUBE
ELECTRICAL HORN(WB7) FULL FLOATING CAB(W16) ZF M/T<X9E> (E) 		1-09661-061-0 01 1 0207-
295 CONNECTOR; NYLON TUBE
MJD7S M/T(Y2Y) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) EXC. ELECTRICAL HORN(WB7) (E) 		1-09661-061-0 01 1 0207-
295 CONNECTOR; NYLON TUBE
MJD7S M/T(Y2Y) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) ELECTRICAL HORN(WB7) FULL FLOATING CAB(W16) (E) 		1-09661-061-0 01 1 0207-
295 CONNECTOR; NYLON TUBE
MJX16P M/T(Y3Z) (E) 		1-09661-061-0 01 1 0207-

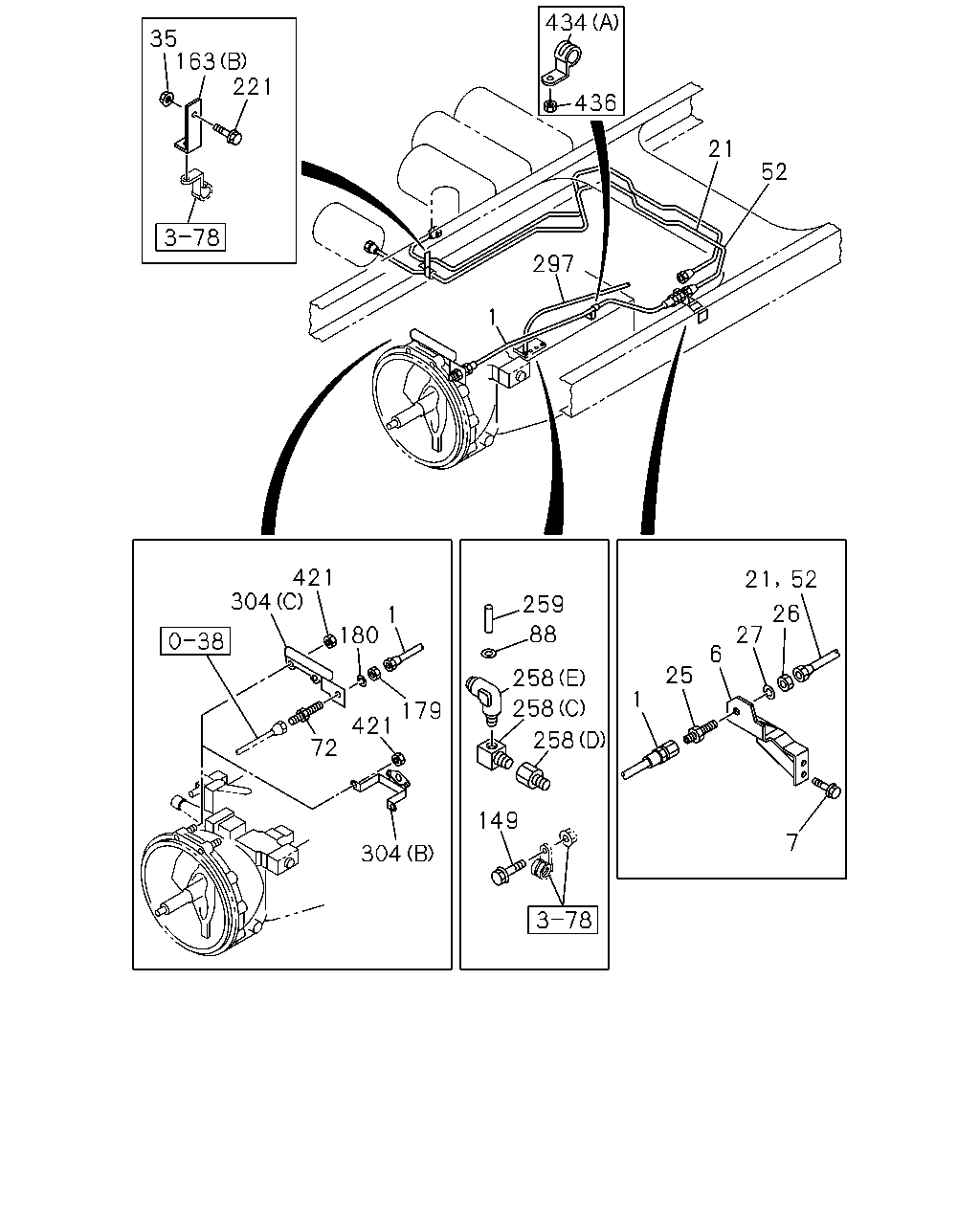

çizim 77370
434 35 163 221 436 21 52 297 1 421 304 21 52 259 26 27 1 180 88 6 25 258 1 258 179 421 258 72 149 7 304
BalonParca AdiParca NoAdetTipApplied Date
1 HOSE; FLEX,AIR TANK 1-09363-856-0 01 1 0105-
6 BRACKET; FLEX HOSE,AIR TANK 1-47478-719-1 01 1 0105-
7 BOLT; BRKT,FLEX HOSE,AIR TANK
M8X30 FLANGE 		0-28680-830-0 02 1 0105-
21 PIPE; AIR,UNION TO AIR DRYER
AIR DRYER<PS7> 		1-49123-123-0 01 1 0105-0105
21 PIPE; AIR,UNION TO AIR DRYER
AIR DRYER<PS7> 		1-49123-185-0 01 1 0106-
25 VALVE; CHECK 1-48320-042-1 01 1 0105-
26 NUT; CHECK VLV
M22 		9-09111-422-0 01 1 0105-
27 WASHER; LK,CHECK VLV
ID=22.5 		9-09150-522-0 01 1 0105-
35 NUT; BRKT
M8 FLANGE 		0-91150-108-0 01 1 0105-
52 PIPE; AIR,UNION TO AIR TANK
EXC. AIR DRYER<PS7> 		1-49123-124-0 01 1 0105-0105
52 PIPE; AIR,UNION TO AIR TANK
EXC. AIR DRYER<PS7> 		1-49123-186-0 01 1 0106-
72 UNION; AIR PIPE 1-09654-318-1 01 1 0105-
88 GASKET; NYLON TUBE
MJD7S M/T(Y2Y) ID=14.2 OD=23.0 		9-09572-014-0 01 1 0105-
149 BOLT; TUBE CLIP
M8X25 FLANGE 		0-28680-825-0 01 1 0106-
163 BRACKET; AIR PIPE
(B) 		1-34656-009-0 01 1 0105-
163 BRACKET; AIR PIPE
(A) 		1-47478-213-0 01 1 0105-
179 NUT; UNION
M22 		9-09111-422-0 01 1 0105-
180 WASHER; LK,UNION
ID=22.5 		9-09150-522-0 01 1 0105-
221 BOLT; BRKT
EXC. FULL FLOATING CAB(W16) M10X35 FLANGE 		0-28681-035-0 02 1 0111-
221 BOLT; BRKT
M8X25 FLANGE 		0-28680-825-0 02 1 0105-
221 BOLT; BRKT
M8X35 FLANGE 		0-28680-835-0 01 1 0105-
221 BOLT; BRKT
TRANSMISSION-ZF 16S151 OD(Y2N) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),AIR BAG(TFQ) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0105-0106
221 BOLT; BRKT
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) EXC. AIR BAG(TFQ) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0105-0106
221 BOLT; BRKT
TRANSMISSION-ZF 16S151 OD(Y2N),MJX16P M/T(Y3Z) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),AIR BAG(TFQ) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0107-
221 BOLT; BRKT
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) EXC. AIR BAG(TFQ) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0107-
258 CONNECTOR; NYLON TUBE
TRANSMISSION-ZF 16S151 OD(Y2N) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) DIN6 & M12 STRAIGHT 		1-09661-379-0 02 1 0105-0106
258 CONNECTOR; NYLON TUBE
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) DIN6 & M12 STRAIGHT 		1-09661-379-0 02 1 0105-0106
258 CONNECTOR; NYLON TUBE
TRANSMISSION-ZF 16S151 OD(Y2N),MJX16P M/T(Y3Z) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) DIN6 & M12 STRAIGHT 		1-09661-379-0 02 1 0107-
258 CONNECTOR; NYLON TUBE
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) DIN6 & M12 STRAIGHT 		1-09661-379-0 02 1 0107-
258 CONNECTOR; NYLON TUBE
ISUZU M/T<X9A> (E) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 0105-
258 CONNECTOR; NYLON TUBE
ISUZU M/T<X9A> (C) 		1-09661-303-0 01 1 0105-
258 CONNECTOR; NYLON TUBE
MJD7S M/T(Y2Y) (D) 		1-48319-059-0 01 1 0105-
258 CONNECTOR; NYLON TUBE
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) DIN8 R1/8 ELBOW 		1-09660-644-1 01 1 0105-0302
258 CONNECTOR; NYLON TUBE
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) TRI LC6X4-R1/8 		1-09660-760-1 01 1 0303-
259 SLEEVE; RUBBER,NYLON TUBE
ISUZU M/T<X9A> ID=23 OD=27 L=40 		1-09337-015-0 02 1 0105-0105
297 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87410-069-0 AR 1 0105-0212
297 TUBE; NYLON
SERVICED BY L=8000 OD=12 		1-87410-072-0 AR 1 0105-
297 TUBE; NYLON
SERVICED BY L=2000 OD=6 		1-87410-081-0 AR 1 0105-
297 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87410-073-0 AR 1 0301-
297 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 0301-
304 BRACKET; UNION
(D) 		1-47477-045-0 01 1 0105-
304 BRACKET; UNION
ISUZU M/T<X9A> (B) 		1-47477-183-1 01 1 0105-0106
304 BRACKET; UNION
CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) ISUZU M/T<X9A> (B) 		1-47477-183-1 01 1 0107-
304 BRACKET; UNION
ISUZU M/T<X9A> EXC. CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) (B) 		1-47477-182-1 01 1 0107-
304 BRACKET; UNION
TRANSMISSION-ZF 16S151 OD(Y2N) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),AIR BAG(TFQ) (A) 		1-71117-210-0 01 1 0105-0106
304 BRACKET; UNION
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) EXC. AIR BAG(TFQ) (A) 		1-71117-210-0 01 1 0105-0106
304 BRACKET; UNION
TRANSMISSION-ZF 16S151 OD(Y2N),MJX16P M/T(Y3Z) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),AIR BAG(TFQ) (A) 		1-71117-210-0 01 1 0107-
304 BRACKET; UNION
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) EXC. AIR BAG(TFQ) (A) 		1-71117-210-0 01 1 0107-
304 BRACKET; UNION
ZF M/T<X9E> (C) 		1-47477-757-1 01 1 0105-
421 NUT; BRKT
M10 FLANGE 		0-91150-210-0 02 1 0105-
434 CLIP
ZF M/T<X9E> (A) ID=25 H=30 L=35 		1-09700-875-0 01 1 0108-
434 CLIP
(A) D=24 L=21 		1-09700-380-0 01 1 0105-
434 CLIP
(B) L=250 		1-09707-126-0 01 1 0105-
434 CLIP
(D) ID=10 & 10 		1-09709-221-0 01 1 0105-
434 CLIP
TRANSMISSION-ZF 16S151 OD(Y2N) AIR BAG(TFQ) (C) ID=8.3 & 8.3 		8-94426-175-0 04 1 0105-0106
434 CLIP
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) AIR BAG(TFQ) (C) ID=8.3 & 8.3 		8-94426-175-0 04 1 0105-0106
434 CLIP
TRANSMISSION-ZF 16S151 OD(Y2N),MJX16P M/T(Y3Z) AIR BAG(TFQ) (C) ID=8.3 & 8.3 		8-94426-175-0 04 1 0107-
434 CLIP
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) AIR BAG(TFQ) (C) ID=8.3 & 8.3 		8-94426-175-0 04 1 0107-
434 CLIP
TRANSMISSION-ZF 16S151 OD(Y2N) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),AIR BAG(TFQ) (C) ID=8.3 & 8.3 		8-94426-175-0 03 1 0105-0106
434 CLIP
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) EXC. AIR BAG(TFQ) (C) ID=8.3 & 8.3 		8-94426-175-0 03 1 0105-0106
434 CLIP
TRANSMISSION-ZF 16S151 OD(Y2N),MJX16P M/T(Y3Z) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),AIR BAG(TFQ) (C) ID=8.3 & 8.3 		8-94426-175-0 03 1 0107-
434 CLIP
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) EXC. AIR BAG(TFQ) (C) ID=8.3 & 8.3 		8-94426-175-0 03 1 0107-
436 NUT; CLIP
ZF M/T<X9E> M8 FLANGE 		0-91150-108-0 02 1 0108-
436 NUT; CLIP
M8 FLANGE 		0-91150-108-0 01 1 0105-0107
436 NUT; CLIP
ISUZU M/T<X9A> M8 FLANGE 		0-91150-108-0 01 1 0108-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
