3-55 — BRAKE PIPING; OIL,REAR (#10184) — 26 parça

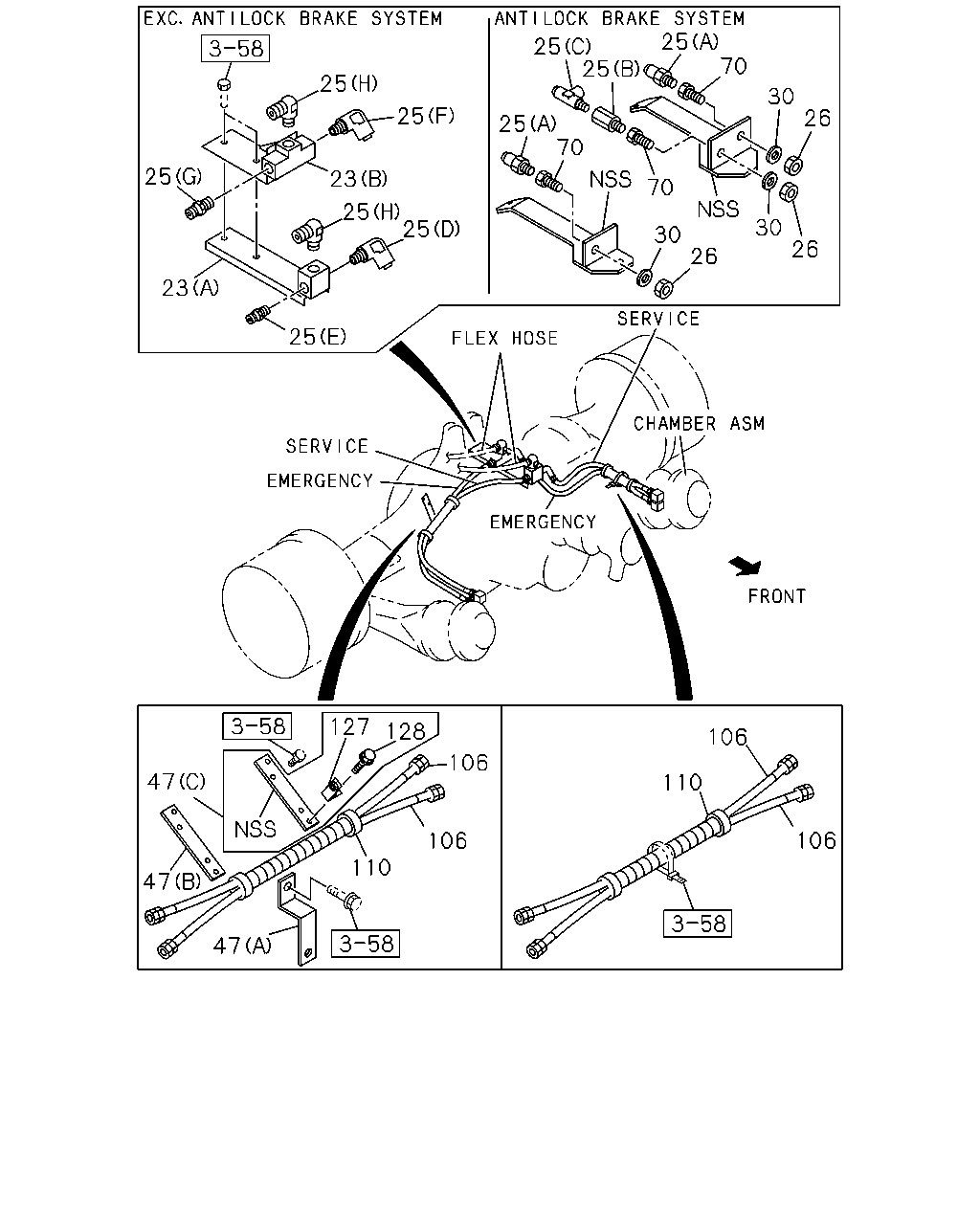

çizim 78518
25 70 25 25 25 30 26 25 25 70 25 23 70 25 25 30 30 26 26 23 25 127 128 106 106 47 110 106 106 47 110 47
BalonParca AdiParca NoAdetTipApplied Date
23 NIPPLE; W/BRKT
EXC. ANTILOCK BRAKE SYSTEM(BFA) (A) 		1-47470-380-0 01 1 0105-
23 NIPPLE; W/BRKT
EXC. ANTILOCK BRAKE SYSTEM(BFA) (B) 		1-47475-537-1 01 1 0105-
25 CONNECTOR
ANTILOCK BRAKE SYSTEM(BFA) FINAL GEAR 18.5"<C1C> EXC. BRAKE SYSTEM RETARDER<RE2> (A) DIN12 & M20 STRAIGHT 		1-09660-877-0 02 1 0105-
25 CONNECTOR
ANTILOCK BRAKE SYSTEM(BFA) FINAL GEAR 18.5"<C1C> EXC. BRAKE SYSTEM RETARDER<RE2> (B) M20 & RC3/8 STRAIGHT 		1-09660-883-0 01 1 0105-
25 CONNECTOR
ANTILOCK BRAKE SYSTEM(BFA) FINAL GEAR 18.5"<C1C> EXC. BRAKE SYSTEM RETARDER<RE2> (C) DIN8X2 & R3/8 3WAY 		1-09660-997-0 01 1 0105-
25 CONNECTOR
EXC. ANTILOCK BRAKE SYSTEM(BFA) (H) M27 & PT3/8 ELBOW 		1-09660-136-1 01 1 0105-
25 CONNECTOR
EXC. ANTILOCK BRAKE SYSTEM(BFA) (H) M27 & PT3/8 ELBOW 		1-09660-136-1 01 1 0105-
25 CONNECTOR
EXC. ANTILOCK BRAKE SYSTEM(BFA) (F) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0105-
25 CONNECTOR
EXC. ANTILOCK BRAKE SYSTEM(BFA) (G) DIN8 & R3/8 STRAIGHT 		1-09660-964-0 01 1 0105-
25 CONNECTOR
EXC. ANTILOCK BRAKE SYSTEM(BFA),BRAKE SYSTEM RETARDER<RE2> (D) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 0105-
25 CONNECTOR
EXC. ANTILOCK BRAKE SYSTEM(BFA),BRAKE SYSTEM RETARDER<RE2> (E) DIN12 & R3/8 STRAIGHT 		1-09660-965-0 01 1 0105-
25 CONNECTOR
BRAKE SYSTEM RETARDER<RE2> EXC. ANTILOCK BRAKE SYSTEM(BFA) (D) M20 & PT3/8 ELBOW 		1-09660-684-0 01 1 0105-
25 CONNECTOR
BRAKE SYSTEM RETARDER<RE2> EXC. ANTILOCK BRAKE SYSTEM(BFA) (E) M20 & PT3/8 		1-09660-731-0 01 1 0105-
26 NUT; UNION
ANTILOCK BRAKE SYSTEM(BFA) FINAL GEAR 18.5"<C1C> EXC. BRAKE SYSTEM RETARDER<RE2> M20 		9-99111-420-0 03 1 0105-
30 WASHER; LK,UNION
ANTILOCK BRAKE SYSTEM(BFA) FINAL GEAR 18.5"<C1C> EXC. BRAKE SYSTEM RETARDER<RE2> ID=20.2 		9-09150-520-0 03 1 0105-
47 BRACKET
EXC. ANTILOCK BRAKE SYSTEM(BFA),BRAKE SYSTEM RETARDER<RE2> (B) 		1-42119-065-0 01 1 0105-
47 BRACKET
BRAKE SYSTEM RETARDER<RE2> EXC. ANTILOCK BRAKE SYSTEM(BFA) (C) 		1-42119-151-0 01 1 0105-
47 BRACKET
BRAKE SYSTEM RETARDER<RE2> EXC. ANTILOCK BRAKE SYSTEM(BFA) (A) 		1-47477-908-1 01 1 0105-
70 UNION; NYLON TUBE
ANTILOCK BRAKE SYSTEM(BFA) FINAL GEAR 18.5"<C1C> EXC. BRAKE SYSTEM RETARDER<RE2> M20 STRAIGHT 		1-09654-240-1 03 1 0105-
106 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87410-069-0 AR 1 0105-
106 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87410-073-0 AR 1 0105-
110 TUBE; CORRUGATE
SERVICED BY L=2000 ID=10 		1-87410-088-0 AR 1 0105-
110 TUBE; CORRUGATE
SERVICED BY L=2000 ID=13 		1-87410-091-0 AR 1 0105-
110 TUBE; CORRUGATE
SERVICED BY L=2000 ID=19 		1-87410-094-0 AR 1 0105-
127 BRACKET; HARNESS
BRAKE SYSTEM RETARDER<RE2> EXC. ANTILOCK BRAKE SYSTEM(BFA) 		1-42119-152-0 01 1 0105-
128 BOLT; BRKT
BRAKE SYSTEM RETARDER<RE2> EXC. ANTILOCK BRAKE SYSTEM(BFA) M8X20 FLANGE 		0-28680-820-0 01 1 0105-
