3-41 — REAR BRAKE POWER CHAMBER (#10181) — 72 parça

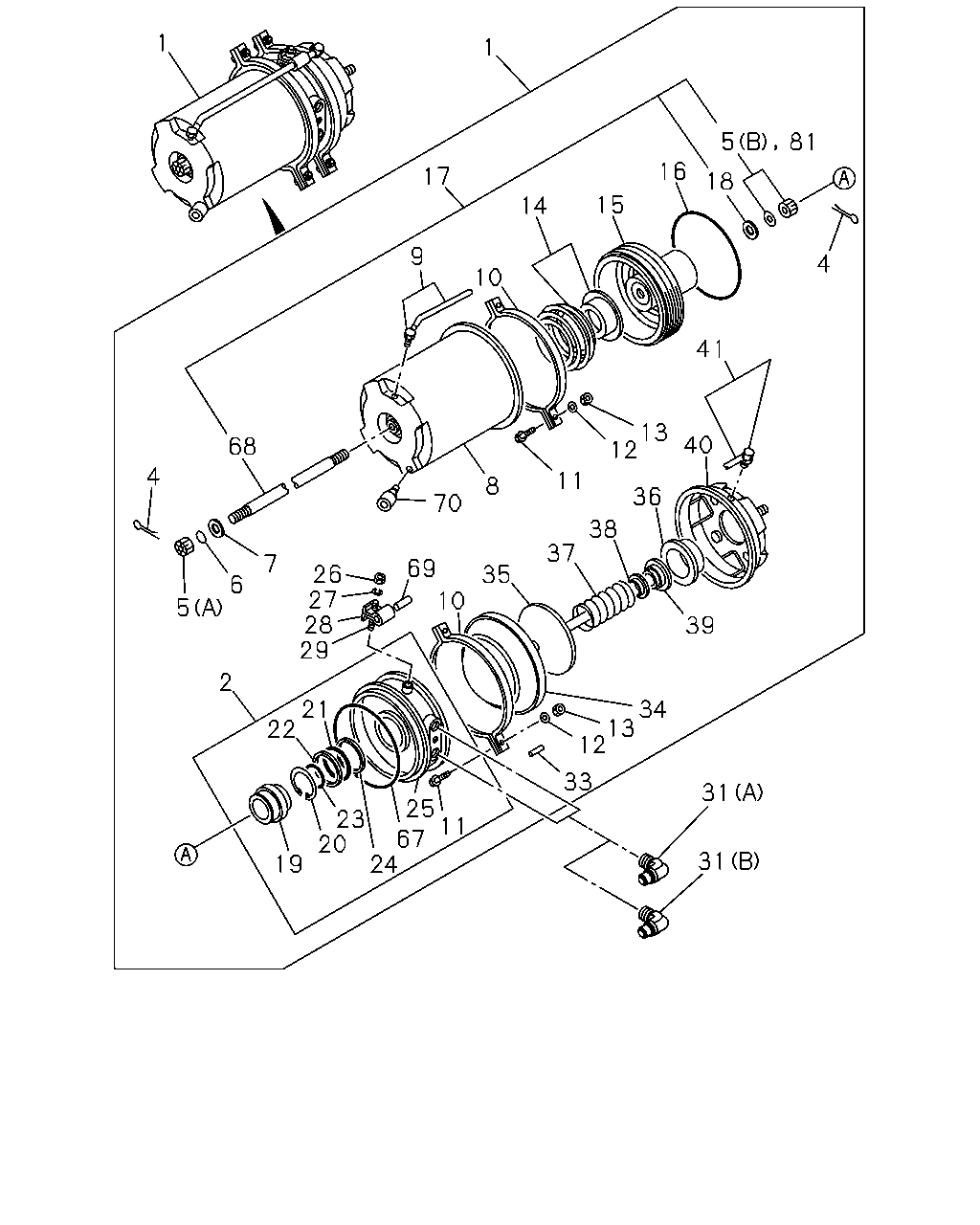

çizim 22429
1 1 5 81 16 17 18 15 14 9 4 10 41 13 12 40 68 4 11 8 36 70 38 37 7 69 26 27 28 29 35 6 10 5 39 2 34 13 12 21 22 33 31 25 11 23 20 67 24 31 19
BalonParca AdiParca NoAdetTipApplied Date
1 CHAMBER ASM; SPRING 1-48250-181-2 01 1 0105-
1 CHAMBER ASM; SPRING
BRAKE SYSTEM RETARDER<RE2> 		1-48250-664-1 01 1 0105-
1 CHAMBER ASM; SPRING
EXC. BRAKE SYSTEM RETARDER<RE2> 		1-48250-180-2 01 1 0105-
2 CHAMBER; EMERGENCY
BRAKE SYSTEM RETARDER<RE2> 		1-48252-058-0 01 1 0105-
2 CHAMBER; EMERGENCY 1-48252-019-0 01 1 0105-
2 CHAMBER; EMERGENCY
EXC. BRAKE SYSTEM RETARDER<RE2> 		1-48252-018-0 01 1 0105-
4 PIN; STRAIGHT,SPR CHAMBER 1-48259-056-0 04 1 0105-
5 NUT; SHELL
(A) 		1-48259-054-0 02 1 0105-
5 NUT; SHELL
BRAKE SYSTEM RETARDER<RE2> (B) 		1-48259-074-0 01 1 0105-
5 NUT; SHELL
EXC. BRAKE SYSTEM RETARDER<RE2> (B) 		1-48259-074-0 02 1 0105-
6 GASKET; SHELL
BRAKE SYSTEM RETARDER<RE2> 		1-48259-055-0 02 1 0105-
7 GASKET
BRAKE SYSTEM RETARDER<RE2> 		1-48259-055-0 01 1 0105-
7 GASKET
BRAKE SYSTEM RETARDER<RE2> 		9-09920-268-0 01 1 0105-
7 GASKET
EXC. BRAKE SYSTEM RETARDER<RE2> 		1-48259-055-0 02 1 0105-
8 SHELL; CYL,SPR CHAMBER 1-48259-070-1 01 1 0105-
8 SHELL; CYL,SPR CHAMBER 1-48259-069-1 01 1 0105-
9 PIPE ASM; SHELL 1-48259-076-0 02 1 0105-
10 RING; CLAMP,SPR CHAMBER 1-48259-016-0 04 1 0105-
11 BOLT; CLAMP RING
BRAKE SYSTEM RETARDER<RE2> 		1-48259-035-0 04 1 0105-
11 BOLT; CLAMP RING
BRAKE SYSTEM RETARDER<RE2> 		1-48259-092-0 04 1 0105-
11 BOLT; CLAMP RING
EXC. BRAKE SYSTEM RETARDER<RE2> 		1-48259-035-0 08 1 0105-
12 WASHER; LK,CLAMP RING
BRAKE SYSTEM RETARDER<RE2> 		1-48259-046-0 04 1 0105-
12 WASHER; LK,CLAMP RING
BRAKE SYSTEM RETARDER<RE2> ID=10.2 		9-09150-510-0 04 1 0105-
12 WASHER; LK,CLAMP RING
EXC. BRAKE SYSTEM RETARDER<RE2> 		1-48259-046-0 08 1 0105-
13 NUT; CLAMP RING
BRAKE SYSTEM RETARDER<RE2> M10 		9-09110-510-0 04 1 0105-
13 NUT; CLAMP RING
BRAKE SYSTEM RETARDER<RE2> 		9-83315-080-0 04 1 0105-
13 NUT; CLAMP RING
EXC. BRAKE SYSTEM RETARDER<RE2> M10 		9-09110-510-0 08 1 0105-
14 SPRING & SEAT SET 1-48259-037-0 02 1 0105-
15 PISTON 1-48262-005-0 02 1 0105-
16 GASKET 1-48259-048-0 02 1 0105-
17 BOLT ASM; EMERGENCY 1-48259-073-0 02 1 0105-
18 WASHER; PISTON COVER,SPR CHAMBER
BRAKE SYSTEM RETARDER<RE2> 		1-48259-098-0 01 1 0105-
19 COVER; PISTON 1-48269-011-0 02 1 0105-
20 RING; RET 1-48259-060-0 02 1 0105-
21 GASKET; SPR CHAMBER
BRAKE SYSTEM RETARDER<RE2> 		1-48259-049-0 01 1 0105-
21 GASKET; SPR CHAMBER
BRAKE SYSTEM RETARDER<RE2> 		1-48259-047-0 01 1 0105-
21 GASKET; SPR CHAMBER
EXC. BRAKE SYSTEM RETARDER<RE2> 		1-48259-049-0 02 1 0105-
22 RING; BACKUP,SPR CHAMBER 1-48259-019-0 02 1 0105-
23 GASKET; SPR CHAMBER
BRAKE SYSTEM RETARDER<RE2> 		1-48259-047-0 01 1 0105-
23 GASKET; SPR CHAMBER
BRAKE SYSTEM RETARDER<RE2> 		1-48259-049-0 01 1 0105-
23 GASKET; SPR CHAMBER
EXC. BRAKE SYSTEM RETARDER<RE2> 		1-48259-047-0 02 1 0105-
24 BEARING; SPR CHAMBER 1-48259-020-0 02 1 0105-
25 PLATE; PRESSURE,SPR CHAMBER
BRAKE SYSTEM RETARDER<RE2> 		1-48259-086-0 02 1 0105-
25 PLATE; PRESSURE,SPR CHAMBER
EXC. BRAKE SYSTEM RETARDER<RE2> 		1-48259-086-0 01 1 0105-
25 PLATE; PRESSURE,SPR CHAMBER
EXC. BRAKE SYSTEM RETARDER<RE2> 		1-48259-085-0 01 1 0105-
26 NUT; PRESSURE PLATE 1-48259-058-0 04 1 0105-
27 WASHER; PRESSURE PLATE
BRAKE SYSTEM RETARDER<RE2> 		1-48259-057-0 01 1 0105-
27 WASHER; PRESSURE PLATE
BRAKE SYSTEM RETARDER<RE2> ID=8.2 		9-09150-508-0 01 1 0105-
27 WASHER; PRESSURE PLATE
EXC. BRAKE SYSTEM RETARDER<RE2> 		1-48259-057-0 02 1 0105-
28 BRACKET; PRESSURE PLATE,HOSE 1-48259-059-0 02 1 0105-
29 STUD; PRESSURE PLATE 1-48259-050-0 02 1 0105-
31 CONNECTOR
(A) DIN8 & R3/8 ELBOW 		1-09660-652-1 01 1 0105-
31 CONNECTOR
BRAKE SYSTEM RETARDER<RE2> (B) 		1-47815-035-0 01 1 0105-
31 CONNECTOR
EXC. BRAKE SYSTEM RETARDER<RE2> (B) DIN12 & R3/8 ELBOW 		1-09660-653-1 01 1 0105-
33 RETAINER; DIAPH 1-48259-044-0 04 1 0105-
34 DIAPHRAGM
BRAKE SYSTEM RETARDER<RE2> 		1-48252-010-0 01 1 0105-
34 DIAPHRAGM
BRAKE SYSTEM RETARDER<RE2> 		1-48252-056-0 01 1 0105-
34 DIAPHRAGM
EXC. BRAKE SYSTEM RETARDER<RE2> 		1-48252-010-0 02 1 0105-
35 PLATE; ROD END,SPR CHAMBER 1-48253-010-0 02 1 0105-
36 RETAINER; SPR CHAMBER 1-48259-043-0 02 1 0105-
37 SPRING; LWR,SPR CHAMBER 1-48255-003-0 02 1 0105-
38 COVER; ROD & PLATE 1-48259-066-0 02 1 0105-
39 COVER; ROD & PLATE 1-48259-065-0 02 1 0105-
40 COVER ASM; LWR,SPR CHAMBER 1-48259-068-1 01 1 0105-
40 COVER ASM; LWR,SPR CHAMBER
BRAKE SYSTEM RETARDER<RE2> 		1-48250-067-1 01 1 0105-
40 COVER ASM; LWR,SPR CHAMBER
EXC. BRAKE SYSTEM RETARDER<RE2> 		1-48259-067-1 01 1 0105-
41 PIPE ASM; LWR COVER 1-48259-075-0 02 1 0105-
67 GASKET; SPR CHAMBER 1-48259-053-0 02 1 0105-
68 BOLT; PISTON COVER
BRAKE SYSTEM RETARDER<RE2> 		1-48259-026-0 01 1 0105-
69 HOSE; PRESSURE PLATE 1-48259-051-0 02 1 0105-
70 COVER; EXH,SPR CHAMBER 1-48259-052-0 02 1 0105-
81 NUT ASM; EMERGENCY
BRAKE SYSTEM RETARDER<RE2> 		1-48259-074-0 01 1 0105-
