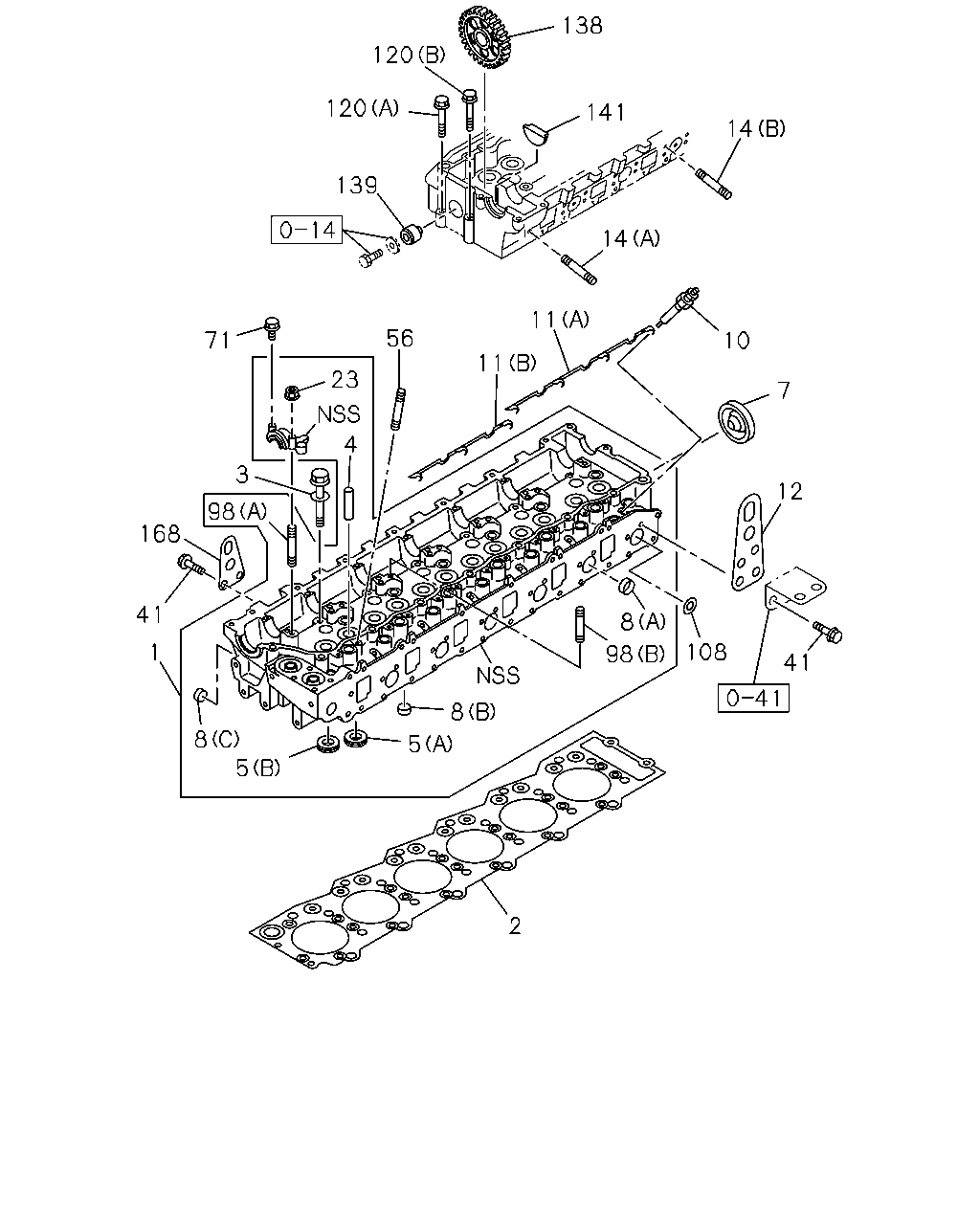

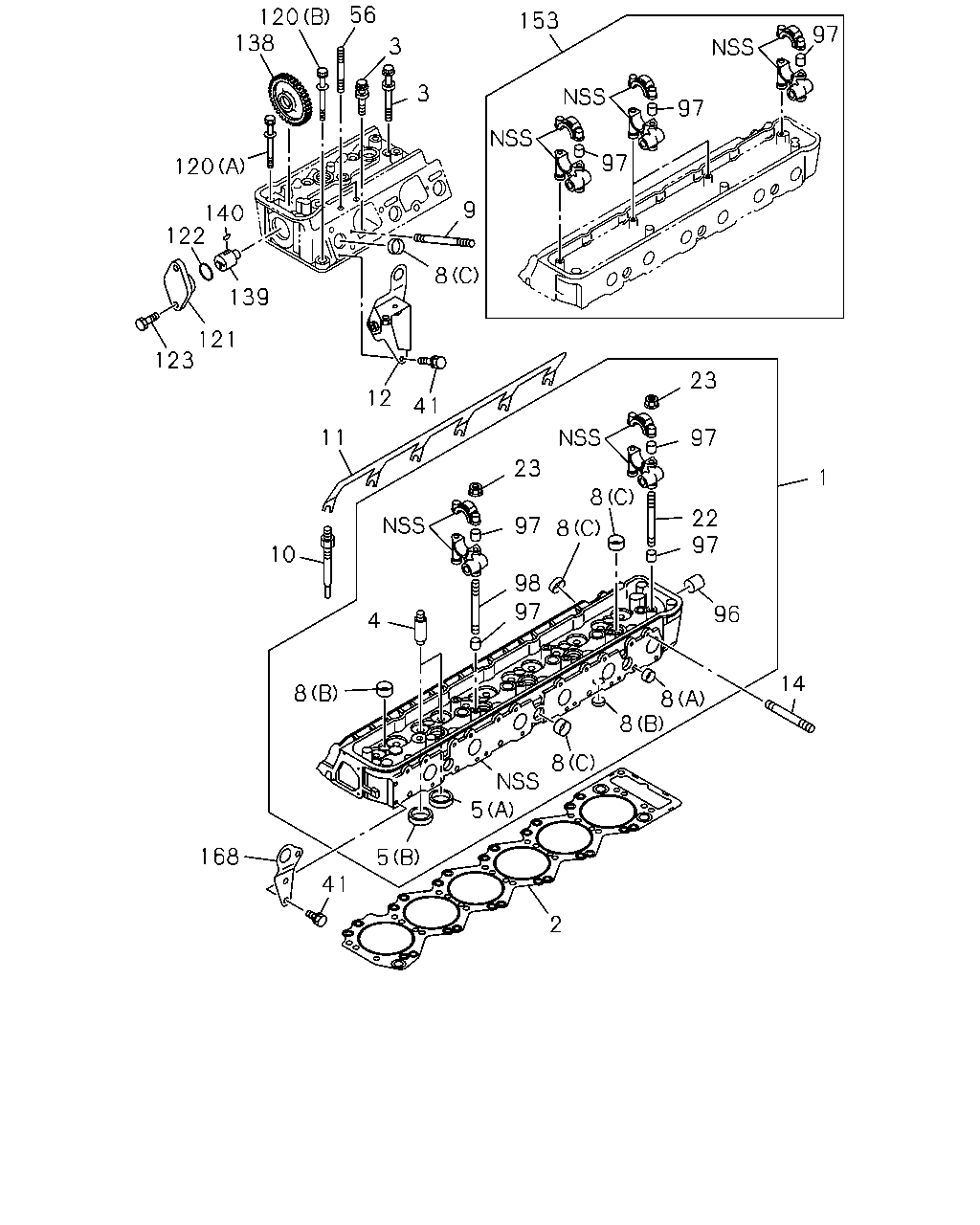

1 |
HEAD ASM; CYL
|
1-11110-699-1 |
01 |
1 |
9202- |
● |
|
|
| |
1 |
HEAD ASM; CYL
|
1-11110-704-1 |
01 |
1 |
9202- |
|
● |
|
| |
1 |
HEAD ASM; CYL
|
8-94393-218-1 |
01 |
1 |
9202-9309 |
|
|
● |
| |
1 |
HEAD ASM; CYL
|
8-94394-918-4 |
01 |
1 |
9310- |
|
|
● |
| |
2 |
GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
|
1-11141-161-0 |
01 |
1 |
9202- |
● |
|
|
| |
2 |
GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
|
1-11141-220-0 |
01 |
1 |
9202- |
|
● |
|
| |
2 |
GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
|
8-94396-334-0 |
01 |
1 |
9202- |
|
|
● |
| |
3 |
BOLT; CYL HD TO BLOCK
M14X125 FLANGE W/PL WASHER
|
1-09070-043-1 |
20 |
1 |
9202- |
● |
● |
|
| |
3 |
BOLT; CYL HD TO BLOCK
M14X67 FLANGE W/PL WASHER
|
1-09070-044-1 |
06 |
1 |
9202- |
● |
● |
|
| |
3 |
BOLT; CYL HD TO BLOCK
M14X115 W/FLANGE
|
8-94396-207-1 |
26 |
1 |
9202- |
|
|
● |
| |
4 |
GUIDE; VLV
|
1-11721-008-0 |
12 |
1 |
9202- |
● |
● |
|
| |
4 |
GUIDE; VLV
|
8-94396-598-0 |
12 |
1 |
9202- |
|
|
● |
| |
5 |
SEAT; VLV INSERT
(B)
|
1-11715-046-0 |
06 |
1 |
9202- |
● |
|
|
| |
5 |
SEAT; VLV INSERT
(A)
ID=40
|
1-11711-041-0 |
06 |
1 |
9202-9210 |
● |
● |
|
| |
5 |
SEAT; VLV INSERT
(A)
|
1-11711-051-0 |
06 |
1 |
9211- |
● |
● |
|
| |
5 |
SEAT; VLV INSERT
(B)
|
1-11715-070-0 |
06 |
1 |
9202- |
|
● |
|
| |
5 |
SEAT; VLV INSERT
(A)
|
8-94397-424-0 |
06 |
1 |
9202-9309 |
|
|
● |
| |
5 |
SEAT; VLV INSERT
(A)
OD=43
|
8-94396-172-0 |
06 |
1 |
9310- |
|
|
● |
| |
5 |
SEAT; VLV INSERT
(B)
|
8-94399-148-0 |
06 |
1 |
9202-9309 |
|
|
● |
| |
5 |
SEAT; VLV INSERT
(B)
|
8-94396-171-0 |
06 |
1 |
9310- |
|
|
● |
| |
8 |
CUP; SEALING,WATER JACKET
(A)
OD=12
|
1-09600-010-1 |
06 |
1 |
9202- |
● |
● |
|
| |
8 |
CUP; SEALING,WATER JACKET
(B)
OD=22
|
1-09600-011-2 |
11 |
1 |
9202- |
● |
● |
|
| |
8 |
CUP; SEALING,WATER JACKET
(C)
OD=32
|
1-09600-012-1 |
14 |
1 |
9202- |
● |
● |
|
| |
8 |
CUP; SEALING,WATER JACKET
(A)
OD=32
|
1-09600-012-1 |
17 |
1 |
9202- |
|
|
● |
| |
8 |
CUP; SEALING,WATER JACKET
(B)
OD=25
|
1-09600-016-0 |
03 |
1 |
9202- |
|
|
● |
| |
8 |
CUP; SEALING,WATER JACKET
(C)
OD=12.3
|
5-09600-013-0 |
06 |
1 |
9202- |
|
|
● |
| |
9 |
STUD; INL MANIF
M8X50 L=62
|
9-04110-850-0 |
02 |
1 |
9202- |
● |
|
|
| |
9 |
STUD; INL MANIF
M8X85 L=100
|
9-09830-177-0 |
04 |
1 |
9202-9504 |
● |
|
|
| |
9 |
STUD; INL MANIF
M8X86 L=99
|
9-09630-026-0 |
04 |
1 |
9202-9504 |
|
● |
|
| |
9 |
STUD; INL MANIF
M8X86 L=99
|
9-09630-026-0 |
04 |
1 |
9505- |
● |
● |
|
| |
9 |
STUD; INL MANIF
M8X161
|
9-09830-150-0 |
01 |
1 |
9202- |
|
● |
|
| |
10 |
PLUG; GLOW
|
9-82513-928-8 |
06 |
1 |
9202- |
● |
● |
● |
| |
11 |
CONNECTOR; GLOW PLUG
|
1-19732-011-0 |
01 |
1 |
9202- |
● |
● |
|
| |
11 |
CONNECTOR; GLOW PLUG
(A)
|
8-94399-608-2 |
01 |
1 |
9202- |
|
|
● |
| |
11 |
CONNECTOR; GLOW PLUG
(B)
|
8-94399-631-2 |
01 |
1 |
9202- |
|
|
● |
| |
12 |
HANGER; ENG,RR
|
1-11777-099-0 |
01 |
1 |
9202- |
● |
● |
|
| |
12 |
HANGER; ENG,RR
|
8-94399-405-0 |
01 |
1 |
9202- |
|
|
● |
| |
14 |
STUD; EXH MANIF
ENGINE OIL LEVEL GAUGE WIDE NECK<WY9>
M10X104 L=119
|
1-09302-104-1 |
07 |
1 |
9202- |
● |
● |
|
| |
14 |
STUD; EXH MANIF
ENGINE OIL LEVEL GAUGE WIDE NECK<WY9>
M10X135 L=150
|
1-09302-159-0 |
05 |
1 |
9202- |
● |
● |
|
| |
14 |
STUD; EXH MANIF
EXC. ENGINE OIL LEVEL GAUGE WIDE NECK<WY9>
M10X104 L=119
|
1-09302-104-1 |
12 |
1 |
9202- |
● |
● |
|
| |
14 |
STUD; EXH MANIF
(A)
M10X93 L=108
|
8-94396-123-0 |
10 |
1 |
9202- |
|
|
● |
| |
14 |
STUD; EXH MANIF
(B)
M10X60 L=75
|
8-94397-286-0 |
02 |
1 |
9202- |
|
|
● |
| |
22 |
STUD; CAM BRKT
M8X124 L=142
|
1-09300-033-1 |
02 |
1 |
9202- |
● |
● |
|
| |
23 |
NUT; CAM BRKT
M8 FLANGE
|
9-09844-190-0 |
08 |
1 |
9202- |
● |
● |
|
| |
23 |
NUT; CAM BRKT
M8 FLANGE
|
0-91150-208-0 |
14 |
1 |
9202- |
|
|
● |
| |
41 |
BOLT; ENG HANGER
M10X20 W/LK WASHER
|
0-50051-020-0 |
05 |
1 |
9202- |
● |
● |
|
| |
41 |
BOLT; ENG HANGER
M10X20 FLANGE
|
0-28181-020-0 |
02 |
1 |
9202- |
|
|
● |
| |
41 |
BOLT; ENG HANGER
M12X22 FLANGE
|
0-28181-222-0 |
01 |
1 |
9202- |
|
|
● |
| |
41 |
BOLT; ENG HANGER
M12X28 FLANGE
|
0-28181-228-0 |
02 |
1 |
9202- |
|
|
● |
| |
56 |
STUD; NOZZLE HOLDER
M8X40 L=58
|
1-09300-018-0 |
12 |
1 |
9202- |
● |
● |
|
| |
56 |
STUD; NOZZLE HOLDER
M8X66 L=90
|
1-09300-014-0 |
12 |
1 |
9202- |
|
|
● |
| |
96 |
BUSHING; IDLE SHAFT
|
1-12528-007-0 |
01 |
1 |
9202- |
● |
● |
|
| |
97 |
DOWEL; CAM BRKT SET
|
1-11229-012-1 |
16 |
1 |
9202- |
● |
● |
|
| |
98 |
STUD; CAM BRKT
M8X114 L=132
|
1-09300-028-1 |
06 |
1 |
9202- |
● |
● |
|
| |
98 |
STUD; CAM BRKT
(A)
M8X54 L=79
|
8-94322-512-2 |
02 |
1 |
9202- |
|
|
● |
| |
98 |
STUD; CAM BRKT
(B)
M8X41 L=66
|
8-94322-513-2 |
12 |
1 |
9202- |
|
|
● |
| |
120 |
BOLT; CYL HD TO HSG
(B)
M10X34 FLANGE W/PL WASHER
|
1-09070-059-0 |
01 |
1 |
9202- |
● |
● |
|
| |
120 |
BOLT; CYL HD TO HSG
(A)
M10X122 FLANGE W/PL WASHER
|
1-09070-060-0 |
02 |
1 |
9202- |
● |
● |
|
| |
120 |
BOLT; CYL HD TO HSG
(A)
M10X73
|
8-94399-554-0 |
01 |
1 |
9202- |
|
|
● |
| |
120 |
BOLT; CYL HD TO HSG
(B)
M10X43
|
8-94399-555-0 |
01 |
1 |
9202- |
|
|
● |
| |
121 |
COVER; IDLE GEAR,CYL HD
|
1-11321-100-0 |
01 |
1 |
9202- |
● |
● |
|
| |
122 |
GASKET; COVER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
|
1-09623-208-0 |
01 |
1 |
9202- |
● |
● |
|
| |
123 |
BOLT; COVER
M8X20 W/LK&PL WASHER
|
0-50140-820-0 |
02 |
1 |
9202- |
● |
● |
|
| |
138 |
GEAR; IDLE
Z=39
|
1-12523-111-1 |
01 |
1 |
9202- |
● |
● |
|
| |
138 |
GEAR; IDLE
Z=41
|
8-94396-834-1 |
01 |
1 |
9202-9409 |
|
|
● |
| |
138 |
GEAR; IDLE
Z=41
|
8-97112-607-0 |
01 |
1 |
9410- |
|
|
● |
| |
139 |
SHAFT; IDLE GEAR
|
1-12531-014-2 |
01 |
1 |
9202- |
● |
● |
|
| |
139 |
SHAFT; IDLE GEAR
|
8-97065-555-1 |
01 |
1 |
9202- |
|
|
● |
| |
140 |
KEY; IDLE GEAR
|
9-08055-522-0 |
01 |
1 |
9202- |
● |
● |
|
| |
153 |
BRACKET KIT; CAM,CYL HD
|
1-12516-125-1 |
01 |
1 |
9202- |
● |
● |
|
| |
168 |
HANGER; ENG,FRT
|
1-11777-096-0 |
01 |
1 |
9202- |
● |
● |
|
| |
168 |
HANGER; ENG,FRT
|
8-94399-403-0 |
01 |
1 |
9202- |
|
|
● |
