3-26 — TRAILER CONTROL (#10178) — 171 parça

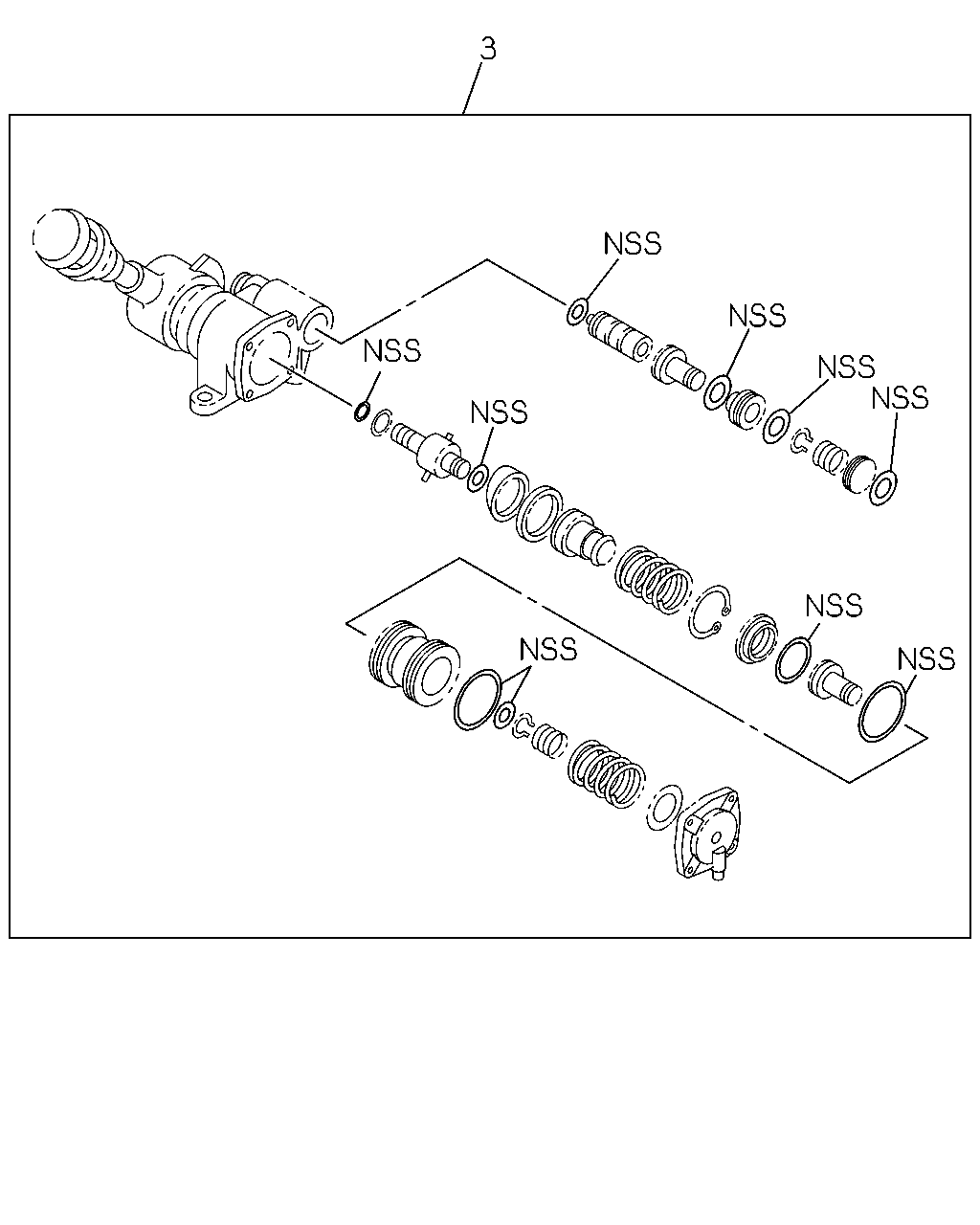

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
	3	REPAIR KIT; HAND BRK VLV	1-85576-245-0	01	1	0105-0105
	3	REPAIR KIT; HAND BRK VLV	1-48469-083-0	01	1	0106-

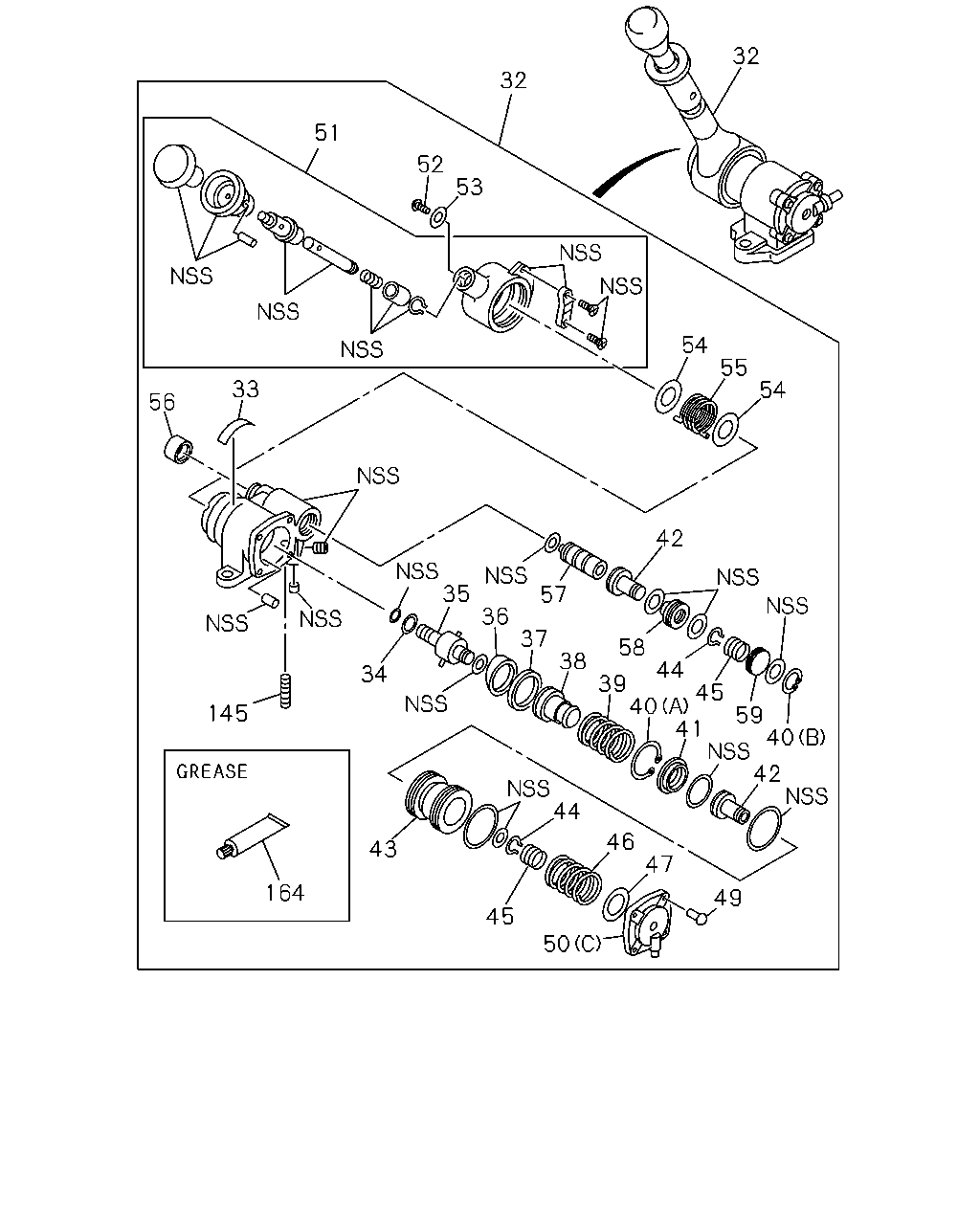

32 32 51 52 53 54 55 33 54 56 42 35 57 36 37 58 38 44 34 39 45 40 41 42 145 59 40 44 46 43 47 164 49 45 50

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
32	VALVE; BRK,HAND CONT BRAKE REGULATION HONG KONG<TCZ>	1-48460-341-0	01	1	0105-0105
32	VALVE; BRK,HAND CONT EXC. BRAKE REGULATION HONG KONG<TCZ>	1-48460-339-0	01	1	0105-0105
32	VALVE; BRK,HAND CONT	1-48460-316-0	01	1	0106-
33	PLATE; CAUTION	1-48469-121-0	01	1	0106-
34	SHIM; CAM HOLDER	1-48469-055-0	AR	1	0105-
35	HOLDER; CAM BRAKE REGULATION HONG KONG<TCZ>	1-48469-207-0	01	1	0105-0105
35	HOLDER; CAM	1-48469-054-0	01	1	0106-
35	HOLDER; CAM EXC. BRAKE REGULATION HONG KONG<TCZ>	1-48469-171-0	01	1	0105-0105
36	RING; CAM	1-48469-056-0	01	1	0106-
37	GUIDE; CAM RING	1-48469-058-0	01	1	0106-
38	SEAT; EXH VLV	1-48469-172-0	01	1	0105-0105
38	SEAT; EXH VLV	1-48469-057-0	01	1	0106-
39	SPRING; RETURN,CAM RING	1-48469-150-0	01	1	0105-0105
39	SPRING; RETURN,CAM RING	1-48469-063-0	01	1	0106-
40	RING; SNAP (A)	1-48469-067-0	01	1	0106-
40	RING; SNAP (B)	1-48469-079-0	01	1	0106-
41	SEAT; FEED VLV	1-48469-066-0	01	1	0106-
42	VALVE; FEED	1-48469-065-0	02	1	0106-
43	PISTON; HAND BRK VLV BRAKE REGULATION HONG KONG<TCZ>	1-48469-151-0	01	1	0105-0105
43	PISTON; HAND BRK VLV	1-48469-064-0	01	1	0106-
44	RING; SNAP,FEED VLV	1-48469-068-0	02	1	0106-
45	SPRING; FEED VLV	1-48469-070-0	02	1	0106-
46	SPRING; MAIN,PISTON	1-48469-173-0	01	1	0105-0105
46	SPRING; MAIN,PISTON	1-48469-119-0	01	1	0106-
47	SHIM; MAIN SPRING	1-48469-072-0	AR	1	0105-
49	SCREW; COVER	1-48469-169-0	04	1	0105-0105
49	SCREW; COVER	1-48469-120-0	04	1	0106-
50	COVER; HAND BRK VLV (A)	1-48469-153-0	01	1	0105-0105
50	COVER; HAND BRK VLV (C)	1-48469-073-0	01	1	0106-
50	COVER; HAND BRK VLV (B)	1-48469-196-0	01	1	0105-0105
51	HANDLE ASM; HAND BRK VLV	1-48469-060-0	01	1	0106-
52	SCREW; HANDLE	1-48469-062-0	01	1	0105-
53	WASHER; HANDLE	1-48469-061-0	01	1	0105-
54	SEAT; SPRING	1-48469-082-0	02	1	0106-
55	SPRING; RETURN,HANDLE	1-48469-155-0	01	1	0105-0105
55	SPRING; RETURN,HANDLE	1-48469-059-0	01	1	0106-
56	BOOT; PLUNGER	1-48469-080-0	01	1	0106-
57	PLUNGER; HAND BRK VLV	1-48469-180-0	01	1	0105-0105
57	PLUNGER; HAND BRK VLV	1-48469-076-0	01	1	0106-
58	HOLDER; FEED VLV	1-48469-077-0	01	1	0106-
59	HOLDER; SPRING	1-48469-078-0	01	1	0106-
145	STUD; HAND BRK VLV	1-48469-069-0	01	1	0106-
164	GREASE; HAND BRK VLV	1-48469-084-0	01	1	0106-

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
	3	REPAIR KIT; HAND BRK VLV	1-85576-245-0	01	1	0105-0105
	3	REPAIR KIT; HAND BRK VLV	1-48469-083-0	01	1	0106-

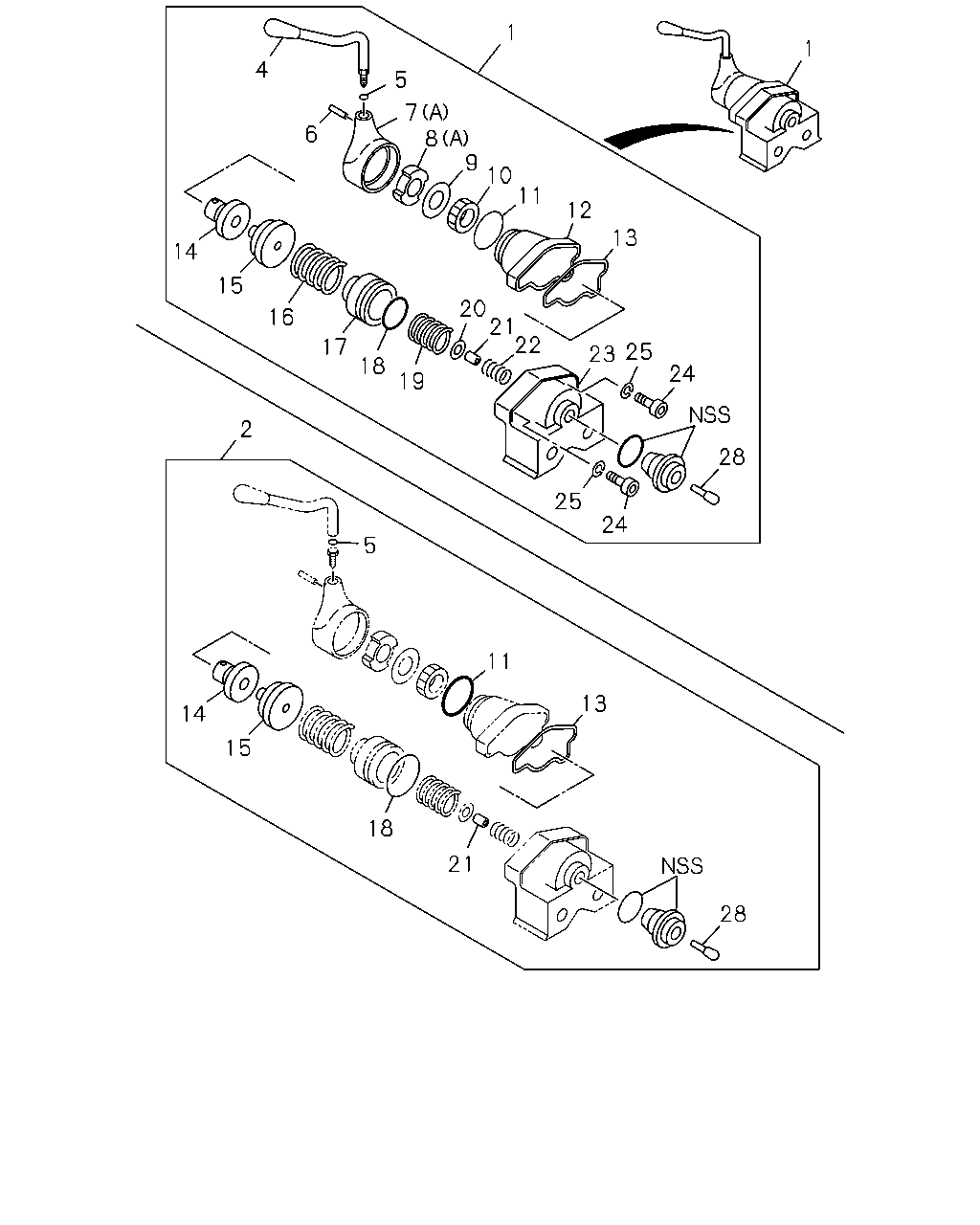

1 1 4 5 7 8 6 9 10 11 12 13 14 15 20 21 22 16 17 25 23 18 24 19 2 28 25 24 5 11 13 14 15 18 21 28

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	VALVE ASM; HAND BRK TRAILER BRAKE HAND CONTROL<NLG>	1-48100-849-0	01	1	0105-
2	REPAIR KIT; HAND BRK VLV TRAILER BRAKE HAND CONTROL<NLG>	1-85576-180-0	01	1	0105-
4	HANDLE ASM; BRK VLV TRAILER BRAKE HAND CONTROL<NLG>	1-48119-517-0	01	1	0105-
5	GASKET; HANDLE TRAILER BRAKE HAND CONTROL<NLG>	1-48119-128-0	01	1	0105-
6	PIN; SPR TRAILER BRAKE HAND CONTROL<NLG>	1-48119-143-0	01	1	0105-
7	HEAD; BRK VLV BRAKE REGULATION HONG KONG<TCZ> (B)	1-48469-209-0	01	1	0105-0105
7	HEAD; BRK VLV EXC. BRAKE REGULATION HONG KONG<TCZ> (B)	1-48469-201-0	01	1	0105-0105
7	HEAD; BRK VLV TRAILER BRAKE HAND CONTROL<NLG> (A)	1-48119-131-0	01	1	0105-
8	STOPPER; BRK VLV (B)	1-48469-200-0	01	1	0105-0105
8	STOPPER; BRK VLV TRAILER BRAKE HAND CONTROL<NLG> (A)	1-48119-136-0	01	1	0105-
9	WASHER; LK,ADJ TRAILER BRAKE HAND CONTROL<NLG>	1-48119-123-0	01	1	0105-
10	RING; ADJ TRAILER BRAKE HAND CONTROL<NLG>	1-48119-122-0	01	1	0105-
11	GASKET; HD TO COVER TRAILER BRAKE HAND CONTROL<NLG>	1-48119-130-0	01	1	0105-
12	COVER; BRK VLV TRAILER BRAKE HAND CONTROL<NLG>	1-48129-097-0	01	1	0105-
13	GASKET; BODY TO COVER TRAILER BRAKE HAND CONTROL<NLG>	1-48119-120-0	01	1	0105-
14	FOLLOWER; CAM TRAILER BRAKE HAND CONTROL<NLG>	1-48129-109-0	01	1	0105-
15	CAM; FOLLOWER TRAILER BRAKE HAND CONTROL<NLG>	1-48129-110-0	01	1	0105-
16	SPRING; GRUDUATING TRAILER BRAKE HAND CONTROL<NLG>	1-48129-101-0	01	1	0105-
17	PISTON; SPR TRAILER BRAKE HAND CONTROL<NLG>	1-48129-095-0	01	1	0105-
18	GASKET; BODY TRAILER BRAKE HAND CONTROL<NLG>	1-48129-096-0	01	1	0105-
19	SPRING; PISTON TRAILER BRAKE HAND CONTROL<NLG>	1-48129-094-0	01	1	0105-
20	GUIDE; VLV TRAILER BRAKE HAND CONTROL<NLG>	1-48129-090-0	01	1	0105-
21	VALVE; IN & EXH TRAILER BRAKE HAND CONTROL<NLG>	1-48121-017-0	01	1	0105-
22	SPRING; VLV TRAILER BRAKE HAND CONTROL<NLG>	1-48123-024-0	01	1	0105-
23	BODY; BRK VLV TRAILER BRAKE HAND CONTROL<NLG>	1-48111-061-0	01	1	0105-
24	BOLT; EXH VLV TRAILER BRAKE HAND CONTROL<NLG>	1-48129-092-0	02	1	0105-
25	WASHER; LK,EXH VLV TRAILER BRAKE HAND CONTROL<NLG>	1-48129-093-0	02	1	0105-
28	STEM ASM; BRK VLV TRAILER BRAKE HAND CONTROL<NLG>	1-48129-089-0	01	1	0105-

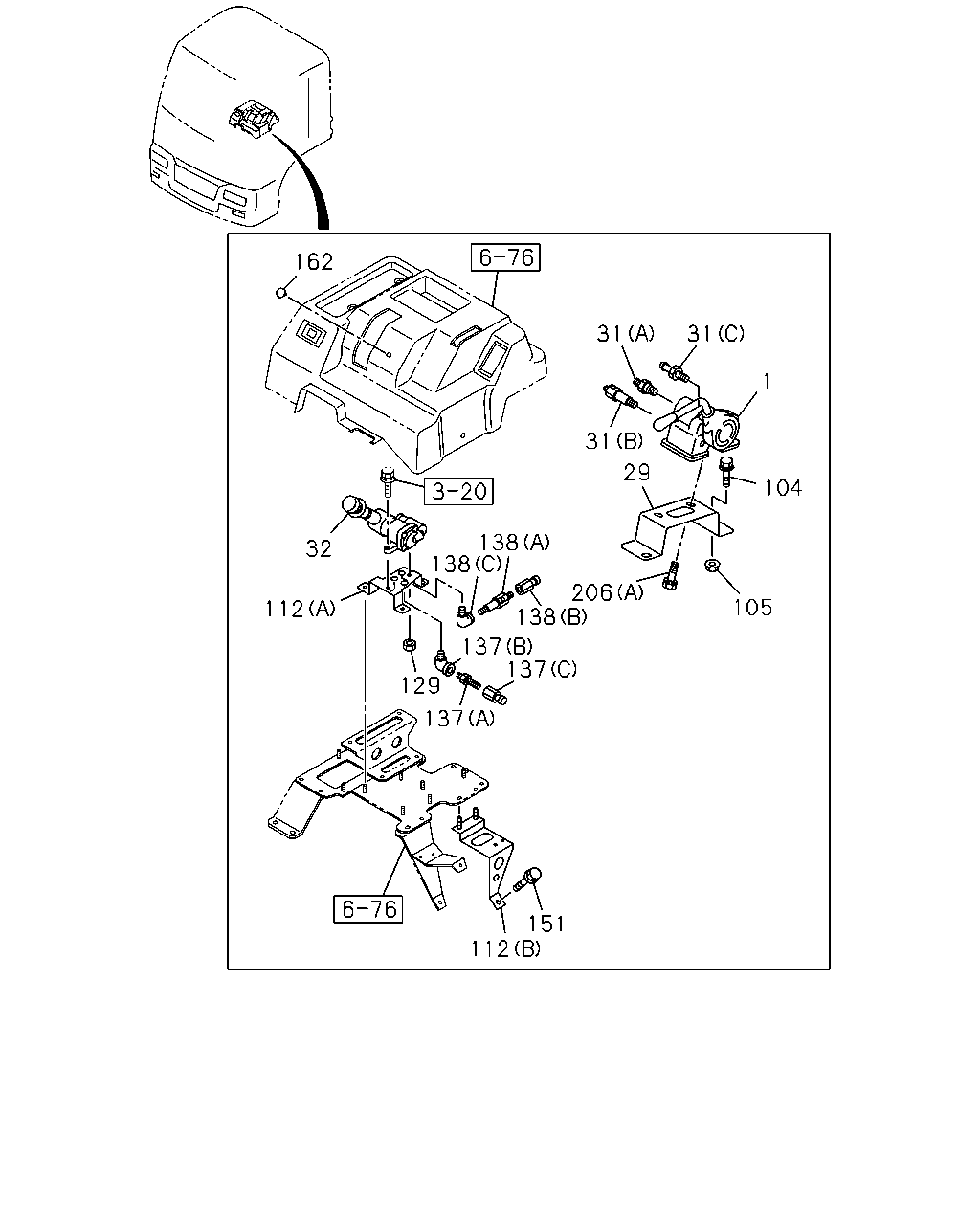

162 31 31 1 31 29 104 138 138 32 206 138 105 112 137 137 129 137 151 112

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	VALVE ASM; HAND BRK TRAILER BRAKE HAND CONTROL<NLG>	1-48100-849-0	01	1	0105-
29	BRACKET; HAND BRK	1-79996-131-2	01	1	0105-
31	CONNECTOR; HAND BRK VLV (B) M14	1-09656-391-2	01	1	0105-
31	CONNECTOR; HAND BRK VLV (C) L=45	8-94338-874-0	01	1	0105-
31	CONNECTOR; HAND BRK VLV (A) M16 & PT1/4 STRAIGHT	9-09231-810-1	01	1	0105-
32	VALVE; BRK,HAND CONT BRAKE REGULATION HONG KONG<TCZ>	1-48460-341-0	01	1	0105-0105
32	VALVE; BRK,HAND CONT EXC. BRAKE REGULATION HONG KONG<TCZ>	1-48460-339-0	01	1	0105-0105
32	VALVE; BRK,HAND CONT	1-48460-316-0	01	1	0106-
104	BOLT; BRKT M8X20.5 W/LK&PL WASHER	8-94279-207-0	02	1	0105-0301
105	NUT; BRKT M8 FLANGE	0-91150-108-0	05	1	0105-
112	BRACKET; CONT VLV (A)	1-79996-112-2	01	1	0105-
112	BRACKET; CONT VLV (B)	1-79996-113-2	01	1	0105-
129	NUT; VLV M8 FLANGE	0-91150-108-0	01	1	0105-
137	CONNECTOR; SUPPLY (A)	1-09650-352-1	01	1	0105-
137	CONNECTOR; SUPPLY (B) PT1/4 2WAY	1-09660-693-0	01	1	0105-
137	CONNECTOR; SUPPLY (C) DIN12 & M16 STRAIGHT	1-09660-876-0	01	1	0105-0105
138	CONNECTOR; DELIVERY (B)	1-09650-240-1	01	1	0105-0105
138	CONNECTOR; DELIVERY (B) PT1/4 2WAY	1-09660-693-0	01	1	0105-
138	CONNECTOR; DELIVERY (A)	1-09660-880-0	01	1	0105-
138	CONNECTOR; DELIVERY (C) M14 & PT1/4 ELBOW	1-09650-432-0	01	1	0105-
138	CONNECTOR; DELIVERY (B) DIN8 & M14 STRAIGHT	1-09660-874-0	04	1	0105-0105
138	CONNECTOR; DELIVERY (B) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0105-
151	BOLT; VLV BRKT M8X20.5 W/LK&PL WASHER	8-94279-207-0	02	1	0105-0301
151	BOLT; VLV BRKT M8X20.5 W/LK&PL WASHER	8-94279-207-0	01	1	0302-
162	SWITCH; PARKING BRK VLV	1-72447-390-0	01	1	0105-
206	BOLT; HAND BRK VALVE (A) M10X20 W/LK WASHER	0-50041-020-0	02	1	0105-
206	BOLT; HAND BRK VALVE (B)	1-48469-160-0	01	1	0105-0105

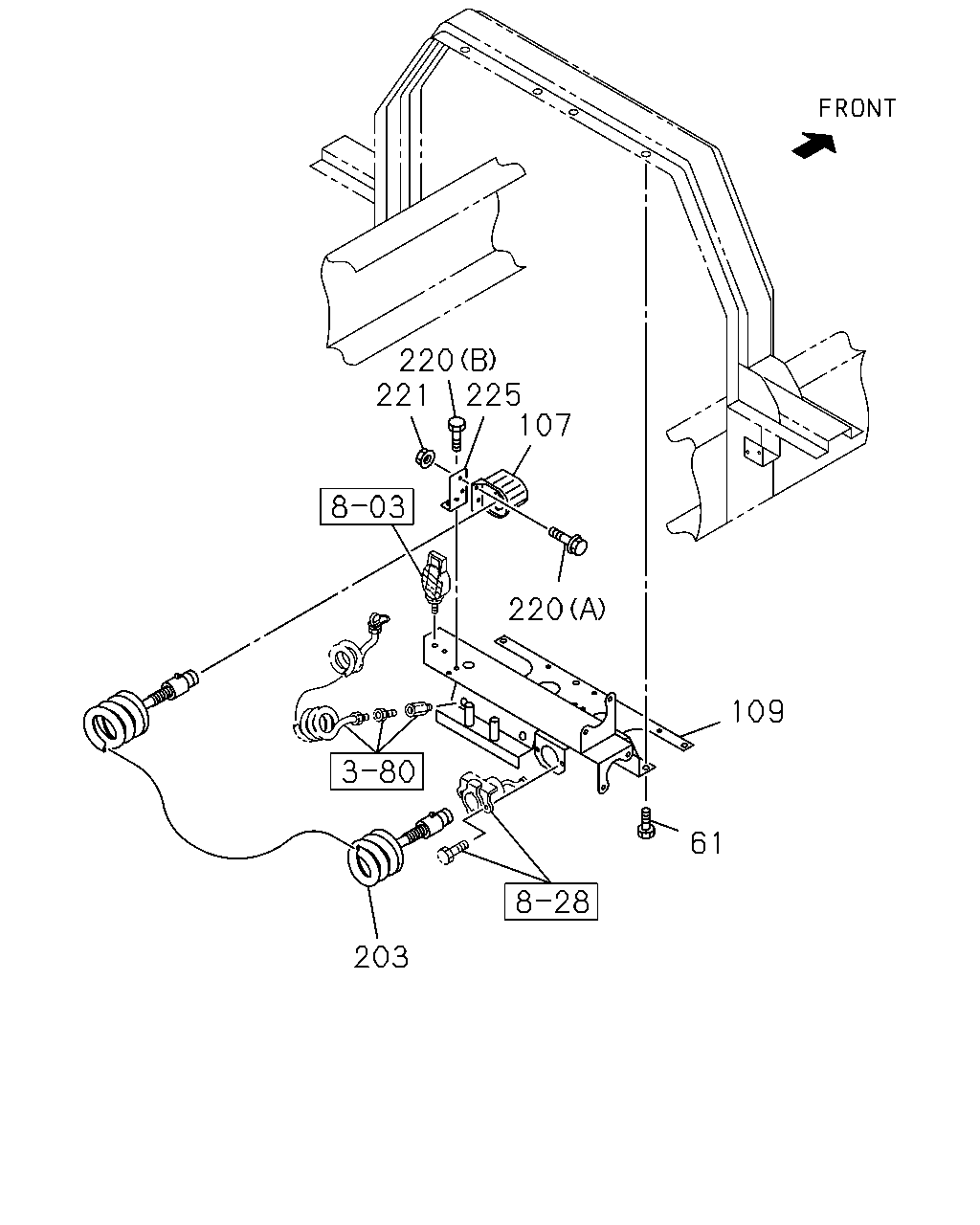

220 221 225 107 220 109 61 203

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
61	BOLT; STEP BOARD M10X25 FLANGE	0-28681-025-0	08	1	0105-0311
61	BOLT; STEP BOARD M10X30 FLANGE	0-28681-030-0	08	1	0312-
107	HANGER; JUMPER HOSE	1-57550-022-0	01	1	0105-
109	BRACKET; HOSE HANGER ANTILOCK BRAKE SYSTEM(BFA)	1-53497-656-0	01	1	0105-0105
109	BRACKET; HOSE HANGER ANTILOCK BRAKE SYSTEM(BFA)	1-53497-671-0	01	1	0106-
109	BRACKET; HOSE HANGER EXC. ANTILOCK BRAKE SYSTEM(BFA)	1-53497-657-0	01	1	0105-0105
109	BRACKET; HOSE HANGER EXC. ANTILOCK BRAKE SYSTEM(BFA)	1-53497-672-0	01	1	0106-0201
109	BRACKET; HOSE HANGER EXC. ANTILOCK BRAKE SYSTEM(BFA)	1-53497-683-1	01	1	0202-
203	CABLE; JUMPER L=4000	1-82659-186-2	01	1	0105-
220	BOLT; HANGER (A) M6X16 FLANGE	0-28680-616-0	02	1	0105-
220	BOLT; HANGER (B) M8X25 FLANGE	0-28680-825-0	02	1	0105-
221	NUT; HANGER M6 FLANGE	0-91150-106-0	02	1	0105-
225	BRACKET; HANGER	1-82698-002-0	01	1	0105-

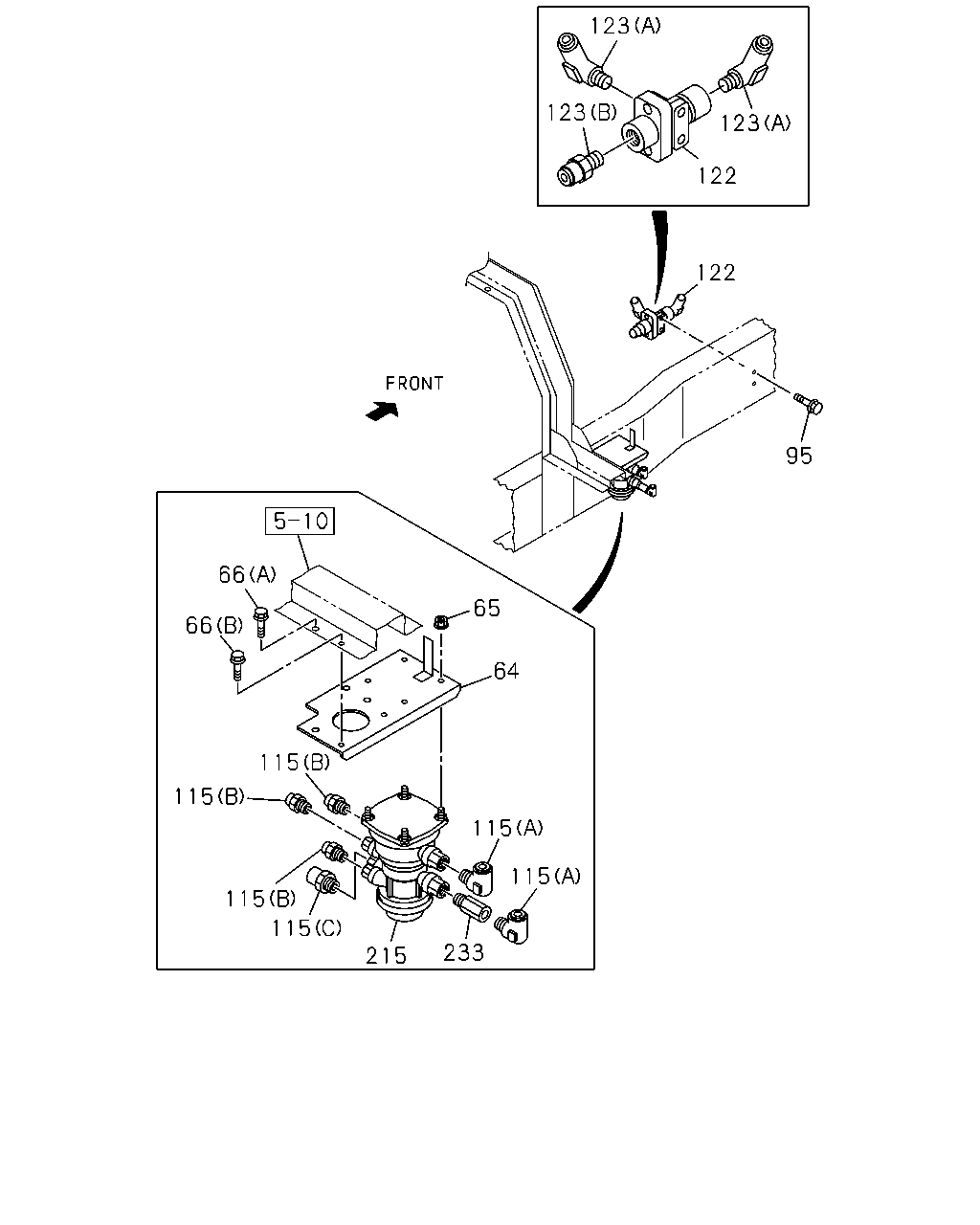

123 123 123 122 122 95 66 65 66 64 115 115 115 115 115 115 233 215

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
64	BRACKET; RELAY VLV	1-48495-216-0	01	1	0105-
65	NUT; RELAY VLV M8 FLANGE	0-91150-108-0	04	1	0105-
66	BOLT; VLV BRKT (B) M8X25 FLANGE	0-28680-825-0	02	1	0105-
66	BOLT; VLV BRKT (A) M10X25 FLANGE	0-28681-025-0	02	1	0105-
95	BOLT; BRKT,DOUBLE CHECK VLV M8X16 FLANGE	0-28080-816-0	02	1	0105-
115	CONNECTOR; DUAL RELAY VLV (A) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	0105-
115	CONNECTOR; DUAL RELAY VLV (B) DIN8 & R3/8 STRAIGHT	1-09660-964-0	03	1	0105-
115	CONNECTOR; DUAL RELAY VLV (C) DIN12 & R3/8 STRAIGHT	1-09660-965-0	01	1	0105-
122	VALVE ASM; DOUBLE CHECK	1-48410-531-0	01	1	0105-
123	CONNECTOR; DBL CHECK VLV (A) DIN8 & R3/8 ELBOW	1-09660-957-0	02	1	0105-
123	CONNECTOR; DBL CHECK VLV (B) DIN8 & R3/8 STRAIGHT	1-09660-964-0	01	1	0105-
215	VALVE; TRAILER CONT	1-48210-684-0	01	1	0105-
233	ADAPTER; VLV PT3/8	1-48319-058-0	01	1	0105-

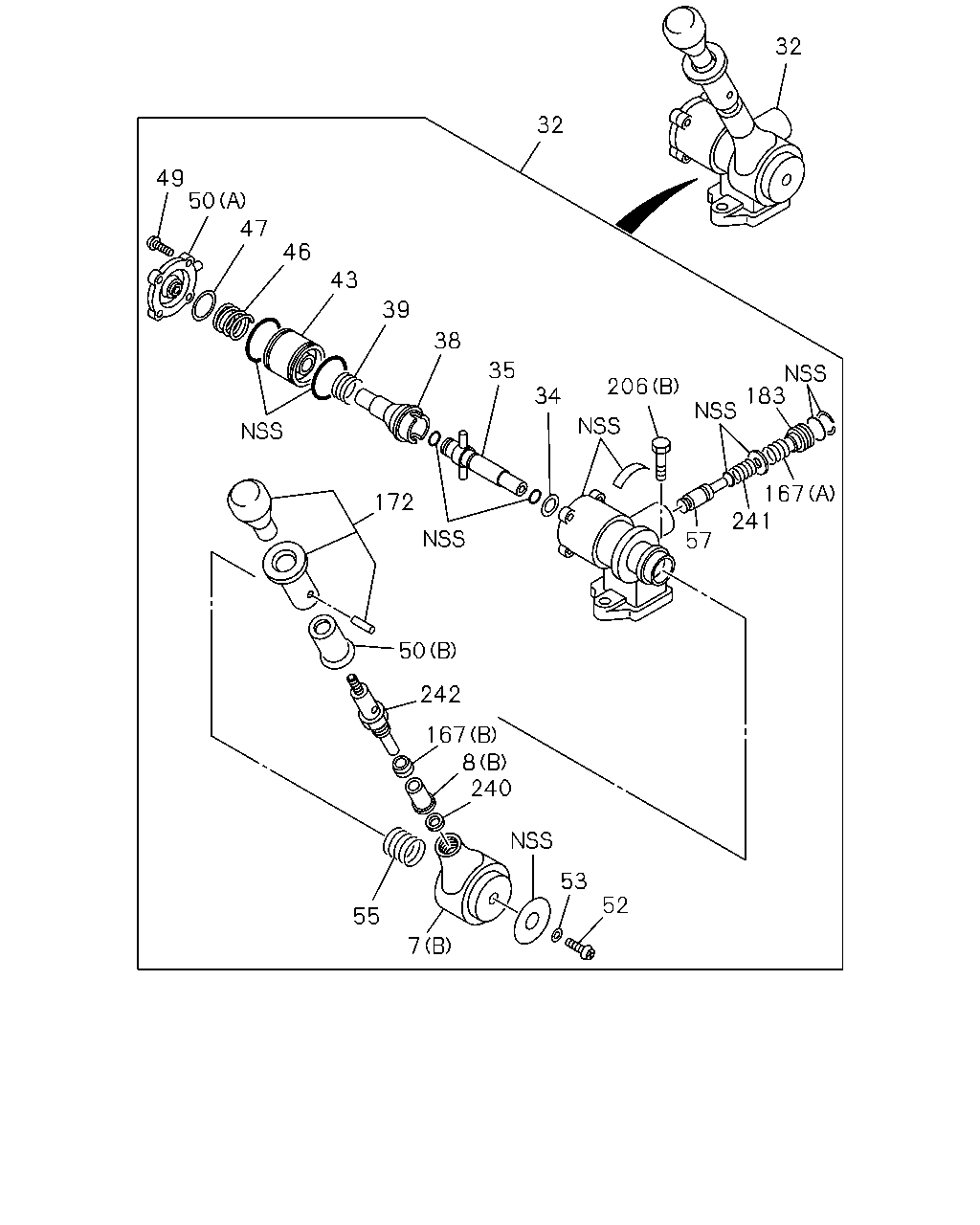

32 32 49 50 47 46 43 39 38 35 183 206 34 167 241 172 57 50 242 167 8 240 53 52 55 7

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
7	HEAD; BRK VLV BRAKE REGULATION HONG KONG<TCZ> (B)	1-48469-209-0	01	1	0105-0105
7	HEAD; BRK VLV EXC. BRAKE REGULATION HONG KONG<TCZ> (B)	1-48469-201-0	01	1	0105-0105
7	HEAD; BRK VLV TRAILER BRAKE HAND CONTROL<NLG> (A)	1-48119-131-0	01	1	0105-
8	STOPPER; BRK VLV (B)	1-48469-200-0	01	1	0105-0105
8	STOPPER; BRK VLV TRAILER BRAKE HAND CONTROL<NLG> (A)	1-48119-136-0	01	1	0105-
32	VALVE; BRK,HAND CONT BRAKE REGULATION HONG KONG<TCZ>	1-48460-341-0	01	1	0105-0105
32	VALVE; BRK,HAND CONT EXC. BRAKE REGULATION HONG KONG<TCZ>	1-48460-339-0	01	1	0105-0105
32	VALVE; BRK,HAND CONT	1-48460-316-0	01	1	0106-
34	SHIM; CAM HOLDER	1-48469-055-0	AR	1	0105-
35	HOLDER; CAM BRAKE REGULATION HONG KONG<TCZ>	1-48469-207-0	01	1	0105-0105
35	HOLDER; CAM	1-48469-054-0	01	1	0106-
35	HOLDER; CAM EXC. BRAKE REGULATION HONG KONG<TCZ>	1-48469-171-0	01	1	0105-0105
38	SEAT; EXH VLV	1-48469-172-0	01	1	0105-0105
38	SEAT; EXH VLV	1-48469-057-0	01	1	0106-
39	SPRING; RETURN,CAM RING	1-48469-150-0	01	1	0105-0105
39	SPRING; RETURN,CAM RING	1-48469-063-0	01	1	0106-
43	PISTON; HAND BRK VLV BRAKE REGULATION HONG KONG<TCZ>	1-48469-151-0	01	1	0105-0105
43	PISTON; HAND BRK VLV	1-48469-064-0	01	1	0106-
46	SPRING; MAIN,PISTON	1-48469-173-0	01	1	0105-0105
46	SPRING; MAIN,PISTON	1-48469-119-0	01	1	0106-
47	SHIM; MAIN SPRING	1-48469-072-0	AR	1	0105-
49	SCREW; COVER	1-48469-169-0	04	1	0105-0105
49	SCREW; COVER	1-48469-120-0	04	1	0106-
50	COVER; HAND BRK VLV (A)	1-48469-153-0	01	1	0105-0105
50	COVER; HAND BRK VLV (C)	1-48469-073-0	01	1	0106-
50	COVER; HAND BRK VLV (B)	1-48469-196-0	01	1	0105-0105
52	SCREW; HANDLE	1-48469-062-0	01	1	0105-
53	WASHER; HANDLE	1-48469-061-0	01	1	0105-
55	SPRING; RETURN,HANDLE	1-48469-155-0	01	1	0105-0105
55	SPRING; RETURN,HANDLE	1-48469-059-0	01	1	0106-
57	PLUNGER; HAND BRK VLV	1-48469-180-0	01	1	0105-0105
57	PLUNGER; HAND BRK VLV	1-48469-076-0	01	1	0106-
167	SPRING; VALVE (A)	1-48469-177-0	01	1	0105-0105
167	SPRING; VALVE (B)	1-48469-184-0	01	1	0105-0105
172	KNOB; VALVE BRAKE REGULATION HONG KONG<TCZ>	1-48469-210-0	01	1	0105-0105
172	KNOB; VALVE EXC. BRAKE REGULATION HONG KONG<TCZ>	1-48469-203-0	01	1	0105-0105
183	RETAINER; VALVE	1-48469-185-0	01	1	0105-0105
206	BOLT; HAND BRK VALVE (A) M10X20 W/LK WASHER	0-50041-020-0	02	1	0105-
206	BOLT; HAND BRK VALVE (B)	1-48469-160-0	01	1	0105-0105
240	RING; STOPPER BRAKE REGULATION HONG KONG<TCZ>	1-48469-208-0	01	1	0105-0105
240	RING; STOPPER EXC. BRAKE REGULATION HONG KONG<TCZ>	1-48469-199-0	01	1	0105-0105
241	SPRING; RETURN	1-48469-182-0	01	1	0105-0105
242	NUT; LK	1-48469-179-0	01	1	0105-0105
