Sayfa 3-20 - Isuzu EPC

241

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
	241	BOLT; SET,CONT VLV M8X30 W/LK&PL WASHER	0-50140-830-0	01	1	0105-

39 5 8 39 10 5 39 10 257 39 261 8 236 37 236 203 10 4 166 257 5 261 4 10 1 7 6 5 176 4 166 166 176 1 7 6 10 176 1 39 5 39 261 23 35 20 7 6 64 46 46 46 46 10 46 46 37 28 43 28 43

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date

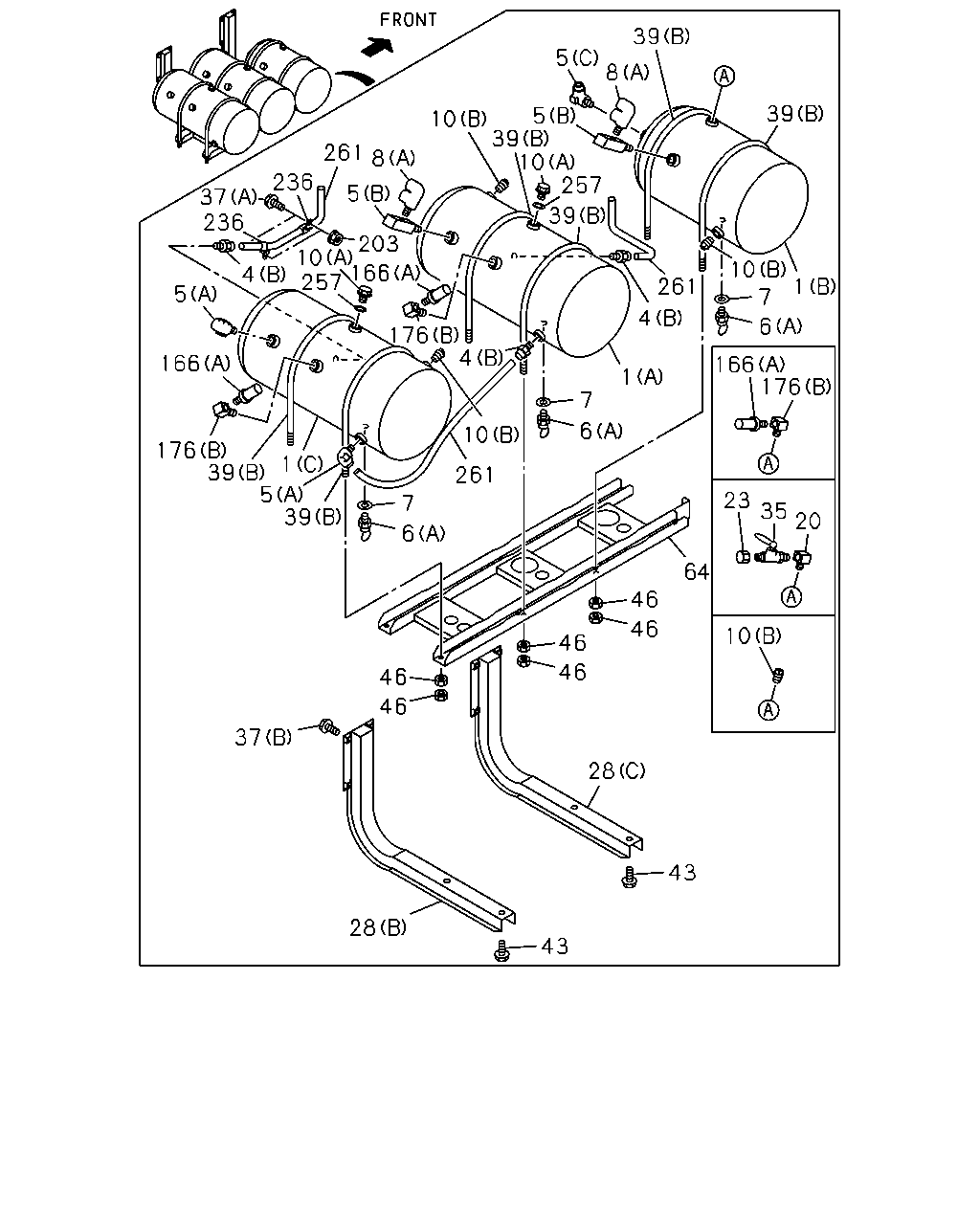

1	TANK ASM; AIR (A)	1-48370-710-0	01	1	0105-
1	TANK ASM; AIR (B)	1-48370-712-0	01	1	0105-
1	TANK ASM; AIR (D)	1-48370-714-0	01	1	0105-
1	TANK ASM; AIR (C)	1-48370-942-1	01	1	0105-
4	CONNECTOR; FLARE (A) DIN8 & R3/8 STRAIGHT	1-09660-964-0	01	1	0105-
4	CONNECTOR; FLARE (B) DIN12 & R3/8 STRAIGHT	1-09660-965-0	03	1	0105-
5	UNION; AIR TANK (B)	1-09660-778-1	02	1	0105-
5	UNION; AIR TANK (C) DIN8 & R3/8 ELBOW	1-09660-957-0	02	1	0105-
5	UNION; AIR TANK (A) DIN12 & R3/8 ELBOW	1-09660-959-0	03	1	0105-
5	UNION; AIR TANK (D) DIN6 & R3/8 ELBOW	1-09661-234-0	01	1	0105-
5	UNION; AIR TANK AIR DRYER<PS7> (A) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	0105-
5	UNION; AIR TANK EXC. AIR DRYER<PS7> (E) M22 & PT3/8 ELBOW	1-09650-440-0	01	1	0105-
6	COCK; DRAIN,AIR TANK (A)	1-48312-015-0	04	1	0105-
6	COCK; DRAIN,AIR TANK AIR DRYER<PS7> (A)	1-48312-015-0	01	1	0105-
6	COCK; DRAIN,AIR TANK EXC. AUTO DRAIN<J78> (A)	1-48312-015-0	01	1	0105-
6	COCK; DRAIN,AIR TANK EXC. AIR DRYER<PS7> (A)	1-48312-015-0	02	1	0105-
6	COCK; DRAIN,AIR TANK AUTO DRAIN<J78> (B)	9-09904-177-0	01	1	0105-
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	05	1	0105-
7	GASKET; DRAIN COCK AIR DRYER<PS7> ID=14	1-09630-145-0	01	1	0105-
7	GASKET; DRAIN COCK EXC. AIR DRYER<PS7> ID=14	1-09630-145-0	02	1	0105-
8	CONNECTOR; AIR TANK (A) DIN12X2 & PT3/8 DOUBLE ELBOW	1-09661-026-0	02	1	0105-
8	CONNECTOR; AIR TANK (B)	1-09661-027-0	01	1	0105-
10	PLUG; AIR TANK (A)	1-09604-106-0	02	1	0105-
10	PLUG; AIR TANK (B) PT3/8	9-09204-517-0	03	1	0105-
10	PLUG; AIR TANK EXC. FULL FLOATING CAB(W16) (C) PT1/4	9-99204-513-0	01	1	0105-
10	PLUG; AIR TANK EXC. TIRE INFLATOR DEVICE<W47> (B) PT3/8	9-09204-517-0	01	1	0105-
20	NIPPLE; AIR TANK TIRE INFLATOR DEVICE<W47> PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	0105-0207
20	NIPPLE; AIR TANK PT1/4 2WAY	1-09660-693-0	01	1	0208-
20	NIPPLE; AIR TANK TIRE INFLATOR DEVICE<W47> PT1/4 2WAY	1-09660-693-0	01	1	0208-
23	CAP; COCK,AIR TANK TIRE INFLATOR DEVICE<W47>	9-48319-102-0	01	1	0105-
28	BRACKET; AIR TANK (A)	1-48317-820-2	01	1	0105-
28	BRACKET; AIR TANK (B)	1-48317-856-0	01	1	0105-
28	BRACKET; AIR TANK (C)	1-48317-868-0	01	1	0105-
35	COCK; AIR,AIR TANK TIRE INFLATOR DEVICE<W47>	1-09680-099-0	01	1	0105-
37	BOLT; AIR TANK (A) M8X20 FLANGE	0-28680-820-0	02	1	0105-
37	BOLT; AIR TANK (B) M10X35 FLANGE	0-28681-035-0	04	1	0105-
37	BOLT; AIR TANK (B) M12X40 FLANGE	0-28681-240-0	08	1	0105-
39	U-BOLT; AIR TANK (A) L=250	1-48317-308-0	02	1	0105-
39	U-BOLT; AIR TANK (B)	1-48317-675-0	06	1	0105-
43	BOLT; STAY,AIR TANK,MAIN M12X25 FLANGE	0-28681-225-0	04	1	0105-
46	NUT; U-BOLT M8	9-09110-408-0	08	1	0105-
46	NUT; U-BOLT M8	9-09110-408-0	24	1	0105-
64	STAY; AIR TANK,MAIN	1-48317-819-1	01	1	0105-
166	SWITCH ASM; LOW PRESSURE,MAIN TANK (A) 530KPA	1-48340-054-1	05	1	0105-
166	SWITCH ASM; LOW PRESSURE,MAIN TANK FULL FLOATING CAB(W16) (B) 650KPA	1-48340-059-1	01	1	0105-
176	ADAPTER (B) PT1/4 & PT3/8 2WAY	1-09660-809-0	03	1	0105-
176	ADAPTER (C) M12 & RC1/4 STRAIGHT	1-09660-885-0	01	1	0105-0207
176	ADAPTER ANTILOCK BRAKE SYSTEM(BFA) (A) PT3/8	1-09664-210-0	02	1	0105-
203	NUT M8 FLANGE	0-91150-108-0	01	1	0105-
236	CLIP; BAND ID=14 H=50 L=20	1-09700-843-0	02	1	0105-
257	GASKET; PLUG ID=14	1-09630-145-0	02	1	0105-
261	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87410-069-0	AR	1	0105-0212
261	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87411-011-0	AR	1	0301-

37 28 46 60 46 46 46 4 5 5 3 10 166 1 20 166 8 20 5 166 288 166 166 10 14 176 7 7 22 39 39 6 6

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date

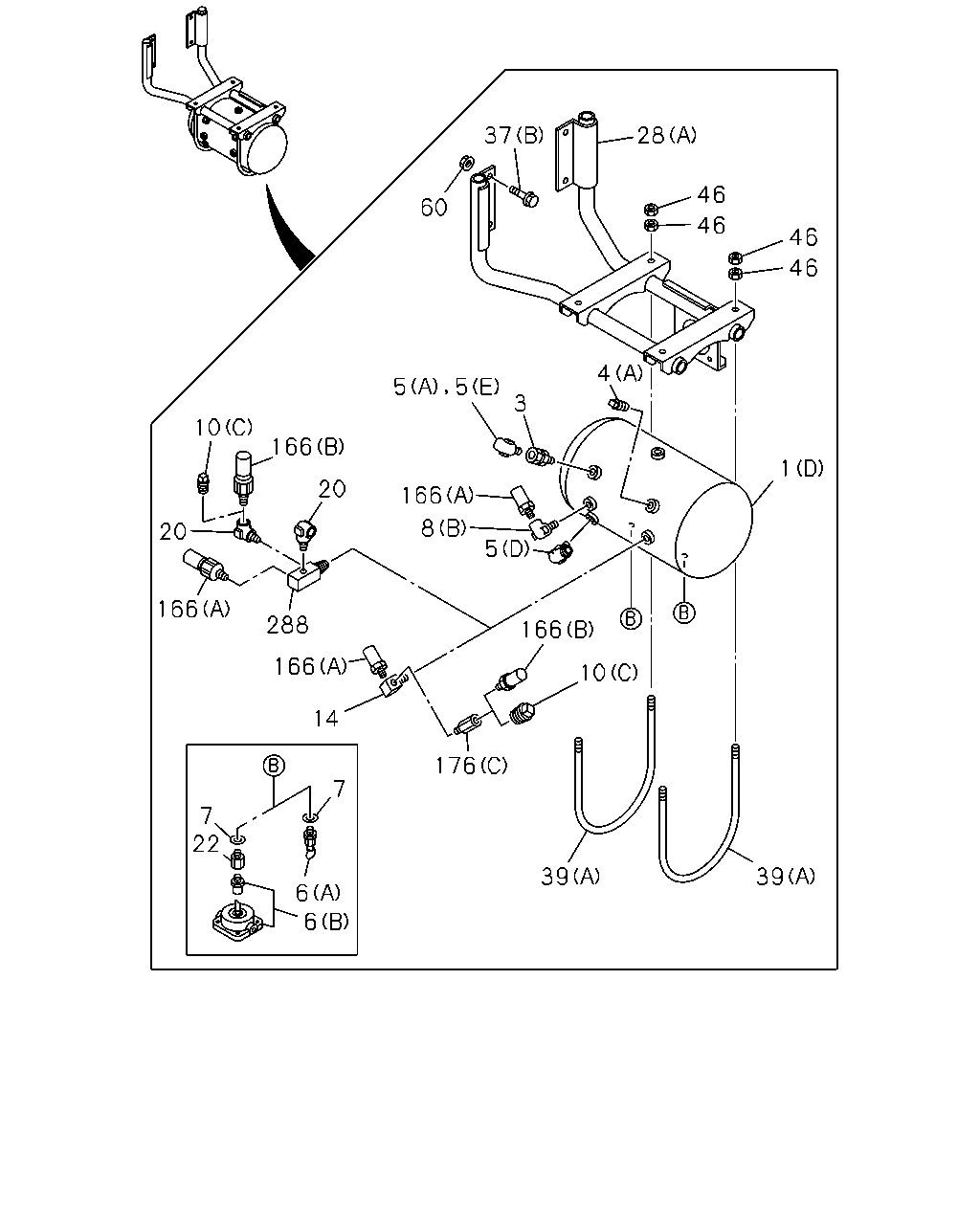

1	TANK ASM; AIR (A)	1-48370-710-0	01	1	0105-
1	TANK ASM; AIR (B)	1-48370-712-0	01	1	0105-
1	TANK ASM; AIR (D)	1-48370-714-0	01	1	0105-
1	TANK ASM; AIR (C)	1-48370-942-1	01	1	0105-
3	VALVE; CHECK,AIR TANK	1-48320-013-2	01	1	0105-
4	CONNECTOR; FLARE (A) DIN8 & R3/8 STRAIGHT	1-09660-964-0	01	1	0105-
4	CONNECTOR; FLARE (B) DIN12 & R3/8 STRAIGHT	1-09660-965-0	03	1	0105-
5	UNION; AIR TANK (B)	1-09660-778-1	02	1	0105-
5	UNION; AIR TANK (C) DIN8 & R3/8 ELBOW	1-09660-957-0	02	1	0105-
5	UNION; AIR TANK (A) DIN12 & R3/8 ELBOW	1-09660-959-0	03	1	0105-
5	UNION; AIR TANK (D) DIN6 & R3/8 ELBOW	1-09661-234-0	01	1	0105-
5	UNION; AIR TANK AIR DRYER<PS7> (A) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	0105-
5	UNION; AIR TANK EXC. AIR DRYER<PS7> (E) M22 & PT3/8 ELBOW	1-09650-440-0	01	1	0105-
6	COCK; DRAIN,AIR TANK (A)	1-48312-015-0	04	1	0105-
6	COCK; DRAIN,AIR TANK AIR DRYER<PS7> (A)	1-48312-015-0	01	1	0105-
6	COCK; DRAIN,AIR TANK EXC. AUTO DRAIN<J78> (A)	1-48312-015-0	01	1	0105-
6	COCK; DRAIN,AIR TANK EXC. AIR DRYER<PS7> (A)	1-48312-015-0	02	1	0105-
6	COCK; DRAIN,AIR TANK AUTO DRAIN<J78> (B)	9-09904-177-0	01	1	0105-
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	05	1	0105-
7	GASKET; DRAIN COCK AIR DRYER<PS7> ID=14	1-09630-145-0	01	1	0105-
7	GASKET; DRAIN COCK EXC. AIR DRYER<PS7> ID=14	1-09630-145-0	02	1	0105-
8	CONNECTOR; AIR TANK (A) DIN12X2 & PT3/8 DOUBLE ELBOW	1-09661-026-0	02	1	0105-
8	CONNECTOR; AIR TANK (B)	1-09661-027-0	01	1	0105-
10	PLUG; AIR TANK (A)	1-09604-106-0	02	1	0105-
10	PLUG; AIR TANK (B) PT3/8	9-09204-517-0	03	1	0105-
10	PLUG; AIR TANK EXC. FULL FLOATING CAB(W16) (C) PT1/4	9-99204-513-0	01	1	0105-
10	PLUG; AIR TANK EXC. TIRE INFLATOR DEVICE<W47> (B) PT3/8	9-09204-517-0	01	1	0105-
14	UNION; 3 WAY,AIR TANK PT1/4 & M12 ELBOW	1-09656-665-0	01	1	0105-0207
20	NIPPLE; AIR TANK TIRE INFLATOR DEVICE<W47> PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	0105-0207
20	NIPPLE; AIR TANK PT1/4 2WAY	1-09660-693-0	01	1	0208-
20	NIPPLE; AIR TANK TIRE INFLATOR DEVICE<W47> PT1/4 2WAY	1-09660-693-0	01	1	0208-
22	ADAPTER; AUTO DRAIN VLV AUTO DRAIN<J78>	1-48319-031-0	01	1	0105-
28	BRACKET; AIR TANK (A)	1-48317-820-2	01	1	0105-
28	BRACKET; AIR TANK (B)	1-48317-856-0	01	1	0105-
28	BRACKET; AIR TANK (C)	1-48317-868-0	01	1	0105-
37	BOLT; AIR TANK (A) M8X20 FLANGE	0-28680-820-0	02	1	0105-
37	BOLT; AIR TANK (B) M10X35 FLANGE	0-28681-035-0	04	1	0105-
37	BOLT; AIR TANK (B) M12X40 FLANGE	0-28681-240-0	08	1	0105-
39	U-BOLT; AIR TANK (A) L=250	1-48317-308-0	02	1	0105-
39	U-BOLT; AIR TANK (B)	1-48317-675-0	06	1	0105-
46	NUT; U-BOLT M8	9-09110-408-0	08	1	0105-
46	NUT; U-BOLT M8	9-09110-408-0	24	1	0105-
60	NUT; AIR TANK FIX M10 FLANGE	0-91150-210-0	02	1	0105-
166	SWITCH ASM; LOW PRESSURE,MAIN TANK (A) 530KPA	1-48340-054-1	05	1	0105-
166	SWITCH ASM; LOW PRESSURE,MAIN TANK FULL FLOATING CAB(W16) (B) 650KPA	1-48340-059-1	01	1	0105-
176	ADAPTER (B) PT1/4 & PT3/8 2WAY	1-09660-809-0	03	1	0105-
176	ADAPTER (C) M12 & RC1/4 STRAIGHT	1-09660-885-0	01	1	0105-0207
176	ADAPTER ANTILOCK BRAKE SYSTEM(BFA) (A) PT3/8	1-09664-210-0	02	1	0105-
288	CONNECTOR; PRESSURE UNIT PT1/4 4WAY	1-09660-358-0	01	1	0208-

216 215 216 208

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
208	BOLT; CLIP AIR DRYER<PS7> M8X20 FLANGE	0-28680-820-0	01	1	0105-
215	PIPE; VINYL AIR DRYER<PS7> L=500 SERVICED BY L=3000	0-03566-300-0	01	1	0105-
216	CLIP; PIPE,VINYL AIR DRYER<PS7> (A) ID=24 L=32	1-09700-766-1	01	1	0105-
216	CLIP; PIPE,VINYL AIR DRYER<PS7> (B) ID=21	8-94242-034-0	01	1	0105-

100 109 335 103 101 335 126 100 101 102 102 126 109 102 100 104 103 126 176 100 278 107 103 80 102 335 101

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date

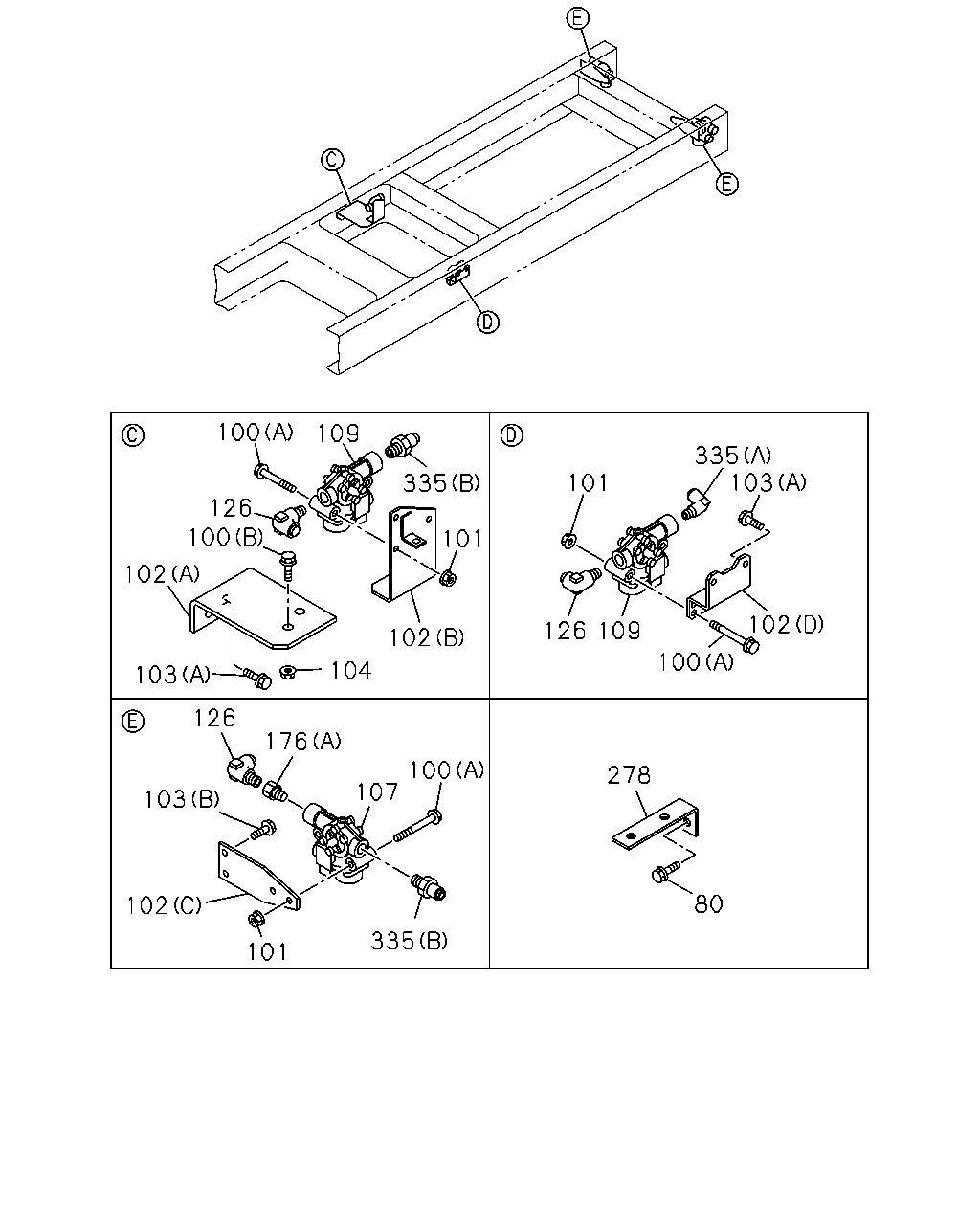

80	BOLT; BRKT M8X20 FLANGE	0-28080-820-0	01	1	0212-
100	BOLT; MODULATOR ANTILOCK BRAKE SYSTEM(BFA) (A) M8X80 FLANGE	0-28080-880-0	08	1	0105-
100	BOLT; MODULATOR ANTILOCK BRAKE SYSTEM(BFA) (B) M8X20 FLANGE	0-28680-820-0	02	1	0105-
101	NUT; MODULATOR ANTILOCK BRAKE SYSTEM(BFA) M8 FLANGE	0-91150-108-0	16	1	0105-
102	BRACKET; MODULATOR ANTILOCK BRAKE SYSTEM(BFA) (C)	1-47478-304-0	02	1	0105-
102	BRACKET; MODULATOR ANTILOCK BRAKE SYSTEM(BFA) (D)	1-47478-827-0	01	1	0105-
102	BRACKET; MODULATOR ANTILOCK BRAKE SYSTEM(BFA) (A)	1-47479-028-0	01	1	0105-
102	BRACKET; MODULATOR ANTILOCK BRAKE SYSTEM(BFA) (B)	1-47479-029-1	01	1	0105-
103	BOLT; BRKT ANTILOCK BRAKE SYSTEM(BFA) (A) M8X25 FLANGE	0-28680-825-0	04	1	0105-
103	BOLT; BRKT ANTILOCK BRAKE SYSTEM(BFA) (B) M8X30 FLANGE	0-28680-830-0	04	1	0105-
104	NUT; BRKT ANTILOCK BRAKE SYSTEM(BFA) M8 FLANGE	0-91150-108-0	02	1	0105-
107	MODULATOR; RR ANTILOCK BRAKE SYSTEM(BFA)	1-48210-880-0	02	1	0105-
109	MODULATOR; FRT ANTILOCK BRAKE SYSTEM(BFA)	1-48210-880-0	02	1	0105-
126	CONNECTOR; ELBOW ANTILOCK BRAKE SYSTEM(BFA) DIN12 & R3/8 ELBOW	1-09660-959-0	04	1	0105-
176	ADAPTER (B) PT1/4 & PT3/8 2WAY	1-09660-809-0	03	1	0105-
176	ADAPTER (C) M12 & RC1/4 STRAIGHT	1-09660-885-0	01	1	0105-0207
176	ADAPTER ANTILOCK BRAKE SYSTEM(BFA) (A) PT3/8	1-09664-210-0	02	1	0105-
278	BRACKET; CONNECTOR L=90 B=25	1-47476-630-0	01	1	0212-
335	CONNECTOR; MODULATOR ANTILOCK BRAKE SYSTEM(BFA) (B) DIN12 & R3/8 STRAIGHT	1-09660-965-0	03	1	0105-
335	CONNECTOR; MODULATOR ANTILOCK BRAKE SYSTEM(BFA) (A) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	0105-
