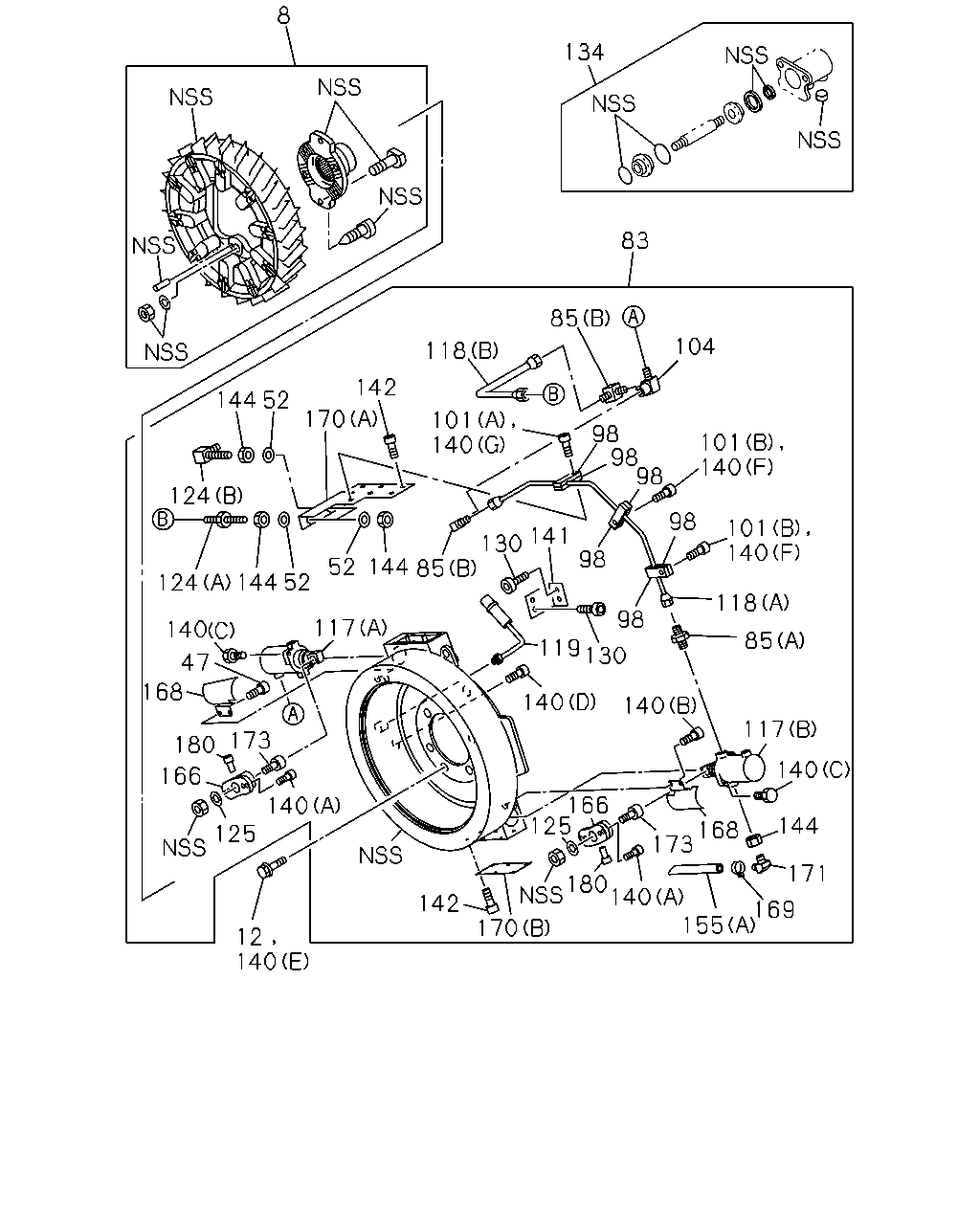

3-08B — PARKING BRAKE (#10173) — 59 parça

8 134 83 85 104 118 142 170 101 140 98 98 98 101 140 124 98 101 140 141 130 98 52 144 124 118 98 117 85 119 130 47 168 140 140 117 173 180 140 166 166 125 140 144 168 173 125 171 180 140 155 142 169 170 12 140 144 85 144 52 52 140

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
8	FLANGE; PARKING BRK FINAL GEAR 41/9 19.5"(W5N),FINAL GEAR 44/9 19.5"(W5P),FINAL GEAR 43/10 19.5"(W6F) BRAKE SYSTEM RETARDER<RE2>	1-46210-268-3	01	1	0105-
8	FLANGE; PARKING BRK FINAL GEAR 18.5"<C1C> BRAKE SYSTEM RETARDER<RE2>	1-46210-288-2	01	1	0105-0312
8	FLANGE; PARKING BRK FINAL GEAR 39/8 18.5"(W3D),FINAL GEAR 41/8 18.5"(W3M),FINAL GEAR 41/9 18.5"(W3N),FINAL GEAR 41/10 18.5"(W3V),FINAL GEAR 39/9 18.5"(W4T) BRAKE SYSTEM RETARDER<RE2>	1-46210-288-2	01	1	0401-
12	BOLT; FIX BRAKE SYSTEM RETARDER<RE2> M12X35 FLANGE	0-28791-235-0	08	1	0105-0312
47	BOLT; SUPPORT PLATE BRAKE SYSTEM RETARDER<RE2> M6X14 HEX SOCKET	1-48629-145-0	02	1	0105-
52	WASHER; PL BRAKE SYSTEM RETARDER<RE2> ID=12.5 OD=26	9-09160-612-0	04	1	0105-
83	RETARDER ASM; PARKING BRK BRAKE SYSTEM RETARDER<RE2>	1-46200-237-9	01	1	0105-
85	CONNECTOR; RETARDER BRAKE SYSTEM RETARDER<RE2> (A) M12 & PT1/8	9-09221-806-1	01	1	0105-
85	CONNECTOR; RETARDER BRAKE SYSTEM RETARDER<RE2> (B) M12 & PT1/8	9-09224-306-2	02	1	0105-
98	CLIP; AIR PIPE BRAKE SYSTEM RETARDER<RE2>	1-48629-209-0	06	1	0105-
101	BOLT; CLIP BRAKE SYSTEM RETARDER<RE2> (B) M6X18	1-48629-134-0	02	1	0105-0312
101	BOLT; CLIP BRAKE SYSTEM RETARDER<RE2> (A) M6X25	1-48629-239-0	01	1	0105-0312
104	CONNECTOR BRAKE SYSTEM RETARDER<RE2>	1-48629-236-0	01	1	0105-
117	CYLINDER ASM; AIR BRAKE SYSTEM RETARDER<RE2> (B)	1-48629-193-0	01	1	0105-
117	CYLINDER ASM; AIR BRAKE SYSTEM RETARDER<RE2> (A)	1-48629-231-0	01	1	0105-
118	PIPE ASM; AIR CYL BRAKE SYSTEM RETARDER<RE2> (A)	1-48629-234-0	01	1	0105-
118	PIPE ASM; AIR CYL BRAKE SYSTEM RETARDER<RE2> (B)	1-48629-235-0	01	1	0105-
119	SWITCH; THERMO BRAKE SYSTEM RETARDER<RE2>	1-82450-054-0	01	1	0105-
124	CONNECTOR; FLEX HOSE FINAL GEAR 39/8 18.5"(W3D),FINAL GEAR 41/8 18.5"(W3M),FINAL GEAR 41/9 18.5"(W3N),FINAL GEAR 41/10 18.5"(W3V),FINAL GEAR 39/9 18.5"(W4T),FINAL GEAR 41/9 19.5"(W5N),FINAL GEAR 44/9 19.5"(W5P) BRAKE SYSTEM RETARDER<RE2> EXC. LIMITED SLIP DIFF VAR1(G85) (A) M12 2WAY	1-09654-257-1	01	1	0105-0105
124	CONNECTOR; FLEX HOSE FINAL GEAR 39/8 18.5"(W3D),FINAL GEAR 41/8 18.5"(W3M),FINAL GEAR 41/9 18.5"(W3N),FINAL GEAR 41/10 18.5"(W3V),FINAL GEAR 39/9 18.5"(W4T),FINAL GEAR 44/9 19.5"(W5P) BRAKE SYSTEM RETARDER<RE2> EXC. LIMITED SLIP DIFF VAR1(G85) (A) M12 2WAY	1-09654-257-1	01	1	0105-0205
124	CONNECTOR; FLEX HOSE FINAL GEAR 39/8 18.5"(W3D),FINAL GEAR 41/8 18.5"(W3M),FINAL GEAR 41/9 18.5"(W3N),FINAL GEAR 41/10 18.5"(W3V),FINAL GEAR 39/9 18.5"(W4T) BRAKE SYSTEM RETARDER<RE2> EXC. LIMITED SLIP DIFF VAR1(G85) (A) M12 2WAY	1-09654-257-1	01	1	0206-0207
124	CONNECTOR; FLEX HOSE BRAKE SYSTEM RETARDER<RE2> (B)	1-48629-296-0	01	1	0105-
124	CONNECTOR; FLEX HOSE FINAL GEAR 39/8 18.5"(W3D),FINAL GEAR 38/7 18.5"(W3E),FINAL GEAR 41/8 18.5"(W3M),FINAL GEAR 41/9 18.5"(W3N),FINAL GEAR 41/10 18.5"(W3V),FINAL GEAR 39/9 18.5"(W4T) LIMITED SLIP DIFF VAR1(G85) BRAKE SYSTEM RETARDER<RE2> (A) M12 L=66.5	9-09223-306-1	01	1	0105-0105
124	CONNECTOR; FLEX HOSE FINAL GEAR 38/7 18.5"(W3E),FINAL GEAR 43/10 19.5"(W6F) BRAKE SYSTEM RETARDER<RE2> EXC. LIMITED SLIP DIFF VAR1(G85) (A) M12 L=66.5	9-09223-306-1	01	1	0105-0105
124	CONNECTOR; FLEX HOSE FINAL GEAR 39/8 18.5"(W3D),FINAL GEAR 38/7 18.5"(W3E),FINAL GEAR 41/8 18.5"(W3M),FINAL GEAR 41/9 18.5"(W3N),FINAL GEAR 41/10 18.5"(W3V),FINAL GEAR 39/9 18.5"(W4T) LIMITED SLIP DIFF VAR1(G85) BRAKE SYSTEM RETARDER<RE2> (A) M12 L=66.5	9-09223-306-1	01	1	0105-0205
124	CONNECTOR; FLEX HOSE FINAL GEAR 38/7 18.5"(W3E),FINAL GEAR 41/9 19.5"(W5N),FINAL GEAR 43/10 19.5"(W6F) BRAKE SYSTEM RETARDER<RE2> EXC. LIMITED SLIP DIFF VAR1(G85) (A) M12 L=66.5	9-09223-306-1	01	1	0105-0205
124	CONNECTOR; FLEX HOSE FINAL GEAR 39/8 18.5"(W3D),FINAL GEAR 38/7 18.5"(W3E),FINAL GEAR 41/8 18.5"(W3M),FINAL GEAR 41/9 18.5"(W3N),FINAL GEAR 41/10 18.5"(W3V),FINAL GEAR 39/9 18.5"(W4T) LIMITED SLIP DIFF VAR1(G85) BRAKE SYSTEM RETARDER<RE2> (A) M12 L=66.5	9-09223-306-1	01	1	0206-0207
124	CONNECTOR; FLEX HOSE FINAL GEAR 38/7 18.5"(W3E),FINAL GEAR 41/9 19.5"(W5N),FINAL GEAR 44/9 19.5"(W5P),FINAL GEAR 43/10 19.5"(W6F) BRAKE SYSTEM RETARDER<RE2> EXC. LIMITED SLIP DIFF VAR1(G85) (A) M12 L=66.5	9-09223-306-1	01	1	0206-0207
124	CONNECTOR; FLEX HOSE BRAKE SYSTEM RETARDER<RE2> (A) M12 L=66.5	9-09223-306-1	01	1	0208-
125	WASHER; LK BRAKE SYSTEM RETARDER<RE2>	1-48629-206-0	02	1	0105-
130	BOLT; BRKT BRAKE SYSTEM RETARDER<RE2> M6X14 HEX SOCKET	1-48629-145-0	04	1	0105-
134	REPAIR KIT; AIR CYL BRAKE SYSTEM RETARDER<RE2>	1-48629-218-0	02	1	0105-
140	BOLT BRAKE SYSTEM RETARDER<RE2> (E) M12X35 FLANGE	0-28791-235-0	08	1	0401-
140	BOLT BRAKE SYSTEM RETARDER<RE2> (F) M6X18	1-48629-134-0	02	1	0401-
140	BOLT BRAKE SYSTEM RETARDER<RE2> (G) M6X25	1-48629-239-0	01	1	0401-
140	BOLT BRAKE SYSTEM RETARDER<RE2> (A) M10X20	1-48629-070-0	08	1	0105-
140	BOLT BRAKE SYSTEM RETARDER<RE2> (B) M6X14 HEX SOCKET	1-48629-145-0	02	1	0105-
140	BOLT BRAKE SYSTEM RETARDER<RE2> (C)	1-48629-170-0	04	1	0105-
140	BOLT BRAKE SYSTEM RETARDER<RE2> (D) M8X12	1-48629-205-0	02	1	0105-
141	BRACKET BRAKE SYSTEM RETARDER<RE2>	1-48629-233-0	01	1	0105-
142	SCREW BRAKE SYSTEM RETARDER<RE2> M6X14 HEX SOCKET	1-48629-145-0	12	1	0105-
144	NUT BRAKE SYSTEM RETARDER<RE2> M12	9-09840-280-0	05	1	0105-
155	TUBE BRAKE SYSTEM RETARDER<RE2> (A)	1-48629-092-0	01	1	0105-
155	TUBE BRAKE SYSTEM RETARDER<RE2> (B) SERVICED BY L=2000 OD=8	1-87410-073-0	01	1	0105-
166	ATTACHMENT; YOKE BRAKE SYSTEM RETARDER<RE2>	1-48629-191-0	02	1	0105-
168	PROTECTOR; HEAT BRAKE SYSTEM RETARDER<RE2>	1-48629-194-0	02	1	0105-
169	CLAMP BRAKE SYSTEM RETARDER<RE2>	1-48629-126-0	01	1	0105-
170	COVER; CASE BRAKE SYSTEM RETARDER<RE2> (B)	1-48629-196-0	01	1	0105-
170	COVER; CASE BRAKE SYSTEM RETARDER<RE2> (A)	1-48629-232-0	01	1	0105-
171	BREATHER BRAKE SYSTEM RETARDER<RE2>	1-48629-144-0	01	1	0105-
173	FOLLOWER BRAKE SYSTEM RETARDER<RE2>	1-48629-159-0	02	1	0105-
180	PIN; RETAINING BRAKE SYSTEM RETARDER<RE2>	1-48629-198-0	02	1	0105-

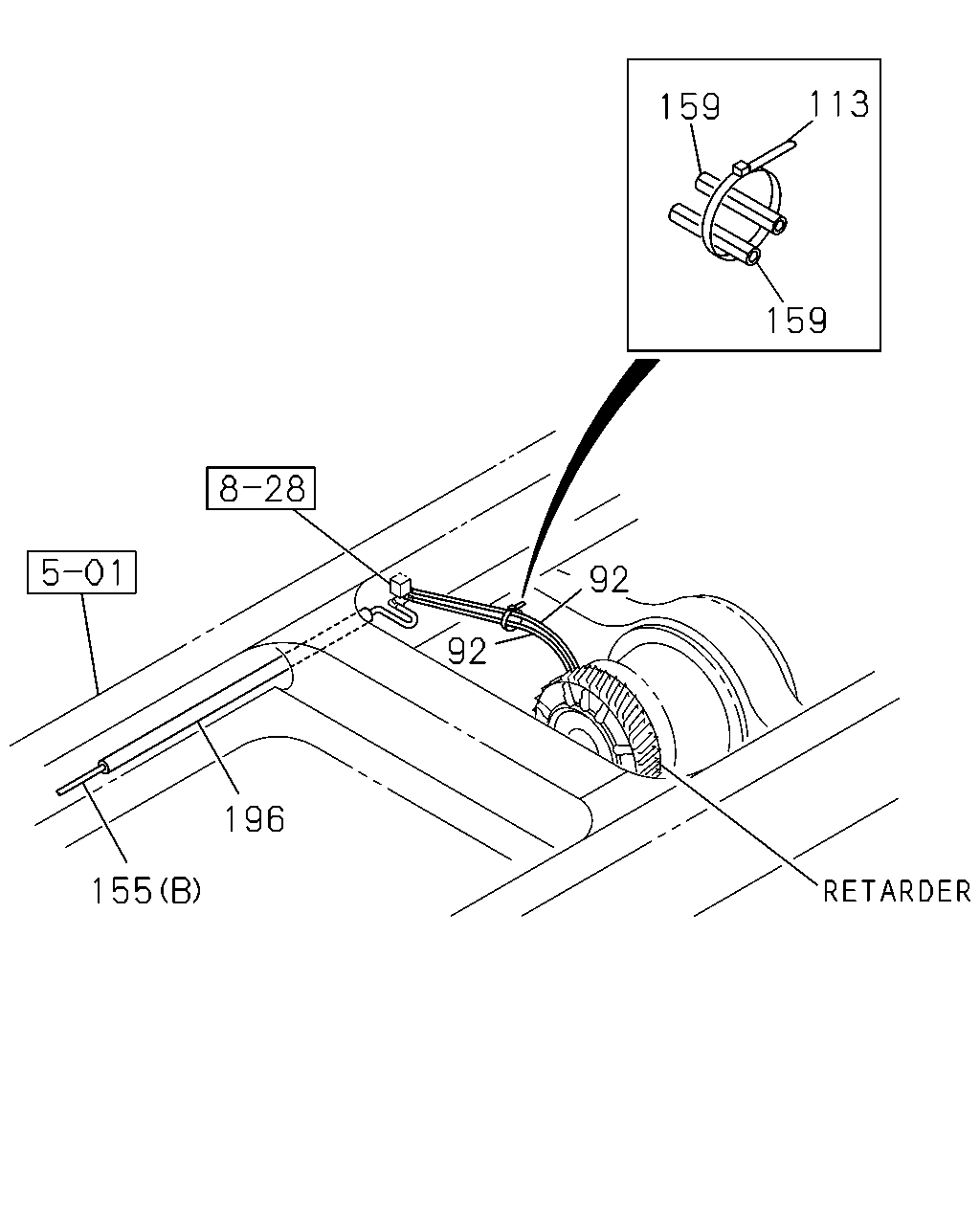

113 159 159 92 92 196 155

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
92	HOSE; FLEX,RETARDER BRAKE SYSTEM RETARDER<RE2> EXC. DUMP TRUCK<RA1> L=510	1-09363-649-0	02	1	0105-
92	HOSE; FLEX,RETARDER DUMP TRUCK<RA1> BRAKE SYSTEM RETARDER<RE2>	1-09363-668-0	02	1	0105-
113	CLIP; HOSE BRAKE SYSTEM RETARDER<RE2> L=140	5-09707-031-1	01	1	0105-
155	TUBE BRAKE SYSTEM RETARDER<RE2> (A)	1-48629-092-0	01	1	0105-
155	TUBE BRAKE SYSTEM RETARDER<RE2> (B) SERVICED BY L=2000 OD=8	1-87410-073-0	01	1	0105-
159	SLEEVE BRAKE SYSTEM RETARDER<RE2> ID=32 OD=36 L=50	1-09337-023-0	02	1	0105-
196	TUBE; CORRUGATE BRAKE SYSTEM RETARDER<RE2> SERVICED BY L=2000 ID=10	1-87410-088-0	02	1	0109-
