3-05 — REAR WHEEL BRAKE (#10171) — 96 parça

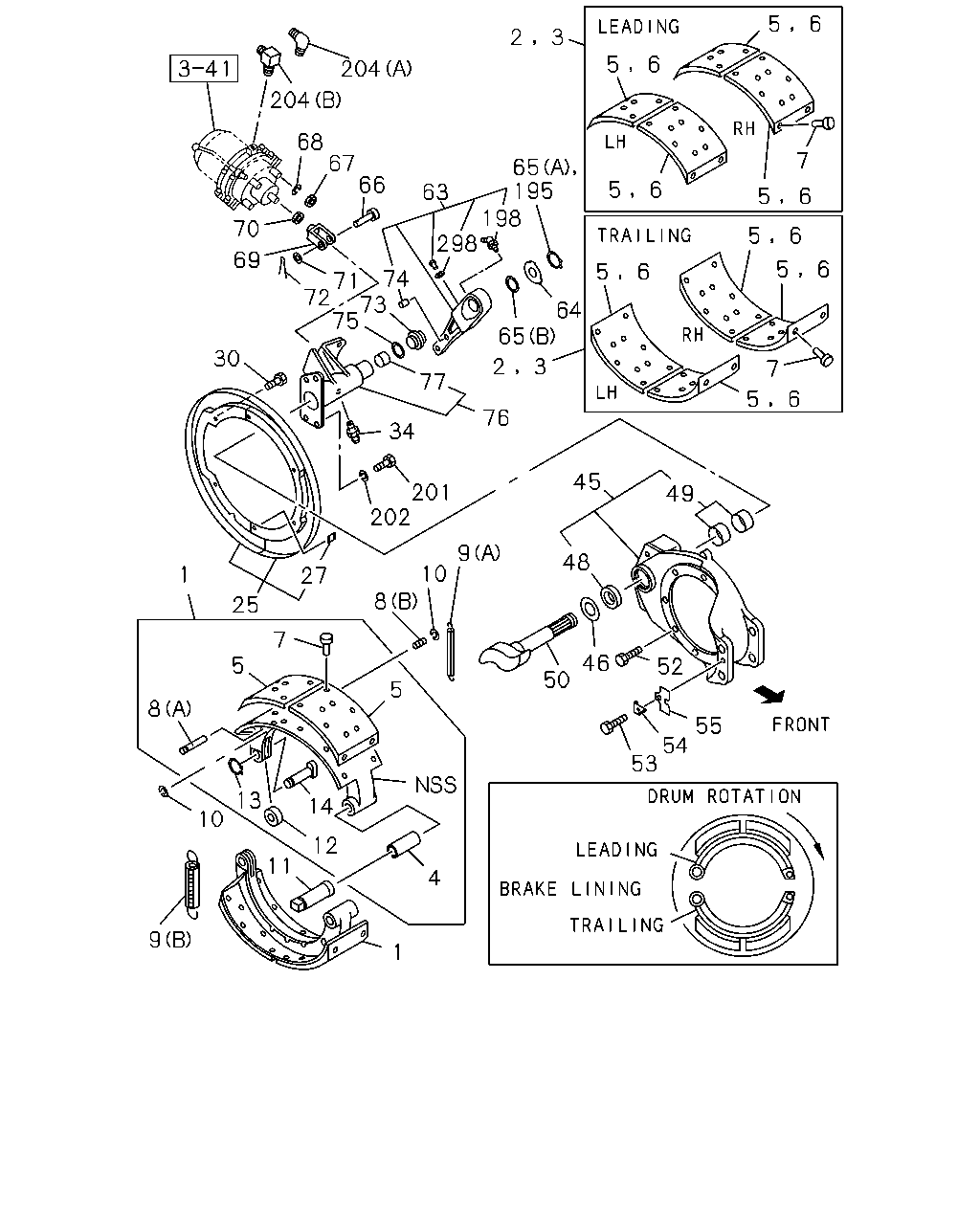

çizim 21712
5 6 2 3 5 6 204 204 68 67 66 7 65 195 198 298 5 6 63 5 6 70 5 6 69 5 6 71 74 72 73 75 5 6 64 65 30 2 3 7 77 5 6 76 34 45 201 202 49 9 48 10 8 1 27 25 7 52 46 5 50 5 8 55 54 53 13 14 10 12 11 4 9 1
BalonParca AdiParca NoAdetTipApplied Date
1 SHOE; BRK,RR
EXC. BRAKE SYSTEM HEAVY DUTY(J55) LEADING 		1-47120-715-0 01 1 0105-
1 SHOE; BRK,RR
EXC. BRAKE SYSTEM HEAVY DUTY(J55) TRAILING 		1-47120-716-0 01 1 0105-
1 SHOE; BRK,RR
EXC. BRAKE SYSTEM HEAVY DUTY(J55) LEADING 		1-47120-713-0 01 1 0105-
1 SHOE; BRK,RR
EXC. BRAKE SYSTEM HEAVY DUTY(J55) TRAILING 		1-47120-714-0 01 1 0105-
1 SHOE; BRK,RR
BRAKE SYSTEM HEAVY DUTY(J55) TRAILING 		1-47120-773-0 01 1 0105-
1 SHOE; BRK,RR
BRAKE SYSTEM HEAVY DUTY(J55) LEADING 		1-47170-067-0 01 1 0105-
1 SHOE; BRK,RR
BRAKE SYSTEM HEAVY DUTY(J55) TRAILING 		1-47120-771-0 01 1 0105-
1 SHOE; BRK,RR
BRAKE SYSTEM HEAVY DUTY(J55) LEADING 		1-47170-066-0 01 1 0105-
2 LINING SET; RR BRK,STANDARD
EXC. BRAKE SYSTEM HEAVY DUTY(J55) LEADING 		1-88310-521-0 01 1 0105-
2 LINING SET; RR BRK,STANDARD
EXC. BRAKE SYSTEM HEAVY DUTY(J55) TRAILING 		1-88310-523-0 01 1 0105-
2 LINING SET; RR BRK,STANDARD
BRAKE SYSTEM HEAVY DUTY(J55) TRAILING 		1-88310-577-0 01 1 0105-
2 LINING SET; RR BRK,STANDARD
BRAKE SYSTEM HEAVY DUTY(J55) LEADING 		1-88310-898-0 01 1 0105-
3 LINING SET; RR BRK,OVER SIZE
EXC. BRAKE SYSTEM HEAVY DUTY(J55) LEADING 		1-88310-522-0 01 1 0105-
3 LINING SET; RR BRK,OVER SIZE
EXC. BRAKE SYSTEM HEAVY DUTY(J55) TRAILING 		1-88310-524-0 01 1 0105-
3 LINING SET; RR BRK,OVER SIZE
BRAKE SYSTEM HEAVY DUTY(J55) TRAILING 		1-88310-578-0 01 1 0105-
3 LINING SET; RR BRK,OVER SIZE
BRAKE SYSTEM HEAVY DUTY(J55) LEADING 		1-88310-899-0 01 1 0105-
4 BUSHING; BRK SHOE,RR WHEEL 1-47112-012-0 04 1 0105-
5 LINING; RR BRK SHOE,STANDARD
EXC. BRAKE SYSTEM HEAVY DUTY(J55) LEADING 		1-47125-797-0 04 1 0105-
5 LINING; RR BRK SHOE,STANDARD
EXC. BRAKE SYSTEM HEAVY DUTY(J55) TRAILING 		1-47125-799-0 04 1 0105-
5 LINING; RR BRK SHOE,STANDARD
BRAKE SYSTEM HEAVY DUTY(J55) TRAILING T=16 		1-47125-907-0 04 1 0105-
5 LINING; RR BRK SHOE,STANDARD
BRAKE SYSTEM HEAVY DUTY(J55) LEADING 		1-47126-214-0 04 1 0105-
6 LINING; RR BRK SHOE,OVER SIZE
EXC. BRAKE SYSTEM HEAVY DUTY(J55) LEADING 		1-47125-798-0 04 1 0105-
6 LINING; RR BRK SHOE,OVER SIZE
EXC. BRAKE SYSTEM HEAVY DUTY(J55) TRAILING 		1-47125-800-0 04 1 0105-
6 LINING; RR BRK SHOE,OVER SIZE
BRAKE SYSTEM HEAVY DUTY(J55) TRAILING T=17 		1-47125-908-0 04 1 0105-
6 LINING; RR BRK SHOE,OVER SIZE
BRAKE SYSTEM HEAVY DUTY(J55) LEADING 		1-47126-215-0 04 1 0105-
7 RIVET; LINING,RR BRK
EXC. BRAKE SYSTEM HEAVY DUTY(J55) L=18.5 		1-09732-034-0 AR 1 0105-
7 RIVET; LINING,RR BRK
BRAKE SYSTEM HEAVY DUTY(J55) L=19.5 		1-09732-035-0 AR 1 0105-
8 PIN; RETURN SPRING,RR BRK SHOE
(A) 		1-47119-029-0 04 1 0105-
8 PIN; RETURN SPRING,RR BRK SHOE
EXC. BRAKE SYSTEM HEAVY DUTY(J55) (B) 		1-47119-021-0 04 1 0105-
8 PIN; RETURN SPRING,RR BRK SHOE
BRAKE SYSTEM HEAVY DUTY(J55) (B) 		1-09744-074-0 04 1 0105-
9 SPRING; RETURN,BRK SHOE
EXC. BRAKE SYSTEM HEAVY DUTY(J55) (B) 		1-09583-175-0 02 1 0105-
9 SPRING; RETURN,BRK SHOE
EXC. BRAKE SYSTEM HEAVY DUTY(J55) (A) 		1-09583-196-0 02 1 0105-
9 SPRING; RETURN,BRK SHOE
BRAKE SYSTEM HEAVY DUTY(J55) (A) 		1-09583-210-0 02 1 0105-
9 SPRING; RETURN,BRK SHOE
BRAKE SYSTEM HEAVY DUTY(J55) (B) 		1-09583-277-2 02 1 0105-
10 RING; SNAP,SPR PIN
EXC. BRAKE SYSTEM HEAVY DUTY(J55) ID=10 		9-09185-410-0 08 1 0105-
11 PIN; ANCHOR,RR WHEEL BRK
L=121.5 		1-47131-039-0 04 1 0105-
12 ROLLER; CAM,BRK SHOE 1-47113-005-0 04 1 0105-
13 CLIP; ROLLER PIN,BRK SHOE 9-47119-022-0 04 1 0105-
14 PIN; CAM ROLLER,BRK SHOE 1-09744-061-0 04 1 0105-
25 COVER SET; RR BRK DRUM
EXC. BRAKE SYSTEM HEAVY DUTY(J55) 		1-47151-462-1 02 1 0105-
25 COVER SET; RR BRK DRUM
BRAKE SYSTEM HEAVY DUTY(J55) 		1-47151-487-1 02 1 0105-
27 COVER; CHECK HOLE,DRUM COVER 1-09333-151-0 04 1 0105-
30 BOLT; DRUM COVER
M10X16 W/LK WASHER 		0-50041-016-0 12 1 0105-
34 NIPPLE; GREASE,CHAMBER BRKT
PT1/8 STRAIGHT 		9-09031-010-0 02 1 0105-
45 BRACKET; ANCHOR PIN,W/BUSHING
ANTILOCK BRAKE SYSTEM(BFA) 		1-47137-269-0 01 1 0105-
45 BRACKET; ANCHOR PIN,W/BUSHING
ANTILOCK BRAKE SYSTEM(BFA) 		1-47137-270-0 01 1 0105-
45 BRACKET; ANCHOR PIN,W/BUSHING
EXC. ANTILOCK BRAKE SYSTEM(BFA) 		1-47137-120-2 02 1 0105-
46 RING; SPACER,CM/SHF,RR BRK 1-47143-005-0 02 1 0105-
48 SEAL; OIL,CM/SHF,RR BRK 1-09625-228-0 02 1 0105-
49 BUSHING; CM/SHF,RR BRK 1-47146-003-1 02 1 0105-
50 CAMSHAFT; BRK,RR BRK
EXC. BRAKE SYSTEM HEAVY DUTY(J55) 		1-47141-054-0 01 1 0105-0312
50 CAMSHAFT; BRK,RR BRK 1-47141-054-0 01 1 0401-
50 CAMSHAFT; BRK,RR BRK
EXC. BRAKE SYSTEM HEAVY DUTY(J55) 		1-47141-053-0 01 1 0105-0312
50 CAMSHAFT; BRK,RR BRK 1-47141-053-0 01 1 0401-
50 CAMSHAFT; BRK,RR BRK
BRAKE SYSTEM HEAVY DUTY(J55) 		1-47141-095-0 01 1 0105-0312
50 CAMSHAFT; BRK,RR BRK
BRAKE SYSTEM HEAVY DUTY(J55) 		1-47141-094-0 01 1 0105-0312
52 BOLT; ANCHOR BRKT
M14X50 		1-09040-066-0 02 1 0105-
53 BOLT; LOCK PLATE
M10X16 		0-20801-016-0 02 1 0105-
54 WASHER; LK,ANCHOR PIN,RR BRK 1-47133-011-0 02 1 0105-
55 PLATE; LK,RR WHEEL CYL 1-47133-005-0 02 1 0105-
63 ADJUSTER ASM; SLACK,RR BRK 1-48270-046-0 01 1 0105-
63 ADJUSTER ASM; SLACK,RR BRK 1-48270-045-0 01 1 0105-
64 PLATE; STOPPER,CM/SHF 1-47149-022-0 02 1 0105-
65 SPACER; SLACK ADJ,BRK
(B) 		1-47143-004-0 02 1 0105-
65 SPACER; SLACK ADJ,BRK
FINAL GEAR 18.5"<C1C> EXC. ANTILOCK BRAKE SYSTEM(BFA),BRAKE SYSTEM HEAVY DUTY(J55) (A) 		9-09180-038-0 01 1 0105-
66 PIN; JAW JOINT 1-09744-088-0 02 1 0105-
67 NUT; POWER CHAMBER FIX
M16 		9-99110-416-0 08 1 0105-
68 WASHER; LK,CHAMBER
ID=16.2 		9-09150-516-0 08 1 0105-
69 JOINT; JAW 1-09768-060-1 02 1 0105-
70 NUT; LK,JAW JOINT
M16 		9-99111-416-0 02 1 0105-
71 WASHER; PL,JAW JOINT
ID=17 OD=32 		9-09160-616-0 02 1 0105-
72 PIN; SPLIT
OD=3.7 L=28 		9-08114-028-0 02 1 0105-
73 COLLAR; FELT RING,CM/SHF 1-47143-016-0 02 1 0105-
74 BUSHING; SLACK ADJ 1-09330-041-0 02 1 0105-
75 RING; FELT,CM/SHF 1-09620-009-0 02 1 0105-
76 BRACKET; POWER CHAMBER,RR,W/BUSHING
EXC. BRAKE SYSTEM HEAVY DUTY(J55) 		1-48258-084-0 01 1 0105-0312
76 BRACKET; POWER CHAMBER,RR,W/BUSHING 1-48258-084-0 01 1 0401-
76 BRACKET; POWER CHAMBER,RR,W/BUSHING
EXC. BRAKE SYSTEM HEAVY DUTY(J55) 		1-48258-083-0 01 1 0105-0312
76 BRACKET; POWER CHAMBER,RR,W/BUSHING 1-48258-083-0 01 1 0401-
76 BRACKET; POWER CHAMBER,RR,W/BUSHING
BRAKE SYSTEM HEAVY DUTY(J55) 		1-48258-141-0 01 1 0105-0312
76 BRACKET; POWER CHAMBER,RR,W/BUSHING
BRAKE SYSTEM HEAVY DUTY(J55) 		1-48258-140-0 01 1 0105-0312
77 BUSHING 1-47146-003-1 02 1 0105-
195 RING; SNAP,CM/SHF
FINAL GEAR 18.5"<C1C> ANTILOCK BRAKE SYSTEM(BFA) EXC. BRAKE SYSTEM HEAVY DUTY(J55) 		9-09180-038-0 02 1 0105-
195 RING; SNAP,CM/SHF
BRAKE SYSTEM HEAVY DUTY(J55) 		9-09180-038-0 02 1 0105-
195 RING; SNAP,CM/SHF
FINAL GEAR 18.5"<C1C> EXC. ANTILOCK BRAKE SYSTEM(BFA),BRAKE SYSTEM HEAVY DUTY(J55) 		9-09180-038-0 01 1 0105-
198 NIPPLE; GREASE,SLACK ADJ
PT1/8 ELBOW 67.5 DEGREES 		9-09031-110-0 02 1 0105-
201 BOLT; BRKT,POWER CHAMBER
FINAL GEAR 18.5"<C1C> EXC. ANTILOCK BRAKE SYSTEM(BFA),BRAKE SYSTEM HEAVY DUTY(J55) M14X35 		0-28081-435-0 08 1 0202-
201 BOLT; BRKT,POWER CHAMBER
FINAL GEAR 18.5"<C1C> ANTILOCK BRAKE SYSTEM(BFA) EXC. BRAKE SYSTEM HEAVY DUTY(J55) M14X35 		0-20801-435-0 08 1 0105-
201 BOLT; BRKT,POWER CHAMBER
BRAKE SYSTEM HEAVY DUTY(J55) M14X35 		0-20801-435-0 08 1 0105-
202 WASHER; LK,BRKT
FINAL GEAR 18.5"<C1C> ANTILOCK BRAKE SYSTEM(BFA) EXC. BRAKE SYSTEM HEAVY DUTY(J55) ID=14.2 		9-09150-514-0 08 1 0105-0201
202 WASHER; LK,BRKT
BRAKE SYSTEM HEAVY DUTY(J55) ID=14.2 		9-09150-514-0 08 1 0105-0201
202 WASHER; LK,BRKT
ID=14.2 		9-09150-514-0 08 1 0202-
204 CONNECTOR; SPR CHAMBER
(A) DIN8 & R3/8 ELBOW 		1-09660-652-1 01 1 0105-
204 CONNECTOR; SPR CHAMBER
BRAKE SYSTEM RETARDER<RE2> (B) M20 & PT3/8 ELBOW 		1-09660-684-0 01 1 0105-
204 CONNECTOR; SPR CHAMBER
EXC. BRAKE SYSTEM RETARDER<RE2> (B) DIN12 & R3/8 ELBOW 		1-09660-653-1 01 1 0105-
298 GASKET
ID=23.3 		9-09561-223-0 02 1 0105-
